Bitumen and bituminous binders - Determination of the softening point - Ring and Ball method

This European Standard specifies a method for the determination of the softening point of bitumen and bituminous binders in the range of 28 °C to 150 °C.
NOTE   The method described is also applicable to bituminous binders that have been recovered from bituminous mixes, e.g. by extraction.
WARNING - Use of this European Standard can involve hazardous materials, operations and equipment. This European Standard does not purport to address all of the safety problems associated with its use. It is the responsibility of the user of this European Standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use.

Bitumen und bitumenhaltige Bindemittel - Bestimmung des Erweichungspunktes - Ring- und Kugel-Verfahren

Diese Europäische Norm legt ein Verfahren zur Bestimmung des Erweichungspunktes von Bitumen und bitumenhaltigen Bindemitteln im Bereich von 28 °C bis 150 °C fest.
ANMERKUNG   Das beschriebene Verfahren ist auch auf bitumenhaltige Bindemittel anwendbar, die aus bitumenhaltigen Gemischen, z. B. durch Extraktion, zurückgewonnen wurden.
WARNUNG — Die Anwendung dieser Europäischen Norm kann den Umgang mit gefährlichen Substanzen und Ausrüstungsteilen und die Ausführung gefährlicher Arbeitsgänge einschließen. Diese Europäische Norm erhebt nicht den Anspruch, alle mit ihrer Anwendung verbundenen Sicherheitsprobleme anzusprechen. Es liegt in der Verantwortung des Anwenders dieser Europäischen Norm, geeignete Verhaltensregeln für den Arbeits- und Gesundheitsschutz festzulegen und vor der Anwendung zu klären, ob einschränkende Vorschriften zu berücksichtigen sind.

Bitumes et liants bitumineux - Détermination du point de ramollissement - Méthode Bille et Anneau

La présente Norme européenne définit une méthode de détermination du point de ramollissement des bitumes et des liants bitumineux, dans la plage des températures de 28 °C à 150 °C.
Avertissement technique – Le changement des thermomètres à mercure pour des dispositifs électroniques de mesure de la température a mis en évidence que la définition des thermomètres à mercure n’est pas suffisamment précise pour faire un transfert correct, sans biais vers ces dispositifs électroniques. Il est recommandé de veiller aux points de ramollissement bille et anneau supérieurs à 100 °C du fait de changement entre les pratiques précédentes et celles des équipements d’essai actuels. En dessous de 100 °C environ, la différence entre les températures lues avec les dispositifs électroniques et les thermomètres à mercure est acceptable au regard de la répétabilité de cette méthode d’essai [Reference: ASTM E20 Group].
NOTE   Cette méthode peut également s’appliquer aux liants bitumineux récupérés, par exemple ceux extraits d’enrobés bitumineux.
AVERTISSEMENT — L’utilisation de la présente Norme européenne peut impliquer le recours à des produits, des opérations et des équipements à caractères dangereux. La présente Norme européenne n’est pas censée aborder tous les problèmes de sécurité concernés par son usage. Il est de la responsabilité de l’utilisateur de consulter et d’établir des règles de sécurité et d’hygiène appropriées et de déterminer l’applicabilité des restrictions réglementaires avant utilisation.

Bitumen in bitumenska veziva - Določanje zmehčišča - Metoda prstana in kroglice

Ta evropski standard določa metodo za določanje zmehčišča bitumnov in bitumenskih veziv pri temperaturi 28–150 °C.
OPOMBA: Opisana metoda se uporablja tudi za bitumenska veziva, ki so bila pridobljena iz bitumenskih zmesi, npr. z ekstrakcijo.
OPOZORILO: Pri uporabi tega evropskega standarda so lahko prisotni nevarni materiali, postopki in oprema. Ta evropski standard ne obravnava vseh varnostnih težav, ki se nanašajo na njegovo uporabo. Za vzpostavitev ustreznih varnostnih in zdravstvenih praks ter za določitev uporabnosti regulativnih omejitev pred uporabo je odgovoren uporabnik tega evropskega standarda.

General Information

Status
Published
Public Enquiry End Date
14-Jan-2014
Publication Date
07-Sep-2015
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
09-Jul-2015
Due Date
13-Sep-2015
Completion Date
08-Sep-2015

Relations

Buy Standard

Standard
SIST EN 1427:2015
English language
18 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Bitumen und bitumenhaltige Bindemittel - Bestimmung des Erweichungspunktes - Ring- und Kugel-VerfahrenBitumes et liants bitumineux - Détermination du point de ramollissement - Méthode Bille et AnneauBitumen and bituminous binders - Determination of the softening point - Ring and Ball method91.100.50Veziva. Tesnilni materialiBinders. Sealing materials75.140Voski, bitumni in drugi naftni proizvodiWaxes, bituminous materials and other petroleum productsICS:Ta slovenski standard je istoveten z:EN 1427:2015SIST EN 1427:2015en,fr,de01-oktober-2015SIST EN 1427:2015SLOVENSKI

STANDARDSIST EN 1427:20071DGRPHãþD
SIST EN 1427:2015
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 1427
July 2015 ICS 91.100.50; 75.140 Supersedes EN 1427:2007English Version

Bitumen and bituminous binders - Determination of the softening point - Ring and Ball method

Bitumes et liants bitumineux - Détermination du point de ramollissement - Méthode Bille et Anneau

Bitumen und bitumenhaltige Bindemittel - Bestimmung des Erweichungspunktes - Ring- und Kugel-Verfahren This European Standard was approved by CEN on 27 May 2015.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,

B-1000 Brussels © 2015 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 1427:2015 ESIST EN 1427:2015

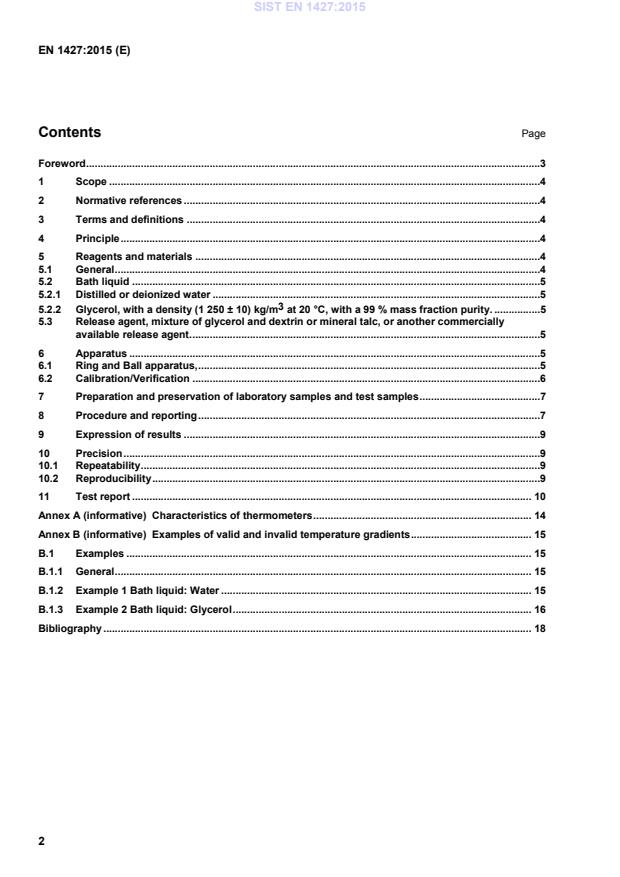

EN 1427:2015 (E) 2 Contents Page Foreword ..............................................................................................................................................................3 1 Scope ......................................................................................................................................................4 2 Normative references ............................................................................................................................4 3 Terms and definitions ...........................................................................................................................4 4 Principle ..................................................................................................................................................4 5 Reagents and materials ........................................................................................................................4 5.1 General ....................................................................................................................................................4 5.2 Bath liquid ..............................................................................................................................................5 5.2.1 Distilled or deionized water ..................................................................................................................5 5.2.2 Glycerol, with a density (1 250 ± 10) kg/m3 at 20 °C, with a 99 % mass fraction purity. ................5 5.3 Release agent, mixture of glycerol and dextrin or mineral talc, or another commercially available release agent. .........................................................................................................................5 6 Apparatus ...............................................................................................................................................5 6.1 Ring and Ball apparatus, .......................................................................................................................5 6.2 Calibration/Verification .........................................................................................................................6 7 Preparation and preservation of laboratory samples and test samples ..........................................7 8 Procedure and reporting .......................................................................................................................7 9 Expression of results ............................................................................................................................9 10 Precision .................................................................................................................................................9 10.1 Repeatability ...........................................................................................................................................9 10.2 Reproducibility .......................................................................................................................................9 11 Test report ........................................................................................................................................... 10 Annex A (informative)
