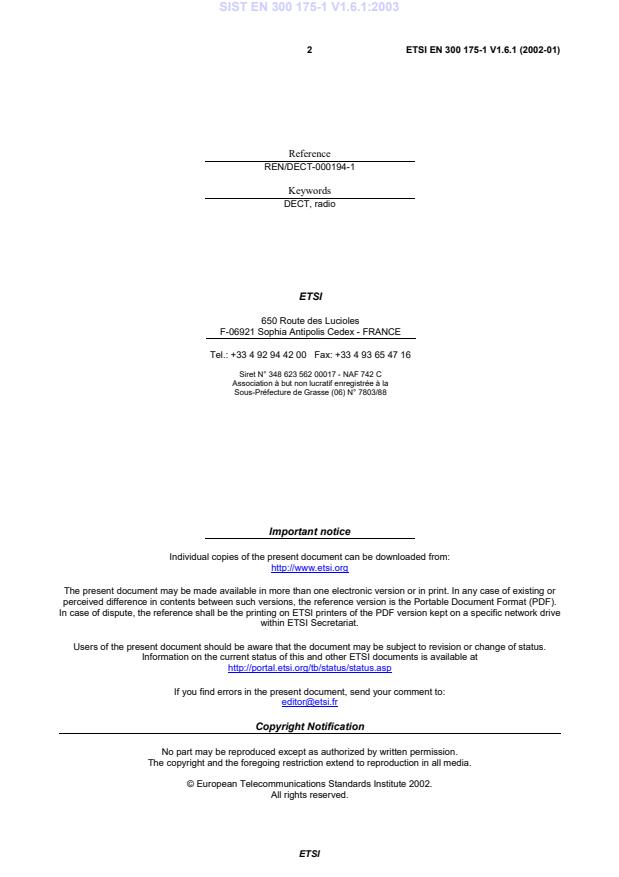

ETSI ETSI EN 300 175-1 V1.6.1 (2002-01) 2
Reference REN/DECT-000194-1 Keywords DECT, radio ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice Individual copies of the present document can be downloaded from: http://www.etsi.org The present document may be made available in more than one electronic version or in print. In any case of existing or perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF). In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, send your comment to: editor@etsi.fr Copyright Notification No part may be reproduced except as authorized by written permission. The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2002. All rights reserved.
ETSI ETSI EN 300 175-1 V1.6.1 (2002-01) 3 Contents Intellectual Property Rights.4 Foreword.4 1 Scope.5 2 References.5 3 Definitions and abbreviations.6 3.1 Definitions.6 3.2 Abbreviations.13 4 Structure.17 4.1 Part 1: Overview.17 4.2 Part 2: Physical Layer (PHL).17 4.3 Part 3: Medium Access Control (MAC) layer.18 4.4 Part 4: Data Link Control (DLC) layer.18 4.5 Part 5: Network (NWK) layer.18 4.6 Part 6: Identities and addressing.18 4.7 Part 7: Security features.18 4.8 Part 8: Speech coding and transmission.18 5 The objectives of the CI standard.19 6 General description of the system.20 7 Description of the protocol architecture.21 7.1 General.21 7.2 The DECT layered structure.21 7.3 Physical Layer (PHL).21 7.4 MAC layer.22 7.5 DLC layer.22 7.6 Network (NWK) layer.22 7.7 Lower Layer Management Entity (LLME).22 7.8 Interworking Units (IWU).23 8 Proprietary escapes within the CI.23 8.1 Primary escape routes.23 8.2 Secondary escape routes.24 9 Levels of conformance.24 Annex A (informative): Bibliography.25 History.26
ETSI ETSI EN 300 175-1 V1.6.1 (2002-01) 4 Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (http://webapp.etsi.org/IPR/home.asp). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This European Standard (Telecommunications series) has been produced by ETSI Project Digital Enhanced Cordless Telecommunications (DECT). The present document is part 1 of a multi-part deliverable covering the Common Interface (CI) for the Digital Enhanced Cordless Telecommunications (DECT), as identified below: Part 1: "Overview"; Part 2: "Physical Layer (PHL)"; Part 3: "Medium Access Control (MAC) layer"; Part 4: "Data Link Control (DLC) layer"; Part 5: "Network (NWK) layer"; Part 6: "Identities and addressing"; Part 7: "Security features"; Part 8: "Speech coding and transmission". The following aspects of the present document are subject to controlled distribution: a) DECT identities, as defined in EN 300 175-6 [4]; b) DECT cryptographic algorithms. The cryptographic algorithms specify the details of the DECT standard authentication algorithm and the DECT standard cipher. These aspects are distributed on an individual basis. Further information and details of the current distribution procedures can be obtained from the ETSI Secretariat at the address on the second page of the present document. Further details of the DECT system may be found in TR 101 178 [7], ETR 043 [9] and TR 102 185 [10].
National transposition dates Date of adoption of this EN: 11 January 2002 Date of latest announcement of this EN (doa): 30 April 2002 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
31 October 2002 Date of withdrawal of any conflicting National Standard (dow): 31 October 2002
ETSI ETSI EN 300 175-1 V1.6.1 (2002-01) 5 1 Scope The present document gives an introduction and overview of the complete Digital Enhanced Cordless Telecommunications (DECT) Common Interface (CI). This part of the DECT CI contains an abstract of the other parts of the DECT standard together with a general description of: - the objectives of the present document; - the DECT Common Interface; - the protocol architecture of DECT. The present document also provides an extensive vocabulary; in particular it contains the common definitions of all the technical terms used in different parts of the present document. 2 References The following documents contain provisions which, through reference in this text, constitute provisions of the present document. • References are either specific (identified by date of publication and/or edition number or version number) or non-specific. • For a specific reference, subsequent revisions do not apply. • For a non-specific reference, the latest version applies. [1] ETSI EN 300 175-3: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI); Part 3: Medium Access Control (MAC) layer". [2] ETSI EN 300 175-4: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI); Part 4: Data Link Control (DLC) layer". [3] ETSI EN 300 175-5: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI); Part 5: Network (NWK) layer". [4] ETSI EN 300 175-6: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI); Part 6: Identities and addressing". [5] ETSI EN 300 175-8: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI); Part 8: Speech coding and transmission". [6] ETSI EN 300 176: "Digital Enhanced Cordless Telecommunications (DECT); Approval test specification; (Part 1: Radio; Part 2: Speech)". [7] ETSI TR 101 178: "Digital Enhanced Cordless Telecommunications (DECT); A High Level Guide to the DECT Standardization". [8] ETSI ETR 310: "Digital Enhanced Cordless Telecommunications (DECT); Traffic capacity and spectrum requirements for multi-system and multi-service DECT applications co-existing in a common frequency band". [9] ETSI ETR 043: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI); Services and facilities requirements specification". [10] ETSI TR 102 185: "Digital Enhanced Cordless Telecommunications (DECT); Data Services Profile (DSP); Profile overview". [11] ETSI EN 300 403-1: "Integrated Services Digital Network (ISDN); Digital Subscriber Signalling System No. one (DSS1) protocol; Signalling network layer for circuit-mode basic call control;
Part 1: Protocol specification [ITU-T Recommendation Q.931 (1993), modified]". SIST EN 300 175-1 V1.6.1:2003
ETSI ETSI EN 300 175-1 V1.6.1 (2002-01) 6 [12] ITU-R Recommendation SM.1046-1 (1997): "Definition of spectrum use and efficiency of a radio system". [13] ITU-R Recommendation M.816-1 (1997): "Framework for services supported on International Mobile Telecommunications-2000 (IMT-2000)". [14] ITU-R Recommendation M.1457 (2000): "Detailed specifications of the radio interfaces of International Mobile Telecommunications-2000 (IMT-2000)". [15] ITU-T Recommendation X.25: "Interface between Data Terminal Equipment (DTE) and Data Circuit-terminating Equipment (DCE) for terminals operating in the packet mode and connected to public data networks by dedicated circuit". 3 Definitions and abbreviations 3.1 Definitions For the purposes of the present document, the following terms and definitions apply: Access Rights Class (ARC): type of access to a DECT network, such as public, residential or private Access Rights Details (ARD): unique number within one ARC Access Rights Identity (ARI): globally unique identity that shows the access rights related to a service provider PARI = Primary ARI; SARI = Secondary ARI; TARI = Tertiary ARI. algorithm: mathematical process or function that transforms an input into an output algorithm identifier: designator to show which algorithm is in use, so that the correct one may be chosen antenna diversity: diversity implies that the Radio Fixed Part (RFP) for each bearer independently can select different antenna properties such as gain, polarization, coverage patterns, and other features that may effect the practical coverage. A typical example is space diversity, provided by two vertically polarized antennas separated by 10 - 20 cm. asymmetric algorithm: See public key algorithm. attach: process whereby a Portable Part (PP) within the coverage area of a Fixed Part (FP) to which it has access rights, notifies the FP that it is operative authentication: corroboration that an entity is the one that is claimed authentication of FT: process whereby the identity of an FT is verified to a DECT PT authentication of PT: process whereby a DECT PT is positively verified to be a legitimate user of a particular FP authentication (of a subscriber): process whereby a DECT subscriber is positively verified to be a legitimate user of a particular FP authentication of user: process whereby a DECT user is positively verified to be a legitimate user of a particular FP bearer: See Medium Access Control (MAC) bearer or bearer service. bearer handover: internal handover process provided by the MAC layer, whereby one MAC connection can modify its underlying bearers while maintaining the service provided to the Data Link Control (DLC) layer bearer service: type of telecommunication service that provides a defined capability for the transmission of signals between user-network interfaces broadcast: simplex point-to-multipoint mode of transmission SIST EN 300 175-1 V1.6.1:2003
ETSI ETSI EN 300 175-1 V1.6.1 (2002-01) 7 C-plane: control plane of the DECT protocol stacks, which contains all of the internal DECT protocol control, but may also include some external user information call: all of the Network (NWK) layer processes involved in one NWK layer peer-to-peer association cell: domain served by a single antenna(e) system (including a leaky feeder) of one FP Central Control Fixed Part (CCFP): physical grouping that contains the central elements of a FP centrex: implementation of a private telecommunication network exchange that is not located on the premises of the private network operator Cipher Key (CK): value that is used to determine the transformation of plaintext to ciphertext in a cryptographic algorithm Cipher Key (CK) generation: process for generating cryptographic keys ciphertext: output of a cryptographic algorithm channel: See "physical channel". cluster: logical grouping of one or more cells between which bearer handover is possible confidentiality: rendering information secret as ciphertext unless the capability is possessed to recover the plaintext from ciphertext connection: See "MAC connection". connection handover: internal handover process provided by the DLC layer, whereby one set of DLC entities (C-plane and U-plane) can re-route data from one MAC connection to a second new MAC connection, while maintaining the service provided to the NWK layer Connectionless mode (C/L): transmission mode that transfers one packet (one self contained unit) of data from one source point to one (or more) destination points in a single phase Connection Oriented mode (C/O): transmission mode that transfers data from one source point to one or more destination points using a protocol based on three phases: "Set-up", "Data transfer" and "Release" Cordless Radio Fixed Part (CRFP): Wireless Relay Station (WRS) that provides independent bearer control to a PT and FT for relayed connections countermeasure: device, instrument or procedure used to counteract or defend against a threat coverage area: area over which reliable communication can be established and maintained cryptography: secret writing Data Encryption Standard (DES): United States Federal data encryption standard Data Link Control (DLC): layer 2b of the DECT protocol stack decipherment: rendering of ciphertext into plaintext DECT Network (DNW): network that uses the DECT air interface to interconnect a local network to one or more portable applications DECT Standard Authentication Algorithm (DSAA): algorithm used for authentication in DECT DECT Standard Cipher (DSC): algorithm used for data encryption in DECT Distributed Communication: the ability of a DECT terminal to provide means for or assist direct communication between any two terminals, members of a "closed" local DECT network DLC broadcast: simplex "connectionless" mode of transmission from the DLC broadcast entity of one FT to the DLC broadcast entities in one or more PT DLC data link (DLC link): association between two DLC layer entities SIST EN 300 175-1 V1.6.1:2003
ETSI ETSI EN 300 175-1 V1.6.1 (2002-01) 8 DLC frame: format used to structure all messages that are exchanged between DLC layer peer entities double duplex bearer: use of two duplex bearers (see duplex bearer) which refer to the same MAC connection, sharing their simplex bearers (see simplex bearer) for the information flow double-simplex bearer: use of two simplex bearers operating in the same direction on two physical channels double slot: one 12th of a TDMA frame which is used to support one high capacity physical channel down-link: transmission in the direction FT to PT duplex bearer: use of two simplex bearers operating in opposite directions on two physical channels encipherment: rendering of plaintext into ciphertext End System (ES): logical grouping that contains application processes and supports telecommunication services Extended MAC control messages: MAC messages of the B-field connection control set external handover: process of switching a call in progress from one FP to another FP FEAL algorithm: Fast Encryption Algorithm; a particular encryption algorithm in the public domain field: continuous region of data (i.e. adjacent bits) that jointly convey information fixed geometry Portable Part (PP): PP in which the electro-acoustic transducers and their associated acoustic components are held in fixed relative positions and/or orientations during all on-line conditions and test conditions of the PP Fixed Part (DECT Fixed Part) (FP): physical grouping that contains all of the elements in the DECT network between the local network and the DECT air interface Fixed radio Termination (FT): logical group of functions that contains all of the DECT processes and procedures on the fixed side of the DECT air interface flow control: mechanism that is used to regulate the flow of data between two peer entities fragment: one of the Service Data Units (SDUs) that is produced by the process of fragmentation fragmentation: process of dividing a Protocol Data Unit (PDU) into more than one SDU for delivery to a lower layer frame: See "TDMA frame" or "DLC frame". full slot (slot): one 24th of a TDMA frame which is used to support one physical channel generic: generalized set or general purpose set, often in the sense of basic or ordinary Generic Access Profile (GAP): standard in addition to the DECT CI that ensures interoperability between FPs and PPs from different manufacturers geographically unique: two FPs with the same PARI, or respectively two RFPs with the same RFPI, cannot be reached or listened to at the same geographical position Global NetWork (GNW): telecommunication network capable of offering a long distance telecommunication service globally unique identity: identity is unique within DECT (without geographical or other restrictions) guard space: nominal interval between the end of a radio transmission in a given slot, and the start of a radio transmission in the next successive slot half slot: one 48th of a TDMA frame which is used to support one physical channel handover: process of switching a call in progress from one physical channel to another physical channel handset echo: echo, perceptible by the far-end user, resulting from the coupling between the receiving and sending directions of the handset, mostly due to acoustic coupling between transducers Hybrid Part (HyP): DECT terminal that provides FT as well as PT capabilities SIST EN 300 175-1 V1.6.1:2003
ETSI ETSI EN 300 175-1 V1.6.1 (2002-01) 9 impersonation: where one identity claims the part of another identity incoming call: call received at a PP Integrated Services Digital Network (ISDN): digital telecommunications infrastructure to the Consultative Committee on International Telegraphy and Telephony (CCITT) standards intercell handover: switching of a call in progress from one cell to another cell internal call: call between 2 users that does not make use of the local network resources internal handover: handover processes that are completely internal to one FT International Portable User Identity (IPUI): identity that uniquely defines one user within the domain defined by his access rights related to this IPUI interoperability: capability of FPs and PPs, that enable a PP to obtain access to teleservices in more than one location area and/or from more than one operator (more than one service provider) interoperator roaming: roaming between FP coverage areas of different operators (different service providers) Interworking Unit (IWU): unit that is used to interconnect subnetworks intracell handover: switching of a call in progress from one physical channel of one cell to another physical channel of the same cell intraoperator roaming: roaming between different FP coverage areas of the same operator (same service provider) Isochronous: essential characteristic of a time-scale or a signal such that the time intervals between consecutive significant instants either have the same duration or durations that are integral multiples of the shortest duration key management: way in which cryptographic keys are generated, distributed and used Key Stream Generator (KSG): cryptographic algorithm which produces a stream of binary digits which can be used for encipherment and decipherment link: See "DLC data link". Local Area Network (LAN): electronic systems which are interconnected and in physical proximity to each other Local Network (LNW): telecommunication network capable of offering local telecommunication services locally unique identity: identity is unique within one FP or location area, depending on application location area: domain in which a PP may receive (and/or make) calls as a result of a single location registration location registration: process whereby the position of a DECT portable termination is determined to the level of one location area, and this position is updated in one or more databases logical channel: generic term for any distinct data path logical connection: association between two instances of the MAC MBC that can be used by higher layers to exchange U-plane or C-plane data Lower Layer Management Entity (LLME): management entity that spans a number of lower layers, and is used to describe all control activities which do not follow the rules of layering Lower Tester (LT): logical grouping that contains the test equipment, a functionally equivalent DECT PT, a functionally equivalent DECT FT and a test controller MAC bearer (bearer): service element that is provided by each Cell Site Function (CSF) MAC connection (connection): association between one source MAC Multi-Bearer Control (MBC) entity and one destination MAC MBC entity masquerading: where one identity plays the part of, or acts as, another identity Medium Access Control (MAC): layer 2a of the DECT protocol stack SIST EN 300 175-1 V1.6.1:2003
ETSI ETSI EN 300 175-1 V1.6.1 (2002-01) 10 minimal MMS-message attributes: message meta-information used in the request-to-send, etc. MMS-message attributes: message meta-information Mobility class 1: local area applications, for which terminals are pre-registered off-air with one or more specific fixed parts, and establishment of service and user parameters is therefore implicit, according to a profile-defined list Mobility class 2: private and public roaming applications for which terminals may move between FPs within a given domain and for which association of service parameters is explicit at the time of service request multiframe: repeating sequence of 16 successive TDMA frames, that allows low rate or sporadic information to be multiplexed (e.g. basic system information or paging) Multimedia Messaging Service: generic set of commands, information elements and functionality for file/messaging service mutual authentication: where two entities corroborate the identity of each other network (telecommunication network): all the means of providing telecommunication services between a number of locations where the services are accessed via equipment attached to the network network echo: echo, perceptible by the DECT user, resulting from reflections in the network. It is mostly due to hybrid impairments at both ends of the communication node: point at which switching occurs operator (DECT operator): individual or entity who or which is responsible for operation of one or more DECT FPs outgoing call: call originating from a PP paging: process of broadcasting a message from a DECT FP to one or more DECT PPs paging area: domain in which the PP will be paged as a part of incoming call establishment PARK Length Indicator (PLI): associates a group of FP ARIs to the PARK, by indicating how many of the first ARC + ARD bits are relevant Personal Identity Number (PIN): short sequence of numbers (usually 4 - 8 digits) which may be used in an authentication process to prove identity phase: one discrete part of a procedure, where the start and end of the part can be clearly identified (e.g. by the arrival or dispatch of a primitive) Physical (PHY): layer 1 of the DECT protocol stack physical channel (channel): simplex channel that is created by transmitting in one particular slot on one particular RF channel in successive TDMA frames plaintext: information or data which is intelligible to everyone Portable Access Rights Key (PARK): this states the access rights for a PP Portable Application (PA): logical grouping that contains all the elements that lie beyond the DECT network boundary on the portable side Portable Handset (PHS): single physical grouping that contains all of the portable elements that are needed to provide a teleservice to the user Portable Part (DECT Portable Part) (PP): physical grouping that contains all elements between the user and the DECT air interface Portable radio Termination (PT): logical group of functions that contains all of the DECT processes and procedures on the portable side of the DECT air interface Portable User Number (PUN): globally or locally unique number within one PUT Portable User Type (PUT): this shows the numbering plan structure of a PUN SIST EN 300 175-1 V1.6.1:2003
ETSI ETSI EN 300 175-1 V1.6.1 (2002-01) 11 Primary Access Rights Identity (PARI): most frequently transmitted ARI primitive: distinct (but abstract) data element that is passed between adjacent protocol layers private: attribute indicating that the application of the so qualified term, e.g. a network, an equipment, a service, is offered to, or is in the interest of, a determined set of users proprietary algorithm: algorithm which is the intellectual property of a legal entity public: attribute indicating that the application of the so qualified term, e.g. a network, an equipment, a service, is offered to, or is in the interest of, the general public Public Access Profile (PAP): profile which ensures interoperability between FPs and PPs for public access services public access service: service that provides access to a public network for the general public public key algorithm: cryptographic algorithm in which a different key is used for encipherment and for decipherment radio channel: See RF channel or physical channel. radio end point: physical grouping that contains one radio transceiver (transmitter/receiver), fixed or portable Radio Fixed Part (RFP): one physical sub-group of a FP that contains all the radio end points (one or more) that are connected to a single system of antennas Radio Fixed Part Identity (RFPI): identity frequently transmitted by every RFP - PARI; - the RFPs local identity within that FP; - domains for handover and location areas. random number: number generated by a non-deterministic process registration: See either location registration or subscription registration. Repeater Part (REP): WRS that relays information within the half frame time interval RF carrier (carrier): centre frequency occupied by one DECT transmission RF channel: nominal range of frequencies (RF spectrum) allocated to the DECT transmissions of a single RF carrier roaming: movement of a PP from one FP coverage area to another FP coverage area, where the capabilities of the FPs enable the PP to make or receive calls in both areas roaming service: service which can be used in more than one FP coverage area RS: value used to establish authentication session keys, as defined in clause 4.4.3 RSA (Rivest, Shamir & Adleman) algorithm: public key algorithm Secondary Access Rights Identity (SARI): less frequently broadcast than the PARI security attribute: protocol element indicating security services, mechanisms, processes or algorithms that are supported segment: one of the pieces of data that is produced by the process of segmentation segmentation: process of partitioning one SDU from a higher layer into more than one PDU Session Key (KS): key which is used only for a single session service call: call initiated by a DECT PT for entering of FT related service and adjustment procedures in a transparent way service provider (telecommunications service provider): individual, or entity, who, or which, interfaces to the customer in providing telecommunications service SIST EN 300 175-1 V1.6.1:2003
ETSI ETSI EN 300 175-1 V1.6.1 (2002-01) 12 Service type A: low speed frame relay, with a net sustainable throughput of up to 24 kbit/s, optimized for burst data, low power consumption and low complexity applications such as hand-portable equipment Service type B: high performance frame relay, with a net sustainable throughput of up to 552 kbit/s, optimized for high speed and low latency with burst data Service type C: non-transparent connection of data streams requiring Link Access Protocol (LAP) services, optimized for high reliability and low additional complexity Service type D: non-transparent service that supports Isochronous Data Bearer Services and is suitable for transparent transfer of isochronous data streams Service type E: short message transfer or paging service which may be unacknowledged or acknowledged, optimized for small SDUs, low PP complexity and ultra-low power consumption Service type F: application profile specifically supporting teleservices such as fax, building upon the services offered by the type A/B and C profiles, optimized for terminal simplicity, spectrum efficiency and network flexibility sequencing (sequence numbering): process of adding a sequence number to a set of data packets so that the packets can be reassembled in the correct order, regardless of the order they are received simplex bearer: simplex bearer is the MAC layer service that is created using one physical channel Single Radio Fixed Part (SRFP): radio FP that contains only one radio end point stream cipher: algorithm in which the output is combined bit by bit with plaintext to produce the ciphertext Subscriber Interface Module (SIM): smart card used for authentication in GSM subscriber (customer): natural person, or juristic person who has subscribed to telecommunication services, and is, therefore, responsible for payment subscription registration: infrequent process whereby a subscriber obtains access rights to one or more FPs Supplementary Service (SS): service that modifies or supplements a basic telecommunication service 1) DECT TRANSPARENT supplementary services: - the service elements are unspecified within the present document; 2) DECT STANDARD supplementary services: - the service elements are specified within the present document by reference to other standards; 3) DECT SPECIFIC supplementary services: - the service elements are fully specified within the present document. switching: process of interconnecting functional units, transmission channels or telecommunication circuits for as long as required to convey signals symmetric algorithm: cryptographic algorithm in which the same key is used for both encipherment and decipherment synchronization: methods used to ensure that time correspondence exists between processes to ensure that data is not repeated or lost synchronous: essential characteristics of time-scales or signals such that their corresponding significant instants occur at precisely the same average rate Synchronous transmission: transmission using isochronous signals in which the sending and receiving instruments are operating continuously in a constant time difference between corresponding significant instants TDMA frame: time-division multiplex of 10 ms duration containing 24 successive full slots telecommunication: any transmission and/or emission and/or reception of signals representing signs, writings, images, and sounds or intelligence of any nature by wire, radio, optical or other electromagnetic systems SIST EN 300 175-1 V1.6.1:2003
ETSI ETSI EN 300 175-1 V1.6.1 (2002-01) 13 teleservice: type of telecommunication service that provides the complete capability, including terminal equipment functions, for communication between users, according to protocols that are established by agreement Tertiary Access Rights Identity (TARI): available as a Yes/No answer upon a request including the wanted ARI, not broadcast at all threat: indication of coming evil TPUI domain: domain over which every TPUI is (locally) unique U-plane: user plane of the DECT protocol stacks up link: transmission in the direction PT to FT User Authentication Key (UAK): cryptographic key held by a user to prove identity user (of a telecommunication network): person or machine delegated by a subscriber (by a customer) to use the services, and/or facilities, of a telecommunication network variable geometry PP: PP that allows the position and/or orientation of its electro-acoustic transducers and their associated acoustic components to be changed during all on-line conditions of the PP Wireless Relay Station (WRS): physical grouping that combines elements of both PTs and FTs to relay information on a physical channel from one DECT termination to a physical channel to another DECT termination XRES1: expected response calculated by a Fixed radio Termination (FT) XRES2: expected response calculated by a Portable radio Termination (PT) X.25: packet switched network 3.2 Abbreviations For the purposes of the present document, the following abbreviations apply: A Algorithm AC Authentication Code ACK (positive) Acknowledgement ACP Adjacent Channel Power ADPCM Adaptive Differential Pulse Code Modulation ADU Adapted Data Unit ALI Assigned Link Identifier A-MAP A-field MAP AMCI Advanced MAC Connection Identifier ANSI American National Standards Institute ARC Access Rights Class ARD Access Rights Details ARI Access Rights Identity ARQ Automatic Repeat reQuest ASM Assigned Link Identifier with Synchronous Mode BCD Binary Coded Decimal BCT Business Cordless Telephone B-MAP B-field MAP BMC Broadcast Message Control BMCI Basic MAC Connection Identifier BRAT Basic Rate Adaption service BS Slow Broadcast channel (a logical channel to the MAC layer) C higher layer control Channel (see CS and CF) C/L ConnectionLess mode C/O Connection Oriented mode CBC Connectionless Bearer Control CBI Collective Broadcast Identifier CC Call Control SIST EN 300 175-1 V1.6.1:2003
ETSI ETSI EN 300 175-1 V1.6.1 (2002-01) 14 CCF Cluster Control Function CCFP Central Control Fixed Part CEP Connection End Point CF higher layer signalling Channel (fast) CF, CS logical channels to the MAC layer CHO Connection HandOver CHP Connection Handover Pending CI Cell Identity CI Common Interface (standard) CISS Call Independent Supplementary Services CK Cipher Key CL higher layer Connectionless channel (protected; see CLS and CLF) CLF higher layer Connectionless channel (fast), (logical channel to the MAC layer) CLMS ConnectionLess Message Service CLRR Circuit Loudness Rating, Receiving CLRS Circuit Loudness Rating, Sending CLS higher layer Connectionless channel (slow), (logical channel to the MAC layer) CMC Connectionless Message Control C-MMS Call control part of MMS CODEC COder-DECoder COMS Connection Oriented Message Service C-Plane Control Plane CRC Cyclic Redundancy Check CRFP Cordless Radio Fixed Part CRSS Call Related Supplementary Services CS higher layer signalling Channel (slow) CSF Cell Site Function CSPDN Circuit Switched Public Data Network CX Co-existence standard DAM DECT Authentication Module dBc dB relative to the peak power of an unmodulated carrier DBC Dummy Bearer Control dBm dB relative to 1 milliwatt dBm0 the absolute power level in decibels referred to a point of zero relative level dBr the relative power level in decibels DCDL-net Distributed Communication DECT Local network DCK Derived Cipher Key DECT Digital Enhanced Cordless Telecommunications DLC Data Link Control DLEI Data Link Endpoint Identifier (DLC layer) DLI Data Link Identifier (DLC layer) D-MAP D-field MAP DNW DECT NetWork DSAA DECT Standard Authentication Algorithm DSC DECT Standard Cipher DTE Data Terminal Equipment DTMF Dual Tone Multi-Frequency E/U-MUX switch between E-type and U-type Multiplexes ECN Exchanged Connection Number (DLC/MAC layer) EIRP Effective Isotropic Radiated Power ERP Ear Reference Point ERP Effective Radiated Power ES End System FBN Frame Buffer (Unprotected) FBP Frame Buffer (Protected) FEC Forward Error Correction service FLEN Frame Length FMID Fixed part MAC IDentity FP DECT Fixed Part FREL Frame Relay service SIST EN 300 175-1 V1.6.1:2003
ETSI ETSI EN 300 175-1 V1.6.1 (2002-01) 15 FSWI Frame Switching service FT Fixed radio Termination GAP Generic Access Profile GBN Go Back N GF higher layer information control channel (a logical channel to the MAC layer) GFSK Gaussian Frequency Shift Keying GMSK Gaussian Minimum Shift Keying GNW Global NetWork GSM Global System for Mobile communications HDB Home Data Base HOV Handover flag HyP Hybrid Part I higher layer Information channel (see IN and IP) IA5 International Alphabet No. 5 as defined by ITU-T IFEI International Fixed Equipment Identity IN higher layer Information channel (unprotected), (logical channels to the MAC layer) IP higher layer Information channel (protected), (logical channels to the MAC layer) IP Internet Protocol IPEI International Portable Equipment Identity IPUI International Portable User Identity IPv4 Internet Protocol Version 4 IPv6 Internet Protocol Version 6 IRC Idle Receiver Control ISDN Integrated Services Digital Network ITU International Telecommunications Union IUT Implementation Under Test IV Initial Vector IWF InterWorking Functions IWU InterWorking Unit K authentication Key KS' FT authentication Session Key KS PT authentication Session Key KSG Key Stream Generator KSS Key Stream Segment LAL Location Area Level LAN Local Area Network LAPC a DLC layer C-plane protocol entity LAP-U Link Access Procedure (U-plane) (a service offered by LU3) Lb a DLC layer C-plane protocol entity LBN Logical Bearer Number Lc a DLC layer C-plane protocol entity LCE Link Control Entity LCN Logical Connection Number (DLC/MAC layer) LLe Local echo Loss LLME Lower Layer Management Entity LLN Logical Link Number (DLC layer) LNW Local NetWork LRMS Low Rate Messaging Service LRMS-PTM Low Rate Messaging Service, Point to Multi-point LRMS-PTP Low Rate Messaging Service, Point to Point LSB Least Significant Bit LSTR Listener Sidetone Rating LT Lower Tester M MAC control channel MAC Medium Access Control layer MAP bit Mappings MBC Multi-Bearer Control MCEI MAC Connection Endpoint Identification MCI MAC Connection Identifier MCS Multi-Channel Set MDU Multiplexed Data Unit SIST EN 300 175-1 V1.6.1:2003
ETSI ETSI EN 300 175-1 V1.6.1 (2002-01) 16 MM Mobility Management M-MMS Messaging Part of MMS MMS Multimedia Messaging Service MMSP Multimedia Messaging Service Protocol MRP Mouth Reference Point MSB Most Significant Bit MSC Mobile Switching Centre MUX time MUltipleXor N identities channel NACK Negative Acknowledgement NLF New Link Flag NLP Non-Linear Processor NLR No Link Required NTP Normal Transmitted Power NWK Network layer OLR Overall Loudness Rating OSI Open Systems Interconnection P Paging channel PA Portable Application PABX Private Automatic Branch Exchange PAP Public Access Profile PARI Primary Access Rights Identity PARK Portable Access Rights Key PARK {y} PARK with value y for it is Park length indicator PAS Public Access Service PBX Private Branch Exchange PCI Protocol Control Information PCM Pulse Code Modulated PDU Protocol Data Unit PHL Physical Layer PHS Portable HandSet PLI Park Length Indicator PMID Portable part MAC Identity (MAC layer) POT(S) Plain Old Telephone (Service) PP DECT Portable Part ppm parts per million PSPDN Packet Switched Public Data Network PSTN Public Switched Telephone Network PT Portable radio Termination PTN Private Telecommunication Network PUN Portable User Number PUT Portable User Type PWT Personal Wireless Telecommunications Q system information channel QDU Quantization Distortion Unit RAND-F a Random challenge issued by a FT RAND-P a Random challenge issued by a PT ReFP Reference Fixed Part REP REpeater Part RePP Reference Portable Part RES1 a Response calculated by a PT RES2 a Response calculated by an FT RF Radio Frequency RFP Radio Fixed Part RFPI Radio Fixed Part Identity RLRH Receiving Loudness Rating of the Handset RPN Radio fixed Part Number RS a value used to establish authentication session keys RSSI Radio Signal Strength Indicator RU Residential Unit SAP Service Access Point SAPI Service Access Point Identifier SIST EN 300 175-1 V1.6.1:2003
ETSI ETSI EN 300 175-1 V1.6.1 (2002-01) 17 SAR Specific Absorption Rate SARI Secondary Access Rights Identity SCK Static Cipher Key SDU Service Data Unit SEL Selective SIN higher layer connectionless channel (Unprotected) SIP higher layer connectionless channel (Protected) SLRH Sending Loudness Rating of the Handset SMS Short Message Service SRAT Secondary Rate Adaption service SS Supplementary Services STMR Sidetone Masking Rating TAF Terminal Adoptation Function TARI Tertiary Access Rights Identity TBC Traffic Bearer Control TCL Telephone Coupling Loss TCLw weighted Terminal Coupling Loss TDD Time Division Duplex TDMA Time Division Multiple Access TELR Talker's Echo Loudness Rating TI Transaction Identifier T-MUX Tail MUX TPUI Temporary Portable User Identity TRUP Transparent Unprotected service UAK User Authentication Key UCN U-plane Channel Number ULI Unassigned Link Identifier ULN U-plane Link Number UPI User Personal Identification U-Plane User Plane VDB Visitors Data Base W-FT2FT Wireless FT to FT communication WRS Wireless Relay Station XRES1 an Expect
...
