SIST EN 62703:2013

Expression of performance of fluorometric oxygen analyzers in liquid media (IEC 62703:2013)

IEC 62703:2013  specifies the general aspects in the terminology and definitions related to the performance of fluorometric oxygen analyzers used for the continuous determination of dissolved oxygen partial pressure or concentration in liquid media; unifies methods used in making and verifying statements on the functional performance of such analyzers; specifies which tests should be performed in order to determine the functional performance and how such tests should be carried out and provides basic documents to support the application of standards of quality assurance within ISO 9001.

Angabe zum Betriebsverhalten von fluorometrischen Sauerstoffanalysatoren in flüssigen Medien (IEC 62703:2013)

Expression des performances des analyseurs d'oxygène fluormétriques en milieu liquide (IEC 62703:2013)

La CEI 62703:2013 spécifie les aspects généraux de la terminologie et des définitions liées aux performances des analyseurs d'oxygène fluorométriques utilisés pour la détermination continue de la pression ou de la concentration partielle d'oxygène dissous en milieu liquide; unifie les méthodes utilisées en fournissant et en vérifiant les indications relatives aux performances fonctionnelles de ces analyseurs; spécifie les essais qu'il convient d'effectuer afin de déterminer les performances fonctionnelles et la manière dont il convient de réaliser ces essais et stipule des documents de base pour supporter l'usage des normes d'assurance de la qualité de l'ISO 9001.

Izražanje zmogljivosti fluorometričnih analizatorjev kisika v tekočinah (IEC 62703:2013)

Ta mednarodni standard se uporablja za fluorometrične analizatorje kisika, ki se uporabljajo za neprekinjeno določanje delnega tlaka ali koncentracije raztopljenega kisika. Velja za fluorometrične analizatorje kisika, primerne za uporabo v tekočinah, ki vsebujejo vodo, ultra čistih vodah, sladki ali pitni vodi, morski vodi ali drugih vodnih raztopinah, industrijskih ali gospodinjskih odpadnih vodah iz vodnih teles (npr. jezera, reke, ustja) ter za industrijske procesne tokove in procesne tekočine. Čeprav se fluorometrični analizatorji kisika načeloma uporabljajo v plinastih fazah, izražanje delovanja v plinasti fazi ni predmet tega standarda. Senzorska enota fluorometričnega analizatorja kisika, ki je v stiku z medijem za merjenje, vsebuje luminofor v membrani iz polimera, ki je prepustna za kisik, ali v drugih za kisik prepustnih materialih (ali substratih). Ta standard določa terminologijo, definicije, zahteve za navedbe proizvajalcev in preskuse za fluorometrične analizatorje kisika. Ta standard je v skladu s splošnimi načeli iz skupine standardov IEC 60359 in IEC 60770. Ta standard se uporablja za analizatorje, ki so določeni za stalno namestitev na katerem koli mestu (znotraj ali zunaj) z uporabo merilne tehnike s povezavo. Varnostne zahteve so obravnavane v standardu IEC 61010-1. Standardni obseg signalov analognega enosmernega toka, ki se uporabljajo v sistemih za nadzor procesa, je obravnavan v standardu IEC 60381-1. Specifikacije za vrednosti za preskušanje vplivnih veličin so na voljo v skupini standardov IEC 60654. Zahteve za dokumentacijo, ki jo je treba priložiti instrumentom, so obravnavane v standardu IEC 61187. Zahteve za splošna načela glede veličin, enot in simbolov, so obravnavane v standardu ISO 80000-1:2009. Namen standarda IEC 62703 je: – določiti splošne vidike v terminologiji in definicijah v zvezi z delovanjem fluorometričnih analizatorjev kisika, ki se uporabljajo za neprekinjeno določanje delnega tlaka ali koncentracije kisika v tekočih medijih; – poenotiti metode, ki se uporabljajo pri ustvarjanju in preverjanju navedb o funkcijski zmogljivosti takšnih analizatorjev; – določiti, katere preskuse je treba opraviti, da se določi funkcijska zmogljivost, in kako jih je treba opraviti; – zagotoviti osnovne dokumente za podporo uporabe standardov za zagotavljanje kakovosti v sklopu standarda ISO 9001.

General Information

• Status: Published
• Publication Date: 10-Sep-2013
• ICS: 17.020 - Metrology and measurement in general
• ICS: 71.040.10 - Chemical laboratories. Laboratory equipment
• Technical Committee: MOV - Measuring equipment for electromagnetic quantities
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 03-Sep-2013
• Due Date: 08-Nov-2013
• Completion Date: 11-Sep-2013
• Ref Project: EN 62703:2013 - Expression of performance of fluorometric oxygen analyzers in liquid media

Overview

EN 62703:2013 (IEC 62703:2013) defines how to express and verify the performance of fluorometric oxygen analyzers in liquid media. It standardizes terminology, sets out what manufacturers must state about device performance, and unifies test methods used to determine functional characteristics for instruments that continuously measure dissolved oxygen partial pressure or concentration in water and other aqueous liquids. The standard covers instruments for ultrapure water, potable and fresh water, seawater, industrial and municipal wastewater, and process liquids (it does not cover gas‑phase measurements).

Key topics and requirements

• Terminology and definitions: common vocabulary for fluorometry, sensors, quantities and units to ensure consistent performance statements.
• Specification procedure: how to document rated operating conditions, construction materials and declared performance ranges.
• Performance characteristics requiring statements of rated values, including:
  • Intrinsic uncertainty (measurement uncertainty under reference conditions)
  • Repeatability and drift (stability over time)
  • Output fluctuations, delay, rise/fall time and warm‑up time
  • Interference uncertainty and influence‑quantity effects (temperature, salinity, pressure, mains supply, etc.)
• Test methods and reference conditions: standardized procedures for calibration, measurement of influence quantities, and how to carry out intrinsic‑uncertainty and drift tests.
• Quality assurance support: provides baseline documentation to support application of ISO 9001 quality processes for manufacturers and test laboratories.

Applications

EN 62703 is directly applicable to:

• Environmental and process monitoring (rivers, lakes, estuaries, industrial effluents)
• Water and wastewater treatment plants for process control and compliance monitoring
• Industrial process control where dissolved oxygen affects product quality (food & beverage, chemical, pharmaceutical)
• Laboratory and field instrumentation design, testing and product specifications

Who uses this standard

• Instrument manufacturers (product specification, datasheets, type testing)
• Test and calibration laboratories (performance verification, uncertainty assessment)
• QA/QC managers implementing ISO 9001 conformity for sensor products
• Instrumentation and process engineers selecting or validating dissolved oxygen analyzers
• Regulatory bodies and procurement teams requiring reproducible performance claims

Related standards

Normative and informative references include IEC 60359, IEC 61010‑1, IEC 61207, IEC 61326, and ISO 9001 (harmonized as EN ISO 9001). These support environmental testing, calibration practice and safety requirements.

Keywords: fluorometric oxygen analyzers, dissolved oxygen, liquid media, performance expression, intrinsic uncertainty, repeatability, drift, calibration, influence quantities, IEC 62703, EN 62703.

Standards Content (Sample)

SLOVENSKI STANDARD
01-oktober-2013
,]UDåDQMH]PRJOMLYRVWLIOXRURPHWULþQLKDQDOL]DWRUMHYNLVLNDYWHNRþLQDK,(&

Expression of performance of fluorometric oxygen analyzers in liquid media (IEC
62703:2013)
Angabe zum Betriebsverhalten von fluorometrischen Sauerstoffanalysatoren in flüssigen
Medien (IEC 62703:2013)
Expression des performances des analyseurs d'oxygène fluormétriques en milieu liquide
(IEC 62703:2013)
Ta slovenski standard je istoveten z: EN 62703:2013
ICS:
17.020 Meroslovje in merjenje na Metrology and measurement
splošno in general
71.040.10 Kemijski laboratoriji. Chemical laboratories.
Laboratorijska oprema Laboratory equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 62703
NORME EUROPÉENNE
August 2013
EUROPÄISCHE NORM
ICS 17.020; 71.040; 71.120
English version
Expression of performance of fluorometric oxygen analyzers in liquid
media
(IEC 62703:2013)
Expression des performances des Angabe zum Betriebsverhalten von
analyseurs d'oxygène fluormétriques en fluorometrischen Sauerstoffanalysatoren
milieu liquide in flüssigen Medien
(CEI 62703:2013) (IEC 62703:2013)

This European Standard was approved by CENELEC on 2013-08-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

CEN-CENELEC Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2013 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 62703:2013 E

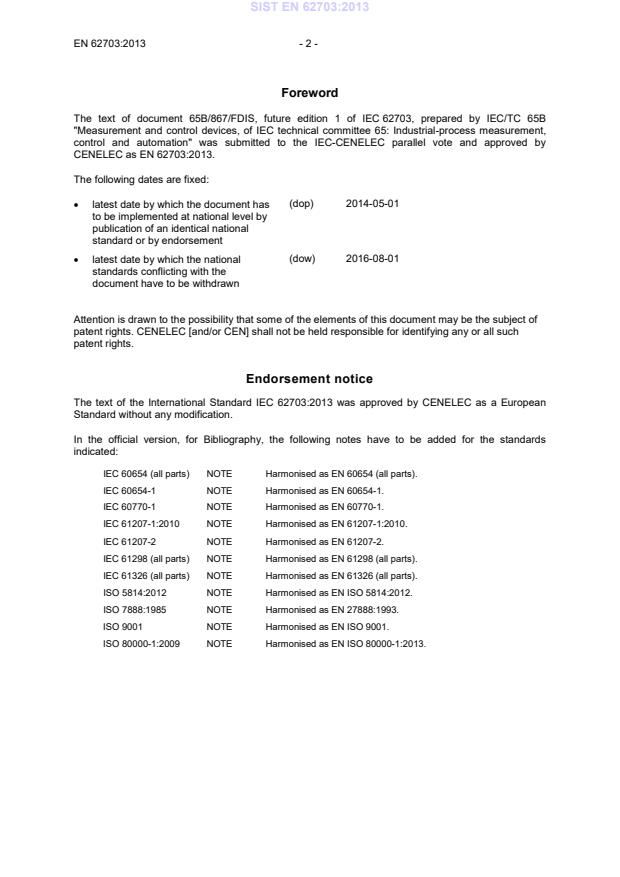

Foreword
The text of document 65B/867/FDIS, future edition 1 of IEC 62703, prepared by IEC/TC 65B
"Measurement and control devices, of IEC technical committee 65: Industrial-process measurement,
control and automation" was submitted to the IEC-CENELEC parallel vote and approved by
CENELEC as EN 62703:2013.
The following dates are fixed:
(dop) 2014-05-01
• latest date by which the document has
to be implemented at national level by
publication of an identical national
standard or by endorsement
(dow) 2016-08-01
• latest date by which the national

standards conflicting with the
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
Endorsement notice
The text of the International Standard IEC 62703:2013 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards
indicated:
IEC 60654 (all parts) NOTE Harmonised as EN 60654 (all parts).
IEC 60654-1 NOTE Harmonised as EN 60654-1.
IEC 60770-1 NOTE Harmonised as EN 60770-1.
IEC 61207-1:2010 NOTE Harmonised as EN 61207-1:2010.
IEC 61207-2 NOTE Harmonised as EN 61207-2.
IEC 61298 (all parts) NOTE Harmonised as EN 61298 (all parts).
IEC 61326 (all parts) NOTE Harmonised as EN 61326 (all parts).
ISO 5814:2012 NOTE Harmonised as EN ISO 5814:2012.
ISO 7888:1985 NOTE Harmonised as EN 27888:1993.
ISO 9001 NOTE Harmonised as EN ISO 9001.
ISO 80000-1:2009 NOTE Harmonised as EN ISO 80000-1:2013.

- 3 - EN 62703:2013
Annex ZA
(normative)
Normative references to i nternational publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 60068 series Environmental testing EN 60068 series

IEC 60359 2001 Electrical and electronic measurement EN 60359 2002
equipment - Expression of performance

IEC 61010-1 - Safety requirements for electrical equipment - -
for measurement, control and laboratory use -
Part 1: General requirements
IEC 61187 (mod) - Electrical and electronic measuring EN 61187 -
equipment - Documentation + Corr. March

IEC 62703 ®
Edition 1.0 2013-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Expression of performance of fluorometric oxygen analyzers in liquid media

Expression des performances des analyseurs d'oxygène fluorométriques en

milieu liquide
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX X
ICS 17.020; 71.04; 71.120 ISBN 978-2-83220-835-9

– 2 – 62703  IEC:2013
CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references . 7
3 Terms, definitions, quantities and units . 7
3.1 Basic terms and definitions . 7
3.2 General terms and definitions of devices and operations . 10
3.3 Terms and definitions for manners of expression . 11
3.4 Specific terms and definitions for fluorometry . 13
3.5 Specific terms and definitions for fluorometric oxygen analyzers . 15
3.6 Influence quantities for fluorometric oxygen analyzers . 17
3.7 Quantities and units . 18
4 Procedure for specification . 19
4.1 Specification of values and ranges for fluorometric oxygen analyzers . 19
4.2 Operation, storage and transport conditions . 19
4.2.1 Rated operating conditions . 19
4.2.2 Performance under rated operating conditions . 19
4.2.3 Performance under rated operating conditions while inoperative . 19
4.2.4 Construction materials . 19
4.3 Performance characteristics requiring statements of rated values . 19
4.4 Uncertainty limits . 20
4.4.1 Limits of intrinsic uncertainty . 20
4.4.2 Interference uncertainties . 20
4.4.3 Repeatability . 20
4.4.4 Drift . 20
5 Test methods. 20
5.1 Test procedures . 20
5.2 Influence quantities . 20
5.3 Operational conditions . 21
5.4 Calibration . 21
5.5 Reference conditions . 21
5.5.1 Reference conditions during measurement of intrinsic uncertainty . 21
5.5.2 Reference conditions during measurement of influence quantity . 21
5.6 Testing procedures . 21
5.6.1 Intrinsic uncertainty . 21
5.6.2 Repeatability . 22
5.6.3 Output fluctuation . 22
5.6.4 Drift . 23
5.6.5 Delay time, rise time and fall time . 24
5.6.6 Warm-up time . 24
5.6.7 Procedure for determining interference uncertainty . 24
5.6.8 Variations . 25
Annex A (informative) Recommended standard values of influence – Quantities
affecting performance from IEC 60359 . 26
Annex B (informative) Performance characteristics calculable from drift tests . 32
Annex C (informative) Physico-chemical data of oxygen in water . 33
Bibliography . 41

62703  IEC:2013 – 3 –
Figure 1 – Output fluctuations . 23

Table 1 – Time intervals for statement of stability limits . 23
Table A.1 – Mains supply voltage . 30
Table A.2 – Mains supply frequency. 30
Table A.3 – Ripple of d.c. supply . 31
Table B.1 – Data: applied concentration 1 000 units . 32
Table C.1 – Correlation conductivity-salinity . 33
Table C.2 – Elevation barometric pressure (example) . 34
Table C.3 – Solubility of oxygen in water exposed to water-saturated air at atmospheric
pressure (1 013 hPa) (Salinity see Table C.1) . 35
Table C.4 – Solubility of oxygen in water vs. temperature and barometric pressure
(lower range) . 37
Table C.5 – Solubility of oxygen in water vs. temperature and barometric pressure
(upper range) . 38
Table C.6 – Pressure conversions . 39

– 4 – 62703  IEC:2013
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
EXPRESSION OF PERFORMANCE OF FLUOROMETRIC
OXYGEN ANALYZERS IN LIQUID MEDIA

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62703 has been prepared by subcommittee 65B: Measurement
and control devices, of IEC technical committee 65: Industrial-process measurement, control
and automation.
The text of this standard is based on the following documents:
FDIS Report on voting
65B/867/FDIS 65B/871/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

62703  IEC:2013 – 5 –
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 6 – 62703  IEC:2013
EXPRESSION OF PERFORMANCE OF FLUOROMETRIC
OXYGEN ANALYZERS IN LIQUID MEDIA

1 Scope
This International Standard is applicable to fluorometric oxygen analyzers used for the
continuous determination of dissolved oxygen partial pressure or concentration. It applies to
fluorometric oxygen analyzers suitable for use in water containing liquids, ultrapure waters,
fresh or potable water, sea water or other aqueous solutions, industrial or municipal waste
water from water bodies (e.g. lakes, rivers, estuaries) as well as for industrial process
streams and process liquids. Whilst in principle fluorometric oxygen-analyzers are applicable
in gaseous phases, the expression of performance in the gas-phase will not be subject of this
standard.
The sensor unit of a fluorometric oxygen analyzer being in contact with the media to be
measured contains a luminophore in a polymer-membrane permeable for oxygen or within
other oxygen permeable materials (or substrates).
This standard specifies the terminology, definitions, requirements for statements by
manufacturers and tests for fluorometric oxygen analyzers.
This standard is in accordance with the general principles set out in IEC 60359 and
IEC 60770 series.
This standard is applicable to analyzers specified for permanent installation installation in any
location (indoors or outdoors) utilizing an on-line measurement technique.
Safety requirements are dealt with in IEC 61010-1.
Standard range of analogue d.c. current signals used in process control systems are dealt
with in IEC 60381-1.
Specifications for values for the testing of influence quantities can be found in IEC 60654
series.
Requirements for documentation to be supplied with instruments are dealt with in IEC 61187.
Requirements for general principles concerning quantities, units and symbols are dealt with in
ISO 80000-1:2009.
The object of IEC 62703 is:
– to specify the general aspects in the terminology and definitions related to the
performance of fluorometric oxygen analyzers used for the continuous determination of
dissolved oxygen partial pressure or concentration in liquid media;
– to unify methods used in making and verifying statements on the functional performance of
such analyzers;
– to specify which tests should be performed in order to determine the functional
performance and how such tests should be carried out;
– to provide basic documents to support the application of standards of quality assurance
within ISO 9001.
62703  IEC:2013 – 7 –
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60068 (all parts), Environmental testing
IEC 60359:2001, Electrical and electronic measurement equipment – Expression of
performance
IEC 61010-1, Safety requirements for electrical equipment for measurement, control and
laboratory use – Part 1: General requirements
IEC 61187, Electrical and electronic measuring equipment – Documentation
3 Terms, definitions, quantities and units
For the purposes of this document, the following terms, definitions, quantities and units apply.
NOTE Terms and definitions are taken partially from IEC 60359:2001and IEC 61207-1:2010.
3.1 Basic terms and definitions
3.1.1
measurand
quantity subjected to measurement, evaluated in the state assumed by the measured system
during the measurement itself
Note 1 to entry: The value assumed by a quantity subjected to measurement when it is not interacting with the
measuring instrument may be called unperturbed value of the quantity.
Note 2 to entry: The unperturbed value and its associated uncertainty can only be computed through a model of
the measured system and of the measurement interaction with the knowledge of the appropriate metrological
characteristics of the instrument that may be called instrumental load.
3.1.2
result of a measurement
set of values attributed to a measurand, including a value, the corresponding uncertainty and
the unit of measurement
Note 1 to entry: The mid-value of the interval is called the value (see 3.1.3) of the measurand and its half-width
the uncertainty (see 3.1.4).
Note 2 to entry: The measurement is related to the indication (see 3.1.5) given by the instrument and to the
values of correction obtained by calibration.
Note 3 to entry: The interval can be considered as representing the measurand provided that it is compatible with
all other measurements of the same measurand.
Note 4 to entry: The width of the interval, and hence the uncertainty, can only be given with a stated level of
confidence (see 3.1.4, NOTE 1).
[SOURCE: IEC 60050-300:2001, 311-01-01, modified – revision of the definition and the
notes]
3.1.3
measure-value
mid element of the set assigned to represent the measurand

– 8 – 62703  IEC:2013
Note 1 to entry: The measure-value is no more representative of the measurand than any other element of the
set. It is singled out merely for the convenience of expressing the set in the format V ± U, where V is the mid
element and U the half-width of the set, rather than by its extremes. The qualifier "measure-" is used when deemed
necessary to avoid confusion with the reading-value or the indicated value.
3.1.4
uncertainty
uncertainty of measurement
parameter, associated with the result of a measurement, that characterizes the dispersion of
the values that could reasonably be attributed to the measurand
Note 1 to entry: The parameter can be, for example, a standard deviation (or a given multiple of it), or a half-width
of an interval having a stated level of confidence.
Note 2 to entry: Uncertainty of measurement comprises, in general, many components. Some of these
components can be evaluated from the statistical distribution of the results of a series of measurements and can be
characterized by experimental standard deviations. The other components, which can also be characterized by
standard deviations, are evaluated from the assumed probability distributions based on experience or other
information.
Note 3 to entry: It is understood that the result of the measurement is the best estimate of the value of the
measurand, and that all components of uncertainty, including those arising from systematic effects, such as
components associated with corrections and reference standards, contribute to the dispersion.
Note 4 to entry: The definition and notes 1 and 2 are from JCGM 100:2008 Clause 2.2.3 The option used in this
standard is to express the uncertainty as the half-width of an interval with the GUM procedures with a coverage
factor of 2. This choice corresponds to the practice now adopted by many national standards laboratories. With the
normal distribution a coverage factor of 2 corresponds to a level of confidence of 95 %. Otherwise statistical
elaborations are necessary to establish the correspondence between the coverage factor and the level of
confidence. As the data for such elaborations are not always available, it is deemed preferable to state the
coverage factor. This interval can be "reasonably" assigned to describe the measurand, in the sense of the GUM
definition, as in most usual cases it ensures compatibility with all other results of measurements of the same
measurand assigned in the same way at a sufficiently high confidence level.
[SOURCE: IEC 60050-300:2001, 311-01-02, modified – deletion of the existing Note 1 and
addition of two new notes]
3.1.5
indication
reading-value
output signal of the instrument
Note 1 to entry: The indicated value can be derived from the indication by means of the calibration curve.
Note 2 to entry: For a material measure, the indication is its nominal or stated value.
Note 3 to entry: The indication depends on the output format of the instrument:
– for analogue outputs it is a number tied to the appropriate unit of the display;
– for digital outputs it is the displayed digitized number;
– for code outputs it is the identification of the code pattern.
Note 4 to entry: For analogue outputs meant to be read by a human observer (as in the index-on-scale
instruments) the unit of output is the unit of scale numbering; for analogue outputs meant to be read by another
instrument (as in calibrated transducers) the unit of output is the unit of measurement of the quantity supporting the
output signal.
[SOURCE: IEC 60050-300:2001, 311-01-01, modified – modification of the definition and
addition of new notes]
3.1.6
calibration
set of operations which establishes the relationship which exists, under specified conditions,
between the indication and the result of a measurement

62703  IEC:2013 – 9 –
Note 1 to entry: Calibrations are performed under well-defined operating conditions for the instrument. The
calibration diagram representing its result is not valid if the instrument is operated under conditions outside the
range used for the calibration.
Note 2 to entry: The relationship between the indications and the results of measurement can be expressed, in
principle, by a calibration diagram.
[SOURCE: IEC 60050-300:2001, 311-01-09, modified – modification of Note 1]
3.1.7
calibration diagram
portion of the co-ordinate plane, defined by the axis of indication and the axis of results of
measurement, which represents the response of the instrument to differing values of the
measurand
[SOURCE: IEC 60050-300:2001, 311-01-10, modified – deletion of the note]
3.1.8
calibration curve
curve which gives the relationship between the indication and the value of the measurand
Note 1 to entry: When the calibration curve is a straight line passing through zero, it is convenient to refer to the
slope which is known as the instrument constant.
Note 2 to entry: The calibration curve is the curve bisecting the width of the calibration diagram parallel to the
axis of results of measurement, thus joining the points representing the values of the measurand.
[SOURCE: IEC 60050-300:2001, 311-01-11, modified – deletion of Note 1]
3.1.9
indicated value
value given by an indicating instrument on the basis of its calibration curve
Note 1 to entry: The indicated value is the measure-value of the measurand when the instrument is used in a
direct measurement under all the operating conditions for which the calibration diagram is valid.
[SOURCE: IEC 60050-300:2001, 311-01-08, modified – update of the definition and the note]
3.1.10
conventional value measure
value of a standard used in a calibration operation and known with uncertainty negligible with
respect to the uncertainty of the instrument to be calibrated
Note 1 to entry: This definition is adapted to the object of this standard from the definition of "conventional true
value (of a quantity)": value attributed to a particular quantity and accepted, sometimes by convention, as having
an uncertainty appropriate for a given purpose (see IEC 60050-300:2001 311-01-06).
3.1.11
influence quantity
quantity which is not the subject of the measurement and whose change affects the
relationship between the indication and the result of the measurement
Note 1 to entry: Influence quantities can originate from the measured system, the measuring equipment or the
environment.
Note 2 to entry: As the calibration diagram depends on the influence quantities, in order to assign the result of a
measurement it is necessary to know whether the relevant influence quantities lie within the specified range.
Note 3 to entry: An influence quantity is said to lie within a range C’ to C" when the results of its measurement
satisfy the relationship: C' ≤ V – U < V + U ≤ C". (see 3.1.3)
[SOURCE: IEC 60050-300:2001, 311-06-01, modified – deletion of Note 1 and addition of a
new Note 3]
– 10 – 62703  IEC:2013
3.1.12
steady-state conditions
operating conditions of a measuring device in which the variation of the measurand with the
time is such that the relation between the input and output signals of the instruments does not
suffer a significant change with respect to the relation obtaining when the measurand is
constant in time
3.1.13
traceability
property of the result of a measurement or of the value of a standard such that it can be
related to stated references, usually national or international standards, through an unbroken
chain of comparisons all having stated uncertainties
Note 1 to entry: The concept is often expressed by the adjective traceable.
Note 2 to entry: The unbroken chain of comparisons is called a traceability chain.
Note 3 to entry: The traceability implies that a metrological organization be established with a hierarchy of
standards (instruments and material measures) of increasing intrinsic uncertainty. The chain of comparisons from
the primary standard to the calibrated device adds indeed new uncertainty at each step.
Note 4 to entry: Traceability is ensured only within a given uncertainty that should be specified.
[SOURCE: IEC 60050-300:2001, 311-01-15, modified – deletion of Note 3 and addition of
new Notes 3 and 4]
3.1.14
mean
summation of the individual values divided by the total number of values for a set of values
3.2 General terms and definitions of devices and operations
3.2.1
electrical measuring instrument
measuring instrument intended to measure an electrical or non-electrical quantity using
electrical or electronic means
[SOURCE: IEC 60050-300:2001, 311-03-04]
3.2.2
transducer
technical device which performs a given elaboration on an input signal, transforming it into an
output signal
Note 1 to entry: Measuring instruments contain transducers and they may consist of one transducer. When the
signals are elaborated by a chain of transducers, the input and output signals of each transducer are not always
directly and univocally accessible.
3.2.3
intrinsic uncertainty
intrinsic instrumental uncertainty
uncertainty of a measuring instrument when used under reference conditions
[SOURCE: IEC 60050-300:2001, 311-03-09, modified – update of the term]
3.2.4
operating instrumental uncertainty
instrumental uncertainty under the rated operating conditions
Note 1 to entry: The operating instrumental uncertainty, like the intrinsic one, is not evaluated by the user of the
instrument, but is stated by its manufacturer or calibrator. The statement may be expressed by means of an
algebraic relation involving the intrinsic instrumental uncertainty and the values of one or several influence

62703  IEC:2013 – 11 –
quantities, but such a relation is just a convenient means of expressing a set of operating instrumental
uncertainties under different operating conditions, not a functional relation to be used for evaluating the
propagation of uncertainty inside the instrument.
3.2.5
verification of calibration
set of operations which is used to check whether the indications, under specified conditions,
correspond with a given set of known measurands within the limits of a predetermined
calibration diagram
Note 1 to entry: The known uncertainty of the measurand used for verification will generally be negligible with
respect to the uncertainty assigned to the instrument in the calibration diagram.
Note 2 to entry: The verification of calibration of a material measure consists in checking whether the result of a
measurement of the supplied quantity is compatible with the interval given by the calibration diagram.
[SOURCE: IEC 60050-300:2001, 311-01-13, modified – deletion of Note 1 and addition of the
new Notes 2]
3.2.6
adjustment of a measuring instrument
set of operations carried out on a measuring instrument in order that it provides given
indications corresponding to given values of the measurand
Note 1 to entry: When the instrument is made to give a null indication corresponding to a null value of the
measurand, the set of operations is called zero adjustment.
[SOURCE: IEC 60050-300:2001, 311-03-16]
3.2.7
user adjustment of a measuring instrument
adjustment, employing only the means at the disposal of the user, specified by the
manufacturer
[SOURCE: IEC 60050-300:2001, 311-03-17]
3.3 Terms and definitions for manners of expression
3.3.1
range
domain of values of a quantity included between a lower and an upper limit
Note 1 to entry: The term "range" is usually used with a modifier. It may apply to a performance characteristic, to
an influence quantity, etc.
Note 2 to entry: When one of the limits of a range is zero or infinity, the other finite limit is called a threshold.
Note 3 to entry: No uncertainty is associated with the values of range limits or thresholds as they are not
themselves results of measurements but a priori statements about conditions to be met by results of
measurements. If the result of a measurement have to lie within a rated range, it is understood that the whole
interval V ± U representing it shall lie within the values of the range limits or beyond the threshold value, unless
otherwise specified by relevant standards or by explicit agreements.
Note 4 to entry: A range may be expressed by stating the values of its lower and upper limits, or by stating its mid
value and its half-width.
3.3.2
variation due to an influence quantity
difference between the indicated values for the same value of the measurand of an indicating
instrument, or the values of a material measure, when an influence quantity assumes,
successively, two different values
Note 1 to entry: The uncertainty associated with the different measure values of the influence quantity for which
the variation is evaluated should not be wider than the width of the reference range for the same influence quantity.

– 12 – 62703  IEC:2013
The other performance characteristics and the other influence quantities should stay within the ranges specified for
the reference conditions.
Note 2 to entry: The variation is a meaningful parameter when it is greater than the intrinsic instrumental
uncertainty.
[SOURCE: IEC 60050-300:2001, 311-07-03, modified – addition of two new notes]
3.3.3
limit of uncertainty
limiting value of the instrumental uncertainty for equipment operating under specified
conditions
Note 1 to entry: A limit of uncertainty may be assigned by the manufacturer of the instrument, who states that
under the specified conditions the instrumental uncertainty is never higher than this limit, or may be defined by
standards, that prescribe that under specified conditions the instrumental uncertainty should not be larger than this
limit for the instrument to belong to a given accuracy class.
Note 2 to entry: A limit of uncertainty may be expressed in absolute terms or in the relative or fiducial forms.
3.3.4
specified measuring range
range defined by two values of the measurand, or quantity to be supplied, within which the
limits of uncertainty of the measuring instrument are specified
Note 1 to entry: An instrument can have several measuring ranges.
Note 2 to entry: The upper and lower limits of the specified measuring range are sometimes called the maximum
capacity and minimum capacity respectively.
[SOURCE: IEC 60050-300:2001, 311-03-12, modified – addition of a new Note 2]
3.3.5
reference conditions
appropriate set of specified values and/or ranges of values of influence quantities under which
the smallest permissible uncertainties of a measuring instrument are specified
Note 1 to entry: The ranges specified for the reference conditions, called reference ranges, are not wider, and are
usually narrower, than the ranges specified for the rated operating conditions.
[SOURCE: IEC 60050-300:2001, 311-06-02, modified – update of the definition and addition
of a new note]
3.3.6
reference value
specified value of one of a set of reference conditions
[SOURCE: IEC 60050-300:2001, 311-07-01, modified – update of the definition]
3.3.7
reference range
specified range of values of one of a set of reference conditions
[SOURCE: IEC 60050-300:2001, 311-07-02, modified – update of the definition]
3.3.8
rated operating conditions
set of conditions that shall be fulfilled during the measurement in order that a calibration
diagram may be valid
Note 1 to entry: Beside the specified measuring range and rated operating ranges for the influence quantities, the
conditions may include specified ranges for other performance characteristics and other indications that cannot be
expressed as ranges of quantities.

62703  IEC:2013 – 13 –
3.3.9
nominal range of use
rated operating range for influence quantities
specified range of values which an influence quantity can assume without causing a variation
exceeding specified limits
Note 1 to entry: The rated operating range of each influence quantity is a part of the rated operating conditions.
[SOURCE: IEC 60050-300:2001, 311-07-05, modified – addition of a new Note 1]
3.3.10
limiting conditions
extreme conditions which an operating measuring instrument can withstand without damage
and without degradation of its metrological characteristics when it is subsequently operated
under its rated operating conditions
3.3.11
limiting values for operation
extreme values which an influence quantity can assume during operation without damaging
the measuring instrument so that it no longer meets its performance requirements when it is
subsequently operated under reference conditions
Note 1 to entry: The limiting values can depend on the duration of their application.
[SOURCE: IEC 60050-300:2001, 311-07-06]
3.3.12
storage and transport conditions
extreme conditions which a non-operating measuring instrument can withstand without
damage and without degradation of its metrological characteristics when it is subsequently
operated under its rated operating conditions
3.3.13
limiting values for storage
extreme values which an influence quantity can assume during storage without damaging the
measuring instrument so that it no longer meets its performance requirements when it is
subsequently operated under reference conditions
Note 1 to entry: The limiting values can depend on the duration of their application.
[SOURCE: IEC 60050-300:2001, 311-07-07]
3.3.14
limiting values for transport
extreme values which an influence quantity can assume during transport without damaging
the instrument so that it no longer meets its performance requirements when it is
subsequently operated under reference conditions
Note 1 to entry: The limiting values can depend on the duration of their application.
[SOURCE: IEC 60050-300:2001, 311-07-08]
3.4 Specific terms and definitions for fluorometry
3.4.1
luminescence
spontaneous emission of radiation from an electronically excited molecular entity (or atom or
group of atoms) emitted with a particular intensity (luminescence-intensity)

– 14 – 62703  IEC:2013
Note 1 to entry: A luminophore (lumiphore) is a fluorescent or phophorescent molecular entity (or atom or group
of atoms) in which electronic excitation associated with a given emission band is approximately localized. (see
Bibliography, PAC, 1996, 68, 2223)
Note 2 to entry: The fluorescence is the luminescent radiation that occurs after excitation of a fluorophore from its
originated excited state without electron spin conversion. (see Bibliography, PAC, 1994, 66, 2513)
A fluorophore (fluoriphore) is the molecular entity (often organic or inorganic transition metal complexes) that emits
fluorescence. (see Bibliography, PAC, 2007, 79, 293)
A fluorometer (fluorimeter) is an instrument used to measure the intensity and the wavelength distribution of the
radiation emitted as fluorescence from a molecule excited at a specific wavelength or wavelengths within the
absorption band of a particular compound. (see Bibliography, PAC, 1990, 62, 2167)
Note 3 to entry: The phosphorescence the term designates luminescence involving change in spin multiplicity,
typically from triplet to singlet. (see Bibliography, PAC, 1996, 68, 2223)
Note 4 to entry: Luminescence quenching occurs, if instead of fluorescent or phosphorescent luminescence, the
excitation energy is radiationless redistributed via interaction (electronic energy or charge transfer) between an
emitting species and a quenching species.The radiationless deactivation may occur from an singulet state or from
an triplet state of the exited species. (see Bibliography, PAC, 1984, 56, 231)
3.4.2
luminescence quenching by oxygen
phenomenon that occurs occurs mainly by quenching of the exited state of the luminophore
with triplet dioxygen (the groundstate of common molecular dioxygen, O2)
3.4.3
lifetime of luminescence
time required for the luminescence intensity to decay from some initial value to 1/e of that
value (e = 2,718 28)
Note 1 to entry: Lifetimes can be measured by decay time measurements, flash fluorometry or single-photon
timing techniques, by frequency-domain fluorometry (phase fluorometry) where the phase shift between the
sinusoidally modulated exciting light and the emitted light is measured.
Note 2 to entry: Applying flash (pulse) fluorometry for the measurement of lifetimes of luminescence using a
pulsed source of radiation, it is often necessary to separate the signal due to the light flash from the luminescence
emission signa
...
