SIST EN IEC 61169-17:2022
---------------------- Page: 2 ----------------------
SIST EN IEC 61169-17:2022
EUROPEAN STANDARD EN IEC 61169-17
NORME EUROPÉENNE
EUROPÄISCHE NORM April 2022
ICS 33.120.30
English Version
Radio-frequency connectors - Part 17: Sectional specification for
RF coaxial connectors with inner diameter of outer conductor 6,5
mm (0,256 in) with screw coupling - Characteristic impedance 50
ohms (Type TNC)
(IEC 61169-17:2022)

Connecteurs pour fréquences radioélectriques - Partie 17: Hochfrequenz-Steckverbinder - Hochfrequenz-Koaxial-

Spécification intermédiaire relative aux connecteurs RF Steckverbinder mit einem Innendurchmesser des

coaxiaux à couplage à vis avec conducteur extérieur Außenleiters von 6,5 mm (0,256 in) mit Schraubkupplung -

présentant un diamètre intérieur de 6,5 mm (0,256 in) - Wellenwiderstand 50 Ohm (Typ TNC)

Impédance caractéristique de 50 ohms (type TNC) (IEC 61169-17:2022)
(IEC 61169-17:2022)

This European Standard was approved by CENELEC on 2022-04-08. CENELEC members are bound to comply with the CEN/CENELEC

Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC

Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation

under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the

same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,

Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the

Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2022 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

Ref. No. EN IEC 61169-17:2022 E
---------------------- Page: 3 ----------------------
SIST EN IEC 61169-17:2022
EN IEC 61169-17:2022 (E)

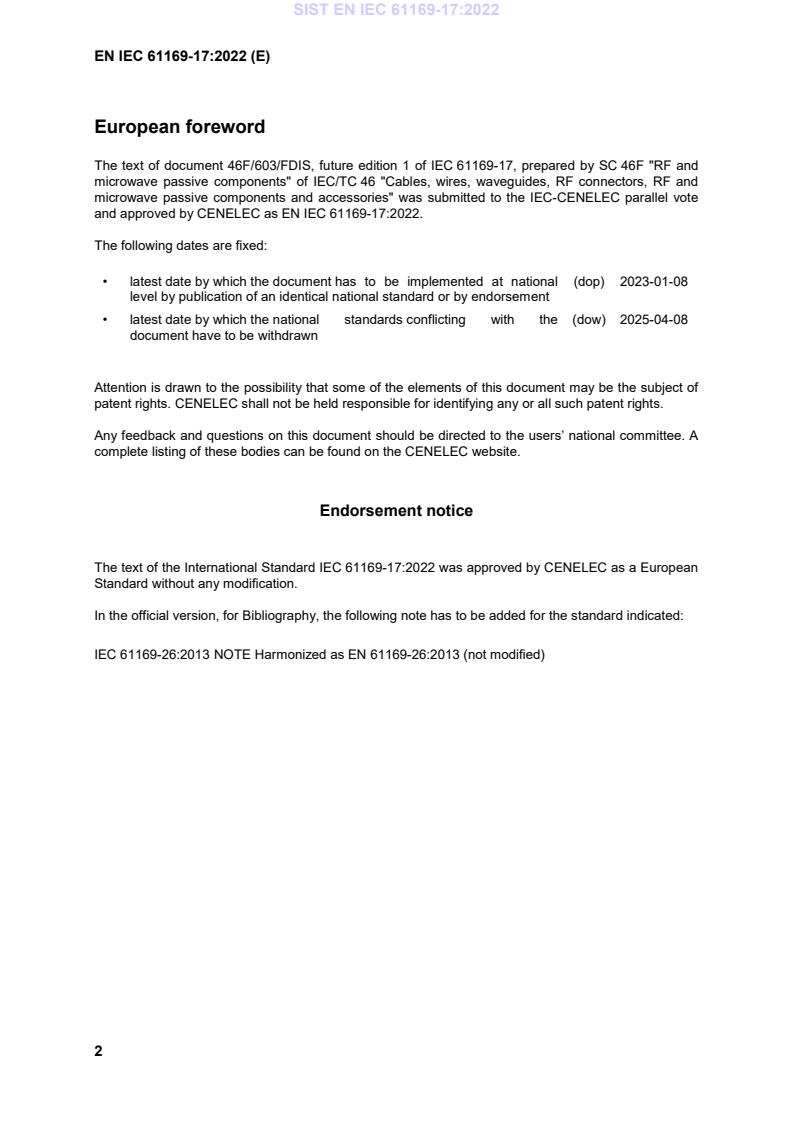

European foreword

The text of document 46F/603/FDIS, future edition 1 of IEC 61169-17, prepared by SC 46F "RF and

microwave passive components" of IEC/TC 46 "Cables, wires, waveguides, RF connectors, RF and

microwave passive components and accessories" was submitted to the IEC-CENELEC parallel vote

and approved by CENELEC as EN IEC 61169-17:2022.
The following dates are fixed:

• latest date by which the document has to be implemented at national (dop) 2023-01-08

level by publication of an identical national standard or by endorsement

• latest date by which the national standards conflicting with the (dow) 2025-04-08

document have to be withdrawn

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.

Any feedback and questions on this document should be directed to the users’ national committee. A

complete listing of these bodies can be found on the CENELEC website.
Endorsement notice

The text of the International Standard IEC 61169-17:2022 was approved by CENELEC as a European

Standard without any modification.

In the official version, for Bibliography, the following note has to be added for the standard indicated:

IEC 61169-26:2013 NOTE Harmonized as EN 61169-26:2013 (not modified)
---------------------- Page: 4 ----------------------
SIST EN IEC 61169-17:2022
EN IEC 61169-17:2022 (E)
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments)

applies.

NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the

relevant EN/HD applies.

NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available

here: www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 61169-1 2013 Radio frequency connectors - Part 1: EN 61169-1 2013
Generic specification - General
requirements and measuring methods
IEC 62153-4-7 - Metallic cables and other passive EN IEC 62153-4-7 -
components test methods - Part 4-7:
Electromagnetic compatibility (EMC) -Test
method for measuring of transfer
impedance Z and screening attenuation
aS or coupling attenuation aC of connectors
and assemblies - Triaxial tube in tube
method
IEC 62037-3 - Passive RF and microwave devices, EN IEC 62037-3 -
intermodulation level measurement - Part
3: Measurement of passive intermodulation
in coaxial connectors
---------------------- Page: 5 ----------------------
SIST EN IEC 61169-17:2022
---------------------- Page: 6 ----------------------
SIST EN IEC 61169-17:2022
IEC 61169-17
Edition 1.0 2022-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Radio-frequency connectors –

Part 17: Sectional specification for RF coaxial connectors with inner diameter of

outer conductor 6,5 mm (0,256 in) with screw coupling – Characteristic
impedance 50 ohms (Type TNC)
Connecteurs pour fréquences radioélectriques –
Partie 17: Spécification intermédiaire relative aux connecteurs RF coaxiaux à
couplage à vis avec conducteur extérieur présentant un diamètre intérieur de
6,5 mm (0,256 in) – Impédance caractéristique de 50 ohms (type TNC)
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.120.30 ISBN 978-2-8322-1083-1

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 7 ----------------------
SIST EN IEC 61169-17:2022
– 2 – IEC 61169-17:2022 © IEC 2022
CONTENTS

FOREWORD ........................................................................................................................... 4

1 Scope .............................................................................................................................. 6

2 Normative references ...................................................................................................... 6

3 Terms and definitions ...................................................................................................... 6

4 Mating face and gauge information .................................................................................. 7

4.1 General connectors – Grade 2 ................................................................................ 7

4.1.1 Connector with pin centre contact .................................................................... 7

4.1.2 Connector with socket centre contact .............................................................. 8

4.2 Gauges ................................................................................................................. 10

4.2.1 Gauge pin for socket centre contact............................................................... 10

4.2.2 Gauge for outer contact of connector with pin centre contact ......................... 10

4.3 Dimensions – Standard test connectors – Grade 0 ................................................ 11

4.3.1 Connectors with pin centre contact ................................................................ 11

4.3.2 Connector with socket centre contact ............................................................ 13

5 Quality assessment procedures ..................................................................................... 14

5.1 General ................................................................................................................. 14

5.2 Ratings and characteristics ................................................................................... 14

5.3 Test schedule and inspection requirements........................................................... 17

5.3.1 Acceptance tests ........................................................................................... 17

5.3.2 Periodic tests ................................................................................................. 18

5.3.3 Procedures for the quality conformance ......................................................... 19

6 Instructions for preparation of detail specifications (DS) ................................................ 19

6.1 General ................................................................................................................. 19

6.2 Identification of the component ............................................................................. 19

6.3 Performance ......................................................................................................... 20

6.4 Marking, ordering information and related matters ................................................ 20

6.5 Selection of tests, test conditions and severities ................................................... 20

6.6 Blank detail specification pro-forma for TNC connectors ....................................... 20

Bibliography ......................................................................................................................... 25

Figure 1 – Connector with pin centre contact (for dimensions, see Table 1) ............................ 7

Figure 2 – Connector with socket centre contact (for dimensions, see Table 2) ....................... 9

Figure 3 – Gauge pin for socket centre contact (for dimensions, see Table 3) ....................... 10

Figure 4 – Gauge for outer contact of connector with pin centre contact (for

dimensions, see Table 4) ...................................................................................................... 11

Figure 5 – Connector with pin centre contact (for dimensions, see Table 5) .......................... 12

Figure 6 – Connector with socket in centre contact (for dimensions, see Table 6) ................. 13

Table 1 – Dimensions of connector with pin centre contact ..................................................... 8

Table 2 – Dimensions of connector with socket centre contact ................................................ 9

Table 3 – Dimensions of gauge pin for socket centre contact ................................................ 10

Table 4 – Dimensions of gauge for outer contact of connector with pin centre contact .......... 11

Table 5 – Dimensions of connector with pin centre contact ................................................... 12

Table 6 – Dimensions of connector with socket centre contact .............................................. 14

Table 7 – Preferred climatic categories ................................................................................. 15

---------------------- Page: 8 ----------------------
SIST EN IEC 61169-17:2022
IEC 61169-17:2022 © IEC 2022 – 3 –

Table 8 – Ratings and characteristics ................................................................................... 15

Table 9 – Acceptance tests ................................................................................................... 17

Table 10 – Periodic tests ...................................................................................................... 18

---------------------- Page: 9 ----------------------
SIST EN IEC 61169-17:2022
– 4 – IEC 61169-17:2022 © IEC 2022
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
RADIO-FREQUENCY CONNECTORS –
Part 17: Sectional specification for RF coaxial connectors with inner
diameter of outer conductor 6,5 mm (0,256 in) with screw coupling –
Characteristic impedance 50 ohms (Type TNC)
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international

co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and

in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,

Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their

preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with

may participate in this preparatory work. International, governmental and non-governmental organizations liaising

with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for

Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence between

any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent

rights. IEC shall not be held responsible for identifying any or all such patent rights.

IEC 61169-17 has been prepared by subcommittee 46F: RF and microwave passive

components, of IEC technical committee 46: Cables, wires, waveguides, RF connectors, RF

and microwave passive components and accessories. It is an International Standard.

The text of this International Standard is based on the following documents:
Draft Report on voting
46F/603/FDIS 46F/615/RVD

Full information on the voting for its approval can be found in the report on voting indicated in

the above table.
The language used for the development of this International Standard is English.
---------------------- Page: 10 ----------------------
SIST EN IEC 61169-17:2022
IEC 61169-17:2022 © IEC 2022 – 5 –

This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in

accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available

at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are

described in greater detail at www.iec.ch/standardsdev/publications.

A list of all parts of the IEC 61169 series, under the general title: Radio-frequency connectors,

can be found on the IEC website.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under webstore.iec.ch in the data related to the

specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 11 ----------------------
SIST EN IEC 61169-17:2022
– 6 – IEC 61169-17:2022 © IEC 2022
RADIO-FREQUENCY CONNECTORS –
Part 17: Sectional specification for RF coaxial connectors with inner
diameter of outer conductor 6,5 mm (0,256 in) with screw coupling –
Characteristic impedance 50 ohms (Type TNC)
1 Scope

This part of IEC 61169, which is a sectional specification (SS), provides information and rules

for the preparation of detail specifications (DS) for series TNC RF coaxial connectors with

threaded coupling with a characteristic impedance of 50 Ω.

This document prescribes mating face dimensions for high performance connectors – grade 2,

dimensional details of standard test connectors − grade 0, gauging information and tests

selected from IEC 61169-1, applicable to all detail specifications relating to series TNC RF

connectors.

This document indicates recommended performance characteristics to be considered when

writing a detail specification and it covers test schedules and inspection requirements for

assessment levels M and H.

The series TNC connectors which are used with all kinds of RF cables and microstrips in

microwave transmission systems. The operating frequency is up to 11 GHz.

NOTE Metric dimension are original dimensions. All undimensioned pictorial configurations are for reference

purpose only.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies.

For undated references, the latest edition of the referenced document (including any

amendments) applies.

IEC 61169-1:2013, Radio frequency connectors – Part 1: Generic specification – General

requirements and measuring methods

IEC 62153-4-7, Metallic cables and other passive components test methods – Part 4-7:

Electromagnetic compatibility (EMC) – Test method for measuring of transfer impedance Z and

screening attenuation aS or coupling attenuation aC of connectors and assemblies –Triaxial tube

in tube method

IEC 62037-3, Passive RF and microwave devices, intermodulation level measurement – Part 3:

Measurement of passive intermodulation in coaxial connectors
3 Terms and definitions
No terms and definitions are listed in this document.
---------------------- Page: 12 ----------------------
SIST EN IEC 61169-17:2022
IEC 61169-17:2022 © IEC 2022 – 7 –

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
4 Mating face and gauge information
4.1 General connectors – Grade 2
4.1.1 Connector with pin centre contact

The mating face of a connector with pin centre contact is shown in Figure 1 and its dimensions

are shown in Table 1.
a) Connector with slotted outer conductor b) Connector with unslotted outer
conductor
NOTE 1 Mechanical and electrical reference plane.
NOTE 2 Sealing ring.
NOTE 3 Slot is optional. Slotted and flared to meet gauge requirements of 4.2.2.
Figure 1 – Connector with pin centre contact (for dimensions, see Table 1)
---------------------- Page: 13 ----------------------
SIST EN IEC 61169-17:2022
– 8 – IEC 61169-17:2022 © IEC 2022
Table 1 – Dimensions of connector with pin centre contact
mm in
Ref. Remarks
min max min max
11,18 —— 0,440 ——
7,98 8,08 0,314 0,318
4,83 —— 0,190 ——
1,32 1,37 0,052 0,054
5,31 5,84 0,209 0,230
5,28 5,79 0,208 0,228
0,15 —— 0,006 ——
0,08 1,02 0,003 0,040
5,38 —— 0,212 ——
—— —— —— ——
2,14 (nom.) 0,084 (nom.)
—— 1,98 —— 0,078
—— —— —— ——
1,60 —— 0,063 ——
—— 8,18 —— 0,322
3,96 —— 0,156 ——
—— 0,64 —— 0,025
1,98 —— 0,078 ——

Dimension k depends on the dimension m and dielectric constant, and shall meet the requirement of 50 Ω

characteristics.
Coupling nut in forward position.
Dimension s shall meet electrical and sealing performance requirements.
4.1.2 Connector with socket centre contact

The mating face of a connector with socket centre contact is shown in Figure 2 and its

dimensions are shown in Table 2.
---------------------- Page: 14 ----------------------
SIST EN IEC 61169-17:2022
IEC 61169-17:2022 © IEC 2022 – 9 –
NOTE Mechanical and electrical reference plane.
Figure 2 – Connector with socket centre contact (for dimensions, see Table 2)
Table 2 – Dimensions of connector with socket centre contact
mm in
Ref. Remarks
min max min max
a 9,60 9,68 0,378 0,381
8,31 8,46 0,327 0,333
c 8,10 8,15 0,319 0,321
d —— 4,72 —— 0,186
e —— 0,15 —— 0,006
f 10,52 —— 0,414 ——
g 8,31 8,51 0,327 0,335
h 1,73 2,24 0,068 0,088
j 4,75 —— 0,187 ——
—— —— —— ——
m 2,14 (nom.) 0,084 (nom.)
n 4,72 5,28 0,186 0,208
p 4,78 5,28 0,188 0,208
—— —— —— ——
t 4,95 —— 0,195 ——
—— —— —— ——
—— —— —— ——
rb 0,15 0,30 0,006 0,012 Radius
or chamfer

Dimension k depends on the dimension m and dielectric constant, and shall meet the requirement of

characteristic impedance of 50 Ω.

Design of slotting is optional. It is chosen to meet return loss (RL), mating characteristics, and connector

durability requirements, when mated with a 1,32 mm to 1,37 mm (0,052 in to 0,054 in) gauge pin.

Spherical or chamfered.
Dimension w shall meet the requirements of 4.2.1.
---------------------- Page: 15 ----------------------
SIST EN IEC 61169-17:2022
– 10 – IEC 61169-17:2022 © IEC 2022
4.2 Gauges
4.2.1 Gauge pin for socket centre contact

The gauge pin for a socket centre contact is shown in Figure 3 and its dimensions are shown

in Table 3.
Figure 3 – Gauge pin for socket centre contact (for dimensions, see Table 3)
Table 3 – Dimensions of gauge pin for socket centre contact
Gauge C
Gauge A Gauge B
(For retention purpose)
(For sizing purpose) (For insertion purpose)
Mass of gauge:57 g ± 1 g
mm in mm in mm in
Ref.
min max min max min max min max min max min max
d 1,38 1,460 0,0543 0,0575 1,370 1,375 0,0539 0,0541 1,308 1,321 0,0515 0,0520
n 3,17 — 0,125 — 3,17 — 0,125 — 3,17 — 0,125 —
p — 4 — 0,157 — 4 — 0,157 — 4 — 0,157
ra 0,10 0,30 0,004 0,012 0,10 0,30 0,004 0,012 0,10 0,30 0,004 0,012
rb — 0,20 — 0,008 — 0,20 — 0,008 — 0,20 — 0,008
Material: steel, polished.
The test procedure is as follows:
a) Sizing test

The gauge A shall be inserted into the socket-centre contact three times. This is a sizing

operation and should only be carried out when the socket-centre contact is removed from

the connector.
b) Insertion test

After the sizing test, the standard gauge B should be inserted into the socket-centre contact.

The insertion depth should not be less than 3,17 mm and the insertion force should not be

more than 8,9 N.
c) Retention test

After the sizing test, the gauge C shall be inserted into socket-centre contact. The contact

shall retain the mass of the gauge B in a vertical downward position.
4.2.2 Gauge for outer contact of connector with pin centre contact

The gauge for outer contact of a connector with pin centre contact is shown in Figure 4 and its

dimensions are shown in Table 4.
---------------------- Page: 16 ----------------------
SIST EN IEC 61169-17:2022
IEC 61169-17:2022 © IEC 2022 – 11 –
Figure 4 – Gauge for outer contact of connector with pin centre
contact (for dimensions, see Table 4)

Table 4 – Dimensions of gauge for outer contact of connector with pin centre contact

Gauge E (For retention purpose)
Gauge D (For sizing purpose)
Mass of gauge:225 g ± 5 g
mm in mm in
Ref.
min. max. min. max. min. max. min. max.
a 9,63 9,68 0,379 0,381 9,63 9,68 0,379 0,381
b —— 5,08 —— 0,200 —— 5,08 —— 0,200
c 8,08 8,10 0,318 0,319 8,15 8,18 0,321 0,322
d 8,31 8,36 0,327 0,329 8,41 8,46 0,331 0,333
e 8,79 (nom.) 0,346 (nom.) 8,79 (nom.) 0,346(nom.)
f 8,41 8,46 0,331 0,333 8,36 8,41 0,329 0,331
g 4,00 —— 0,157 —— 4,00 —— 0,157 ——
0,50 0,80 0,020 0,031 0,50 0,80 0,020 0,031
Material: steel, polished.
Radius.
The test procedure is as follows:
a) Sizing test

The outer contact shall be inserted into the gauge D once. This is a sizing operation.

b) Retention test

After the sizing test, the outer contact shall be inserted into the gauge E. The outer contact

shall retain the gauge in a vertical downward direction.
This test may also be carried out on the connector with the insulator unremoved.
4.3 Dimensions – Standard test connectors – Grade 0
4.3.1 Connectors with pin centre contact

The interface of a connector with pin centre contact is shown in Figure 5, and its dimensions

are shown in Table 5.
---------------------- Page: 17 ----------------------
SIST EN IEC 61169-17:2022
– 12 – IEC 61169-17:2022 © IEC 2022
NOTE Mechanical and electrical reference plane.
Figure 5 – Connector with pin centre contact (for dimensions, see Table 5)
Table 5 – Dimensions of connector with pin centre contact
mm in
Ref. Note
min. max. min. max.
8,06 8,09 0,3173 0,3185
ba 6,72 6,74 0,265 0,266
c 4,88 4,93 0,192 0,194
6,99 7,01 0,275 0,276
fa 5,31 5,36 0,209 0,211
e 5,31 5,38 0,209 0,212
h 0,08 1,02 0,003 0,040
g 0,15 0,30 0,006 0,012
f 5,38 5,54 0,212 0,218
d 1,35 1,37 0,053 0,054
2,14 (nom.) 0,084 (nom.)
ra 0,10 0,30 0,004 0,012 radius
rb — 0,13 — 0,005 radius
ab 1,98 — 0,078 —
— 0,64 — 0,025
NOTE Dimensions not specified in this table, see 4.1.1.

Dimension m depends on the dimension k and dielectric constant, and shall meet the requirements of

characteristic impedance of 50 Ω ± 0,5 Ω.
---------------------- Page: 18 ----------------------
SIST EN IEC 61169-17:2022
IEC 61169-17:2022 © IEC 2022 – 13 –
4.3.2 Connector with socket centre contact

The mating face of a standard test connector with socket centre contact is shown in Figure 6

and its dimensions are shown in Table 6.
NOTE Mechanical and electrical reference plane.
Figure 6 – Connector with socket in centre contact (for dimensions, see Table 6)
---------------------- Page: 19 ----------------------
SIST EN IEC 61169-17:2022
– 14 – IEC 61169-17:2022 © IEC 2022
Table 6 – Dimensions of connector with socket centre contact
mm in
Ref. Note
min. max. min. max.
b 8,31 8,46 0,327 0,333
c 8,10 8,15 0,319 0,321
d 4,67 4,72 0,184 0,186
e 0,00 0,15 0,000 0,006
f 0,51 1,02 0,020 0,040
g 8,36 8,46 0,329 0,333
h 0,79 0,84 0,031 0,033
2,14 (nom.) 0,084(nom.)
k 6,99 7,01 0,275 0,276
n 5,21 5,28 0,205 0,208
p 5,08 5,23 0,200 0,206
s 1,52 1,63 0,060 0,064
t 5,21 —— 0,205 ——
u 2,16 2,18 0,085 0,086
w 6,58 6,68 0,259 0,263
0,18 0,23 0,007 0,009
z 6,05 6,10 0,238 0,240
sa 0,38 0,89 0,015 0,035
sb 1,356 1,361 0,053 0,054
sc 1,52 1,58 0,060 0,062
sd 4,62 4,88 0,182 0,192
NOTE Dimensions not specified in this table, see 4.1.2.
Dimension m depends on the di
...
