SIST EN 15694:2012+A1:2016
(Main)Agricultural and forestry tractors - Passenger seat - Requirements and test procedures
Agricultural and forestry tractors - Passenger seat - Requirements and test procedures
This standard is applicable to agricultural and forestry tractors on which provision is made for carrying one person in addition to the driver. It specifies minimum requirements for space and support, specifies roll-over protective structures (ROPS) test procedures and seat belt requirements, by reference to other standards.
It also specifies the information to be provided by the tractor manufacturer.
Land- und forstwirtschaftliche Traktoren - Beifahrersitz - Anforderungen und Prüfverfahren
Dieses Dokument gilt für land- und forstwirtschaftlichen Traktoren, die dafür ausgelegt sind, zusätzlich zu dem Fahrer eine weitere Person zu transportieren. Es legt Mindestanforderungen an den Platz und sicheren Aufenthalt fest und enthält Prüfverfahren für Umsturzschutzvorrichtungen sowie Anforderungen an Sitzgurte durch Bezugnahme auf andere Normen.
Es legt ebenfalls fest, welche Informationen von dem Traktorenhersteller zur Verfügung zu stellen sind.
Tracteurs agricoles et forestiers - Siège du passager - Prescriptions et modes opératoires d'essai
La présente norme est applicable aux tracteurs agricoles et forestiers sur lesquels des mesures sont prises pour transporter une personne en plus du conducteur. Elle spécifie les prescriptions minimales pour la place et le support, spécifie les modes opératoires d'essai des structures de protection contre le retournement (ROPS) et les prescriptions pour les ceintures de sécurité, par référence à d'autres normes.
Elle indique également les informations que doit fournir le constructeur du tracteur.
Kmetijski in gozdarski traktorji - Sovozniški sedež - Zahteve in preskusni postopki (vključno z dopolnilom A1)
Ta standard se uporablja za kmetijske in gozdarske traktorje, za katere je predvideno, da lahko poleg voznika prevažajo še eno osebo. S sklicevanjem na druge standarde določa minimalne zahteve za prostor in podporo, določa preskusne postopke za zaščitne strukture proti prevrnitvi ter zahteve glede varnostnega pasu. Določa tudi informacije, ki jih mora zagotoviti proizvajalec traktorja.
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Land- und forstwirtschaftliche Traktoren - Beifahrersitz - Anforderungen und PrüfverfahrenTracteurs agricoles et forestiers - Siège du passager - Prescriptions et modes opératoires d'essaiAgricultural and forestry tractors - Passenger seat - Requirements and test procedures65.060.10Kmetijski traktorji in prikoliceAgricultural tractors and trailed vehiclesICS:Ta slovenski standard je istoveten z:EN 15694:2009+A1:2015SIST EN 15694:2012+A1:2016en,fr,de01-januar-2016SIST EN 15694:2012+A1:2016SLOVENSKI
STANDARD
SIST EN 15694:2012+A1:2016
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 15694:2015+A1
November
t r s w ICS
x wä r x rä s r Supersedes EN
s w x { vã t r r {English Version
Agricultural and forestry tractors æ Passenger seat æ Requirements and test procedures Tracteurs agricoles et forestiers æ Siège du passager æ Prescriptions et modes opératoires d 5essai
Landæ und forstwirtschaftliche Traktoren æ Beifahrersitz æ Anforderungen und Prüfverfahren This European Standard was approved by CEN on
t r May
t r r { and includes Amendment
s approved by CEN on
s t September
t r s wä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey andUnited Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
9
t r s w CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s w x { vã t r s w ªA sã t r s w ESIST EN 15694:2012+A1:2016

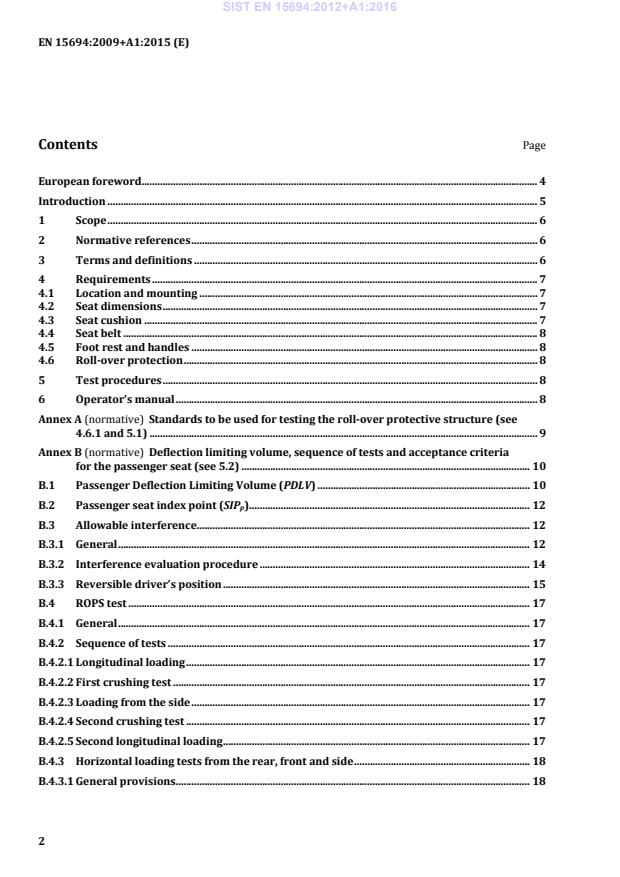

EN 15694:2009+A1:2015 (E) 2 Contents Page European foreword . 4 Introduction . 5 1 Scope . 6 2 Normative references . 6 3 Terms and definitions . 6 4 Requirements . 7 4.1 Location and mounting . 7 4.2 Seat dimensions . 7 4.3 Seat cushion . 7 4.4 Seat belt . 8 4.5 Foot rest and handles . 8 4.6 Roll-over protection . 8 5 Test procedures . 8 6 Operator's manual . 8 Annex A (normative)
Standards to be used for testing the roll-over protective structure (see 4.6.1 and 5.1) . 9 Annex B (normative)
Deflection limiting volume, sequence of tests and acceptance criteria for the passenger seat (see 5.2) . 10 B.1 Passenger Deflection Limiting Volume (PDLV) . 10 B.2 Passenger seat index point (SIPp) . 12 B.3 Allowable interference . 12 B.3.1 General . 12 B.3.2 Interference evaluation procedure . 14 B.3.3 Reversible driver’s position . 15 B.4 ROPS test . 17 B.4.1 General . 17 B.4.2 Sequence of tests . 17 B.4.2.1 Longitudinal loading . 17 B.4.2.2 First crushing test . 17 B.4.2.3 Loading from the side . 17 B.4.2.4 Second crushing test . 17 B.4.2.5 Second longitudinal loading . 17 B.4.3 Horizontal loading tests from the rear, front and side . 18 B.4.3.1 General provisions . 18 SIST EN 15694:2012+A1:2016
EN 15694:2009+A1:2015 (E) 3 B.4.3.2 Longitudinal loading . 18 B.4.3.3 Side loading . 18 B.4.4 Crushing tests . 19 B.4.4.1 Crushing at the rear . 19 B.4.4.2 Crushing at the front . 19 B.4.5 Second longitudinal loading test . 19 B.4.6 Interference measuring apparatus . 20 B.4.7 Conditions for acceptance . 21 B.4.7.1 General . 21 B.4.7.2 Description of the overload test . 22 Annex C (normative)
Rules and directions . 23 C.1 General . 23 C.2 Apparatus . 24 C.3 Test conditions . 24 C.4 Extension to other tractor models . 25 C.4.1 General . 25 C.4.2 Extension of the structural test results to other models of tractors . 25 C.4.3 Extension of the structural test results to modified models of the protective structure . 25 Bibliography . 27
SIST EN 15694:2012+A1:2016
EN 15694:2009+A1:2015 (E) 4 European foreword This document (EN 15694:2009+A1:2015) has been prepared by Technical Committee CEN/TC 144 “Tractors and machinery for agriculture and forestry”, the secretariat of which is held by AFNOR. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by May 2016, and conflicting national standards shall be withdrawn at the latest by May 2016. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document includes Amendment 1 approved by CEN on 2015-09-12. This document supersedes EN 15694:2009. The start and finish of text introduced or altered by amendment is indicated in the text by tags !". This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 15694:2012+A1:2016
EN 15694:2009+A1:2015 (E) 5 Introduction Agricultural and forestry tractors are often equipped with a passenger seat to allow the safe, short-term and occasional transport of a person from the farm to the field. The tractor and cab design is defined by and optimized for various functions and operating conditions. The passenger transport is not a main request and less comfortable conditions are accepted by the market for the benefit of the main purposes. Roll-over protective structures (ROPS) were introduced to improve the safety of the tractor driver during field operations. To allow the protection of the passenger, to consider the specific conditions of tractor design, its intended use and all risks including the risk of roll-over, the standard should satisfy especially the following conditions: — to specify requirements to be applied to all tractors respectively all operations and requirements depending on the intended use respectively operations taking into account the normal use; — to specify performance based requirements corresponding to the state of art and minimizing the necessary changes in tractor design; — to ensure a high level of occupational safety for both – the driver and passenger – during the individual operations; — not to reduce the protection of the driver or passenger against other risks; — to refer to available specifications or standards; — to provide repeatable and reproducible test procedures. SIST EN 15694:2012+A1:2016
EN 15694:2009+A1:2015 (E) 6 1 Scope This standard is applicable to agricultural and forestry tractors on which provision is made for carrying one person in addition to the driver. It specifies minimum requirements for space and support, specifies roll-over protective structures (ROPS) test procedures and seat belt requirements, by reference to other standards. It also specifies the information to be provided by the tractor manufacturer. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. ISO 3463, Tractors for agriculture and forestry — Roll-over protective structures (ROPS) — Dynamic test method and acceptance conditions ISO 3776-1, Tractors and machinery for agriculture — Seat belts — Part 1: Anchorage location requirements ISO 3776-2, Tractors and machinery for agriculture — Seat belts — Part 2: Anchorage strength requirements !ISO 5353:1995, Earth-moving machinery, and tractors and machinery for agriculture and forestry — Seat index point" ISO 5700, !Tractors for agriculture and forestry — Roll-over protective structures — Static test method and acceptance conditions" ISO 12003-1, Agricultural and forestry tractors — Roll-over protective structures on narrow-track wheeled tractors — Part 1: Front-mounted ROPS ISO 12003-2, Agricultural and forestry tractors — Roll-over protective structures on narrow-track wheeled tractors — Part 2: Rear-mounted ROPS 3 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1 passenger seat structure which may or may not be integral with the tractor structure, complete with cushion, intended to seat and transport one adult person ! 3.2 passenger seat index point (SIPp) point located in the central longitudinal plane of the apparatus for determination when installed in the passenger seat SIST EN 15694:2012+A1:2016
EN 15694:2009+A1:2015 (E) 7 3.3 passenger deflection-limiting volume (PDLV) volume which is defined in relation to the reference planes and the passenger seat index point (SIPp) and serving to set limits and deflections permissible when performing laboratory evaluations of the protective structure 3.4 reference planes vertical planes being longitudinal and transversal to the tractor and passing through the passenger seat index point; these reference planes are assumed to move horizontally with the seat during loading but to remain perpendicular to the tractor or the floor of the roll-over protective structure 3.5 interference zone portion of the operator clearance zone (OCZ) where a defined maximum interference with PDLV is allowed" 4 Requirements 4.1 Location and mounting 4.1.1 Each seat shall be so placed that the passenger is in no danger and creates no impediment to driving the tractor. 4.1.2 There shall be a vertical clearance of at least 920 mm above the surface of the passenger seat. However, where a tractor satisfies the requirements relating to the driver's protection and seating, but its construction does not allow for such a vertical clearance for the passenger, the clearance may be reduced to 800 mm, provided that adequate padding is provided immediately above the passenger seat at the level of the roof. The upper part of the vertical clearance allowed for the passenger may be limited at the rear and sides, only by a radius not exceeding 300 mm. The vertical clearance is the vertical open space between the front edge of the seat and the roof of the tractor. 4.1.3 The passenger seat shall not add to the overall width of the tractor. 4.1.4 Each seat shall be firmly fixed and properly attached according to the type of tractor, to a structural member of the tractor chassis, roll-over protective structure, platform, etc. The structural member concerned shall be sufficiently strong to support a laden passenger seat. 4.2 Seat dimensions 4.2.1 Each seat shall be at least 400 mm wide and at least 300 mm deep. 4.2.2 Each seat shall incorporate a lateral support for position-maintenance purposes and be fitted with a back rest that is at least 200 mm high. NOTE The lateral support and/or the backrest may also be provided by parts of the cab and/or the roll-over protective structure. 4.3 Seat cushion The seat cushion shall be either padded or made from elastic materials (e.g. plastics). SIST EN 15694:2012+A1:2016
EN 15694:2009+A1:2015 (E) 8 4.4 Seat belt A restraint system shall be provided. The restraint system shall be in accordance with the ISO 3776- series or other applicable standards. 4.5 Foot rest and handles 4.5.1 A suitable foot rest for the passenger's feet shall be provided. 4.5.2 Suitable grab handles shall be provided in order to facilitate the access to the passenger seat and to help him to remain in position on it. 4.6 Roll-over protection 4.6.1 If the intended use of the passenger seat allows the transport of passengers during field operations, the passenger shall be protected by the roll-over protective structure provided for the driver's protection or by an additional structure. 4.6.2 If the intended use of the passenger seat only allows the transport of passengers on public roads and not during field operations, a safety sign with the information that the passenger seat shall not be used during field operations shall be provided on or near to the passenger seat. In addition, this information shall be provided in the operator's manual. 4.6.3 To allow the same specifications for road and field operations in the future, specific test procedure(s) and acceptance criteria are needed (see 5.2) 5 Test procedures 5.1 The roll-over protective structure provided for the protection of the driver and/or the additional structure, if provided (see 4.6.1), shall be tested in accordance with Annex A. 5.2 Annex B includes the outline for a specific provisional test procedure and acceptance criteria (see 4.6.3). !deleted text" 5.3 The requirements and dimensions specified in 4.1 to 4.5 shall be verified by inspection and/or measurement. 6 Operator's manual The operator's manual shall provide the following information: a) the intended use of the passenger seat; b) the obligation for the passenger to use the seat belt; c) that it is forbidden to use the passenger seat during field operations, if this use is excluded from the intended use. SIST EN 15694:2012+A1:2016
EN 15694:2009+A1:2015 (E) 9 Annex A (normative)
Standards to be used for testing the roll-over protective structure (see 4.6.1 and 5.1) Table A.1 specifies the relevant ISO standards and shows equivalent other documents. Table A.1 — ISO standards and equivalent documents ISO standards Equivalent documents ISO 3463 ISO 5700 ISO 12003-1 ISO 12003-2 Directive 77/536/EEC [1] Directive 79/622/EEC [2] Directive 87/402/EEC [3] Directive 86/298/EEC [4] OECD tractor test codes SIST EN 15694:2012+A1:2016
EN 15694:2009+A1:2015 (E) 10 ! Annex B (normative)
Deflection limiting volume, sequence of tests and acceptance criteria for the passenger seat (see 5.2) B.1 Passenger Deflection Limiting Volume (PDLV) The passenger deflection limiting volume (PDLV) is established using the passenger seat index point (SIPp), as defined in 3.2 according to the dimensions reported in Figure B.1. Front view Right side view
Figure B.1 — Passenger deflection limiting volume (PDLV) It is also allowed to rotate forward and rearward and to each side about the SIPp not more than 15° with respect to transversal and longitudinal reference planes (Figure B.2). SIST EN 15694:2012+A1:2016
EN 15694:2009+A1:2015 (E) 11 When rotating the PDLV to the side, the portion of the PDLV below the horizontal plane passing through SIPp can be disregarded. Front view Left side view
Figure B.2 — Rearward, forward and lateral rotation In addition, the upper portion of the PDLV, as illustrated in Figure B.3, is allowed to flex forward and rearward an additional 15° maximum with respect to transversal reference plane. This flexion movement is around a flexion axis (FA) located as reported in Figure B.3.
Figure B.3 — Rearward and forward flexion (right side view) SIST EN 15694:2012+A1:2016
EN 15694:2009+A1:2015 (E) 12 Thus, the overall possible rearward and forward motions of the PDLV are illustrated in the side views of Figure B.4. The PDLV is allowed to rotate forward, rearward and to each side about the SIPp and to flex forward and rearward about FA in any part of the tests. The SIPp may move during the test due to deflection of the chassis. If this occurs, the PDLV will continue to maintain its relationship with the SIPp.
Key a rearward flexion b rearward rotation c forward flexion d forward rotation Figure B.4 — Overall motions in rearward and forward directions (right side view) B.2 Passenger seat index point (SIPp) In order to apply the passenger deflection limiting volume it is necessary to define a passenger seat index point (SIPp). For its definition, ISO 5353:1995 shall be applied. B.3 Allowable interference B.3.1 General During the ROPS test for agricultural or forestry tractors, a maximum interference between operator clearance zone (OCZ) and passenger deflection limiting volume (PDLV) is allowed. In particular the OCZ, defined in relation to the operator seat index point (SIPo)1, has been divided into three interference zones as follow (Figure B.5): — the first zone extends for 350 mm (plane a in Figure B.5) in longitudinal direction from the back of the operator clearance zone (point G in Figure B.5); — the second zone is enclosed among the end of the previous one (plane a) and a transversal plane (plane b in Figure B.5) located at 400 mm from point B in longitudinal direction;
1 See OECD Code 4 – July 2014 SIST EN 15694:2012+A1:2016
EN 15694:2009+A1:2015 (E) 13 — the third zone extends from the end of the previous one (plane b) till the end of the operator clearance zone. Top view Left side view
Key 1 tractor longitudinal median plane Figure B.5 — Interference zones For each of the interference zones previously defined a maximum allowable interference between OCZ and PDLV has been set. The reference interference zone is the one which contains the projection of SIPp on the tractor longitudinal median plane (see Figure B.5). If this projection coincides with one of the division planes (a or b) the reference interference zone should be indifferently one of the two zones sharing the division plane. With reference to Figure B.6 a minimum horizontal distance (A) between SIPp and SIPo shall be evaluated. SIST EN 15694:2012+A1:2016
EN 15694:2009+A1:2015 (E) 14
Key A horizontal distance between SIPp and SIPo measured on a vertical plane orthogonal to the longitudinal median plane of the tractor passing through SIPp
h vertical distance between SIPp and SIPo measured on a vertical plane orthogonal to the longitudinal median plane of the tractor passing through SIPp
angular deflection measured between vertical median plane of the tractor and vertical median plane of PDLV Figure B.6 — Nomenclature for interference determination - Rear view (on the left) and top view (on the right) B.3.2
Interference evaluation procedure The interference evaluation procedure is defined as follows: — determination of the operator seat index point (SIPo); — determination of the passenger seat index point (SIPp); — determination of the three interference zones on the operator clearance zone (see Figure B.5); — determination of the reference interference zone by the projection of the SIPp on the longitudinal median plane of tractor; — determination of the angular deflection () of the passenger seat with respect to the moving direction of the tractor; — measurement of the vertical distance (h) between SIPo and SIPp; — measurement of the transversal distance (A) between SIPo and SIPp during all the ROPS test; — comparison and verification of the value of A, determined at previous step, with respect to the values reported in the following Tables B.1, B.2 and B.3. SIST EN 15694:2012+A1:2016
EN 15694:2009+A1:2015 (E) 15 Table B.1 —Minimum distance (A) for the zone I h [mm] A [mm]
r ¹
¶
¶
s r ¹ 10° <
¶
t r ¹ - t r r
¶ h < -150
·
x v w
·
x y r - s w r
¶ h < -100
·
x t r
·
x w r - s r r
¶ h < -50
·
x s r
·
x u r - w r
¶ h < 0
·
x r r
·
x t r
r
¶ h
¶
ª s r r
·
w y r
·
x r r
Table B.2 —Minimum distance (A) for the zone II h [mm] A [mm]
r ¹
¶
¶
s r ¹ 10° <
¶
t r ¹ plane a plane b plane a plane b - t r r
¶ h < -150
·
x45
·
v t r
·
x y r
·
v x r - s w r
¶ h < -100
·
x t r
·
u { r
·
x w r
·
v u r - s r r
¶ h < -50
·
x s r
·
u y r
·
x u r
·
v s w - w r
¶ h < 0
·
x r r
·
u v w
·
x t r
·
u { r
r
¶ h
¶
ª s r r
·
w y r
·
u t r
·
x r r
·
u v r
Table B.3 —Minimum distance (A) for the zone III h [mm] A [mm]
r ¹
¶
¶
s r ¹ 10° <
¶
t r ¹ - t r r
¶ h < -150
·
v t r
·
v x r - s w r
¶ h < -100
·
u { r
·
v u r - s r r
¶ h < -50
·
u y r
·
v s w - w r
¶ h < 0
·
u v w
·
u { r
r
¶ h
¶
ª s r r
·
u t r
·
u v r
A tolerance of 5 % should be applied to all dimensions reported in Tables B.1, B.2 and B.3. Reference interference zone, angular deflection () and vertical distance (h) measured at the beginning shall be considered constant during any part of the tests. B.3.3 Reversible driver’s position For tractors with a reversible driver’s position (reversible seat and steering wheel), it is necessary to repeat the interference evaluation procedure also for rearward facing seat position, as described in B.3.2 for forward facing seat position. SIST EN 15694:2012+A1:2016
EN 15694:2009+A1:2015 (E) 16 Operator clearance zone for rearward (R) facing seat position Operator clearance zone for forward (F) facing seat position
Figure B.7 — Interference zone in case of reversible driver's position (left side view) In fact, the OCZ for reward facing seat position will have different interference zones, vertical distance (h) and transversal distance (A) with respect to OCZ for forward facing seat position (see Figure B.7), while the angular deflection () will be the same for both seat configurations because it is defined by the passenger seat and the tractor longitudinal median plane. Applying the interference evaluation procedure to both driver seat positions, the four cases reported in Table B.4 may present. Table B.4 — Possible cases of combined interference evaluation procedure for reversible driver's position CASE Forward facing OCZ test Rearward facing OCZ test 1 Allowable interference Allowable interference 2 Not allowable interference 3 Not allowable interference Allowable interference 4 Not allowable interference In particular, referring to: — Case 1: the PDLV has an allowable interference for both operator seat positions and can be used in both working condition without any restriction. — Case 2: the passenger seat can be used only when the operator seat is in forward facing position. When operator seat is in rearward position passenger seat usage shall be avoided or tractor rearward functionality shall be limited. SIST EN 15694:2012+A1:2016
EN 15694:2009+A1:2015 (E) 17 — Case 3: the passenger seat can be used only when the operator seat is in rearward facing position. When operator seat is in forward position passenger seat usage shall be avoided or tractor forward functionality shall be limited. — Case 4: the PDLV has not allowable interference and then passenger seat shall not be installed. B.4 ROPS test B.4.1 General The sequence of tests should be derived from the OECD code and modified according to the position of the passenger seat, if necessary. All the rules and directions defined in Annex C shall be applied, while the sequence of tests, the load points of application and the conditions for acceptance with reference to passenger seat are herein reported. B.4
...
