SIST EN 1912:2012
(Main)Structural Timber - Strength classes - Assignment of visual grades and species
Structural Timber - Strength classes - Assignment of visual grades and species
This European Standard lists the visual grades, species and sources of timber, and specifies the strength classes to which they are assigned, as documented in EN 338.
NOTE For the grades, species and sources included, there is a long history of use and/or satisfactory test data. The sources listed therefore are largely determined by existing commercial practices.
Bauholz für tragende Zwecke - Festigkeitsklassen - Zuordnung von visuellen Sortierklassen und Holzarten
Diese Europäische Norm gibt visuelle Festigkeitsklassen, Holzarten und deren Herkunft an und legt die Festigkeitsklassen nach EN 338 fest, denen sie zugeordnet sind. ANMERKUNG Für die angegebenen Sortierklassen, Holzarten und Herkünfte liegen langjährige praktische Erfahrungen und/oder befriedigende Prüfdaten vor. Die angegebene Herkunft orientiert sich daher weitestgehend an der gewerblichen Praxis.
Bois de structure - Classes de résistance - Affectation des classes visuelles et des essences
La présente Norme Européenne répertorie les classes visuelles de résistance, les essences et les origines
d’approvisionnement de bois et spécifie les classes de résistance, fixées par la norme européenne EN 338,
auxquelles elles se rapportent.
NOTE Pour les classes, essences et origines d'approvisionnement incluses, il existe une grande expérience
d'utilisation et/ou de données d'essai satisfaisantes. Les origines sont donc largement déterminées par la pratique
commerciale existante.
Konstrukcijski les - Trdnostni razredi - Določitev trdnostnih razredov na podlagi vizualnega razvrščanja in vrste lesa
Ta evropski standard navaja trdnostne razrede na podlagi vizualnega razvrščanja, vrste in virov lesa ter določa trdnostne razrede, v katere so razvrščeni, kot so navedeni v standardu EN 338.
General Information
- Status
- Withdrawn
- Public Enquiry End Date
- 24-Dec-2010
- Publication Date
- 26-Sep-2012
- Withdrawal Date
- 21-Jul-2024
- Technical Committee
- KON.005 - Timber structures
- Current Stage
- 9900 - Withdrawal (Adopted Project)
- Start Date
- 19-Jul-2024
- Due Date
- 11-Aug-2024
- Completion Date
- 22-Jul-2024
Relations
- Effective Date
- 01-Oct-2012
- Replaced By
SIST EN 1912:2024 - Structural Timber - Strength classes - Assignment of visual grades and species - Effective Date
- 01-Sep-2024
- Corrected By
SIST EN 1912:2012/AC:2013 - Structural Timber - Strength classes - Assignment of visual grades and species - Effective Date
- 01-Dec-2013
Frequently Asked Questions
SIST EN 1912:2012 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Structural Timber - Strength classes - Assignment of visual grades and species". This standard covers: This European Standard lists the visual grades, species and sources of timber, and specifies the strength classes to which they are assigned, as documented in EN 338. NOTE For the grades, species and sources included, there is a long history of use and/or satisfactory test data. The sources listed therefore are largely determined by existing commercial practices.
This European Standard lists the visual grades, species and sources of timber, and specifies the strength classes to which they are assigned, as documented in EN 338. NOTE For the grades, species and sources included, there is a long history of use and/or satisfactory test data. The sources listed therefore are largely determined by existing commercial practices.
SIST EN 1912:2012 is classified under the following ICS (International Classification for Standards) categories: 79.040 - Wood, sawlogs and sawn timber. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 1912:2012 has the following relationships with other standards: It is inter standard links to SIST EN 1912:2004+A4:2010, SIST EN 1912:2024, SIST EN 1912:2012/AC:2013. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase SIST EN 1912:2012 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of SIST standards.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Bauholz für tragende Zwecke - Festigkeitsklassen - Zuordnung von visuellen Sortierklassen und HolzartenBois de structure - Classes de résistance - Affectation des classes visuelles et des essencesStructural Timber - Strength classes - Assignment of visual grades and species79.040Les, hlodovina in žagan lesWood, sawlogs and sawn timberICS:Ta slovenski standard je istoveten z:EN 1912:2012SIST EN 1912:2012en,fr,de01-oktober-2012SIST EN 1912:2012SLOVENSKI
STANDARDSIST EN 1912:2004+A4:20101DGRPHãþD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 1912
April 2012 ICS 79.040 Supersedes EN 1912:2004+A4:2010English Version
Structural Timber - Strength classes - Assignment of visual grades and species
Bois de structure - Classes de résistance - Affectation des classes visuelles et des essences
Bauholz für tragende Zwecke - Festigkeitsklassen - Zuordnung von visuellen Sortierklassen und Holzarten This European Standard was approved by CEN on 9 March 2012.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2012 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 1912:2012: ESIST EN 1912:2012

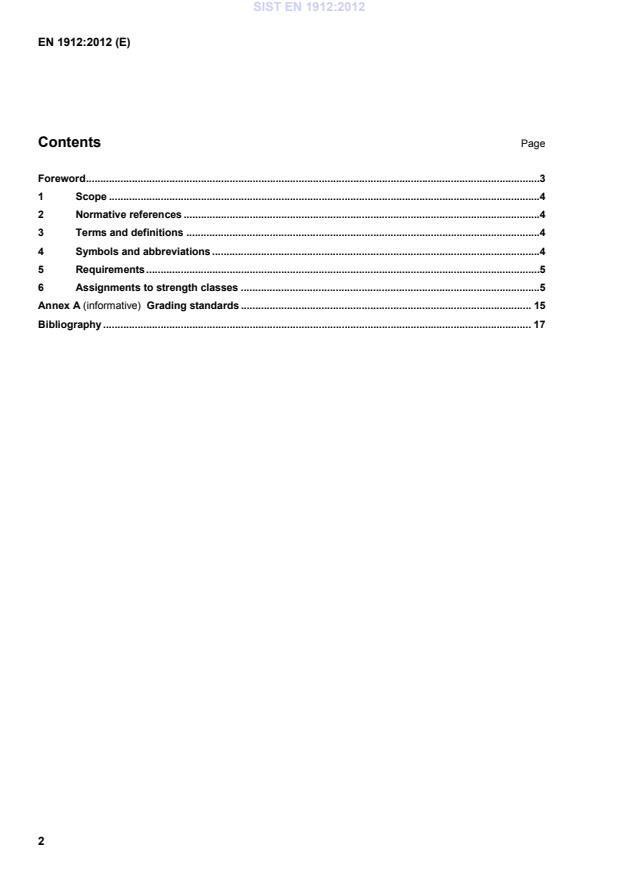

Grading standards . 15Bibliography . 17 SIST EN 1912:2012
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document supersedes EN 1912:2004+A4:2010. This revised version contains assignments of additional grades and species. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
3.1 timber source geographical area of growth of the trees from which the timber is sawn 3.2 timber species individual species or combination of species 3.3 Nordic countries Denmark, Finland, Iceland, Norway and Sweden 4 Symbols and abbreviations CNE Europe
Central, Northern and Eastern Europe NNE Europe
Northern and North Eastern Europe NC Europe
Northern and Central Europe SIST EN 1912:2012
The timber grades, species and sources listed meet the requirements of the strength classes to which they are assigned in Table 1 and Table 2. Table 3 and Table 4 identify the botanical species for the commercial names listed in Table 1 and Table 2. NOTE 1 Timber graded by machine to EN 14081 may be graded directly to the strength classes and marked accordingly, and is therefore not referenced in this document. NOTE 2 For combinations of species and visual grades which meet the requirements of EN 14081 but are not listed in this standard, the assignment to strength classes can be made according to EN 338 using characteristic values determined in accordance with EN 384. The accepted assignments to strength classes given in this European Standard are based on initial type testing (ITT) and initial type calculation (ITC). The ITT and ITC documentation from the manufacturers has been evaluated by CEN/TC124/WG2/TG1 and the accepted values given in an ITT report. This report is the basis for the attestation of conformity by the Notified Body conducting the certification of the producer’s factory production control (FPC). Further ITT reports may be used as documentation before the information they contain becomes available in an amendment or revision of this European Standard, EN 1912. SIST EN 1912:2012
Strength Class Grading rule publishing country Grade (see Note 2) Species commercial name Source Botanical identification (see Table 3) Comments C35 Germany & Austria
S13, S13K Douglas Fir Germany & Austria 54
C30 France
ST-I
Spruce & Fir
France
1, 22
Germany, Austria & Czech Republic
S13, S13K S13, S13K S13, S13K S13, S13K
Spruce Pine Fir Larch
CNE Europe CNE Europe CNE Europe CNE Europe
22 47 1 15
Italy
S1
Douglas fir
Italy
Maximum width and thickness 100 mm Nordic countries
T3 T3 T3 T3 Pine (Redwood) Spruce (Whitewood) Fir Larch NNE Europe NNE Europe NNE Europe NNE Europe 47 22 1 15
Slovak Republic S0
Spruce Slovak Republic 22
Spain ME1 Laricio pine
Spain 39
The Netherlands T3 T3 T3 T3
Pine (Redwood) Spruce (Whitewood) Fir Larch NNE Europe NNE Europe NNE Europe NNE Europe 47 22 1 15
C27 France ST-I Larch France 15
Germany LS13 Poplar Germany 51
Spain ME1 Scots pine Spain 47
C24
France
ST-II ST-II ST-II ST-II ST-II
Spruce & Fir Douglas Fir Pines Poplar (see note 1) Larch
France France France France France
1, 22 54 39, 44, 47 50 15
Germany & Austria
S10, S10K Douglas Fir
Germany & Austria
Germany, Austria & Czech Republic S10, S10K S10, S10K S10, S10K S10, S10K Spruce Pine Fir Larch CNE Europe CNE Europe CNE Europe CNE Europe 22 47 1 15
Italy
S2 & better S2 & better
Corsican pine Spruce & fir
Italy Italy
39 1, 22
Nordic countries
T2 T2 T2 T2 T2 & better Pine (Redwood) Spruce (Whitewood) Fir Larch Sitka spruce NNE Europe NNE Europe NNE Europe NNE Europe Denmark and Norway
47 22 1 15 28
Slovak Republic SI Spruce Slovak Republic
Slovenia
S10 Spruce & fir
Slovenia 1, 22
Spain
ME1 ME1
Radiata pine Maritime pine
Spain Spain
49 44
Canada
J&P Sel J&P Sel J&P Sel
Douglas fir-Larch Hem-fir S-P-F
USA & Canada USA & Canada USA & Canada
18, 54 2, 4, 5, 7, 8, 62 3, 6, 23, 25, 26, 27, 32, 34, 45
Canada
SLF Sel SLF Sel SLF Sel
Douglas fir-Larch Hem-fir S-P-F
USA & Canada USA & Canada USA & Canada
18, 54 2, 4, 5, 7, 8, 62 3, 6, 23, 25, 26, 27, 32, 34, 45
UK SS SS SS SS SS SS
SS SS SS
Paraná pine Redwood Whitewood Douglas fir-Larch Hem-fir S-P-F
Southern pine Caribbean pitch pine Larch
Brazil CNE Europe CNE Europe USA & Canada USA & Canada USA & Canada
USA Caribbean UK
12 47 1, 22 18, 54 2,
...
The SIST EN 1912:2012 standard provides a comprehensive framework for the assignment of visual grades and species of structural timber, along with their corresponding strength classes. This European Standard is crucial for ensuring consistency and reliability in the use of timber in construction, making it extremely relevant for professionals in the forestry and construction industries alike. One of the key strengths of SIST EN 1912:2012 is its meticulous categorization of visual grades and timber species, which is supported by extensive historical usage and satisfactory test data. By prioritizing commercial practices, the standard not only simplifies the selection process for engineers and architects but also reinforces confidence in the structural integrity of timber used in construction projects. Additionally, the standard's alignment with EN 338 enhances its applicability, as it directly connects the visual grading and species assignments to recognized strength classes. This ensures that users can easily determine the mechanical properties of the timber based on its grading, which is essential for compliance with safety regulations and design specifications. The clarity and organization of the documentation also contribute to its effectiveness. Users benefit from a straightforward presentation of visual grades and their associated strength classes, facilitating efficient access to vital information needed for structural evaluation and design. This emphasis on usability is a significant advantage, especially for stakeholders who may not have in-depth technical expertise in timber classification. In summary, the SIST EN 1912:2012 standard stands out for its robust framework, practical relevance, and alignment with established testing protocols, making it an indispensable resource for the proper assignment of visual grades and strength classes in structural timber applications. Its comprehensive approach supports both quality assurance and optimization within the timber supply chain, underlining its importance in contemporary construction practices.
SIST EN 1912:2012 표준은 구조용 목재의 강도 등급과 시각적 등급, 종(species) 및 출처에 대한 포괄적인 가이드를 제공합니다. 이 유럽 표준은 EN 338에 문서화된 강도 클래스에 따라 목재의 시각적 등급과 관련된 강도를 명시하고 있어 목재의 품질 및 안정성을 보장합니다. 이 문서의 강점은 목재 사용에 대한 오랜 역사와 만족스러운 시험 데이터에 기반하여 직관적인 평가 기준을 제시하는 점입니다. 따라서, 이 표준에서 나열된 출처는 기존 상업적 관행을 고려해 결정되었으며, 업계에서 널리 사용되는 기준을 따릅니다. 이는 건축 및 구조물 설계 시 목재의 강도를 평가하는 데 필수적인 기초 자료로 작용합니다. 또한, SIST EN 1912:2012는 구조용 목재의 다양한 종류와 시각적 등급을 명확히 하여, 엔지니어와 설계자들이 필요한 목재를 정확하게 선택할 수 있도록 돕습니다. 이는 설계의 효율성을 높이고, 건물의 구조적 안전성을 강화하는 데 큰 기여를 합니다. 결과적으로, 이 표준은 건축과 구조 공학 분야에서 중요한 역할을 하며, 목재 강도 평가 및 시각적 등급 지정에 대한 명확한 기준을 통해 업계에서 그 중요성이 더욱 부각되고 있습니다.
SIST EN 1912:2012は、構造用木材の強度級を視覚的等級および木材種に割り当てるための欧州標準であり、木材の視覚的等級、種、および出典を網羅的に一覧化しています。この標準は、EN 338に記載された強度クラスに基づいており、極めて明確な指針を提供しています。 この標準の強みは、その包括性と信頼性にあります。木材に関する視覚的等級や種には、長年の使用実績や満足のいく試験データが根付いており、各強度クラスへの割り当ては、業界の商慣習に基づいています。これにより、実務に即した適切な利用が可能となり、設計者や施行者にとって非常に有用な基準となっています。 さらに、SIST EN 1912:2012は、木材のさまざまな視覚的等級や種を詳細に記載しているため、特定のプロジェクトにおいて適切な材料を選択する際の重要な判断材料になります。この標準は、建築や土木分野における木材使用の質を向上させ、持続可能な開発の支援にも寄与します。 全体として、SIST EN 1912:2012は、視覚的等級と木材の強度クラスの標準化を通じて、木材産業の重要な基盤を提供しており、関連する業界やプロフェッショナルにとって欠かせない文書です。
