Fire-fighting hoses - Test methods

This document details specific test methods for layflat, semi-rigid and suction fire fighting-hoses.
The described test methods are recommended for standards for firefighting hoses. Applicable methods are to be selected and requirements and test values have to be defined in the relevant fire hose standards.
Annex U (informative) lists the existing published ISO and or EN hose test methods standards that are specified within Fire hose standards.

Feuerlöschschläuche - Prüfverfahren

Dieses Dokument legt detailliert spezifische Prüfverfahren für Flach Feuerlöschschläuche, formstabile Feuerlöschschläuche und Saugfeuerlöschschläuche fest.
Die beschriebenen Prüfverfahren werden für Normen für Feuerlöschschläuche empfohlen. Anwendbare Verfahren sind auszuwählen und Anforderungen sowie Prüfwerte sind in den zutreffenden Normen für Feuerlöschschläuche festzulegen.
In Anhang U (informativ) werden die vorhandenen veröffentlichten ISO  und/oder EN Normen zu Schlauchprüfverfahren aufgeführt, die innerhalb von Feuerlöschschlauchnormen festgelegt sind.

Tuyaux de lutte contre l'incendie - Méthodes d'essai

Le présent document décrit de manière détaillée les méthodes d'essai spécifiques relatives aux tuyaux aplatissables, aux tuyaux semi-rigides et aux tuyaux d'aspiration utilisés dans la lutte contre l'incendie.
Les méthodes d'essai décrites sont recommandées pour les normes relatives aux tuyaux de lutte contre l'incendie. Les méthodes applicables doivent être sélectionnées et les exigences et critères d'essai doivent être définis dans les normes relatives aux tuyaux d'incendie concernés.
L'Annexe U (informative) liste les normes existantes ISO et/ou EN relatives aux méthodes d'essai des tuyaux qui sont spécifiées dans les normes relatives aux tuyaux d'incendie.

Gasilske cevi - Preskusne metode

Ta dokument podrobno določa specifične preskusne metode za sploščene, poltoge in sesalne gasilske cevi.
Opisane preskusne metode se priporočajo za standarde za gasilske cevi. V ustreznih standardih za gasilske cevi morajo biti izbrane metode za uporabo ter opredeljene zahteve in preskusne vrednosti.
Dodatek U (informativni) našteva obstoječe objavljene standarde ISO in/ali EN za preskusne metode za cevi, ki so določene v okviru standardov za gasilske cevi.

General Information

Status
Published
Public Enquiry End Date
19-Apr-2009
Publication Date
23-Nov-2011
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
18-Aug-2011
Due Date
23-Oct-2011
Completion Date
24-Nov-2011

Buy Standard

Standard
SIST EN 15889:2012
English language
49 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Gasilske cevi - Preskusne metodeFeuerlöschschläuche - PrüfverfahrenTuyaux de lutte contre l'incendie - Méthodes d'essaiFire-fighting hoses - Test methods23.040.70Gumene cevi in armatureHoses and hose assemblies13.220.10Gašenje požaraFire-fightingICS:Ta slovenski standard je istoveten z:EN 15889:2011SIST EN 15889:2012en,fr,de01-januar-2012SIST EN 15889:2012SLOVENSKI

STANDARD
SIST EN 15889:2012
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 15889
July 2011 ICS 13.220.10; 23.040.70 English Version
Fire-fighting hoses - Test methods
Tuyaux de lutte contre l'incendie - Méthodes d'essai

Feuerlöschschläuche - Prüfverfahren This European Standard was approved by CEN on 4 June 2011.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,

B-1000 Brussels © 2011 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 15889:2011: ESIST EN 15889:2012

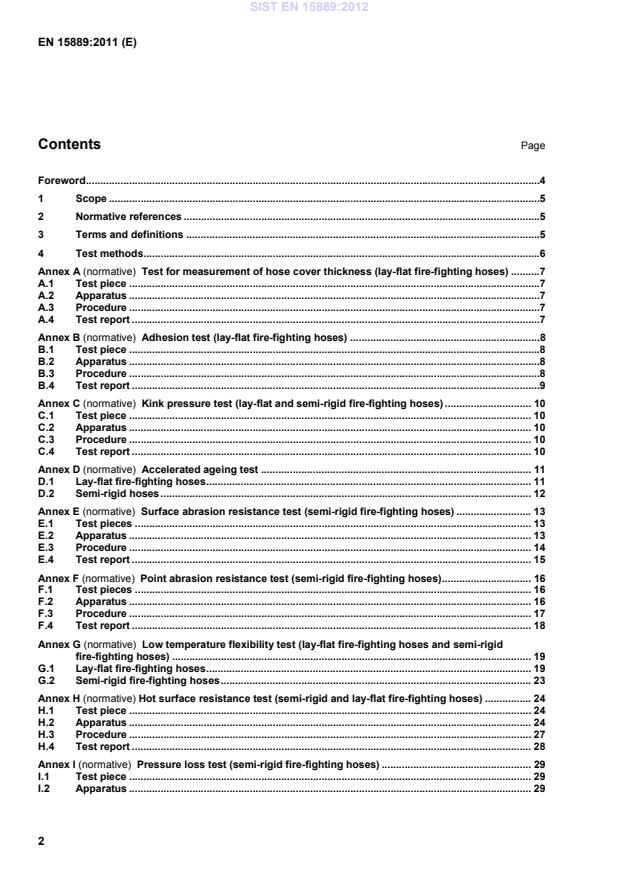

EN 15889:2011 (E) 2 Contents Page Foreword ..............................................................................................................................................................41Scope ......................................................................................................................................................52Normative references ............................................................................................................................53Terms and definitions ...........................................................................................................................54Test methods ..........................................................................................................................................6Annex A (normative)

Test for measurement of hose cover thickness (lay-flat fire-fighting hoses) ..........7A.1Test piece ...............................................................................................................................................7A.2Apparatus ...............................................................................................................................................7A.3Procedure ...............................................................................................................................................7A.4Test report ..............................................................................................................................................7Annex B (normative)

Adhesion test (lay-flat fire-fighting hoses) ..................................................................8B.1Test piece ...............................................................................................................................................8B.2Apparatus ...............................................................................................................................................8B.3Procedure ...............................................................................................................................................8B.4Test report ..............................................................................................................................................9Annex C (normative)

Kink pressure test (lay-flat and semi-rigid fire-fighting hoses) .............................. 10C.1Test piece ............................................................................................................................................ 10C.2Apparatus ............................................................................................................................................ 10C.3Procedure ............................................................................................................................................ 10C.4Test report ........................................................................................................................................... 10Annex D (normative)

Accelerated ageing test .............................................................................................. 11D.1Lay-flat fire-fighting hoses ................................................................................................................. 11D.2Semi-rigid hoses ................................................................................................................................. 12Annex E (normative)

Surface abrasion resistance test (semi-rigid fire-fighting hoses) .......................... 13E.1Test pieces .......................................................................................................................................... 13E.2Apparatus ............................................................................................................................................ 13E.3Procedure ............................................................................................................................................ 14E.4Test report ........................................................................................................................................... 15Annex F (normative)

Point abrasion resistance test (semi-rigid fire-fighting hoses) ............................... 16F.1Test pieces .......................................................................................................................................... 16F.2Apparatus ............................................................................................................................................ 16F.3Procedure ............................................................................................................................................ 17F.4Test report ........................................................................................................................................... 18Annex G (normative)

Low temperature flexibility test (lay-flat fire-fighting hoses and semi-rigid fire-fighting hoses) ............................................................................................................................. 19G.1Lay-flat fire-fighting hoses ................................................................................................................. 19G.2Semi-rigid fire-fighting hoses ............................................................................................................ 23Annex H (normative) Hot surface resistance test (semi-rigid and lay-flat fire-fighting hoses) ................ 24H.1Test piece ............................................................................................................................................ 24H.2Apparatus ............................................................................................................................................ 24H.3Procedure ............................................................................................................................................ 27H.4Test report ........................................................................................................................................... 28Annex I (normative)

Pressure loss test (semi-rigid fire-fighting hoses) .................................................... 29I.1Test piece ............................................................................................................................................ 29I.2Apparatus ............................................................................................................................................ 29SIST EN 15889:2012

EN 15889:2011 (E) 3 I.3Procedure ............................................................................................................................................. 30I.4Test report ............................................................................................................................................ 31Annex J (normative)

Deformation under crushing test (semi-rigid fire-fighting hoses) ........................... 32J.1Test piece ............................................................................................................................................. 32J.2Apparatus ............................................................................................................................................. 32J.3Procedure ............................................................................................................................................. 32J.4Test report ............................................................................................................................................ 33Annex K (normative)

Bending and crush resistance test (semi-rigid fire-fighting hoses) ....................... 34K.1Test piece ............................................................................................................................................. 34K.2Apparatus ............................................................................................................................................. 34K.3Procedure ............................................................................................................................................. 34K.4Test report ............................................................................................................................................ 35Annex L (normative)

Test for fire-fighting hose assemblies ........................................................................ 36L.1Test piece ............................................................................................................................................. 36L.2Apparatus ............................................................................................................................................. 36L.3Procedure ............................................................................................................................................. 36L.4Test report ............................................................................................................................................ 36Annex M (normative)

Pressure impulse test (fire-fighting suction hoses) ................................................. 37M.1Test pieces ........................................................................................................................................... 37M.2Apparatus ............................................................................................................................................. 37M.3Test fluid ............................................................................................................................................... 37M.4Conditioning ........................................................................................................................................ 37M.5Procedure ............................................................................................................................................. 37M.6Test report ............................................................................................................................................ 37Annex N (normative)

Reinforcement fracture resistance test (type B hoses only) (fire-fighting suction hoses) ..................................................................................................................................... 40N.1Test pieces ........................................................................................................................................... 40N.2Apparatus ............................................................................................................................................. 40N.3Conditioning ........................................................................................................................................ 40N.4Procedure ............................................................................................................................................. 40N.5Test report ............................................................................................................................................ 42Annex O (normative)

Test for flexibility at ambient temperature (fire-fighting suction hoses) ................ 43O.1Test piece ............................................................................................................................................. 43O.2Apparatus ............................................................................................................................................. 43O.3Procedure ............................................................................................................................................. 43O.4Test report ............................................................................................................................................ 43Annex P (normative)

Test for vacuum resistance with flexing (fire-fighting suction hoses) ................... 45P.1Test piece ............................................................................................................................................. 45P.2Apparatus ............................................................................................................................................. 45P.3Procedure ............................................................................................................................................. 45P.4Test report ............................................................................................................................................ 45Annex Q (normative)

Test for resistance to kinking (lay-flat fire-fighting hoses) ...................................... 46Q.1Test piece ............................................................................................................................................. 46Q.2Apparatus ............................................................................................................................................. 46Q.3Procedure ............................................................................................................................................. 47Q.4Test report ............................................................................................................................................ 47Annex R (informative)

Test methods from other EN and ISO standards .................................................... 48Bibliography ...................................................................................................................................................... 49 SIST EN 15889:2012

EN 15889:2011 (E) 4 Foreword This document (EN 15889:2011) has been prepared by Technical Committee CEN/TC 192 “Fire service equipment”, the secretariat of which is held by BSI. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by January 2012, and conflicting national standards shall be withdrawn at the latest by January 2012. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This European Standard details hose and hose assembly test methods collated mainly from published EN fire hose standards. Although no technical changes have been introduced, some changes to the format of the test methods had to be made to enable them to be included in this European Standard. The published EN fire-fighting hose standards will be revised to remove the test method annexes following the publication of this European Standard. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom.

SIST EN 15889:2012

EN 15889:2011 (E) 5 1 Scope This European standard specifies test methods for lay-flat fire-fighting hoses for fixed systems, semi-rigid fire-fighting hoses for both fixed systems and vehicles and fire-fighting suction hoses for vehicles. These test methods are required for the standards for fire-fighting hose product standards developed by CEN/TC 192. Consequently, the applicable test methods are selected and the requirements and test values defined in the relevant fire-fighting hose product standards and normatively referenced in those standards. This European Standard does not cover test methods for lay-flat fire-fighting hoses for vehicles for which no European standard exists. NOTE Annex R (informative) lists the existing published ISO and EN hose test methods standards that are specified within fire-fighting hose standards. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN ISO 4671, Rubber and plastics hose and hose assemblies — Methods of measurement of the dimensions of hoses and the lengths of hose assemblies (ISO 4671:2007) EN ISO 4672:1999, Rubber and plastics hoses — Sub-ambient temperature flexibility tests (ISO 4672:1997) EN ISO 8033:2006, Rubber and plastics hose — Determination of adhesion between components (ISO 8033:2006) EN ISO 8330:2008, Rubber and plastics hoses and hose assemblies — Vocabulary (ISO 8330:2007) ISO 188:2007, Rubber, vulcanized or thermoplastic -— Accelerated ageing and heat resistance tests ISO 23529, Rubber — General procedures for preparing and conditioning test pieces for physical test methods 3 Terms and definitions For the purposes of this document, the following terms and definitions apply, together with those for working pressure, proof pressure and burst pressure as given in EN ISO 8330:2008. 3.1 lay-flat fire-fighting hose hose with a soft wall which, when unpressurized internally, collapses to such an extent that the inner faces of the hose make contact and the hose takes up a flat cross-sectional appearance 3.2 hose coating thin coating usually applied as a lacquer, which acts as a sealant through which the jacket fibres are likely to protrude through the coating 3.3 hose cover cover which completely surrounds the jacket forming a separate component SIST EN 15889:2012

EN 15889:2011 (E) 6 3.4 jacket circular woven seamless reinforcement 3.5 semi-rigid hose hose which maintains its round cross-section even when unpressurized 3.6 suction hose hard wall hose which is designed to resist external pressure 4 Test methods The following fire hose test methods are detailed in the annexes:  Annex A

Test for measurement of hose cover thickness (lay-flat fire-fighting hoses)
 Annex B
Adhesion test (lay-flat fire-fighting hoses)  Annex C
Kink pressure test (lay-flat and semi-rigid fire-fighting hoses)  Annex D
Accelerated ageing test
 Annex E
Surface abrasion resistance test (semi-rigid fire-fighting hoses)  Annex F
Point abrasion resistance test (semi-rigid fire-fighting hoses)  Annex G

Low temperature flexibility test (lay-flat fire-fighting hoses and semi-rigid fire-fighting hoses)  Annex H

Hot surface resistance test (semi- rigid and lay-flat fire-fighting hoses)  Annex

Pressure loss test (semi-rigid fire-fighting hoses)  Annex J
Deformation under crushing test (semi-rigid fire-fighting hoses)
 Annex K
Bending and crush resistance test (semi-rigid fire-fighting hoses)  Annex L
Test for fire-fighting hose assemblies
 Annex M
Pressure impulse test (fire-fighting suction hoses)  Annex N

Reinforcement fracture resistance test (type B hoses only) (fire-fighting suction hoses)  Annex O

Test for flexibility at ambient temperature (fire-fighting suction hoses)  Annex P

Test for vacuum resistance with flexing (fire-fighting suction hoses)  Annex Q
Test for resistance to kinking (lay-flat fire-fighting hoses)  Annex R

Test methods from other EN and ISO standards NOTE The requirements for test methods are stated in the product fire hose standards. SIST EN 15889:2012

EN 15889:2011 (E) 7 Annex A (normative)

Test for measurement of hose cover thickness (lay-flat fire-fighting hoses) A.1 Test piece Cut a ring sample from the hose and measure the distance between the top of the yarns and the surface of the cover at four equidistant points around the ring using the optical magnifier. A.2 Apparatus A.2.1 Optical magnifier, with a scale graduated in 0,01 mm divisions. A.3 Procedure Calculate the mean of the four measurements to obtain the cover thickness value. Where the cover is variable or ribbed, the measurements shall be made at the thinnest point. A.4 Test report The test report shall include the following information:  full description of the hose tested;  reference to this test method;  cover thickness;  date of the test.

SIST EN 15889:2012
EN 15889:2011 (E) 8 Annex B (normative)

Adhesion test (lay-flat fire-fighting hoses) B.1 Test piece Cut a ring (50 ± 2) mm wide from the hose at right angles to its longitudinal axis. Cut the ring transversely and open it to form a strip. Make two parallel cuts at right angle to the hose axis (25 ± 0,5) mm apart, taking care not to cut through the yarns. Separate a layer for a distance sufficient to enable the separated end to be held in the grips of the test machine (see Figure B.1). Dimensions in millimetres

Figure B.1 — Test piece adhesion test B.2 Apparatus B.2.1 A tensile testing machine capable of carrying out the procedure in B.3. B.3 Procedure When tested in accordance with type 1 of EN ISO 8033:2006 the adhesion between lining and jacket shall be as specified in the relevant fire hose standard. If an adhesion result is not possible because of tearing due to high adhesion, this shall be accepted as a pass. All adhesions shall be attempted and the results recorded. SIST EN 15889:2012

EN 15889:2011 (E) 9 B.4 Test report The test report shall include the following information:  full description of the hose tested;  reference to this test method;  adhesion value and any evidence of tearing;  date of the test.

SIST EN 15889:2012
EN 15889:2011 (E) 10 Annex C (normative)

Kink pressure test (lay-flat and semi-rigid fire-fighting hoses) C.1 Test piece Cut a test piece of 2,0 m length from the hose. C.2 Apparatus C.2.1 Source of hydrostatic pressure, with water as the test medium, capable of maintaining the specified pressure. C.3 Procedure Connect the test piece to the pressure source and fill with water, expelling all air before securely clamping shut the free end of the hose. Maintain a pressure of 0,07 MPa in the test piece while bending it through 180° at a point approximately midway along its length. Tie the free end of the hose back on itself, as close as possible to the secure end, so as to form a sharp kink, ensuring that the tie does not prevent subsequent expansion of the diameter of the test piece. Raise the pressure in the test piece to the specified pressure over a period of 60 s. Maintain the pressure for 60 s. Examine the test piece for any sign of leakage or damage prior to releasing the pressure. C.4 Test report The test report shall include the following information:  full description of the hose tested;  reference to this test method;  any evidence of leakage or damage observed;  date of the test. SIST EN 15889:2012

EN 15889:2011 (E) 11 Annex D
(normative)

Accelerated ageing test D.1 Lay-flat fire-fighting hoses D.1.1 Test piece Cut four test pieces from the hose each of 1 m in length. NOTE It is recommended that the test pieces should be taken from the same hose sample from which the test pieces for the burst pressure tests and adhesion tests were taken. This will allow an exact comparison to the changes before and after the artificial ageing. D.1.2 Apparatus D.1.2.1 A temperature controlled oven as specified in ISO 188:2007. D.1.3 Procedure Bend three of the test pieces through 180° at a point approximately midway along their length and tie in this flaked position. Loosely coil the remaining test piece. Age all four test pieces in air for 14 days at a temperature of (70 ± 1) °C in a temperature controlled oven as specified in ISO 188:2007. After ageing, straighten out the three flaked test pieces and subject them to the burst pressure test as specified. Subject the remaining test piece to the adhesion test as specified in relevant fire hose standard.

The three test pieces subjected to the burst pressure test shall conform to the requirements of relevant fire hose standard. The resultant adhesion of the fourth test piece shall be in accordance with the requirements in relevant fire hose standard. D.1.4 Test report The test report shall include the following information:  full description of the hose tested;  reference to this test method;  burst test value; SIST EN 15889:2012

EN 15889:2011 (E) 12  adhesion value and any evidence of tearing;  date of the test. D.2 Semi-rigid hoses D.2.1 Test piece

Cut four test pieces from the hose, each of 1 m length. NOTE It is recommended that the test pieces should be taken from the hose adjacent to the original burst and adhesion test pieces. D.2.2 Apparatus D.2.2.1 A temperature controlled oven as specified in ISO 188:2007. D.2.3 Procedure

Age the test pieces in air for 7 days at a temperature of (70 ± 1) °C in a temperature controlled oven as specified in ISO 188:2007. After ageing, subject three of the test pieces to the burst pressure test as given in the relevant fire hose standard. Subject the remaining test piece to the adhesion test as given in the relevant fire hose standard. The three test pieces subjected to the burst pressure test shall conform to the requirements of the relevant fire hose standard. The resultant adhesion of the fourth test piece shall be in accordance with the requirements in the relevant fire hose standard. D.2.4 Test report The test report shall include the following information:  full description of the hose tested;  reference to this test method;  burst test value;  adhesion value and any evidence of tearing;  date of the test. SIST EN 15889:2012

EN 15889:2011 (E) 13 Annex E (normative)

Surface abrasion resistance test (semi-rigid fire-fighting hoses) E.1 Test pieces Cut five test pieces of hose, each 0,35 m in length. E.2 Apparatus E.2.1 Test machine (see Figure E.1) for abrading the surface of a pressurized rotatable test piece with a laterally moveable abrading strip which is continually renewed. The driven rotating coupling is fixed in the axial direction whereas the other coupling can be moved axially in a guide. The abrasion arm is in the form of a rocker pivoted to swivel upwards, and the weight of the arm is such that a force of 105 N acts on the test piece when it is set horizontally. This abrasion arm reciprocates along the hose axis at a rate of between 18 mm/s to 20 mm/s over a distance of 80 mm with the direction of travel being changed automatically. The pause time at the reversal points shall not exceed 0,1 s in each case. The abrasion arm carries the abrading strip which moves 4 mm along the hose length for each double stroke, and the test piece is supported midway along its length by plain rollers. E.2.2 Air pressure vessel with a capacity of at least 2 l fitted to the test machine to retain the pressure in the event of a loss of water. E.2.3 Abrasive material consisting of a roll of corundum twill abrasive cloth measuring 50 mm wide and approximately 50 m long. The abrasive used for this abrasive material shall be synthetic 15, good quality fused aluminium oxide (Al2O3) with a minimum Al2O3 content with mass fraction of 70 %. It shall have a grain size of 60P as specified in the Grain Size Standard (43-1984 rev 1993) of the Federation of European Producers of Abrasive Products (FEPA). SIST EN 15889:2012

EN 15889:2011 (E) 14
Key

1 test piece 11 weight 2 driven bearing 12 direction change switch 3 axial movable bearing 13 hose support rolls 4 coupling 14 abrasive cloth 5 water inlet 15 feeding device 6 water outlet 16 abrasive roll 7 pressure gauge 17 rotation counter 8 air chamber 18 on-off switch 9 swivel 19 electrical appliance 10 abrasion arm

...
