Intelligent transport systems - DATEX II data exchange specifications for traffic management and information - Part 9: Traffic signal management publications dedicated to the urban environment

This document constitutes a part of the CEN 16157 DATEX II series of standards and technical specifications. This series specifies and defines component facets supporting the exchange and shared use of data and information in the field of traffic and travel. The component facets include the framework and context for exchanges, the modelling approach, the data content, the data structure and relationships and the communications specification.
Part 9, this document, specifies additional data model structures that are applicable for traffic signal management applications in the urban environment. This part specifies data concepts to support the exchange of traffic signal status messaging, intersection geometry definition and attribution in a consistent way with existing C-ITS standards and technical specifications.
It establishes specifications for data exchange between any two instances of the following actors:
- Traffic Information Centres (TICs),
- Traffic Control Centres (TCCs),
- Service Providers (SPs).
Use of this document may be applicable for use by other actors.

Intelligente Verkehrssysteme - Intelligente Verkehrssysteme - DATEX II Datenaustauschspezifikationen für Verkehrsmanagement und Verkehrsinformationen - Teil 9: Lichtsignalanlagen-Management-Publikationen für das städtische Umfeld

Systèmes de transport intelligents - Spécification DATEX II d’échange de données pour la gestion du trafic et l’information routière - Partie 9 : Publications pour la gestion des feux de circulation dédiées à l'environnement urbain

Inteligentni transportni sistemi - Specifikacije za izmenjavo podatkov DATEX II pri upravljanju prometa in informiranju - 9. del: Publikacije za upravljanje prometnih signalov, namenjene mestnemu okolju

General Information

Status
Published
Publication Date
10-Jun-2020
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
14-May-2020
Due Date
19-Jul-2020
Completion Date
11-Jun-2020

Buy Standard

Technical specification
SIST-TS CEN/TS 16157-9:2020 - BARVWE na PDF-str 11,12,13,15,17,21,23
English language
114 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST-TS CEN/TS 16157-9:2020
01-julij-2020

Inteligentni transportni sistemi - Specifikacije za izmenjavo podatkov DATEX II pri

upravljanju prometa in informiranju - 9. del: Publikacije za upravljanje prometnih

signalov, namenjene mestnemu okolju

Intelligent transport systems - DATEX II data exchange specifications for traffic

management and information - Part 9: Traffic signal management publications dedicated

to the urban environment
Intelligente Verkehrssysteme - Intelligente Verkehrssysteme - DATEX II
Datenaustauschspezifikationen für Verkehrsmanagement und Verkehrsinformationen -
Teil 9: Lichtsignalanlagen-Management-Publikationen für das städtische Umfeld

Systèmes de transport intelligents - Spécification DATEX II d’échange de données pour

la gestion du trafic et l’information routière - Partie 9 : Publications pour la gestion des

feux de circulation dédiées à l'environnement urbain
Ta slovenski standard je istoveten z: CEN/TS 16157-9:2020
ICS:
35.240.60 Uporabniške rešitve IT v IT applications in transport
prometu
SIST-TS CEN/TS 16157-9:2020 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST-TS CEN/TS 16157-9:2020
---------------------- Page: 2 ----------------------
SIST-TS CEN/TS 16157-9:2020
CEN/TS 16157-9
TECHNICAL SPECIFICATION
SPÉCIFICATION TECHNIQUE
April 2020
TECHNISCHE SPEZIFIKATION
ICS 35.240.60
English Version
Intelligent transport systems - DATEX II data exchange
specifications for traffic management and information -
Part 9: Traffic signal management publications dedicated
to the urban environment

Systèmes de transport intelligents - Spécification Intelligente Verkehrssysteme - Intelligente

DATEX II d'échange de données pour la gestion du Verkehrssysteme - DATEX II

trafic et l'information routière - Partie 9 : Publications Datenaustauschspezifikationen für

pour la gestion des feux de circulation dédiées à Verkehrsmanagement und Verkehrsinformationen -

l'environnement urbain Teil 9: Lichtsignalanlagen-Management-Publikationen
für das städtische Umfeld

This Technical Specification (CEN/TS) was approved by CEN on 13 January 2020 for provisional application.

The period of validity of this CEN/TS is limited initially to three years. After two years the members of CEN will be requested to

submit their comments, particularly on the question whether the CEN/TS can be converted into a European Standard.

CEN members are required to announce the existence of this CEN/TS in the same way as for an EN and to make the CEN/TS

available promptly at national level in an appropriate form. It is permissible to keep conflicting national standards in force (in

parallel to the CEN/TS) until the final decision about the possible conversion of the CEN/TS into an EN is reached.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and

United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2020 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TS 16157-9:2020 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST-TS CEN/TS 16157-9:2020
CEN/TS 16157-9:2020 (E)

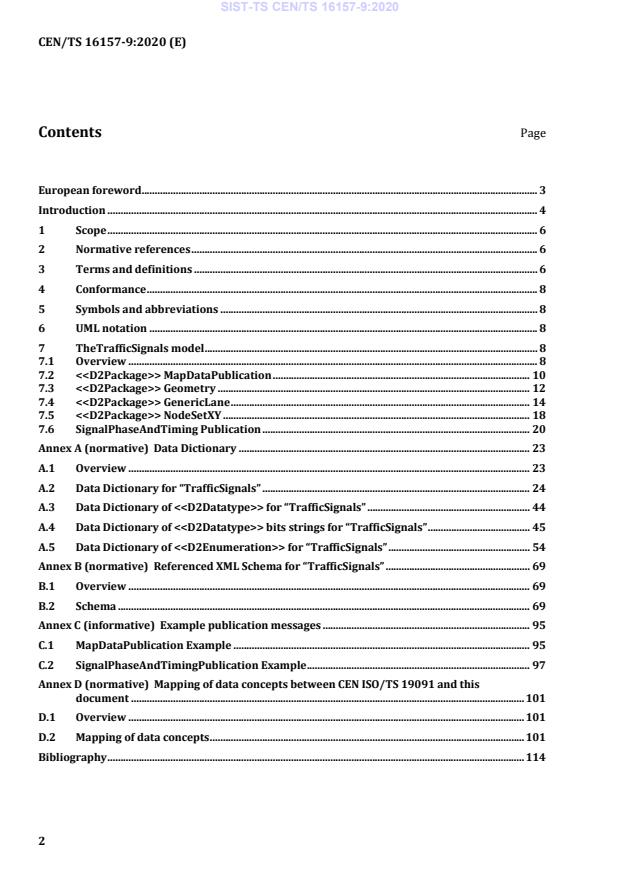

Contents Page

European foreword ....................................................................................................................................................... 3

Introduction .................................................................................................................................................................... 4

1 Scope .................................................................................................................................................................... 6

2 Normative references .................................................................................................................................... 6

3 Terms and definitions ................................................................................................................................... 6

4 Conformance ..................................................................................................................................................... 8

5 Symbols and abbreviations ......................................................................................................................... 8

6 UML notation .................................................................................................................................................... 8

7 TheTrafficSignals model ............................................................................................................................... 8

7.1 Overview ............................................................................................................................................................ 8

7.2 <> MapDataPublication .................................................................................................. 10

7.3 <> Geometry ....................................................................................................................... 12

7.4 <> GenericLane .................................................................................................................. 14

7.5 <> NodeSetXY ..................................................................................................................... 18

7.6 SignalPhaseAndTiming Publication ...................................................................................................... 20

Annex A (normative) Data Dictionary ............................................................................................................... 23

A.1 Overview ......................................................................................................................................................... 23

A.2 Data Dictionary for “TrafficSignals” ...................................................................................................... 24

A.3 Data Dictionary of <> for “TrafficSignals” .............................................................. 44

A.4 Data Dictionary of <> bits strings for “TrafficSignals” ....................................... 45

A.5 Data Dictionary of <> for “TrafficSignals” ...................................................... 54

Annex B (normative) Referenced XML Schema for “TrafficSignals” ....................................................... 69

B.1 Overview ......................................................................................................................................................... 69

B.2 Schema ............................................................................................................................................................. 69

Annex C (informative) Example publication messages ............................................................................... 95

C.1 MapDataPublication Example ................................................................................................................. 95

C.2 SignalPhaseAndTimingPublication Example ..................................................................................... 97

Annex D (normative) Mapping of data concepts between CEN ISO/TS 19091 and this

document ...................................................................................................................................................... 101

D.1 Overview ....................................................................................................................................................... 101

D.2 Mapping of data concepts ........................................................................................................................ 101

Bibliography ............................................................................................................................................................... 114

---------------------- Page: 4 ----------------------
SIST-TS CEN/TS 16157-9:2020
CEN/TS 16157-9:2020 (E)
European foreword

This document (CEN/TS 16157-9:2020) has been prepared by Technical Committee CEN/TC 278

“Intelligent transport systems”, the secretariat of which is held by NEN.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN shall not be held responsible for identifying any or all such patent rights.

This document has been prepared under a standardization request given to CEN by the European

Commission and the European Free Trade Association.
As a user of this document, attention is drawn to the resources of

www.datex2.eu < http://www.datex2.eu/>. This website contains related software tools and software

resources that aid the implementation of EN 16157 DATEX II.

According to the CEN/CENELEC Internal Regulations, the national standards organisations of the

following countries are bound to announce this Technical Specification: Austria, Belgium, Bulgaria,

Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,

Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of

North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United

Kingdom.
---------------------- Page: 5 ----------------------
SIST-TS CEN/TS 16157-9:2020
CEN/TS 16157-9:2020 (E)
Introduction

This document defines a common set of data exchange specifications to support the vision of a seamless

interoperable exchange of traffic and travel information across boundaries, including national, urban,

interurban, road administrations, infrastructure providers and service providers.

Standardization in this context is a vital constituent to ensure that interoperability, reduction of risk,

reduction of the cost base and promotion of open marketplace objectives are achieved that will lead to

many social, economic and community benefits as a result of more informed travellers, network

managers and transport operators.

With the aim to support sustainable mobility in Europe, the European Commission has been supporting

the development of information exchange mainly between the actors of the road traffic management

domain for a number of years. In the road sector, DATEX II has been long in fruition, with the European

Commission being fundamental to its development through an initial contract and subsequent

cofounding through the Euro-Regional projects, and well as support for Programme Support Action

activities.
DATEX II is referenced within European regulations:

— EU Commission Delegated Regulation, (EU) 2013/885 of 15 May 2013 regarding the provision of

information services for safe and secure parking places for trucks and commercial vehicles,

— EU Commission Delegated Regulation, (EU) 2013/886 of 15 May 2013 regarding data and

procedures for the provision, where possible, of road safety-related minimum universal traffic

information free of charge to users,

— EU Commission Delegated Regulation, (EU) 2015/962 of 18 December 2014 regarding the provision

of EU-wide real-time traffic information services,

— EU Commission Delegated Regulation, (EU) 1926/2017 of 31 May 2017 regarding the provision of

EU-wide multimodal travel information services.

This document includes the framework, context and specification for exchanges, the modelling approach,

data content, data structure and relationships.
This document supports a methodology that is extensible.

This document, which is Part 9 of the CEN 16157 series, deals with the publication of traffic signal related

information that is most relevant in the urban environment. It specifies the structures and definitions of

information that may be exchanged within two publications:

— The Map Data publication conveys static information related to the intersections and road segments

belonging to a road network, related to traffic signal-controlled intersections. The Map Data

Publication is the translation in UML of the MapData message (MAP) as it is defined in

CEN ISO/TS 19091 and its European profile.

— The Traffic Signal Phase and Timing Publication conveys the dynamic information related to traffic

signal-controlled intersections belonging to a road network. Traffic Signal Phase and Timing

Publication is the translation in UML of the SignalPhaseAndTiming message (SPAT) as it is defined in

CEN ISO/TS 19091 and its European profile.
Both publications are specified as Level B Extensions to the DATEX II model.

The present document was developed by project team PT1709 funded by the European Commission

under grant agreement SA/CEN/GROW/EFTA/546/2016-10 'Urban ITS - Traffic Management Data

---------------------- Page: 6 ----------------------
SIST-TS CEN/TS 16157-9:2020
CEN/TS 16157-9:2020 (E)

Models and interfaces' (M/546 [1]). The focus of M/546 is Intelligent Transport Systems in the urban

environment – but this does not preclude this document being used in the non-urban environment.

It is noted that the terms and concepts utilized in this document draw heavily on those defined in

CEN ISO/TS 19091 and SAE J2735.
---------------------- Page: 7 ----------------------
SIST-TS CEN/TS 16157-9:2020
CEN/TS 16157-9:2020 (E)
1 Scope

This document constitutes a part of the CEN 16157 DATEX II series of standards and technical

specifications. This series specifies and defines component facets supporting the exchange and shared

use of data and information in the field of traffic and travel. The component facets include the framework

and context for exchanges, the modelling approach, the data content, the data structure and relationships

and the communications specification.

Part 9, this document, specifies additional data model structures that are applicable for traffic signal

management applications in the urban environment. This part specifies data concepts to support the

exchange of traffic signal status messaging, intersection geometry definition and attribution in a

consistent way with existing C-ITS standards and technical specifications.

It establishes specifications for data exchange between any two instances of the following actors:

— Traffic Information Centres (TICs),
— Traffic Control Centres (TCCs),
— Service Providers (SPs).
Use of this document may be applicable for use by other actors.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

EN 16157-1:2018, Intelligent transport systems - DATEX II data exchange specifications for traffic

management and information - Part 1: Context and framework

EN 16157-2, Intelligent transport systems - DATEX II data exchange specifications for traffic management

and information - Part 2: Location referencing

EN 16157-7:2018, Intelligent transport systems - DATEX II data exchange specifications for traffic

management and information - Part 7: Common data elements

CEN ISO/TS 19091:2017, Intelligent transport systems – Cooperative ITS – Using V2I and I2V

communications for applications related to signalized intersections

SAE J2735:2016, Dedicated Short Range Communications (DSRC) Message Set Dictionary

3 Terms and definitions

For the purposes of this document, the terms and definitions given in EN 16157-1, EN 16157-2 and

EN 16157-7 and the following apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

• ISO Online browsing platform: available at http://www.iso.org/obp
• IEC Electropedia: available at http://www.electropedia.org/
---------------------- Page: 8 ----------------------
SIST-TS CEN/TS 16157-9:2020
CEN/TS 16157-9:2020 (E)
3.1
bit string

simple type whose distinguished values are an ordered sequence of zero, one or more bits

[SOURCE: ISO/IEC 8824-1:2015]
3.2
egress path
egress

flow of vehicular or other types of traffic leaving an intersection on one or more of the defined lanes of

travel
[SOURCE: SAE J2735:2016]
3.3
ingress path
ingress

flow of vehicular or other types of traffic approaching an intersection on one or more of the defined lanes

of travel
[SOURCE: SAE J2735:2016]
3.4
lane

strip of carriageway intended to accommodate a single line of moving vehicles, frequently defined by road

markings
[SOURCE: ISO 6707-1:2017]
3.5
link

directed topological connection between two nodes, composed of an ordered sequence of one or more

segments and represented by an ordered sequence of zero or more shape points
[SOURCE: ISO/TS 20452:2007]
3.6
manoeuvre
collection of related links and turns used in a route in combination

Note 1 to entry: Manoeuvres are used to cluster turns into convenient and legal combinations. They could be as

simple as a single turn, a combination of quick turns or very complex combinations consisting of entry, exit, and

connecting roadways.
[SOURCE: EN ISO 19133:2007]
3.7
node
0-dimensional topological primitive
[SOURCE: EN ISO 19107:2005]
---------------------- Page: 9 ----------------------
SIST-TS CEN/TS 16157-9:2020
CEN/TS 16157-9:2020 (E)
3.8
vehicle trajectory
trajectory
path of a selected point on the vehicle in the earth-fixed coordinate system
|SOURCE: ISO 8855:2011]
4 Conformance

The Traffic Signals Namespace sub-model is a part of the DATEX II platform independent data model. The

Traffic Signals Namespace sub-model corresponds to a Level B extension as defined in EN 16157-1.

Conformance with this Part shall require platform independent models from which platform specific

models are generated to comply with the UML modelling rules defined in EN 16157-1 and with the

following requirements of this sub-model, which are expressed in this document:

— comply with all stipulated minimum and maximum multiplicity requirements for UML elements and

relationships,
— comply with all definitions, types and ordering,
— employ optional elements as specified,
— comply with all expressed constraints.

It should be noted that conformance of a publication service with all the structural requirements stated

above does not necessarily ensure that the informational content of that service will be semantically

comprehensible.
5 Symbols and abbreviations
DE Data Element
DF Data Frame
GUID Globally Unique identifier
ITS Intelligent Transport Systems
PIM Platform Independent Model
SPaT Signal Phase and Timing
UML Unified Modelling Language
6 UML notation

The UML notation used in this document is as described in ISO/IEC 19505. An explanation of the UML

notation used in this document is provided in EN 16157-1.
7 TheTrafficSignals model
7.1 Overview

The TrafficSignals model shall comprise the packages used in the SignalPhaseAndTiming Publication and

the MapData Publication and the Classes and Enumerations specific for these publications. Figure 1

illustrates the sub-packages contained within the Traffic Signals package, which shall include the

---------------------- Page: 10 ----------------------
SIST-TS CEN/TS 16157-9:2020
CEN/TS 16157-9:2020 (E)

SignalPhaseAndTimingPublication package, the MapDataPublication package, the data types and the

enumerations within the <> TrafficSignals.
Figure 1 — The “TrafficSignals” package class model

As illustrated in Figure 2, the “SignalPhaseAndTimingPublication” class and the “MapDataPublication”

class shall be specializations of the GenericPublication class, as specified in CEN / EN16157-7, with the

relationships defined as D2LevelBExtension. A dedicated namespace “TrafficSignals” has been created to

host them, which uses the namespace prefix “tsi”.

NOTE For most applications using the TrafficSignals, model use of both the SignalPhaseAndTiming and

MapData Publications can be expected due to the cross-referencing between the two Publications.

---------------------- Page: 11 ----------------------
SIST-TS CEN/TS 16157-9:2020
CEN/TS 16157-9:2020 (E)
Figure 2 — The “TrafficSignals” publications
7.2 <> MapDataPublication
7.2.1 Overview

The package “MapDataPublication” supplies classes and attributes for the static information related to

the intersections and road segments belonging to a road network. The “MapDataPublication” class shall

be defined as a Level B Extension to the “GenericPublication” class. The package “MapDataPublication” is

the translation in UML of the MapData message (MAP) as specified in CEN ISO/TS 19091 and specifically

its European profile (Annex G), which heavily relies upon terms, definitions and concepts from the

standard SAE J2735. It is pictured including the relationships between the classes in Figure 3.

The MapDataPublication is used in combination with the second publication defined in this document,

i.e. “SignalPhaseAndTimingPublication” which represents the dynamic content of the stages and phase of

traffic signals. As both publications are DATEX II extensions they are located in the “Extension”

namespace of the DATEX II tree structure, under the parent package “TrafficSignals”.

---------------------- Page: 12 ----------------------
SIST-TS CEN/TS 16157-9:2020
CEN/TS 16157-9:2020 (E)
Figure 3 — The MapPublication class model
7.2.2 Semantics

The entry point of this package is the class “MapDataPublication”. Being an extension, it is derived from

the “GenericPublication” class defined in EN 16157-7. It shall contain at least a set of data defining

different road geographic features (class “MapData”). As every publication in DATEX II it is associated

with general information (class “HeaderInformation”) representing among others its status (e.g. if it is

“real” or for “test”). This latter class in defined in EN 16157-7.
This set of road geographic features may include data related to:

— Complex intersections description (class “IntersectionGeometry”) (up to 32 different instances);

— Road segments description (class “RoadSegment”) (up to 32 instances);

— Restrictions applicable to a road user category (class “RestrictionClassAssignment”) (up to 254

instances);
---------------------- Page: 13 ----------------------
SIST-TS CEN/TS 16157-9:2020
CEN/TS 16157-9:2020 (E)

— The position of traffic signal heads (class “SignalHeadLocation”) (up to 64 instances).

Each occurrence of map data may be timestamped.

Every intersection description and every road segment description are based on a common geometrical

description realized by the “Geometry” class. Each occurrence of the class is identified through the

identification mechanism of DATEX II as specified in EN 16157-7 (stereotype “D2VersionedIdentifiable”).

It shall own a revision number (between 0 and 127) incremented at each revision to communicate the

valid release of the geometry description for the same publisher. If there is no change in the deployed

geometry description, the same revision counter is transmitted. If a revised deployment of the geometry

description (e.g. new lane added, identifiers changed, etc.), the revision number is increased by one. This

number shall be reinitialised, when the publisher changes, or when the value 127 is reached.

Every occurrence of geometry may be given a name and/or a lane width, which is used as a default value

for all the described lanes unless a new lane width is provided. It shall be given a unique external

reference identification (class “GeometryReferenceId”) which shall be composed of an identifier (integer

number between 256 and 65535). In case of testing usage, the corresponding flag (“testing”) shall be set

to “true”. The “region” attribute may be used to identify a local road authority assigning generic reference

identification for intersection geometries or road segments.

NOTE The usage of such an external reference identification is only of interest for creating MAP and SPAT

messages. It is not used internally.

Every position of traffic signal head is defined by a geographic point defined by coordinates (according

to CEN ISO/TS 19091:2017,G.5.2.7, this definition shall be tridimensional).
7.3 <> Geometry
7.3.1 Overview

The package “Geometry” supplies classes and attributes for the definition of a geometry usable when

defining geometric features of an intersection or a road segment including the relevant attributive items

of these features. It is pictured including the relationships between the classes in Figure 4.

---------------------- Page: 14 ----------------------
SIST-TS CEN/TS 16157-9:2020
CEN/TS 16157-9:2020 (E)
Figure 4 — “Geometry” package class model
7.3.2 Semantics

The common geometry description is defined by the class “Geometry” which is already defined in 7.2.2.

To this geometry are associated:

— One point location (class “PointByCoordinates” associated through “refPoint”) which represents a

reference of this intersection of this road segment (e.g. for representational purpose). According to

CEN ISO/TS 19091 this point shall be defined in three dimensions. This point is defined as required

in EN 16157-2. This point may be used for calculating the offsets of the other points belonging to the

same geometry during the MAP message generation;

— A set of up to 9 speed limit values (class “RegulatorySpeedLimit”) applicable to the whole geometric

element and corresponding to certain types and to the vehicle type (class “VehicleCharacteristics”).

This latter class is defined in EN 16157-7;
---------------------- Page: 15 ----------------------
SIST-TS CEN/TS 16157-9:2020
CEN/TS 16157-9:2020 (E)

— A set of up to 255 generic lane definition (class “GenericLane) which allow describing every lane

belonging to the Geometry feature in terms of geometry, topology and attributes.

The “<>Geometry” class shall be the only entry point of the “Geometry” package and is a

specific VersionIdentifiable instance.
7.4 <> GenericLane
7.4.1 Overview

The package “GenericLane” supplies classes and attributes for the definition of a generic lane part of an

intersection or a road segment including the relevant attributive items of these features. It is pictured

including the relationships between the classes in Figure 5.

The notion of generic lane is taken in a very wide meaning. Items, such as “pedestrian crossing”,

“pavement” or “parking lanes”, are also considered as “generic lanes”.
---------------------- Page: 16 ----------------------
SIST-TS CEN/TS 16157-9:2020
CEN/TS 16157-9:2020 (E)
Figure 5 — “GenericLane” package class model
---------------------- Page: 17 ----------------------
SIST-TS CEN/TS 16157-9:2020
CEN/TS 16157-9:2020 (E)
7.4.2 Semantics

A generic lane is defined as an elementary element of a road. Its description includes a geometric

description of its centreline (class “NodeListXY”), information about attributes (class “LaneAttributes”)

and about connectivity to other lanes (classes “Connection” and “ConnectionTrajectory”). Each

occurrence of generic lane shall have an external lane identifier, which is used when building MAP

messages. If the identity of LaneId is unknown the LaneId attribute shall not be supplied. Information on

the allowed manoeuvres may be added using the attribute “manoeuvres”. When another lane shares a

part of its reference centreline with the considered generic lane, the references of these lanes are added

through the class “OverlayLane”.
The geometric definition of this lane can be achieved using two methods:

— Using a sequence of nodes (class “NodeSetXY”). This method is specified in 7.5;

— By computing it from another lane geometry by using mathematical transformation as translations,

rotation and/or homothecy (class “ComputedLane”).
The connectivity with other lanes is defined in two ways:

— The first way is based on the class “ConnectionTrajectory” that links it with a sequence of nodes (class

“NodeSetXY”) with a given traffic signals stage (class “LaneConnection”). Only up to 4 trajectories are

allowed being defined following this way and according to CEN ISO/TS 19091:2017, G.5.1.2. In case

a lane has more than 4 connecting trajectories, priority should be given to connecting trajectories of

motorised traffic and complex manoeuvres. Figure 6 (source: CEN ISO/TS 19091:2017, Figure G.3)

illustrates how such a connection trajectory is defined.
---------------------- Page: 18 ----------------------
SIST-TS CEN/TS 16157-9:2020
CEN/TS 16157-9:2020 (E)
Key
L6-01 first node of L6 (egress lane)
L2-01 first node of L2 (ingress lane)
T2-01 first node of Trajectory
T2-07 last node of Trajectory
Trajectory connecting lane 2 with lane 6
Figure 6 — ConnectionTrajectory (Source: CEN ISO/TS 19091:2017)

EXAMPLE The connecting trajectory on this figure is defined between the ingress lane 2 and the egress lane 6.

The two nodes T2–07 and L6–01 share the same point location.
— The second way is based on the class “Connection” that links it w
...
