Extended application of test results for fire resistance and/or smoke control for door, shutter and openable window assemblies, including their elements of building hardware - Part 11: Fire resistance for operable fabric curtains

This document covers vertically mounted types of manual or powered, operable fabric curtain assemblies with downward closing operation. Curtain systems are different from (are separated from) door systems due to their not rigid closure element typically made of thin walled materials as for instance woven or knitted fabrics and foils. These closure elements are not able to carry significant loads normal to their surface by their bending stiffness. In other words: curtain systems are separated from door systems because they can only conduct pulling forces by tensile stress in plane to their surface. Pushing forces are not conducted in plane to their surface.
This document establishes the methodology for extending the application of test results obtained from test(s) conducted in accordance with the EN 1634-1 test method for shutters.
Subject to the completion of the appropriate test or tests selected from those identified in Clause 4, the extended application may cover all or some of the following non-exhaustive list of examples:
-   uninsulated (E), radiation (EW) or insulated (EI1 or EI2) classifications;
-   coiling mechanisms;
-   wall/ceiling fixed elements;
-   items of building hardware;
-   decorative finishes;
-   intumescent, draught or acoustic seals;
-   alternative supporting construction(s).

Erweiterter Anwendungsbereich von Prüfergebnissen zum Feuerwiderstand und/oder zur Rauchdichtigkeit von Türen, Toren, Abschlüssen und Fenstern einschließlich ihrer Baubeschläge - Teil 11: Feuerwiderstandsfähigkeit von Feuerschutzvorhängen

Diese Europäische Norm behandelt vertikal montierte Arten hand- oder kraftbetätigter Feuerschutzvorhänge mit nach unten gerichtetem Schließvorgang. Behangsysteme unterscheiden sich von (sind getrennt von) Türsystemen aufgrund ihrer nicht starren Verschlusselemente, die in der Regel aus dünnwandigen Materialien, wie z. B. gewebte oder gewirkte Gefüge oder Folien, bestehen. Diese Verschlusselemente sind nicht in der Lage, erhebliche Lasten senkrecht zur Oberfläche durch ihre Biegesteifigkeit zu tragen. Mit anderen Worten sind Behangsysteme von Türsystemen getrennt, weil sie Zugkräfte nur durch Zugspannung in der Ebene ihrer Oberfläche ausführen können. Druckkräfte werden in der Ebene ihrer Oberfläche nicht ausgeführt.
Diese Europäische Norm beschreibt die Methodologie zur Erweiterung der Anwendung von Ergebnissen aus Prüfungen nach EN 1634-1.
In Abhängigkeit von der Durchführung der entsprechenden Prüfung oder Prüfungen, die aus den in 4 aufgeführten auszuwählen sind, darf der erweiterte Anwendungsbereich einige oder alle der nachstehend aufgeführten Bereiche abdecken, wobei diese Liste als unvollständig anzusehen ist:
-nicht wärmegedämmte (E), strahlungsbezogene (EW) oder wärmegedämmte (EI1 oder EI2) Klassifizierungen
-Wickelmechanismen
-Wand-/Deckenbefestigungselemente
-Baubeschlagelemente
-dekorative Oberflächenausführungen
-dämmschichtbildende, Zugluft- oder Schallschutz-Dichtungen
-alternative Tragkonstruktion(en)

Application étendue des résultats d'essais en matière de résistance au feu et/ou d'étanchéité à la fumée des blocs-portes, blocs-fermetures et ouvrants de fenêtre, y compris leurs éléments de quincaillerie intégrés - Partie 11 : Résistance au feu des ride

Le présent document couvre les types de rideaux en toile montés verticalement, manoeuvrables
manuellement ou motorisés, avec mouvement de fermeture vers le bas. Les systèmes de rideaux sont
différents des (séparés des) systèmes de portes du fait de leur élément de fermeture non rigide
généralement composé de matériaux à fine paroi, comme par exemple les toiles et feuilles tissées ou
tricotées. Ces éléments de fermeture ne sont pas capables de supporter d’importantes charges
perpendiculaires à leur surface, de par leur rigidité à la flexion. En d’autres termes, les systèmes de
rideaux sont séparés des systèmes de portes car ils peuvent transmettre des forces de poussée axiales
uniquement par contrainte en traction dans le plan par rapport à leur surface. Les forces de poussée
axiales ne sont pas transmises dans le plan par rapport à leur surface.
Le présent document établit la méthodologie permettant d’étendre l’application des résultats d’essai
obtenus suite à un (des) essai(s) réalisé(s) conformément à la méthode d’essai des fermetures telle que
décrite dans l’EN 1634-1.
Sous réserve de la réalisation de l’essai ou des essais appropriés choisis parmi ceux identifiés à
l’Article 4, l’application étendue peut couvrir tout ou partie de la liste non exhaustive suivante :
 classements d’étanchéité au feu (E), de rayonnement (EW) ou d’isolation thermique (EI1 ou EI2) ;
 mécanismes d’enroulement ;
 éléments fixés au mur/plafond ;
 éléments de quincaillerie de bâtiment ;
 finitions décoratives ;
 joints intumescents, joints d’étanchéité à l’air ou joints acoustiques ;
 autre(s) construction/cadre(s) support.

Razširjena uporaba rezultatov preskusov požarne odpornosti in/ali dimotesnosti za vrata, zaporne elemente in okna, ki se odpirajo, vključno z njihovim okovjem - 11. del: Požarna odpornost ognjevarnih zaves

Ta dokument obravnava navpično nameščene tipe ročnih ali električnih sestavov vodljivih tekstilnih zaves z zapiranjem navzdol. Sistemi zaves se razlikujejo od sistemov vrat (in so ločeni od njih) zaradi netogega zapornega elementa, ki je običajno izdelan iz tankostenskih materialov, kot so tkanine ali pletiva in folije. Ti zaporni elementi s svojo upogibno togostjo ne prenesejo večjih obremenitev, ki so običajne za njihovo površino. Z drugimi besedami: sistemi zaves so ločeni od sistemov vrat, ker lahko vlečne sile ustvarijo le z natezno napetostjo v ravnini svoje površine. Potisne sile ne nastanejo v ravnini na njihovo površino.
Ta dokument vzpostavlja metodologijo za razširitev uporabe rezultatov preskušanj, pridobljenih iz preskusov, izvedenih v skladu s preskusno metodo za zaporne elemente iz standarda EN 1634-1.
Razširjena uporaba lahko (glede na opravljene ustrezne preskuse, izbrane med preskusi, opredeljenimi v točki 4) zajema vse naslednje primere ali nekatere primere iz naslednjega neizčrpnega seznama:
– neizolirane (E), sevalne (EW) ali izolirane (EI1 ali EI2) klasifikacije;
– mehanizmi za navijanje;
– elementi, pritrjeni na steno/strop;
– elementi stavbnega okovja;
– dekorativne prevleke;
– intumescentna, vlečena ali akustična tesnila;
– alternativne podporne konstrukcije.

General Information

Status
Published
Publication Date
07-Apr-2019
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
18-Mar-2019
Due Date
23-May-2019
Completion Date
08-Apr-2019

RELATIONS

Buy Standard

Standard
SIST EN 15269-11:2018+AC:2019
English language
91 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Erweiterter Anwendungsbereich von Prüfergebnissen zum Feuerwiderstand und/oder zur Rauchdichtigkeit von Türen, Toren, Abschlüssen und Fenstern einschließlich ihrer Baubeschläge - Teil 11: Feuerwiderstandsfähigkeit von FeuerschutzvorhängenApplication étendue des résultats d'essais en matière de résistance au feu et/ou d'étanchéité à la fumée des blocs-portes, blocs-fermetures et ouvrants de fenêtre, y compris leurs éléments de quincaillerie intégrés - Partie 11 : Résistance au feu des rideExtended application of test results for fire resistance and/or smoke control for door, shutter and openable window assemblies, including their elements of building hardware - Part 11: Fire resistance for operable fabric curtains91.190Stavbna opremaBuilding accessories91.060.50Vrata in oknaDoors and windows13.220.50Požarna odpornost gradbenih materialov in elementovFire-resistance of building materials and elementsICS:Ta slovenski standard je istoveten z:EN 15269-11:2018+AC:2019SIST EN 15269-11:2018+AC:2019en,fr,de01-maj-2019SIST EN 15269-11:2018+AC:2019SLOVENSKI

STANDARDSIST EN 15269-11:20181DGRPHãþD
SIST EN 15269-11:2018+AC:2019
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 15269-11:2018+A1
March
t r s { ICS
s uä t t rä w râ
{ sä r x rä w r Supersedes EN
s w t x {æ s sã t r s zEnglish Version

Extended application of test results for fire resistance oorá shutter and openable window assembliesá including their elements of building hardware æ Part

s sã Fire resistance for operable fabric curtains Application étendue des résultats d 5essais en matière blocsæportesá blocsæfermetures et ouvrants de fenêtreá y compris leurs éléments de quincaillerie intégrés æ Partie

s s ã Résistance au feu des rideaux en toile manoeuvrables

Erweiterter Anwendungsbereich von Prüfergebnissen von Türená Torená Abschlüssen und Fenstern einschließlich ihrer Baubeschläge æ Teil

s sã Feuerwiderstandsfähigkeit von FeuerschutzvorhängenThis European Standard was approved by CEN on

z January
t r s z and includes Corrigendum
approved by CEN on
z January
t r s zä

egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä

translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä

CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä

EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre:
Rue de la Science 23,
B-1040 Brussels

t r s { CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN

s w t x {æ s sã t r s z ªA sã t r s { ESIST EN 15269-11:2018+AC:2019

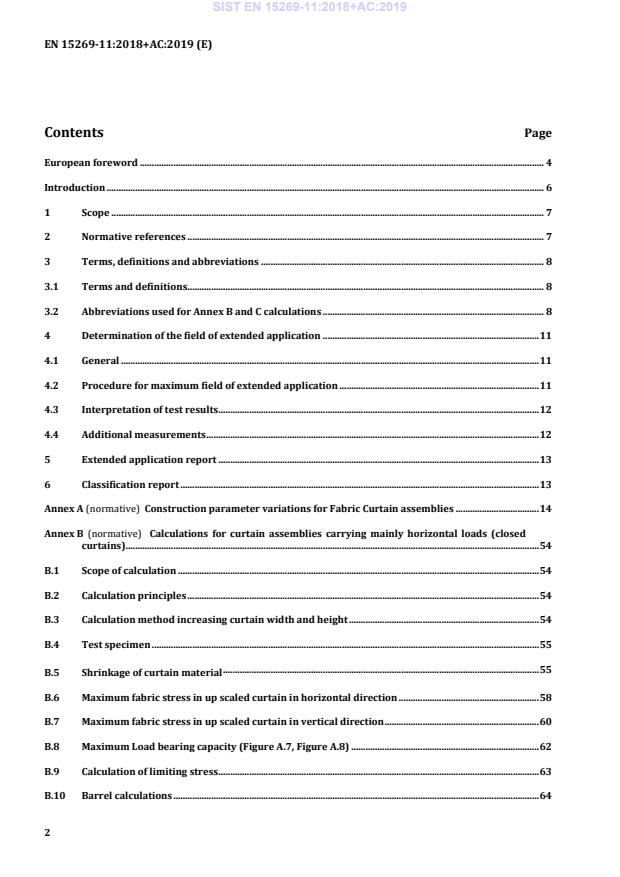

EN 15269-11:2018+AC:2019 (E) 2 Contents Page European foreword .......................................................................................................................................................................... 4 Introduction ........................................................................................................................................................................................ 6 1 Scope ...................................................................................................................................................................................... 7 2 Normative references ...................................................................................................................................................... 7 3 Terms, definitions and abbreviations ....................................................................................................................... 8 3.1 Terms and definitions...................................................................................................................................................... 8 3.2 Abbreviations used for Annex B and C calculations ............................................................................................. 8 4 Determination of the field of extended application ........................................................................................... 11 4.1 General ................................................................................................................................................................................ 11 4.2 Procedure for maximum field of extended application .................................................................................... 11 4.3 Interpretation of test results ....................................................................................................................................... 12 4.4 Additional measurements ............................................................................................................................................ 12 5 Extended application report ....................................................................................................................................... 13 6 Classification report ....................................................................................................................................................... 13 Annex A (normative)

Construction parameter variations for Fabric Curtain assemblies ................................... 14 Annex B (normative)

Calculations for curtain assemblies carrying mainly horizontal loads (closed curtains) .............................................................................................................................................................................. 54 B.1 Scope of calculation ........................................................................................................................................................ 54 B.2 Calculation principles .................................................................................................................................................... 54 B.3 Calculation method increasing curtain width and height ................................................................................ 54 B.4 Test specimen ................................................................................................................................................................... 55 B.5 Shrinkage of curtain material ..................................................................................................................................... 55 B.6 Maximum fabric stress in up scaled curtain in horizontal direction ........................................................... 58 B.7 Maximum fabric stress in up scaled curtain in vertical direction ................................................................. 60 B.8 Maximum Load bearing capacity (Figure A.7, Figure A.8) ............................................................................... 62 B.9 Calculation of limiting stress ....................................................................................................................................... 63 B.10 Barrel calculations .......................................................................................................................................................... 64 SIST EN 15269-11:2018+AC:2019

EN 15269-11:2018+AC:2019 (E) 3 B.11 Barrel support bracket calculations ........................................................................................................................ 65 B.12 Axle calculations .............................................................................................................................................................. 67 B.13 Endplate calculations .................................................................................................................................................... 68 B.14 Bottom bar expansion allowance .............................................................................................................................. 70 B.15 Maximum length of the bottom bar resp. bottom bar sections see Figure A.49 / Figure A.50 ........... 71 B.16 Allowances for thermal expansion ........................................................................................................................... 71 Annex C (normative)

Calculations for curtain assemblies carrying mainly vertical loads (overlapping modular curtains, curtains without retaining assemblies) ............................................................................. 72 C.1 Scope of calculation ........................................................................................................................................................ 72 C.2 Calculation principles.................................................................................................................................................... 72 C.3 Calculation method increasing curtain width and height ................................................................................ 72 C.4 Test Specimen for modular systems ........................................................................................................................ 73 C.5 Shrinkage of curtain ....................................................................................................................................................... 73 C.6 Maximum fabric stress in up scaled curtain in vertical direction ................................................................ 75 C.7 Maximum fabric stress in up scaled curtain in horizontal direction ........................................................... 78 C.8 Maximum Load bearing capacity (Figure A.8) ..................................................................................................... 80 C.9 Up scaling overlaps and end curtains ...................................................................................................................... 80 C.10 Example for increasing overlapping systems ....................................................................................................... 81 C.11 Calculation of limiting stress ...................................................................................................................................... 83 C.12 Barrel calculations ......................................................................................................................................................... 83 C.13 Barrel support bracket calculations ........................................................................................................................ 85 C.14 Axle calculations .............................................................................................................................................................. 86 C.15 Endplate calculations .................................................................................................................................................... 87 C.16 Bottom bar expansion allowance .............................................................................................................................. 89 C.17 Maximum length of the bottom bar resp. bottom bar sections see Figure A.49 / Figure A.50 ........... 90 C.18 Allowances for thermal expansion ........................................................................................................................... 90 Bibliography ..................................................................................................................................................................................... 91

SIST EN 15269-11:2018+AC:2019

EN 15269-11:2018+AC:2019 (E) 4 European foreword This document (EN 15269-11:2018+AC:2019) has been prepared by Technical Committee CEN/TC 127 “Fire safety in buildings”, the secretariat of which is held by BSI. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by September 2019, and conflicting national standards shall be withdrawn at the latest by September 2019. This document includes Corrigendum 1 issued by CEN on 6 March 2019. The start and finish of text introduced or altered by corrigendum is indicated in the text by tags ˜ ™. This document supersedes EN 15269-11:2018. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN shall not be held responsible for identifying any or all such patent rights. This document has been prepared under a mandate given to CEN and CENELEC by the European Commission and the European Free Trade Association. EN 15269, Extended application of test results for fire resistance and/or smoke control for door, shutter and openable window assemblies, including their items of building hardware, consists of the following parts: — Part 1: General requirements; — Part 2: Fire resistance of hinged and pivoted steel door assembly; — Part 3: Fire resistance of hinged and pivoted timber door assemblies and openable timber framed windows; — Part 5: Fire resistance of hinged and pivoted, metal framed, glazed doorsets and openable windows ˜deleted text™; — Part 6: Fire resistance of sliding timber door assemblies ˜11)™; — Part 7: Fire resistance of sliding steel door assemblies; — Part 10: Fire resistance of steel rolling shutter assemblies; — Part 11: Fire resistance of operable fabric curtains ˜deleted text™; — Part 20: Smoke control for hinged and pivoted steel, timber and metal framed glazed doorsets.

1) Under preparation. SIST EN 15269-11:2018+AC:2019

EN 15269-11:2018+AC:2019 (E) 5 According to the CEN-CENELEC Internal Regulations, the national standards organisations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 15269-11:2018+AC:2019

EN 15269-11:2018+AC:2019 (E) 6 Introduction This European Standard is one of a series of standards intended to be used for the purpose of producing an extended application report based on the evaluation of one or more fire resistance and/or smoke control tests. These standards may also be used to identify the best selection of test specimens required to cover a wide range of product variations. Before there can be any consideration for extended application the doorset should have been tested in accordance with EN 1634-1 to achieve a test result which could generate a classification in accordance with EN 13501-2 at least equal to the classification subsequently required from extended application considerations. A review of the door assembly construction parameters can indicate that one or more characteristics may be improved by a particular parameter variation. All evaluations should be made on the basis of retaining the fire resistance classifications obtainable from testing to EN 1634-1, including those lower than the test duration. However, this should never lead to an increased classification for any specific fire resistance and/or smoke control performance parameter beyond that achieved during any one test unless specifically identified in the relevant Construction Parameter Variation tables within this series of standards. The effect on the maintaining of the self closing function (C-classification) of the door assemblies following an extended application process is not addressed in this series of standards. SIST EN 15269-11:2018+AC:2019

EN 15269-11:2018+AC:2019 (E) 7 1 Scope This document covers vertically mounted types of manual or powered, operable fabric curtain assemblies with downward closing operation. Curtain systems are different from (are separated from) door systems due to their not rigid closure element typically made of thin walled materials as for instance woven or knitted fabrics and foils. These closure elements are not able to carry significant loads normal to their surface by their bending stiffness. In other words: curtain systems are separated from door systems because they can only conduct pulling forces by tensile stress in plane to their surface. Pushing forces are not conducted in plane to their surface. This document establishes the methodology for extending the application of test results obtained from test(s) conducted in accordance with the EN 1634-1 test method for shutters. Subject to the completion of the appropriate test or tests selected from those identified in Clause 4, the extended application may cover all or some of the following non-exhaustive list of examples: — uninsulated (E), radiation (EW) or insulated (EI1 or EI2) classifications; — coiling mechanisms; — wall/ceiling fixed elements; — items of building hardware; — decorative finishes; — intumescent, draught or acoustic seals; — alternative supporting construction(s). 2 Normative references The following documents are referred to in the text in such a way that some or all of their content constitutes requirements of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 1363-1, Fire resistance tests — Part 1: General Requirements EN 1634-1, Fire resistance and smoke control tests for door and shutter assemblies, openable windows and elements of building hardware — Part 1: Fire resistance test for door and shutter assemblies and openable windows EN 13501-2, Fire classification of construction products and building elements — Part 2: Classification using data from fire resistance tests, excluding ventilation services EN 15269-1, Extended application of test results for fire resistance and/or smoke control for door, shutter and openable window assemblies, including their elements of building hardware — Part 1: General requirements EN 1993-1-2, Eurocode 3: Design of steel structures — Part 1-2: General rules — Structural fire design SIST EN 15269-11:2018+AC:2019

EN 15269-11:2018+AC:2019 (E) 8 3 Terms, definitions and abbreviations 3.1 Terms and definitions For the purposes of this document, the following terms and definitions apply. ISO and IEC maintain terminological databases for use in standardization at the following addresses: — IEC Electropedia: available at http://www.electropedia.org/

— ISO Online browsing platform: available at http://www.iso.org/obp

3.1.1 full scale test test in accordance with EN 1634-1 3.1.2 small scale test test of parts of the fabric curtain 3.1.3 parts for definition of parts see Figure A.1 3.1.4 safety edge electronic device to prevent damage or injuries caused by collision with the bottom bar Note 1 to entry: Typically fixed on to the bottom bar (Figure A.1: part B3). 3.2 Abbreviations used for Annex B and C calculations Ut

maximum deflection during fire test [mm] Gt
maximum gap between the bottom bar and the floor level [mm] Ht
clear height of test specimen [mm] Ws
scaled distance between side guides [mm] Us
scaled distance neutral line to max. deflection (horizontal direction) [mm] rs
Radius of scaled deflection [mm] Ps
Pressure (20 N/m2) [N/m2] Cs.h
horizontal bow length of up scaled curtain [mm] Cs.v
vertical bow length of up scaled curtain [mm] t
Thickness of curtain material
[mm] sh
space in side guides (horizontal slack) [mm] h
horizontal shrinkage (%)
vertical shrinkage (%)
SIST EN 15269-11:2018+AC:2019
EN 15269-11:2018+AC:2019 (E) 9 Fs.h
horizontal pulling force per meter height [N/m] FLs.v
vertical fabric length considering vertical shrinkage [mm] Hs
up scaled drop length of intended system [mm] AFLs.v
additional fabric length of up scaled curtain in vertical direction [mm] ms.ges
total weight of up scaled curtain material and bottom bar [kg] ms.F
total weight of up scaled curtain material [kg] ms.BB
total weight of up scaled bottom bar [kg] s
maximum stress in up scaled curtain [N/mm2] s.v
maximum stress in vertical direction in up scaled curtain
[N/mm2] s.h
stress in scaled curtain in horizontal direction
[N/mm2] g
acceleration of gravity (9,81 m/s2) [m/s2] Ft
load during small scale fire test [N] mt
mass of heft for small scale fire test [kg] W
width of curtain material carrying load during small scale fire test [mm] IB
moment of inertia for the barrel [mm4] ZB
section modulus for the barrel [mm3] WL
Curtain weight [kg] DB
Barrel outside diameter
[m] LL
Curtain width
[m] hSA
Height of fire curtain aperture
[m] L
Weight per unit area of curtain
[kg/m2] WB
Weight of barrel including springs, axles, tubular motor, etc.
[kg] tB
Barrel wall thickness
[mm] WL
Full weight of curtain including bottom rail
[kg] B
Barrel stress
[N/mm2] WBA
Barrel assembly weight
[N] LB

Barrel length for fixed barrel bearing on both ends, distance between intermediate barrel supports for floating barrel bearing

[mm] EB
Young’s Modulus [N/mm2] Wr 1
bracket potential support [N] ISB
Support bracket moment of inertia [mm4] SIST EN 15269-11:2018+AC:2019
EN 15269-11:2018+AC:2019 (E) 10 SB
Support bracket maximum stress
[N/mm2] a
Distance between centreline of axle and rear of barrel support bracket
[mm] y

Distance between barrel support centre of gravity and the point of greatest stress

[mm] Wr 2
bracket component [N] b
Barrel support length
[mm] Asb
Support bracket cross-sectional area [mm2] Wr 3
casing hood component [N] tCH
Casing thickness [mm] LCH
Casing length [mm] b
Casing soffit length [mm] Wr Total
Wr 1 – Wr 2 – Wr 3
(N) WBA
Barrel assembly weight [N] ZA
Axle section modulus [mm3] DA
Axle diameter [mm] A1
Axle bending stress [N/mm2] WA
50 % of barrel assembly weight [N] WAL
Motor weight [kg] LA
Axle length [mm] A2
Axle shear stress [N/mm2] WEEL
Weight of fixing angle [N] hE
Endplate height [mm] AFA
Fixing angle cross-sectional area
[mm2] steel
density of steel = 7 850 [kg/m3] AE
Endplate horizontal cross-sectional area [mm2] wE
Endplate width
[mm] tE
Endplate thickness
[mm]
Area correction factor (dimensionless)
Length correction factor (dimensionless)
LFA
Fixing angle leg length (attached to endplate) [mm] EB
Endplate bending stress [N/mm2] SIST EN 15269-11:2018+AC:2019
EN 15269-11:2018+AC:2019 (E) 11 WE
50 % of barrel assembly weight [N] LE
Axle end bearing length [mm] WM
Load on endplate [N] LM
Effective motor shaft length
[mm] γ
= [] (dimensionless) WESL
Endplate self-weight weight [N] WEL
Eccentric loading [N] WAL
Weight on endplate from motor [kg] WT
Total endplate load [N] EFB
Shear stress in all endplate fixing bolts [N/mm2] nB
Number of bolts
Total area of bolts [mm2] FEFB

Tensile force in top endplate fixing bolt [N] 4 Determination of the field of extended application 4.1 General Before there can be any consideration for extended application the operable fabric curtain shall have been tested and classified in accordance with EN 1634-1 and EN 13501-2 respectively in order to establish a classification for the operable fabric curtain. A review of the construction parameters can indicate that one or more characteristics may be improved by a particular parameter variation. All evaluations shall be made on the basis of retaining the classifications obtainable from testing to EN 1634-1, including those lower than the test duration. However, this shall never lead to an increased classification for any specific parameter beyond that achieved during any one test unless specifically identified in the relevant Construction Parameter Variation tables. All evaluations shall be made on the basis of retaining the classification obtained from testing to EN 1634-1. If, by following the ensuing procedure, any part of the classification cannot be achieved by extended application rules that part of classification shall be omitted from the subsequent extended application report and classification report. 4.2 Procedure for maximum field of extended application Identify the variations from the original test specimen(s) which are required to be covered by an extended application report - see Figure A.1 for a typical operable curtain. Locate the variations in the appropriate parameter variation by reference to columns (1) and (2) of Table A.1. Review the type of classification to be retained from column (3) of Table A.1 and establish from the contents of column (4) of Table A.1 whether any extended application is available without the need for further testing. SIST EN 15269-11:2018+AC:2019

EN 15269-11:2018+AC:2019 (E) 12 Where this is deemed to be possible this can be recorded in the extended application report together with any appropriate restrictions and the stated rules from column (4) in Table A.1. Where the variations required can only be achieved from additional testing according to column (5) in Table A.1, the additional test can be made on a similar specimen type to the original test against which the extended application is sought. Alternatively, column (5) in Table A.1 identifies an option for alternative testing and relevant test parameters. ˜deleted text™ It is possible to provide a limited field of extended application from the results of a single test. However, where a manufacturer intends to produce a range of operable fabric curtains, it is recommended that careful consideration is given to the complete range of designs and options in order to minimize the testing required before testing commences. Establish all the parameter variations which are required to be part of the product range. Select specimen(s) for the first test(s) in the series to ensure that the most important parameter variations for the manufactured products are covered. Complete the first test or a series of tests and prepare a field of direct application and possibly a classification report from the results of the test(s). Establish which of the original desired parameter variations have not been covered by the direct application and classification report. Identify these parameter variations in Annex A and establish if any extended application is possible without further testing. Record this for the extended application report together with any restrictions and rules given in column (5) in Table A.1. Evaluate which, if any, of the desired parameter variations have not been covered by the field of direct application or the initial field of extended application derived from ˜4.2, paragraph 12™ above. Select the required outstanding parameter variations from column (1) and column (2) of Table A.1 and observe from column (5) of Table A.1 which are the most appropriate weakest specimen options for further testing. If the complete selection of required parameter variations has not been covered by the tests completed in accordance with ˜4.2, paragraph 14™ above, then an appropriate test or tests may be repeated with the additional product variations incorporated. 4.3 Interpretation of test results In order to maximize the field of extended application, it is important that the test reports shall record details of any integrity and/or insulation failures throughout the test duration. Where a series of tests have been conducted, the field of extended application shall be based on the lowest performance achieved from the complete series of tests unless premature failure has been attributed to one or more specific construction parameter variation. Where it has been possible, to identify specific parameter failures, the extended application for all other construction parameter variations can be based on the performance achieved after isolating the premature failure(s). 4.4 Additional measurements To use extended application the following measurements are to be taken: — Figure A.3 S = Shrinking allowance; SIST EN 15269-11:2018+AC:2019

EN 15269-11:2018+AC:2019 (E) 13 — Figure A.54 St = Bottom bar deflection; — Figure A.55 Ut = Maximum curtain deflection. 5 Extended application report Prepare an extended application report in accordance with the requirements of Clause 5 of EN 15269-1:2010, based on the results of evaluations in accordance with the above. 6 Classification report The classification report shall be determined from the results of the extended application report and presented in accordance with EN 13501-2. SIST EN 15269-11:2018+AC:2019

EN 15269-11:2018+AC:2019 (E) 14 Annex A (normative)

Construction parameter variations for Fabric Curtain assemblies Table A.1 is designed to provide criteria for the creation of extended application reports by experts in the field of fire resistance testing of operable fabric curtain assemblies. Table A.1 shall only be used to evaluate a field of extended application when at least one positive fire resistance test to EN 1634-1 has resulted in a classification according to EN 13501-2. The first two columns identify possible variations to the construction details of the specimen tested. The type of classification achieved from the test can be identified from the ‘Performance characteristic’ section of Table A.1 column 3 as insulation, radiation control or integrity only. The effect of the change in each parameter is evaluated for each char

...
