Methods of test for screed materials - Part 9: Dimensional stability

This document specifies a method for determining the dimensional stability (i.e. the shrinkage and swelling) of cementitious screed, calcium sulphate screed, magnesite screed and synthetic resin screed materials made in accordance with EN 13892-1.

Prüfverfahren für Estrichmörtel und Estrichmassen - Teil 9: Dimensionsstabilität

Dieses Dokument legt ein Verfahren zur Bestimmung der Dimensionsstabilität (d. h. des Schwindens und Quellens) von Zementestrichen, Calciumsulfatestrichen, Magnesiaestrichen und Kunstharzestrichen fest, die in Übereinstimmung mit EN 13892-1 hergestellt wurden.

Méthodes d'essai des matériaux pour chapes - Partie 9 : Stabilité dimensionnelle

Le présent document spécifie une méthode pour déterminer la stabilité dimensionnelle (retrait et gonflement) des matériaux pour chapes à base de ciment, de sulfate de calcium, de magnésie et de résine synthétique préparés conformément à l’EN 13892-1.

Metode preskušanja mešanice za estrih - 9. del: Dimenzijska stabilnost

General Information

Status
Published
Public Enquiry End Date
29-Jun-2024
Publication Date
23-Sep-2025
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
10-Sep-2025
Due Date
15-Nov-2025
Completion Date
24-Sep-2025

Relations

Standard
SIST EN 13892-9:2025
English language
13 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

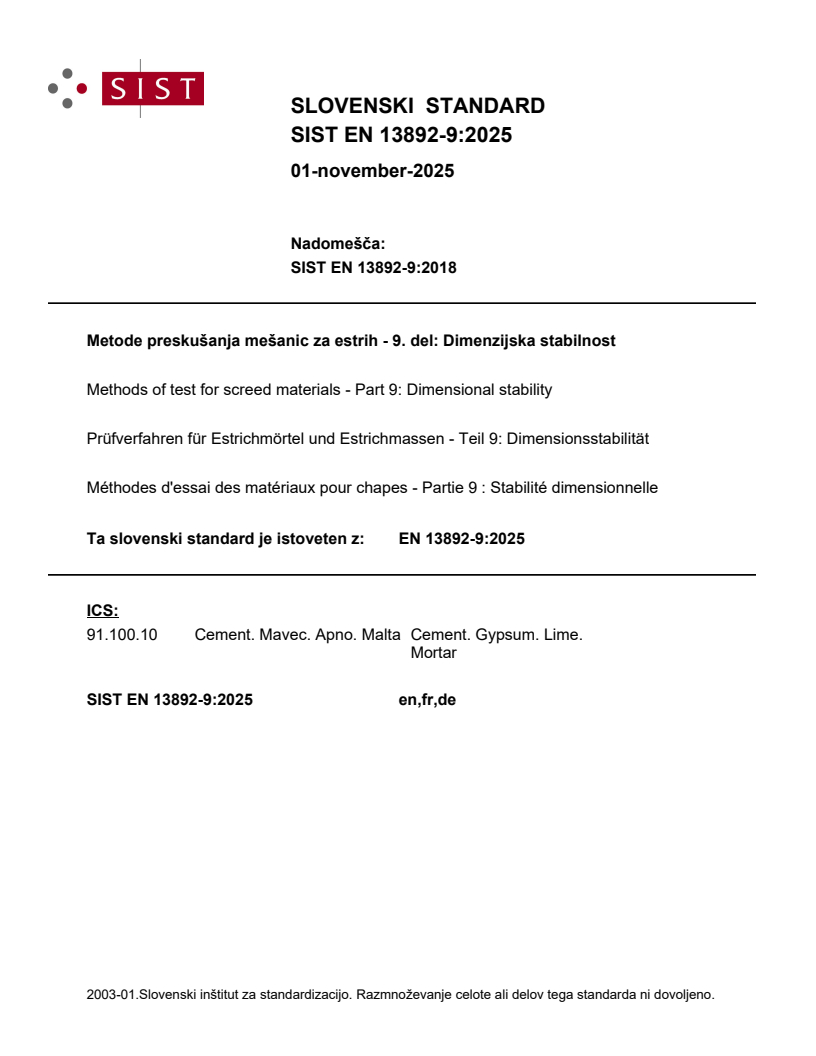

SLOVENSKI STANDARD
01-november-2025
Nadomešča:
SIST EN 13892-9:2018
Metode preskušanja mešanice za estrih - 9. del: Dimenzijska stabilnost
Methods of test for screed materials - Part 9: Dimensional stability
Prüfverfahren für Estrichmörtel und Estrichmassen - Teil 9: Dimensionsstabilität
Méthodes d'essai des matériaux pour chapes - Partie 9 : Stabilité dimensionnelle
Ta slovenski standard je istoveten z: EN 13892-9:2025
ICS:
91.100.10 Cement. Mavec. Apno. Malta Cement. Gypsum. Lime.
Mortar
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

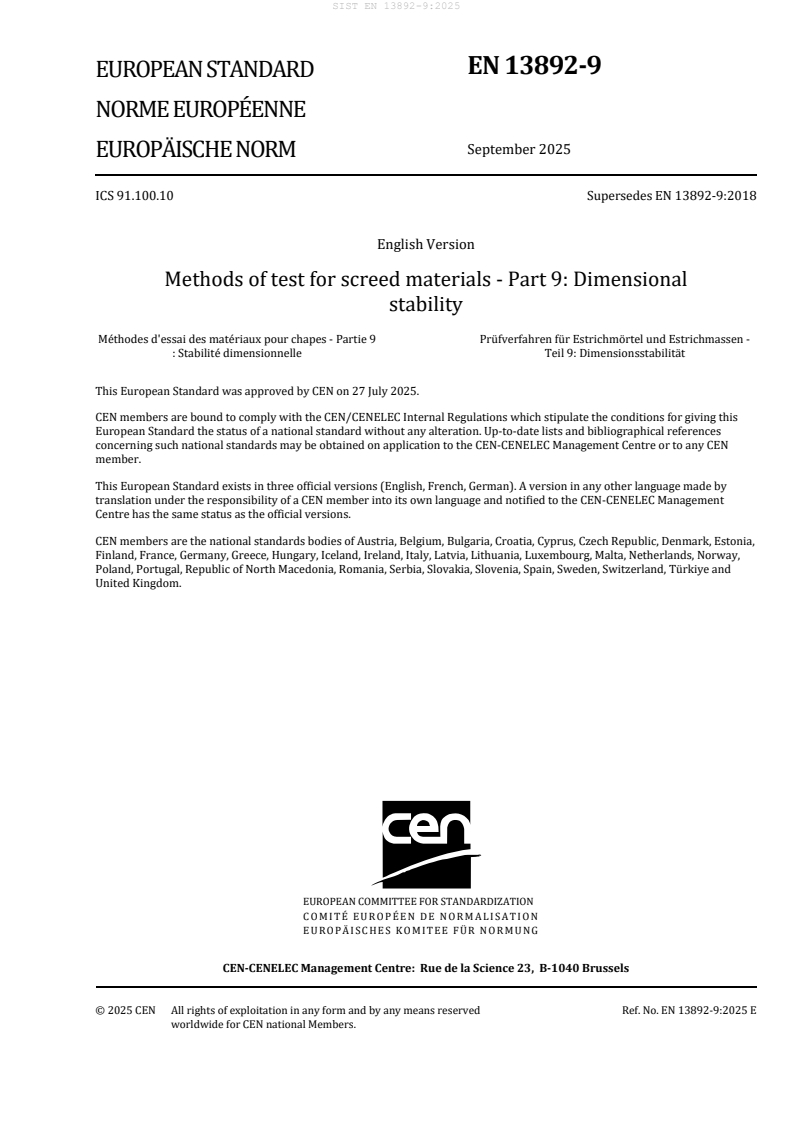

EN 13892-9
EUROPEAN STANDARD
NORME EUROPÉENNE
September 2025
EUROPÄISCHE NORM
ICS 91.100.10 Supersedes EN 13892-9:2018
English Version
Methods of test for screed materials - Part 9: Dimensional
stability
Méthodes d'essai des matériaux pour chapes - Partie 9 Prüfverfahren für Estrichmörtel und Estrichmassen -
: Stabilité dimensionnelle Teil 9: Dimensionsstabilität
This European Standard was approved by CEN on 27 July 2025.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13892-9:2025 E
worldwide for CEN national Members.

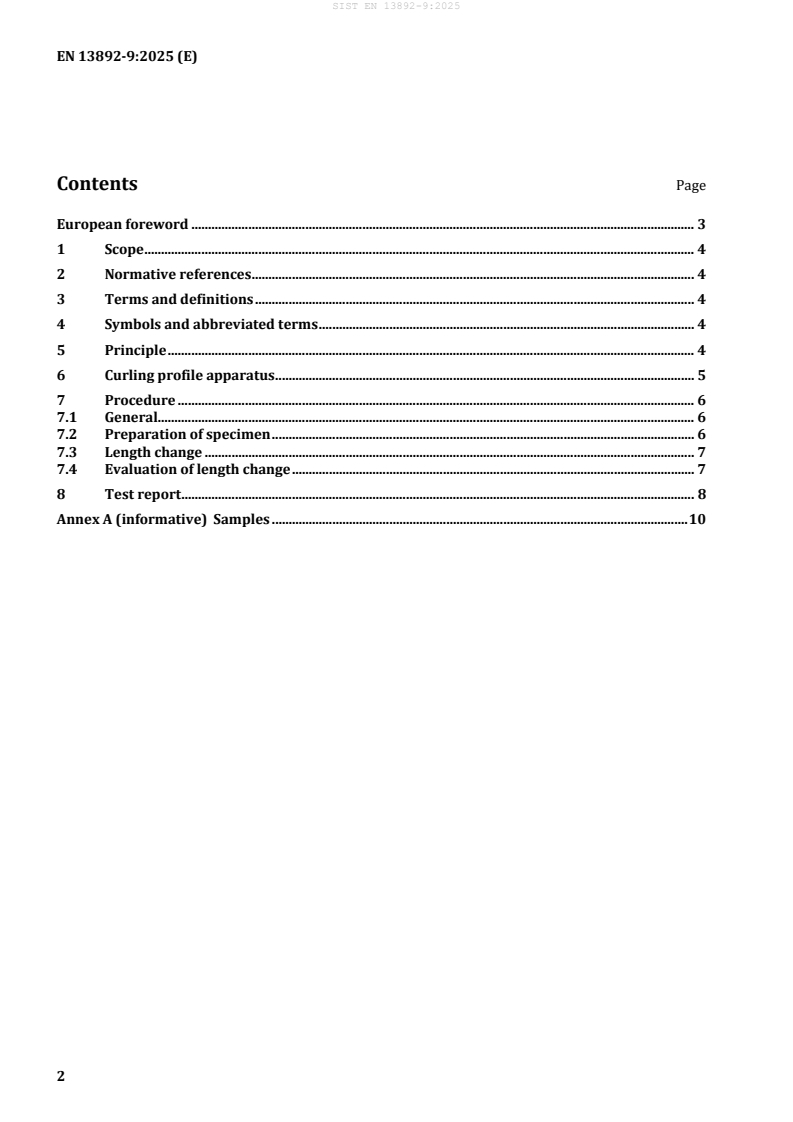

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Symbols and abbreviated terms . 4
5 Principle . 4
6 Curling profile apparatus . 5
7 Procedure . 6
7.1 General. 6
7.2 Preparation of specimen . 6
7.3 Length change . 7
7.4 Evaluation of length change . 7
8 Test report . 8
Annex A (informative) Samples . 10

European foreword
This document (EN 13892-9:2025) has been prepared by Technical Committee CEN/TC 303 “Floor
screeds and screed materials”, the secretariat of which is held by UNI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by March 2026 of DOP, and conflicting national standards
shall be withdrawn at the latest by March 2026 of DOW.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 13892-9:2018.
— a 10 min time interval has been introduced for monitoring length changes in 7.3;
— a minimum duration for the record of length variations has been added for cement-based and calcium
sulphate-based screeds in 7.3.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
1 Scope
This document specifies a method for determining the dimensional stability (i.e. the shrinkage and
swelling) of cementitious screed, calcium sulphate screed, magnesite screed and synthetic resin screed
materials made in accordance with EN 13892-1.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 13454-2, Binders for floor screeds based on calcium sulphate - Part 2: Test methods
EN 13813, Screed material and floor screeds - Screed material - Properties and requirements
EN 13892-1, Methods of test for screed materials - Part 1: Sampling, making and curing specimens for test
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp/
— IEC Electropedia: available at https://www.electropedia.org/
4 Symbols and abbreviated terms
DL dimensional stability (µm/m)
L horizontal length change (µm)
L start of length change (µm)
start
L local minimum in length change curve (µm)
min
L local maximum in length change curve (µm)
max
L end of length change (µm)
end
shrinkage (µm)
∆ LL − L
max end
swelling (µm)
∆ S=L−>L 0
end start
M moisture content in percentage
m weight at beginning (g)
b
m weight after drying (g)
d
5 Principle
This test method measures the unrestrained linear movement, called dimensional stability (i.e. shrinkage
and swelling), of screed materials in a 1 000 mm curling profile apparatus. A special feature of this test
method is the earliest possible commencement of measurements.
Dimensional stability is measured on screed materials made in accordance with EN 13892-1.
=
Irrespective of the consistency of the screed material, monitoring of horizontal length change commences
directly after the mould is filled. When measurements of length reach a steady-state, the monitoring
process ends.
The apparatus monitors the change in length of the specimen over time.
In general, the shrinkage predominates the dimensional stability. In this case, the dimensional stability is
calculated by comparing the difference between the measured local maximum length and the measured
length at steady-state (end of length change), see Formula (1):
∆ L
LL−
max end
DL (1)
1m 1m
If the swelling predominates the dimensional stability is calculated by comparing the difference between
the measured length at start (L ) and the measured length at steady-state (end of length change), see
start
Formula (2):
∆ S
LL−
end start
(2)
DL
1m 1m
6 Curling pr
...
