Standards Content (Sample)

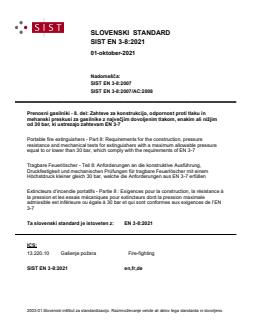

SLOVENSKI STANDARD
SIST EN 3-8:2021
01-oktober-2021
Nadomešča:
SIST EN 3-8:2007
SIST EN 3-8:2007/AC:2008
Prenosni gasilniki - 8. del: Zahteve za konstrukcijo, odpornost proti tlaku in
mehanski preskusi za gasilnike z največjim dovoljenim tlakom, enakim ali nižjim
od 30 bar, ki ustrezajo zahtevam EN 3-7
Portable fire extinguishers - Part 8: Requirements for the construction, pressure
resistance and mechanical tests for extinguishers with a maximum allowable pressure
equal to or lower than 30 bar, which comply with the requirements of EN 3-7
Tragbare Feuerlöscher - Teil 8: Anforderungen an die konstruktive Ausführung,
Druckfestigkeit und mechanischen Prüfungen für tragbare Feuerlöscher mit einem
Höchstdruck kleiner gleich 30 bar, welche die Anforderungen aus EN 3-7 erfüllen
Extincteurs d’incendie portatifs - Partie 8 : Exigences pour la construction, la résistance à
la pression et les essais mécaniques pour extincteurs dont la pression maximale
admissible est inférieure ou égale à 30 bar et qui sont conformes aux exigences de l’EN
3-7
Ta slovenski standard je istoveten z: EN 3-8:2021
ICS:
13.220.10 Gašenje požara Fire-fighting
SIST EN 3-8:2021 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN 3-8:2021
---------------------- Page: 2 ----------------------
SIST EN 3-8:2021
EN 3-8
EUROPEAN STANDARD
NORME EUROPÉENNE
August 2021
EUROPÄISCHE NORM
ICS 13.220.20 Supersedes EN 3-8:2006
English Version
Portable fire extinguishers - Part 8: Requirements for the
construction, pressure resistance and mechanical tests for
extinguishers with a maximum allowable pressure equal
to or lower than 30 bar, which comply with the
requirements of EN 3-7
Extincteurs d'incendie portatifs - Partie 8 : Exigences Tragbare Feuerlöscher - Teil 8: Anforderungen an die
pour la construction, la résistance à la pression et les konstruktive Ausführung, Druckfestigkeit und
essais mécaniques pour extincteurs dont la pression mechanischen Prüfungen für tragbare Feuerlöscher
maximale admissible est inférieure ou égale à 30 bar et mit einem Höchstdruck kleiner gleich 30 bar, welche
qui sont conformes aux exigences de l'EN 3-7 die Anforderungen aus EN 3-7 erfüllen
This European Standard was approved by CEN on 11 July 2021.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 3-8:2021 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 3-8:2021
EN 3-8:2021 (E)
Contents Page
European foreword . 5
Introduction . 7
1 Scope . 8
2 Normative references . 8
3 Terms and definitions . 9
4 Symbols and abbreviations . 10
5 Design . 10
5.1 Design parameters . 10
5.2 General. 11
5.3 Bodies . 11
5.3.1 General Test Conditions . 11
5.3.2 Burst test . 11
5.3.3 Crushing test – low temperature (extinguisher bodies only) . 12
5.3.4 Macroscopic examination of the extinguisher body . 12
5.3.5 Requirements for the base . 12
5.3.6 Required for use with plastic components . 13
5.4 Fittings (except pressure gauge, as defined in EN 3-7) . 13
5.4.1 Conditions . 13
5.4.2 Requirements . 13
5.5 Pressure gauge . 13
5.5.1 Conditions . 13
5.5.2 Requirements . 13
5.6 Pressure test (test pressure PT) – extinguisher bodies, fittings and assemblies . 14
5.6.1 Conditions . 14
5.6.2 Requirements – Extinguisher bodies . 14
5.6.3 Requirements – Fittings . 14
5.6.4 Requirements – Assembly . 14
5.7 Overfill pressure test (for water based media cartridge operated extinguishers
only) . 14
5.7.1 General. 14
5.7.2 Conditions . 14
5.7.3 Requirements . 14
5.8 Plastics components (subject to pressure) except hoses, and nozzles . 14
5.9 Resistance to impact . 14
5.9.1 Conditions . 14
5.9.2 Requirements . 14
5.10 Resistance to Corrosion . 15
5.10.1 External corrosion . 15
5.10.2 Resistance to media . 15
5.10.3 Material compatibility . 15
5.11 Filling opening . 15
5.12 Safety device . 15
6 Marking . 15
6.1 General. 15
6.2 Extinguisher body . 15
2
---------------------- Page: 4 ----------------------
SIST EN 3-8:2021
EN 3-8:2021 (E)
6.3 Extinguisher assembly . 15
7 Manufacturing, Inspection and testing during production . 16
7.1 General requirements . 16
7.2 Permanent joining . 16
7.2.1 Introduction . 16
7.2.2 Welding procedures . 16
7.2.3 Brazing procedures . 16
7.3 Traceability . 16
7.3.1 Pressure retaining parts . 16
7.3.2 Operating devices, filling caps and hose assemblies . 17
7.4 Pressure testing . 17
7.4.1 Personnel . 17
7.4.2 Proof testing . 17
7.5 Burst and crushing tests. 17
7.5.1 Extinguisher bodies . 17
7.5.2 Fittings – subject to pressure . 18
7.6 Final assessment . 19
7.6.1 Test pressure verification . 19
7.6.2 Final Inspection . 19
8 Materials . 19
8.1 General . 19
8.2 Pressure bearing parts . 20
8.3 Non-pressure bearing parts . 20
8.4 Plastic components . 20
8.5 Documentation . 20
9 Propellant gas cartridges . 20
Annex A (normative) Classification of the different parts of an extinguisher subject to internal
pressure . 21
Annex B (normative) Pressures and temperatures . 22
B.1 The scheme given in Table B.1 illustrate the definitions of pressure given in
Clause 4 . 22
B.2 The scheme given in Table B.2 illustrate the definitions of temperature given in
Clause 4 and in 5.1 . 22
Annex C (normative) Impact test — Resistance to impact by falling weight . 23
C.1 General . 23
C.2 Apparatus . 23
C.3 Procedure . 23
Annex D (normative) Specification for plastics components (except hoses and nozzles) . 25
D.1 General . 25
D.2 Requirements for plastics components subject to pressure . 25
D.2.1 General . 25
D.2.2 Burst under pressure . 25
D.2.3 Temperature conditioning at TS . 26
max
D.2.4 Ageing test – Xenon arc . 26
D.2.5 Impact test after ageing at 20 °C . 26
3
---------------------- Page: 5 ----------------------
SIST EN 3-8:2021
EN 3-8:2021 (E)
D.2.6 Plastic/metal thread design . 27
Annex E (normative) Propellant gas cartridges - Marking . 29
Annex F (normative) Overfill pressure test . 30
Annex G (normative) Mechanical strength test (crushing test) . 31
G.1 General. 31
G.2 Long bodies . 31
G.3 Short bodies . 32
Annex H (normative) Materials – Quality control documents . 34
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of Directive 2014/68/EU aimed to be covered . 35
4
---------------------- Page: 6 ----------------------
SIST EN 3-8:2021
EN 3-8:2021 (E)
European foreword
This document (EN 3-8:2021) has been prepared by Technical Committee CEN/TC 70 “Manual means of
fire fighting equipment”, the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by February 2022, and conflicting national standards shall
be withdrawn at the latest by February 2022.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 3-8:2006.
This document has been prepared under a Mandate given to CEN by the European Commission and the
European Free Trade Association and supports essential requirements of EU Directive(s).
For relationship with EU Directive 2014/68/EU, see informative Annex ZA, which is an integral part of
this document.
This document is included in a series of documents covering:
a) classification of fires (EN 2).
b) mobile fire extinguishers (series EN 1866).
EN 3 consists of the following parts, under the general title “Portable fire extinguishers”.
— Part 7: Characteristics, performance requirements and test methods;
— Part 8: Requirements for the construction; pressure resistance and mechanical tests for
extinguishers with a maximum allowable pressure equal to or lower than 30 bar, which comply with
the requirements of EN 3-7.
— Part 9: Additional requirements to EN 3-7 for pressure resistance of CO extinguishers.
2
NOTE The title of EN3-9 will upon revision be amended to read: “Part 9 - Requirements for the Assembly,
Construction and Pressure Resistance of CO2 extinguishers which comply with the requirements of EN3-7.”
— Part 10: Provisions for evaluating the conformity of a portable fire extinguisher to EN 3-7.
List of major changes:
The following sections have been revised:
— title;
— scope;
— materials;
— design;
— permanent joining;
5
---------------------- Page: 7 ----------------------
SIST EN 3-8:2021
EN 3-8:2021 (E)
— relationship with the ESR’s;
— relationship and titles to EN 3 series.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United
Kingdom.
6
---------------------- Page: 8 ----------------------
SIST EN 3-8:2021
EN 3-8:2021 (E)
Introduction
This document is a product standard.
This document is of relevance, in particular, to the following stakeholder groups representing the market
players with regard to pressure equipment safety:
— pressure equipment manufacturers (small, medium and large enterprises);
— health and safety bodies (regulators, accident prevention organizations, market surveillance, etc.)
— pressure equipment users/employers (small, medium and large enterprises);
— service providers, e.g., for maintenance (small, medium and large enterprises);
The above-mentioned stakeholder groups have been given the possibility to participate at the drafting
process of this document.
7
---------------------- Page: 9 ----------------------
SIST EN 3-8:2021
EN 3-8:2021 (E)
1 Scope
This document specifies, as far as the pressure risk is concerned, the rules of design, type testing,
fabrication and inspection control of portable fire extinguishers with a metallic body which comply with
the requirements of EN 3-7:2004+A1:2007.
This part of EN 3 applies to portable fire extinguishers of which the maximum allowable pressure PS is
lower than or equal to 30 bar and containing non-explosive, non-flammable, non-toxic and non-oxidising
fluids.
This document also applies to the marking of metallic propellant gas cartridges (see Annex E).
This document does not apply to carbon dioxide fire extinguishers.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 3-7:2004+A1:2007, Portable fire extinguishers — Part 7: Characteristics, performance requirements
and test methods
1)
EN 10204:2004, Metallic products — Types of inspection documents
EN 13134:2000, Brazing — Procedure approval
EN ISO 4892-2:2013, Plastics — Methods of exposure to laboratory light sources — Part 2: Xenon-arc lamps
(ISO 4892-2:2013)
EN ISO 9017:2018, Destructive tests on welds in metallic materials — Fracture test (ISO 9017:2017)
EN ISO 13585:2012, Brazing — Qualification test of brazers and brazing operators (ISO 13585:2012)
EN ISO 14555:2017, Welding — Arc stud welding of metallic materials (ISO 14555:2017)
EN ISO 14732:2013, Welding personnel — Qualification testing of welding operators and weld setters for
mechanized and automatic welding of metallic materials (ISO 14732:2013)
2)
EN ISO 15614-1:2017, Specification and qualification of welding procedures for metallic materials —
Welding procedure test — Part 1: Arc and gas welding of steels and arc welding of nickel and nickel alloys
(ISO 15614-1:2017)
EN ISO 15614-2:2005, Specification and qualification of welding procedures for metallic materials -
Welding procedure test — Part 2: Arc welding of aluminium and its alloys (ISO 15614-2:2005)
EN ISO 15614-11:2002, Specification and qualification of welding procedures for metallic materials —
Welding procedure test — Part 11: Electron and laser beam welding (ISO 15614-11:2002)
EN ISO 15614-12:2014, Specification and qualification of welding procedures for metallic materials —
Welding procedure test — Part 12: Spot, seam and projection welding (ISO 15614-12:2014)
1)
This standard is also applicable to non-metallic products (see EN 10204:2004, 1.2).
2)
As impacted by EN ISO 15614-1:2017/A1:2019.
8
---------------------- Page: 10 ----------------------
SIST EN 3-8:2021
EN 3-8:2021 (E)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
3.1
pressure at maximum operating temperature
pressure experimentally measured
P (T )
max
pressure measured in the extinguisher after stabilisation during at least 24 h at maximum operating
temperature (T ); for cartridge operated extinguishers, the maximum pressure is the maximum
max
pressure recorded for 0,5 s during a period of three minutes, excluding the first second after release of
the propellant gas
3.2
maximum allowable pressure
maximum declared pressure
PS
maximum pressure for which the equipment is designed, as specified by the manufacturer and which is
in any case greater than or equal to P (T )
max
Note 1 to entry: The value of PS for components should be equal to or greater than the value of PS for the
extinguisher assembly.
3.3
bursting pressure
P
r
maximum pressure measured during a bursting test
3.4
portable fire extinguisher assembly
assembly of parts to comprise the pressure retaining part of a fire extinguisher which can include a
extinguisher body, operating device, filling cap, closure, a propellant gas cartridge, hose and other
components under pressure, if fitted
3.5
maximum operating temperature
T
max
maximum operating temperature declared by the manufacturer equal to or less than TS
max
3.6
minimum operating temperature
T
min
minimum operating temperature declared by the manufacturer equal to or higher than TS
min
3.7
portable fire extinguisher
fire extinguisher which is designed to be carried and operated by hand and which in working order has a
mass of not more than 20 kg
9
---------------------- Page: 11 ----------------------
SIST EN 3-8:2021
EN 3-8:2021 (E)
3.8
propellant gas cartridge
refillable or non-refillable pressure receptacle made of metal, containing a propellant gas
3.9
fittings
pressure accessories which include operating devices, filling caps and hose assemblies
3.10
allowable temperature
TS
maximum / minimum temperatures for which the equipment is designed as declared by the
manufacturer
4 Symbols and abbreviations
For the purposes of this document, the following symbols and abbreviations apply.
PS Maximum allowable pressure, in bar
PT Test pressure ≥ 1,43 x PS in bar
P Bursting pressure (measured) ≥ 2,7 x PS, in bar
r
D Nominal external diameter of the extinguisher body, or the largest external value of the
perpendicular section to the axis, in mm
D Diameter of the mandrel used during the crushing test, in mm
B
P (T ) Pressure at maximum operating temperature, in bar
max
T Maximum operating temperature declared by the manufacturer, in °C
max
T Minimum operating temperature declared by the manufacturer, in °C
min
S Minimum wall thickness declared by the manufacturer, in mm
TS Minimum allowable temperature, in °C
min
TS Maximum allowable temperature, in °C
max
5 Design
5.1 Design parameters
The following parameters shall be declared by the manufacturer:
— PS of the extinguisher;
— PT of the extinguisher;
— material characteristics;
— specification of manufacturing process;
— extinguishing media and propellant;
— temperature range (see Table B.2). The allowable temperature range declared for the extinguisher
body shall be TS to TS ;
min max
10
---------------------- Page: 12 ----------------------
SIST EN 3-8:2021
EN 3-8:2021 (E)
where:
— TS = −30 °C or lower (as declared by the manufacturer);
min
— TS = +60 °C or higher (as declared by the manufacturer).
max
The relationship between the different pressures and temperatures is shown in Annex B.
5.2 General
The verification of the product design shall be by prototype testing against 5.3 to 5.9.
The samples used for these tests shall be manufactured using the same materials, processes and
equipment as for the intended production.
The minimum wall thickness (S) required for the body to achieve all the requirements of this standard
shall be specified, declared and guaranteed by the manufacturer.
Annex A gives the classification of the different parts forming the portable fire extinguisher.
5.3 Bodies
5.3.1 General Test Conditions
All the bodies and fittings used for the tests shall bear all normal markings indicate
...
SLOVENSKI STANDARD
oSIST prEN 3-8:2020
01-julij-2020
Prenosni gasilniki - 8. del: Zahteve za konstrukcijo, odpornost proti tlaku in
mehanski preskusi za gasilnike z največjim dovoljenim tlakom, enakim ali nižjim
od 30 bar, ki ustrezajo zahtevam EN 3-7
Portable fire extinguishers - Part 8: Requirements for the construction, pressure
resistance and mechanical tests for extinguishers with a maximum allowable pressure
equal to or lower than 30 bar, which comply with the requirements of EN 3-7
Tragbare Feuerlöscher - Teil 8: Zusätzliche Anforderungen zu EN 3-7 an die konstruktive
Ausführung, Druckfestigkeit, mechanische Prüfungen für tragbare Feuerlöscher mit
einem maximal zulässigen Druck kleiner gleich 30 bar
Extincteurs d’incendie portatifs - Partie 8 : Exigences pour la construction, la résistance à
la pression et les essais mécaniques pour extincteurs dont la pression maximale
admissible est inférieure ou égale à 30 bar et qui sont conformes aux exigences de l’EN
3-7
Ta slovenski standard je istoveten z: prEN 3-8:2020
ICS:
13.220.10 Gašenje požara Fire-fighting
oSIST prEN 3-8:2020 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
oSIST prEN 3-8:2020
---------------------- Page: 2 ----------------------
oSIST prEN 3-8:2020
DRAFT
EUROPEAN STANDARD
prEN 3-8
NORME EUROPÉENNE
EUROPÄISCHE NORM
May 2020
ICS 13.220.20 Will supersede EN 3-8:2006
English Version
Portable fire extinguishers - Part 8: Requirements for the
construction, pressure resistance and mechanical tests for
extinguishers with a maximum allowable pressure equal
to or lower than 30 bar, which comply with the
requirements of EN 3-7
Extincteurs d'incendie portatifs - Partie 8 : Exigences Tragbare Feuerlöscher - Teil 8: Zusätzliche
pour la construction, la résistance à la pression et les Anforderungen zu EN 3-7 an die konstruktive
essais mécaniques pour extincteurs dont la pression Ausführung, Druckfestigkeit, mechanische Prüfungen
maximale admissible est inférieure ou égale à 30 bar et für tragbare Feuerlöscher mit einem maximal
qui sont conformes aux exigences de l'EN 3-7 zulässigen Druck kleiner gleich 30 bar
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 70.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2020 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 3-8:2020:2020 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
oSIST prEN 3-8:2020
prEN 1869:2020 (E)
Contents Page
European foreword . 5
Introduction . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 8
4 Symbols and abbreviations . 9
5 Design . 9
5.1 Design Parameters . 9
5.2 General. 10
5.3 Bodies . 10
5.3.1 General Test Conditions . 10
5.3.2 Burst test . 10
5.3.3 Crushing Test – low temperature (extinguisher bodies only) . 11
5.3.4 Macroscopic examination of the extinguisher body . 11
5.3.5 Requirements for the base . 11
5.3.6 Required for use with plastic components . 12
5.4 Fittings (except pressure gauge, as defined in EN 3-7) . 12
5.4.1 Conditions . 12
5.4.2 Requirements . 12
5.5 Pressure gauge . 12
5.5.1 Test conditions . 12
5.5.2 Requirements . 12
5.6 Pressure test (test pressure PT) – extinguisher bodies, fittings and assemblies . 13
5.6.1 Test conditions . 13
5.6.2 Requirements – Extinguisher Bodies . 13
5.6.3 Requirements – Fittings . 13
5.6.4 Requirements – Assembly . 13
5.7 Overfill pressure test (for water based media cartridge operated extinguishers
only) . 13
5.7.1 General. 13
5.7.2 Conditions . 13
5.7.3 Requirements . 13
5.8 Plastics components (subject to pressure) except hoses, and nozzles . 13
5.9 Resistance to impact . 13
5.9.1 Conditions . 13
5.9.2 Requirements . 13
5.10 Resistance to Corrosion . 14
5.10.1 External corrosion . 14
5.10.2 Resistance to media . 14
5.10.3 Material compatibility . 14
5.11 Filling opening . 14
5.12 Safety device . 14
2
---------------------- Page: 4 ----------------------
oSIST prEN 3-8:2020
prEN 3-8:2020 (E)
6 Marking . 14
6.1 General . 14
6.2 Extinguisher Body . 14
6.3 Extinguisher assembly . 14
7 Manufacturing, Inspection and testing during production . 15
7.1 General requirements . 15
7.2 Permanent joining . 15
7.2.1 Introduction . 15
7.2.2 Welding procedures . 15
7.2.3 Brazing procedures . 15
7.3 Traceability . 16
7.3.1 Pressure retaining parts . 16
7.3.2 Operating devices, filling caps and hose assemblies . 16
7.4 Pressure Testing . 16
7.4.1 Personnel . 16
7.4.2 Proof testing . 16
7.5 Burst and Crushing tests . 16
7.5.1 Extinguisher Bodies . 16
7.5.2 Fittings – subject to pressure . 17
7.6 Final Assessment . 18
7.6.1 Test Pressure Verification . 18
7.6.2 Final Inspection . 18
8 Materials . 18
8.1 General . 18
8.2 Pressure bearing parts . 18
8.3 Non-pressure bearing parts . 19
8.4 Plastic Components . 19
8.5 Documentation . 19
9 Propellant Gas Cartridges . 19
Annex A (normative) Classification of the different parts of an extinguisher subject to
internal pressure . 20
Annex B (normative) Pressures and temperatures . 21
B.1 The scheme given in Table B.1 illustrate the definitions of pressure given in
Clause 4 . 21
B.2 The scheme given in Table B.2 illustrate the definitions of temperature given in
Clause 4 and in 6.1.2 . 21
Annex C (normative) Impact test — Resistance to impact by falling weight . 22
C.1 General . 22
C.2 Apparatus . 22
C.3 Procedure . 22
Annex D (normative) Specification for plastics components (except hoses and nozzles) . 24
D.1 General . 24
D.2 Requirements for plastics components subject to pressure . 24
D.2.1 General . 24
D.2.2 Burst under pressure . 24
3
---------------------- Page: 5 ----------------------
oSIST prEN 3-8:2020
prEN 3-8:2020 (E)
D.2.3 Temperature conditioning at TS . 25
max
D.2.4 Ageing test – Xenon arc . 25
D.2.5 Impact test after ageing at 20 °C . 25
D.2.6 Plastic/metal thread design . 26
Annex E (normative) Propellant gas cartridges - Marking . 28
Annex F (normative) Overfill pressure test . 29
Annex G (normative) Mechanical strength test (crushing test) . 30
G.1 General. 30
G.2 Long bodies . 30
G.3 Short bodies . 31
Annex H (normative) Materials – Quality control documents . 33
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of Directive 2014/68/EU aimed to be covered . 34
4
---------------------- Page: 6 ----------------------
oSIST prEN 3-8:2020
prEN 3-8:2020 (E)
European foreword
This document (prEN 3-8:2020) has been prepared by Technical Committee CEN/TC 70 “Manual means
of fire fighting equipment”, the secretariat of which is held by AFNOR.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 3-8:2006.
This document has been prepared under a Mandate given to CEN by the European Commission and the
European Free Trade Association and supports essential requirements of EU Directive(s).
For relationship with EU Directive 2014/68/EC, see informative Annex ZA, which is an integral part of
this document.
This document is included in a series of documents covering:
a) classification of fires (EN 2);
b) mobile fire extinguishers (series EN 1866).
EN 3 consists of the following parts, under the general title “Portable fire extinguishers”:
— Part 7: Characteristics, performance requirements and test methods;
— Part 8: Requirements for the construction; pressure resistance and mechanical tests for
extinguishers with a maximum allowable pressure equal to or lower than 30 bar, which comply with
the requirements of EN 3-7;
— Part 9: Requirements for the assembly, construction and pressure resistance of CO extinguishers
2
which comply with the requirements of EN 3-7;
— Part 10: Provisions for evaluating the conformity of a portable fire extinguisher to EN 3-7.
List of major changes:
The following sections have been revised:
— scope;
— materials;
— design;
— permanent joining;
— relationship with the ESR’s;
— relationship and titles to EN 3 series.
5
---------------------- Page: 7 ----------------------
oSIST prEN 3-8:2020
prEN 3-8:2020 (E)
Introduction
This document is a product standard.
This document is of relevance, in particular, to the following stakeholder groups representing the market
players with regard to pressure equipment safety:
— pressure equipment manufacturers (small, medium and large enterprises);
— health and safety bodies (regulators, accident prevention organizations, market surveillance, etc.)
— pressure equipment users/employers (small, medium and large enterprises);
— service providers, e.g. for maintenance (small, medium and large enterprises);
The above-mentioned stakeholder groups have been given the possibility to participate at the drafting
process of this document.
6
---------------------- Page: 8 ----------------------
oSIST prEN 3-8:2020
prEN 3-8:2020 (E)
1 Scope
This document specifies as far as the pressure risk is concerned, the rules of design, type testing,
fabrication and inspection control of portable fire extinguishers with a metallic body which comply with
the requirements of EN 3-7:2004+A1:2007.
This part of EN 3 applies to portable fire extinguishers of which the maximum allowable pressure PS is
lower than or equal to 30 bar and containing non-explosive, non-flammable, non-toxic and non-oxidising
fluids.
This document also applies to the marking of metallic propellant gas cartridges (see Annex E).
This document does not apply to carbon dioxide fire extinguishers.
NOTE Annex A gives the classification of the different parts forming the portable fire extinguisher.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 3-7:2004+A1:2007, Portable fire extinguishers - Part 7: Characteristics, performance requirements and
test methods
EN ISO 9017:2018, Destructive tests on welds in metallic materials — Fracture test (ISO 9017:2017)
1 )
EN 10204:2004, , Metallic products — Types of inspection documents
EN 13134:2000, Brazing - Procedure approval
EN ISO 4892-2:2013, Plastics — Methods of exposure to laboratory light sources — Part 2: Xenon-arc lamps
(ISO 4892-2:2013)
EN ISO 15614-1:2017, Specification and qualification of welding procedures for metallic materials —
Welding procedure test — Part 1: Arc and gas welding of steels and arc welding of nickel and nickel alloys
(ISO 15614-1:2017)
EN ISO 15614-2:2005, Specification and qualification of welding procedures for metallic materials -
Welding procedure test - Part 2: Arc welding of aluminium and its alloys (ISO 15614-2:2005)
EN ISO 15614-12:2014, Specification and qualification of welding procedures for metallic materials —
Welding procedure test — Part 12: Spot, seam and projection welding (ISO 15614-12:2014)
EN ISO 13585:2012, Brazing - Qualification test of brazers and brazing operators (ISO 13585:2012)
EN ISO 14732:2013, Welding personnel - Qualification testing of welding operators and weld setters for
mechanized and automatic welding of metallic materials (ISO 14732:2013)
ISO 14555:2017, Welding — Arc stud welding of metallic materials
1)
This standard is also applicable to non-metallic products (see EN 10204:2004, 1.2).
7
---------------------- Page: 9 ----------------------
oSIST prEN 3-8:2020
prEN 3-8:2020 (E)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
pressure at maximum operating temperature
(pressure experimentally measured)
P (T )
max
pressure measured in the extinguisher after stabilisation during at least 24 h at maximum operating
temperature (T ). For cartridge operated extinguishers, the maximum pressure is the maximum
max
pressure recorded for 0,5 s during a period of three minutes, excluding the first second after release of
the propellant gas
3.2
maximum allowable pressure
(maximum declared pressure)
PS
maximum pressure for which the equipment is designed, as specified by the manufacturer and which is
in any case greater than or equal to P (T )
max
Note 1 to entry: The value of PS for components should be equal to or greater than the value of PS for the
extinguisher assembly.
3.3
bursting pressure
P
r
maximum pressure measured during a bursting test
3.4
portable fire extinguisher assembly
assembly of parts to comprise the pressure retaining part of a fire extinguisher which can include a
extinguisher body, operating device, filling cap, closure and may include a propellant gas cartridge, hose
and other components under pressure, if fitted
3.5
maximum operating temperature
T
max
maximum operating temperature declared by the manufacturer equal to or less than TS
max
3.6
minimum operating temperature
T
min
minimum operating temperature declared by the manufacturer equal to or higher than TS
min
8
---------------------- Page: 10 ----------------------
oSIST prEN 3-8:2020
prEN 3-8:2020 (E)
3.7
portable fire extinguisher
fire extinguisher which is designed to be carried and operated by hand and which in working order has a
mass of not more than 20 kg
3.8
propellant gas cartridge
refillable or non-refillable pressure receptacle made of metal containing a propellant gas
3.9
fittings
pressure accessories which include operating devices, filling caps and hose assemblies
3.10
allowable temperature
TS
The maximum / minimum temperatures for which the equipment is designed as declared by the
manufacturer
4 Symbols and abbreviations
For the purposes of this document, the following symbols and abbreviations apply.
PS Maximum allowable pressure in bar
PT Test pressure ≥ 1,43 x PS in bar
P Bursting pressure (measured) ≥ 2,7 x PS in bar
r
D Nominal external diameter of the extinguisher body, or the largest external value of the
perpendicular section to the axis, in mm
D Diameter of the mandrel used during the crushing test in mm
B
P (T ) Pressure at maximum operating temperature, in bar
max
T Maximum operating temperature declared by the manufacturer, in °C
max
T Minimum operating temperature declared by the manufacturer, in °C
min
S Minimum wall thickness, declared by the manufacturer in mm
TS Minimum allowable temperature, in °C
min
TS Maximum allowable temperature, in °C
max
5 Design
5.1 Design Parameters
The following parameters shall be declared by the manufacturer
— PS of the extinguisher;
— PT of the extinguisher;
— Material characteristics;
9
---------------------- Page: 11 ----------------------
oSIST prEN 3-8:2020
prEN 3-8:2020 (E)
— Specification of manufacturing process;
— Temperature range (see Figure B.2). The allowable temperature range declared for the extinguisher
body shall be TS to TS ;
min max
where:
— TS = −30 °C or lower (as declared by the manufacturer);
min
— TS = +60 °C or higher (as declared by the manufacturer).
max
— Extinguishing media and propellant.
5.2 General
The verification of the product design shall be by prototype testing against 5.3 to 5.9.
The samples used for these tests shall be manufactured using the same materials, processes and
equipment as for the intended production.
The minimum wall thickness (S) required for the body to achieve all the requirements of this standard
shall be declared by the manufacturer.
5.3 Bodies
5.3.1 General Test Conditions
Three specimens shall be tested.
All the bodies and fittings used for the tests shall bear all normal markings indicated in Clause 6 and shall
be in their finished state (e.g. painted).
5.3.2 Burst test
5.3.2.1 Test Conditions
Burst test is performed at 20 ° ± 5 °C.
A burst of the extinguisher body, under hydraulic pressure, shall be carried out at (20 ± 5) °C using an
installation which permits a regular increase of pressure at not more than 2 bar/s until burst occurs and
permits the variation of pressure to be recorded as a function of time.
5.3.2.2 Requirements
— in all tests P shall be greater than 2,7 x PS with a minimum of 20 bar;
r
— the burst test shall not cause the extinguisher body to fragment;
— the main break shall show no signs of brittleness, for example the edges of the break shall not be
radial, but shall be inclined relative to a diametrical plane and shall have a reduction in area over
their entire thickness and shall occur in the cylindrical (parallel) portion of the extinguisher body;
— the break shall not show any obvious defects in the material;
— the break shall not originate in the extinguisher body marking area or weld;
NOTE The heat affected zone is not considered to be in or part of the weld.
10
---------------------- Page: 12 ----------------------
oSIST prEN 3-8:2020
prEN 3-8:2020 (E)
Should the fracture cross the weld from its point of origin it shall not be considered a failure.
— the burst pressure test shall be carried ou
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
