oSIST prEN ISO 21809-2:2021
(Main)Petroleum and natural gas industries - External coatings for buried or submerged pipelines used in pipeline transportation systems - Part 2: Single layer fusion-bonded epoxy coatings (ISO/DIS 21809-2:2020)
Petroleum and natural gas industries - External coatings for buried or submerged pipelines used in pipeline transportation systems - Part 2: Single layer fusion-bonded epoxy coatings (ISO/DIS 21809-2:2020)
2022-11-24: WI abandoned further to the cancellation of equivalent ISO WI
Erdöl- und Erdgasindustrie - Umhüllungen für erd- und wasserverlegte Rohrleitungen in Transportsystemen - Teil 2: Einschicht-Epoxipulverbeschichtungen (ISO/DIS 21809-2:2020)
No scope available
Industries du pétrole et du gaz naturel - Revêtements externes des conduites enterrées et immergées utilisées dans les systèmes de transport par conduites - Partie 2: Revêtements monocouches à base de résine époxydique appliquée par fusion (ISO/DIS 21809-2:2020)
Naftna industrija in industrija zemeljskega plina - Zunanje prevleke za cevovode, zakopane v zemljo ali potopljene v vodo, v sistemih cevovodnega transporta - 2. del: Enoplastne epoksidne prevleke, nataljene na podlago (ISO/DIS 21809-2:2020)
General Information
Relations
Standards Content (Sample)

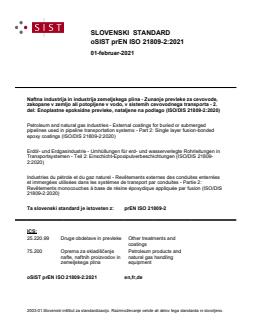

SLOVENSKI STANDARD
oSIST prEN ISO 21809-2:2021
01-februar-2021
Naftna industrija in industrija zemeljskega plina - Zunanje prevleke za cevovode,
zakopane v zemljo ali potopljene v vodo, v sistemih cevovodnega transporta - 2.
del: Enoplastne epoksidne prevleke, nataljene na podlago (ISO/DIS 21809-2:2020)
Petroleum and natural gas industries - External coatings for buried or submerged
pipelines used in pipeline transportation systems - Part 2: Single layer fusion-bonded
epoxy coatings (ISO/DIS 21809-2:2020)
Erdöl- und Erdgasindustrie - Umhüllungen für erd- und wasserverlegte Rohrleitungen in
Transportsystemen - Teil 2: Einschicht-Epoxipulverbeschichtungen (ISO/DIS 21809-
2:2020)
Industries du pétrole et du gaz naturel - Revêtements externes des conduites enterrées
et immergées utilisées dans les systèmes de transport par conduites - Partie 2:
Revêtements monocouches à base de résine époxydique appliquée par fusion (ISO/DIS
21809-2:2020)
Ta slovenski standard je istoveten z: prEN ISO 21809-2
ICS:
25.220.99 Druge obdelave in prevleke Other treatments and
coatings
75.200 Oprema za skladiščenje Petroleum products and
nafte, naftnih proizvodov in natural gas handling
zemeljskega plina equipment
oSIST prEN ISO 21809-2:2021 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
oSIST prEN ISO 21809-2:2021
---------------------- Page: 2 ----------------------
oSIST prEN ISO 21809-2:2021

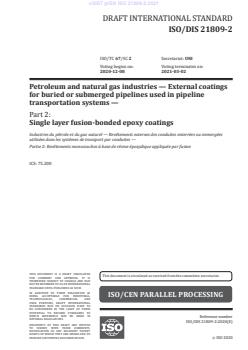

DRAFT INTERNATIONAL STANDARD
ISO/DIS 21809-2
ISO/TC 67/SC 2 Secretariat: UNI
Voting begins on: Voting terminates on:
2020-12-08 2021-03-02
Petroleum and natural gas industries — External coatings
for buried or submerged pipelines used in pipeline
transportation systems —
Part 2:
Single layer fusion-bonded epoxy coatings
Industries du pétrole et du gaz naturel — Revêtements externes des conduites enterrées ou immergées
utilisées dans les systèmes de transport par conduites —
Partie 2: Revêtements monocouches à base de résine époxydique appliquée par fusion
ICS: 75.200
THIS DOCUMENT IS A DRAFT CIRCULATED
This document is circulated as received from the committee secretariat.
FOR COMMENT AND APPROVAL. IT IS
THEREFORE SUBJECT TO CHANGE AND MAY
NOT BE REFERRED TO AS AN INTERNATIONAL
STANDARD UNTIL PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS
ISO/CEN PARALLEL PROCESSING
BEING ACCEPTABLE FOR INDUSTRIAL,
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
STANDARDS MAY ON OCCASION HAVE TO
BE CONSIDERED IN THE LIGHT OF THEIR
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
Reference number
NATIONAL REGULATIONS.
ISO/DIS 21809-2:2020(E)
RECIPIENTS OF THIS DRAFT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
©
PROVIDE SUPPORTING DOCUMENTATION. ISO 2020
---------------------- Page: 3 ----------------------
oSIST prEN ISO 21809-2:2021
ISO/DIS 21809-2:2020(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2020
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2020 – All rights reserved
---------------------- Page: 4 ----------------------
oSIST prEN ISO 21809-2:2021
ISO/DIS 21809-2:2020(E)
Contents Page
Foreword .v
Introduction .vi
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Symbols and abbreviated terms . 5
4.1 Symbols . 5
4.2 Abbreviated terms . 6
5 General requirements . 6
5.1 Rounding . 6
5.2 Conformity to requirements . . 6
6 Information supplied by the purchaser . 7
6.1 General information . 7
6.2 Additional information . 7
7 Coating materials . 8
7.1 Epoxy powder . 8
7.1.1 General. 8
7.1.2 Properties . 8
7.1.3 Packaging. 9
7.2 Repair materials . 9
8 Coating qualification . 9
8.1 Qualification by manufacturer. 9
8.1.1 Epoxy powder. 9
8.1.2 Repair material .10
8.2 Qualification by applicator .11
8.2.1 General.11
8.2.2 Minimum requirements for plant qualification and production .11
8.2.3 Application procedure specification (APS) .13
9 Application of coating .14
9.1 General .14
9.2 Surface preparation .14
9.2.1 Initial evaluation and surface preparation .14
9.2.2 Abrasive blast cleaning .15
9.2.3 Surface dust contamination .15
9.2.4 Surface cleanliness and pretreatment .15
9.3 Coating application and curing temperature .15
9.3.1 General.15
9.3.2 Powder recycle .16
9.4 Coating thickness .16
9.5 Cutback .16
10 Inspection and testing .16
10.1 General .16
10.2 Testing of incoming epoxy powder.17
10.3 In-process and finished product testing requirements .17
10.3.1 General.17
10.3.2 Holiday inspection .17
10.3.3 Production test rings .18
10.4 Test results.19
11 Repair of coated pipe .19
11.1 General .19
© ISO 2020 – All rights reserved iii
---------------------- Page: 5 ----------------------
oSIST prEN ISO 21809-2:2021
ISO/DIS 21809-2:2020(E)
11.2 Repair of holidays .19
11.2.1 Pinholes and Small holiday .19
11.2.2 Large Defects .19
11.2.3 Holiday Detection of the Repaired Area: .19
11.3 Stripping and recoating .19
12 Markings .19
12.1 General .19
12.2 Required markings .20
13 Handling and storage in the coating area .20
13.1 Handling.20
13.2 Storage .20
14 Test reports and inspection documents .20
Annex A (normative) Test methods .21
Annex B (normative) Procedure qualification trial (PQT), inspection and testing plan (ITP)
and daily log .51
Bibliography .54
iv © ISO 2020 – All rights reserved
---------------------- Page: 6 ----------------------
oSIST prEN ISO 21809-2:2021
ISO/DIS 21809-2:2020(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2. (see www .iso .org/ directives)
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received. (see www .iso .org/ patents)
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso .org/
iso/ foreword .html
This document was prepared by ISO/TC 67, Materials, equipment and offshore structures for petroleum,
petrochemical and natural gas industries, Subcommittee SC 2, Pipeline transportation systems.
This second edition cancels and replaces the first edition (ISO 21809-2:2007), which has been
technically revised. It also includes the Technical corrigendum ISO 21809-2:2007/Cor.1:2008.
The main changes compared to the previous edition are as follows:
Inclusion of new classifications for materials with glass transitions greater than 115°C.
A list of all the parts in the ISO 21809 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
© ISO 2020 – All rights reserved v
---------------------- Page: 7 ----------------------
oSIST prEN ISO 21809-2:2021
ISO/DIS 21809-2:2020(E)
Introduction
Users of this document should be aware that further or differing requirements might be needed for
individual applications. This document is not intended to inhibit a vendor from offering, or the purchaser
from accepting, alternative equipment or engineering solutions for the individual application. This can
be particularly applicable if there is innovative or developing technology. If an alternative is offered, the
vendor should identify any variations from this document and provide details.
vi © ISO 2020 – All rights reserved
---------------------- Page: 8 ----------------------
oSIST prEN ISO 21809-2:2021
DRAFT INTERNATIONAL STANDARD ISO/DIS 21809-2:2020(E)
Petroleum and natural gas industries — External coatings
for buried or submerged pipelines used in pipeline
transportation systems —
Part 2:
Single layer fusion-bonded epoxy coatings
1 Scope
This document specifies the requirements for qualification, application, testing and handling of
materials for plant application of single layer fusion-bonded epoxy (FBE) coatings applied externally for
the corrosion protection of bare steel pipe for use in pipeline transportation systems for the petroleum
and natural gas industries as defined in ISO 13623.
NOTE Pipes coated in accordance with this document are considered suitable for additional protection by
means of cathodic protection.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 2815, Paints and varnishes — Buchholz indentation test
ISO 8130-2, Coating powders — Part 2: Determination of density by gas comparison pyknometer
(referee method)
ISO 8130-3, Coating powders — Part 3: Determination of density by liquid displacement pyknometer
ISO 8501-1:2007, Preparation of steel substrates before application of paints and related products —
Visual assessment of surface cleanliness — Part 1: Rust grades and preparation grades of uncoated steel
substrates and of steel substrates after overall removal of previous coatings
ISO 8502-3, Preparation of steel substrates before application of paints and related products — Tests for
the assessment of surface cleanliness — Part 3: Assessment of dust on steel surfaces prepared for painting
(pressure-sensitive tape method)
ISO 8502-6, Preparation of steel substrates before application of paints and related products — Tests
for the assessment of surface cleanliness — Part 6: Extraction of water soluble contaminants for analysis
(Bresle method)
ISO 8502-9, Preparation of steel substrates before application of paints and related products — Tests for
the assessment of surface cleanliness — Part 9: Field method for the conductometric determination of
water-soluble salts
ISO 8503-4, Preparation of steel substrates before application of paints and related products — Surface
roughness characteristics of blast-cleaned steel substrates — Part 4: Method for the calibration of ISO
surface profile comparators and for the determination of surface profile — Stylus instrument procedure
ISO 8503-5, Preparation of steel substrates before application of paints and related products — Surface
roughness characteristics of blast-cleaned steel substrates — Part 5: Replica tape method for the
determination of the surface profile
© ISO 2020 – All rights reserved 1
---------------------- Page: 9 ----------------------
oSIST prEN ISO 21809-2:2021
ISO/DIS 21809-2:2020(E)
ISO 10474:2013, Steel and steel products — Inspection documents
ISO 11124 (all parts), Preparation of steel substrates before application of paints and related products —
Specifications for metallic blast-cleaning abrasives
ISO 11126 (all parts), Preparation of steel substrates before application of paints and related products —
Specifications for non-metallic blast-cleaning abrasives
ISO 11127-6, Preparation of steel substrates before application of paints and related products — Test
methods for non-metallic blast-cleaning abrasives — Part 6: Determination of water-soluble contaminants
by conductivity measurement
ISO 11357-1, Plastics — Differential scanning calorimetry (DSC) — Part 1: General principles
ISO 11357-2:2020, Plastics — Differential scanning calorimetry (DSC) — Part 2: Determination of glass
transition temperature and step height
ISO 13623:2017, Petroleum and natural gas industries — Pipeline transportation systems
ISO 80000-1:2009, Quantities and units — Part 1: General
1)
EN 10204:2004, Metallic products — Types of inspection documents
2)
AS 3894.6, Site testing of protective coatings — Determination of residual contaminants
3)
ASTM D4060, Standard Test Method for Abrasion Resistance of Organic Coatings by the Taber Abraser
ASTM D4940, Standard Test Method for Conductimetric Analysis of Water Soluble Ionic Contamination of
Blasting Abrasives
4)
SSPC-AB 1, Mineral and Slag Abrasives
SSPC-AB 2, Cleanliness of Recycled Ferrous Metallic Abrasives
SSPC-AB 3, Ferrous Metallic Abrasive
SSPC-SP 1, Solvent cleaning
SSPC-Guide 15, Field Methods for Extraction and Analysis of Soluble Salts on Steel and Other Nonporous
Substrates
3 Terms and definitions
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
For the purposes of this document, the following terms and definitions apply
3.1
application procedure specification
APS
document describing procedures, methods, equipment and tools used for coating application
1) European Committee for Standardization, Management Centre, Avenue Marnix 17, B-1000, Brussels, Belgium.
2) Standards Australia, GPO Box 476, Sydney, NSW 2001, Australia.
3) American Society for Testing and Materials, 100 Barr Harbor Drive, West Conshohocken, PA 19428-2959, USA.
4) SSPC: The Society for Protective Coatings, 40 24th Street, 6th Floor, Pittsburg. PA 15222-4656, USA.
2 © ISO 2020 – All rights reserved
---------------------- Page: 10 ----------------------
oSIST prEN ISO 21809-2:2021
ISO/DIS 21809-2:2020(E)
3.2
applicator
company that undertakes the coating application in accordance with this part of ISO 21809
3.3
adhesion
bond between coating and substrate
3.4
batch
quantity of epoxy powder produced in a continuous manufacturing operation using raw materials of
the same source and grade
3.5
batch certificate
certificate of analysis issued by the manufacturer
3.6
certificate of compliance
document issued in accordance with ISO 10474 or EN 10204, stating compliance with the purchase
order for coated pipes, but without mention of any test results, issued in accordance with the purchasing
requirements
3.7
coating material qualification
qualification of the coating materials properties carried out by the manufacturer before the coating
system qualification
3.8
coating system qualification
qualification of application method, applied coating system and subsequent inspection/testing of its
properties, to confirm that the APS is adequate to produce a coating with the specified properties
Note 1 to entry: The coating system qualification is not project dependent.
3.9
cutback
length of pipe left uncoated at each end for joining purposes
3.10
design temperature range
temperature range, including maximum and minimum temperatures, likely to be reached during
transport, storage, handling, installation and operation
Note 1 to entry: The design temperature range of the coating can be narrower than that specified for the steel
pipe material and/or the pipeline system.
3.11
dummy pipe
pipe having the same outside diameter and wall thickness of the project pipes coated in accordance
with approved APS
3.12
end user
company (companies) that own(s) and/or operate(s) pipeline(s)
3.13
glass transition
reversible change in an amorphous polymer or in amorphous regions of a partially crystalline polymer
from (or to) a viscous or rubbery condition to (or from) a hard and relatively brittle one
© ISO 2020 – All rights reserved 3
---------------------- Page: 11 ----------------------
oSIST prEN ISO 21809-2:2021
ISO/DIS 21809-2:2020(E)
3.14
glass transition temperature
T
g
characteristic value of the temperature range over which the glass transition takes place
Note 1 to entry: Note to entry: The assigned glass transition temperature, T , can vary, depending on the specific
g
property and on the method and conditions selected to measure it.
[SOURCE: ISO 11357-2:2020, 3.1]
3.15
holiday
coating discontinuity that exhibits electrical conductivity when exposed to a specific voltage
3.16
inspection certificate
document in accordance with ISO 10474 or EN 10204 declaring that the product supplied complies with
the requirements of the order and in which test results are supplied from specific inspection
3.17
inspection and testing plan
ITP
document providing an overview of the sequence of inspections and tests, including appropriate
resources and procedures
3.18
laboratory-coated test specimen
specimen taken from a laboratory-prepared panel
3.19
manufacturer
company responsible for the manufacture of coating material(s)
3.20
manufacturer’s specification
document that specifies the characteristics, test requirements and application recommendations for
the coating materials
3.21
operating temperature
temperature that can be endured by a pipeline (component) and/or pipeline system during operation,
within the design temperature range
3.22
powder shipment
amount of powder transported in one container
3.23
pipe diameter length
length along the pipe axis equal to the specified outside diameter of the pipe
3.24
pipeline
components of a pipeline system connected together to convey fluids between stations and/or plants,
including pipe, pig traps, components, appurtenances, isolating valves, and sectionalizing valves
[SOURCE: ISO 13623:2017, 3.1.15, modified]
4 © ISO 2020 – All rights reserved
---------------------- Page: 12 ----------------------
oSIST prEN ISO 21809-2:2021
ISO/DIS 21809-2:2020
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
