Preformed plasterboard cornices - Definitions, requirements and test methods

This European standard specifies the characteristics and performance of preformed plasterboard cornices intended to be used in building construction works either as part of the original specification or subsequently for improved decorative enrichment of the wall/ceiling angle in rooms.
This standard covers the performance characteristics: reaction to fire and flexural strength.
This standard covers also additional technical characteristics that are of importance for the use and acceptance of the product by the Construction Industry and the reference tests for these characteristics.
It provides the assessment and verification of constancy of performance of the products.
This standard does not cover plain plaster and gypsum fibrous plasterwork cornices.

Hohlkehlleisten aus kartonummanteltem Gips - Begriffe, Anforderungen und Prüfverfahren

Diese Europäische Norm legt die Eigenschaften und Leistung von Hohlkehlleisten aus kartonummanteltem Gips fest, die im Hochbau entweder im Rahmen der ursprünglichen Leistungsbeschreibung oder zur nachträglichen dekorativen Gestaltung des Wand-/Deckenabschlusses in Räumen verwendet werden.
Diese Norm behandelt die Leistungsmerkmale Brandverhalten und Biegezugfestigkeit.
Diese Norm behandelt darüber hinaus zusätzliche technische Eigenschaften, die für die Anwendung und Akzeptanz des Produkts durch die Bauwirtschaft von Bedeutung sind, und enthält die Referenzprüfverfahren für diese Eigenschaften.
Sie enthält Festlegungen zur Bewertung und Überprüfung der Leistungsbeständigkeit der Produkte.
Diese Norm gilt weder für Hohlkehlleisten aus Gips ohne Kartonummantelung noch für Hohlkehlleisten aus faserverstärktem Gips.

Corniches préformées en plâtre revêtues de carton - Définitions, exigences et méthodes d’essai

La présente Norme européenne définit les caractéristiques et les performances des corniches préformées en plâtre revêtues de carton destinées à être utilisées dans les ouvrages de construction de bâtiments, soit conformément au cahier des charges lui-même, soit postérieurement, en vue d’embellir la décoration intérieure des pièces au droit des angles formés par les murs et les plafonds.
La présente norme couvre les caractéristiques de performance suivantes : réaction au feu et résistance à la flexion.
La présente Norme européenne couvre également des caractéristiques techniques complémentaires qui revêtent une importance pour l’utilisation et l’acceptation du produit par l’industrie de la construction, ainsi que les essais de référence pour ces caractéristiques.
Elle permet l’évaluation de la conformité du produit à la présente Norme européenne.
La présente norme ne s’applique pas aux corniches qui ne sont pas revêtues de carton ni aux corniches en staff.

Predoblikovane mavčne plošče - Definicije, zahteve in preskusne metode

Ta evropski standard določa lastnosti in zmogljivost predoblikovanih mavčnih plošč, namenjenih za uporabo pri gradnji gradbenih objektov kot del izvirne specifikacije ali pozneje kot dekorativna izboljšava stenskega/stropnega kota v prostorih.
Ta standard zajema lastnosti delovanja: odziv na ogenj in upogibna trdnost.
Ta standard zajema tudi dodatne tehnične značilnosti, ki so pomembne pri uporabi in sprejemljivosti proizvoda s strani gradbene industrije, ter referenčne preskuse za te lastnosti.
Omogoča ocenjevanje in preverjanje nespremenljivosti zmogljivosti proizvodov.
Ta standard ne zajema navadnih mavčnih plošč in mavčnih plošč z vlakni.

General Information

Status
Published
Public Enquiry End Date
29-Mar-2016
Publication Date
10-Aug-2017
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
01-Aug-2017
Due Date
06-Oct-2017
Completion Date
11-Aug-2017

Relations

Buy Standard

Standard
EN 14209:2017
English language
18 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day
Draft
k FprEN 14209:2016
English language
19 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.HWRGHHohlkehlleisten aus kartonummanteltem Gips - Begriffe, Anforderungen und PrüfverfahrenCorniches préformées en plâtre revêtues de carton - Définitions, exigences et méthodes d’essaiPreformed plasterboard cornices - Definitions, requirements and test methods91.100.10Cement. Mavec. Apno. MaltaCement. Gypsum. Lime. MortarICS:Ta slovenski standard je istoveten z:EN 14209:2017SIST EN 14209:2017en,fr,de01-september-2017SIST EN 14209:2017SLOVENSKI
STANDARDSIST EN 14209:20061DGRPHãþD



SIST EN 14209:2017



EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 14209
July
t r s y ICS
{ sä s r rä s r Supersedes EN
s v t r {ã t r r wEnglish Version
Preformed plasterboard cornices æ Definitionsá requirements and test methods Corniches préformées en plâtre revêtues de carton æ Définitionsá exigences et méthodes d 5essai
Hohlkehlleisten aus kartonummanteltem Gips æ Begriffeá Anforderungen und Prüfverfahren This European Standard was approved by CEN on
t { July
t r s xä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
9
t r s y CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s v t r {ã t r s y ESIST EN 14209:2017

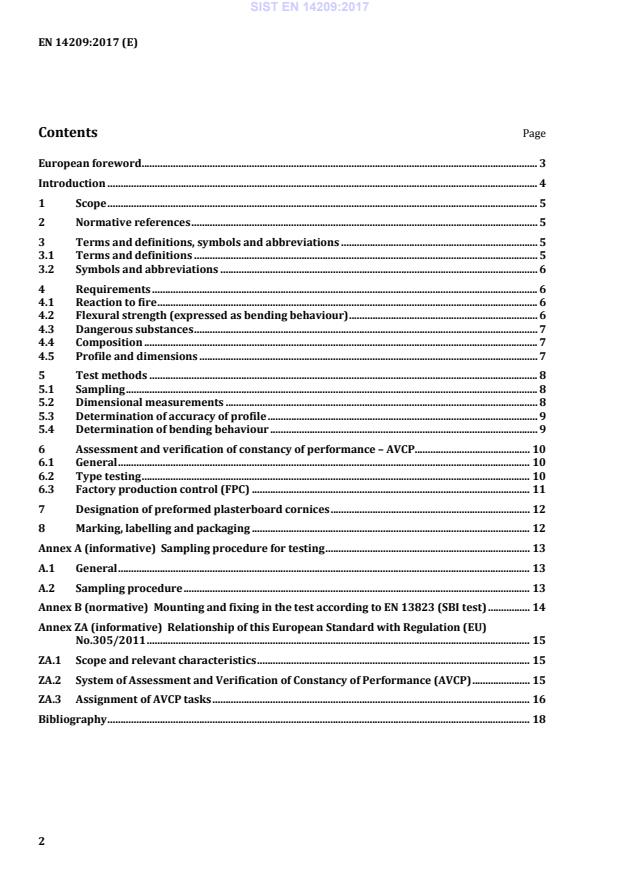

EN 14209:2017 (E) 2 Contents Page European foreword . 3 Introduction . 4 1 Scope . 5 2 Normative references . 5 3 Terms and definitions, symbols and abbreviations . 5 3.1 Terms and definitions . 5 3.2 Symbols and abbreviations . 6 4 Requirements . 6 4.1 Reaction to fire . 6 4.2 Flexural strength (expressed as bending behaviour) . 6 4.3 Dangerous substances . 7 4.4 Composition . 7 4.5 Profile and dimensions . 7 5 Test methods . 8 5.1 Sampling . 8 5.2 Dimensional measurements . 8 5.3 Determination of accuracy of profile . 9 5.4 Determination of bending behaviour . 9 6 Assessment and verification of constancy of performance – AVCP. 10 6.1 General . 10 6.2 Type testing . 10 6.3 Factory production control (FPC) . 11 7 Designation of preformed plasterboard cornices . 12 8 Marking, labelling and packaging . 12 Annex A (informative)
