SLOVENSKI SIST-TS CLC/TS 50429:2006

STANDARD
marec 2006
Optični kabli – Kabli za polaganje v kanalizacijo – Rodovna specifikacija za
kable, namenjene za napeljavo po meteornih in sanitarnih kanalih
Optical fibre cables - Sewer cables - Family specification for cables to be installed
in storm and sanitary sewers
ICS 33.180.10 Referenčna številka
SIST-TS CLC/TS 50429:2006(en)
©  Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljeno

---------------------- Page: 1 ----------------------

TECHNICAL SPECIFICATION CLC/TS 50429
SPECIFICATION TECHNIQUE
TECHNISCHE SPEZIFIKATION February 2005

ICS 33.180.10


English version


Optical fibre cables –
Sewer cables –
Family specification for cables to be installed
in storm and sanitary sewers


 Lichtwellenleiterkabel –
Kabel für Abwasserkanäle –
Familienspezifikation für Kabel
zu Montage in Abwasserkanälen






This Technical Specification was approved by CENELEC on 2004-09-11.

CENELEC members are required to announce the existence of this TS in the same way as for an EN and to
make the TS available promptly at national level in an appropriate form. It is permissible to keep conflicting
national standards in force.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden,
Switzerland and United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels


© 2005 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. CLC/TS 50429:2005 E

---------------------- Page: 2 ----------------------

CLC/TS 50429:2005 - 2 -

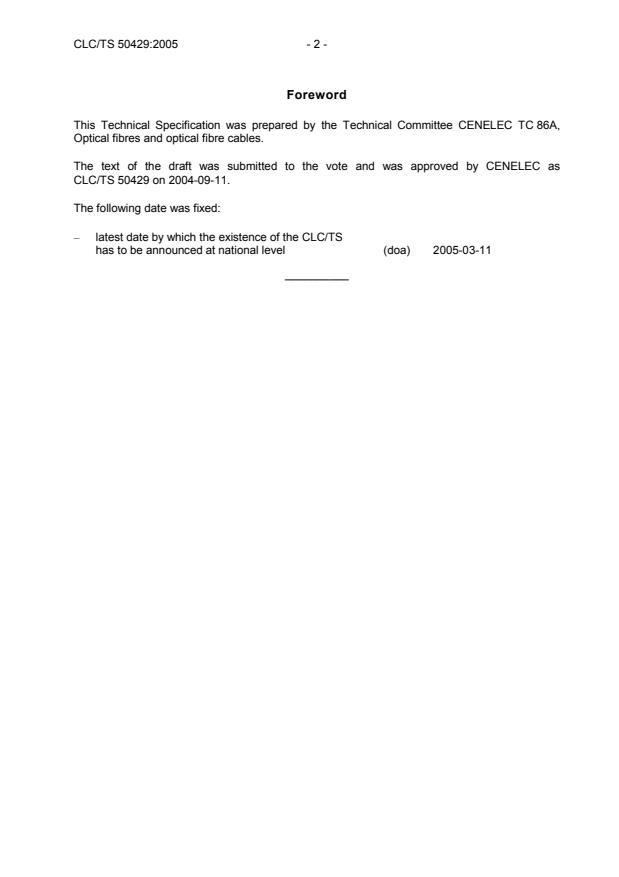

Foreword
This Technical Specification was prepared by the Technical Committee CENELEC TC 86A,
Optical fibres and optical fibre cables.
The text of the draft was submitted to the vote and was approved by CENELEC as
CLC/TS 50429 on 2004-09-11.
The following date was fixed:
– latest date by which the existence of the CLC/TS
has to be announced at national level (doa) 2005-03-11
__________

---------------------- Page: 3 ----------------------

- 3 - CLC/TS 50429:2005
Contents
1 Scope. 5
2 Normative references.5
3 Symbols. 6
4 Family specification for sewer cables and conduits for installation by blowing
and/or pulling in sewers (blank detail specification and minimum requirements). 7

4.1 Construction.7
4.1.1 General. 7
4.1.2 Conduits. 7
4.1.3 Sewer cables.7
4.1.4 Rodent protection. 8

4.2 Product descriptions. 8
4.2.1 Sewer cables description . 8
4.2.1.1 Cable for installation within conduits (previously fixed to the sewer wall). 8
4.2.1.2 Cables for direct installation into the sewer duct. 9
4.2.2 Conduit description . 10

4.3 Optical fibres.11
4.3.1 Single-mode dispersion unshifted (B1.1) optical fibre. 11
4.3.2 Single mode dispersion shifted (B2) optical fibre. 11
4.3.3 Single mode non-zero dispersion (B4) optical fibre . 11
4.3.4 Multimode fibres. 12

4.4 Sewer cable constructions . 12
4.4.1 Cable for insallation within conduits (previously fixed to the sewer wall). 12
4.4.2 Cable for direct installation into the sewer duct . 13
4.4.3 Conduit construction . 14

4.5 Installation and operating conditions . 14
4.5.1 Tests applicable.14
4.5.2 Installation conditions. 15

4.6 Mechanical and environmental tests . 15
4.6.1 Conduit . 15
4.6.1.1 Tests applicable.15
4.6.1.2 Details of family requirements and test conditions for conduits . 16
4.6.1.2.1 Pressure.16
4.6.1.2.2 Tensile performance.16
4.6.1.2.3 Kink.16
4.6.1.2.4 Crush.17
4.6.1.2.5 Impact.17
4.6.1.2.6 Flexibility.17
4.6.2 Cable for installation within conduits (previously fixed to the sewer wall). 18
4.6.2.1 Tests applicable.18
4.6.2.2 Details of family requirements and test conditions for sewer cable tests . 19
4.6.2.2.1 Tensile performance.19
4.6.2.2.2 Repeated bending. 19
4.6.2.2.3 Torsion.20
4.6.2.2.4 Bend.20
4.6.2.2.5 Crush.20

---------------------- Page: 4 ----------------------

CLC/TS 50429:2005 - 4 -
4.6.2.2.6 Impact.21
4.6.2.2.7 Temperature cycling.21
4.6.2.3 Details of family requirements and test conditions for blowing performance
of sewer cables to be installed in conduits . 22
4.6.3 Cables for direct installation into the sewer duct. 23
4.6.3.1 Test applicable.23
4.6.3.2 Details of family requirements and test conditions for sewer cables. 24
4.6.3.2.1 Tensile performance.24
4.6.3.2.2 Repeated bending. 24
4.6.3.2.3 Torsion.25
4.6.3.2.4 Bend . 25
4.6.3.2.5 Crush.25
4.6.3.2.6 Impact.26
4.6.3.2.7 Temperature cycling.26

4.7 Examples of conduits and sewer cables. 27
4.7.1 Cables for installation within conduits. 27
4.7.1.1 Dielectric sewer cables . 27
4.7.1.2 Sewer cable installed within a conduit. 28
4.7.2 Cables for direct installation into the sewer duct. 29
4.7.2.1 Cables to be screwed to the sewer inner wall. 29
4.7.2.2 Cables for spanning between manholes, similarly to aerial cables . 30
4.7.2.3 Cables for laying on the ground of the sewer . 31

4.8 Examples of installation schemes . 32
4.8.1 Installation within conduits. 32
4.8.1.1 Conduit robotized installation . 32
4.8.1.2 Spring loaded stainless-steel ring. 33
4.8.2 Installation directly into the sewer. 33
4.8.2.1 Cable screwed to the inner sewer wall by means of an installation robot . 33
4.8.2.2 Cable spanned between manholes, similarly to aerial cables. 34
4.8.2.3 Cable laid on the ground of the sewer. 34

Annnex A (informative) – O.F. cables for non-man-accessible sewers. 35

---------------------- Page: 5 ----------------------

- 5 - CLC/TS 50429:2005
1 Scope
This document is a family specification that covers sewer cables and conduits for installation by
blowing and/ or pulling in non-man accessible storm and sanitary sewers, also applicable for
man-accessible and lateral ones. Systems built with components covered by this standard are
subject to the requirements of sectional specifications EN 60794-3 and EN 60794-4 where
applicable.
Sewer cable and conduit constructions have to meet the different requirements of the sewer
operating companies and / or associations regarding chemical, environmental, operational,
cleaning and in general maintenance conditions.
A table of preferential applications, describing sewer cable characteristics versus methods of
installation is reported in Annex A for non-man accessible sewers.
Clause 4 describes a blank detail specification for sewer cables and conduits for installation by
blowing and/or pulling in storm and sanitary sewers. It incorporates some minimum
requirements.
Detail specifications may be prepared on the basis of this family specification.
The parameters specified in this standard may be affected by measurement uncertainty arising
either from measurement errors or calibration errors due to lack of suitable standards.
Acceptance criteria should be interpreted with respect to this consideration.
The number of fibres tested is representative of the sewer cable and should be agreed between
the customer and supplier.
2 Normative references
The following referenced documents are indispensable for the application of this document. For
dated references, only the edition cited applies. For undated references, the latest edition of the
referenced document (including any amendments) applies.
EN 60068-2-2 Environmental testing (IEC 60068-2-2)
EN 60793-1-20 Optical fibres - Part 1-20: Measurement methods and test
procedures - Fibre geometry (IEC 60793-1-20)
EN 60793-1-40 Optical fibres - Part 1-40: Measurement methods and test
procedures – Attenuation (IEC 60793-1-40)
EN 60793-1-44 Optical fibres - Part 1-44: Measurement methods and test
procedures - Cut-off wavelength (IEC 60793-1-44)
EN 60793-2 Optical fibres - Part 2: Product specifications (IEC 60793-2)
EN 60794-1-1 Optical fibre cables - Part 1-1: Generic specification –General
(IEC 60794-1-1)
EN 60794-1-2 Optical fibre cables - Part 1-2: Generic specification - Basic
optical cable test procedures (IEC 60794-1-2)
EN 60794-3 Optical fibre cables - Part 3: Sectional specification - Outdoor
cables – Duct, buried and aerial cables (IEC 60794-3)
EN 60794-3-10 Optical fibre cables - Part 3-10: Family specification - Outdoor
cables - Duct and directly buried optical telecommunication
cables (IEC 60794-3-10)
EN 60794-4 2003 Optical fibre cables - Part 3: Sectional specification – Aerial
optical cables along electrical power lines
(IEC 60794-4:2003)

---------------------- Page: 6 ----------------------

CLC/TS 50429:2005 - 6 -
EN 60811-1-1 1995 Common test methods for insulating and sheathing materials of
electric cables and optical cables -
Part 1-1: Methods for general application - Measurement of
thickness and overall dimensions - Tests for determining the
mechanical properties (IEC 60811-1-1:1993)
EN 60811-5-1 1999 Insulating and sheathing materials of electric and optical cables -
Commontest methods -
Part 5-1: Methods specific to filling compounds - Drop point -
Separation of oil - Lower temperature brittleness - Total acid
number - Absence of corrosive components - Permittivity at 23 °C
- D.C. resistivity at 23 °C and 100 °C
(IEC 60811-5-1:1990, mod)
EN 187105 Single mode optical cable (duct/direct buried installation)
HD 402 S2 1984
Standard colours for insulation for low-frequency cables and
wires (IEC 60304:1982)
3 Symbols
For the purposes of this document, the following symbols apply:
λ cabled fibre cut-off wavelength
CC
d nominal outer diameter of the sewer cable
DS detail specification
T threshold tensile load below which no attenuation and/or fibre strain increase should
O
occur in the tensile performance test
T the acceptable amount of short-term tensile load that can be applied to the cable without
M
permanent degradation of the characteristics of the fibres in the tensile performance test
T temperature cycling test low-temperature limit according to EN 60794-1-2,
AI
method Fl
T temperature cycling test low-temperature limit according to EN 60794-1-2,
A2
method Fl
T temperature cycling test high-temperature limit according to EN 60794-1-2,
B1
method Fl
T temperature cycling test high-temperature limit according to EN 60794-1-2,
B2
method Fl
t temperature cycling dwell time
1
n x d a value times cable outer diameter used for bends, mandrels, etc.

---------------------- Page: 7 ----------------------

- 7 - CLC/TS 50429:2005
4 Family specification for sewer cables and conduits for installation by
blowing and/or pulling in sewers (blank detail specification and minimum
requirements)
4.1 Construction
4.1.1 General
In addition to the constructional requirements of sectional specifications EN 60794-3 and
EN 60794-4, where applicable, the following considerations apply to the sewer cables and/or
conduits.
The sewer cables and/or conduits shall be designed and manufactured for an expected
operating lifetime of at least 15 years. It shall be possible to install or remove the cable in or
from the sewer throughout the operational lifetime. The materials in the sewer cable and / or as
well as accessories including fixing elements and conduits shall not present a health hazard
within its intended use.
4.1.2 Conduits
In case of use, the conduits with outer nominal diameters ranging from 10 mm to 16 mm shall
be able to resist pressure differences needed for installation by blowing. They shall be circular
and, if needed, corrugated in cross-section throughout their length; the inner surface shall have
a low coefficient of friction. The material shall withstand all possible chemical attacks by the
sewer liquid itself, as for instance the stainless steel type VA4. Inner- and outer-diameter and
overall minimum wall thickness shall be specified.
4.1.3 Sewer cables
A sewer cable in accordance to this specification should be suitable for installation in non-man
accessible storm and sanitary sewers by the following installation methods, also applicable for
man-accessible sewers and for lateral sewer systems:


∇ blowing and /or pulling into a conduit, previously fixed to the sewer wall or, for laterals,
placed in between the lateral sewer wall and the in-liner system;


∇ direct installation into the sewer duct, according to the following applications:
o drilling and screwing to the inner wall;
o spanning between manholes, etc., similarly to aerial cables;
o laying on the ground of the sewer.
The attenuation of the installed cable at the operational wavelength(s) shall not exceed values
agreed between the customer and supplier.
There shall be no fibre splice in a delivery length unless otherwise agreed by the customer and
supplier.
It shall be possible to identify each individual fibre throughout the length of the sewer cable.

---------------------- Page: 8 ----------------------

CLC/TS 50429:2005 - 8 -
4.1.4 Rodent protection
Rodent protection is generally needed but there is presently no standard test to measure the
level of rodent protection.
It is recognized that an effective protection is provided by a metallic layer at level of conduit or
cable. Other solutions using non metallic elements, for example rigid glass members or glass
tapes are under consideration.
4.2 Product descriptions
4.2.1 Sewer cables description
4.2.1.1 Cable for installation within conduits (previously fixed to the sewer wall)
Such sewer cable has to be blown or pulled into the conduits described in subclause 4.2.2.

(1) Prepared by (2) Document No.:

Issue:
Date:
(3) Available from: (4) Generic specifications: EN 60794-1-1 and EN 60794-1-2
Sectional specification: EN 60794-3
(5) Additional references:
Construction Additional remarks
- Tube - unfilled
- Tube - filled

Inner sheath

Outer sheath

Additional armouring
- Non-metallic armouring
- Metallic armouring

Additional outer sheath

Marking identification
- Customer requirement
- Identification of manufacturer
(8) Application information:
Maximum outer diameter (d) mm
Rated maximum tensile load N
Minimum bending radius for no-load bending mm or n x d
Minimum bending radius for rated-load bending mm or n x d
Temperature range:
- Transport and storage °C
- Installation °C
- Operation °C
Manufacturing length
- Typical m
- Nominal/tolerances -0 + 1%

---------------------- Page: 9 ----------------------

- 9 - CLC/TS 50429:2005
4.2.1.2 Cables for direct installation into the sewer duct
Such cables are directly screwed on the sewer wall by means of proper “hooks” using a special
designed robot, or spanned – similar to aerial cables – by means of anchors between two man-
holes limiting sag and interference with lateral tubes, or laid and fixed on the ground of the
sewer mainly by gravity and a certain number of anchor devices.

(1) Prepared by
(2) Document No.:

Issue:
Date:
(3) Available from:
(4) Generic specifications: EN 60794-1-1 and EN 60794-1-2
Sectional specifications: EN 60794-3 and EN 60794-4
(5) Additional references:
Construction Additional remarks
- Tube - unfilled
- Tube - filled

Inner sheath

Outer sheath

Additional armouring
- Non-metallic armouring
- Metallic armouring

Additional outer sheath

Marking identification
- Customer requirement
- Identification of manufacturer
(8) Application information:
Maximum outer diameter (d) mm
Rated maximum tensile load N
Minimum bending radius for no-load bending mm or n x d
Minimum bending radius for rated-load bending mm or n x d
Temperature range:
- Transport and storage °C
- Installation °C
- Operation °C
Manufacturing length
- Typical m
- Nominal/tolerances -0 + 1%

---------------------- Page: 10 ----------------------

CLC/TS 50429:2005 - 10 -

4.2.2 Conduit description
Such conduit is directly attached on the sewer wall by means of proper fittings. In case of use of
stainless-steel-conduits, the conduit is fixed by clamps to spring loaded stainless-steel rings
installed into the cleaned and inspected sewer tube, distanced about 1,5 m, using a special
installation robot.

(1) Prepared by
(2) Document No.:

Issue:
Date:
(3) Available from:
(4) Generic specifications: EN 60794-1-1 and EN 60794-1-2
Sectional specification: EN 60794-3 (all as applicable to conduits)
(5) Additional references:
Construction

- Corrugated conduit (metallic)
- Non corrugated conduit
Additional armouring
- Metallic
- Non metallic
Additional outer sheath
Marking identification
- Customer requirement
- Identification of the manufacturer
(8) Application information:
Maximum outer diameter (d) mm
Rated maximum tensile load N
mm
Minimum bending radius for no-load bending
mm
Minimum bending radius for rated-load bending
°C
Temperature range:
°C
- Transport and storage
°C
- Installation

- Operation

Manufacturing tube length
m
- Typical
-0 + 1%
- Nominal/tolerances

---------------------- Page: 11 ----------------------

- 11 - CLC/TS 50429:2005

4.3 Optical fibres
4.3.1 Single-mode dispersion unshifted (B1.1) optical fibre

Characteristics EN 60794-3 Family Test methods Remarks

(Sub)clause requirements
(9) (10) (11) (12) (13)
Un cabled optical fibre 5 EN 60793-2
Attenuation coefficient 5.2.1 According to DS EN 60793-1-40
(cabled fibres) method A, B or C
at 1 310 nm ≤ 0,40 dB/km Note:
at 1 550 nm and ≤ 0,35 dB/km XX ≤ 25 nm
at 1 6XX nm, etc. ≤ 0,40 dB/km
Attenuation discontinuities 5.2.2.1 ≤ 0,10 dB EN 60793-1-40
at 1 310 and 1 550 nm method C
Cabled fibre cut-off 5.3 EN 60793-1-44
λCC < λ operational
wavelength method B
Fibre colouring 5.4 HD 402 S2 Visual inspection
Outer diameter including 8.2.1.1 EN 60793-2 EN 60793-1-20
colouring method D

4.3.2 Single mode dispersion shifted (B2) optical fibre

Characteristics EN 60794-3 Family Test methods Remarks
Subclause requirements
(9) (10) (11) (12) (13)
Un cabled optical fibre 5.1 EN 60793-2
Attenuation coefficient
5.2.1 According to DS EN 60793-1-40
(cabled fibres)  method A, B or C

at 1 550 nm 5.2.1 ≤ 0,35 dB/km


Attenuation discontinuities EN 60793-1-40
≤ 0,10 dB/km
at 1 550 nm 5.2.2.1 method C
Cabled fibre cut-off 5.3 λ < λ operational EN 60793-1-44
CC
wavelength method B
Fibre colouring 5.4 HD 402 S2 Visual inspection
Outer diameter including 8.2.1.1 EN 60793-2 EN 60793-1-20
colouring method D

4.3.3 Single mode non-zero dispersion (B4) optical fibre

Characteristics EN 60794-3 Family Test methods Remarks
Subclause requirements
(9) (10) (11) (12) (13)
Un cabled optical fibre 5.1 EN 60793-2
Attenuation coefficient 5.2.1 According to DS EN 60793-1-40
(cabled fibres)  method A, B or C

at 1 550 nm 5.2.1 ≤ 0,35 dB/km
at 1 6XX nm
≤ 0,40 dB/km


Attenuation discontinuities 5.2.2.1 EN 60793-1-40
≤ 0,10 dB/km
at 1 550 nm method C
Cabled fibre cut-off 5.3 λ < λ operational EN 60793-1-44
CC
wavelength method B
Fibre colouring 5.4 HD 402 S2 Visual inspection
Outer diameter including 8.2.1.1 EN 60793-2 EN 60793-1-20
colouring method D

---------------------- Page: 12 ----------------------

CLC/TS 50429:2005 - 12 -
4.3.4 Multimode fibres
Under consideration.
4.4 Sewer cable constructions
4.4.1 Cable for installation within conduits (previously fixed to the sewer wall)

Characteristics EN 60794-3 Family Test methods Remarks
Subclause requirements
(9) (10) (11) (12) (13)
Lay-up 7.2 Acc. to DS visual inspection
Sewer cable core 7.3 Acc. to DS
Filling compound Either EN 60794-1-2
Acc. to DS
(if used) method E14 or
EN 60811-5-1 Clause 4
EN 60811-5-1 Clause 5
EN 60811-5-1 Clause 8
Dry blocking compound 7.3 Under consideration
Acc. to DS
Strength member 7.4 Acc. to DS Visual inspection
- central
- peripheral
Moisture barrier 7.5 Acc. to DS
Metallic tapes (if any):
Outer sewer cable sheath 7.6
Material
Minimum sheath thickness Acc. to DS EN 60811-1-1
Outer cable diameter Acc. to DS EN 60811-1-1
Optional protection Acc. to DS
Sheath marking 7.7
Configuration, dimensions Acc. to DS Visual inspection
Abrasion resistance  Acc. to DS EN 60794-1-2 Steel needle
method E2B diameter
d = 1,0 mm
load: 4 N
Sheath abrasion 9.2.8 Acc. to DS EN 60794-1-2
method E2A

Sewer cable length  Under consideration

---------------------- Page: 13 ----------------------

- 13 - CLC/TS 50429:2005
4.4.2 Cable for direct installation into the sewer duct

Characteristics EN 60794-3 Family Test methods Remarks
Subclause requirements
(9) (10) (11) (12) (13)
Lay-up 7.2 Acc. to DS Visual inspection
Sewer cable core 7.3 Acc. to DS
Filling compound Either EN 60794-1-2
Acc. to DS
(if used) method E14 or
EN 60811-5-1 Clause 4
EN 60811-5-1 Clause 5
EN 60811-5-1 Clause 8
Dry blocking compound 7.3 Under consideration
Acc. to DS
Strength member 7.4 Acc. to DS Visual inspection
- central
- peripheral
Moisture barrier 7.5 Acc. to DS
Metallic tapes:
Outer sewer cable sheath 7.6
Material
Minimum sheath thickness EN 60811-1-1
Acc. to DS
Outer cable diameter EN 60811-1-1
Acc. to DS
Optional protection
Acc. to DS
Sheath marking 7.7
Configuration, dimensions Visual inspection
Acc. to DS
Abrasion resistance EN 60794-1-2 Steel needle
Acc. to DS
method E2B diameter
d = 1,0 mm
load: 4 N
Sheath abrasion 9.2.8 Acc. to DS EN 60794-1-2
method E2A

Sewer cable length  Under consideration

---------------------- Page: 14 ----------------------

CLC/TS 50429:2005 - 14 -
4.4.3 Conduit construction

Characteristics EN 60794-3 as Family Test methods Remarks
applicable requirements
Clause
(9) (10) (11) (12) (13)
Material(s)
Conduit inner diameter Acc. to DS EN 60811-1-1
Conduit outer diameter Acc. to DS EN 60811-1-1
Corrugated conduit ( metallic )



- metallic tape thickness
- corrugated depth

- pitch

Non corrugated conduit

Inner tube (if any):
under consideration
- tube wall thickness
Moisture barrier (if any):
- metallic tapes
Additional outer sheath (if any):
- thickness
Conduit length  Under
consideration
4.5 Installation and operating conditions
4.5.1 Tests applicable to cables / cable elements

Characteristics EN 60794-3 Family Test methods Remarks
Subclause requirements
(9) (10) (11) (12) (13)
General requirements 8.1 Agreement between
user and
Tests applicable to loose
manufacturer
tubes:
Bend test 8.2.1.2 Acc. to DS EN 60794-1-2
method G1
Tube kinking 8.2.2.1 Acc. to DS EN 60794-1-2
method G7
Tests applicable to ribbons:
- dimensions 8.2.3.1 EN 60794-3 EN 60794-3
Table 1 Sublause 8.2.3.1
- separability of individual 8.2.3.2.1 EN 60794-3 EN 60794-1-2
fibres from ribbon Sublause 7.2.3.2.1 method G5
or acc. to DS or acc. to DS
- ribbon stripping 8.2.3.2.2 Acc. to DS
- torsion 8.2.3.2.3 Acc. to DS EN 60794-1-2
method G6

---------------------- Page: 15 ----------------------

- 15 - CLC/TS 50429:2005
4.5.2 Installation conditions
Under consideration.
4.6 Mechanical and environmental tests
4.6.1 Conduit
4.6.1.1 Tests applicable
Tests listed in the following table are those relevant to EN 60794-3 as applicable for conduits.

Characteristics EN 60794-3 Family Test methods Remarks
(9) Subclause requirements
(10) (11) (12) (13)
Tensile performance 9.1 4.6.1.2.2 EN 60794-1-2 See 5.6.2.1
Acc. to DS methods E1A & E1B
Installation capability 9.2
(selection from the
following)
- bending under 9.2.1 Acc. to DS EN 60794-1-2
tension method E18
- repeated bending 9.2.2 EN 60794-1-2
method E6
- impact 9.2.3 4.6.1.2.5 EN 60794-1-2
method E4
- kink 9.2.4 Acc. to DS and EN 60794-1-2
4.6.1.2.3 method E10
- torsion 9.2.5 EN 60794-1-2
method E7
Conduit bend 9.3 Acc. to DS EN 60794-1-2 See 5.6.2.5
method E11
Crush 9.4 Acc. to DS and EN 60794-1-2 See 5.6.2.6
4.6.1.2.4 method E3
Flexibility  4.6.1.2.6
Ageing 9.6
- finished conduit 9.6.2 Under consideration
Pres
...
