SIST EN IEC 62395-1:2026

Electrical resistance trace heating systems for industrial and commercial applications - Part 1: General and testing requirements (IEC/IEEE 62395-1:2024)

This part of IEC/IEEE 62395 specifies requirements for electrical resistance trace heating systems and includes general test requirements.
This document pertains to trace heating systems that can comprise either factory-fabricated or field-assembled (work-site) units, and which can be series and parallel trace heaters or surface heaters (heater pads and heater panels) that have been assembled and/or terminated in accordance with the manufacturer's instructions.
This document also includes requirements for termination assemblies and control methods used with trace heating systems.
This document provides the essential requirements and testing appropriate to electrical resistance trace heating equipment used in industrial and commercial applications. The products complying with this document are intended to be installed by persons who are suitably trained in the techniques required and that only trained personnel carry out especially critical work, such as the installation of connections and terminations. Installations are intended to be carried out under the supervision of a qualified person who has undergone supplementary training in electric trace heating systems.
This document does not include or provide for any applications in potentially explosive atmospheres.
This document does not cover induction, impedance or skin effect heating. Trace heating systems are grouped into different types of applications and the different conditions found during and after installation necessitate different requirements for testing. Trace heating systems are usually for a specific type of installation or application. The product type grouping, applications and product attributes are indicated in Table 1.
NOTE Trace heating systems intended for use in explosive atmospheres are the subject of IEC/IEEE 60079-30-1 [3] and IEC/IEEE 60079-30-2 [4].

Elektrische Widerstands-Begleitheizungen für industrielle und gewerbliche Zwecke - Teil 1: Allgemeine Anforderungen und Prüfanforderungen (IEC/IEEE 62395-1:2024)

Systèmes de traçage par résistance électrique pour applications industrielles et commerciales - Partie 1 : exigences générales et d'essai (IEC/IEEE 62395-1:2024)

Sistemi sledilnega ogrevanja z električnim uporom za industrijske in komercialne aplikacije - 1. del: Splošne in preskusne zahteve (IEC/IEEE 62395-1:2024)

Ta del standarda IEC/IEEE 62395 določa zahteve za sisteme električnega uporovnega sledilnega ogrevanja in vključuje splošne zahteve za preskušanje.
Ta dokument se nanaša na sisteme sledilnega ogrevanja, ki lahko vključujejo tovarniško izdelane ali na terenu sestavljene enote, in ki lahko vsebujejo serijske in vzporedne sledilne grelnike ali površinske grelnike (grelne plošče in grelne panele), ki so bili sestavljeni in/ali zaključeni v skladu z navodili proizvajalca.
Ta dokument vključuje tudi zahteve za zaključne sklope in metode nadzora, ki se uporabljajo s sistemi sledilnega ogrevanja.
Ta dokument zagotavlja osnovne zahteve in preskušanje, primerno za opremo električnega uporovnega sledilnega ogrevanja, ki se uporablja v industrijskih in komercialnih aplikacijah. Izdelki, ki so v skladu s tem dokumentom, so namenjeni za vgradnjo s strani oseb, ki so ustrezno usposobljene za potrebne tehnike, in da le usposobljeno osebje izvaja posebej kritična dela, kot je vgradnja povezav in zaključkov. Vgradnje naj bi se izvajale pod nadzorom kvalificirane osebe, ki je opravila dodatno usposabljanje za sisteme električnega sledilnega ogrevanja.
Ta dokument ne vključuje ali predvideva nobenih aplikacij v potencialno eksplozivnih atmosferah.
Ta dokument ne pokriva indukcijskega, impedančnega ali površinskega (skin effect) ogrevanja. Sistemi sledilnega ogrevanja so razvrščeni v različne tipe aplikacij in različni pogoji, ki se pojavijo med in po vgradnji, zahtevajo različne zahteve za preskušanje. Sistemi sledilnega ogrevanja so običajno namenjeni za specifično vrsto vgradnje ali aplikacije. Razvrstitev tipov izdelkov, aplikacij in lastnosti izdelkov je navedena v Tabeli 1.
OPOMBA: Sistemi sledilnega ogrevanja, namenjeni za uporabo v eksplozivnih atmosferah, so predmet standardov IEC/IEEE 60079-30-1 [3] in IEC/IEEE 60079-30-2 [4].

General Information

• Status: Published
• Public Enquiry End Date: 31-Mar-2026
• Publication Date: 07-Jul-2026
• ICS: 25.180.10 - Electric furnaces
• Technical Committee: I09 - Imaginarni 09
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 07-Jul-2026
• Due Date: 11-Sep-2026
• Completion Date: 08-Jul-2026
• Ref Project: EN IEC 62395-1:2026 - Electrical resistance trace heating systems for industrial and commercial applications - Part 1: General and testing requirements

Relations

• Replaces: SIST EN 62395-1:2014 - Electrical resistance trace heating systems for industrial and commercial applications - Part 1: General and testing requirements
• Effective Date: 01-Sep-2026
• Refers: SIST EN IEC 60519-1:2020 - Safety in installations for electroheating and electromagnetic processing - Part 1: General requirements (IEC 60519-1:2020)
• Effective Date: 03-Feb-2026
• Refers: SIST EN IEC 62395-2:2026 - Electrical resistance trace heating systems for industrial and commercial applications - Part 2: Application guide for system design, installation and maintenance (IEC/IEEE 62395-2:2024)
• Effective Date: 03-Feb-2026
• Refers: SIST EN 60529:1997 - Degrees of protection provided by enclosures (IP Code)
• Effective Date: 03-Feb-2026
• Refers: SIST EN 60695-11-3:2012 - Fire hazard testing - Part 11-3: Test flames - 500 W flames: Apparatus and confirmational test methods
• Effective Date: 03-Feb-2026
• Referred By: SIST EN 60519-10:2013 - Safety in electroheat installations - Part 10: Particular requirements for electrical resistance trace heating systems for industrial and commercial applications
• Effective Date: 07-Jul-2026

Overview

SIST EN IEC 62395-1:2026 (IEC/IEEE 62395-1:2024) defines the general and testing requirements for electrical resistance trace heating systems used in industrial and commercial settings. Trace heating systems play a crucial role in maintaining process temperatures, protecting assets from freezing, and ensuring operational reliability in diverse environments. This standard supersedes previous editions, offering updated guidance and a harmonized approach aligned with leading international documents such as IEEE 515 and IEEE 515.1.

The standard applies to both factory-fabricated and field-assembled electrical resistance trace heating units, including trace heaters, surface heaters, associated components, and terminations. Its comprehensive requirements support safer, more reliable system design, installation, and operation.

Key Topics

• General Requirements: Specifies foundational criteria for construction, materials, and thermal performance of trace heating systems and their components to ensure safe and reliable operation.
• Control and Monitoring Enhancements: Introduces control and monitoring requirements for fire sprinkler systems and safety showers, reflecting the need for system reliability in safety-critical applications.
• Testing Procedures: Outlines type and routine testing methods for electrical, mechanical, and environmental performance, including dielectric, insulation resistance, flammability, impact, water resistance, and more.
• Supplemental Verification Methods: Provides a supplemental ice bath method for verifying rated output, enhancing confidence in performance ratings under real-world conditions.
• Gland Construction and Testing: Sets constructional and type test standards for glands (cable entry fittings), which are critical for safely terminating heating devices to exposed enclosures.
• System Marking and Documentation: Details marking requirements and installation instructions, helping ensure proper installation, operation, and maintenance by qualified personnel.

Applications

Electrical resistance trace heating systems are widely used in:

• Industrial process facilities: Freeze protection, temperature maintenance for pipes, vessels, and equipment in chemical plants, refineries, power plants, and food processing facilities.
• Commercial buildings: Roof and gutter de-icing, floor heating, and snow melting on access ways.
• Critical safety systems: Maintaining operability of fire sprinkler systems and emergency safety showers in environments subject to frost or low temperatures.
• Specialized surface heating: Preventing condensation or maintaining required temperatures on storage tanks, instrumentation enclosures, and similar applications.

By addressing system reliability and performance through detailed testing and verification steps, the standard ensures compliance and long-term safety in a wide range of demanding environments.

Related Standards

The following related standards are frequently referenced alongside SIST EN IEC 62395-1:2026 in system design and compliance efforts:

• IEC/IEEE 62395-2: Application guide for system design, installation, and maintenance of electrical resistance trace heating systems.
• IEC 60519-1: General safety requirements for electrical heating installations.
• IEC 60529: Degrees of protection provided by enclosures (IP Code), important for environmental protection of heating components.
• IEEE 515 / IEEE 515.1: North American standards for electric heat tracing used in industrial processes and commercial spaces.
• ISO 7240-2: Fire detection and alarm system control and indicating equipment.
• ANSI/UL 864: Control units and accessories for fire alarm systems.

Practical Value

Adoption of SIST EN IEC 62395-1:2026 delivers significant benefits:

• Safety assurance: Robust testing and clear requirements help prevent electrical, thermal, and fire hazards.
• System reliability: Fewer failures and performance issues through rigorous type and routine testing.
• Regulatory compliance: Alignment with international best practices across Europe and globally.
• Ease of installation and maintenance: Standardized marking and documentation help installers and maintenance teams implement and service systems efficiently.

By following the guidance and testing protocols of this standard, organizations can ensure that their electrical resistance trace heating systems meet strict safety, performance, and reliability criteria for a variety of industrial and commercial applications.

Standards Content (Sample)

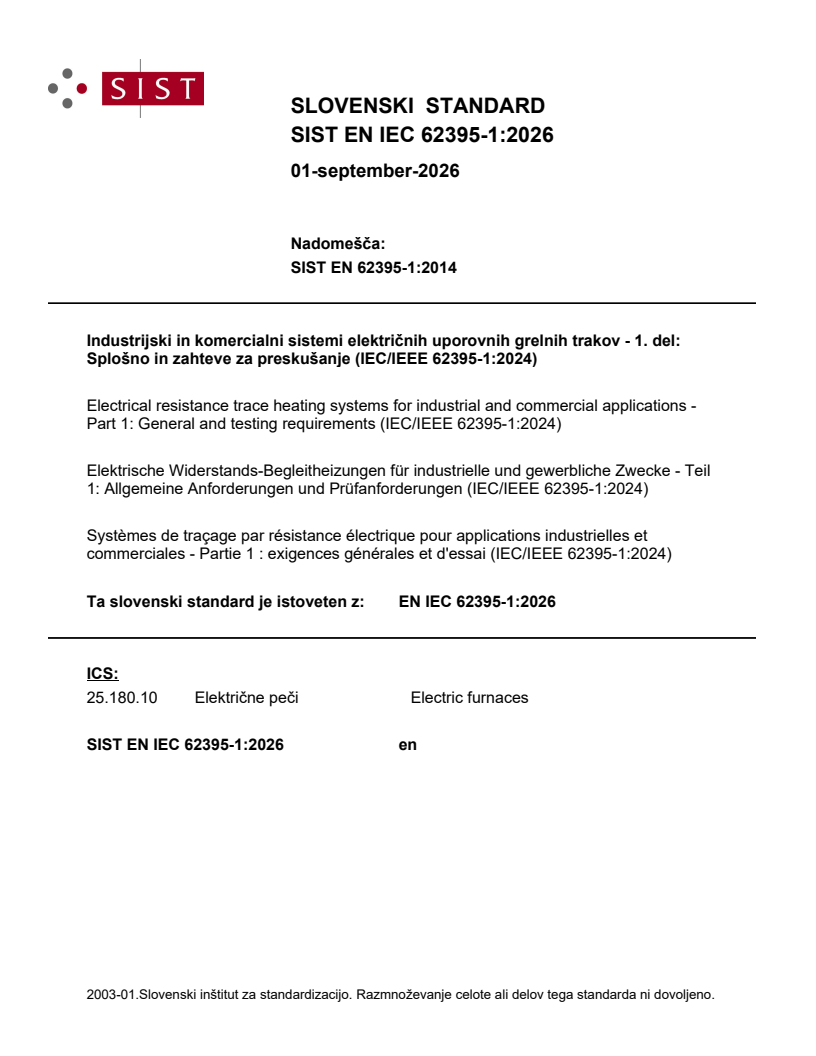

SLOVENSKI STANDARD
01-september-2026
Nadomešča:
SIST EN 62395-1:2014
Industrijski in komercialni sistemi električnih uporovnih grelnih trakov - 1. del:
Splošno in zahteve za preskušanje (IEC/IEEE 62395-1:2024)
Electrical resistance trace heating systems for industrial and commercial applications -
Part 1: General and testing requirements (IEC/IEEE 62395-1:2024)
Elektrische Widerstands-Begleitheizungen für industrielle und gewerbliche Zwecke - Teil
1: Allgemeine Anforderungen und Prüfanforderungen (IEC/IEEE 62395-1:2024)
Systèmes de traçage par résistance électrique pour applications industrielles et
commerciales - Partie 1 : exigences générales et d'essai (IEC/IEEE 62395-1:2024)
Ta slovenski standard je istoveten z: EN IEC 62395-1:2026
ICS:
25.180.10 Električne peči Electric furnaces
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

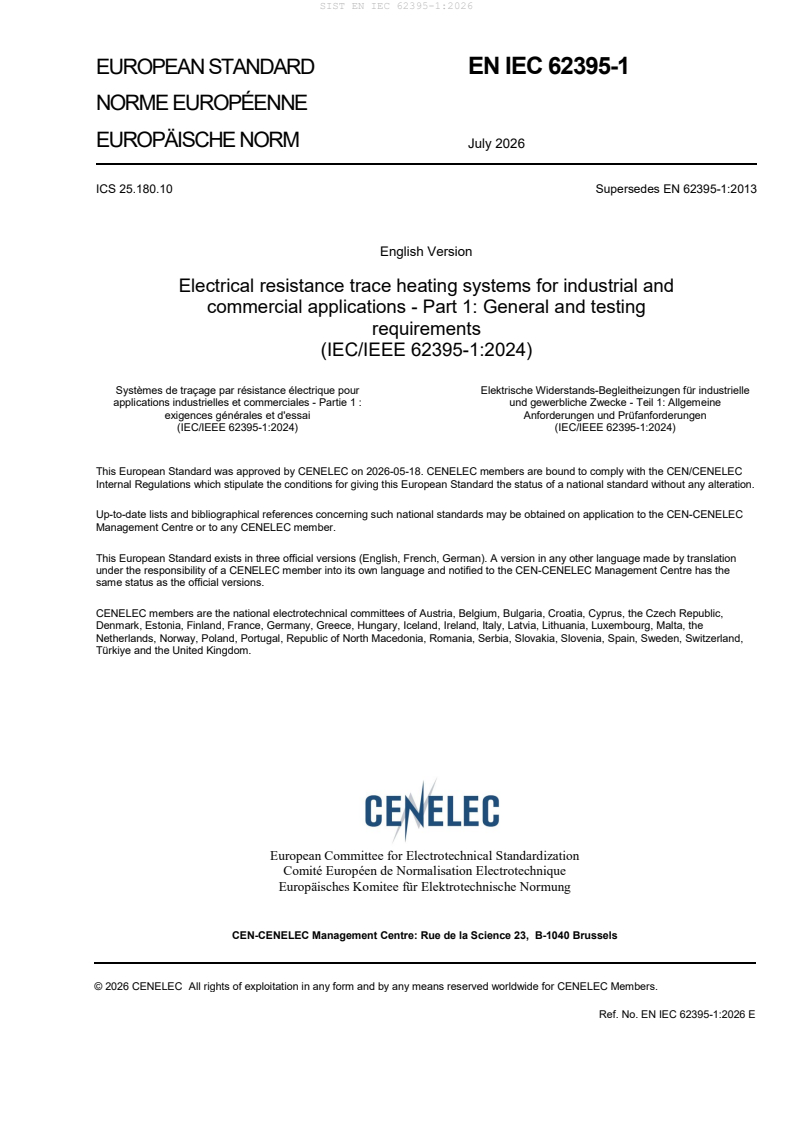

EUROPEAN STANDARD EN IEC 62395-1

NORME EUROPÉENNE
EUROPÄISCHE NORM July 2026
ICS 25.180.10 Supersedes EN 62395-1:2013
English Version
Electrical resistance trace heating systems for industrial and
commercial applications - Part 1: General and testing
requirements
(IEC/IEEE 62395-1:2024)
Systèmes de traçage par résistance électrique pour Elektrische Widerstands-Begleitheizungen für industrielle
applications industrielles et commerciales - Partie 1 : und gewerbliche Zwecke - Teil 1: Allgemeine
exigences générales et d'essai Anforderungen und Prüfanforderungen
(IEC/IEEE 62395-1:2024) (IEC/IEEE 62395-1:2024)
This European Standard was approved by CENELEC on 2026-05-18. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2026 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 62395-1:2026 E

EN IEC/IEEE 62395-1:2026 (E)

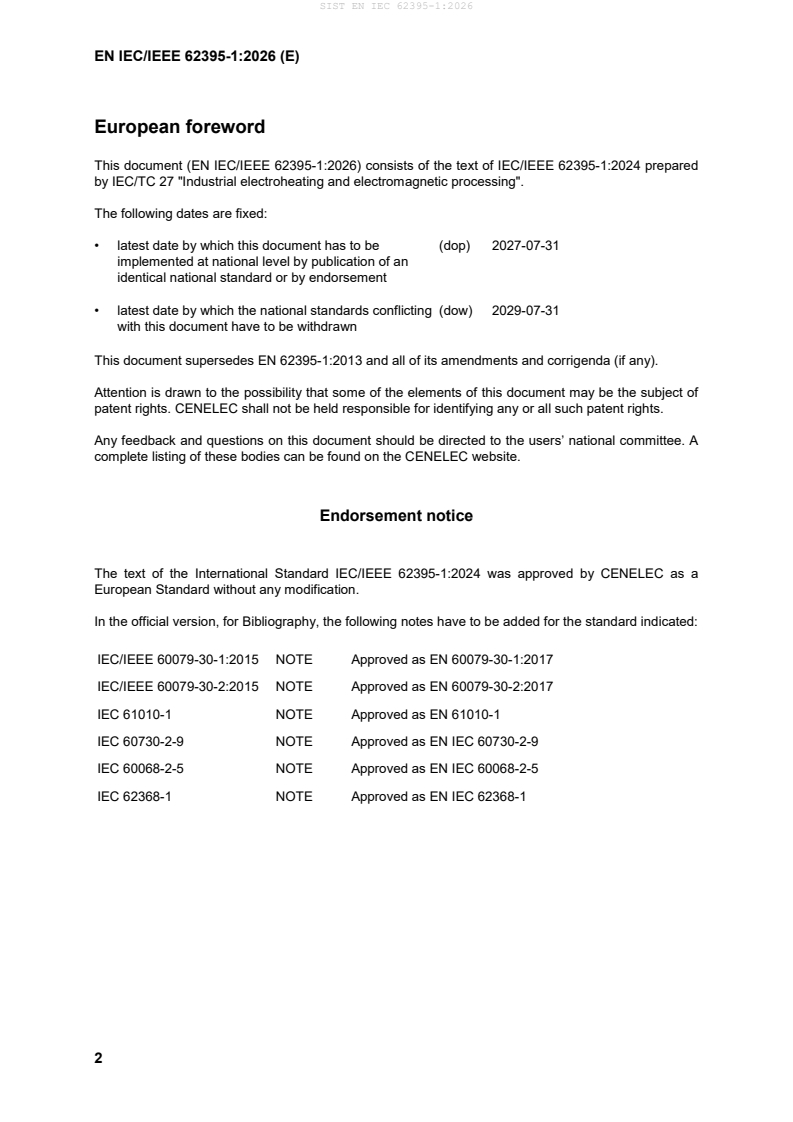

European foreword
This document (EN IEC/IEEE 62395-1:2026) consists of the text of IEC/IEEE 62395-1:2024 prepared
by IEC/TC 27 "Industrial electroheating and electromagnetic processing".
The following dates are fixed:
• latest date by which this document has to be (dop) 2027-07-31
implemented at national level by publication of an
identical national standard or by endorsement
• latest date by which the national standards conflicting (dow) 2029-07-31
with this document have to be withdrawn
This document supersedes EN 62395-1:2013 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC/IEEE 62395-1:2024 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC/IEEE 60079-30-1:2015 NOTE Approved as EN 60079-30-1:2017
IEC/IEEE 60079-30-2:2015 NOTE Approved as EN 60079-30-2:2017
IEC 61010-1 NOTE Approved as EN 61010-1
IEC 60730-2-9 NOTE Approved as EN IEC 60730-2-9
IEC 60068-2-5 NOTE Approved as EN IEC 60068-2-5
IEC 62368-1 NOTE Approved as EN IEC 62368-1
EN IEC/IEEE 62395-1:2026 (E)
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
NOTE 1  Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2  Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 60519-1 - Safety in installations for electroheating EN IEC 60519-1 -
and electromagnetic processing - Part 1:
General requirements
IEC 60529 - Degrees of protection provided by EN 60529 -
enclosures (IP Code)
IEC 60695-11-3 2012 Fire hazard testing - Part 11-3: Test flames EN 60695-11-3 2012
- 500 W flames - Apparatus and
confirmational test methods
IEC/IEEE 62395-2 2024 Electrical resistance trace heating systems EN IEC/IEEE 2026
for industrial and commercial applications - 62395-2
Part 2: Application guide for system
design, installation and maintenance
ISO 7240-2 2017 Fire detection and alarm systems - Part 2: - -
Fire detection control and indicating
equipment
ANSI/UL 864 - Standard for Control Units and Accessories - -
for Fire Alarm Systems ¿ Control and
Indicating Equipment
ASTM D 5025-20 - Standard Specification for Laboratory - -
Burner Used for Small-Scale Burning Tests
on Plastic Materials
ASTM G155-21 - Standard practice for operating xenon arc - -
light apparatus for exposure of nonmetallic
materials
IEC/IEEE 62395-1 ®
Edition 1.0 2024-06
INTERNATIONAL
STANDARD
colour
inside
Electrical resistance trace heating systems for industrial and commercial

applications –
Part 1: General and testing requirements

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 25.180.10 ISBN 978-2-8322-9002-6

– 2 – IEC/IEEE 62395-1:2024 © IEC/IEEE 2024
CONTENTS
FOREWORD . 5
INTRODUCTION . 7
1 Scope . 8
2 Normative references . 8
3 Terms and definitions . 9
4 General requirements . 14
4.1 General . 14
4.2 Electrically conductive covering . 15
4.3 Electrical circuit protection requirements for branch circuits . 15
4.4 Temperature requirements . 15
4.4.1 General . 15
4.4.2 Stabilized design . 15
4.4.3 Controlled design . 15
4.4.4 Controls and monitoring for fire sprinkler systems and safety showers . 16
5 Testing . 16
5.1 Type tests – General . 16
5.2 Type tests – All applications . 19
5.2.1 Dielectric test . 19
5.2.2 Electrical insulation resistance test . 20
5.2.3 Flammability test . 20
5.2.4 Room temperature impact test . 23
5.2.5 Minimum temperature impact test . 25
5.2.6 Deformation test . 26
5.2.7 Cold bend test . 27
5.2.8 Water resistance test . 28
5.2.9 Integral components resistance to water test . 28
5.2.10 Verification of rated output . 29
5.2.11 Thermal stability of electrical insulating material . 33
5.2.12 Thermal performance test . 33
5.2.13 Maximum sheath temperature . 35
5.2.14 Verification of start-up current . 46
5.2.15 Verification of the electrical resistance of the electrically conductive
covering . 46
5.2.16 Test for heating device / heating device set glands - General . 47
5.2.17 Connection Integrity (integral components) . 48
5.3 Type tests – Additional tests for outdoor exposed surface heating
installations without thermal insulation . 50
5.3.1 Verification of rated output . 50
5.3.2 Determination of maximum sheath temperature . 50
5.3.3 Increased moisture resistance test . 50
5.3.4 UV and condensation test . 51
5.3.5 Resistance to cutting test . 51
5.3.6 Abrasion test . 51
5.3.7 Tension test . 52
5.3.8 Rail system voltage spike test . 52
5.3.9 Rail system over-voltage test . 53

IEC/IEEE 62395-1:2024 © IEC/IEEE 2024 – 3 –
5.4 Type tests – Additional tests and test modifications for embedded heating
applications. 53
5.4.1 Verification of rated output . 53
5.4.2 Determination of maximum sheath temperature . 53
5.4.3 Resistance to cutting test . 53
5.4.4 Flammability test . 53
5.5 Type tests – Additional tests for applications of trace heaters internal to
conduit and piping . 53
5.5.1 Verification of rated output . 53
5.5.2 Determination of maximum sheath temperature . 53
5.5.3 Increased moisture resistance test . 54
5.5.4 Pull-strength test . 54
5.6 Type tests – Additional requirements for sprinkler systems . 55
5.6.1 Normal and abnormal operation test . 55
5.6.2 Normal operation test with controller . 55
5.6.3 Abnormal operation test with controller malfunctioning. 58
5.6.4 Abnormal operation test without controller . 58
5.6.5 Testing for control systems for fire sprinkler systems . 58
5.7 Routine tests . 58
5.7.1 Dielectric test . 58
5.7.2 Verification of rated output . 59
6 Marking . 59
6.1 General . 59
6.2 Product markings . 59
7 Installation instructions . 60
Annex A (informative) Determination of test samples for type testing . 62
Bibliography . 64

Figure 1 – Flammability test . 22
Figure 2 – Example of room temperature impact test apparatus . 24
Figure 3 – Example of minimum temperature impact test apparatus . 26
Figure 4 – Cold bend test . 27
Figure 5 – Integral components resistance to water test . 28
Figure 6 – Verification of rated output . 32
Figure 7 – Verification of sheath temperatures utilizing pipe sculpture fixture . 37
Figure 8 – Verification of sheath temperatures utilizing plate fixture . 39
Figure 9 – Verification of sheath temperatures utilizing plate fixture with serpentined
sample . 40
Figure 10 – Plate fixture with two samples crossed over . 41
Figure 11 – Plate fixture with a single sample crossed over . 42
Figure 12 – Maximum sheath temperature using the product approach . 46
Figure 13 – Gland temperature measurement – location of thermocouples . 48
Figure 14 – Typical splice firm attachment apparatus . 49
Figure 15 – Abrasion test . 52
Figure 16 – Sprinkler system temperature control test – branch line arrangement . 56

– 4 – IEC/IEEE 62395-1:2024 © IEC/IEEE 2024
Figure 17 – Sprinkler system temperature control test – branch line – alternative
arrangement . 57
Figure 18 – Sprinkler system temperature control test – supply pipe arrangement . 57

Table 1 – Trace heater and surface heater types and related attributes . 17
Table 2 – Applicable tests for trace heaters, surface heaters, and integral components,
by trace heater and surface heater type . 18
Table 3 – Test voltages for the dielectric test . 19
Table 4 – Applicable test subclauses for the verification of rated output . 29
Table 5 – Pulling forces for strain relief test . 47
Table 6 – Product marking . 60
Table A.1 – Determination of test samples . 62

IEC/IEEE 62395-1:2024 © IEC/IEEE 2024 – 5 –
ELECTRICAL RESISTANCE TRACE HEATING SYSTEMS
FOR INDUSTRIAL AND COMMERCIAL APPLICATIONS –

Part 1: General and testing requirements

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and in
addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC document(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation.
IEEE Standards documents are developed within IEEE Societies and Standards Coordinating Committees of the
IEEE Standards Association (IEEE SA) Standards Board. IEEE develops its standards through a consensus
development process, approved by the American National Standards Institute, which brings together volunteers
representing varied viewpoints and interests to achieve the final product. Volunteers are not necessarily members
of IEEE and serve without compensation. While IEEE administers the process and establishes rules to promote
fairness in the consensus development process, IEEE does not independently evaluate, test, or verify the
accuracy of any of the information contained in its standards. Use of IEEE Standards documents is wholly
voluntary. IEEE documents are made available for use subject to important notices and legal disclaimers (see
https://standards.ieee.org/ipr/disclaimers.html for more information).
IEC collaborates closely with IEEE in accordance with conditions determined by agreement between the two
organizations. This Dual Logo International Standard was jointly developed by the IEC and IEEE under the terms
of that agreement.
2) The formal decisions of IEC on technical matters express, as nearly as possible, an international consensus of
opinion on the relevant subjects since each technical committee has representation from all interested IEC
National Committees. The formal decisions of IEEE on technical matters, once consensus within IEEE Societies
and Standards Coordinating Committees has been reached, is determined by a balanced ballot of materially
interested parties who indicate interest in reviewing the proposed standard. Final approval of the IEEE standards
document is given by the IEEE Standards Association (IEEE SA) Standards Board.
3) IEC/IEEE Publications have the form of recommendations for international use and are accepted by IEC National
Committees/IEEE Societies in that sense. While all reasonable efforts are made to ensure that the technical
content of IEC/IEEE Publications is accurate, IEC or IEEE cannot be held responsible for the way in which they
are used or for any misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
(including IEC/IEEE Publications) transparently to the maximum extent possible in their national and regional
publications. Any divergence between any IEC/IEEE Publication and the corresponding national or regional
publication shall be clearly indicated in the latter.
5) IEC and IEEE do not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC and IEEE are not responsible
for any services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or IEEE or their directors, employees, servants or agents including individual
experts and members of technical committees and IEC National Committees, or volunteers of IEEE Societies and
the Standards Coordinating Committees of the IEEE Standards Association (IEEE SA) Standards Board, for any
personal injury, property damage or other damage of any nature whatsoever, whether direct or indirect, or for
costs (including legal fees) and expenses arising out of the publication, use of, or reliance upon, this IEC/IEEE
Publication or any other IEC or IEEE Publications.
8) Attention is drawn to the normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that implementation of this IEC/IEEE Publication may require use of material
covered by patent rights. By publication of this standard, no position is taken with respect to the existence or
validity of any patent rights in connection therewith. IEC or IEEE shall not be held responsible for identifying
Essential Patent Claims for which a license may be required, for conducting inquiries into the legal validity or
scope of Patent Claims or determining whether any licensing terms or conditions provided in connection with
submission of a Letter of Assurance, if any, or in any licensing agreements are reasonable or non-discriminatory.
Users of this standard are expressly advised that determination of the validity of any patent rights, and the risk
of infringement of such rights, is entirely their own responsibility.

– 6 – IEC/IEEE 62395-1:2024 © IEC/IEEE 2024
IEC/IEEE 62395-1 has been prepared by IEC technical committee 27: Industrial electroheating
and electromagnetic processing, in cooperation with Petroleum & Chemical Industry Committee
of the IEEE Industrial Applications Society, under the IEC/IEEE Dual Logo Agreement between
IEC and IEEE. It is an International Standard.
This document is published as an IEC/IEEE Dual Logo standard.
This first edition cancels and replaces the second edition published in 2013. This edition
constitutes a technical revision.
This edition includes the following significant technical changes, apart from general revisions
of IEC 62395-1 and harmonization with IEEE 515 [1] and IEEE 515.1 [2], with respect to the
previous edition:
a) Added control and monitoring requirements for fire sprinkler systems and safety showers.
b) Provided a supplemental ice bath method for verification of rated output.
c) Provided constructional and type test requirements for glands used to terminate heating
devices to an exposed enclosure.
The text of this International Standard is based on the following IEC documents:
Draft Report on voting
27/1182A/FDIS 27/1186/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with the rules given in the ISO/IEC Directives, Part 2,
available at www.iec.ch/members_experts/refdocs. The main document types developed by IEC
are described in greater detail at www.iec.ch/publications/.
A list of all parts in the IEC 62395 series, published under the general title Electrical resistance
trace heating systems for industrial and commercial applications, can be found on the IEC
website.
The IEC Technical Committee and IEEE Technical Committee have decided that the contents
of this document will remain unchanged until the stability date indicated on the IEC website
under webstore.iec.ch in the data related to the specific document. At this date, the document
will be
• reconfirmed,
• withdrawn, or
• revised.
IMPORTANT – The "colour inside" logo on the cover page of this document indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this document using a colour printer.

___________
Numbers in square brackets refer to the Bibliography.

IEC/IEEE 62395-1:2024 © IEC/IEEE 2024 – 7 –
INTRODUCTION
IEC/IEEE 62395-1 provides the essential requirements and testing appropriate to electrical
resistance trace heating equipment used in industrial and commercial applications. While some
of this work already exists in national or international standards, this document has collated
much of this existing work and added considerably to it.
IEC/IEEE 62395-2 provides detailed recommendations for the system design, installation and
maintenance of electric trace heating systems in industrial and commercial applications.
It is the objective of the IEC/IEEE 62395 series that, when in normal use, electrical trace heating
systems operate safely under their defined conditions of use, by
a) employing heaters of the appropriate construction and meeting the test criteria detailed in
IEC/IEEE 62395-1. The construction includes a metallic sheath, braid, screen or equivalent
electrically conductive covering;
b) operating at safe temperatures when designed, installed, and maintained in accordance with
IEC/IEEE 62395-2.
c) having at least the minimum levels of overcurrent and earth-fault protection required in
IEC/IEEE 62395-1 and IEC/IEEE 62395-2.

– 8 – IEC/IEEE 62395-1:2024 © IEC/IEEE 2024
ELECTRICAL RESISTANCE TRACE HEATING SYSTEMS
FOR INDUSTRIAL AND COMMERCIAL APPLICATIONS –

Part 1: General and testing requirements

1 Scope
This part of IEC/IEEE 62395 specifies requirements for electrical resistance trace heating
systems and includes general test requirements.
This document pertains to trace heating systems that can comprise either factory-fabricated or
field-assembled (work-site) units, and which can be series and parallel trace heaters or surface
heaters (heater pads and heater panels) that have been assembled and/or terminated in
accordance with the manufacturer's instructions.
This document also includes requirements for termination assemblies and control methods used
with trace heating systems.
This document provides the essential requirements and testing appropriate to electrical
resistance trace heating equipment used in industrial and commercial applications. The
products complying with this document are intended to be installed by persons who are suitably
trained in the techniques required and that only trained personnel carry out especially critical
work, such as the installation of connections and terminations. Installations are intended to be
carried out under the supervision of a qualified person who has undergone supplementary
training in electric trace heating systems.
This document does not include or provide for any applications in potentially explosive
atmospheres.
This document does not cover induction, impedance or skin effect heating.
Trace heating systems are grouped into different types of applications and the different
conditions found during and after installation necessitate different requirements for testing.
Trace heating systems are usually for a specific type of installation or application. The product
type grouping, applications and product attributes are indicated in Table 1.
NOTE Trace heating systems intended for use in explosive atmospheres are the subject of IEC/IEEE 60079-30-1
[3] and IEC/IEEE 60079-30-2 [4].
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60519-1, Safety in installations for electroheating and electromagnetic processing – Part 1:
General requirements
IEC 60529, Degrees of protection provided by enclosures (IP Code)
IEC 60695-11-3:2012, Fire hazard testing – Part 11-3: Test flames – 500 W flames – Apparatus
and confirmational test methods

IEC/IEEE 62395-1:2024 © IEC/IEEE 2024 – 9 –
IEC/IEEE 62395-2:2024, Electrical resistance trace heating systems for industrial and
commercial applications – Part 2: Application guide for system design, installation and
maintenance
ISO 7240-2:2017, Fire detection and alarm systems – Part 2: Fire detection control and
indicating equipment
ANSI/UL 864, Standard for Control Units and Accessories for Fire Alarm Systems – Control and
Indicating Equipment
ASTM D 5025-20, Standard Specification for Laboratory Burner Used for Small-Scale Burning
Tests on Plastic Materials
ASTM G155-21, Standard practice for operating xenon arc light apparatus for exposure of non-
metallic materials
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO, IEC and IEEE maintain terminology databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
• IEEE Standards Dictionary Online: available at http://dictionary.ieee.org
NOTE 1 General definitions are given in the International Electrotechnical Vocabulary, IEC 60050 (all parts) [5].
Terms relating to industrial electroheat are defined in IEC 60050-841 [6].
NOTE 2 The terms defined in this Clause 3 are used both in IEC/IEEE 62395-1 and IEC/IEEE 62395-2.
3.1
ambient temperature
temperature surrounding the object under consideration
Note 1 to entry: Where trace heaters or surface heaters are enclosed in thermal insulation, the ambient temperature
is the temperature exterior to such thermal insulation.
3.1.1
maximum ambient temperature
highest specified ambient temperature
3.1.2
minimum ambient temperature
lowest specified ambient temperature
Note 1 to entry: Heat-loss calculations in IEC 62395-2 are based on the minimum ambient temperature.
3.2
branch circuit
portion of the wiring installation between the overcurrent device protecting the circuit and the
trace heater(s) or surface heater(s)
3.3
cold lead
electrically insulated conductor or conductors used to connect a trace heater or surface heater
to the branch circuit and designed so that it does not produce significant heat

– 10 – IEC/IEEE 62395-1:2024 © IEC/IEEE 2024
3.4
connection
termination or splice used to attach trace heaters or surface heaters to power wiring or to
connect sections of these devices
3.5
dead-leg
segment of process piping segregated from the normal flow pattern for the purpose of providing
a heat loss reference
3.6
design loading
minimum power that meets the design requirements, in the specified adverse conditions
(minimum ambient and maximum wind velocity), after voltage and resistance tolerances and
appropriate safety factors have been considered
[SOURCE: IEC/IEEE 60079-30-1:2015, 3.6]
3.7
electrically conductive covering
metallic braid, metallic sheath, or alternative covering with sufficient conductivity so that, when
bonded to ground, it will allow a ground fault protective device to operate under a fault condition
3.8
end termination
termination, which can be heat producing, applied to a trace heater at the end opposite to that
where the power is supplied
3.9
factory-fabricated unit
trace heater unit or set or surface heater unit or set, including the necessary terminations and
connections, assembled by the manufacturer
3.10
field-assembled unit
trace heaters or surface heaters supplied unterminated with terminating components to be
assembled at the work site
3.11
heat loss
energy flow from a workpiece, pipe, vessel or equipment to its surroundings
3.12
heat sink
part that conducts and dissipates heat away from a workpiece
Note 1 to entry: Typical heat sinks are pipe shoes, pipe supports and items of large mass such as valve actuators
or pump bodies.
3.13
heat transfer aids
thermally conductive materials, such as metallic foils or heat transfer compounds used to
increase the heat-transfer efficiency from trace heaters or surface heaters to the workpiece
3.14
heater pad
surface heater, comprising series or parallel connected elements having sufficient flexibility to
conform to the shape of the surface to be heated

IEC/IEEE 62395-1:2024 © IEC/IEEE 2024 – 11 –
3.15
heater panel
non-flexible surface heater, comprising series or parallel connected elements fabricated to
conform to the general shape of the surface to be heated
3.16
heating device
trace heater or surface heater
3.17
heating device set
heating device assembled with the associated parts necessary to connect it to a source of
electrical supply
3.18
integral component
component such as a heat shrink termination, a cold lead connection, a moulded end seal or a
splice, which conforms to the general shape of the trace heater or surface heater and is exposed
to the same environment as the trace heater or surface heater, which can be factory-fabricated
or field-assembled, and which is not intended to be re-used in the event of a repair or
modification
3.19
low risk of mechanical damage
installations and applications where only lower levels of impact and deformation are expected
to occur
3.20
maximum continuous exposure temperature (trace heater de-energized)
highest allowable continuous temperature to which the trace heating system can be exposed as
declared by the manufacturer
3.21
maximum intermittent exposure temperature
highest allowable intermittent temperature to which a trace heater can be exposed, as declared
by the manufacturer
3.22
maximum maintain temperature
specified maximum workpiece or process temperature the trace heater can maintain as declared
by the manufacture
3.23
maximum continuous operating temperature
specified maximum workpiece temperature, the trace heater, can operate continuously when
energized as declared by the manufacturer
3.24
maintain temperature
specified temperature of a workpiece or process that the trace heaters shall be able to maintain
3.25
maximum sheath temperature
maximum temperature of the outermost continuous covering of the trace heater or surface
heater
– 12 – IEC/IEEE 62395-1:2024 © IEC/IEEE 2024
3.26
maximum withstand temperature
maximum continuous exposure temperature or the maximum intermittent exposure temperature
(energized or de-energized) whichever is higher, as declared by the manufacturer
3.27
minimum installation temperature
minimum temperature at which the trace heating system can be handled and installed
3.28
MI trace heater
mineral insulated metal sheathed trace heater typically containing one or more heating
conductors
3.29
operating voltage
actual voltage applied to the trace heater or surface heater when in service
3.30
outdoor exposure
exposure to outdoor conditions of ultraviolet light and moisture
3.31
overjacket
continuous layer of material applied over the trace heater or surface heater to provide
mechanical or environmental protection
3.32
parallel trace heater
heating elements that are electrically connected in parallel, either continuously or in zones, so
that the power output per lineal length is maintained, irrespective of any change in length for
the continuous type or for any number of discrete zones
3.33
rated output
total power or the power per unit length or power per unit surface area of the trace heater or
surface heater at rated voltage, temperature, and length or area
3.34
rated voltage
voltage assigned by the manufacturer to which operating and performance characteristics of
trace heaters or surface heaters are referred
3.35
routine test
test that is carried out by the manufacturer of the trace heater or surface heater on all trace
heaters or surface heaters during or after the production process
3.36
series trace heater
heating elements electrically connected in series with a single current path and with a specific
resistance at a given temperature for a given length

IEC/IEEE 62395-1:2024 © IEC/IEEE 2024 – 13 –
3.37
sheath
uniform and continuous metallic or non-metallic covering enclosing components of the trace
heater or surface heater to provide protection against influence from the surroundings (e.g.,
corrosion, moisture, abrasion, etc.)
Note 1 to entry: See overjacket (3.31).
3.38
sheath temperature
temperature of the outermost continuous covering (braid, sheath, or overjacket) that can be
exposed to the surrounding environment
3.39
stabilized design
design method where the temperature of the trace heater or surface heater will, by design and
use, stabilize below the limiting temperature, under the most unfavourable conditions, without
the need for a protective system to limit the temperature
3.40
start-up current
current of a trace heater or surface heater following energization
3.41
surface heater
heater pad or heater panel
3.42
surface heater unit
surface heater suitably terminated in conformity with the manufacturer's instructions
3.43
system documentation
information provided by the trace heater manufacturer to allow satisfactory understanding,
installation and safe use of the trace heating system
3.44
tee
electrical connection of trace heaters, in series or in parallel, to accommodate a branch or a
branch circuit
3.45
temperature controller
device or combination of devices incorporating a means of sensing temperature and of
controlling the energy supplied to the trace heater or surface heater
3.46
temperature sensor
device designed to respond to temperature providing an electrical signal or mechanical
operation
3.47
thermal insulation
material having air- or gas-filled pockets, voids, or heat reflecting surfaces that, when properly
applied, retards the transfer of heat

– 14 – IEC/IEEE 62395-1:2024 © IEC/IEEE 2024
3.48
trace heater
device of linear geometry designed for the purpose of producing heat on the principle of
electrical resistance
3.49
trace heater unit
trace heater suitably terminated in conformity with the manufacturer's instructions
3.50
trace heating
utilization of trace heaters or surface heaters as well as support components, designed for the
purpose of producing heat through heating elements electrically connected in series or in
parallel, used to maintain or raise temperatures of piping, tanks and other surfaces
3.51
type test
conformity test made on one or more items representative of the production
[SOURCE: IEC 60050-151:2001, 151-16-16]
3.52
weather barrier
material that, when installed on the outer surface of thermal insulation, protects the thermal
insulation from water or other liquids, from physical damage caused by ice pellets, wind or
mechanical abuse and from deterioration caused by solar radiation or atmospheric
contamination
3.53
workpiece
object to which a trace heater or surface heater is applied
4 General requirements
4.1 General
Electrical resistance trace heating systems within the scope of this document shall be designed
and constructed so as to help ensure electrical, thermal and mechanical durability and reliable
performance such that, in normal use, they pose no danger to the user or the surroundings.
Trace heaters which are identified for use only in areas with a low risk of mechanical damage
are subjected to a reduced load in the impact tests in 5.2.4 and 5.2.5 and a reduced force in
the deformation test in 5.2.6 and shall be clearly marked as specified in Clause 7.
Trace heaters and surface heaters can be supplied with additional mechanical protection to
meet the requirements of this document if they are supplied as an integral assembly
(prefabricated) and shall be marked as required by Clause 7, item g).
Trace heating equipment intended for use in contact with potable water shall be constructed of
materials that meet relevant toxicity requirements.
Trace heaters and surface heaters temperature ratings that are required to conduct the type
test in this document, shall be stated and controlled by the trace heater manufacturer in their
documentation and published in their literature. The trace heater manufacturer shall provide
documentation of the specification of non-m
...
