LPG equipment and accessories - Automotive LPG filling system for light and heavy duty vehicles - Nozzle, test requirements and dimensions

This European Standard specifies the minimum design, construction, test requirements and the critical dimensions for filling nozzles for the dispensing of automotive Liquefied Petroleum Gas (LPG) to vehicles of categories M and N, as defined in EC Directive 70/156, that are fitted with the Euro filling unit (light duty or heavy duty).

Flüssiggas-Geräte und Ausrüstungsteile - Füllsysteme an Autogasanlagen für leichte und schwere Fahrzeuge - Anschlussstutzen, Prüfanforderungen und Abmessungen

Dieses Dokument legt die Mindestanforderungen an die Auslegung, Konstruktion, Prüfung und für die Bemaßung von Zapfventilen zur Abgabe von Flüssiggas (LPG, en: liquefied petroleum gas) an Fahrzeuge der Kategorien M und N nach Richtlinie 2007/46/EG [2], die mit dem Euro-Füllanschluss (für leichte und schwere Beanspruchung) verbunden sind, fest.

Équipements GPL et leurs accessoires - Dispositif de remplissage GPL pour véhicules légers et poids lourds - Pistolet: conditions d'essais et dimensions

Le présent document spécifie les exigences minimales de conception, de construction et d'essai ainsi que les dimensions extrêmes des pistolets de remplissage utilisés pour la distribution de gaz de pétrole liquéfié (GPL) aux véhicules automobiles des catégories M et N, définies dans le Règlement (UE) 2018/858 [2], qui sont équipés de l'unité de remplissage « Euro » (véhicules légers et poids lourds).

Oprema in pribor za utekočinjeni naftni plin (UNP) - Sistem za polnjenje utekočinjenega naftnega plina za lahka in težka vozila - Šoba, preskuševalne zahteve in mere

General Information

Status
Published
Public Enquiry End Date
02-Apr-2020
Publication Date
12-Dec-2021
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
08-Dec-2021
Due Date
12-Feb-2022
Completion Date
13-Dec-2021

RELATIONS

Buy Standard

Standard
SIST EN 13760:2022
English language
26 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day
Draft
oSIST prEN 13760:2020
English language
24 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (sample)

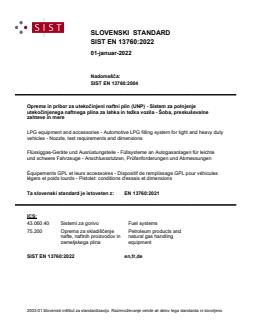

SLOVENSKI STANDARD
SIST EN 13760:2022
01-januar-2022
Nadomešča:
SIST EN 13760:2004
Oprema in pribor za utekočinjeni naftni plin (UNP) - Sistem za polnjenje
utekočinjenega naftnega plina za lahka in težka vozila - Šoba, preskuševalne
zahteve in mere

LPG equipment and accessories - Automotive LPG filling system for light and heavy duty

vehicles - Nozzle, test requirements and dimensions

Flüssiggas-Geräte und Ausrüstungsteile - Füllsysteme an Autogasanlagen für leichte

und schwere Fahrzeuge - Anschlussstutzen, Prüfanforderungen und Abmessungen

Équipements GPL et leurs accessoires - Dispositif de remplissage GPL pour véhicules

légers et poids lourds - Pistolet: conditions d'essais et dimensions
Ta slovenski standard je istoveten z: EN 13760:2021
ICS:
43.060.40 Sistemi za gorivo Fuel systems
75.200 Oprema za skladiščenje Petroleum products and
nafte, naftnih proizvodov in natural gas handling
zemeljskega plina equipment
SIST EN 13760:2022 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 13760:2022
---------------------- Page: 2 ----------------------
SIST EN 13760:2022
EN 13760
EUROPEAN STANDARD
NORME EUROPÉENNE
November 2021
EUROPÄISCHE NORM
ICS 43.060.40; 75.200 Supersedes EN 13760:2003
English Version
LPG equipment and accessories - Automotive LPG filling
system for light and heavy duty vehicles - Nozzle, test
requirements and dimensions

Équipements pour GPL et leurs accessoires - Dispositif Flüssiggas-Geräte und Ausrüstungsteile - Füllsysteme

de remplissage GPL pour véhicules légers et poids an Autogasanlagen für leichte und schwere Fahrzeuge -

lourds - Pistolet : conditions d'essais et dimensions Anschlussstutzen, Prüfanforderungen und

Abmessungen
This European Standard was approved by CEN on 23 May 2021.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this

European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references

concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN

member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by

translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management

Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and

United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13760:2021 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 13760:2022
EN 13760:2021 (E)

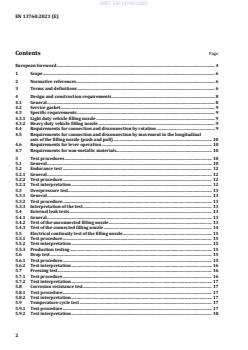

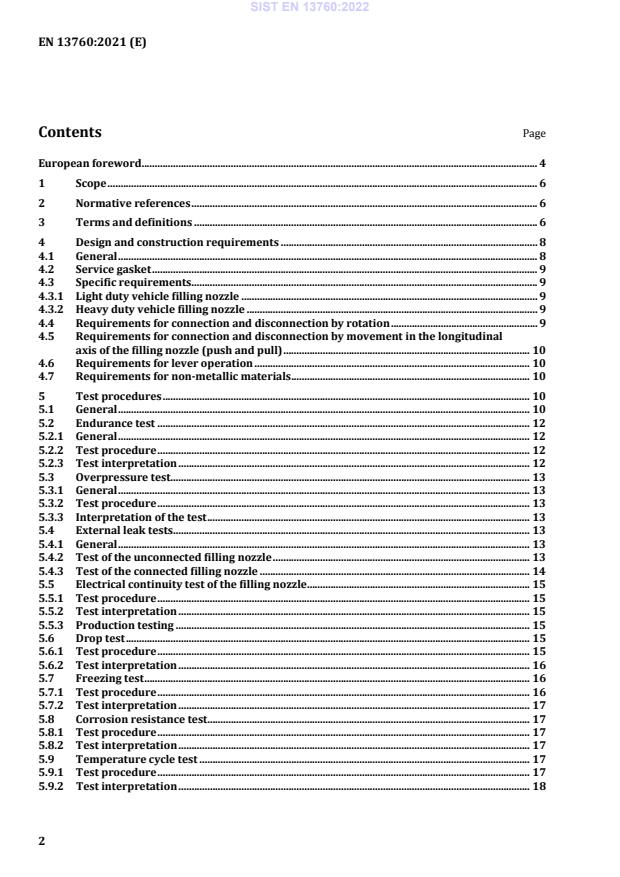

Contents Page

European foreword ....................................................................................................................................................... 4

1 Scope .................................................................................................................................................................... 6

2 Normative references .................................................................................................................................... 6

3 Terms and definitions ................................................................................................................................... 6

4 Design and construction requirements .................................................................................................. 8

4.1 General ................................................................................................................................................................ 8

4.2 Service gasket ................................................................................................................................................... 9

4.3 Specific requirements .................................................................................................................................... 9

4.3.1 Light duty vehicle filling nozzle ................................................................................................................. 9

4.3.2 Heavy duty vehicle filling nozzle ............................................................................................................... 9

4.4 Requirements for connection and disconnection by rotation ........................................................ 9

4.5 Requirements for connection and disconnection by movement in the longitudinal

axis of the filling nozzle (push and pull) .............................................................................................. 10

4.6 Requirements for lever operation ......................................................................................................... 10

4.7 Requirements for non-metallic materials ........................................................................................... 10

5 Test procedures ............................................................................................................................................ 10

5.1 General ............................................................................................................................................................. 10

5.2 Endurance test .............................................................................................................................................. 12

5.2.1 General ............................................................................................................................................................. 12

5.2.2 Test procedure .............................................................................................................................................. 12

5.2.3 Test interpretation ...................................................................................................................................... 12

5.3 Overpressure test ......................................................................................................................................... 13

5.3.1 General ............................................................................................................................................................. 13

5.3.2 Test procedure .............................................................................................................................................. 13

5.3.3 Interpretation of the test ........................................................................................................................... 13

5.4 External leak tests........................................................................................................................................ 13

5.4.1 General ............................................................................................................................................................. 13

5.4.2 Test of the unconnected filling nozzle .................................................................................................. 13

5.4.3 Test of the connected filling nozzle ....................................................................................................... 14

5.5 Electrical continuity test of the filling nozzle ..................................................................................... 15

5.5.1 Test procedure .............................................................................................................................................. 15

5.5.2 Test interpretation ...................................................................................................................................... 15

5.5.3 Production testing ....................................................................................................................................... 15

5.6 Drop test .......................................................................................................................................................... 15

5.6.1 Test procedure .............................................................................................................................................. 15

5.6.2 Test interpretation ...................................................................................................................................... 16

5.7 Freezing test ................................................................................................................................................... 16

5.7.1 Test procedure .............................................................................................................................................. 16

5.7.2 Test interpretation ...................................................................................................................................... 17

5.8 Corrosion resistance test ........................................................................................................................... 17

5.8.1 Test procedure .............................................................................................................................................. 17

5.8.2 Test interpretation ...................................................................................................................................... 17

5.9 Temperature cycle test .............................................................................................................................. 17

5.9.1 Test procedure .............................................................................................................................................. 17

5.9.2 Test interpretation ...................................................................................................................................... 18

---------------------- Page: 4 ----------------------
SIST EN 13760:2022
EN 13760:2021 (E)

5.10 LPG compatibility test (for rubber materials) ................................................................................... 18

5.10.1 Test procedure .............................................................................................................................................. 18

5.10.2 Test interpretation ....................................................................................................................................... 18

5.11 Ozone ageing test .......................................................................................................................................... 18

5.11.1 General ............................................................................................................................................................. 18

5.11.2 Test procedure .............................................................................................................................................. 18

5.11.3 Test interpretation ....................................................................................................................................... 18

5.12 Resistance to dry heat test ........................................................................................................................ 18

5.12.1 General ............................................................................................................................................................. 18

5.12.2 Test procedure .............................................................................................................................................. 18

5.12.3 Test interpretation ....................................................................................................................................... 18

5.13 Oxygen ageing ................................................................................................................................................ 19

6 Markings .......................................................................................................................................................... 19

Annex A (normative) Critical dimensions of the filling nozzles ................................................................. 20

Annex B (normative) Critical dimensions of the filling units ...................................................................... 22

Annex ZA (informative) Relationship between this European Standard and the essential

requirements of EU Directive 2014/34/EU aimed to be covered ............................................... 24

Bibliography ................................................................................................................................................................. 26

---------------------- Page: 5 ----------------------
SIST EN 13760:2022
EN 13760:2021 (E)
European foreword

This document (EN 13760:2021) has been prepared by Technical Committee CEN/TC 286 “Liquefied

petroleum gas equipment and accessories”, the secretariat of which is held by NSAI.

This European Standard shall be given the status of a national standard, either by publication of an

identical text or by endorsement, at the latest by May 2022, and conflicting national standards shall be

withdrawn at the latest by May 2022.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN shall not be held responsible for identifying any or all such patent rights.

This document supersedes EN 13760:2003.

This document includes the following significant technical changes with respect to EN 13760:2003:

— Updated normative references;
— Revised definitions;
— Revised test procedures;
— Removal of re-testing step from each test procedure;
— Addition of oxygen ageing test;
— Revised critical dimensions of Figure B.2;
— Revised Annex ZA.

This document has been prepared under a standardization request given to CEN by the European

Commission and the European Free Trade Association, and supports essential requirements of

EU Directive(s).

For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this

document.

This document does not deal with the essential safety requirements of the DIRECTIVE 2014/68/EU of the

European Parliament and of the Council of 15 May 2014 on the harmonization of the laws of the Member

States relating to the making available on the market of pressure equipment.

This document addresses the essential health and safety requirements of DIRECTIVE 2014/34/EU OF

THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 26 February 2014 on the harmonization of the

laws of the Member States relating to equipment and protective systems intended for use in potentially

explosive atmospheres.

In the Pressure Equipment Directive (PED) the nozzle is classified as a “pressure accessory”. It is intended

to be connected to a hose, which is classified as “piping”.

— The category 1 limit is defined in Annex 2 Table 6 of the PED and is a function of the product of

nominal size (DN) and maximum allowable pressure (PS) with a limit of 1 000.

— Because PS in this document is 2 500 kPa and the DN of the intended hose is less than 40, the figure

of 1 000 in Table 6 is not reached.
---------------------- Page: 6 ----------------------
SIST EN 13760:2022
EN 13760:2021 (E)

Protection of the environment is a key political issue in Europe and elsewhere. For CEN/TC 286 this is

covered in CEN/TS 16765 and this Technical Specification should be read in conjunction with this

document. This Technical Specification provides guidance on the environmental aspects to be considered

regarding equipment and accessories produced for the LPG industry and the following is addressed:

a) design;
b) manufacture;
c) packaging;
d) use and operation;
e) disposal.

Any feedback and questions on this document should be directed to the users’ national standards body.

A complete listing of these bodies can be found on the CEN website.

According to the CEN-CENELEC Internal Regulations, the national standards organisations of the

following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,

Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,

Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North

Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United

Kingdom.
---------------------- Page: 7 ----------------------
SIST EN 13760:2022
EN 13760:2021 (E)
1 Scope

This document specifies the minimum design, construction, test requirements and the critical dimensions

for filling nozzles for the dispensing of automotive Liquefied Petroleum Gas (LPG) to vehicles of

categories M and N, as defined in Regulation (EU) 2018/858 [2], that are fitted with the Euro filling unit

(light duty or heavy duty).
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

EN 549:2019, Rubber materials for seals and diaphragms for gas appliances and gas equipment

EN 589:2018, Automotive fuels — LPG — Requirements and test methods

EN 12806:2003, Automotive liquefied petroleum gas components — Other than containers

EN 1762:2018, Rubber hoses and hose assemblies for liquefied petroleum gas, LPG (liquid or gaseous phase),

and natural gas up to 25 bar (2,5 MPa) — Specification

EN ISO 9227:2017, Corrosion tests in artificial atmospheres — Salt spray tests (ISO 9227:2017)

EN ISO 11114-2:2013, Gas cylinders — Compatibility of cylinder and valve materials with gas contents —

Part 2: Non-metallic materials (ISO 11114-2:2013)

EN ISO 80079-36:2016, Explosive atmospheres — Part 36: Non-electrical equipment for explosive

atmospheres — Basic method and requirements (ISO 80079-36:2016)

EN IEC 60068-2-52:2018, Environmental testing — Part 2-52: Tests — Test Kb: Salt mist, cyclic (sodium

chloride solution) (IEC 60068-2-52:2017)

ISO 188:2011, Rubber, vulcanized or thermoplastic — Accelerated ageing and heat resistance tests

ISO 1431-1:2012, Rubber, vulcanized or thermoplastic — Resistance to ozone cracking — Part 1: Static and

dynamic strain testing
ISO 6957:1988, Copper alloys — Ammonia test for stress corrosion resistance
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— IEC Electropedia: available at https://www.electropedia.org/
— ISO Online browsing platform: available at https://www.iso.org/obp
3.1
pressure
gauge pressure, unless otherwise stated
---------------------- Page: 8 ----------------------
SIST EN 13760:2022
EN 13760:2021 (E)
3.2
maximum allowable pressure
maximum pressure for which the equipment is designed
Note 1 to entry: All pressures are gauge pressures, unless otherwise stated.
3.3
test pressure

pressure to which the component, or an assembly of components, is subjected during the tests

3.4
filling nozzle

mechanical system, fitted to the hose of the dispensing system, consisting of a filling nozzle body,

operating mechanism, including sealing elements and a service gasket if required
3.5
light duty vehicle filling nozzle

filling nozzle intended to fuel vehicles fitted with the light duty vehicle Euro filling unit (K15)

3.6
heavy duty vehicle filling nozzle

filling nozzle intended to fuel vehicles fitted with the heavy duty vehicle Euro filling unit

3.7
locking mechanism

component allowing the locking or unlocking operation of the filling nozzle to the filling unit

3.8
service gasket

replaceable gasket ensuring tightness of the connection between the filling nozzle outlet and the filling

unit inlet
3.9
torque for connection
torque required to connect the filling nozzle to the filling unit
3.10
torque for disconnection
torque required to disconnect the filling nozzle from the filling unit
3.11
push-on force

force applied in the longitudinal axis of the filling unit to connect the filling nozzle to the filling unit

3.12
pull-off force

force applied in the longitudinal axis of the filling unit to disconnect the filling nozzle from the filling unit

3.13
grip
area where the filling nozzle is held for connection or disconnection
---------------------- Page: 9 ----------------------
SIST EN 13760:2022
EN 13760:2021 (E)
3.14
filling unit

device installed on the outside of the vehicle to receive the filling nozzle and enable the filling of the LPG

container

Note 1 to entry: The filling nozzle as prescribed in this document is only intended to be used with the Euro filling

unit.
4 Design and construction requirements
4.1 General

Any non-electrical equipment, intended for use in a potentially explosive atmosphere, shall comply with

the requirements of EN ISO 80079-36:2016. The filling nozzle shall be designed and constructed

according to good engineering practice and in conformity with the required categories for group II

equipment to ensure avoidance of any ignition source.

To classify the category of the equipment it shall be subjected to an ignition hazard assessment in

accordance with EN ISO 80079-36:2016.

If the filling nozzle does not contain any effective ignition sources in normal operation it shall be classified

as Group II, gas group IIA, category 3G.
The design of the filling nozzle shall ensure that:
a) it is suitable for use with automotive LPG as specified in EN 589:2018;

b) it is compatible with the relevant filling unit as specified in EN 12806:2003;

c) entrapment of fingers and/or cold burns are not possible;

d) it is not possible to open the valve in the filling nozzle if the filling nozzle is not properly locked and

sealed on the filling unit;
e) it locks in the connected position;

f) it is not possible to disconnect the filling nozzle from the filling unit unless the filling nozzle valve is

closed;
g) blocking due to internal freezing does not occur, according to 5.7;
h) it is tolerant to the effect of dirt;

i) it will withstand a torque of 150 % of the mounting torque specified by the manufacturer without

damage;
j) the electrical resistance is 1 kΩ maximum;
k) the materials in contact with LPG are LPG-compatible;

l) the external surfaces of the filling nozzle are corrosion resistant or protected against corrosion and

are made of materials that do not cause sparks when dropped on a surface;
m) the minimum lifetime is 100 000 cycles;
---------------------- Page: 10 ----------------------
SIST EN 13760:2022
EN 13760:2021 (E)

n) the climate conditions of the geographic area where they will operate are taken into account as

follows:
— Moderate Climate conditions: −20 °C to +65 °C;
— Cold Climate conditions: −40 °C to +65 °C;
o) the maximum allowable pressure is 2 500 kPa;
p) a latching mechanism is incorporated;

q) the filling nozzle is provided with a means to securely attach it to the delivery hose;

r) filling nozzle shall not exceed critical dimensions specified in Annex A, Figures A.1 or A.2.

4.2 Service gasket

The service gasket between the filling nozzle and the filling unit, if required, shall be fitted in the nozzle.

Changing the service gasket shall not result in any LPG release.
The minimum lifetime of the service gasket shall be 20 000 cycles.
4.3 Specific requirements
4.3.1 Light duty vehicle filling nozzle
The release of LPG during disconnection shall be less than 1 cm liquid.

The maximum weight of the filling nozzle shall be 2 kg (including swivel, if fitted).

The external diameter of the filling nozzle shall not exceed 54 mm over a length of at least 82 mm

measured from the normal attachment point of the vehicle connector as shown in Figure A.1. This

includes protruding ancillaries in any position.
The maximum grip diameter of the filling nozzle shall be 60 mm.

The nozzle shall be designed for one hand operation for connection and disconnection.

4.3.2 Heavy duty vehicle filling nozzle
The release of LPG during disconnection shall be less than 1 cm liquid.

The maximum weight of the filling nozzle shall be 3 kg (including swivel, if fitted).

The external diameter of the outlet side of the filling nozzle shall not exceed 80 mm over a length of at

least 64 mm as shown in Figure A.2. This includes protruding ancillaries in any position.

4.4 Requirements for connection and disconnection by rotation
The rotation angle in the longitudinal axis shall not exceed 120°.
The maximum torque for connection and disconnection shall be:
— 1,5 Nm for the light duty vehicle filling nozzle,
— 25 Nm for the heavy duty vehicle filling nozzle,
at any pressure up to 2 500 kPa in the filling nozzle.
---------------------- Page: 11 ----------------------
SIST EN 13760:2022
EN 13760:2021 (E)

4.5 Requirements for connection and disconnection by movement in the longitudinal

axis of the filling nozzle (push and pull)

The maximum push-on force shall be 100 N, at any pressure up to 2 500 kPa in the filling nozzle.

The maximum pull-off force shall be 50 N, at a pressure of 2 500 kPa.
4.6 Requirements for lever operation

The force to close the lever, applied at the centre of the grip area of the lever, shall be 100 N maximum at

any pressure up to 1 500 kPa in the filling nozzle.

Provision shall be made to enable the lever or the whole filling nozzle to freely rotate over an angle of

360° around the longitudinal axis of the filling nozzle or the filling hose.
4.7 Requirements for non-metallic materials

All elastomer materials in contact with LPG shall be compatible with LPG in accordance with

EN ISO 11114-2:2013 and shall not distort, harden or adhere to the body or seat face to such an extent as

to impair the function of the valve. Rubber materials shall conform to the requirements of EN 549:2019,

see 5.10 of this document.
5 Test procedures
5.1 General
For type testing the following samples shall be used:
a) three fully assembled samples of the filling nozzle;
b) two disassembled samples of the filling nozzle;
c) four sets of non-metallic components.

The type tests shall be performed on the respective samples according to Table 1, in that given order.

---------------------- Page: 12 ----------------------
SIST EN 13760:2022
EN 13760:2021 (E)
Table 1 — Type tests
Test Test samples Clause
Fully assembled samples
Electrical continuity 5.5
1, 2 and 3
Fully assembled samples
Endurance 5.2
1, 2 and 3
Fully assembled samples
Overpressure 5.3
1, 2 and 3
Fully assembled samples
External leak 5.4
1, 2 and 3
Fully assembled samples
Drop test 5.6
1, 2 and 3
Fully assembled samples
Freezing 5.7
1, 2 and 3
Fully assembled samples
Electrical continuity 5.5
1, 2 and 3
Corrosion resistance Disassembled sample 1 5.8
Temperature cycle Disassembled sample 2 5.9
LPG compatibility test (for Set of non-metallic
5.10
rubber materials) components sample 1
Set of non-metallic
Ozone ageing 5.11
components sample 2
Set of non-metallic
Resistance to dry heat 5.12
components sample 3
Set of non-metallic
Oxygen ageing 5.13
components sample 4
The tolerances for test temperatures and pressures shall be:
— for low temperature: °C ;
— for high temperature: °C ;
— for 20 °C: °C ;
— test pressures: ±10 % of the stated value with a maximum of 100 kPa.
All samples shall pass all the tests, or the design shall be rejected.
For production testing, all samples shall be subjected to the tests in Table 2.
---------------------- Page: 13 ----------------------
SIST EN 13760:2022
EN 13760:2021 (E)
Table 2 — Production tests
Test Clause
External leak 5.4
Electrical continuity 5.5
All Production tests shall be performed at room temperature.

When both electrical continuity tests in the type test show that the resistance of the nozzle is < 10 Ω, the

electrical continuity test is not required in production test.
5.2 Endurance test
5.2.1 General

An endurance test shall be carried out at the maximum allowable pressure and at 20 °C with air, nitrogen

or water.
5.2.2 Test procedure
The test shall be carried out as follows:

a) connect the pressured filling nozzle to a receptacle for which the filling nozzle is designed;

b) idling time between connecting and disconnecting at a minimum of 3 s;
c) disconnect;
d) repeat a) to c) 100 000 times.
The service gasket shall be replaced every 20 000 cycles.

Before and after changing the service gasket and at the end of the test, an external leak test of the

connected filling nozzle at 20 °C shall be performed.

At the end of the test, an external leak test of the unconnected filling nozzle at 20 °C shall also be

performed.
Replacement of the filling unit is permitted every 10 000 cycles.
The r
...

SLOVENSKI STANDARD
oSIST prEN 13760:2020
01-marec-2020
Oprema in pribor za utekočinjeni naftni plin (UNP) - Sistem za polnjenje
utekočinjenega naftnega plina za lahka in težka vozila - Šoba, preskuševalne
zahteve in mere

LPG equipment and accessories - Automotive LPG filling system for light and heavy duty

vehicles - Nozzle, test requirements and dimensions

Flüssiggas-Geräte und Ausrüstungsteile - Füllsysteme an Autogasanlagen für leichte

und schwere Fahrzeuge - Anschlussstutzen, Prüfanforderungen und Abmessungen

Équipements GPL et leurs accessoires - Dispositif de remplissage GPL pour véhicules

légers et poids lourds - Pistolet: conditions d'essais et dimensions
Ta slovenski standard je istoveten z: prEN 13760
ICS:
43.060.40 Sistemi za gorivo Fuel systems
75.200 Oprema za skladiščenje Petroleum products and
nafte, naftnih proizvodov in natural gas handling
zemeljskega plina equipment
oSIST prEN 13760:2020 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
oSIST prEN 13760:2020
---------------------- Page: 2 ----------------------
oSIST prEN 13760:2020
DRAFT
EUROPEAN STANDARD
prEN 13760
NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2020
ICS Will supersede EN 13760:2003
English Version
LPG equipment and accessories - Automotive LPG filling
system for light and heavy duty vehicles - Nozzle, test
requirements and dimensions

Équipements GPL et leurs accessoires - Dispositif de Flüssiggas-Geräte und Ausrüstungsteile - Füllsysteme

remplissage GPL pour véhicules légers et poids lourds - an Autogasanlagen für leichte und schwere Fahrzeuge -

Pistolet: conditions d'essais et dimensions Anschlussstutzen, Prüfanforderungen und

Abmessungen

This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee

CEN/TC 286.

If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations

which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other

language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC

Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and

United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are

aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without

notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2020 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 13760:2020 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
oSIST prEN 13760:2020
prEN 13760:2020 (E)
Contents Page

European foreword ....................................................................................................................................................... 3

1 Scope .................................................................................................................................................................... 4

2 Normative references .................................................................................................................................... 4

3 Terms and definitions ................................................................................................................................... 5

4 Design and construction requirements .................................................................................................. 6

4.1 General ................................................................................................................................................................ 6

4.2 Service gasket ................................................................................................................................................... 7

4.3 Specific requirements .................................................................................................................................... 7

4.4 Requirements for connection and disconnection by rotation ........................................................ 8

4.5 Requirements for connection and disconnection by movement in the longitudinal

axis of the filling nozzle (push and pull) ................................................................................................. 8

4.6 Requirements for lever operation ............................................................................................................ 8

4.7 Requirements for non-metallic materials .............................................................................................. 8

5 Test procedures ............................................................................................................................................... 8

5.1 General ................................................................................................................................................................ 8

5.2 Endurance test .............................................................................................................................................. 10

5.3 Overpressure test ......................................................................................................................................... 11

5.4 External leak tests........................................................................................................................................ 11

5.5 Electrical continuity test of the filling nozzle ..................................................................................... 13

5.6 Drop test .......................................................................................................................................................... 13

5.7 Freezing test ................................................................................................................................................... 14

5.8 Corrosion resistance test ........................................................................................................................... 15

5.9 Temperature cycle test .............................................................................................................................. 15

5.10 LPG compatibility test (for rubber materials) ................................................................................... 16

5.11 Ozone ageing test ......................................................................................................................................... 16

5.12 Resistance to dry heat test ........................................................................................................................ 16

5.13 Oxygen ageing ................................................................................................................................................ 17

6 Markings .......................................................................................................................................................... 17

Annex A (normative) Critical dimensions of the filling nozzles ............................................................... 18

Annex B (normative) Critical dimensions of the filling units .................................................................... 20

Annex ZA (informative) Relationship between this European Standard and the essential

requirements of EU Directive 2014/34/EU aimed to be covered .............................................. 22

Bibliography ................................................................................................................................................................. 24

---------------------- Page: 4 ----------------------
oSIST prEN 13760:2020
prEN 13760:2020 (E)
European foreword

This document (prEN 13760:2020) has been prepared by Technical Committee CEN/TC 286 “LPG

equipment and accessories”, the secretariat of which is held by NSAI.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 13760:2003.

This document has been prepared under a standardization request given to CEN by the European

Commission and the European Free Trade Association, and supports essential requirements of

EU Directive(s).

For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this

document.

This document does not deal with the essential safety requirements of the DIRECTIVE 2014/68/EU of the

European Parliament and of the Council of 15 May 2014 on the harmonization of the laws of the Member

States relating to the making available on the market of pressure equipment.

This document addresses the essential health and safety requirements of DIRECTIVE 2014/34/EU OF

THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 26 February 2014 on the harmonization of the

laws of the Member States relating to equipment and protective systems intended for use in potentially

explosive atmospheres.

In the PED the nozzle is classified as a “pressure accessory”. It is intended to be connected to a hose, which

is classified as “piping”.

— The category 1 limit is defined in Annex 2 Table 6 of the PED and is a function of the product of DN

and PS with a limit of 1 000.

— Because the design pressure (PS) in this document is 2 500 kPa and the DN of the intended hose is

less than 40, the figure of 1 000 in Table 6 is not reached.
---------------------- Page: 5 ----------------------
oSIST prEN 13760:2020
prEN 13760:2020 (E)
1 Scope

This document specifies the minimum design, construction, test requirements and the critical dimensions

for filling nozzles for the dispensing of automotive Liquefied Petroleum Gas (LPG) to vehicles of

categories M and N, as defined in [1], that are fitted with the Euro filling unit (light duty or heavy duty).

2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

EN 549:2019, Rubber materials for seals and diaphragms for gas appliances and gas equipment

EN 589:2018, Automotive fuels - LPG - Requirements and test methods

EN 12806:2003, Automotive liquefied petroleum gas components - Other than containers

EN 1762:2018, Rubber hoses and hose assemblies for liquefied petroleum gas, LPG (liquid or gaseous phase),

and natural gas up to 25 bar (2,5 MPa) - Specification

EN ISO 80079-36:2016, Explosive atmospheres - Part 36: Non-electrical equipment for explosive

atmospheres - Basic method and requirements (ISO 80079-36:2016)

EN ISO 11114-2:2013, Gas cylinders - Compatibility of cylinder and valve materials with gas contents - Part

2: Non-metallic materials (ISO 11114-2:2013)

EN ISO 9227:2017, Corrosion tests in artificial atmospheres - Salt spray tests (ISO 9227:2017)

EN IEC 60068-2-52:2018, Environmental testing - Part 2-52: Tests - Test Kb: Salt mist, cyclic (sodium

chloride solution)

ISO 188:2011, Rubber, vulcanized or thermoplastic — Accelerated ageing and heat resistance tests

ISO 1431-1:2012, Rubber, vulcanized or thermoplastic — Resistance to ozone cracking — Part 1: Static and

dynamic strain testing
ISO 6957:1988, Copper alloys — Ammonia test for stress corrosion resistance
---------------------- Page: 6 ----------------------
oSIST prEN 13760:2020
prEN 13760:2020 (E)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at http://www.iso.org/obp
3.1
pressure
gauge pressure, unless otherwise stated
3.2
design pressure
maximum pressure at which the filling nozzle may be used
3.3
test pressure

pressure to which the component, or an assembly of components, is subjected during the tests

3.4
working pressure
pressure under normal operating conditions
3.5
filling nozzle

mechanical system, fitted to the hose of the dispensing system, consisting of a filling nozzle body,

operating mechanism, including sealing elements and a service gasket if required
3.6
light duty vehicle filling nozzle
filling nozzle intended to fuel vehicles fitted with the K 15 filling unit
3.7
heavy duty vehicle filling nozzle

filling nozzle intended to fuel vehicles fitted with the heavy duty vehicle Euro filling unit

3.8
latching mechanism

component allowing the locking or unlocking operation of the filling nozzle to the filling unit

3.9
service gasket

replaceable gasket ensuring tightness of the connection between the filling nozzle outlet and the filling

unit inlet
3.10
torque for connection
torque required to connect the filling nozzle to the filling unit
3.11
torque for disconnection
torque required to disconnect the filling nozzle from the filling unit
---------------------- Page: 7 ----------------------
oSIST prEN 13760:2020
prEN 13760:2020 (E)
3.12
push-on force

force applied in the longitudinal axis of the filling unit to connect the filling nozzle to the filling unit

3.13
pull-off force

force applied in the longitudinal axis of the filling unit to disconnect the filling nozzle from the filling unit

3.14
grip
area where the filling nozzle is held for connection or disconnection
3.15
filling unit

device installed on the outside of the vehicle to receive the filling nozzle and enable the filling of the LPG

container

Note 1 to entry: The filling nozzle as prescribed in this standard is only intended to be used with the Euro filling

unit.
4 Design and construction requirements
4.1 General

Any non-electrical equipment, intended for use in a potentially explosive atmosphere, shall comply with

the requirements of EN ISO 80079-36:2016. The nozzle shall be designed and constructed according to

good engineering practice and in conformity with the required categories for group II equipment to

ensure avoidance of any ignition source.

To classify the category of the equipment it shall be subjected to an ignition hazard assessment in

accordance with EN ISO 80079-36:2016.

If the nozzle does not contain any effective ignition sources in normal operation it shall be classified as

Group II, gas group IIA, category 3.
The design of the filling nozzle shall ensure that:
a) it is suitable for use with automotive LPG as specified in EN 589:2018;

b) it is compatible with the relevant filling unit as specified in EN 12806 in accordance with Annex B;

c) entrapment of fingers and/or cold burns are not possible;

d) it is not possible to open the valve in the filling nozzle if the filling nozzle is not properly locked and

sealed on the filling unit;
e) it locks in the connected position;

f) it is not possible to disconnect the filling nozzle from the filling unit unless the filling nozzle valve is

closed;
g) blocking due to internal freezing does not occur, according to 5.7;
h) it is tolerant to the effect of dirt;
---------------------- Page: 8 ----------------------
oSIST prEN 13760:2020
prEN 13760:2020 (E)

i) it will withstand a torque of 150 % of the mounting torque specified by the manufacturer without

damage;
j) the electrical resistance is 1 kΩ maximum;
k) the materials in contact with LPG are LPG-compatible;

l) the external surfaces of the filling nozzle are corrosion resistant or protected against corrosion and

are made of materials that do not cause sparks when dropped on a surface;
m) the minimum lifetime is 100 000 cycles;

n) the climate conditions of the geographic area where they will operate are taken into account as

follows:
— Moderate Climate conditions: −20 °C to +65 °C
— Cold Climate conditions: −40 °C to +65 °C;
o) the design pressure is 2 500 kPa;
p) a locking mechanism is incorporated;

q) the nozzle is provided with a means to securely attach it to the delivery hose.

4.2 Service gasket

The service gasket between the filling nozzle and the filling unit, if required, shall be fitted in the nozzle.

Changing the service gasket shall not result in any LPG release.
The minimum lifetime of the service gasket shall be 20 000 cycles.
4.3 Specific requirements
4.3.1 Light duty vehicle filling nozzle
The release of LPG during disconnection shall be less than 1 cm liquid.

The maximum weight of the filling nozzle shall be 2 kg (including swivel, if fitted).

The external diameter of the filling nozzle shall not exceed 54 mm over a length of at least 82 mm

measured from the normal attachment point of the vehicle connector as shown in Figure A.1. This

includes protruding ancillaries in any position.
The maximum grip diameter of the filling nozzle shall be 60 mm.

The nozzle shall be designed for one hand operation for connection and disconnection.

4.3.2 Heavy duty vehicle filling nozzle
The release of LPG during disconnection shall be less than 1 cm liquid.

The maximum weight of the filling nozzle shall be 3 kg (including swivel, if fitted).

The external diameter of the outlet side of the filling nozzle shall not exceed 80 mm over a length of at

least 64 mm as shown in Figure A.2. This includes protruding ancillaries in any position.

---------------------- Page: 9 ----------------------
oSIST prEN 13760:2020
prEN 13760:2020 (E)
4.4 Requirements for connection and disconnection by rotation
The rotation angle in the longitudinal axis shall not exceed 120 degrees.
The maximum torque for connection and disconnection shall be:
— 1,5 Nm for the light duty vehicle filling nozzle,
— 25 Nm for the heavy duty vehicle filling nozzle,
at any pressure up to 2 500 kPa in the filling nozzle.

4.5 Requirements for connection and disconnection by movement in the longitudinal

axis of the filling nozzle (push and pull)

The maximum push-on force shall be 100 N, at any pressure up to 2 500 kPa in the filling nozzle.

The maximum pull-off force shall be 50 N, at a pressure of 2 500 kPa.
4.6 Requirements for lever operation

The force to close the lever, applied at the centre of the grip area of the lever, shall be 100 N maximum at

any pressure up to 1 500 kPa in the filling nozzle.

Provision shall be made to enable the lever or the whole filling nozzle to freely rotate over an angle of

360 degrees around the longitudinal axis of the filling nozzle or the filling hose.

4.7 Requirements for non-metallic materials

All elastomer materials in contact with LPG shall be compatible with LPG in accordance with

EN ISO 11114-2 and shall not distort, harden or adhere to the body or seat face to such an extent as to

impair the function of the valve. Rubber materials shall conform to the requirements of EN 549:2019, see

5.10.
5 Test procedures
5.1 General
For type testing the following samples shall be used:
1. 4 (four) fully assembled samples of the filling nozzle;
2. 2 (two) disassembled samples of the filling nozzle; and
3. 7 (seven) sets of non-metallic components.

The type tests shall be performed on the respective samples according to Table 1, in that given order.

---------------------- Page: 10 ----------------------
oSIST prEN 13760:2020
prEN 13760:2020 (E)
Table 1 — Type tests
Test Test samples Clause
Fully assembled samples
Electrical continuity 5.5
1, 2 and 3
Fully assembled samples
Endurance 5.2
1, 2 and 3
Fully assembled samples
Overpressure 5.3
1, 2 and 3
Fully assembled samples
External leak 5.4
1, 2 and 3
Fully assembled samples
Drop test 5.6
1, 2 and 3
Fully assembled samples
Freezing 5.7
1, 2 and 3
Fully assembled samples
Electrical continuity 5.5
1, 2 and 3
Corrosion resistance Disassembled sample 1 5.8
Temperature cycle Disassembled sample 2 5.9
LPG compatibility test (for Set of non-metallic
5.10
rubber materials) components sample 1
Set of non-metallic
Ozone ageing 5.11
components sample 5
Set of non-metallic
Resistance to dry heat 5.12
components sample 6
Set of non-metallic
Oxygen ageing 5.13
components sample 7
The tolerances for test temperatures and pressures shall b
...
