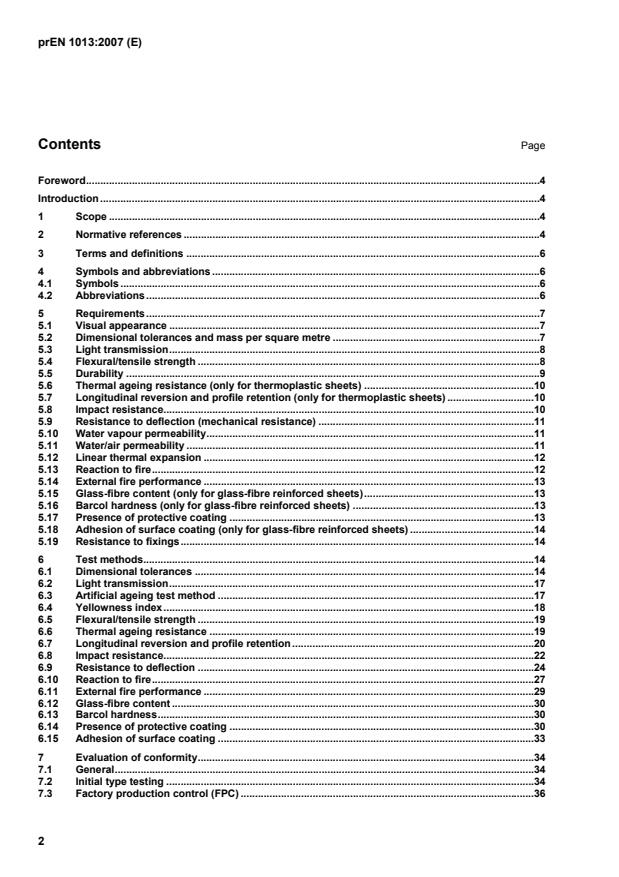

oSIST prEN 1013:2007

Light transmitting single skin profiled plastics sheets for internal and external roofs, walls and ceilings - Requirements and test methods

This document specifies the requirements for light transmitting single skin profiled plastics sheets for internal and external walls, roofs and ceilings. It is applicable to single skin sheets which are used as a single layer or when assembled to form multiple layer construction. It also specifies the test methods and provides for the evaluation of conformity of the sheets.

Lichtdurchlässige, einschalige profilierte Platten aus Kunststoff für Innen- und Außenanwendungen an Dächern, Wänden und Decken — Anforderungen und Prüfverfahren

Das vorliegende Dokument legt die Anforderungen an lichtdurchlässige, einschalige profilierte Platten aus Kunststoff für Innen- und Außenanwendungen an Dächern, Wänden und Decken fest. Es ist anwendbar auf einschalige Platten, die als eine Lage oder zum Herstellen eines mehrlagigen Aufbaus verwendet werden.
Die Norm legt auch die Prüfverfahren fest und dient der Konformitätsbewertung der Platten.

Plaques d'éclairement profilées, simple paroi, en matiere plastique, pour toitures, bardages et plafonds intérieurs et extérieurs — Exigences et méthodes d'essai

Le présent document spécifie les exigences applicables aux plaques profilées éclairantes simple paroi en matière plastique pour toitures, bardages et plafonds intérieurs et extérieurs. Il s’applique aux plaques simple paroi utilisées en monocouche ou assemblées pour former des constructions multi-couches.
Il spécifie également les méthodes d’essai et traite de l’évaluation de la conformité des plaques

Prosojna profilirana plastična obloga za enojno notranje ali zunanje pokrivanje streh zidov in stropov - Zahteve in preskusne metode

General Information

• Status: Not Published
• Public Enquiry End Date: 14-Jan-2008
• ICS: 83.140.10 - Films and sheets
• ICS: 91.060.01 - Elements of buildings in general
• Technical Committee: IKER - Ceramics
• Current Stage: 98 - Abandoned project (Adopted Project)
• Start Date: 11-Nov-2013
• Due Date: 16-Nov-2013
• Completion Date: 11-Nov-2013
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Directive: 89/106/EEC - Construction products
• Mandate: M/121 - Mandate to CEN/CENELEC concerning the execution of standardization work for harmonized standards on internal and external wall and ceiling finishes
• Mandate: M/122 - Mandate to CEN/CENELEC concerning the execution of standardization work for harmonized standards on roof coverings, rooflights, roof windows and ancillary products
• Ref Project: prEN 1013 - Light transmitting single skin profiled plastics sheets for internal and external roofs, walls and ceilings - Requirements and test methods

Relations

• Revised: SIST EN 1013-4:2000 - Light transmitting profiled plastic sheeting for single skin roofing - Part 4: Specific requirements, test methods and performance of polycarbonate (PC) sheets
• Effective Date: 08-Jun-2022
• Revised: SIST EN 1013-5:2000 - Light transmitting profiled plastic sheeting for single skin roofing - Part 5: Specific requirements, test methods and performance of polymethylmethacrylate (PMMA) sheets
• Effective Date: 08-Jun-2022
• Revised: SIST EN 1013-2:2000 - Light transmitting profiled plastic sheeting for single skin roofing - Part 2: Specific requirements and test methods for sheets of glass fibre reinforced polyester resin (GRP)
• Effective Date: 08-Jun-2022
• Revised: SIST EN 1013-3:1998 - Light transmitting profiled plastic sheeting for single skin roofing - Part 3: Specific requirements and test methods for sheets of polyvinyl chloride (PVC)
• Effective Date: 08-Jun-2022
• Revised: SIST EN 1013-1:1998 - Light transmitting profiled plastic sheeting for single skin roofing - Part 1: General requirements and test methods
• Effective Date: 08-Jun-2022
• Revised: SIST EN 1013-5:2000 - Light transmitting profiled plastic sheeting for single skin roofing - Part 5: Specific requirements, test methods and performance of polymethylmethacrylate (PMMA) sheets
• Effective Date: 22-Dec-2008
• Revised: SIST EN 1013-2:2000 - Light transmitting profiled plastic sheeting for single skin roofing - Part 2: Specific requirements and test methods for sheets of glass fibre reinforced polyester resin (GRP)
• Effective Date: 22-Dec-2008
• Revised: SIST EN 1013-3:1998 - Light transmitting profiled plastic sheeting for single skin roofing - Part 3: Specific requirements and test methods for sheets of polyvinyl chloride (PVC)
• Effective Date: 22-Dec-2008
• Revised: SIST EN 1013-1:1998 - Light transmitting profiled plastic sheeting for single skin roofing - Part 1: General requirements and test methods
• Effective Date: 22-Dec-2008
• Revised: SIST EN 1013-4:2000 - Light transmitting profiled plastic sheeting for single skin roofing - Part 4: Specific requirements, test methods and performance of polycarbonate (PC) sheets
• Effective Date: 22-Dec-2008

Overview

oSIST prEN 1013:2007 is a European standard developed by CEN that specifies the requirements and test methods for light transmitting single skin profiled plastic sheets. These sheets are designed for use in internal and external applications such as roofs, walls, and ceilings. The document addresses single-layer sheets as well as configurations where sheets are assembled into multi-layer constructions, ensuring optimal performance and durability.

This standard supersedes previous versions EN 1013-1 through EN 1013-5 and aligns with the essential requirements set by the EU Construction Products Directive. It covers comprehensive aspects including dimensional tolerances, light transmission, mechanical strength, durability, fire performance, and conformity evaluation to support reliable use of these plastic sheets in building construction.

Key Topics

• Scope and Application
  The standard applies to light transmitting single skin profiled plastics sheets used as building elements in both internal and external environments. It guides on single layer and multiple layer construction practices pertinent to roofs, walls, and ceilings.

• Physical and Mechanical Requirements
  Requirements include visual appearance standards to avoid defects such as holes, cracks, or bubbles larger than 1 mm, and for glass-fibre reinforced sheets, resin ribs and glass knots are limited in size. Dimensional tolerances and mass per square meter are clearly defined. Mechanical properties such as flexural and tensile strength, impact resistance, and resistance to deflection ensure structural integrity under various conditions.

• Durability and Thermal Performance
  The standard specifies thermal ageing resistance tests for thermoplastic sheets, including longitudinal reversion and profile retention. It also details water vapor permeability, water/air permeability, and linear thermal expansion coefficients to ascertain suitability in diverse environmental conditions.

• Fire Safety Requirements
  Reaction to fire is tested following European norms, including external fire performance. This is critical for safety compliance and integration of light transmitting plastic sheets in building constructions.

• Material Specific Tests
  For glass-fibre reinforced sheets, the standard mandates testing for glass-fibre content and Barcol hardness along with the adhesion of protective surface coatings. This ensures material composition and quality control.

• Testing and Conformity Evaluation
  oSIST prEN 1013:2007 outlines detailed test methods for dimensional verification, light transmission, artificial ageing, yellowness index measurement, mechanical tests, and fire classification. The evaluation of conformity includes initial type testing (ITT) and ongoing factory production control (FPC), supporting consistent product quality.

Applications

• Building Construction
  The standard is essential for manufacturers, architects, and builders using light transmitting plastic sheets for roofs, walls, and ceilings. These sheets offer natural daylighting while providing weather resistance and structural durability.

• Industrial and Commercial Facilities
  Light transmitting profiles are widely employed in industrial warehouses and commercial buildings where durable, translucent materials improve energy efficiency and indoor lighting conditions.

• Renovation and Facade Design
  Use of single skin profiled sheets facilitates renovation projects requiring lightweight and aesthetically pleasing cladding or roofing solutions, complying with modern safety and performance requirements.

• Multi-Layer Assemblies
  This standard supports configurations where single skin sheets are combined into multi-layer constructions to meet additional insulation or mechanical strength needs.

Related Standards

oSIST prEN 1013:2007 references a range of European and international standards critical for complementary testing and classification:

• EN 59 - Hardness testing for glass reinforced plastics
• ENV 1187 - External fire exposure tests for roofs
• EN 13501-1 & EN 13501-5 - Fire classification for construction products and external roof fire performance
• EN ISO 178 & EN ISO 527 - Flexural and tensile properties of plastics
• EN ISO 4892 - Methods of exposure to laboratory light sources for ageing tests
• EN ISO 11925-2 - Reaction to fire ignition test
• EN ISO 12572 - Water vapor transmission properties test
• ISO 11359-2 - Thermomechanical analysis of plastics' thermal expansion and glass transition
• EN ISO 9001 - Quality management system requirements for manufacturers

---

By adhering to oSIST prEN 1013:2007, stakeholders can ensure that light transmitting single skin profiled plastic sheets meet stringent performance, durability, and safety standards essential for modern construction applications. This standard facilitates product conformity and consistent quality for architectural and engineering requirements involving translucent roofing and cladding materials.

Standards Content (Sample)

SLOVENSKI STANDARD
01-december-2007
3URVRMQDSURILOLUDQDSODVWLþQDREORJD]DHQRMQRQRWUDQMHDOL]XQDQMHSRNULYDQMH
VWUHK]LGRYLQVWURSRY=DKWHYHLQSUHVNXVQHPHWRGH
Light transmitting single skin profiled plastics sheets for internal and external roofs, walls
and ceilings - Requirements and test methods
Lichtdurchlässige, einschalige profilierte Platten aus Kunststoff für Innen- und
Außenanwendungen an Dächern, Wänden und Decken — Anforderungen und
Prüfverfahren
Plaques d'éclairement profilées, simple paroi, en matiere plastique, pour toitures,
bardages et plafonds intérieurs et extérieurs — Exigences et méthodes d'essai
Ta slovenski standard je istoveten z: prEN 1013
ICS:
83.140.10 Filmi in folije Films and sheets
91.060.01 Stavbni elementi na splošno Elements of buildings in
general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
DRAFT
NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2007
ICS Will supersede EN 1013-1:1997, EN 1013-2:1998, EN
1013-3:1997, EN 1013-4:2000, EN 1013-5:2000
English Version
Light transmitting single skin profiled plastics sheets for internal
and external roofs, walls and ceilings - Requirements and test
methods
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 128.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the
same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2007 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 1013:2007: E
worldwide for CEN national Members.

Contents Page
Foreword.4
Introduction .4
1 Scope .4
2 Normative references .4
3 Terms and definitions .6
4 Symbols and abbreviations .6
4.1 Symbols .6
4.2 Abbreviations.6
5 Requirements.7
5.1 Visual appearance .7
5.2 Dimensional tolerances and mass per square metre .7
5.3 Light transmission.8
5.4 Flexural/tensile strength .8
5.5 Durability .9
5.6 Thermal ageing resistance (only for thermoplastic sheets) .10
5.7 Longitudinal reversion and profile retention (only for thermoplastic sheets) .10
5.8 Impact resistance.10
5.9 Resistance to deflection (mechanical resistance) .11
5.10 Water vapour permeability.11
5.11 Water/air permeability .11
5.12 Linear thermal expansion .12
5.13 Reaction to fire.12
5.14 External fire performance .13
5.15 Glass-fibre content (only for glass-fibre reinforced sheets).13
5.16 Barcol hardness (only for glass-fibre reinforced sheets) .13
5.17 Presence of protective coating .13
5.18 Adhesion of surface coating (only for glass-fibre reinforced sheets) .14
5.19 Resistance to fixings.14
6 Test methods.14
6.1 Dimensional tolerances .14
6.2 Light transmission.17
6.3 Artificial ageing test method .17
6.4 Yellowness index.18
6.5 Flexural/tensile strength .19
6.6 Thermal ageing resistance .19
6.7 Longitudinal reversion and profile retention .20
6.8 Impact resistance.22
6.9 Resistance to deflection .24
6.10 Reaction to fire.27
6.11 External fire performance .29
6.12 Glass-fibre content .30
6.13 Barcol hardness.30
6.14 Presence of protective coating .30
6.15 Adhesion of surface coating .33
7 Evaluation of conformity.34
7.1 General.34
7.2 Initial type testing .34
7.3 Factory production control (FPC) .36
8 Marking and labelling.39
Annex A (normative) Profile terminology.40
A.1 Non-sinusoidal profiles.40
A.2 Sinusoidal profile .41
A.3 Minimum information to be declared .41
Annex B (normative) Glass content by density of laminate.42
B.1 Determination of density of laminate constituents.42
B.2 Test specimens.42
B.3 Procedure.42
Annex ZA (informative) Clauses of this European Standard addressing the provisions of the EU
Construction Products Directive .44
ZA.1 Scope and relevant characteristics .44
ZA.2 Procedures for the attestation of conformity of light transmitting single skin profiled
plastics sheets.46
ZA.3 CE marking and labelling.49
Bibliography.52

Foreword
This document (prEN 1013:2007) has been prepared by Technical Committee CEN/TC 128 “Roof covering
products for discontinuous laying and products for wall cladding”, the secretariat of which is held by NBN.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 1013-1:1997, EN 1013-2:1998, EN 1013-3:1997, EN 1013-4:2000,
EN 1013-5:2000.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this document.
Introduction
This document describes the requirements and test methods for light transmitting single skin profiled plastics
sheets.
The physical properties of light transmitting single skin profiled plastics sheets differ from bituminous, metal
[1] [2] [3] [4] [5]
and fibre reinforced cement sheets, as defined in EN 534 , EN 506 , EN 508-1 , EN 508-2 , EN 508-3 or
[6]
EN 494 . They do not necessarily have the same span capabilities and alternative fixing specifications are
generally required.
Reference should be made to national regulations and manufacturer literature for requirements concerning
design, storage and installation, including all safety aspects, according to the material.
1 Scope
This document specifies the requirements for light transmitting single skin profiled plastics sheets for internal
and external walls, roofs and ceilings. It is applicable to single skin sheets which are used as a single layer or
when assembled to form multiple layer construction.
It also specifies the test methods and provides for the evaluation of conformity of the sheets.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
EN 59, Glass reinforced plastics — Measurement of hardness by means of a Barcol impressor
ENV 1187, Test methods for external fire exposure to roofs
EN 13501-1, Fire classification of construction products and building elements — Part 1: Classification using
test data from reaction to fire tests
EN 13501-5, Fire classification of construction products and building elements — Part 5: Classification using
test data from external fire exposure to roof tests
EN 13823, Reaction to fire tests for building products — Building products excluding floorings exposed to the
thermal attack by a single burning item
EN ISO 178, Plastics — Determination of flexural properties (ISO 178:1993)
EN ISO 472, Plastics — Vocabulary (ISO 472:1999)
EN ISO 527-1, Plastics —Determination of tensile properties — Part 1: General principles (ISO 527-1:1993)
EN ISO 527-2, Plastics — Determination of tensile properties — Part 2: Test conditions for moulding and
extrusion plastics (ISO 527-2:1993)
EN ISO 1043-1, Plastics — Symbols and abbreviated terms — Part 1: Basic polymers and their special
characteristics (ISO 1043-1:2001)
EN ISO 1043-2, Plastics — Symbols and abbreviated terms — Part 2: Fillers and reinforced materials (ISO
1043-2:2000)
EN ISO 1172:1999, Textile-glass-reinforced plastics — Prepregs, moulding compounds and laminates.
Determination of the textile-glass and mineral-filler content — Calcination methods (ISO 1172:1996)
EN ISO 4892-1:2000, Plastics — Methods of exposure to laboratory light sources — Part 1: General guidance
(ISO 4892-1:1999)
EN ISO 4892-2:1999, Plastics — Methods of exposure to laboratory light sources — Part 2: Xenon-arc
sources (ISO 4892-2:1994)
EN ISO 6603-1, Plastics — Determination of puncture impact behaviour of rigid plastics — Part 1:
Non-instrumented impact testing (ISO 6603-1:2000)
EN ISO 9001:2000, Quality management systems — Requirements (ISO 9001:2000)
EN ISO 11925-2, Reaction to fire tests — Ignitability of building products subjected to direct impingement of
flame — Part 2: Single-flame source test (ISO 11925-2)
EN ISO 12572, Hygrothermal performance of building materials and products — Determination of water
vapour transmission properties (ISO 12572:2001)
EN ISO 13468-1, Plastics — Determination of the total luminous transmittance of transparent materials —
Part 1: Single-beam instrument (ISO 13468-1:1996)
EN ISO 14125, Fibre-reinforced plastic composites — Determination of flexural properties (ISO 14125:1998)
ISO 11359-2, Plastics — Thermomechanical analysis (TMA) — Part 2: Determination of coefficient of linear
expansion and glass transition temperature for plastics
ISO 13468-2, Plastics — Determination of the total luminous transmittance of transparent materials —
Part 2: Double-beam instrument.
ISO/CIE 10526, CIE standard illuminants for colorimetry
ISO/CIE 10527, CIE standard colorimetric observers
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN ISO 472, EN ISO 1043-1,
EN ISO 1043-2 and Annex A and the following apply.
3.1
initial type testing
testing performed to demonstrate compliance with this document, and which is performed with the introduction
of a new product and/or a fundamental change in formulation and/or method of manufacture and/or change in
product design or whenever significant change of property can be expected
3.2
factory production control testing
testing performed on samples drawn either from continuous production or from a delivery, to establish whether
a batch of products conforms to this specification
3.3
yellowness
deviation in chroma from whiteness or water-whiteness in the dominant wavelength range from 570 nm to
580 nm
3.4
yellowness index
magnitude in yellowness relative to CIE standard illuminant D 65 (ISO/CIE 10526)
4 Symbols and abbreviations
4.1 Symbols
A class for the exposure to artificial ageing
n
E total radiant energy applied during ageing
I class for the impact resistance
n
YI yellowness index of a test specimen exposed to ageing
YI yellowness index of a test specimen unexposed to ageing
∆YI change of the yellowness index after ageing
4.2 Abbreviations
FPC factory production control
GRA glass-fibre reinforced acrylic (PMMA)
GRP glass-fibre reinforced polyester
ITT initial type testing
PC polycarbonate
PET poly(ethylene terephthalate)
PMMA poly(methyl methacrylate)
PVC-U unplasticized poly(vinyl chloride)
PVF poly(vinyl fluoride)
5 Requirements
5.1 Visual appearance
Both sides of the sheets shall be of regular appearance. Visual or tactile examination shall reveal no evidence
of any hole, cracking, splitting or cluster of bubbles greater than 1 mm in diameter, or inclusions that are likely
to affect properties. For GRP sheets, any defects such as resin ribs, glass folds or glass knots shall not
exceed 5 mm in size.
The edges of the sheet shall be straight and clean.
Further requirements concerning the visual aspects of the sheets are to be agreed upon between the
manufacturer and the customer.
The manufacturer may declare the sheet as diffusing or non diffusing depending on whether the image of an
object placed 1 m behind the sheet appears blurred or sharp, respectively.
5.2 Dimensional tolerances and mass per square metre
The dimensional tolerances and mass per square metre shall be assessed when subject to regulatory
requirement and may be assessed otherwise.
When measured in accordance with the test methods as specified in Table 1, the dimensional tolerances and
mass per square metre of the sheets shall conform to the requirements given in Table 1.
The test methods given in Table 1 are used for initial type testing, and are the reference test methods. The
manufacturer may choose any method for factory production control purposes provided that it is sufficiently
accurate to ensure that the dimensions of the products meet the requirement of this document.
Table 1 — Dimensional tolerances and mass per square metre requirements
Test
Characteristic Requirement
method
The manufacturer shall declare the nominal thickness of the
profiled sheet. The mean value of the thickness of the profiled
sheet shall not vary by more than ± 10 % of this value.
Sheet thickness 6.1.4
The sheet thickness at any point of a sheet including crown, trough
and sides of corrugation shall not vary by more than ± 20 % from
the nominal thickness of the profiled sheet, declared by the
manufacturer.
Manufacturers shall control the mass per square metre of the
material in flat form, prior to profiling, which is the reference value.
Manufacturers shall declare this value, and may also declare the
Mass per square mass per linear metre of profiled sheet, which can be calculated
6.1.5
metre from the mass per square metre of the material in flat form.
The mean value of the mass per square metre shall not vary by
more than ± 10 % of the nominal mass per square metre declared
by the manufacturer.
The measured cover width shall be within ± 0,8 % of the nominal
Cover width 6.1.6
cover width as declared by the manufacturer.
When it is intended that the profile of the sheets shall match the
Shape of the sheet shape of a dissimilar material (e.g. metal or fibre cement), the
6.1.7
profile shape of the profile shall match the nominal shape with a maximum
tolerance (deviation) at any point of 4 mm.
The sheet length shall be within the interval from:
0 mm to + 20 mm of the sheet length as declared by the
Sheet length 6.1.8
manufacturer, for sheet length up to 2,5 m;
0 % to + 0,8 % for sheet length greater than 2,5 m.
The sheet straightness shall be less than or equal to 2,0 mm/m
Sheet straightness 6.1.9
length.
Squareness of a The out of squareness of a sheet shall be less than or equal to
6.1.10
sheet 0,5 % of the cover width as declared by the manufacturer.

5.3 Light transmission
The total luminous transmittance shall be determined by testing five samples in accordance with 6.2 and
calculating the mean value. The manufacturer shall declare the total luminous transmittance based on the
mean value and the mean value of subsequent measurements shall be within ± 5 % of the declared value.
5.4 Flexural/tensile strength
The flexural/tensile strength shall be assessed when subject to regulatory requirement and may be assessed
otherwise.
The flexural strength and flexural modulus or the tensile strength and Young's modulus, as applicable, of the
material of the sheets shall be measured in accordance with 6.5.
The manufacturer shall declare the flexural strength and flexural modulus or the tensile strength and Young's
modulus, as applicable, based on the mean values and any subsequent measurement shall be a minimum of
80 % of the declared value.
5.5 Durability
5.5.1 General
The durability shall be assessed when subject to regulatory requirement and may be assessed otherwise.
The durability of profiled sheets shall be demonstrated by testing the variations after artificial ageing of the
yellowness index, light transmission and flexural/tensile strength and declaring the results according to 5.5.3,
5.5.4 and 5.5.5, respectively.
5.5.2 Artificial ageing performance
Artificial ageing shall be carried out in accordance with 6.3 using one or more of the classes given in Table 2.
Table 2 — Artificial ageing classification
Global irradiance
Class (300 nm to 3 000 nm)
GJ/m
18 ≤ E
A
A 10 ≤ E < 18
A
2 6 ≤ E < 10
A
3 4 ≤ E < 6
5.5.3 Variation of the yellowness index after artificial ageing
Variation of the yellowness index after artificial ageing shall be assessed when subject to regulatory
requirement and may be assessed otherwise.
The yellowness index shall be measured in accordance with 6.4. The manufacturer shall declare the amount
of variation in yellowness for each of the classes of Table 2 he applies. The manufacturer may declare the
performance at class A , but shall only declare the performance at higher classes of exposure provided that
the yellowness index does not change by more than 20 units at any higher class(es) declared.
5.5.4 Variation of the light transmission after artificial ageing
Variation of the light transmission after artificial ageing shall be assessed when subject to regulatory
requirement and may be assessed otherwise.
The total luminous transmittance shall be measured in accordance with 6.2.
The manufacturer shall declare the variation of the total luminous transmission for each of the classes of
Table 2 he applies, defined as the percentage reduction in the light transmission of an unaged sample:
variation of total luminous transmission = light transmission of unaged sample - light transmission of aged sample
light transmission of unaged sample

The manufacturer may declare the performance at class A , but shall only declare the performance at higher
classes of exposure provided that the variation of the total luminous transmission is not greater than 20% at
any higher class(es) declared.
5.5.5 Variation of the flexural/tensile strength after ageing
The variation of the flexural/tensile strength after ageing shall be assessed when subject to regulatory
requirement and may be assessed otherwise.
The variation of properties after ageing shall be determined by assessing the variations of either the flexural
strength and flexural modulus by a bending test, or the tensile strength and Young's modulus by a tensile test,
according to 6.5.
The percentage reductions of the flexural/tensile strength and flexural/Young’s modulus between unexposed
test specimens and test specimens aged at the maximum exposure declared for variation of yellowness index
and variation of total luminous transmittance shall then be expressed within the ranges ≤ 10%, > 10 % to ≤
20 %, > 20 % to ≤ 30 %, or > 30 %.
5.6 Thermal ageing resistance (only for thermoplastic sheets)
The thermal ageing resistance of thermoplastic sheets shall be determined by assessing the variations of the
total luminous transmittance, yellowness index and flexural/tensile strength, before and after exposure to dry
heat according to 6.6.
The manufacturer shall declare the variation of each property (yellowness index, light transmission, and
flexural/tensile strength, measured in accordance with 6.4, 6.2 and 6.5 respectively) defined as the
percentage reduction compared to an unaged sample:
variation = value of unaged sample value of aged sample
value of unaged sample
5.7 Longitudinal reversion and profile retention (only for thermoplastic sheets)
When tested in accordance with 6.7, the mean variations in dimensions of the sheet shall not exceed ± 2 %
for the longitudinal reversion and ± 3 % for the profile retention.
Where the conditions of use may lead to these figures being exceeded, the manufacturer’s documentation
shall give guidance.
5.8 Impact resistance
The impact resistance shall be assessed when subject to regulatory requirement and may be assessed
otherwise.
The impact resistance shall be measured in accordance with 6.8 and the sheets shall be classified as follows:
 I for sheets which pass the test result as specified in 6.8.6,
 I for sheets which do not pass the test result as specified in 6.8.6.
5.9 Resistance to deflection (mechanical resistance)
5.9.1 Resistance to deflection
The resistance to deflection shall be assessed when subject to regulatory requirement and may be assessed
otherwise.
The resistance to deflection shall be evaluated by determining according to 6.9 the deflection of an unfixed
sheet of the nominal thickness declared by the manufacturer as measured in 6.1.4. The bending stiffness of
the sheet, (EI) , after 6 min shall be declared by the manufacturer.
Test
NOTE The performance of sheets when installed is not covered by this document. Information can be found in
[7]
manufacturers' documentation. Appropriate test methods are included in ETAG 010 .
5.9.2 Material stiffness factor
The stiffness factor of the material (in N.m) can be defined as E x t
where
E is the flexural modulus as defined in 5.4, in pascals,
t is the nominal thickness of the sheet, in metres.
The deflection of a sheet of any given profile can be assumed to be approximately proportional to the material
stiffness factor.
5.10 Water vapour permeability
The water vapour permeability coefficient shall be assessed when subject to regulatory requirement and may
be assessed otherwise.
The manufacturer may declare the value of the water vapour permeability coefficient of the sheet material
according to Table 3. When the manufacturer wishes to declare a higher performance, the water vapour
permeability coefficient of the material used for the sheet shall be determined according to EN ISO 12572.
Table 3 — Typical values for water vapour permeability coefficient
Reference value
Material
mg/(m.h.Pa)
-5
GRA 3,8 x 10
-5
GRP 1,5 x 10
-5
PC 3,8 x 10
-5
PVC-U 0,8 x 10
-5
PMMA 3,8 x 10
5.11 Water/air permeability
The water/air permeability shall be assessed when subject to regulatory requirement and may be assessed
otherwise.
All plastics sheets covered by this document are deemed to satisfy the water/air permeability requirement
without the need for testing provided that there are no defects in the sheets. The absence of defects shall be
evaluated by examination of visual appearance according to 5.1.
5.12 Linear thermal expansion
The linear thermal expansion shall be assessed when subject to regulatory requirement and may be assessed
otherwise.
The manufacturer may declare the value of the coefficient of linear thermal expansion of the sheet material
according to Table 4. When the manufacturer wishes to declare a higher performance or to use an other
material, the thermal expansion coefficient of the material used for the sheet shall be determined according to
EN ISO 11359-2.
Table 4 — Reference values for the coefficient of linear thermal expansion
Reference value
Material
-1
K
a -6
GRA 26 x 10
a -6
GRP 30 x 10
-6
PC 65 x 10
-6
PMMA 70 x 10
-6
PVC-U 67 x 10
a
Chopped glass-fibre laminates with a glass-fibre content of 25 % to 40 %.

5.13 Reaction to fire
The reaction to fire shall be assessed when subject to regulatory requirement and may be assessed otherwise.
The reaction to fire performance of light transmitting profiled sheets shall be determined in accordance with
6.10 and declared by the manufacturer according to EN 13501-1.
Test samples shall be the same weight/thickness as the final product. Where there is a range of thicknesses
of product, the manufacturer can test 2 (or more) thicknesses of sample, and the poorer of the two results can
be applied to all products between the two thicknesses tested. Test results shall not be assumed to apply to
products thicker than the thickest sample tested, or thinner than the thinnest sample tested.
Test results on flat samples can be applied to all profiles within the product range provided the effect of the
profile does not add more than 30 % additional material.
Where the effect of the profile adds more than 30 % material, the thickness of the test sample shall be
increased to ensure the difference in material mass between the test sample and profiled sheet is less than
30 %.
Where the product has no surface protection on the inner surface of the product, or where the surface
protection on this surface is a co-extrusion of the same base material, or is less than 75 µm thick, then
samples can be tested either with or without this surface protection. The test results achieved can be applied
both to products with or without such surface protection.
Where the product has a surface protection which is not co-extruded of a similar material and is more than
75 µm thick, it shall be present on the specimens tested, and the results will only apply to specimens with
such surface protection.
5.14 External fire performance
The external fire performance shall be assessed when subject to regulatory requirement and may be
assessed otherwise.
The external fire performance of light transmitting profiled sheets shall be determined in accordance with 6.11
and declared by the manufacturer according to EN 13501-5.
Test samples shall be the same weight/thickness as the final product. Where there is a range of thicknesses
of product, the manufacturer can test 2 (or more) thicknesses of sample, and the poorer of the two results can
be applied to all products between the two thicknesses tested. Test results shall not be assumed to apply to
products thicker than the thickest sample tested, or thinner than the thinnest sample tested.
Material shall be tested as flat sheets for Test 2 of ENV 1187, and/or profiled sheets (with cover width 1 metre,
depth 30 mm to 35 mm and pitch 200 mm to 250 mm) for Tests 1, 3 and 4 of ENV 1187. Test results on these
samples can be applied to all profiles within the product range, provided the effect of the profile does not add
more than 30 % additional material.
Where the effect of the profile adds more than 30 % material, the thickness of the test sample shall be
increased to ensure the difference in material mass between the test sample and profiled sheet is less than
30 % (Test 2 of ENV 1187), or the profile tested shall be selected to ensure the difference in material mass
between the test sample and profiled sheet is less than 30 % (Tests 1, 3 and 4 of ENV 1187).
Samples shall be tested with the same surface protection as used on the external surface of the product.
However, where this surface protection is a coextrusion of the same base material, or is less than 75 µm thick,
then the test results can be applied to products which do not have any surface protection or which incorporate
alternative surface protection up to 75 µm thick.
Where the product has a surface protection which is not co-extruded of a similar material and is more than
75 µm thick, it shall be present on the specimens tested, and the results will only apply to specimens with
such surface protection.
5.15 Glass-fibre content (only for glass-fibre reinforced sheets)
When tested in accordance with 6.12 the minimum glass-fibre content shall be declared by the manufacturer.
5.16 Barcol hardness (only for glass-fibre reinforced sheets)
When tested in accordance with 6.13 the arithmetical mean of Barcol hardness after the exposure to the dry
environment shall not increase by more than 10 % of its initial value.
NOTE This test is performed only to check that the cure of the resin is correct during the production.
5.17 Presence of protective coating
5.17.1 Protective coating on GRP/GRA sheets
The presence of a protective coating on GRP/GRA sheets shall be confirmed in accordance with 6.14.1. The
effects of the immersion of the specimens according to the nature of the coating are given in Table 5.
Table 5 — Surface coatings
Protective coating Effect of the immersion
No change to surface integrity, no visible glass-fibres,
Poly(vinyl fluoride) (PVF) films original degree of gloss maintained, some discoloration may
occur as a result of oxidation of UV additives.
Gel coats Slight matt finish, no exposed glass-fibre.
Poly(ethylene terephthalate) (PET) films White residue coating.

5.17.2 Thickness of UV protection layer on PC sheets
The manufacturer shall declare the thickness of the UV-protection layer.
When tested in accordance with 6.14.2, the thickness of the UV protection layer shall not be less that the
declared value.
5.17.3 UV protection on PVC-U sheets
The manufacturer shall declare either the thickness of the UV protection layer or the content of the UV
protective material.
When tested in accordance with 6.14.3.2, the thickness of the UV protection layer shall not be less that the
declared value.
When tested in accordance with 6.14.3.3, the content of the UV protective material shall not be less that the
declared value.
5.17.4 Durability of coating
These tests confirm the presence of surface coatings only. The durability of such coatings shall be
demonstrated by testing the variations after artificial ageing of the yellowness index and total luminous
transmittance (see 5.4.1).
5.18 Adhesion of surface coating (only for glass-fibre reinforced sheets)
When tested in accordance with 6.15, the adhesion of surface coating shall be considered satisfactory when
the coating cannot be pried up (raised up) or peeled on a length more than 3 mm.
5.19 Resistance to fixings
The manufacturer shall declare the method(s) of fixing with the product.
6 Test methods
6.1 Dimensional tolerances
6.1.1 General
The measurements shall be carried out either at an ambient temperature of (20 ± 5) °C or when it is not
possible a correction factor according to 5.12 shall be applied from the test temperature to 20 °C.
In case of rolls, the measurements are carried out on 10 pitches minimum or 1,5 m and the results are used to
determine the width and the shape of the profile.
The sheet is held in contact with a loading bar weighing 2,45 kg/m (30 mm loading width).
All tolerances shall apply to the values declared by the manufacturer.
6.1.2 Apparatus
6.1.2.1 Micrometer, capable of measuring to an accuracy of 0,01 mm, with hemispherical anvils of 5 mm
in diameter.
6.1.2.2 Three supports for the test piece.
6.1.2.3 Rigid template, corresponding to the shape of the sheet, given by the manufacturer, extending
beyond the full width of the sheet on each side, if necessary.
6.1.2.4 Measuring tape, capable of measuring the full length of the test piece to an accuracy of 1,0 mm.
6.1.2.5 Rectangular frame with vertical side and edge perpendicular to each other, accurate to 1 mm/m
width.
6.1.2.6 Short metal ruler, capable of measuring to an accuracy of 0,5 mm.
6.1.2.7 Metal straight edge, 2 metres long, the straightness of which is accurate to 0,5 mm.
6.1.2.8 Loading bar weighing 2,45 kg/m (30 mm loading width).
6.1.3 Test pieces
The test pieces shall be complete sheets, as delivered.
6.1.4 Sheet thickness
Sheet thickness shall be checked by nine measurements taken at random in the crowns, troughs and sides of
corrugation across the total sheet width at a distance of 20 mm from the one end. First and last
measurements to be within 25 mm of the sheet edges.
Record the nine values and calculate the mean of the nine recorded values to the nearest 0,01 mm.
6.1.5 Mass per square metre
The reference test method is to measure the weight of a full width sample of profiled sheet, approximately 1
metre length, to the nearest gram.
The ‘extended’ width of the profiled sample may be measured by:
 applying a piece of non-stretching tape (e.g. masking tape or glass filament tape) to the top surface
of the sample, perpendicular to the corrugations, ensuring it is in direct contact with the sample
surface across the whole width;
 mark the position of the edges of the sample sheet on the tape;
 remove the tape and apply to a flat surface;
 measure the distance between the two marks.
The overall width of the sample may be measured (between the 2 outer edges) to the nearest mm.
The length of the sample shall be measured (to the nearest mm) along both edges, and the mean calculated.
The reference value is the mass per square metre of the material in flat form, which shall be calculated as
follows:
Mass per square metre in flat form =  mass of the sample
(‘extended’ width x length) of the sample

Where a manufacturer declares the mass per linear metre of profiled sheet, this shall be calculated as follows:
Mass per linear metre of profiled sheet =  mass of the sample
length of the sample
Where a manufacturer declares the mass per square metre of profiled sheet, this shall be calculated as
follows:
Mass per square metre of profiled sheet =  mass of the sample
(overall width x length) of the sample

6.1.6 Cover width of a sheet
Position the upper template over the outer corrugation only, and use this to define the centre of the crown of
the corrugation; mark this on the test piece.
Repeat this operation at the other side of the sheet.
Measure the distance between the centre of the crown of the outer two corrugations.
The results shall be expressed as follows: the three values obtained at the middle and at both ends,
expressed in mm, to the nearest mm.
6.1.7 Shape of the sheet profile
The reference test method is to check the shape of the profile using a rigid template. Ensure the test piece is
held flat using the weighting bar and bring a rigid template (the same shape as the profile) into gentle contact
with the test piece. Check the gap between the test piece and the template at all points across the width of the
profile by trying to insert an appropriate diameter measuring bar between the test piece and the template.
With some processes (e.g. extrusion of thermoplastics) “rounding” or distortion of the profile does not occur,
and with these processes it may be possible to confirm the profile shape is correct simply by checking the
main dimensions of the corrugation (pitch, depth and width of crown and trough).
6.1.8 Sheet length
Measure, to the nearest mm, the total length of the sheet along both edges, record the values so obtained.
The results shall be expressed as follows: the mean of the two values, expressed in mm, to the nearest
millimetre.
6.1.9 Sheet straightness
Place the long straight rule along the two edges, and measure with the small ruler to the nearest 0,5 mm, the
maximum distance between the rule and the edge of the sheet, record the obtained value for each side of the
test piece.
The results shall be expressed as follows: the values of both lateral edges, expressed in mm, to the nearest
0,5 mm.
6.1.10 Squareness of a sheet
Place the test piece onto the rectangular frame. Push the test piece against the end of the frame, whilst
keeping the side of the test piece aligned with the side of the frame. Measure the maximum distance between
the end of the test piece and the square end of the rectangular frame, to an accuracy of 0,5 mm. Record in
mm/m width.
Repeat this operation at the other end of the sheet.
The results shall be expressed as follows: the values of both ends, expressed in mm/m, to the nearest 0,5 mm.
6.2 Light transmission
The total luminous transmittance of the sheet shall be determined in accordance with EN ISO 13468-1 or
ISO 13468-2 using five test specimens.
Alternative test methods may be used as factory production control provided that correlation of results with
EN ISO 13468-1 or ISO 13468-2 can be demonstrated.
6.3 Artificial ageing test method
Artificial ageing shall be carried out according to EN ISO 4892-2:1999 method A with the following conditions:
 spectral distribution as detailed in Table 1 of EN ISO 4892-2:1999,
 air temperature: (32 ± 2) °C,
 black standard temperature (BST): (65 ± 3) °C,
 relative humidity: (65 ± 10) % HR,
 time of spraying: 18 min and dry interval between spray
...
