kSIST FprEN 14566:2017
(Main)Mechanical fasteners for gypsum board systems - Definitions, requirements and test methods
Mechanical fasteners for gypsum board systems - Definitions, requirements and test methods
This European Standard specifies the characteristics and performance of mechanical fasteners made of steel, including nails, screws and staples, intended to be used for the fixing of gypsum board in accordance with EN 520, gypsum boards with fibrous reinforcement in accordance with EN 15283-1 and EN 15283-2, composite panels according to EN 13950, products from secondary processing in accordance with EN 14190 and suitable ancillary products, to timber and metal, as appropriate, in building construction works. The fasteners secure the board to the framing enabling its surface to be finished by jointing or plastering to receive decoration. They can also be used for the construction of the framing and for the connection between substructure and load bearing components and for fixing boards together.
This European Standard covers the following product performance characteristics: reaction to fire and flexural strength to be measured according to the corresponding European test methods.
It provides for the evaluation of conformity of the product to this European Standard.
This European Standard also covers the additional technical characteristics that are of importance for the use and acceptance of the products by the construction industry and the reference tests for these characteristics.
This European Standard does not cover nails, screws and staples intended for use with materials other than gypsum board and the gypsum based products referred to above and their associated system components.
Mechanische Befestigungsmittel für Gipsplattensysteme - Begriffe, Anforderungen und Prüfverfahren
Diese Europäische Norm legt die Eigenschaften und Leistung von mechanischen Befestigungsmitteln aus Stahl, einschließlich Nägeln, Schrauben und Klammern fest, die in Bauwerken zur Befestigung von Gipsplatten nach EN 520, faser¬verstärkten Gipsplatten nach EN 15283-1 und EN 15283-2, Gips-Verbundplatten zur Wärme- und Schalldämmung nach EN 13950, Produkten aus der Weiterverarbeitung nach EN 14190 und geeigneten Nebenprodukten, auf Holz oder Metall, wie zutreffend, vorgesehen sind. Die Befestigungsmittel sichern die Platten auf der Unterkonstruktion und ermöglichen so, dass die mit Spachtel oder Putzauftrag versehenen Oberflä¬chen gestrichen oder tapeziert werden können. Sie können auch zum Zusammenbau der Unterkonstruktion und für die Verbindung zwischen Unterkonstruktion und lasttragenden Teilen sowie zur Verbindung von Platten untereinander verwendet werden.
Diese Europäische Norm behandelt die folgenden Produkt-Leistungsmerkmale: Brandverhalten und Biege-festigkeit, die mit den entsprechenden europäischen Prüfverfahren zu bestimmen sind.
Sie legt die Bewertung der Konformität der von dieser Europäischen Norm erfassten Produkte fest.
Diese Europäische Norm behandelt auch die zusätzlichen technischen Eigenschaften, die für die Anwendung und Akzeptanz der Produkte durch die Bauwirtschaft wichtig sind, und enthält die Referenzprüfverfahren für diese Eigen¬schaften.
Diese Europäische Norm gilt nicht für Nägel, Schrauben und Klammern, die für die Verarbeitung anderer Bau-stoffe als die oben erwähnten Gipsplatten oder Produkte auf Gipsbasis und der zugehörigen System-Komponenten verwendet werden.
Fixations mécaniques pour systèmes en plaques de plâtre - Définitions, spécifications et méthodes d'essai
La présente Norme européenne définit les caractéristiques et les performances des fixations mécaniques en acier, telles que des clous, des vis et des agrafes, destinées à être utilisées pour fixer les plaques de plâtre conformes à l'EN 520, les plaques de plâtre armées de fibres conformes aux EN 15283-1 et EN 15283-2, les complexes conformes à l'EN 13950, les produits obtenus par transformation secondaire conformes à l'EN 14190 ainsi que les produits accessoires appropriés, sur des ossatures en bois de construction et en métal, le cas échéant, dans les ouvrages de construction. Les fixations maintiennent la plaque de plâtre sur l’ossature, permettant ainsi à sa surface de recevoir une finition par jointoiement ou enduisage avant d’être décorée. Elles peuvent également servir à la construction de l’ossature et à la liaison entre l’infrastructure et les éléments porteurs ainsi qu’à la fixation des plaques entre elles.
La présente Norme européenne couvre les caractéristiques suivantes de performance des produits : réaction au feu et résistance à la flexion qui doivent être mesurées selon les méthodes d’essai européennes correspondantes.
Elle prévoit l’évaluation de la conformité du produit à la présente Norme européenne.
La présente Norme européenne couvre également les caractéristiques techniques supplémentaires qui sont importantes pour l’utilisation et l’acceptation des produits par l’industrie du bâtiment, ainsi que les essais de référence relatifs à ces caractéristiques.
La présente Norme européenne ne couvre pas les clous, vis et agrafes destinés à être utilisés avec des matériaux autres que les plaques de plâtre et les produits à base de plaques de plâtre mentionnés ci-dessus et les éléments associés correspondants.
Mehanska pritrdilna sredstva za sisteme mavčnih plošč - Definicije, zahteve in preskusne metode
General Information
Relations
Standards Content (Sample)

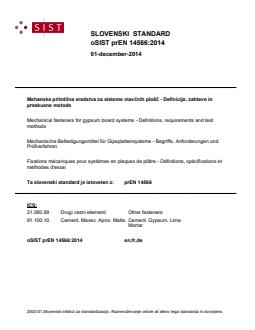

SLOVENSKI STANDARD
oSIST prEN 14566:2014
01-december-2014
0HKDQVNDSULWUGLOQDVUHGVWYD]DVLVWHPHPDYþQLKSORãþ'HILQLFLMH]DKWHYHLQ
SUHVNXVQHPHWRGH
Mechanical fasteners for gypsum board systems - Definitions, requirements and test
methods
Mechanische Befestigungsmittel für Gipsplattensysteme - Begriffe, Anforderungen und
Prüfverfahren
Fixations mécaniques pour systèmes en plaques de plâtre - Définitions, spécifications et
méthodes d'essai
Ta slovenski standard je istoveten z: prEN 14566
ICS:
21.060.99 Drugi vezni elementi Other fasteners
91.100.10 Cement. Mavec. Apno. Malta Cement. Gypsum. Lime.
Mortar
oSIST prEN 14566:2014 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
oSIST prEN 14566:2014
---------------------- Page: 2 ----------------------
oSIST prEN 14566:2014

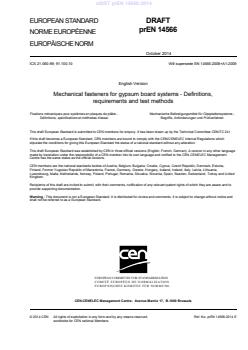

EUROPEAN STANDARD
DRAFT
prEN 14566
NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2014
ICS 21.060.99; 91.100.10 Will supersede EN 14566:2008+A1:2009
English Version
Mechanical fasteners for gypsum board systems - Definitions,
requirements and test methods
Fixations mécaniques pour systèmes en plaques de plâtre - Mechanische Befestigungsmittel für Gipsplattensysteme -
Définitions, spécifications et méthodes d'essai Begriffe, Anforderungen und Prüfverfahren
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 241.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2014 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 14566:2014 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
oSIST prEN 14566:2014
prEN 14566:2014 (E)

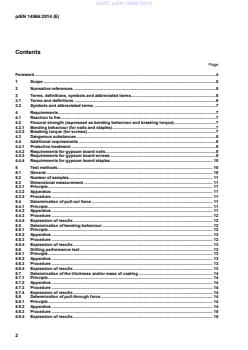

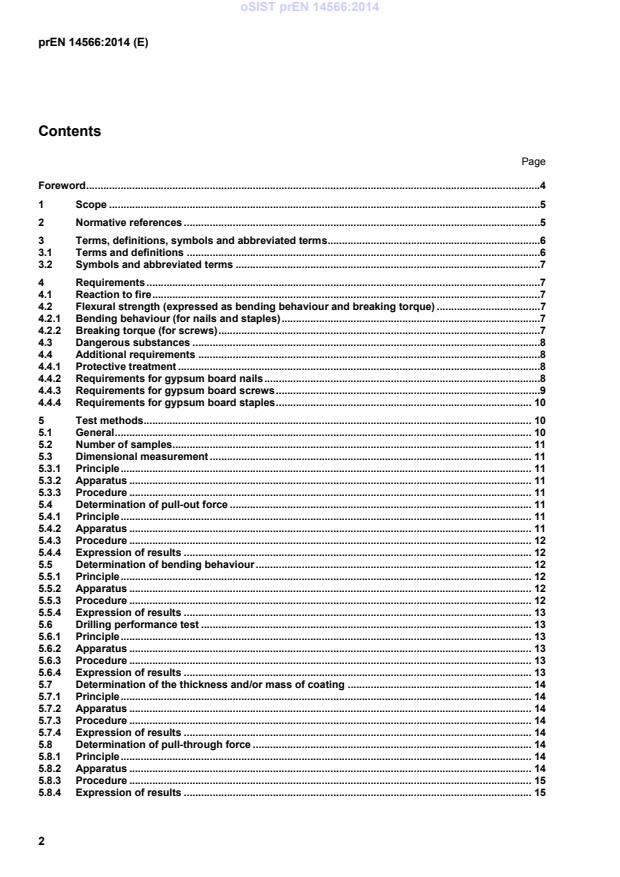

Contents
Page
Foreword .4
1 Scope .5
2 Normative references .5
3 Terms, definitions, symbols and abbreviated terms .6
3.1 Terms and definitions .6
3.2 Symbols and abbreviated terms .7
4 Requirements .7
4.1 Reaction to fire .7
4.2 Flexural strength (expressed as bending behaviour and breaking torque) .7
4.2.1 Bending behaviour (for nails and staples) .7
4.2.2 Breaking torque (for screws) .7
4.3 Dangerous substances .8
4.4 Additional requirements .8
4.4.1 Protective treatment .8
4.4.2 Requirements for gypsum board nails .8
4.4.3 Requirements for gypsum board screws .9
4.4.4 Requirements for gypsum board staples . 10
5 Test methods . 10
5.1 General . 10
5.2 Number of samples. 11
5.3 Dimensional measurement . 11
5.3.1 Principle . 11
5.3.2 Apparatus . 11
5.3.3 Procedure . 11
5.4 Determination of pull-out force . 11
5.4.1 Principle . 11
5.4.2 Apparatus . 11
5.4.3 Procedure . 12
5.4.4 Expression of results . 12
5.5 Determination of bending behaviour . 12
5.5.1 Principle . 12
5.5.2 Apparatus . 12
5.5.3 Procedure . 12
5.5.4 Expression of results . 13
5.6 Drilling performance test . 13
5.6.1 Principle . 13
5.6.2 Apparatus . 13
5.6.3 Procedure . 13
5.6.4 Expression of results . 13
5.7 Determination of the thickness and/or mass of coating . 14
5.7.1 Principle . 14
5.7.2 Apparatus . 14
5.7.3 Procedure . 14
5.7.4 Expression of results . 14
5.8 Determination of pull-through force . 14
5.8.1 Principle . 14
5.8.2 Apparatus . 14
5.8.3 Procedure . 15
5.8.4 Expression of results . 15
2
---------------------- Page: 4 ----------------------
oSIST prEN 14566:2014
prEN 14566:2014 (E)
5.9 Breaking torque . 15
5.9.1 Principle. 15
5.9.2 Apparatus . 15
5.9.3 Procedure . 16
5.9.4 Expression of results . 16
6 Assessment and verification of constancy of performance . 16
6.1 General . 16
6.2 Type testing . 17
6.2.1 General . 17
6.2.2 Determination of the product type . 17
6.2.3 Further type testing . 17
6.3 Factory production control (FPC) . 17
6.3.1 General . 17
6.3.2 Personnel . 17
6.3.3 Equipment . 18
6.3.4 Raw materials and components . 18
6.3.5 Product testing and evaluation . 18
6.3.6 Traceability and marking . 18
6.3.7 Non-complying products . 18
6.3.8 Corrective action . 18
6.3.9 Other test methods . 18
7 Designation . 19
7.1 Nails . 19
7.2 Screws . 19
7.3 Staples . 19
8 Marking, labelling and packaging . 19
Annex A (informative) Examples of fixing types. 20
Annex B (informative) Sampling procedure for testing . 23
B.1 General . 23
B.2 Sampling procedure . 23
B.2.1 General . 23
B.2.2 Random sampling . 23
B.2.3 Representative sampling . 23
Annex ZA (informative) Clauses of this European Standard addressing the provisions of the EU
Construction Products Regulation . 24
ZA.1 Scope and relevant characteristics . 24
ZA.2 Procedure for AVCP of mechanical fasteners . 25
ZA.2.1 System of AVCP . 25
ZA.2.2 Declaration of performance (DoP) . 28
ZA.3 CE marking and labelling. 30
Bibliography . 32
3
---------------------- Page: 5 ----------------------
oSIST prEN 14566:2014
prEN 14566:2014 (E)
Foreword
This document (prEN 14566:2014) has been prepared by Technical Committee CEN/TC 241 “Gypsum and
gypsum based products”, the secretariat of which is held by AFNOR.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 14566:2008+A1:2009.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this document.
4
---------------------- Page: 6 ----------------------
oSIST prEN 14566:2014
prEN 14566:2014 (E)
1 Scope
This European Standard specifies the characteristics and performance of mechanical fasteners made of steel,
including nails, screws and staples, intended to be used for the fixing of gypsum board in accordance with
EN 520, gypsum boards with fibrous reinforcement in accordance with EN 15283-1 and EN 15283-2,
composite panels according to EN 13950, products from secondary processing in accordance with EN 14190
and suitable ancillary products, to timber and metal, as appropriate, in building construction works. The
fasteners secure the board to the framing enabling its surface to be finished by jointing or plastering to receive
decoration. They can also be used for the construction of the framing and for the connection between
substructure and load bearing components and for fixing boards together.
This European Standard covers the following product performance characteristics: reaction to fire and flexural
strength to be measured according to the corresponding European test methods.
It provides for the evaluation of conformity of the product to this European Standard.
This European Standard also covers the additional technical characteristics that are of importance for the use
and acceptance of the products by the construction industry and the reference tests for these characteristics.
This European Standard does not cover nails, screws and staples intended for use with materials other than
gypsum board and the gypsum based products referred to above and their associated system components.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
EN 338, Structural timber — Strength classes
EN 520, Gypsum plasterboards — Definitions, requirements and test methods
EN 10230-1, Steel wire nails — Part 1: Loose nails for general applications
EN 10346, Continuously hot-dip coated steel flat products — Technical delivery conditions
EN 13950, Gypsum plasterboard thermal/acoustic insulation composite panels — Definitions, requirements
and test methods
EN 14190, Gypsum plasterboard products from reprocessing — Definitions, requirements and test methods
EN 14195, Metal framing components for gypsum plasterboard systems — Definitions, requirements and test
methods
EN 14592, Timber structures — Dowel-type fasteners — Requirements
EN 15283-1, Gypsum boards with fibrous reinforcement. Definitions, requirements and test methods. Gypsum
boards with mat reinforcement
EN 15283-2, Gypsum boards with fibrous reinforcement. Definitions, requirements and test methods. Gypsum
fibre boards
EN ISO 2702:2011, Heat-treated steel tapping screws — Mechanical properties
EN ISO 9001:2000, Quality management system — Requirements (ISO 9001:2000)
EN ISO 9227, Corrosion tests in artificial atmospheres — Salt spray tests (ISO 9227:2006)
EN ISO 12777-1:2008, Methods of test for pallet joints — Part 1: Determination of bending resistance of pallet
nails, other dowel-type fasteners and staples (ISO 12777-1:1994 + Amd 1:2008)
5
---------------------- Page: 7 ----------------------
oSIST prEN 14566:2014
prEN 14566:2014 (E)
3 Terms, definitions, symbols and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1.1
gypsum board nail
corrosion resistant steel wire nail with purpose made head, shank and point
Note 1 to entry: Nails can vary in head profile, material and level of corrosion resistance. See Table 3 and Table A.1.
3.1.2
gypsum board screw
screw used without pilot holes for the assembly of gypsum board systems
Note 1 to entry: Screws which go directly into gypsum board usually have a trumpet head. They are straight and free
from burrs and capable of being driven by a power operated screwdriver. See Table A.2.
3.1.3
head
wide part of nail or screw used to drive the nail or screw into the materials to be joined
Note 1 to entry: The head of nails can be one of two types according to function (see Table A.1). The surface can be
smooth or chequered. The head of screws can be domed, flat or concave depending upon its use (see Table A.2).
3.1.4
point
sharp end opposite to the head which first penetrates the materials to be joined
Note 1 to entry: The style and shape of the nail point is formed to permit entry and penetration of the timber.
3.1.5
shank
connection between the head and the point
Note 1 to entry: Nails have a straight shank. The diameter of the round shank can vary according to length, function
and thickness of the corrosion resistant treatment. It may be plain, have indentations, be annular ring rolled or may be
separately treated to improve resistance to withdrawal.
3.1.6
thread
spiral extension to the shank of specific pitch and diameter appropriate to its function and use
Note 1 to entry: The thread may be of single or multiple lead design.
3.1.7
gypsum board staple
double right angle, fastener, made from round, oval, square or rectangular wire, with two legs (shanks) usually
of the same length connected by its crown (head) with the tips inclined, see Table A.4
Note 1 to entry: Staples are U shaped, neatly formed and free from defects. Staples can be resin coated to increase
withdrawal strength. The legs are straight and parallel and can be designed, in conjunction with the tip, to provide
additional holding power when driven into substrate. The style and shape of the tips permit entry and guide and control the
line and shape of the penetration of the timber or substrate. The tips have an inclined plane on one or both sides.
6
---------------------- Page: 8 ----------------------
oSIST prEN 14566:2014
prEN 14566:2014 (E)
3.2 Symbols and abbreviated terms
For the purpose of simplification in product marking and performance information characteristics may be
identified through the symbols and abbreviations given in Table 1.
Table 1 — Symbols and abbreviated terms
Requirement Subclause Symbol or abbreviated term
Reaction to fire 4.1 R2F
Flexural strength 4.2 F
Dangerous substances 4.3 DS
4 Requirements
4.1 Reaction to fire
Gypsum board nails, screws and staples made from steel are classified A1 (EN 13501-1) (no contribution to
fire) without testing when they are not coated with organic material.
According to Commission Decision 96/603/EC, as amended, nails, screws and staples are classified as A1
without testing if they contain less than 1 % organic material by weight or volume (whichever is the more
onerous).
When nails, screws and staples have an organic coating of more than 1 %, their contribution to reaction to fire
in end use condition is so small in the total assembly that they have no influence on the classification of the
system tested and therefore are classified as A1 without testing.
4.2 Flexural strength (expressed as bending behaviour and breaking torque)
4.2.1 Bending behaviour (for nails and staples)
When tested in accordance with 5.5 no fastener shall show signs of breakage or cracking. This applies only to
nails and staples with a minimum nominal length of 20 mm.
4.2.2 Breaking torque (for screws)
The breaking torque of the gypsum board screws shall comply with table 2.
Table 2 — Breaking torque of gypsum board screws
Nominal diameter of thread Minimum breaking torque
mm Nm
3,5 2,1
3,8 / 3,9 / 4,0 2,8
4,2 3,5
4,8 / 4,9 / 5,0 5,6
5,5 6,0
Breaking torque of the screw shall be tested in accordance with 5.9. No more than 10 % of the screws shall
fail.
7
---------------------- Page: 9 ----------------------
oSIST prEN 14566:2014
prEN 14566:2014 (E)
4.3 Dangerous substances
National regulations on dangerous substances may require verification and declaration on release, and
sometimes content, when construction products covered by this standard are placed on those markets.
In the absence of European harmonized test methods, verification and declaration on release/content should
be done taking into account national provisions in the place of use.
NOTE An informative database covering European and national provisions on dangerous substances is available at
the Construction web site on EUROPA accessed through: http://ec.europa.eu/enterprise/construction/cpd-ds/
4.4 Additional requirements
4.4.1 Protective treatment
Where the manufacturer is using a protective coating to achieve durability, the coating shall be sufficient to
provide a satisfactory level of protection against corrosion. It shall reflect the condition where the fastener is
subjected to temporary exposure during storage, construction and its remaining life in an unexposed cavity of
the completed building.
Fasteners protected with coating other than zinc shall satisfy one of the three classes of performance given in
Table 3, when tested in accordance with EN ISO 9227. This class shall be stated by the manufacturer in its
technical literature.
Table 3 — Classes of corrosion protection
Classification Test duration Criterion
In hours
Class 24 24 No visible rusting
Class 48 48 No visible rusting
Class 96 96 No visible rusting
2
Fasteners protected with zinc coating shall have a minimum coating thickness of 5 µm (35 g/m ) for screws
2
and nails and 3 µm (21 g/m ) for staples when tested in accordance with 5.7.
4.4.2 Requirements for gypsum board nails
4.4.2.1 Head – Dimensions and tolerances
The diameter and tolerance of the head shall be stated by the manufacturer in its technical literature. When
measured in accordance with 5.3.3.3, no more than 10 % of the nails shall fail.
4.4.2.2 Shank
The shank diameter and tolerance shall be stated by the manufacturer in its technical literature. When
measured in accordance with 5.3.3.1, no more than 10 % of the nails shall fail.
4.4.2.3 Length
The nominal length and tolerance shall be stated by the manufacturer in its technical literature. When
measured in accordance with 5.3.3.2, no more than 10 % of the nails shall fail.
4.4.2.4 Pull-out force
The pull-out force from wood shall be at least 200 N when tested in accordance with 5.4. Not more than 10 %
of the nails shall fail.
8
---------------------- Page: 10 ----------------------
oSIST prEN 14566:2014
prEN 14566:2014 (E)
4.4.2.5 Pull-through force
The head should be capable of providing sufficient pull-through force to allow the nail to achieve a minimum
value of 300 N when tested in accordance with 5.8. Not more than 10 % of the nails shall fail.
4.4.3 Requirements for gypsum board screws
4.4.3.1 Head diameter
The diameter and tolerance of the head shall be stated by the manufacturer in its technical literature. When
measured in accordance with 5.3.3.3, no more than 10 % of the nails shall fail.
4.4.3.2 Diameter of thread
The diameter and tolerance of the thread according to figure 1 shall be stated by the manufacturer in its
technical literature. When measured in accordance with 5.3.3.1, no more than 10 % of the screws shall fail.
4.4.3.3 Length
The nominal length and tolerance according to figure 1 shall be stated by the manufacturer in its technical
literature. When measured in accordance with 5.3.3.2, no more than 10 % of the screws shall fail.
Key
l length of screw
d diameter of thread
d diameter of head
h
Figure 1 — Dimensions of screws
4.4.3.4 Pull-out force
Depending on the intended use, the pull-out force of screws shall be tested from wood or steel. The diameter
and pitch of the threaded portion shall also be capable of providing sufficient pull-out force to allow the screw
to achieve a minimum value of 450 N when tested in accordance with 5.4. No more than 10 % of the screws
shall fail.
4.4.3.5 Pull-through force
The head should be capable of providing sufficient pull through force to allow the screw to achieve a minimum
value of 450 N when tested i
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
