SIST EN 13454-1:2004
(Main)Binders, composite binders and factory made mixtures for floor screeds based on calcium sulfate - Part 1: Definitions and requirements
Binders, composite binders and factory made mixtures for floor screeds based on calcium sulfate - Part 1: Definitions and requirements
This document applies to calcium sulphate binders and composite binders made of calcium sulphate used for the manufacture of floor screeds for interior use in buildings. It also includes requirements for factory made mixtures made of calcium sulphate used for the manufacture of floor screeds which are given in EN 13813. This document does not cover the application of floor screeds. Floor screeds made with products covered by this document may contribute to thermal and sound insulation and fire protection of the floor.
Calciumsulfat-Binder, Calciumsulfat-Compositbinder und Calciumsulfat-Werkmörtel für Estriche - Teil 1: Begriffe und Anforderungen
Diese Europäische Norm gilt für Calciumsulfat-Binder und Calciumsulfat-Compositbinder, zur Herstellung von Estrichen für die Verwendung im Innern von Gebäuden. Sie enthält auch Anforderungen an Calciumsulfat-Werkmörtel, die zur Herstellung von Estrichen nach EN 13813 verwendet werden. Diese Norm gilt nicht für die Ausführung von Estrichen. Estriche, die aus in dieser Norm beschriebenen Produkten hergestellt werden, tragen zur Wärme- und Schalldämmung sowie zum Brandschutz von Decken bei.
Liants, liants composites et mélanges fabriqués en usine a base de sulfate de calcium pour chapes - Partie 1: Définitions et spécifications
Le présent document s'applique aux liants et aux liants composites a base de sulfate de calcium utilisés pour la fabrication de chapes destinées a un usage intérieur dans les bâtiments. La présente norme comporte également des prescriptions concernant les mélanges fabriqués en usine a base de sulfate de calcium utilisés pour la fabrication de chapes définies dans l'EN 13813. Le présent document ne traite pas de la mise en oeuvre des chapes. Les chapes réalisées avec les produits traités dans le présent document peuvent contribuer a l'isolation thermique et acoustique, et a la protection du sol contre le feu.
Veziva, sestavljena veziva in industrijsko pripravljene mešanice za estrihe na osnovi kalcijevega sulfata – 1. del: Definicije in zahteve
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Binders, composite binders and factory made mixtures for floor screeds based on calcium sulfate - Part 1: Definitions and requirementsVeziva, sestavljena veziva in industrijsko pripravljene mešanice za estrihe na osnovi kalcijevega sulfata – 1. del: Definicije in zahteveLiants, liants composites et mélanges fabriqués en usine a base de sulfate de calcium pour chapes - Partie 1: Définitions et spécificationsCalciumsulfat-Binder, Calciumsulfat-Compositbinder und Calciumsulfat-Werkmörtel für Estriche - Teil 1: Begriffe und Anforderungen91.100.50Veziva. Tesnilni materialiBinders. Sealing materials91.100.10Cement. Mavec. Apno. MaltaCement. Gypsum. Lime. Mortar01.040.91Gradbeni materiali in gradnja (Slovarji)Construction materials and building (Vocabularies)ICS:SIST EN 13454-1:2004enTa slovenski standard je istoveten z:EN 13454-1:200401-december-2004SIST EN 13454-1:2004SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13454-1September 2004ICS 01.040.91; 91.100.10; 91.100.50 English versionBinders, composite binders and factory made mixtures for floorscreeds based on calcium sulfate - Part 1: Definitions andrequirementsLiants, liants composites et mélanges fabriqués en usine àbase de sulfate de calcium pour chapes de sol - Partie 1:Définitions et spécificationsCalciumsulfat-Binder, Calciumsulfat-Compositbinder undCalciumsulfat-Werkmörtel für Estriche - Teil 1: Begriffe undAnforderungenThis European Standard was approved by CEN on 24 June 2004.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2004 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13454-1:2004: E

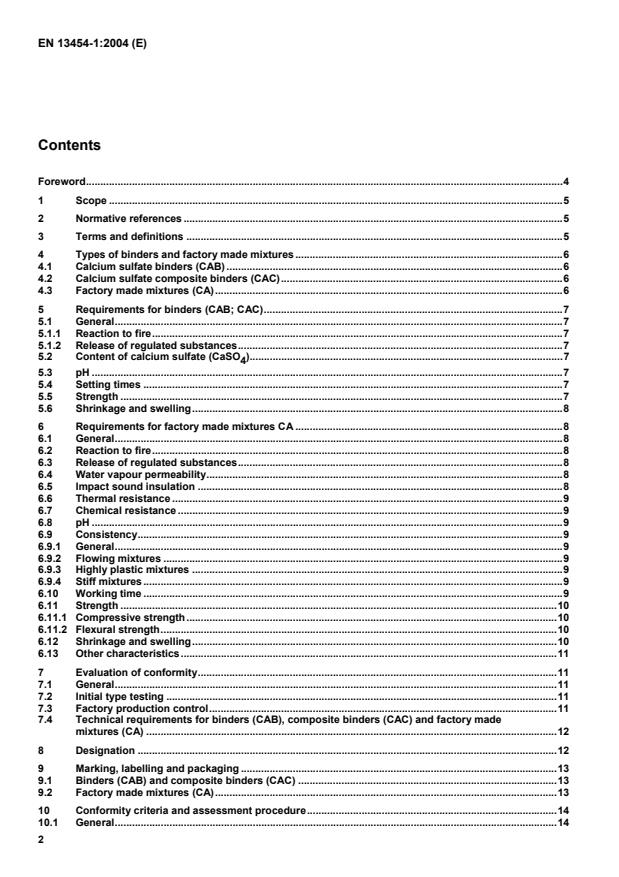

EN 13454-1:2004 (E) 2 Contents Foreword.4 1 Scope.5 2 Normative references.5 3 Terms and definitions.5 4 Types of binders and factory made mixtures.6 4.1 Calcium sulfate binders (CAB).6 4.2 Calcium sulfate composite binders (CAC).6 4.3 Factory made mixtures (CA).6 5 Requirements for binders (CAB; CAC).7 5.1 General.7 5.1.1 Reaction to fire.7 5.1.2 Release of regulated substances.7 5.2 Content of calcium sulfate (CaSO4).7 5.3 pH.7 5.4 Setting times.7 5.5 Strength.7 5.6 Shrinkage and swelling.8 6 Requirements for factory made mixtures CA.8 6.1 General.8 6.2 Reaction to fire.8 6.3 Release of regulated substances.8 6.4 Water vapour permeability.8 6.5 Impact sound insulation.8 6.6 Thermal resistance.9 6.7 Chemical resistance.9 6.8 pH.9 6.9 Consistency.9 6.9.1 General.9 6.9.2 Flowing mixtures.9 6.9.3 Highly plastic mixtures.9 6.9.4 Stiff mixtures.9 6.10 Working time.9 6.11 Strength.10 6.11.1 Compressive strength.10 6.11.2 Flexural strength.10 6.12 Shrinkage and swelling.10 6.13 Other characteristics.11 7 Evaluation of conformity.11 7.1 General.11 7.2 Initial type testing.11 7.3 Factory production control.11 7.4 Technical requirements for binders (CAB), composite binders (CAC) and factory made mixtures (CA).12 8 Designation.12 9 Marking, labelling and packaging.13 9.1 Binders (CAB) and composite binders (CAC).13 9.2 Factory made mixtures (CA).13 10 Conformity criteria and assessment procedure.14 10.1 General.14
EN 13454-1:2004 (E) 3 10.2 Statistical conformity criteria.15 10.2.1 General.15 10.2.2 Inspection by variables.16 10.2.3 Inspection by attributes.17 10.3 Assessment based on individual results for factory made mixtures.17 10.4 Conformity requirements.17 Annex ZA (informative)
Clauses of this European Standard addressing the provisions of the EU Construction Products Directive.19 ZA.1 Scope and relevant characteristics.19 ZA.2 Procedures for attestation of conformity of binders and composite binders based on calcium sulfate.20 ZA.2.1 Systems of attestation of conformity.20 ZA.2.2 EC Certificate and declaration of conformity.23 ZA.3 CE marking and labelling.24 Bibliography.27
EN 13454-1:2004 (E) 4 Foreword This document (EN 13454-1:2004) has been prepared by Technical Committee CEN/TC 241 “Gypsum and gypsum based products”, the secretariat of which is held by AFNOR. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by March 2005, and conflicting national standards shall be withdrawn at the latest by June 2006. This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association, and supports essential requirements of EU Directive(s). For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this document. This document for binders, composite binders and factory made mixtures for floor screeds based on calcium sulfate consists of two parts:
Part 1: Definitions and requirements
Part 2: Test methods This document specifies binders, composite binders and factory made mixtures where the principal active constitu-ent is calcium sulfate. The requirements in EN 13454-1 on binders and composite binders are based on the results of tests according to EN 13454-2.
The requirements on factory made mixtures for floor screeds based on calcium sulfate are in accordance with
EN 13813. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following coun-tries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic, Denmark, Esto-nia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EN 13454-1:2004 (E) 5
1 Scope This document applies to calcium sulfate binders and composite binders made of calcium sulfate used for the manufacture of floor screeds for interior use in buildings. It also includes requirements for factory made mixtures made of calcium sulfate used for the manufacture of floor screeds which are given in EN 13813. This document does not cover the application of floor screeds. Floor screeds made with products covered by this document may contribute to thermal and sound insulation and fire protection of the floor. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 12086, Thermal insulating products for building applications - Determination of water vapour transmission prop-erties. EN 13454-2:2003, Binders, composite binders and factory made mixtures for floor screeds based on calcium sul-fate - Part 2: Test methods. EN 13501-1, Fire classification of construction products and building elements - Part 1:Classification using test data from reaction to fire tests. EN 13813:2002, Screed material and floor screeds - Screed material - Properties and requirements. EN 13892-2, Methods of test for screed materials - Part 2: Determination of flexural and compressive strength. EN ISO 140-6, Acoustics - Measurement of sound insulation in buildings and of building elements - Part 6: Labora-tory measurements of impact sound insulation of floors (ISO 140-6:1998). 3 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1 calcium sulfate constituents calcium sulfate in its various dehydration phases, for example hemihydrate and anhydrite 3.2 additives materials added to calcium sulfate binder or mixture by the manufacturer to influence the chemical and/or the physical properties NOTE Additives are, for example, fillers, pozzolans, pigments and artificial resins 3.3 admixtures materials added to the binder or mixture in small quantities and which, by chemical or physical action or both, change the properties of the calcium sulfate constituent, e.g. its workability, hardening or setting NOTE Admixtures are, for example accelerators, retarders and plasticizers
EN 13454-1:2004 (E) 6 3.4 aggregates materials consisting of uncrushed and/or crushed mineral material with particle sizes and shapes suitable for the production of floor screeds 3.5 screed layer or layers of screed material laid in situ, directly onto a base, bonded or unbonded, or onto an intermediate layer or insulating layer, to obtain one or more of the following purposes: to obtain a defined level, to carry the final flooring, to provide a wearing surface 3.6 binder material used for the purpose of holding solid particles together in a coherent mass 3.7 consistency fluidity of fresh screed material which characterises its ease of use 3.8 flow diameter dimension for consistency of stiff factory made mixtures 3.9 spread dimension for consistency of flowing and highly plastic mixtures 4 Types of binders and factory made mixtures 4.1 Calcium sulfate binders (CAB) Calcium sulfate binders (CAB) consist of calcium sulfate constituents binding by hydration and may contain admix-tures and additives (see 5.2.a). 4.2 Calcium sulfate composite binders (CAC) Calcium sulfate composite binders (CAC) consist of calcium sulfate binders (CAB) and contain additional additives (see 5.2.b). 4.3 Factory made mixtures (CA) Factory made mixtures (CA) consist of binders or composite binders and aggregates and may contain admixtures and additives with or without water. The means of determining the suitability of the aggregates for use in factory made mixtures shall be recorded in the manufacturer's documentation of the factory production control.
With respect to the manufacturing methods, factory made mixtures shall be suitable for application in one of the three consistencies: stiff, highly plastic or flowing (see 6.9). If calcium sulfate binders or calcium sulfate composite binders, as specified in this document, are used for the manufacture of factory made mixtures, the tests specified in EN 13454-2 for determination of the pH value and for determination of shrinkage and swelling need not to be carried out. Factory made mixtures can be produced and delivered as:
EN 13454-1:2004 (E) 7 a) prebatched (dry) in a factory and mixed on the construction site in factory specified proportions and conditions, b) premixed (dry) in a factory and mixed on the construction site by adding water, c) ready mixed (wet) which is supplied to the construction site in a pre-mixed and gauged condition. 5 Requirements for binders (CAB; CAC) 5.1 General 5.1.1 Reaction to fire Calcium sulfate binders (CAB and CAC) are reaction to fire Class A1fl without testing according to Commission De-cision 96/603/EC as amended, provided that they contain less than 1 % by mass or volume of organic material, whichever is the more onerous. For products which contain 1 % or more of organic material, the product shall be tested and classified in accordance with EN 13501-1. 5.1.2 Release of regulated substances NOTE For CE marking purposes see Annex ZA. 5.2 Content of calcium sulfate (CaSO4) The content of calcium sulfate in the following materials shall be: a) calcium sulfate binders (CAB): ≥ 85 % calcium sulfate by mass, b) calcium sulphate composite binders (CAC): ≥ 50 % and < 85 % calcium sulfate by mass. The content of calcium sulfate shall be determined as specified in EN 13454-2. 5.3 pH The pH of binders shall be ≥ 7,0. The pH shall be determined as specified in EN 13454-2. 5.4 Setting times The setting times shall be as follows: a) initial setting time ≥ 30 min, b) final setting time ≤ 12 h. The setting times shall be determined as specified in EN 13454-2. 5.5 Strength The strength of binders shall comply with the requirements of Table 1.
EN 13454-1:2004 (E) 8
Table 1 — Strengths of binders (CAB) and (CAC) defined as characteristics values Strength class Minimum flexural strength N/mm2 Minimum compressive strength N/mm2 Tested after 3 days 28 days 3 days 28 days
20
1,5
4,0
8,0
20,0 30 2,0 5,0 12,0 30,0 40 2,5 6,0 16,0 40,0
The strength of binders shall be determined as specified in EN 13454-2. 5.6 Shrinkage and swelling The values for shrinkage and swelling shall not exceed 0,2 mm/m. Shrinkage and swelling shall be determined as specified in EN 13454-2. 6 Requirements for factory made mixtures CA
6.1 General NOTE Factory made mixtures placed on the market of the European Economic Area, and therefore subject to conformity with the construction Products Directive, are covered by EN 13813; tests performed to EN 13454-2 may, however, be taken into account to demonstrate conformity to EN 13813. Factory made mixtures are, though, marked in accordance with EN 13813. 6.2 Reaction to fire Factory made mixtures (CA) are reaction to fire Class A1fl without testing according to Commission Decision 96/603/EC as amended, provided that they contain less than 1 % by mass or volume of organic material, whichever is the more onerous. Products which contain 1 % or more of organic material shall be tested and classified in ac-cordance with EN 13501-1. 6.3 Release of regulated substances NOTE For CE marking purposes see Annex ZA of EN 13813:2002. 6.4 Water vapour permeability Where the intended use of a factory made mixture is for moisture diffusion control, the permeability to water vapour of the factory made mixture shall be determined in accordance with EN 12086. 6.5 Impact sound insulation Impact sound insulation is a property of the assembled system and not of the product itself.
EN 13454-1:2004 (E) 9 When relevant, the impact sound insulation of a system including factory made mixtures shall be determined in ac-cordance with EN ISO 140-6. 6.6 Thermal resistance This requirement is defined in EN 13813. 6.7 Chemical resistance This requirement is defined in EN 13813. NOTE Floor screeds based on calcium sulfate are not used as wearing surfaces and, consequently, they are not exposed to chemical influences. A chemical resistance test is, therefore, not necessary. 6.8 pH For factory made mixtures based on calcium sulfate the pH value shall be ≥ 7 when determined in accordance with EN 13454-2. NOTE The test is not necessary for factory made mixtures produced exclusively from calcium sulfate binder (CAB) or cal-cium sulfate composite binder (CAC) as defined in 4.1 or 4.2 and aggregates as defined in 3.4 and controlled as specified in 4.3. 6.9 Consistency 6.9.1 General A manufacturer of screed materials may declare the consistency in mm determined in accordance with
EN 13454-2. Where the consistency value is greater than 300 mm, it may be determined in accordance with
EN 12706. For premixed and prebatched mixtures the consistency is determined with a given water to solid ratio as specified by the supplier. 6.9.2 Flowing mixtures The spread shall be ≥ 220 mm. The spread shall be determined as specified in EN 13454-2. With this consistency the mixtures shall not segregate (no visual sedimentation, no visual development of layers). 6.9.3 Highly plastic mixtures The spread shall be between 150 mm and less than 220 mm and determined as specified in EN 13454-2. 6.9.4 Stiff mixtures The flow diameter shall be 110 mm to 140 mm. The flow diameter shall be determined as specified in EN 13454-2. 6.10 Working time The minimum working time for flowing, highly plastic and stiff mixtures shall be ≥ 30 min. The working time shall be determined as specified in EN 13454-2.
EN 13454-1:2004 (E) 10 The working time for ready mixed products begins when the product is loaded (including water). NOTE In EN 13813 the term "setting time" is used for "working time". 6.11 Strength 6.11.1 Compressive strength The compressive strength of factory made mixtures (CA) shall be designated by a "C" (for Compression) followed by the compressive strength class in N/mm2, given in Table 2 in accordance with EN 13813. Table 2 — Compressive strength of factory made mixtures (CA) defined as characteristic values Classa
C5 C7 C12C16C20C25C30C35C40 C50 C60C80Compressive strength in N/mm2 5 7 12 16 20 25 30 35 40 50 60 80 a For calcium sulfate the classes C12 to C60 are recommended.
The compressive strength shall be determined as specified in EN 13892-2. NOTE A description of the test is given in EN 13454-2. 6.11.2 Flexural strength The flexural strength is designated with "F" (for Flexural) followed by the flexural strength in N/mm2 given in Table 3 (in accordance with EN 13813).
Table 3 — Flexural strength of factory made mixtures (CA) defined as characteristic values Classa
F1 F2 F3 F4 F5 F6 F7 F10F15F20 F30 F40F50Flexural strength in N/mm2 1 2 3 4 5 6 7 10 15 20 30 40 50 a For calcium sulfate the classes F3 to F20 are recommended.
The flexural strength shall be determined as specified in EN 13892-2. NOTE A description of the test is given in EN 13454-2. 6.12 Shrinkage and swelling A manufacturer of screed materials may declare the shrinkage value and swelling value of the screed material in mm/m, determined in accordance with EN 13454-2 or in accordance with EN 13872 where the product is intended to be applied at a thickness less than 10 mm. The values for shrinkage and swelling shall not exceed 0,2 mm/m.
EN 13454-1:2004 (E) 11 NOTE This requirement is not applicable for factory made mixtures (CA) produced exclusively from calcium sulfate binder (CAB) or calcium sulfate composite binder (CAC) as defined in 4.1 or 4.2 and aggregates as defined in 3.4 and controlled as specified in 4.3. 6.13 Other characteristics For other characteristics (i.e. surface hardness, resistance to rolling wheel, water permeability, bond strength, sound absorption, modulus of elasticity in flexure and electrical resistance) see EN 13813. 7 Evaluation of conformity 7.1 General Evaluation of conformity is carried out declaring conformity of binders (CAB), composite binders (CAC) and factory made mixtures (CA) with the requirements of this document on the basis of: a) initial type testing, b) factory production control. The purpose of the factory production control is to ensure that binders, composite binders and factory made mix-tures placed on the market conform to their technical specifications defined in Clauses 5 and 6. 7.2 Initial type testing Initial type testing shall be performed to show conformity with this document. Tests previously performed in accor-dance with the provisions of this document (same product, same characteristic(s), test method, sampling proce-dure, system of attestation of conformity etc.) may be taken into account. In addition, initial type testing shall be performed at the beginning of the production of a new product type or at the beginning of a new method of produc-tion (where this may affect the stated properties). The technical specifications and properties specified in this document are defined in terms of EN reference meth-ods which shall be used in the initial type testing to show conformity of the product to the document. 7.3 Factory production control Factory production control means the permanent internal control of production exercised by the manufacturer or his agent on the responsibility of the manufacturer himself. The conformity criteria given in EN 13813 apply. A control system in accordance with Table 4 will meet the control requirements subject to the product meeting the perform-ance requirements listed in Table 4. The manufacturer shall record the results of production control (manufacturer's record). These records shall include at least the following: identification of the product tested, date of sampling, test methods, test and inspection results, date of tests, identification of the responsible authority within the manufacturer, calibration records.
EN 13454-1:2004 (E) 12 Table 4 — Parameters, tests methods and minimum testing frequencies Parameters Test method in EN 13454-2:2003 Initial type testing Factory production control by the manu-facturer
Binders (CAB; CAC)
Content of calcium sulfate (CaSO4) 4.1 1 1 per month pH 4.2 1 1 per day Setting time 4.3 1 2 per week Strength 4.4 1 1 per week Shrinkage and swelling 4.5 1 4 per year Factory made mixtures (CA)
pH a 5.1 1 1 per day Consistency 5.2.1 and 5.2.2 1 2 per week b Working time 5.2.1 and 5.2.2 1 2 per week b Strength 5.3 1 1 per week b Shrinkage and swelling a 5.4 1 4 per year a If calcium sulfate binders or calcium sulfate composite binders according to this standard are used
for factory made mixtures, the tests are not necessary. b Or one measurement every 100 m3 or 200 t of dry mixture.
7.4 Technical requirements for binders (CAB), composite binders (CAC) and factory made mixtures (CA) The technical requirements and properties specified in this document are defined in terms of reference test meth-ods (see EN 13454-2) which shall be used to show the conformity of the products to this document.
For factory production control, other test methods may be used provided that: a) they can show a correlation to exist between the results from the reference tests called up by this document and those from the alternative test, b) the information on which the correlation is based is available for inspection. 8 Designation Bin
...
