SIST EN 301 908-13 V5.2.1:2011
(Main)IMT cellular networks - Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive - Part 13: Evolved Universal Terrestrial Radio Access (E-UTRA) User Equipment (UE)
IMT cellular networks - Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive - Part 13: Evolved Universal Terrestrial Radio Access (E-UTRA) User Equipment (UE)
The fifth Release of the EN will cover all E-UTRA UE features up to and including 3GPP Release 9. This work covers also the inclusion of the 800 MHz band for E-UTRA. This EN will cover the essential requirements of article 3.2 of the R&TTE Directive for E-UTRA UE in addition to those common ones of Part1.
Celična omrežja IMT - Harmonizirani EN, ki zajema bistvene zahteve člena 3.2 direktive R&TTE - 13. del: Uporabniška oprema za razviti prizemni radijski dostop za UMTS (E-UTRA)
Peta izdaja EN bo zajemala vse značilnosti E-ULTRA UE do izdaje 9 3GPP in vključno z njo. To delo prav tako zajema vključitev pasu 800 MHz za E-UTRA. Ta EN bo zajemal osnovne zahteve člena 3.2 direktive R&TTE za UTRA UE kot dodatek preostalim splošnim zahtevam 1. dela.
General Information
Standards Content (Sample)
Harmonized European Standard
IMT cellular networks;
Harmonized EN covering the essential requirements
of article 3.2 of the R&TTE Directive;
Part 13: Evolved Universal Terrestrial Radio Access (E-UTRA)
User Equipment (UE)

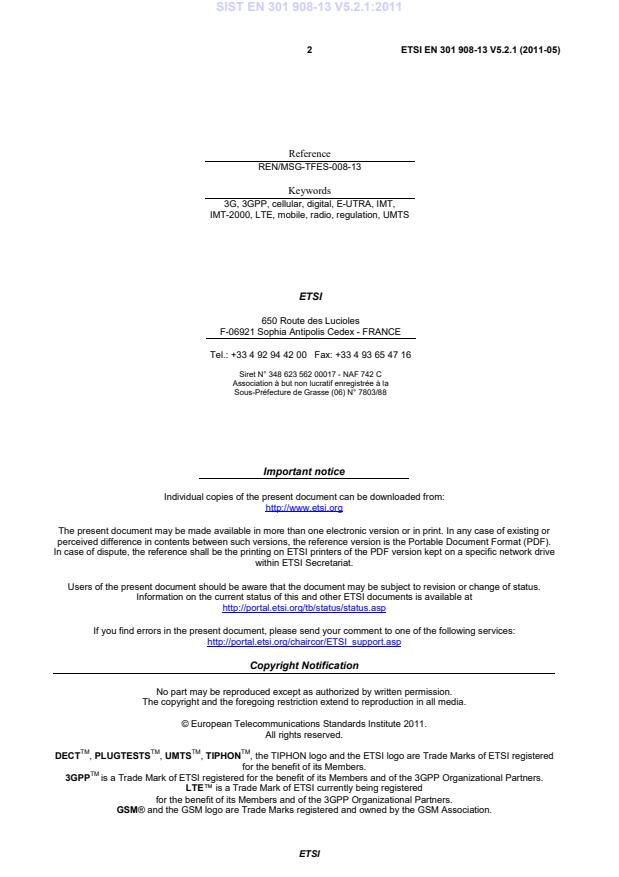

2 ETSI EN 301 908-13 V5.2.1 (2011-05)
Reference
REN/MSG-TFES-008-13
Keywords
3G, 3GPP, cellular, digital, E-UTRA, IMT,
IMT-2000, LTE, mobile, radio, regulation, UMTS
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2011.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI

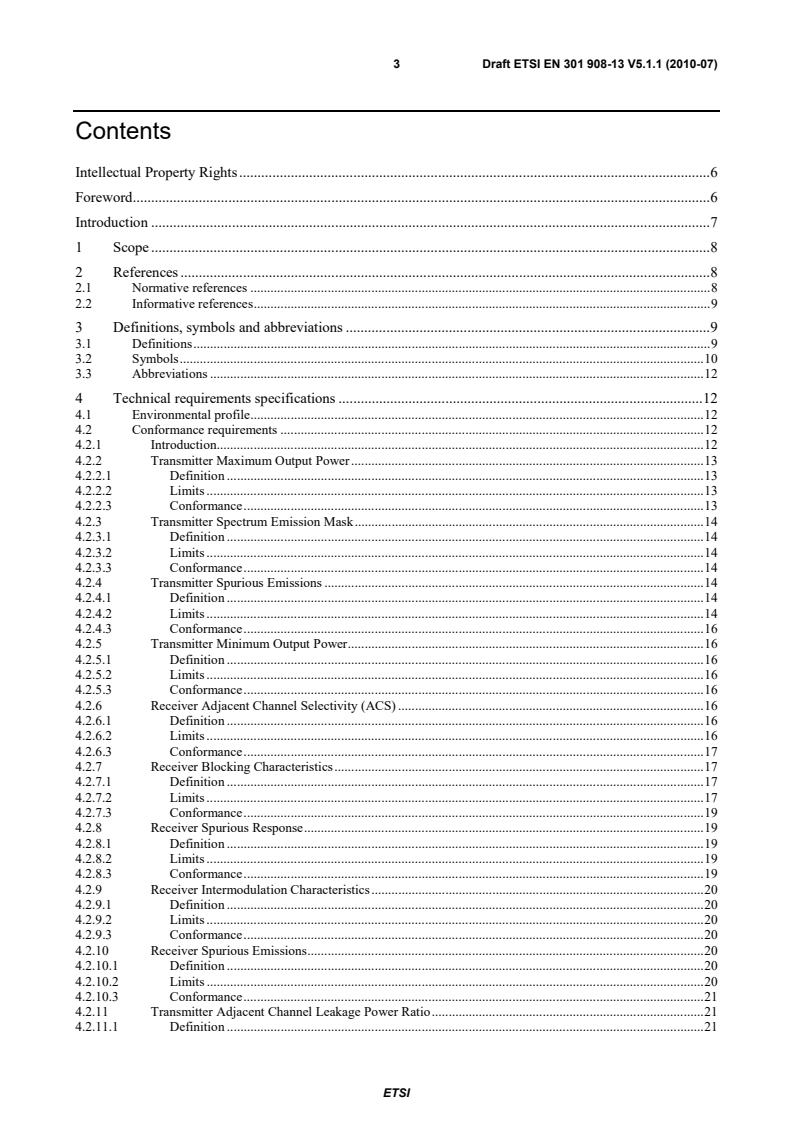

3 ETSI EN 301 908-13 V5.2.1 (2011-05)
Contents
Intellectual Property Rights . 6
Foreword . 6
Introduction . 7
1 Scope . 8
2 References . 8
2.1 Normative references . 8
2.2 Informative references . 9
3 Definitions, symbols and abbreviations . 9
3.1 Definitions . 9
3.2 Symbols . 10
3.3 Abbreviations . 12
4 Technical requirements specifications . 12
4.1 Environmental profile . 12
4.2 Conformance requirements . 12
4.2.1 Introduction. 13
4.2.2 Transmitter Maximum Output Power . 13
4.2.2.1 Definition . 13
4.2.2.2 Limits . 13
4.2.2.3 Conformance . 14
4.2.3 Transmitter Spectrum Emission Mask . 14
4.2.3.1 Definition . 14
4.2.3.2 Limits . 14
4.2.3.3 Conformance . 14
4.2.4 Transmitter Spurious Emissions . 14
4.2.4.1 Definition . 14
4.2.4.2 Limits . 14
4.2.4.3 Conformance . 16
4.2.5 Transmitter Minimum Output Power . 16
4.2.5.1 Definition . 16
4.2.5.2 Limits . 16
4.2.5.3 Conformance . 16
4.2.6 Receiver Adjacent Channel Selectivity (ACS) . 16
4.2.6.1 Definition . 16
4.2.6.2 Limits . 16
4.2.6.3 Conformance . 17
4.2.7 Receiver Blocking Characteristics . 17
4.2.7.1 Definition . 17
4.2.7.2 Limits . 18
4.2.7.3 Conformance . 19
4.2.8 Receiver Spurious Response . 19
4.2.8.1 Definition . 19
4.2.8.2 Limits . 19
4.2.8.3 Conformance . 20
4.2.9 Receiver Intermodulation Characteristics . 20
4.2.9.1 Definition . 20
4.2.9.2 Limits . 20
4.2.9.3 Conformance . 20
4.2.10 Receiver Spurious Emissions . 21
4.2.10.1 Definition . 21
4.2.10.2 Limits . 21
4.2.10.3 Conformance . 21
4.2.11 Transmitter Adjacent Channel Leakage Power Ratio . 21
4.2.11.1 Definition . 21
ETSI

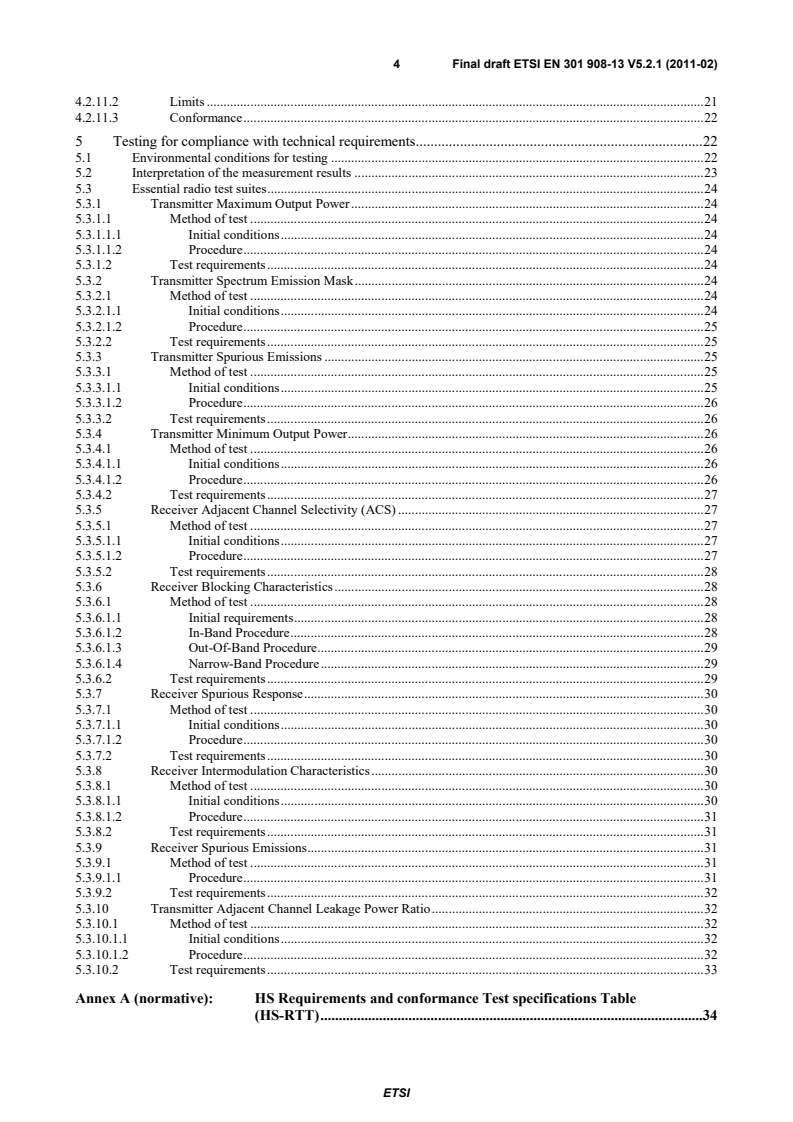

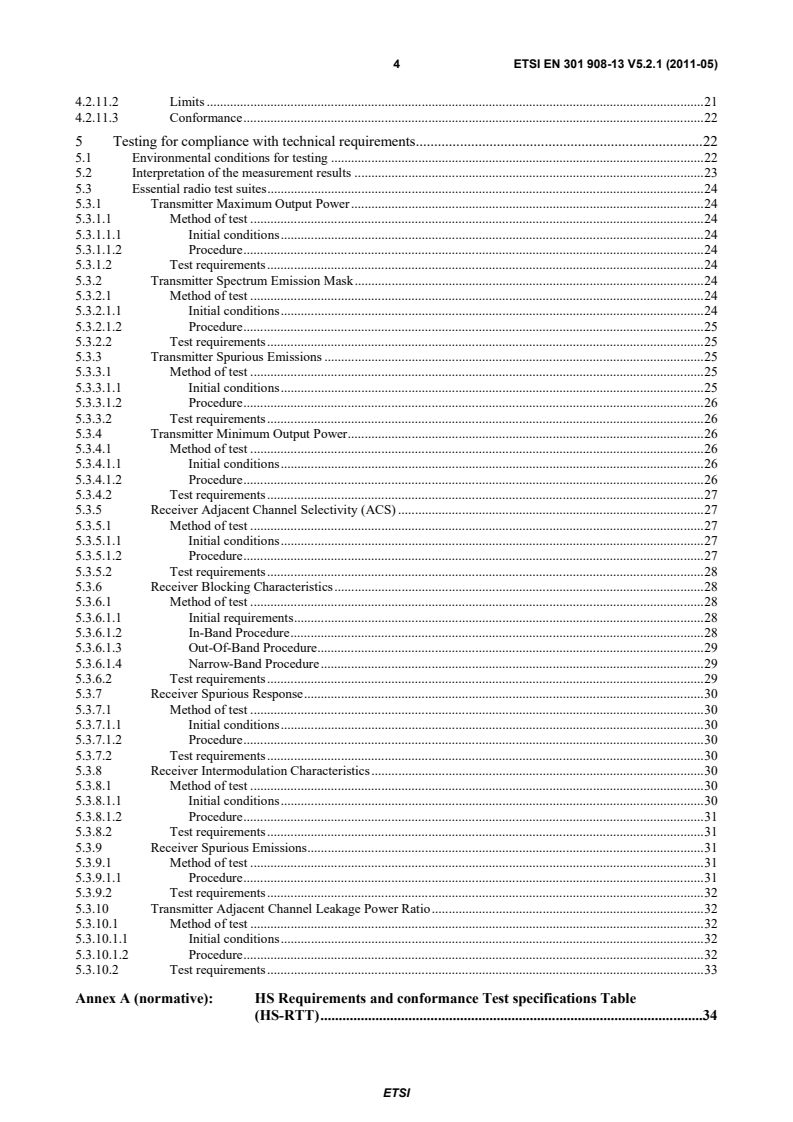

4 ETSI EN 301 908-13 V5.2.1 (2011-05)
4.2.11.2 Limits . 21
4.2.11.3 Conformance . 22
5 Testing for compliance with technical requirements . 22
5.1 Environmental conditions for testing . 22
5.2 Interpretation of the measurement results . 23
5.3 Essential radio test suites . 24
5.3.1 Transmitter Maximum Output Power . 24
5.3.1.1 Method of test . 24
5.3.1.1.1 Initial conditions . 24
5.3.1.1.2 Procedure . 24
5.3.1.2 Test requirements . 24
5.3.2 Transmitter Spectrum Emission Mask . 24
5.3.2.1 Method of test . 24
5.3.2.1.1 Initial conditions . 24
5.3.2.1.2 Procedure . 25
5.3.2.2 Test requirements . 25
5.3.3 Transmitter Spurious Emissions . 25
5.3.3.1 Method of test . 25
5.3.3.1.1 Initial conditions . 25
5.3.3.1.2 Procedure . 26
5.3.3.2 Test requirements . 26
5.3.4 Transmitter Minimum Output Power . 26
5.3.4.1 Method of test . 26
5.3.4.1.1 Initial conditions . 26
5.3.4.1.2 Procedure . 26
5.3.4.2 Test requirements . 27
5.3.5 Receiver Adjacent Channel Selectivity (ACS) . 27
5.3.5.1 Method of test . 27
5.3.5.1.1 Initial conditions . 27
5.3.5.1.2 Procedure . 27
5.3.5.2 Test requirements . 28
5.3.6 Receiver Blocking Characteristics . 28
5.3.6.1 Method of test . 28
5.3.6.1.1 Initial requirements . 28
5.3.6.1.2 In-Band Procedure . 28
5.3.6.1.3 Out-Of-Band Procedure . 29
5.3.6.1.4 Narrow-Band Procedure . 29
5.3.6.2 Test requirements . 29
5.3.7 Receiver Spurious Response . 30
5.3.7.1 Method of test . 30
5.3.7.1.1 Initial conditions . 30
5.3.7.1.2 Procedure . 30
5.3.7.2 Test requirements . 30
5.3.8 Receiver Intermodulation Characteristics . 30
5.3.8.1 Method of test . 30
5.3.8.1.1 Initial conditions . 30
5.3.8.1.2 Procedure . 31
5.3.8.2 Test requirements . 31
5.3.9 Receiver Spurious Emissions . 31
5.3.9.1 Method of test . 31
5.3.9.1.1 Procedure . 31
5.3.9.2 Test requirements . 32
5.3.10 Transmitter Adjacent Channel Leakage Power Ratio . 32
5.3.10.1 Method of test . 32
5.3.10.1.1 Initial conditions . 32
5.3.10.1.2 Procedure . 32
5.3.10.2 Test requirements . 33
Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT) . 34
ETSI
5 ETSI EN 301 908-13 V5.2.1 (2011-05)
Annex B (normative): Environmental profile . 36
B.1 General . 36
B.1.1 Introduction . 36
B.1.2 Temperature . 36
B.1.3 Voltage . 36
B.1.4 Test environment . 37
Annex C (informative): The EN title in the official languages . 38
Annex D (informative): Bibliography . 39
History . 40
ETSI
6 ETSI EN 301 908-13 V5.2.1 (2011-05)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonized European Standard (EN) has been produced by ETSI Technical Committee Mobile Standards Group
(MSG).
The present document has been produced by ETSI in response to mandate M/284 from the European Commission
issued under Council Directive 98/34/EC [i.1] (as amended) laying down a procedure for the provision of information
in the field of technical standards and regulations.
The title and reference to the present document are intended to be included in the publication in the Official Journal of
the European Union of titles and references of Harmonized Standard under the Directive 1999/5/EC [i.2].
See article 5.1 of Directive 1999/5/EC [i.2] for information on presumption of conformity and Harmonised Standards or
parts thereof the references of which have been published in the Official Journal of the European Union.
The requirements relevant to Directive 1999/5/EC [i.2] are summarised in annex A.
The present document is part 13 of a multi-part deliverable covering the essential requirements under article 3.2 of
Directive 1999/5/EC [i.2] (R&TTE Directive) for Base Stations (BS), Repeaters and User Equipment (UE) for IMT
cellular networks, as identified below:
Part 1: "Introduction and common requirements";
Part 2: "CDMA Direct Spread (UTRA FDD) User Equipment (UE)";
Part 3: "CDMA Direct Spread (UTRA FDD) Base Stations (BS)";
Part 4: "CDMA Multi-Carrier (cdma2000) User Equipment (UE)";
Part 5: "CDMA Multi-Carrier (cdma2000) Base Stations (BS)";
Part 6: "CDMA TDD (UTRA TDD) User Equipment (UE)";
Part 7: "CDMA TDD (UTRA TDD) Base Stations (BS)";
Part 8: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (UE) covering essential requirements
of article 3.2 of the R&TTE Directive";
Part 9: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (BS) covering essential requirements
of article 3.2 of the R&TTE Directive";
Part 10: "Harmonized EN for IMT-2000, FDMA/TDMA (DECT) covering essential requirements of article 3.2 of
the R&TTE Directive";
Part 11: "CDMA Direct Spread (UTRA FDD) (Repeaters)";
Part 12: "Harmonized EN for IMT-2000, CDMA Multi-Carrier (cdma2000) (Repeaters) covering the essential
requirements of article 3.2 of the R&TTE Directive";
Part 13: "Evolved Universal Terrestrial Radio Access (E-UTRA) User Equipment (UE)";
ETSI
7 ETSI EN 301 908-13 V5.2.1 (2011-05)
Part 14: "Evolved Universal Terrestrial Radio Access (E-UTRA) Base Stations (BS)";
Part 15: "Evolved Universal Terrestrial Radio Access (E-UTRA) (FDD Repeaters)";
Part 16: "Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (UE)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 17: "Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (BS)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 18: "E-UTRA, UTRA and GSM/EDGE Multi-Standard Radio (MSR) Base Station (BS)";
Part 19: "OFDMA TDD WMAN (Mobile WiMAX) TDD User Equipment (UE)";
Part 20: "OFDMA TDD WMAN (Mobile WiMAX) TDD Base Station (BS)";
Part 21: "OFDMA TDD WMAN (Mobile WiMAX) FDD User Equipment (UE)";
Part 22: "OFDMA TDD WMAN (Mobile WiMAX) FDD Base Stations (BS)".
National transposition dates
Date of adoption of this EN: 12 April 2011
Date of latest announcement of this EN (doa): 31 July 2011
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 31 January 2012
Date of withdrawal of any conflicting National Standard (dow): 31 January 2013
Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.2]. The
modular structure is shown in EG 201 399 [i.3].
ETSI
8 ETSI EN 301 908-13 V5.2.1 (2011-05)
1 Scope
The present document applies to the following radio equipment type:
• User Equipment for Evolved Universal Terrestrial Radio Access (E-UTRA).
This radio equipment type is capable of operating in all or any part of the frequency bands given in table 1-1.
Table 1-1: E-UTRA UE operating bands
E-UTRA Band Direction of transmission E-UTRA operating bands
1 Transmit 1 920 MHz to 1 980 MHz
Receive 2 110 MHz to 2 170 MHz
3 Transmit 1 710 MHz to 1 785 MHz
Receive 1 805 MHz to 1 880 MHz
7 Transmit 2 500 MHz to 2 570 MHz
Receive 2 620 MHz to 2 690 MHz
8 Transmit 880 MHz to 915 MHz
Receive 925 MHz to 960 MHz
20 Transmit 832 MHz to 862 MHz
Receive 791 MHz to 821 MHz
33 Transmit and Receive 1 900 MHz to 1 920 MHz
34 Transmit and Receive 2 010 MHz to 2 025 MHz
38 Transmit and Receive 2 570 MHz to 2 620 MHz
The present document is intended to cover the provisions of Directive 1999/5/EC [i.2] (R&TTE Directive), article 3.2,
which states that "…. radio equipment shall be so constructed that it effectively uses the spectrum allocated to
terrestrial/space radio communications and orbital resources so as to avoid harmful interference".
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the R&TTE Directive [i.2] may apply to equipment within the scope of the present
document.
NOTE: A list of such ENs is included on the web site http://www.newapproach.org.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] ETSI TS 136 521-1 (V9.3.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA); User
Equipment (UE) conformance specification; Radio transmission and reception; Part 1:
Conformance testing (3GPP TS 36.521-1 version 9.3.0 Release 9)".
[2] ETSI TS 136 508 (V9.3.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA) and
Evolved Packet Core (EPC); Common test environments for User Equipment (UE) conformance
testing (3GPP TS 36.508 version 9.3.0 Release 9)".
ETSI
9 ETSI EN 301 908-13 V5.2.1 (2011-05)
[3] ETSI TS 136 509 (V9.3.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA) and
Evolved Packet Core (EPC); Special conformance testing functions for User Equipment (UE)
(3GPP TS 36.509 version 9.3.0 Release 9)".
[4] ETSI TS 136 101 (V9.5.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA); User
Equipment (UE) radio transmission and reception (3GPP TS 36.101 version 9.5.0 Release 9)".
[5] ETSI EN 301 908-1 (V5.2.1): "IMT cellular networks; Harmonized EN covering the essential
requirements of article 3.2 of the R&TTE Directive; Part 1: Introduction and common
requirements".
[6] Void.
[7] ETSI EN 301 908-2 (V5.2.1): "IMT cellular networks; Harmonized EN covering the essential
requirements of article 3.2 of the R&TTE Directive; Part 2: CDMA Direct Spread (UTRA FDD)
User Equipment (UE)".
[8] IEC 60068-2-1 (2007): "Environmental testing - Part 2-1: Tests - Test A: Cold".
[9] IEC 60068-2-2 (2007): "Environmental testing - Part 2-2: Tests - Test B: Dry heat".
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a
procedure for the provision of information in the field of technical standards and regulations.
[i.2] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio
equipment and telecommunications terminal equipment and the mutual recognition of their
conformity (R&TTE Directive).
[i.3] ETSI EG 201 399: "Electromagnetic compatibility and Radio spectrum Matters (ERM); A guide to
the production of Harmonized Standards for application under the R&TTE Directive".
[i.4] ETSI TR 102 215 (V1.3.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
Recommended approach, and possible limits for measurement uncertainty for the measurement of
radiated electromagnetic fields above 1 GHz".
[i.5] ITU-R Recommendation SM.329-10 (2003): "Unwanted emissions in the spurious domain".
[i.6] ETSI TR 100 028 (all parts) (V1.4.1): "Electromagnetic compatibility and Radio spectrum Matters
(ERM); Uncertainties in the measurement of mobile radio equipment characteristics".
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
channel bandwidth: RF bandwidth supporting a single E-UTRA RF carrier with the transmission bandwidth
configured in the uplink or downlink of a cell
NOTE: The channel bandwidth is measured in MHz and is used as a reference for transmitter and receiver RF
requirements.
channel edge: lowest and highest frequency of the carrier, separated by the channel bandwidth
Maximum Output Power (MOP): mean power level per carrier of UE measured at the antenna connector in a
specified reference condition
ETSI
10 ETSI EN 301 908-13 V5.2.1 (2011-05)
mean power: when applied to E-UTRA transmission this is the power measured in the operating system bandwidth of
the carrier
NOTE: The period of measurement is assumed to be at least one subframe (1 ms) unless otherwise stated.
occupied bandwidth: width of a frequency band such that, below the lower and above the upper frequency limits, the
mean powers emitted are each equal to a specified percentage β/2 of the total mean power of a given emission
operating band: frequency range (paired or unpaired) that is defined with a specific set of technical requirements, in
which E-UTRA operates
NOTE: Operating bands for E-UTRA are designated with Arabic numerals, while the corresponding operating
bands for UTRA are designated with Roman numerals.
output power: mean power of one carrier of the UE, delivered to a load with resistance equal to the nominal load
impedance of the transmitter
reference bandwidth: bandwidth in which an emission level is specified
resource block: physical resource consisting of a number of symbols in the time domain and a number of consecutive
subcarriers spanning 180 kHz in the frequency domain
transmission bandwidth: bandwidth of an instantaneous transmission from a UE or BS, measured in Resource Block
units, see figure 3.1-1
transmission bandwidth configuration: highest transmission bandwidth allowed for uplink or downlink in a given
channel bandwidth, measured in Resource Block units, see figure 3.1-1
transmit diversity: transmit diversity is based on space-frequency block coding techniques complemented with
frequency-shift time diversity when four transmit antennas is used
Channel Bandwidth [MHz]
Transmission Bandwidth Configuration [RB]
Transmission
Bandwidth [RB]
Channel edge
Channel edge
Center subcarrier is not transmitted
In downlink
Active Resource Blocks
Figure 3.1-1: Definition of Channel Bandwidth and Transmission Bandwidth Configuration
for one E-UTRA carrier
3.2 Symbols
For the purposes of the present document, the following symbols apply:
ΔF Δ Frequency of Out-of-band emission
OOB
BW Channel bandwidth
Channel
BW Channel Bandwidth of the interferer
Interferer
ETSI
Resource block
11 ETSI EN 301 908-13 V5.2.1 (2011-05)
E
Transmitted energy per RE for reference symbols during the useful part of the symbol,
RS
i.e. excluding the cyclic prefix, (average power normalized to the subcarrier spacing) at the
eNode B transmit antenna connector
ˆ
E
The received energy per RE during the useful part of the symbol, i.e. excluding the cyclic prefix,
s
averaged across the allocated RB(s) (average power within the allocated RB(s)), divided by the
number of RE within this allocation, and normalized to the subcarrier spacing) at the UE antenna
connector
F Frequency
F (offset) Frequency offset of the interferer
Interferer
F Frequency of the interferer
Interferer
F Frequency offset of the interferer
Ioffset
F Frequency of the carrier centre frequency
C
F The lowest frequency of the downlink operating band
DL_low
F The highest frequency of the downlink operating band
DL_high
F The lowest frequency of the uplink operating band
UL_low
F The highest frequency of the uplink operating band
UL_high
I The power spectral density of the total input signal (power averaged over the useful part of the
o
symbols within the transmission bandwidth configuration, divided by the total number of RE for
this configuration and normalized to the subcarrier spacing) at the UE antenna connector,
including the own-cell downlink signal or the power spectral density of the total input signal at the
UE antenna connector (power averaged over the useful part of the symbols within a given
bandwidth and normalized to the said bandwidth), including the own-cell downlink signal
I
The total transmitted power spectral density of the own-cell downlink signal (power averaged over
or
the useful part of the symbols within the transmission bandwidth configuration, divided by the
total number of RE for this configuration and normalized to the subcarrier spacing) at the eNode B
transmit antenna connector
ˆ
I
The total received power spectral density of the own-cell downlink signal (power averaged over
or
the useful part of the symbols within the transmission bandwidth configuration, divided by the
total number of RE for this configuration and normalized to the subcarrier spacing) at the UE
antenna connector
I
The received power spectral density of the total noise and interference for a certain RE (average
ot
power obtained within the RE and normalized to the subcarrier spacing) as measured at the UE
antenna connector
N Cyclic prefix length
cp
N Downlink EARFCN
DL
N
The power spectral density of a white noise source (average power per RE normalized to the
oc
subcarrier spacing), simulating interference from cells that are not defined in a test procedure, as
measured at the UE antenna connector
N Offset used for calculating downlink EARFCN
Offs-DL
N Offset used for calculating uplink EARFCN
Offs-UL
N Transmission bandwidth configuration, expressed in units of resource blocks
RB
N Uplink EARFCN
UL
P Number of cell-specific antenna ports
p Antenna port number
P Modulated mean power of the interferer
Interferer
P Maximum UE Power with possible power reduction due to modulation type, network signalling
UMAX
values and location near the edge of the band
R Minimum average throughput per RB
av
ETSI
12 ETSI EN 301 908-13 V5.2.1 (2011-05)
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
ACLR Adjacent Channel Leakage Ratio
ACS Adjacent Channel Selectivity
BS Base Station
CW Continuous Wave
DCI Downlink Control Information
DL DownLink
EARFCN E-UTRA Absolute Radio Frequency Channel Number
ERM Electromagnetic compatibility and Radio spectrum Matters
E-UTRA Evolved UMTS Terrestrial Radio Access
FDD Frequency Division Duplex
HARQ Hybrid Acknowledge Request
LTE Long Term Evolution
MAC Medium Access Control
MBW Measurement BandWidth
MOP Maximum Output Power
MSG Mobile Standards Group
PDCCH Physical Downlink Control CHannel
RB Resource Block
RE Resource Element
REFSENS Reference Sensitivity power level
RMC Reference Measurement Channel
SS System Simulator
TDD Time Division Duplex
TFES Task Force for European Standards for IMT
TH Temperature High
TL Temperature Low
UE User Equipment
UL Uplink
UMTS Universal Mobile Telecommunications System
UTRA UMTS Terrestrial Radio Access
VH Higher extreme Voltage
VL Lower extreme Voltage
4 Technical requirements specifications
4.1 Environmental profile
The technical requirements of the present document apply under the environmental profile for operation of the
equipment, which shall be declared by the supplier. The equipment shall comply with all the technical requirements of
the present document at all times when operating within the boundary limits of the declared operational environmental
profile.
4.2 Conformance requirements
The requirements in the present document are based on the assumption that the operating band (e.g. band 1, 3, 7, 8, 20,
33, 34, and 38) is shared between systems of the IMT-2000 family (for band 3 and 8 also GSM) or systems having
compatible characteristics.
ETSI
13 ETSI EN 301 908-13 V5.2.1 (2011-05)
4.2.1 Introduction
To meet the essential requirement under article 3.2 of Directive 1999/5/EC [i.2] (R&TTE Directive) for IMT User
Equipment (UE) seven essential parameters in addition to those in EN 301 908-1 [5] have been identified. Table 4.2.1-1
provides a cross reference between these seven essential parameters and the corresponding nine technical requirements
for equipment within the scope of the present document.
Table 4.2.1-1: Cross references
Essential parameter Corresponding technical requirements
Spectrum emissions mask 4.2.3 Transmitter Spectrum emissions mask
4.2.11 Transmitter adjacent channel leakage power ratio
Conducted spurious emissions in active mode 4.2.4 Transmitter spurious emissions
Accuracy of maximum output power 4.2.2 Transmitter maximum output power
Prevention of harmful interference through 4.2.5 Transmitter minimum output power
control of power
Conducted spurious emission in idle mode 4.2.10 Receiver spurious emissions
Impact of interference on receiver performance 4.2.7 Receiver Blocking characteristics
4.2.8 Receiver spurious response
4.2.9 Receiver Intermodulation characteristics
Receiver adjacent channel selectivity 4.2.6 Receiver Adjacent Channel Selectivity (ACS)
Control and Monitoring functions EN 301 908-1 [5], clause 4.2.4 Control and Monitoring
functions
NOTE: Out of synchronization requirement in EN 301 908-2 [7] is not included in the present document due
to fact that E-UTRA has network controlled dynamic resource allocation mitigating the risk of
interference in out of synchronization situation.
4.2.2 Transmitter Maximum Output Power
4.2.2.1 Definition
The following UE Power Classes define the maximum output power for any transmission bandwidth within the channel
bandwidth. The period of measurement shall be at least one sub-frame (1 ms).
4.2.2.2 Limits
The UE maximum output power shall be within the shown value in table 4.2.2.2-1.
Table 4.2.2.2-1: UE power classes
E-UTRA Band Power Class 3 Tolerance
(dBm) (dB)
1 23 ±2,7
3 23 ±2,7 (see note 2)
7 23 ±2,7 (see note 2)
8 23 ±2,7 (see note 2)
20 23 ±2,7 (see note 2)
33 23 ±2,7
34 23 ±2,7
38 23
±2,7
NOTE 1: The above tolerances are applicable for UE(s) that support up to
4 E-UTRA operating bands. For UE(s) that support 5 or more E-UTRA
bands the maximum output power is expected to decrease with each
additional band.
NOTE 2: For transmission bandwidths (TS 136 521-1 [1], clause 5) confined
within F and F + 4 MHz or F - 4 MHz and F , the
UL_low UL_low UL_high UL_high
maximum output power requirement is relaxed by reducing the lower
tolerance limit by 1,5 dB (tolerance = +2,7/-4,2).
ETSI
14 ETSI EN 301 908-13 V5.2.1 (2011-05)
NOTE: These requirements do not take into account the maximum power reductions allowed to the UE in subject
to certain transmission conditions specified in TS 136 101 [4], clauses 6.2.3 and 6.2.4.
4.2.2.3 Conformance
Conformance tests described in clause 5.3.1 shall be carried out.
4.2.3 Transmitter Spectrum Emission Mask
4.2.3.1 Definition
The spectrum emission mask of the UE applies to frequencies (Δf ) starting from the ± edge of the assigned
OOB
E-UTRA channel bandwidth.
4.2.3.2 Limits
The power of any UE emission shall fulfil requirements in table 4.2.3.2-1.
Table 4.2.3.2-1: General E-UTRA spectrum emission mask
Spectrum emission limit (dBm)/Channel bandwidth
Δf (MHz)
OOB
1,4 MHz 3,0 MHz 5 MHz 10 MHz 15 MHz 20 MHz Measurement bandwidth
±0 to 1 -8,5 -11,5 -13,5 -16,5 -18,5 -19,5 30 kHz
-8,5 -8,5 -8,5 -8,5 -8,5 -8,5 1 MHz
±1 to 2,5
±2,5 to 2,8 -23,5 -8,5 -8,5 -8,5 -8,5 -8,5 1 MHz
-8,5 -8,5 -8,5 -8,5 -8,5 1 MHz
±2,8 to 5
±5 to 6 -23,5 -11,5 -11,5 -11,5 -11,5 1 MHz
-23,5 -11,5 -11,5 -11,5 1 MHz
±6 to 10
±10 to 15 -23,5 -11,5 -11,5 1 MHz
-23,5 -11,5 1 MHz
±15 to 20
±20 to 25 -23,5 1 MHz
NOTE 1: The first and last measurement position with a 30 kHz filter is at Δf equals to 0,015 MHz and
OOB
0,985 MHz.
NOTE 2: The first and last measurement position with a 1 MHz filter for 1 MHz - 2,5 MHz offset range is at Δf
OOB
equals to 1,5 MHz and 2,0 MHz. Similarly for other Δf ranges.
OOB
NOTE 3: The measurements are to be performed above the upper edge of the channel and below the lower
edge of the channel.
NOTE 4: For the 2,5 MHz - 2,8 MHz offset range with 1,4 MHz channel bandwidth, the measurement position is
at Δf equals to 3 MHz.
OOB
4.2.3.3 Conformance
Conformance tests described in clause 5.3.2 shall be carried out.
4.2.4 Transmitter Spurious Emissions
4.2.4.1 Definition
Spurious emissions are emissions
...
Final draft ETSI EN 301 908-13 V5.2.1 (2011-02)
Harmonized European Standard
IMT cellular networks;
Harmonized EN covering the essential requirements
of article 3.2 of the R&TTE Directive;
Part 13: Evolved Universal Terrestrial Radio Access (E-UTRA)
User Equipment (UE)
2 Final draft ETSI EN 301 908-13 V5.2.1 (2011-02)
Reference
REN/MSG-TFES-008-13
Keywords
3G, 3GPP, cellular, digital, E-UTRA, IMT,
IMT-2000, LTE, mobile, radio, regulation, UMTS
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2011.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 Final draft ETSI EN 301 908-13 V5.2.1 (2011-02)
Contents
Intellectual Property Rights . 6
Foreword . 6
Introduction . 7
1 Scope . 8
2 References . 8
2.1 Normative references . 8
2.2 Informative references . 9
3 Definitions, symbols and abbreviations . 9
3.1 Definitions . 9
3.2 Symbols . 10
3.3 Abbreviations . 12
4 Technical requirements specifications . 12
4.1 Environmental profile . 12
4.2 Conformance requirements . 12
4.2.1 Introduction. 13
4.2.2 Transmitter Maximum Output Power . 13
4.2.2.1 Definition . 13
4.2.2.2 Limits . 13
4.2.2.3 Conformance . 14
4.2.3 Transmitter Spectrum Emission Mask . 14
4.2.3.1 Definition . 14
4.2.3.2 Limits . 14
4.2.3.3 Conformance . 14
4.2.4 Transmitter Spurious Emissions . 14
4.2.4.1 Definition . 14
4.2.4.2 Limits . 14
4.2.4.3 Conformance . 16
4.2.5 Transmitter Minimum Output Power . 16
4.2.5.1 Definition . 16
4.2.5.2 Limits . 16
4.2.5.3 Conformance . 16
4.2.6 Receiver Adjacent Channel Selectivity (ACS) . 16
4.2.6.1 Definition . 16
4.2.6.2 Limits . 16
4.2.6.3 Conformance . 17
4.2.7 Receiver Blocking Characteristics . 17
4.2.7.1 Definition . 17
4.2.7.2 Limits . 18
4.2.7.3 Conformance . 19
4.2.8 Receiver Spurious Response . 19
4.2.8.1 Definition . 19
4.2.8.2 Limits . 19
4.2.8.3 Conformance . 20
4.2.9 Receiver Intermodulation Characteristics . 20
4.2.9.1 Definition . 20
4.2.9.2 Limits . 20
4.2.9.3 Conformance . 20
4.2.10 Receiver Spurious Emissions . 21
4.2.10.1 Definition . 21
4.2.10.2 Limits . 21
4.2.10.3 Conformance . 21
4.2.11 Transmitter Adjacent Channel Leakage Power Ratio . 21
4.2.11.1 Definition . 21
ETSI
4 Final draft ETSI EN 301 908-13 V5.2.1 (2011-02)
4.2.11.2 Limits . 21
4.2.11.3 Conformance . 22
5 Testing for compliance with technical requirements . 22
5.1 Environmental conditions for testing . 22
5.2 Interpretation of the measurement results . 23
5.3 Essential radio test suites . 24
5.3.1 Transmitter Maximum Output Power . 24
5.3.1.1 Method of test . 24
5.3.1.1.1 Initial conditions . 24
5.3.1.1.2 Procedure . 24
5.3.1.2 Test requirements . 24
5.3.2 Transmitter Spectrum Emission Mask . 24
5.3.2.1 Method of test . 24
5.3.2.1.1 Initial conditions . 24
5.3.2.1.2 Procedure . 25
5.3.2.2 Test requirements . 25
5.3.3 Transmitter Spurious Emissions . 25
5.3.3.1 Method of test . 25
5.3.3.1.1 Initial conditions . 25
5.3.3.1.2 Procedure . 26
5.3.3.2 Test requirements . 26
5.3.4 Transmitter Minimum Output Power . 26
5.3.4.1 Method of test . 26
5.3.4.1.1 Initial conditions . 26
5.3.4.1.2 Procedure . 26
5.3.4.2 Test requirements . 27
5.3.5 Receiver Adjacent Channel Selectivity (ACS) . 27
5.3.5.1 Method of test . 27
5.3.5.1.1 Initial conditions . 27
5.3.5.1.2 Procedure . 27
5.3.5.2 Test requirements . 28
5.3.6 Receiver Blocking Characteristics . 28
5.3.6.1 Method of test . 28
5.3.6.1.1 Initial requirements . 28
5.3.6.1.2 In-Band Procedure . 28
5.3.6.1.3 Out-Of-Band Procedure . 29
5.3.6.1.4 Narrow-Band Procedure . 29
5.3.6.2 Test requirements . 29
5.3.7 Receiver Spurious Response . 30
5.3.7.1 Method of test . 30
5.3.7.1.1 Initial conditions . 30
5.3.7.1.2 Procedure . 30
5.3.7.2 Test requirements . 30
5.3.8 Receiver Intermodulation Characteristics . 30
5.3.8.1 Method of test . 30
5.3.8.1.1 Initial conditions . 30
5.3.8.1.2 Procedure . 31
5.3.8.2 Test requirements . 31
5.3.9 Receiver Spurious Emissions . 31
5.3.9.1 Method of test . 31
5.3.9.1.1 Procedure . 31
5.3.9.2 Test requirements . 32
5.3.10 Transmitter Adjacent Channel Leakage Power Ratio . 32
5.3.10.1 Method of test . 32
5.3.10.1.1 Initial conditions . 32
5.3.10.1.2 Procedure . 32
5.3.10.2 Test requirements . 33
Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT) . 34
ETSI
5 Final draft ETSI EN 301 908-13 V5.2.1 (2011-02)
Annex B (normative): Environmental profile . 36
B.1 General . 36
B.1.1 Introduction . 36
B.1.2 Temperature . 36
B.1.3 Voltage . 36
B.1.4 Test environment . 37
Annex C (informative): The EN title in the official languages . 38
Annex D (informative): Bibliography . 39
History . 40
ETSI
6 Final draft ETSI EN 301 908-13 V5.2.1 (2011-02)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonized European Standard (EN) has been produced by ETSI Technical Committee Mobile Standards
Group (MSG), and is now submitted for the Vote phase of the ETSI standards Two-step Approval Procedure.
The present document has been produced by ETSI in response to mandate M/284 from the European Commission
issued under Council Directive 98/34/EC [i.1] (as amended) laying down a procedure for the provision of information
in the field of technical standards and regulations.
The present document is intended to become a Harmonized Standard, the reference of which will be published in the
Official Journal of the European Union referencing the Directive 1999/5/EC [i.2] of the European Parliament and of the
Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition
of their conformity ("the R&TTE Directive").
The requirements relevant to Directive 1999/5/EC [i.2] are summarized in annex A.
The present document is part 13 of a multi-part deliverable covering the essential requirements under article 3.2 of
Directive 1999/5/EC [i.2] ( R&TTE Directive) for Base Stations (BS), Repeaters and User Equipment (UE) for IMT
cellular networks, as identified below:
Part 1: "Introduction and common requirements";
Part 2: "CDMA Direct Spread (UTRA FDD) User Equipment (UE)";
Part 3: "CDMA Direct Spread (UTRA FDD) Base Stations (BS)";
Part 4: "CDMA Multi-Carrier (cdma2000) User Equipment (UE)";
Part 5: "CDMA Multi-Carrier (cdma2000) Base Stations (BS)";
Part 6: "CDMA TDD (UTRA TDD) User Equipment (UE)";
Part 7: "CDMA TDD (UTRA TDD) Base Stations (BS)";
Part 8: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (UE) covering essential requirements
of article 3.2 of the R&TTE Directive";
Part 9: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (BS) covering essential requirements
of article 3.2 of the R&TTE Directive";
Part 10: "Harmonized EN for IMT-2000, FDMA/TDMA (DECT) covering essential requirements of article 3.2 of
the R&TTE Directive";
Part 11: "CDMA Direct Spread (UTRA FDD) (Repeaters)";
Part 12: "Harmonized EN for IMT-2000, CDMA Multi-Carrier (cdma2000) (Repeaters) covering the essential
requirements of article 3.2 of the R&TTE Directive";
Part 13: "Evolved Universal Terrestrial Radio Access (E-UTRA) User Equipment (UE)";
ETSI
7 Final draft ETSI EN 301 908-13 V5.2.1 (2011-02)
Part 14: "Evolved Universal Terrestrial Radio Access (E-UTRA) Base Stations (BS)";
Part 15: "Evolved Universal Terrestrial Radio Access (E-UTRA) (FDD Repeaters)";
Part 16: "Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (UE)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 17: "Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (BS)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 18: "E-UTRA, UTRA and GSM/EDGE Multi-Standard Radio (MSR) Base Station (BS)";
Part 19: "OFDMA TDD WMAN (Mobile WiMAX) TDD User Equipment (UE)";
Part 20: "OFDMA TDD WMAN (Mobile WiMAX) TDD Base Station (BS)";
Part 21: "OFDMA TDD WMAN (Mobile WiMAX) FDD User Equipment (UE)";
Part 22: "OFDMA TDD WMAN (Mobile WiMAX) FDD Base Stations (BS)".
Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 18 months after doa
Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.2]. The
modular structure is shown in EG 201 399 [i.3].
ETSI
8 Final draft ETSI EN 301 908-13 V5.2.1 (2011-02)
1 Scope
The present document applies to the following radio equipment type:
• User Equipment for Evolved Universal Terrestrial Radio Access (E-UTRA).
This radio equipment type is capable of operating in all or any part of the frequency bands given in table 1-1.
Table 1-1: E-UTRA UE operating bands
E-UTRA Band Direction of transmission E-UTRA operating bands
1 Transmit 1 920 MHz to 1 980 MHz
Receive 2 110 MHz to 2 170 MHz
3 Transmit 1 710 MHz to 1 785 MHz
Receive 1 805 MHz to 1 880 MHz
7 Transmit 2 500 MHz to 2 570 MHz
Receive 2 620 MHz to 2 690 MHz
8 Transmit 880 MHz to 915 MHz
Receive 925 MHz to 960 MHz
20 Transmit 832 MHz to 862 MHz
Receive 791 MHz to 821 MHz
33 Transmit and Receive 1 900 MHz to 1 920 MHz
34 Transmit and Receive 2 010 MHz to 2 025 MHz
38 Transmit and Receive 2 570 MHz to 2 620 MHz
The present document is intended to cover the provisions of Directive 1999/5/EC [i.2] (R&TTE Directive), article 3.2,
which states that "…. radio equipment shall be so constructed that it effectively uses the spectrum allocated to
terrestrial/space radio communications and orbital resources so as to avoid harmful interference".
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the R&TTE Directive [i.2] may apply to equipment within the scope of the present
document.
NOTE: A list of such ENs is included on the web site http://www.newapproach.org.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] ETSI TS 136 521-1 (V9.3.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA); User
Equipment (UE) conformance specification; Radio transmission and reception; Part 1:
Conformance testing (3GPP TS 36.521-1 version 9.3.0 Release 9)".
[2] ETSI TS 136 508 (V9.3.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA) and
Evolved Packet Core (EPC); Common test environments for User Equipment (UE) conformance
testing (3GPP TS 36.508 version 9.3.0 Release 9)". .
ETSI
9 Final draft ETSI EN 301 908-13 V5.2.1 (2011-02)
[3] ETSI TS 136 509 (V9.3.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA) and
Evolved Packet Core (EPC); Special conformance testing functions for User Equipment (UE)
(3GPP TS 36.509 version 9.3.0 Release 9)". .
[4] ETSI TS 136 101 (V9.5.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA); User
Equipment (UE) radio transmission and reception (3GPP TS 36.101 version 9.5.0 Release 9)".
[5] ETSI EN 301 908-1 (V5.2.1): "IMT cellular networks; Harmonized EN covering the essential
requirements of article 3.2 of the R&TTE Directive; Part 1: Introduction and common
requirements".
[6] Void.
[7] ETSI EN 301 908-2 (V5.1.1): "IMT cellular networks; Harmonized EN covering the essential
requirements of article 3.2 of the R&TTE Directive; Part 2: CDMA Direct Spread (UTRA FDD)
User Equipment (UE)".
[8] IEC 60068-2-1 (2007): "Environmental testing - Part 2-1: Tests - Test A: Cold".
[9] IEC 60068-2-2 (2007): "Environmental testing - Part 2-2: Tests - Test B: Dry heat".
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a
procedure for the provision of information in the field of technical standards and regulations.
[i.2] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio
equipment and telecommunications terminal equipment and the mutual recognition of their
conformity (R&TTE Directive).
[i.3] ETSI EG 201 399: "Electromagnetic compatibility and Radio spectrum Matters (ERM); A guide to
the production of Harmonized Standards for application under the R&TTE Directive".
[i.4] ETSI TR 102 215 (V1.3.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
Recommended approach, and possible limits for measurement uncertainty for the measurement of
radiated electromagnetic fields above 1 GHz".
[i.5] ITU-R Recommendation SM.329-10 (2003): "Unwanted emissions in the spurious domain".
[i.6] ETSI TR 100 028 (all parts) (V1.4.1): "Electromagnetic compatibility and Radio spectrum Matters
(ERM); Uncertainties in the measurement of mobile radio equipment characteristics".
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
channel bandwidth: RF bandwidth supporting a single E-UTRA RF carrier with the transmission bandwidth
configured in the uplink or downlink of a cell
NOTE: The channel bandwidth is measured in MHz and is used as a reference for transmitter and receiver RF
requirements.
channel edge: lowest and highest frequency of the carrier, separated by the channel bandwidth
Maximum Output Power (MOP): mean power level per carrier of UE measured at the antenna connector in a
specified reference condition
ETSI
10 Final draft ETSI EN 301 908-13 V5.2.1 (2011-02)
mean power: when applied to E-UTRA transmission this is the power measured in the operating system bandwidth of
the carrier
NOTE: The period of measurement is assumed to be at least one subframe (1 ms) unless otherwise stated.
occupied bandwidth: width of a frequency band such that, below the lower and above the upper frequency limits, the
mean powers emitted are each equal to a specified percentage β/2 of the total mean power of a given emission
operating band: frequency range (paired or unpaired) that is defined with a specific set of technical requirements, in
which E-UTRA operates
NOTE: Operating bands for E-UTRA are designated with Arabic numerals, while the corresponding operating
bands for UTRA are designated with Roman numerals.
output power: mean power of one carrier of the UE, delivered to a load with resistance equal to the nominal load
impedance of the transmitter
reference bandwidth: bandwidth in which an emission level is specified
resource block: physical resource consisting of a number of symbols in the time domain and a number of consecutive
subcarriers spanning 180 kHz in the frequency domain
transmission bandwidth: bandwidth of an instantaneous transmission from a UE or BS, measured in Resource Block
units, see figure 3.1-1
transmission bandwidth configuration: highest transmission bandwidth allowed for uplink or downlink in a given
channel bandwidth, measured in Resource Block units, see figure 3.1-1
transmit diversity: transmit diversity is based on space-frequency block coding techniques complemented with
frequency-shift time diversity when four transmit antennas is used
Channel Bandwidth [MHz]
Transmission Bandwidth Configuration [RB]
Transmission
Bandwidth [RB]
Channel edge
Channel edge
Center subcarrier is not transmitted
In downlink
Active Resource Blocks
Figure 3.1-1: Definition of Channel Bandwidth and Transmission Bandwidth Configuration
for one E-UTRA carrier
3.2 Symbols
For the purposes of the present document, the following symbols apply:
ΔF Δ Frequency of Out-of-band emission
OOB
BW Channel bandwidth
Channel
BW Channel Bandwidth of the interferer
Interferer
ETSI
Resource block
11 Final draft ETSI EN 301 908-13 V5.2.1 (2011-02)
E
Transmitted energy per RE for reference symbols during the useful part of the symbol,
RS
i.e. excluding the cyclic prefix, (average power normalized to the subcarrier spacing) at the
eNode B transmit antenna connector
ˆ
E
The received energy per RE during the useful part of the symbol, i.e. excluding the cyclic prefix,
s
averaged across the allocated RB(s) (average power within the allocated RB(s)), divided by the
number of RE within this allocation, and normalized to the subcarrier spacing) at the UE antenna
connector
F Frequency
F (offset) Frequency offset of the interferer
Interferer
F Frequency of the interferer
Interferer
F Frequency offset of the interferer
Ioffset
F Frequency of the carrier centre frequency
C
F The lowest frequency of the downlink operating band
DL_low
F The highest frequency of the downlink operating band
DL_high
F The lowest frequency of the uplink operating band
UL_low
F The highest frequency of the uplink operating band
UL_high
I The power spectral density of the total input signal (power averaged over the useful part of the
o
symbols within the transmission bandwidth configuration, divided by the total number of RE for
this configuration and normalized to the subcarrier spacing) at the UE antenna connector,
including the own-cell downlink signal or the power spectral density of the total input signal at the
UE antenna connector (power averaged over the useful part of the symbols within a given
bandwidth and normalized to the said bandwidth), including the own-cell downlink signal
I
The total transmitted power spectral density of the own-cell downlink signal (power averaged over
or
the useful part of the symbols within the transmission bandwidth configuration, divided by the
total number of RE for this configuration and normalized to the subcarrier spacing) at the eNode B
transmit antenna connector
ˆ
I
The total received power spectral density of the own-cell downlink signal (power averaged over
or
the useful part of the symbols within the transmission bandwidth configuration, divided by the
total number of RE for this configuration and normalized to the subcarrier spacing) at the UE
antenna connector
I
The received power spectral density of the total noise and interference for a certain RE (average
ot
power obtained within the RE and normalized to the subcarrier spacing) as measured at the UE
antenna connector
N Cyclic prefix length
cp
N Downlink EARFCN
DL
N
The power spectral density of a white noise source (average power per RE normalized to the
oc
subcarrier spacing), simulating interference from cells that are not defined in a test procedure, as
measured at the UE antenna connector
N Offset used for calculating downlink EARFCN
Offs-DL
N Offset used for calculating uplink EARFCN
Offs-UL
N Transmission bandwidth configuration, expressed in units of resource blocks
RB
N Uplink EARFCN
UL
P Number of cell-specific antenna ports
p Antenna port number
P Modulated mean power of the interferer
Interferer
P Maximum UE Power with possible power reduction due to modulation type, network signalling
UMAX
values and location near the edge of the band
R Minimum average throughput per RB
av
ETSI
12 Final draft ETSI EN 301 908-13 V5.2.1 (2011-02)
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
ACLR Adjacent Channel Leakage Ratio
ACS Adjacent Channel Selectivity
BS Base Station
CW Continuous Wave
DCI Downlink Control Information
DL DownLink
EARFCN E-UTRA Absolute Radio Frequency Channel Number
ERM Electromagnetic compatibility and Radio spectrum Matters
E-UTRA Evolved UMTS Terrestrial Radio Access
FDD Frequency Division Duplex
HARQ Hybrid Acknowledge Request
LTE Long Term Evolution
MAC Medium Access Control
MBW Measurement BandWidth
MOP Maximum Output Power
MSG Mobile Standards Group
PDCCH Physical Downlink Control CHannel
RB Resource Block
RE Resource Element
REFSENS Reference Sensitivity power level
RMC Reference Measurement Channel
SS System Simulator
TDD Time Division Duplex
TFES Task Force for European Standards for IMT
TH Temperature High
TL Temperature Low
UE User Equipment
UL Uplink
UMTS Universal Mobile Telecommunications System
UTRA UMTS Terrestrial Radio Access
VH Higher extreme Voltage
VL Lower extreme Voltage
4 Technical requirements specifications
4.1 Environmental profile
The technical requirements of the present document apply under the environmental profile for operation of the
equipment, which shall be declared by the supplier. The equipment shall comply with all the technical requirements of
the present document at all times when operating within the boundary limits of the declared operational environmental
profile.
4.2 Conformance requirements
The requirements in the present document are based on the assumption that the operating band (e.g. band 1, 3, 7, 8, 20,
33, 34, and 38) is shared between systems of the IMT-2000 family (for band 3 and 8 also GSM) or systems having
compatible characteristics.
ETSI
13 Final draft ETSI EN 301 908-13 V5.2.1 (2011-02)
4.2.1 Introduction
To meet the essential requirement under article 3.2 of Directive 1999/5/EC [i.2] (R&TTE Directive) for IMT User
Equipment (UE) seven essential parameters in addition to those in EN 301 908-1 [5] have been identified. Table 4.2.1-1
provides a cross reference between these seven essential parameters and the corresponding nine technical requirements
for equipment within the scope of the present document.
Table 4.2.1-1: Cross references
Essential parameter Corresponding technical requirements
Spectrum emissions mask 4.2.3 Transmitter Spectrum emissions mask
4.2.11 Transmitter adjacent channel leakage power ratio
Conducted spurious emissions in active mode 4.2.4 Transmitter spurious emissions
Accuracy of maximum output power 4.2.2 Transmitter maximum output power
Prevention of harmful interference through 4.2.5 Transmitter minimum output power
control of power
Conducted spurious emission in idle mode 4.2.10 Receiver spurious emissions
Impact of interference on receiver performance 4.2.7 Receiver Blocking characteristics
4.2.8 Receiver spurious response
4.2.9 Receiver Intermodulation characteristics
Receiver adjacent channel selectivity 4.2.6 Receiver Adjacent Channel Selectivity (ACS)
Control and Monitoring functions EN 301 908-1 [5], clause 4.2.4 Control and Monitoring
functions
NOTE: Out of synchronization requirement in EN 301 908-2 [7] is not included in the present document due
to fact that E-UTRA has network controlled dynamic resource allocation mitigating the risk of
interference in out of synchronization situation.
4.2.2 Transmitter Maximum Output Power
4.2.2.1 Definition
The following UE Power Classes define the maximum output power for any transmission bandwidth within the channel
bandwidth. The period of measurement shall be at least one sub-frame (1 ms).
4.2.2.2 Limits
The UE maximum output power shall be within the shown value in table 4.2.2.2-1.
Table 4.2.2.2-1: UE power classes
E-UTRA Band Power Class 3 Tolerance
(dBm) (dB)
1 23 ±2,7
3 23 ±2,7 (see note 2)
7 23 ±2,7 (see note 2)
8 23 ±2,7 (see note 2)
20 23 ±2,7 (see note 2)
33 23 ±2,7
34 23 ±2,7
38 23
±2,7
NOTE 1: The above tolerances are applicable for UE(s) that support up to
4 E-UTRA operating bands. For UE(s) that support 5 or more E-UTRA
bands the maximum output power is expected to decrease with each
additional band.
NOTE 2: For transmission bandwidths (TS 136 521-1 [1], clause 5) confined
within F and F + 4 MHz or F - 4 MHz and F , the
UL_low UL_low UL_high UL_high
maximum output power requirement is relaxed by reducing the lower
tolerance limit by 1,5 dB (tolerance = +2,7/-4,2).
ETSI
14 Final draft ETSI EN 301 908-13 V5.2.1 (2011-02)
NOTE: These requirements do not take into account the maximum power reductions allowed to the UE in subject
to certain transmission conditions specified in TS 136 101 [4], clauses 6.2.3 and 6.2.4.
4.2.2.3 Conformance
Conformance tests described in clause 5.3.1 shall be carried out.
4.2.3 Transmitter Spectrum Emission Mask
4.2.3.1 Definition
The spectrum emission mask of the UE applies to frequencies (Δf ) starting from the ± edge of the assigned
OOB
E-UTRA channel bandwidth.
4.2.3.2 Limits
The power of any UE emission shall fulfil requirements in table 4.2.3.2-1.
Table 4.2.3.2-1: General E-UTRA spectrum emission mask
Δf (MHz) 1,4 MHz 3,0 MHz 5 MHz 10 MHz 15 MHz 20 MHz Measurement bandwidth
OOB
-8,5 -11,5 -13,5 -16,5 -18,5 -19,5 30 kHz
±0 to 1
±1 to 2,5 -8,5 -8,5 -8,5 -8,5 -8,5 -8,5 1 MHz
-23,5 -8,5 -8,5 -8,5 -8,5 -8,5 1 MHz
±2,5 to 2,8
±2,8 to 5 -8,5 -8,5 -8,5 -8,5 -8,5 1 MHz
-23,5 -11,5 -11,5 -11,5 -11,5 1 MHz
±5 to 6
±6 to 10 -23,5 -11,5 -11,5 -11,5 1 MHz
-23,5 -11,5 -11,5 1 MHz
±10 to 15
-23,5 -11,5 1 MHz
±15 to 20
-23,5 1 MHz
±20 to 25
NOTE 1: The first and last measurement position with a 30 kHz filter is at Δf equals to 0,015 MHz and
OOB
0,985 MHz.
NOTE 2: The first and last measurement position with a 1 MHz filter for 1 MHz - 2,5 MHz offset range is at Δf
OOB
equals to 1,5 MHz and 2,0 MHz. Similarly for other Δf ranges.
OOB
NOTE 3: The measurements are to be performed above the upper edge of the channel and below the lower
edge of the channel.
NOTE 4: For the 2,5 MHz - 2,8 MHz offset range with 1,4 MHz channel bandwidth, the measurement position is
at Δf equals to 3 MHz.
OOB
4.2.3.3 Confo
...
Draft ETSI EN 301 908-13 V5.1.1 (2010-07)
Harmonized European Standard (Telecommunications series)
Electromagnetic compatibility
and Radio spectrum Matters (ERM);
Base Stations (BS), Repeaters and User Equipment (UE)
for IMT-2000 Third-Generation cellular networks;
Part 13: Harmonized EN for IMT-2000,
Evolved Universal Terrestrial Radio Access (E-UTRA) (UE)
covering the essential requirements
of article 3.2 of the R&TTE Directive
2 Draft ETSI EN 301 908-13 V5.1.1 (2010-07)
Reference
REN/ERM-TFES-008-13
Keywords
3G, 3GPP, cellular, digital, E-UTRA, IMT-2000,
LTE, mobile, radio, regulation, UMTS
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2010.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 Draft ETSI EN 301 908-13 V5.1.1 (2010-07)
Contents
Intellectual Property Rights . 6
Foreword . 6
Introduction . 7
1 Scope . 8
2 References . 8
2.1 Normative references . 8
2.2 Informative references . 9
3 Definitions, symbols and abbreviations . 9
3.1 Definitions . 9
3.2 Symbols . 10
3.3 Abbreviations . 12
4 Technical requirements specifications . 12
4.1 Environmental profile . 12
4.2 Conformance requirements . 12
4.2.1 Introduction. 12
4.2.2 Transmitter Maximum Output Power . 13
4.2.2.1 Definition . 13
4.2.2.2 Limits . 13
4.2.2.3 Conformance . 13
4.2.3 Transmitter Spectrum Emission Mask . 14
4.2.3.1 Definition . 14
4.2.3.2 Limits . 14
4.2.3.3 Conformance . 14
4.2.4 Transmitter Spurious Emissions . 14
4.2.4.1 Definition . 14
4.2.4.2 Limits . 14
4.2.4.3 Conformance . 16
4.2.5 Transmitter Minimum Output Power . 16
4.2.5.1 Definition . 16
4.2.5.2 Limits . 16
4.2.5.3 Conformance . 16
4.2.6 Receiver Adjacent Channel Selectivity (ACS) . 16
4.2.6.1 Definition . 16
4.2.6.2 Limits . 16
4.2.6.3 Conformance . 17
4.2.7 Receiver Blocking Characteristics . 17
4.2.7.1 Definition . 17
4.2.7.2 Limits . 17
4.2.7.3 Conformance . 19
4.2.8 Receiver Spurious Response . 19
4.2.8.1 Definition . 19
4.2.8.2 Limits . 19
4.2.8.3 Conformance . 19
4.2.9 Receiver Intermodulation Characteristics . 20
4.2.9.1 Definition . 20
4.2.9.2 Limits . 20
4.2.9.3 Conformance . 20
4.2.10 Receiver Spurious Emissions . 20
4.2.10.1 Definition . 20
4.2.10.2 Limits . 20
4.2.10.3 Conformance . 21
4.2.11 Transmitter Adjacent Channel Leakage Power Ratio . 21
4.2.11.1 Definition . 21
ETSI
4 Draft ETSI EN 301 908-13 V5.1.1 (2010-07)
4.2.11.2 Limits . 21
4.2.11.3 Conformance . 22
5 Testing for compliance with technical requirements . 22
5.1 Environmental conditions for testing . 22
5.2 Interpretation of the measurement results . 23
5.3 Essential radio test suites . 24
5.3.1 Transmitter Maximum Output Power . 24
5.3.1.1 Method of test . 24
5.3.1.1.1 Initial conditions . 24
5.3.1.1.2 Procedure . 24
5.3.1.2 Test requirements . 24
5.3.2 Transmitter Spectrum Emission Mask . 24
5.3.2.1 Method of test . 24
5.3.2.1.1 Initial conditions . 24
5.3.2.1.2 Procedure . 25
5.3.2.2 Test requirements . 25
5.3.3 Transmitter Spurious Emissions . 25
5.3.3.1 Method of test . 25
5.3.3.1.1 Initial conditions . 25
5.3.3.1.2 Procedure . 26
5.3.3.2 Test requirements . 26
5.3.4 Transmitter Minimum Output Power . 26
5.3.4.1 Method of test . 26
5.3.4.1.1 Initial conditions . 26
5.3.4.1.2 Procedure . 26
5.3.4.2 Test requirements . 27
5.3.5 Receiver Adjacent Channel Selectivity (ACS) . 27
5.3.5.1 Method of test . 27
5.3.5.1.1 Initial conditions . 27
5.3.5.1.2 Procedure . 27
5.3.5.2 Test requirements . 28
5.3.6 Receiver Blocking Characteristics . 28
5.3.6.1 Method of test . 28
5.3.6.1.1 Initial requirements . 28
5.3.6.1.2 In-Band Procedure . 28
5.3.6.1.3 Out-Of-Band Procedure . 29
5.3.6.1.4 Narrow-Band Procedure . 29
5.3.6.2 Test requirements . 29
5.3.7 Receiver Spurious Response . 29
5.3.7.1 Method of test . 29
5.3.7.1.1 Initial conditions . 29
5.3.7.1.2 Procedure . 29
5.3.7.2 Test requirements . 30
5.3.8 Receiver Intermodulation Characteristics . 30
5.3.8.1 Method of test . 30
5.3.8.1.1 Initial conditions . 30
5.3.8.1.2 Procedure . 30
5.3.8.2 Test requirements . 31
5.3.9 Receiver Spurious Emissions . 31
5.3.9.1 Method of test . 31
5.3.9.1.1 Procedure . 31
5.3.9.2 Test requirements . 31
5.3.10 Transmitter Adjacent Channel Leakage Power Ratio . 31
5.3.10.1 Method of test . 31
5.3.10.1.1 Initial conditions . 31
5.3.10.1.2 Procedure . 32
5.3.10.2 Test requirements . 32
Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT) . 33
ETSI
5 Draft ETSI EN 301 908-13 V5.1.1 (2010-07)
Annex B (normative): Environmental profile . 35
B.1 General . 35
B.1.1 Introduction . 35
B.1.2 Temperature . 35
B.1.3 Voltage . 35
B.1.4 Test environment . 36
Annex C (informative): The EN title in the official languages . 37
Annex D (informative): Bibliography . 38
History . 39
ETSI
6 Draft ETSI EN 301 908-13 V5.1.1 (2010-07)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonized European Standard (Telecommunications series) has been produced by ETSI Technical Committee
Electromagnetic compatibility and Radio spectrum Matters (ERM), and is now submitted for the Public Enquiry phase
of the ETSI standards Two-step Approval Procedure.
The present document has been produced by ETSI in response to mandate M/284 from the European Commission
issued under Council Directive 98/34/EC [i.2] (as amended) laying down a procedure for the provision of information
in the field of technical standards and regulations.
The present document is intended to become a Harmonized Standard, the reference of which will be published in the
Official Journal of the European Union referencing the Directive 1999/5/EC [i.3] of the European Parliament and of the
Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition
of their conformity ("the R&TTE Directive").
The requirements relevant to Directive 1999/5/EC [i.3] are summarized in annex A.
The present document is part 13 of a multi-part deliverable covering the Base Stations (BS), Repeaters and User
Equipment (UE) for IMT-2000 Third-Generation cellular networks, as identified below:
Part 1: "Harmonized EN for IMT-2000, introduction and common requirements, covering the essential
requirements of article 3.2 of the R&TTE Directive";
Part 2: "Harmonized EN for IMT-2000, CDMA Direct Spread (UTRA FDD and E-UTRA FDD) (UE) covering
the essential requirements of article 3.2 of the R&TTE Directive";
Part 3: "Harmonized EN for IMT-2000, CDMA Direct Spread (UTRA FDD and E-UTRA FDD) (BS) covering
the essential requirements of article 3.2 of the R&TTE Directive";
Part 4: "Harmonized EN for IMT-2000, CDMA Multi-Carrier (cdma2000) and Evolved CDMA Multi-Carrier
Ultra Mobile Broadband (UMB) (UE) covering the essential requirements of article 3.2 of the R&TTE
Directive";
Part 5: "Harmonized EN for IMT-2000, CDMA Multi-Carrier (cdma2000) and Evolved CDMA Multi-Carrier
Ultra Mobile Broadband (UMB) (BS) covering the essential requirements of article 3.2 of the R&TTE
Directive";
Part 6: "Harmonized EN for IMT-2000, CDMA TDD (UTRA TDD and E-UTRA TDD) (UE) covering the
essential requirements of article 3.2 of the R&TTE Directive";
Part 7: "Harmonized EN for IMT-2000, CDMA TDD (UTRA TDD and E-UTRA TDD) (BS) covering the
essential requirements of article 3.2 of the R&TTE Directive";
Part 8: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (UE) covering essential requirements
of article 3.2 of the R&TTE Directive";
Part 9: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (BS) covering essential requirements
of article 3.2 of the R&TTE Directive";
ETSI
7 Draft ETSI EN 301 908-13 V5.1.1 (2010-07)
Part 10: "Harmonized EN for IMT-2000, FDMA/TDMA (DECT) covering essential requirements of article 3.2 of
the R&TTE Directive";
Part 11: "Harmonized EN for IMT-2000, CDMA Direct Spread (UTRA FDD and E-UTRA FDD) (Repeaters)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 12: "Harmonized EN for IMT-2000, CDMA Multi-Carrier (cdma2000) (Repeaters) covering the essential
requirements of article 3.2 of the R&TTE Directive";
Part 13: "Harmonized EN for IMT-2000, Evolved Universal Terrestrial Radio Access (E-UTRA) (UE)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 14: "Harmonized EN for IMT-2000, Evolved Universal Terrestrial Radio Access (E-UTRA) (BS) covering
the essential requirements of article 3.2 of the R&TTE Directive";
Part 15: "Harmonized EN for IMT-2000, Evolved Universal Terrestrial Radio Access (E-UTRA) (FDD
Repeaters) covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 16: "Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (UE)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 17: "Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (BS)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 18: "Harmonized EN for E-UTRA, UTRA and GSM/EDGE Multi-Standard Radio (MSR) Base Station (BS)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 19: "Harmonized EN for IMT-2000, OFDMA TDD WMAN (Mobile WiMAX) TDD User Equipment (UE)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 20: "Harmonized EN for IMT-2000, OFDMA TDD WMAN (Mobile WiMAX) TDD Base Station (BS)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 21: "Harmonized EN for IMT-2000, OFDMA TDD WMAN (Mobile WiMAX) FDD User Equipment (UE)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 22: "Harmonized EN for IMT-2000, OFDMA TDD WMAN (Mobile WiMAX) FDD Base Stations (BS)
covering the essential requirements of article 3.2 of the R&TTE Directive".
Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 18 months after doa
Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.3]. The
modular structure is shown in EG 201 399 [i.4].
ETSI
8 Draft ETSI EN 301 908-13 V5.1.1 (2010-07)
1 Scope
The present document applies to the following radio equipment types:
• User equipment for Evolved Universal Terrestrial Radio Access (E-UTRA).
These radio equipment types are capable of operating in all or any part of the frequency bands given in table 1-1.
Table 1-1: E-UTRA UE operating bands
E-UTRA Band Direction of transmission E-UTRA operating bands
1 Transmit 1 920 MHz to 1 980 MHz
Receive 2 110 MHz to 2 170 MHz
3 Transmit 1 710 MHz to 1 785 MHz
Receive 1 805 MHz to 1 880 MHz
7 Transmit 2 500 MHz to 2 570 MHz
Receive 2 620 MHz to 2 690 MHz
8 Transmit 880 MHz to 915 MHz
Receive 925 MHz to 960 MHz
20 Transmit 832 MHz to 862 MHz
Receive 791 MHz to 821 MHz
33 Transmit and Receive 1 900 MHz to 1 920 MHz
34 Transmit and Receive 2 010 MHz to 2 025 MHz
38 Transmit and Receive 2 570 MHz to 2 620 MHz
The present document is intended to cover the provisions of Directive 1999/5/EC [i.3] (R&TTE Directive), Article 3.2,
which states that "…. radio equipment shall be so constructed that it effectively uses the spectrum allocated to
terrestrial/space radio communications and orbital resources so as to avoid harmful interference".
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the R&TTE Directive [i.3] may apply to equipment within the scope of the present
document.
NOTE: A list of such ENs is included on the web site http://www.newapproach.org.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] ETSI TS 136 521-1 (V9.1.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA); User
Equipment (UE) conformance specification; Radio transmission and reception; Part 1:
Conformance testing (3GPP TS 36.521-1 version 9.1.0 Release 9)".
[2] ETSI TS 136 508 (V9.1.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA) and
Evolved Packet Core (EPC); Common test environments for User Equipment (UE) conformance
testing (3GPP TS 36.508 version 9.1.0 Release 9)".
ETSI
9 Draft ETSI EN 301 908-13 V5.1.1 (2010-07)
[3] ETSI TS 136 509 (V9.1.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA) and
Evolved Packet Core (EPC); Special conformance testing functions for User Equipment (UE)
(3GPP TS 36.509 version 9.1.0 Release 9)".
[4] ETSI TS 136 101 (V9.4.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA); User
Equipment (UE) radio transmission and reception (3GPP TS 36.101 version 9.4.0 Release 9)".
[5] ETSI EN 301 908-1 (V5.1.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
Base Stations (BS), Repeaters and User Equipment (UE) for IMT-2000 Third-Generation cellular
networks; Part 1: Harmonized EN for IMT-2000, introduction and common requirements,
covering the essential requirements of article 3.2 of the R&TTE Directive".
[6] Void.
[7] ETSI EN 301 908-2 (V4.2.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
Base Stations (BS), Repeaters and User Equipment (UE) for IMT-2000 Third-Generation cellular
networks; Part 2: Harmonized EN for IMT-2000, CDMA Direct Spread (UTRA FDD and E-
UTRA FDD) (UE) covering the essential requirements of article 3.2 of the R&TTE Directive".
[8] IEC 60068-2-1 (2007): "Environmental testing - Part 2-1: Tests - Test A: Cold".
[9] IEC 60068-2-2 (2007): "Environmental testing - Part 2-2: Tests - Test B: Dry heat".
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI TR 102 215 (V1.3.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
Recommended approach, and possible limits for measurement uncertainty for the measurement of
radiated electromagnetic fields above 1 GHz".
[i.2] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a
procedure for the provision of information in the field of technical standards and regulations.
[i.3] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio
equipment and telecommunications terminal equipment and the mutual recognition of their
conformity (R&TTE Directive).
[i.4] ETSI EG 201 399: "Electromagnetic compatibility and Radio spectrum Matters (ERM); A guide to
the production of candidate Harmonized Standards for application under the R&TTE Directive".
[i.5] ITU-R Recommendation SM.329-10 (2003): "Unwanted emissions in the spurious domain".
[i.6] ETSI TR 100 028 (all parts) (V1.4.1): "Electromagnetic compatibility and Radio spectrum Matters
(ERM); Uncertainties in the measurement of mobile radio equipment characteristics".
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
channel bandwidth: RF bandwidth supporting a single E-UTRA RF carrier with the transmission bandwidth
configured in the uplink or downlink of a cell
NOTE: The channel bandwidth is measured in MHz and is used as a reference for transmitter and receiver RF
requirements.
channel edge: lowest and highest frequency of the carrier, separated by the channel bandwidth
ETSI
10 Draft ETSI EN 301 908-13 V5.1.1 (2010-07)
Maximum Output Power (MOP): mean power level per carrier of UE measured at the antenna connector in a
specified reference condition
mean power: when applied to E-UTRA transmission this is the power measured in the operating system bandwidth of
the carrier
NOTE: The period of measurement is assumed to be at least one subframe (1 ms) unless otherwise stated.
occupied bandwidth: width of a frequency band such that, below the lower and above the upper frequency limits, the
mean powers emitted are each equal to a specified percentage β/2 of the total mean power of a given emission
operating band: frequency range (paired or unpaired) that is defined with a specific set of technical requirements, in
which E-UTRA operates
NOTE: Operating bands for E-UTRA are designated with Arabic numerals, while the corresponding operating
bands for UTRA are designated with Roman numerals.
output power: mean power of one carrier of the UE, delivered to a load with resistance equal to the nominal load
impedance of the transmitter
reference bandwidth: bandwidth in which an emission level is specified
resource block: physical resource consisting of a number of symbols in the time domain and a number of consecutive
subcarriers spanning 180 kHz in the frequency domain
transmission bandwidth: bandwidth of an instantaneous transmission from a UE or BS, measured in Resource Block
units, see figure 3.1-1
transmission bandwidth configuration: highest transmission bandwidth allowed for uplink or downlink in a given
channel bandwidth, measured in Resource Block units, see figure 3.1-1
transmit diversity: transmit diversity is based on space-frequency block coding techniques complemented with
frequency-shift time diversity when four transmit antennas is used
Channel Bandwidth [MHz]
Transmission Bandwidth Configuration [RB]
Transmission
Bandwidth [RB]
Channel edge
Channel edge
Center subcarrier is not transmitted
In downlink
Active Resource Blocks
Figure 3.1-1: Definition of Channel Bandwidth and Transmission Bandwidth Configuration
for one E-UTRA carrier
3.2 Symbols
For the purposes of the present document, the following symbols apply:
ΔF Δ Frequency of Out Of Band emission
OOB
BW Channel bandwidth
Channel
BW Channel Bandwidth of the interferer
Interferer
ETSI
Resource block
11 Draft ETSI EN 301 908-13 V5.1.1 (2010-07)
E
Transmitted energy per RE for reference symbols during the useful part of the symbol,
RS
i.e. excluding the cyclic prefix, (average power normalized to the subcarrier spacing) at the
eNode B transmit antenna connector
ˆ
E
The received energy per RE during the useful part of the symbol, i.e. excluding the cyclic prefix,
s
averaged across the allocated RB(s) (average power within the allocated RB(s), divided by the
number of RE within this allocation, and normalized to the subcarrier spacing) at the UE antenna
connector
F Frequency
F (offset) Frequency offset of the interferer
Interferer
F Frequency of the interferer
Interferer
F Frequency offset of the interferer
Ioffset
F Frequency of the carrier centre frequency
C
F The lowest frequency of the downlink operating band
DL_low
F The highest frequency of the downlink operating band
DL_high
F The lowest frequency of the uplink operating band
UL_low
F The highest frequency of the uplink operating band
UL_high
I The power spectral density of the total input signal (power averaged over the useful part of the
o
symbols within the transmission bandwidth configuration, divided by the total number of RE for
this configuration and normalized to the subcarrier spacing) at the UE antenna connector,
including the own-cell downlink signal or the power spectral density of the total input signal at the
UE antenna connector (power averaged over the useful part of the symbols within a given
bandwidth and normalized to the said bandwidth), including the own-cell downlink signal
I
The total transmitted power spectral density of the own-cell downlink signal (power averaged over
or
the useful part of the symbols within the transmission bandwidth configuration, divided by the
total number of RE for this configuration and normalized to the subcarrier spacing) at the eNode B
transmit antenna connector
ˆ
I
The total received power spectral density of the own-cell downlink signal (power averaged over
or
the useful part of the symbols within the transmission bandwidth configuration, divided by the
total number of RE for this configuration and normalized to the subcarrier spacing) at the UE
antenna connector
I
The received power spectral density of the total noise and interference for a certain RE (average
ot
power obtained within the RE and normalized to the subcarrier spacing) as measured at the UE
antenna connector
N Cyclic prefix length
cp
N Downlink EARFCN
DL
N
The power spectral density of a white noise source (average power per RE normalized to the
oc
subcarrier spacing), simulating interference from cells that are not defined in a test procedure, as
measured at the UE antenna connector
N Offset used for calculating downlink EARFCN
Offs-DL
N Offset used for calculating uplink EARFCN
Offs-UL
N Transmission bandwidth configuration, expressed in units of resource blocks
RB
N Uplink EARFCN
UL
P Number of cell-specific antenna ports
p Antenna port number
P Modulated mean power of the interferer
Interferer
P Maximum UE Power with possible power reduction due to modulation type, network signalling
UMAX
values and location near the edge of the band
R Minimum average throughput per RB
av
ETSI
12 Draft ETSI EN 301 908-13 V5.1.1 (2010-07)
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
ACLR Adjacent Channel Leakage Ratio
ACS Adjacent Channel Selectivity
BS Base Station
CW Continuous Wave
DCI Downlink Control Information
DL DownLink
EARFCN E-UTRA Absolute Radio Frequency Channel Number
E-UTRA Evolved UMTS Terrestrial Radio Access
FDD Frequency Division Duplex
HARQ Hybrid Acknowledge Request
LTE Long Term Evolution
MAC Medium Access Control
MBW Measurement BandWidth
MOP Maximum Output Power
PDCCH Physical Downlink Control Channel
RB Resource Block
RE Resource Element
REFSENS Reference Sensitivity power level
RMC Reference Measurement Channel
SS System Simulator
TDD Time Division Duplex
TH Temperature High
TL Temperature Low
UE User Equipment
UL Uplink
UMTS Universal Mobile Telecommunications System
UTRA UMTS Terrestrial Radio Access
VH Higher extreme Voltage
VL Lower extreme Voltage
4 Technical requirements specifications
4.1 Environmental profile
The technical requirements of the present document apply under the environmental profile for operation of the
equipment, which shall be declared by the supplier. The equipment shall comply with all the technical requirements of
the present document at all times when operating within the boundary limits of the declared operational environmental
profile.
4.2 Conformance requirements
The requirements in the present document are based on the assumption that the operating band (e.g. band 1, 3, 7, 8, 20,
33, 34, and 38) is shared between systems of the IMT-2000 family (for band 3 and 8 also GSM) or systems having
compatible characteristics.
4.2.1 Introduction
To meet the essential requirement under article 3.2 of Directive 1999/5/EC [i.3] (R&TTE Directive) for IMT-2000 User
Equipment (UE) seven essential parameters in addition to those in EN 301 908-1 [5] have been identified. Table 4.2.1-1
provides a cross reference between these seven essential parameters and the corresponding nine technical requirements
for equipment within the scope of the present document.
ETSI
13 Draft ETSI EN 301 908-13 V5.1.1 (2010-07)
Table 4.2.1-1: Cross references
Essential parameter Corresponding technical requirements
Spectrum emissions mask 4.2.3 Transmitter Spectrum emissions mask
4.2.11 Transmitter adjacent channel leakage power ratio
Conducted spurious emissions in active mode 4.2.4 Transmitter spurious emissions
Accuracy of maximum output power 4.2.2 Transmitter maximum output power
Prevention of harmful interference through 4.2.5 Transmitter minimum output power
control of power
Conducted spurious emission in idle mode 4.2.10 Receiver spurious emissions
Impact of interference on receiver performance 4.2.7 Receiver Blocking characteristics
4.2.8 Receiver spurious response
4.2.9 Receiver Intermodulation characteristics
Receiver adjacent channel selectivity 4.2.6 Receiver Adjacent Channel Selectivity (ACS)
Control and Monitoring functions EN 301 908-1 [5], clause 4.2.4 Control and Monitoring
functions
NOTE: Out of synchronization requirement in EN 301 908-2 [7] is not included in the present document due
to fact that E-UTRA has network controlled dynamic resource allocation mitigating the risk of
interference in out of synchronization situation.
4.2.2 Transmitter Maximum Output Power
4.2.2.1 Definition
The following UE Power Classes define the maximum output power for any transmission bandwidth within the channel
bandwidth. The period of measurement shall be at least one sub frame (1 ms).
4.2.2.2 Limits
The UE maximum output power shall be within the shown value in table 4.2.2.2-1.
Table 4.2.2.2-1: UE power classes
E-UTRA Band Power Class 3 Tolerance
(dBm) (dB)
1 23
±2,7
3 23 ±2,7 (see note 2)
7 23 ±2,7 (see note 2)
8 23 ±2,7 (see note 2)
20 23 ±2,7 (see note 2)
33 23 ±2,7
34 23 ±2,7
38 23 ±2,7
NOTE 1: The above tolerances are applicable for UE(s) that support up to
4 E-UTRA operating bands. For UE(s) that support 5 or more E-UTRA
bands the maximum output power is expected to decrease with each
additional band.
NOTE 2: For transmission bandwidths (TS 136 521-1 [1], clause 5) confined
within
...
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.IMT cellular networks - Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive - Part 13: Evolved Universal Terrestrial Radio Access (E-UTRA) User Equipment (UE)33.100.01Elektromagnetna združljivost na splošnoElectromagnetic compatibility in general33.060.99Druga oprema za radijske komunikacijeOther equipment for radiocommunicationsICS:Ta slovenski standard je istoveten z:EN 301 908-13 Version 5.2.1SIST EN 301 908-13 V5.2.1:2011en01-junij-2011SIST EN 301 908-13 V5.2.1:2011SLOVENSKI
STANDARD
ETSI ETSI EN 301 908-13 V5.2.1 (2011-05)2
Reference REN/MSG-TFES-008-13 Keywords 3G, 3GPP, cellular, digital, E-UTRA, IMT, IMT-2000, LTE, mobile, radio, regulation, UMTS ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice Individual copies of the present document can be downloaded from: http://www.etsi.org The present document may be made available in more than one electronic version or in print. In any case of existing or perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF). In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, please send your comment to one of the following services: http://portal.etsi.org/chaircor/ETSI_support.asp Copyright Notification No part may be reproduced except as authorized by written permission. The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2011. All rights reserved.
DECTTM, PLUGTESTSTM, UMTSTM, TIPHONTM, the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members. 3GPPTM is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. LTE™ is a Trade Mark of ETSI currently being registered for the benefit of its Members and of the 3GPP Organizational Partners. GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association. SIST EN 301 908-13 V5.2.1:2011
ETSI ETSI EN 301 908-13 V5.2.1 (2011-05)3 Contents Intellectual Property Rights . 6 Foreword . 6 Introduction . 7 1 Scope . 8 2 References . 8 2.1 Normative references . 8 2.2 Informative references . 9 3 Definitions, symbols and abbreviations . 9 3.1 Definitions . 9 3.2 Symbols . 10 3.3 Abbreviations . 12 4 Technical requirements specifications . 12 4.1 Environmental profile . 12 4.2 Conformance requirements . 12 4.2.1 Introduction. 13 4.2.2 Transmitter Maximum Output Power . 13 4.2.2.1 Definition . 13 4.2.2.2 Limits . 13 4.2.2.3 Conformance . 14 4.2.3 Transmitter Spectrum Emission Mask . 14 4.2.3.1 Definition . 14 4.2.3.2 Limits . 14 4.2.3.3 Conformance . 14 4.2.4 Transmitter Spurious Emissions . 14 4.2.4.1 Definition . 14 4.2.4.2 Limits . 14 4.2.4.3 Conformance . 16 4.2.5 Transmitter Minimum Output Power . 16 4.2.5.1 Definition . 16 4.2.5.2 Limits . 16 4.2.5.3 Conformance . 16 4.2.6 Receiver Adjacent Channel Selectivity (ACS) . 16 4.2.6.1 Definition . 16 4.2.6.2 Limits . 16 4.2.6.3 Conformance . 17 4.2.7 Receiver Blocking Characteristics . 17 4.2.7.1 Definition . 17 4.2.7.2 Limits . 18 4.2.7.3 Conformance . 19 4.2.8 Receiver Spurious Response . 19 4.2.8.1 Definition . 19 4.2.8.2 Limits . 19 4.2.8.3 Conformance . 20 4.2.9 Receiver Intermodulation Characteristics . 20 4.2.9.1 Definition . 20 4.2.9.2 Limits . 20 4.2.9.3 Conformance . 20 4.2.10 Receiver Spurious Emissions . 21 4.2.10.1 Definition . 21 4.2.10.2 Limits . 21 4.2.10.3 Conformance . 21 4.2.11 Transmitter Adjacent Channel Leakage Power Ratio . 21 4.2.11.1 Definition . 21 SIST EN 301 908-13 V5.2.1:2011
ETSI ETSI EN 301 908-13 V5.2.1 (2011-05)4 4.2.11.2 Limits . 21 4.2.11.3 Conformance . 22 5 Testing for compliance with technical requirements . 22 5.1 Environmental conditions for testing . 22 5.2 Interpretation of the measurement results . 23 5.3 Essential radio test suites . 24 5.3.1 Transmitter Maximum Output Power . 24 5.3.1.1 Method of test . 24 5.3.1.1.1 Initial conditions . 24 5.3.1.1.2 Procedure . 24 5.3.1.2 Test requirements . 24 5.3.2 Transmitter Spectrum Emission Mask . 24 5.3.2.1 Method of test . 24 5.3.2.1.1 Initial conditions . 24 5.3.2.1.2 Procedure . 25 5.3.2.2 Test requirements . 25 5.3.3 Transmitter Spurious Emissions . 25 5.3.3.1 Method of test . 25 5.3.3.1.1 Initial conditions . 25 5.3.3.1.2 Procedure . 26 5.3.3.2 Test requirements . 26 5.3.4 Transmitter Minimum Output Power . 26 5.3.4.1 Method of test . 26 5.3.4.1.1 Initial conditions . 26 5.3.4.1.2 Procedure . 26 5.3.4.2 Test requirements . 27 5.3.5 Receiver Adjacent Channel Selectivity (ACS) . 27 5.3.5.1 Method of test . 27 5.3.5.1.1 Initial conditions . 27 5.3.5.1.2 Procedure . 27 5.3.5.2 Test requirements . 28 5.3.6 Receiver Blocking Characteristics . 28 5.3.6.1 Method of test . 28 5.3.6.1.1 Initial requirements . 28 5.3.6.1.2 In-Band Procedure . 28 5.3.6.1.3 Out-Of-Band Procedure . 29 5.3.6.1.4 Narrow-Band Procedure . 29 5.3.6.2 Test requirements . 29 5.3.7 Receiver Spurious Response . 30 5.3.7.1 Method of test . 30 5.3.7.1.1 Initial conditions . 30 5.3.7.1.2 Procedure . 30 5.3.7.2 Test requirements . 30 5.3.8 Receiver Intermodulation Characteristics . 30 5.3.8.1 Method of test . 30 5.3.8.1.1 Initial conditions . 30 5.3.8.1.2 Procedure . 31 5.3.8.2 Test requirements . 31 5.3.9 Receiver Spurious Emissions . 31 5.3.9.1 Method of test . 31 5.3.9.1.1 Procedure . 31 5.3.9.2 Test requirements . 32 5.3.10 Transmitter Adjacent Channel Leakage Power Ratio . 32 5.3.10.1 Method of test . 32 5.3.10.1.1 Initial conditions . 32 5.3.10.1.2 Procedure . 32 5.3.10.2 Test requirements . 33 Annex A (normative): HS Requirements and conformance Test specifications Table (HS-RTT) . 34 SIST EN 301 908-13 V5.2.1:2011
ETSI ETSI EN 301 908-13 V5.2.1 (2011-05)5 Annex B (normative): Environmental profile . 36 B.1 General . 36 B.1.1 Introduction . 36 B.1.2 Temperature . 36 B.1.3 Voltage . 36 B.1.4 Test environment . 37 Annex C (informative): The EN title in the official languages . 38 Annex D (informative): Bibliography . 39 History . 40
ETSI ETSI EN 301 908-13 V5.2.1 (2011-05)6 Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (http://webapp.etsi.org/IPR/home.asp). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This Harmonized European Standard (EN) has been produced by ETSI Technical Committee Mobile Standards Group (MSG). The present document has been produced by ETSI in response to mandate M/284 from the European Commission issued under Council Directive 98/34/EC [i.1] (as amended) laying down a procedure for the provision of information in the field of technical standards and regulations. The title and reference to the present document are intended to be included in the publication in the Official Journal of the European Union of titles and references of Harmonized Standard under the Directive 1999/5/EC [i.2]. See article 5.1 of Directive 1999/5/EC [i.2] for information on presumption of conformity and Harmonised Standards or parts thereof the references of which have been published in the Official Journal of the European Union. The requirements relevant to Directive 1999/5/EC [i.2] are summarised in annex A. The present document is part 13 of a multi-part deliverable covering the essential requirements under article 3.2 of Directive 1999/5/EC [i.2] (R&TTE Directive) for Base Stations (BS), Repeaters and User Equipment (UE) for IMT cellular networks, as identified below: Part 1: "Introduction and common requirements"; Part 2: "CDMA Direct Spread (UTRA FDD) User Equipment (UE)"; Part 3: "CDMA Direct Spread (UTRA FDD) Base Stations (BS)"; Part 4: "CDMA Multi-Carrier (cdma2000) User Equipment (UE)"; Part 5: "CDMA Multi-Carrier (cdma2000) Base Stations (BS)"; Part 6: "CDMA TDD (UTRA TDD) User Equipment (UE)"; Part 7: "CDMA TDD (UTRA TDD) Base Stations (BS)"; Part 8: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (UE) covering essential requirements of article 3.2 of the R&TTE Directive"; Part 9: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (BS) covering essential requirements of article 3.2 of the R&TTE Directive"; Part 10: "Harmonized EN for IMT-2000, FDMA/TDMA (DECT) covering essential requirements of article 3.2 of the R&TTE Directive"; Part 11: "CDMA Direct Spread (UTRA FDD) (Repeaters)"; Part 12: "Harmonized EN for IMT-2000, CDMA Multi-Carrier (cdma2000) (Repeaters) covering the essential requirements of article 3.2 of the R&TTE Directive"; Part 13: "Evolved Universal Terrestrial Radio Access (E-UTRA) User Equipment (UE)"; SIST EN 301 908-13 V5.2.1:2011
ETSI ETSI EN 301 908-13 V5.2.1 (2011-05)7 Part 14: "Evolved Universal Terrestrial Radio Access (E-UTRA) Base Stations (BS)"; Part 15: "Evolved Universal Terrestrial Radio Access (E-UTRA) (FDD Repeaters)"; Part 16: "Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (UE) covering the essential requirements of article 3.2 of the R&TTE Directive"; Part 17: "Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (BS) covering the essential requirements of article 3.2 of the R&TTE Directive"; Part 18: "E-UTRA, UTRA and GSM/EDGE Multi-Standard Radio (MSR) Base Station (BS)"; Part 19: "OFDMA TDD WMAN (Mobile WiMAX) TDD User Equipment (UE)"; Part 20: "OFDMA TDD WMAN (Mobile WiMAX) TDD Base Station (BS)"; Part 21: "OFDMA TDD WMAN (Mobile WiMAX) FDD User Equipment (UE)"; Part 22:
"OFDMA TDD WMAN (Mobile WiMAX) FDD Base Stations (BS)".
National transposition dates Date of adoption of this EN: 12 April 2011 Date of latest announcement of this EN (doa): 31 July 2011 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
31 January 2012 Date of withdrawal of any conflicting National Standard (dow): 31 January 2013
Introduction The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.2]. The modular structure is shown in EG 201 399 [i.3]. SIST EN 301 908-13 V5.2.1:2011
ETSI ETSI EN 301 908-13 V5.2.1 (2011-05)8 1 Scope The present document applies to the following radio equipment type: • User Equipment for Evolved Universal Terrestrial Radio Access (E-UTRA). This radio equipment type is capable of operating in all or any part of the frequency bands given in table 1-1. Table 1-1: E-UTRA UE operating bands E-UTRA Band Direction of transmission E-UTRA operating bands 1 Transmit 1 920 MHz to 1 980 MHz Receive 2 110 MHz to 2 170 MHz 3 Transmit 1 710 MHz to 1 785 MHz Receive 1 805 MHz to 1 880 MHz 7 Transmit 2 500 MHz to 2 570 MHz Receive 2 620 MHz to 2 690 MHz 8 Transmit 880 MHz to 915 MHz Receive 925 MHz to 960 MHz 20 Transmit 832 MHz to 862 MHz Receive 791 MHz to 821 MHz 33 Transmit and Receive 1 900 MHz to 1 920 MHz 34 Transmit and Receive 2 010 MHz to 2 025 MHz 38 Transmit and Receive 2 570 MHz to 2 620 MHz
The present document is intended to cover the provisions of Directive 1999/5/EC [i.2] (R&TTE Directive), article 3.2, which states that "…. radio equipment shall be so constructed that it effectively uses the spectrum allocated to terrestrial/space radio communications and orbital resources so as to avoid harmful interference". In addition to the present document, other ENs that specify technical requirements in respect of essential requirements under other parts of article 3 of the R&TTE Directive [i.2] may apply to equipment within the scope of the present document. NOTE: A list of such ENs is included on the web site http://www.newapproach.org. 2 References References are either specific (identified by date of publication and/or edition number or version number) or non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the reference document (including any amendments) applies. Referenced documents which are not found to be publicly available in the expected location might be found at http://docbox.etsi.org/Reference. NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee their long term validity. 2.1 Normative references The following referenced documents are necessary for the application of the present document. [1] ETSI TS 136 521-1 (V9.3.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA); User Equipment (UE) conformance specification; Radio transmission and reception; Part 1: Conformance testing (3GPP TS 36.521-1 version 9.3.0 Release 9)". [2] ETSI TS 136 508 (V9.3.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA) and Evolved Packet Core (EPC); Common test environments for User Equipment (UE) conformance testing (3GPP TS 36.508 version 9.3.0 Release 9)". SIST EN 301 908-13 V5.2.1:2011
ETSI ETSI EN 301 908-13 V5.2.1 (2011-05)9 [3] ETSI TS 136 509 (V9.3.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA) and Evolved Packet Core (EPC); Special conformance testing functions for User Equipment (UE) (3GPP TS 36.509 version 9.3.0 Release 9)". [4] ETSI TS 136 101 (V9.5.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA); User Equipment (UE) radio transmission and reception (3GPP TS 36.101 version 9.5.0 Release 9)". [5] ETSI EN 301 908-1 (V5.2.1): "IMT cellular networks; Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive; Part 1: Introduction and common requirements". [6] Void. [7] ETSI EN 301 908-2 (V5.2.1): "IMT cellular networks; Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive; Part 2: CDMA Direct Spread (UTRA FDD) User Equipment (UE)". [8] IEC 60068-2-1 (2007): "Environmental testing - Part 2-1: Tests - Test A: Cold". [9] IEC 60068-2-2 (2007): "Environmental testing - Part 2-2: Tests - Test B: Dry heat". 2.2 Informative references The following referenced documents are not necessary for the application of the present document but they assist the user with regard to a particular subject area. [i.1] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a procedure for the provision of information in the field of technical standards and regulations. [i.2] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity (R&TTE Directive). [i.3] ETSI EG 201 399: "Electromagnetic compatibility and Radio spectrum Matters (ERM); A guide to the production of Harmonized Standards for application under the R&TTE Directive". [i.4] ETSI TR 102 215 (V1.3.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM); Recommended approach, and possible limits for measurement uncertainty for the measurement of radiated electromagnetic fields above 1 GHz". [i.5] ITU-R Recommendation SM.329-10 (2003): "Unwanted emissions in the spurious domain". [i.6] ETSI TR 100 028 (all parts) (V1.4.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM); Uncertainties in the measurement of mobile radio equipment characteristics". 3 Definitions, symbols and abbreviations 3.1 Definitions For the purposes of the present document, the following terms and definitions apply: channel bandwidth: RF bandwidth supporting a single E-UTRA RF carrier with the transmission bandwidth configured in the uplink or downlink of a cell NOTE: The channel bandwidth is measured in MHz and is used as a reference for transmitter and receiver RF requirements. channel edge: lowest and highest frequency of the carrier, separated by the channel bandwidth Maximum Output Power (MOP): mean power level per carrier of UE measured at the antenna connector in a specified reference condition SIST EN 301 908-13 V5.2.1:2011
ETSI ETSI EN 301 908-13 V5.2.1 (2011-05)10 mean power: when applied to E-UTRA transmission this is the power measured in the operating system bandwidth of the carrier NOTE: The period of measurement is assumed to be at least one subframe (1 ms) unless otherwise stated. occupied bandwidth: width of a frequency band such that, below the lower and above the upper frequency limits, the mean powers emitted are each equal to a specified percentage β/2 of the total mean power of a given emission operating band: frequency range (paired or unpaired) that is defined with a specific set of technical requirements, in which E-UTRA operates NOTE: Operating bands for E-UTRA are designated with Arabic numerals, while the corresponding operating bands for UTRA are designated with Roman numerals. output power: mean power of one carrier of the UE, delivered to a load with resistance equal to the nominal load impedance of the transmitter reference bandwidth: bandwidth in which an emission level is specified resource block: physical resource consisting of a number of symbols in the time domain and a number of consecutive subcarriers spanning 180 kHz in the frequency domain transmission bandwidth: bandwidth of an instantaneous transmission from a UE or BS, measured in Resource Block units, see figure 3.1-1 transmission bandwidth configuration: highest transmission bandwidth allowed for uplink or downlink in a given channel bandwidth, measured in Resource Block units, see figure 3.1-1 transmit diversity: transmit diversity is based on space-frequency block coding techniques complemented with frequency-shift time diversity when four transmit antennas is used
TransmissionBandwidth [RB]Transmission Bandwidth Configuration [RB] Channel Bandwidth [MHz] Resource block Channel edgeChannel edgeCenter subcarrier is not transmitted In downlink Active Resource Blocks
Figure 3.1-1: Definition of Channel Bandwidth and Transmission Bandwidth Configuration for one E-UTRA carrier 3.2 Symbols For the purposes of the present document, the following symbols apply: ΔFOOB Δ Frequency of Out-of-band emission BWChannel Channel bandwidth BWInterferer Channel Bandwidth of the interferer SIST EN 301 908-13 V5.2.1:2011
ETSI ETSI EN 301 908-13 V5.2.1 (2011-05)11 RSE Transmitted energy per RE for reference symbols during the useful part of the symbol, i.e. excluding the cyclic prefix, (average power normalized to the subcarrier spacing) at the eNode B transmit antenna connector sEˆ The received energy per RE during the useful part of the symbol, i.e. excluding the cyclic prefix, averaged across the allocated RB(s) (average power within the allocated RB(s)), divided by the number of RE within this allocation, and normalized to the subcarrier spacing) at the UE antenna connector F Frequency FInterferer (offset) Frequency offset of the interferer FInterferer Frequency of the interferer FIoffset Frequency offset of the interferer FC Frequency of the carrier centre frequency FDL_low The lowest frequency of the downlink operating band FDL_high The highest frequency of the downlink operating band FUL_low The lowest frequency of the uplink operating band FUL_high The highest frequency of the uplink operating band oI The power spectral density of the total input signal (power averaged over the useful part of the symbols within the transmission bandwidth configuration, divided by the total number of RE for this configuration and normalized to the subcarrier spacing) at the UE antenna connector, including the own-cell downlink signal or the power spectral density of the total input signal at the UE antenna connector (power averaged over the useful part of the symbols within a given bandwidth and normalized to the said bandwidth), including the own-cell downlink signal orI The total transmitted power spectral density of the own-cell downlink signal (power averaged over the useful part of the symbols within the transmission bandwidth configuration, divided by the total number of RE for this configuration and normalized to the subcarrier spacing) at the eNode B transmit antenna connector orIˆ The total received power spectral density of the own-cell downlink signal (power averaged over the useful part of the symbols within the transmission bandwidth configuration, divided by the total number of RE for this configuration and normalized to the subcarrier spacing) at the UE antenna connector otI The received power spectral density of the total noise and interference for a certain RE (average power obtained within the RE and normalized to the subcarrier spacing) as measured at the UE antenna connector Ncp Cyclic prefix length NDL Downlink EARFCN ocN The power spectral density of a white noise source (average power per RE normalized to the subcarrier spacing), simulating interference from cells that are not defined in a test procedure, as measured at the UE antenna connector NOffs-DL Offset used for calculating downlink EARFCN NOffs-UL Offset used for calculating uplink EARFCN NRB Transmission bandwidth configuration, expressed in units of resource blocks NUL Uplink EARFCN P Number of cell-specific antenna ports p Antenna port number PInterferer Modulated mean power of the interferer PUMAX Maximum UE Power with possible power reduction due to modulation type, network signalling values and location near the edge of the band Rav Minimum average throughput per RB SIST EN 301 908-13 V5.2.1:2011
ETSI ETSI EN 301 908-13 V5.2.1 (2011-05)12 3.3 Abbreviations For the purposes of the present document, the following abbreviations apply: ACLR Adjacent Channel Leakage Ratio ACS Adjacent Channel Selectivity BS Base Station CW Continuous Wave DCI Downlink Control Information DL DownLink EARFCN E-UTRA Absolute Radio Frequency Channel Number ERM Electromagnetic compatibility and Radio spectrum Matters E-UTRA Evolved UMTS Terrestrial Radio Access FDD Frequency Division Duplex HARQ Hybrid Acknowledge Request LTE Long Term Evolution MAC Medium Access Control MBW Measurement BandWidth MOP Maximum Output Power MSG Mobile Standards Group PDCCH Physical Downlink Control CHannel RB Resource Block RE Resource Element REFSENS Reference Sensitivity power level RMC Reference Measurement Channel SS System Simulator TDD Time Division Duplex TFES Task Force for European Standards for IMT TH Temperature High TL Temperature Low UE User Equipment UL Uplink UMTS Universal Mobile Telecommunications System UTRA UMTS Terrestrial Radio Access VH Higher extreme Voltage VL Lower extreme Voltage 4 Technical requirements specifications 4.1 Environmental profile The technical requirements of the present document apply under the environmental profile for operation of the equipment, which shall be declared by the supplier. The equipment shall comply with all the technical requirements of the present document at all times when operating within the boundary limits of the declared operational environmental profile. 4.2 Conformance requirements The requirements in the present document are based on the assumption that the operating band (e.g. band 1, 3, 7, 8, 20, 33, 34, and 38) is shared between systems of the IMT-2000 family (for band 3 and 8 also GSM) or systems having compatible characteristics. SIST EN 301 908-13 V5.2.1:2011
ETSI ETSI EN 301 908-13 V5.2.1 (2011-05)13 4.2.1 Introduction To meet the essential requirement under article 3.2 of Directive 1999/5/EC [i.2] (R&TTE Directive) for IMT User Equipment (UE) seven essential parameters in addition to those in EN 301 908-1 [5] have been identified. Table 4.2.1-1 provides a cross reference between these seven essential parameters and the corresponding nine technical requirements for equipment within the scope of the present document. Table 4.2.1-1: Cross references Essential parameter Corresponding technical requirements Spectrum emissions mask 4.2.3 Transmitter Spectrum emissions mask 4.2.11 Transmitter adjacent channel leakage power ratio Conducted spurious emissions in active mode 4.2.4 Transmitter spurious emissions Accuracy of maximum output power 4.2.2 Transmitter maximum output power Prevention of harmful interference through control of power 4.2.5 Transmitter minimum output power Conducted spurious emission in idle mode 4.2.10 Receiver spurious emissions Impact of interference on receiver performance 4.2.7 Receiver Blocking characteristics 4.2.8 Receiver spurious response 4.2.9 Receiver Intermodulation characteristics Receiver adjacent channel selectivity 4.2.6 Receiver Adjacent Channel Selectivity (ACS) Control and Monitoring functions EN 301 908-1 [5], clause 4.2.4 Control and Monitoring functions NOTE: Out of synchronization requirement in EN 301 908-2 [7] is not included in the present document due to fact that E-UTRA has network controlled dynamic resource allocation mitigating the risk of interference in out of synchronization situation.
4.2.2 Transmitter Maximum Output Power 4.2.2.1 Definition The following UE Power Classes define the maximum output power for any transmission bandwidth within the channel bandwidth. The period of measurement shall be at least one sub-frame (1 ms). 4.2.2.2 Limits The UE maximum output power shall be within the shown value in table 4.2.2.2-1. Table 4.2.2.2-1: UE power classes E-UTRA Band Power Class 3 (dBm) Tolerance (dB) 1 23 ±2,7 3 23 ±2,7 (see note 2) 7 23 ±2,7 (see note 2) 8 23 ±2,7 (see note 2) 20 23 ±2,7 (see note 2) 33 23 ±2,7 34 23 ±2,7 38 23 ±2,7 NOTE 1: The above tolerances are applicable for UE(s) that support up to 4 E-UTRA operating bands. For UE(s) that support 5 or more E-UTRA bands the maximum output power is expected to decrease with each additional band. NOTE 2: For transmission bandwidths (TS 136 521-1 [1], clause 5) confined within FUL_low and FUL_low + 4 MHz or FUL_high - 4 MHz and FUL_high, the maximum output power requirement is relaxed by reducing the lower tolerance limit by 1,5 dB (tolerance = +2,7/-4,2).
ETSI ETSI EN 301 908-13 V5.2.1 (2011-05)14 NOTE: These requirements do not take into account the maximum power reductions allowed to the UE in subject to certain transmission conditions specified in TS 136 101 [4], clauses 6.2.3 and 6.2.4. 4.2.2.3 Conformance Conformance tests described in clause 5.3.1 shall be carried out. 4.2.3 Transmitter Spectrum Emission Mask 4.2.3.1 Definition The spectrum emission mask of the UE applies to frequencies (ΔfOOB) starting from the ± edge of the assigned E-UTRA channel bandwidth. 4.2.3.2 Limits The power of any UE emission shall fulfil requirements in table 4.2.3.2-1. Table 4.2.3.2-1: General E-UTRA spectrum emission mask ΔfOOB (MHz) Spectrum emission limit (dBm)/Channel bandwidth 1,4 MHz 3,0 MHz 5 MHz 10 MHz 15 MHz 20 MHz Measurement bandwidth ±0 to 1 -8,5 -11,5 -13,5 -16,5 -18,5 -19,5 30 kHz ±1 to 2,5 -8,5 -8,5 -8,5 -8,5 -8,5 -8,5 1 MHz ±2,5 to 2,8 -23,5
-8,5
-8,5 -8,5 -8,5 -8,5 1 MHz ±2,8 to 5
-8,5
-8,5 -8,5 -8,5 -8,5 1 MHz ±5 to 6
-23,5 -11,5 -11,5 -11,5 -11,5 1 MHz ±6 to 10
-23,5 -11,5 -11,5 -11,5 1 MHz ±10 to 15
-23,5 -11,5 -11,5 1 MHz ±15 to 20
-23,5
-11,5 1 MHz ±20 to 25
-23,5 1 MHz NOTE 1: The first and last measurement position with a 30 kHz filter is at ΔfOOB equals to 0,015 MHz and 0,985 MHz. NOTE 2: The first and last measurement position with a 1 MHz filter for 1 MHz - 2,5 MHz offset range is at ΔfOOB equals to 1,5 MHz and 2,0 MHz. Similarly for other ΔfOOB ranges. NOTE 3: The measurements are to be performed above the upper edge of the channel and below the lower edge of the channel. NOTE 4: For the 2,5 MHz - 2,8 MHz offset range with 1,4 MHz channel bandwidth, the measurement position is at ΔfOOB equals to 3 MHz.
4.2.3.3 Conformance Conformance tests described in clause 5.3.2 shall be carried out. 4.2.4 Transmitter Spurious Emissions 4.2.4.1 Definition Spurious emissions are emissions which are caused by unwanted transmitter effects such as harmonics emission, parasitic emissions, intermodulation products and frequency conversion products, but exclude out-of-band emissions. The spurious emission limits are specified in terms of general requirements in line with ITU-R Recommendation SM
...
