Electrochemical realkalization and chloride extraction treatments for reinforced concrete - Part 1: Realkalization

This document specifies a procedure for carrying out impressed current electrochemical realkalization of carbonated reinforced concrete in existing structures. It is applicable to atmospherically exposed parts of structures with ordinary reinforcement embedded in concrete. This document does not apply to concrete containing prestressing steel which can suffer hydrogen embrittlement during realkalization, or to concrete containing epoxy-coated or galvanized reinforcement, or if chloride contamination is contributing to reinforcement corrosion. NOTE In case of post-tensioned prestressing concrete, the endangered tendon strands may be shielded by the tendon ducts from unwanted and/ or exceeded polarization into the cathodic range and respective water reduction. Justification The currently available TS 14038-1 is an important legal cornerstone for the application of non-destructive rehabilitation techniques in concrete maintenance. It addresses smaller structures than car parks (eg. facades, locally carbonation induced corrosion issues), where Cathodic Protection (as described in EN ISO 12696) appears to cause too much long-term effort. As other non-destructive rehabilitation methods the standard helps to preserve the environment by avoiding noisy and dusty concrete replacement.

Elektrochemische Realkalisierung und Chloridextraktionsbehandlungen für Stahlbeton - Teil 1: Realkalisierung

Dieses Dokument legt ein Verfahren zur elektrochemischen Realkalisierung von karbonatisiertem Stahlbeton in bestehenden Bauwerken mittels Fremdstrom fest. Es ist anwendbar auf Teile von Gebäuden mit normaler, in Beton eingebetteter Bewehrung, die der Atmosphäre ausgesetzt sind.
Dieses Dokument ist nicht anwendbar auf Beton mit vorgespannter Bewehrung, die Wasserstoffversprödung infolge der Realkalisierung unterliegen kann, auf Beton mit Bewehrung, die mit Epoxidharz beschichtet oder verzinkt ist oder wenn Chloride zur Korrosion der Bewehrung beitragen.
ANMERKUNG   Im Fall von Spannbeton mit nachträglichem Verbund können gefährdete Spannglieder durch deren Lage im Hüllrohr vor unerwünschter und/oder zu starker kathodische Polarisation und  entsprechender Wasserreduktion geschützt sein.

Réalcalinisation électrochimique et traitements d’extraction des chlorures applicables au béton armé - Partie 1: Réalcalinisation

Le présent document spécifie un mode opératoire pour procéder à la réalcalinisation électrochimique par
courant imposé du béton armé carbonaté dans des structures existantes. Il est applicable à des éléments de
structure exposés au milieu ambiant.
Le présent document ne s’applique ni au béton contenant des aciers de précontrainte qui peuvent subir une
fragilisation due à l’hydrogène lors de la réalcalinisation, ni au béton contenant des armatures revêtues époxy
ou galvanisées ; il ne s’applique pas non plus lorsque la contamination par les chlorures contribue à la
corrosion des armatures.
NOTE Dans le cas du béton précontraint par post-tension, les torons menacés peuvent être protégés par des gaines
contre la polarisation indésirable et/ou excessive dans le domaine cathodique et contre la réduction de l’eau associée.

Elektrokemična realkalizacija in postopki kloridne ekstrakcije za armiran beton - 1. del: Realkalizacija

Ta dokument določa postopek za izvajanje elektrokemične realkalizacije karboniziranega armiranega betona z vzbujalnim tokom v obstoječih konstrukcijah. Uporablja se za ozračju izpostavljene dele konstrukcij z običajno betonsko ojačitvijo. Ta dokument se ne uporablja za beton z vsebnostjo jekla za prednapetje, ki je lahko med realkalizacijo izpostavljeno vodikovi krhkosti, ali beton z vsebnostjo galvanizirane ali z epoksi zaščito prevlečene ojačitve, ali če kontaminacija s kloridom prispeva h koroziji ojačitve. OPOMBA: V primeru naknadnega napetja prednapetega betona lahko ogrožene kabelske žice pred neželeno in/ali prekomerno polarizacijo v katodnem območju ter posledičnim zmanjšanjem vode zaščitijo kabelski vodi. Utemeljitev: tehnična specifikacija TS 14038-1, ki je trenutno na voljo, je pomemben pravni temelj za uporabo neporušitvenih sanacijskih tehnik pri vzdrževanju betona. Obravnava konstrukcije, manjše od parkirišč (npr. fasade, težave s korozijo zaradi lokalne karbonizacije), pri katerih se zdi, da katodna zaščita (kot je opisana v standardu EN ISO 12696) povzroča prekomeren dolgoročni napor. Tako kot druge neporušitvene sanacijske metode tudi ta standard pomaga pri ohranitvi okolja, in sicer s preprečitvijo hrupne in prašne zamenjave betona.

General Information

Status
Published
Public Enquiry End Date
10-Aug-2014
Publication Date
02-Jun-2016
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
25-May-2016
Due Date
30-Jul-2016
Completion Date
03-Jun-2016

RELATIONS

Buy Standard

Standard
SIST EN 14038-1:2016
English language
15 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Elektrochemische Realkalisierung und Chloridextraktionsbehandlungen für Stahlbeton - Teil 1: RealkalisierungRéalcalinisation électrochimique et traitements d’extraction des chlorures applicables au béton armé - Partie 1: RéalcalinisationElectrochemical realkalization and chloride extraction treatments for reinforced concrete - Part 1: Realkalization91.080.40Betonske konstrukcijeConcrete structuresICS:Ta slovenski standard je istoveten z:EN 14038-1:2016SIST EN 14038-1:2016en,fr,de01-julij-2016SIST EN 14038-1:2016SLOVENSKI

STANDARDSIST-TS CEN/TS 14038-1:20051DGRPHãþD
SIST EN 14038-1:2016
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 14038-1
March
t r s x English Version

Electrochemical realkalization and chloride extraction treatments for reinforced concrete æ Part

sã RealkalizationRéalcalinisation électrochimique et traitements d 5extraction des chlorures applicables au béton armé æ Partie

sã Réalcalinisation

Elektrochemische Realkalisierung und Chloridextraktionsbehandlungen für Stahlbeton æ Teil

sã Realkalisierung This European Standard was approved by CEN on
s w January
t r s xä

egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä

translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä

CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä

EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels

t r s x CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN

s v r u zæ sã t r s x ESIST EN 14038-1:2016

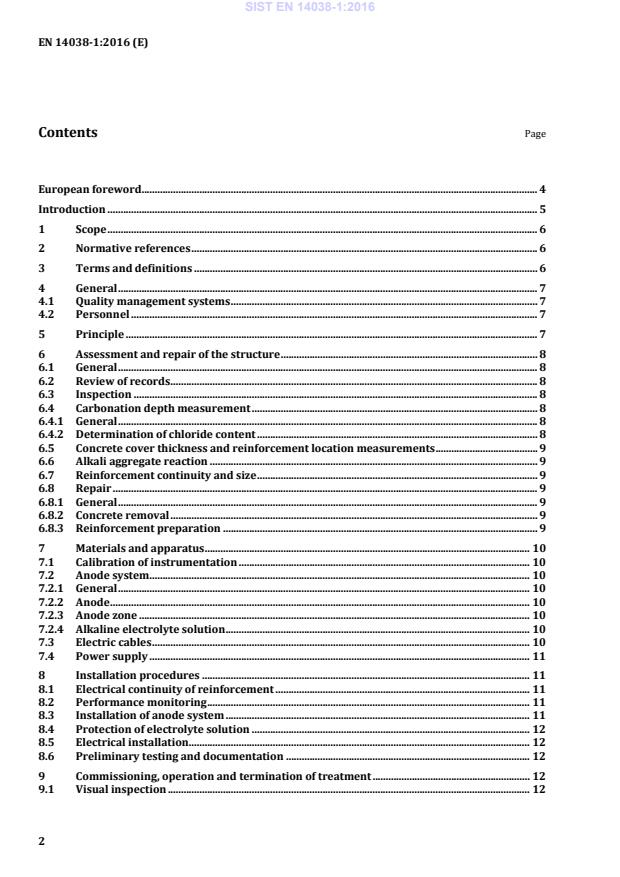

EN 14038-1:2016 (E) 2 Contents Page
