Petroleum, petrochemical and natural gas industries - Venting of atmospheric and low-pressure storage tanks (ISO 28300:2008)

This standard covers the normal and emergency venting requirements for above ground liquid petroleum storage tanks and above ground and underground refrigerated storage tanks designed for operation at pressures from vacuum to 15 psig.

Erdöl, petrochemische und Erdgasindustrie - Be- und Entlüftung von Lagertanks mit atomsphährischem Druck oder niedrigem Überdruck (ISO 28300:2008)

Diese Internationale Norm legt die Anforderungen für die normale Be- und Entlüftung und für die Not-Be- und Entlüftung von oberirdischen Tanks für die Lagerung von flüssigen Erdöl oder Erdölprodukten sowie von oberirdischen und unterirdischen Lagertanks mit Kühlung fest, die sowohl bei atmosphärischen Bedingungen als auch bei niedrigem Druck betrieben werden. In dieser Internationalen Norm werden die Ursachen von Über  und Unterdruck, die Festlegung von Lüftungsanforderungen, die dazu erforderlichen Einrichtungen sowie Auswahl und Einbau und die Prüfung und Kennzeichnung von Be- und Entlüftungseinrichtungen behandelt.
Diese Internationale Norm ist für Tanks vorgesehen, die Erdöl und Erdölprodukte enthalten; sie gilt aber auch für Tanks mit anderen Flüssigkeiten; vor ihrer Anwendung auf andere Flüssigkeiten sollte jedoch immer eine fachmännische technische Analyse und Beurteilung vorgenommen werden.
Die vorliegende Internationale Norm gilt nicht für Tanks mit äußerem Schwimmdach.

Industries du pétrole, de la pétrochimie et du gaz naturel - Ventilation des réservoirs de stockage a pression atmosphérique et a basse pression (ISO 28300:2008)

L'ISO 28300:2008 couvre les exigences de ventilation de vapeur (gaz), normale et en situation d'urgence, des réservoirs de surface de stockage de pétrole liquide et de produits pétroliers et des réservoirs de surface et enterrés de stockage réfrigérés (frigorifiques), conçus comme réservoirs de stockage à pression atmosphérique et à basse pression. Elle aborde les causes de surpression et de dépression, la détermination des exigences de ventilation, les moyens de ventilation, le choix et l'installation des dispositifs de ventilation ainsi que les essais et le marquage des limiteurs de pression.
L'ISO 28300:2008 concerne les réservoirs contenant du pétrole et des produits pétroliers, mais peut également s'appliquer aux réservoirs contenant d'autres liquides. Il est cependant nécessaire d'utiliser une analyse et un raisonnement techniques solides lorsqu'elle est appliquée à d'autres liquides.
L'ISO 28300:2008 ne s'applique pas aux réservoirs extérieurs à toit flottant.

Petrokemična industrija ter industrija za predelavo nafte in zemeljskega plina - Prezračevanje atmosferskih in nizkotlačnih rezervoarjev za shranjevanje (ISO 28300:2008)

General Information

Status
Published
Publication Date
29-Jul-2008
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
14-Jul-2008
Due Date
18-Sep-2008
Completion Date
30-Jul-2008

RELATIONS

Buy Standard

Standard
SIST EN ISO 28300:2008
English language
84 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN ISO 28300:2008
01-september-2008
3HWURNHPLþQDLQGXVWULMDWHULQGXVWULMD]DSUHGHODYRQDIWHLQ]HPHOMVNHJDSOLQD
3UH]UDþHYDQMHDWPRVIHUVNLKLQQL]NRWODþQLKUH]HUYRDUMHY]DVKUDQMHYDQMH ,62


Petroleum, petrochemical and natural gas industries - Venting of atmospheric and low-

pressure storage tanks (ISO 28300:2008)

Erdöl, petrochemische und Erdgasindustrie - Be- und Entlüftung von Lagertanks mit

atomsphährischem Druck oder niedrigem Überdruck (ISO 28300:2008)

Industries du pétrole, de la pétrochimie et du gaz naturel - Ventilation des réservoirs de

stockage a pression atmosphérique et a basse pression (ISO 28300:2008)
Ta slovenski standard je istoveten z: EN ISO 28300:2008
ICS:
75.180.20 Predelovalna oprema Processing equipment
SIST EN ISO 28300:2008 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
EUROPEAN STANDARD
EN ISO 28300
NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2008
ICS 75.180.20
English Version
Petroleum, petrochemical and natural gas industries - Venting of
atmospheric and low-pressure storage tanks (ISO 28300:2008)

Industries du pétrole, de la pétrochimie et du gaz naturel - Erdöl, petrochemische und Erdgasindustrie - Be- und

Ventilation des réservoirs de stockage à pression Entlüftung von Lagertanks mit atmosphährischem Druck

atmosphérique et à basse pression (ISO 28300:2008) oder niedrigem Überdruck (ISO 28300:2008)

This European Standard was approved by CEN on 14 June 2008.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European

Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national

standards may be obtained on application to the CEN Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation

under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the

official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,

France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,

Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels

© 2008 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 28300:2008: E

worldwide for CEN national Members.
---------------------- Page: 2 ----------------------
EN ISO 28300:2008 (E)

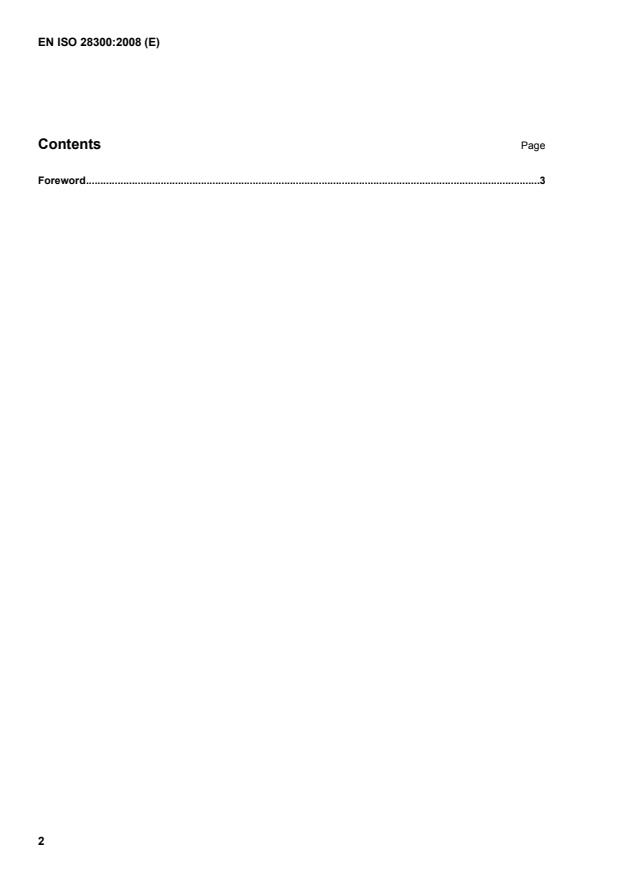

Contents Page

Foreword..............................................................................................................................................................3

---------------------- Page: 3 ----------------------
EN ISO 28300:2008 (E)
Foreword

This document (EN ISO 28300:2008) has been prepared by Technical Committee ISO/TC 67 "Materials,

equipment and offshore structures for petroleum and natural gas industries" in collaboration with Technical

Committee CEN/TC 12 “Materials, equipment and offshore structures for petroleum, petrochemical and

natural gas industries” the secretariat of which is held by AFNOR.

This European Standard shall be given the status of a national standard, either by publication of an identical

text or by endorsement, at the latest by December 2008, and conflicting national standards shall be withdrawn

at the latest by December 2008.

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent

rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.

According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following

countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Cyprus, Czech

Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,

Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,

Sweden, Switzerland and the United Kingdom.
Endorsement notice

The text of ISO 28300:2008 has been approved by CEN as a EN ISO 28300:2008 without any modification.

---------------------- Page: 4 ----------------------
INTERNATIONAL ISO
STANDARD 28300
First edition
2008-06-15
Petroleum, petrochemical and natural gas
industries — Venting of atmospheric and
low-pressure storage tanks
Industries du pétrole, de la pétrochimie et du gaz naturel — Ventilation
des réservoirs de stockage à pression atmosphérique et à basse
pression
Reference number
ISO 28300:2008(E)
ISO 2008
---------------------- Page: 5 ----------------------
ISO 28300:2008(E)
PDF disclaimer

This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but

shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In

downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat

accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.

Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation

parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In

the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

COPYRIGHT PROTECTED DOCUMENT
© ISO 2008

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,

electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or

ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2008 – All rights reserved
---------------------- Page: 6 ----------------------
ISO 28300:2008(E)
Contents Page

Foreword............................................................................................................................................................ iv

Introduction ........................................................................................................................................................ v

1 Scope ..................................................................................................................................................... 1

2 Normative references ........................................................................................................................... 1

3 Terms, definitions and abbreviated terms ......................................................................................... 1

4 Non-refrigerated aboveground tanks ................................................................................................. 4

4.1 General................................................................................................................................................... 4

4.2 Causes of overpressure or vacuum.................................................................................................... 4

4.3 Determination of venting requirements.............................................................................................. 7

4.4 Means of venting................................................................................................................................. 18

4.5 Considerations for tanks with potentially flammable atmospheres.............................................. 19

4.6 Relief-device specification................................................................................................................. 20

4.7 Installation of venting devices .......................................................................................................... 22

5 Refrigerated aboveground and belowground tanks ....................................................................... 23

5.1 General................................................................................................................................................. 23

5.2 Causes of overpressure or vacuum.................................................................................................. 23

5.3 Relief-device specification................................................................................................................. 26

5.4 Installation of venting devices .......................................................................................................... 26

6 Testing of venting devices................................................................................................................. 27

6.1 General................................................................................................................................................. 27

6.2 Flow-test apparatus............................................................................................................................ 28

6.3 Method for determining capacities ................................................................................................... 29

6.4 Production testing .............................................................................................................................. 33

7 Manufacturer's documentation and marking of venting devices .................................................. 34

7.1 Documentation.................................................................................................................................... 34

7.2 Marking ................................................................................................................................................ 34

Annex A (informative) Alternative calculation of normal venting requirements ....................................... 36

Annex B (informative) Basis of emergency venting for Tables 7 and 8 ..................................................... 45

Annex C (informative) Types and operating characteristics of venting devices....................................... 49

Annex D (informative) Basis of sizing equations.......................................................................................... 58

Annex E (informative) Basis for normal out-breathing and normal inbreathing ....................................... 70

Annex F (informative) Guidance for inert-gas blanketing of tanks for flashback protection................... 72

Bibliography ..................................................................................................................................................... 75

© ISO 2008 – All rights reserved iii
---------------------- Page: 7 ----------------------
ISO 28300:2008(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies

(ISO member bodies). The work of preparing International Standards is normally carried out through ISO

technical committees. Each member body interested in a subject for which a technical committee has been

established has the right to be represented on that committee. International organizations, governmental and

non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the

International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.

International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.

The main task of technical committees is to prepare International Standards. Draft International Standards

adopted by the technical committees are circulated to the member bodies for voting. Publication as an

International Standard requires approval by at least 75 % of the member bodies casting a vote.

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent

rights. ISO shall not be held responsible for identifying any or all such patent rights.

ISO 28300 was prepared by Technical Committee ISO/TC 67, Materials, equipment and offshore structures

for petroleum, petrochemical and natural gas industries, Subcommittee SC 6, Processing equipment and

systems.
iv © ISO 2008 – All rights reserved
---------------------- Page: 8 ----------------------
ISO 28300:2008(E)
Introduction

This International Standard was developed from the 5 edition of API Std 2000 and EN 14015:2005, with the

intent that the 6 edition of API Std 2000 be identical to this International Standard.

This International Standard has been developed from the accumulated knowledge and experience of qualified

engineers of the oil, petroleum, petrochemical, chemical and general bulk liquid storage industry.

Engineering studies of a particular tank can indicate that the appropriate venting capacity for the tank is not

the venting capacity estimated in accordance with this International Standard. The many variables associated

with tank-venting requirements make it impractical to set forth definite, simple rules that are applicable to all

locations and conditions.

In this International Standard, where practical, US Customary (USC) units are included in parentheses or in

separate tables, for information.
© ISO 2008 – All rights reserved v
---------------------- Page: 9 ----------------------
INTERNATIONAL STANDARD ISO 28300:2008(E)
Petroleum, petrochemical and natural gas industries — Venting
of atmospheric and low-pressure storage tanks
1 Scope

This International Standard covers the normal and emergency vapour venting requirements for aboveground

liquid petroleum or petroleum products storage tanks and aboveground and underground refrigerated storage

tanks designed as atmospheric storage tanks or low-pressure storage tanks. Discussed in this International

Standard are the causes of overpressure and vacuum; determination of venting requirements; means of

venting; selection, and installation of venting devices; and testing and marking of relief devices.

This International Standard is intended for tanks containing petroleum and petroleum products but it can also

be applied to tanks containing other liquids; however, it is necessary to use sound engineering analysis and

judgment whenever this International Standard is applied to other liquids.
This International Standard does not apply to external floating-roof tanks.
2 Normative references

The following referenced documents are indispensable for the application of this document. For dated

references, only the edition cited applies. For undated references, the latest edition of the referenced

document (including any amendments) applies.

ISO 4126-4, Safety devices for protection against excessive pressure — Part 4: Pilot operated safety valves

ISO 16852, Flame arresters — Performance requirements, test methods and limits for use

ISO 23251, Petroleum, petrochemical and natural gas industries — Pressure-relieving and depressuring

systems

IEC 60079-10, Electrical apparatus for explosive gas atmospheres — Part 10: Classification of hazardous

areas

DIN 4119 (all parts), Above-ground cylindrical flat-bottom tank structures of metallic materials

3 Terms, definitions and abbreviated terms

For the purposes of this document, the following terms, definitions and abbreviated terms apply.

3.1
accumulation

pressure increase over the maximum allowable working pressure or design pressure of the vessel allowed

during discharge through the pressure-relief device

NOTE Accumulation is expressed in units of pressure or as a percentage of MAWP or design pressure. Maximum

allowable accumulations are established by pressure-design codes for emergency operating and fire contingencies.

1) Deutsches Institut für Normung (DIN), Burggrafenstrasse 6, Berlin, Germany D-10787.

© ISO 2008 – All rights reserved 1
---------------------- Page: 10 ----------------------
ISO 28300:2008(E)
3.2
adjusted set pressure

inlet static pressure at which a pressure-relief valve is adjusted to open on the test stand

See set pressure (3.19).

NOTE 1 Adjusted set pressure is equivalent to set pressure for direct-mounted end-of-line installations.

NOTE 2 The adjusted test pressure includes corrections for service conditions of superimposed back-pressure.

3.3
British thermal unit
Btu

unit of heat that increases the temperature of one pound of water by one degree Fahrenheit

3.4
emergency venting

venting required when an abnormal condition, such as ruptured internal heating coils or an external fire, exists

either inside or outside a tank
3.5
non-refrigerated tank

container that stores material in a liquid state without the aid of refrigeration, either by evaporation of the tank

contents or by a circulating refrigeration system

NOTE Generally, the storage temperature is close to, or higher than, ambient temperature.

3.6
normal cubic metres per hour
Nm /h

SI unit for volumetric flow rate of air or gas at a temperature of 0 °C and pressure of 101,3 kPa, expressed in

cubic metres per hour
3.7
normal venting
venting required because of operational requirements or atmospheric changes
3.8
overpressure

pressure increase at the PV valve inlet above the set pressure, when the PV valve is relieving

NOTE 1 Overpressure is expressed in pressure units or as a percentage of the set pressure.

NOTE 2 The value or magnitude of the overpressure is equal to the value or magnitude of the accumulation when the

valve is set at the maximum allowable working pressure or design pressure and the inlet piping losses are zero.

3.9
petroleum
crude oil
3.10
petroleum products
hydrocarbon materials or other products derived from crude oil
3.11
PV valve

weight-loaded, pilot-operated, or spring-loaded valve, used to relieve excess pressure and/or vacuum that has

developed in a tank
2 © ISO 2008 – All rights reserved
---------------------- Page: 11 ----------------------
ISO 28300:2008(E)
3.12
rated relieving capacity

flow capacity of a relief device expressed in terms of air flow at standard or normal conditions at a designated

pressure or vacuum
NOTE Rated relieving capacity is expressed in SCFH or Nm /h.
3.13
refrigerated tank

container that stores liquid at a temperature below atmospheric temperature with or without the aid of

refrigeration, either by evaporation of the tank contents or by a circulating refrigeration system

3.14
relief device

device used to relieve excess pressure and/or vacuum that has developed in a tank

3.15
relieving pressure

pressure at the inlet of a relief device when the fluid is flowing at the required relieving capacity

3.16
required flow capacity

flow through a relief device required to prevent excessive pressure or vacuum in a tank under the most severe

operating or emergency conditions
3.17
rollover

uncontrolled mass movement of stored liquid, correcting an unstable state of stratified liquids of different

densities and resulting in a significant evolution of product vapour
3.18
standard cubic feet per hour
SCFH

USC unit for volumetric flow rate of air or gas (same as free air or free gas) at a temperature of 15,6 °C

(60 °F) and an absolute pressure of 101,3 kPa (14,7 psi), expressed in cubic feet per hour

3.19
set pressure

gauge pressure at the device inlet at which the relief device is set to start opening under service conditions

3.20
thermal inbreathing

movement of air or blanketing gas into a tank when vapours in the tank contract or condense as a result of

weather changes (e.g. a decrease in atmospheric temperature)
3.21
thermal out-breathing

movement of vapours out of a tank when vapours in the tank expand and liquid in the tank vapourizes as a

result of weather changes (e.g. an increase in atmospheric temperature)
3.22
wetted area

surface area of a tank exposed to liquid on the interior and heat from a fire on the exterior

© ISO 2008 – All rights reserved 3
---------------------- Page: 12 ----------------------
ISO 28300:2008(E)
4 Non-refrigerated aboveground tanks
4.1 General

Clause 4 covers the causes of overpressure or vacuum; determination of venting requirements; means of

venting; selection and installation of venting devices.
4.2 Causes of overpressure or vacuum
4.2.1 General

When determining the possible causes of overpressure or vacuum in a tank, consider the following:

a) liquid movement into or out of the tank;

b) tank breathing due to weather changes (e.g. pressure and temperature changes);

c) fire exposure;
d) other circumstances resulting from equipment failures and operating errors.

There can be additional circumstances that should be considered but are not included in this International

Standard.
4.2.2 Liquid movement into or out of a tank

Liquid can enter or leave a tank by pumping, by gravity flow or by process pressure.

Vacuum can result from the outflow of liquid from a tank. Overpressure can result from the inflow of liquid into

a tank and from the vapourization, including flashing of the feed liquid, that occurs because of the inflow of the

liquid. Flashing of the feed liquid can be significant for feed that is near or above its boiling point at the

pressure in the tank. See 4.3 for calculation methods.
4.2.3 Weather changes

Vacuum can result from the contraction or condensation of vapours that is caused by a decrease in

atmospheric temperature or other weather changes, such as wind changes, precipitation, etc. Overpressure

can result from the expansion and vapourization that is caused by an increase in atmospheric temperature or

weather changes. See 4.3 for calculation methods.
4.2.4 Fire exposure

Overpressure results from the expansion of the vapours and vapourization of the liquid that occur when a tank

absorbs heat from an external fire. See 4.3.3 for calculation methods.
4.2.5 Other circumstances
4.2.5.1 General

When the possible causes of overpressure or vacuum in a tank are being determined, other circumstances

resulting from equipment failures and operating errors shall be considered and evaluated. Calculation

methods for these other circumstances are not provided in this International Standard.

4 © ISO 2008 – All rights reserved
---------------------- Page: 13 ----------------------
ISO 28300:2008(E)
4.2.5.2 Pressure transfer vapour breakthrough

Liquid transfer from other vessels, tank trucks and tank cars can be aided or accomplished entirely by

pressurization of the supply vessel with a gas, but the receiving tank can encounter a flow surge at the end of

the transfer due to vapour breakthrough. Depending on the pre-existing pressure and free head space in the

receiving tank, the additional gas volume can be sufficient to overpressure the tank. The controlling case is a

transfer that fills the receiving tank so that little head space remains to absorb the pressure surge.

4.2.5.3 Inert pads and purges

Inert pads and purges are provided on tanks to protect the contents of the tanks from contamination, maintain

non-flammable atmospheres in the tanks and reduce the extent of the flammable envelope of the vapours

vented from the tanks. An inert pad and purge system normally has a supply regulator and a back-pressure

regulator to maintain interior tank pressure within a narrow operating range. Failure of the supply regulator can

result in unrestricted gas flow into the tank and subsequent tank overpressure, reduced gas flow, or complete

loss of the gas flow. Failure closed of the back-pressure regulator can result in a blocked outlet and

overpressure. If the back-pressure regulator is connected to a vapour-recovery system, its failure open can

result in vacuum.
4.2.5.4 Abnormal heat transfer

Steam, tempered water and hot oil are common heating media for tanks whose contents it is necessary to

maintain at elevated temperatures. Failure of a tank's supply control valve, temperature-sensing element or

control system can cause an increase of heat input to the tank. Vapourization of the liquid stored in the tank

can result in tank overpressure.

Heated tanks that have two liquid phases present the possibility of a rapid vapourization if the lower phase is

heated to the point where its density becomes lower than the density of the liquid above it. It is recommended

to specify design and operating practices to avoid these conditions.

If a tank maintained at elevated temperatures is empty, excessive feed vapourization can result when the tank

is filled. If the temperature control system of the tank is active with the sensing element exposed to vapour,

the tank's heating medium can be circulating at maximum rate with the tank wall at maximum temperature.

Filling under such conditions can result in excessive feed vapourization. The excessive feed vapourization

stops as soon as the walls have cooled and the fluid level covers the sensing element.

For a tank with a cooling jacket or coils, liquid vapourization as a result of the loss of coolant flow shall be

considered.
4.2.5.5 Internal failure of heat-transfer devices

Mechanical failure of a tank's internal heating or cooling device can expose the contents of the tank to the

heating or cooling medium used in the device. In low-pressure tanks, it can be assumed that the flow direction

of the heat-transfer medium is into the tank when the device fails. Chemical compatibility of the tank contents

and the heat-transfer medium shall be considered. Relief of the heat-transfer medium (e.g. steam) can be

necessary.
4.2.5.6 Vent treatment systems

If vapour from a tank is collected for treatment or disposal by a vent treatment system, the vent collection

system can fail. This failure shall be evaluated. Failures affecting the safety of a tank can include

back-pressure developed from problems in the piping (liquid-filled pockets and solids build-up), other

equipment venting or relieving into the header or blockage due to equipment failure. An emergency venting

device that relieves to atmosphere, set at a higher pressure than the vent treatment system, may be used if

appropriate.
© ISO 2008 – All rights reserved 5
---------------------- Page: 14 ----------------------
ISO 28300:2008(E)
4.2.5.7 Utility failure

Local and plant-wide power and utility failures shall be considered as possible causes of overpressure or

vacuum. Loss of electrical power directly affects any motorized valves or controllers and can also shut down

the instrument air supply. Also, cooling and heating fluids can be lost during an electrical failure.

4.2.5.8 Change in temperature of the input stream to a tank

A change in the temperature of the input stream to a tank, brought about by a loss of cooling or an increase in

heat input, can cause overpressure in the tank. A lower-temperature inlet stream can result in vapour

condensation and contraction, which can cause vacuum.
4.2.5.9 Chemical reactions

The contents of some tanks can be subject to chemical reactions that generate heat and/or vapours. Some

examples of chemical reactions include inadvertently adding water to acid or spent acid tanks, thereby

generating steam and/or vapourizing light hydrocarbons; runaway reactions in tanks containing cumene

hydroperoxide; etc. In some cases, the material can foam, causing two-phase relief.

Technology available from the Design Institute for Emergency Relief Systems (DIERS) Users Group of the

American Institute of Chemical Engineers (AICHE) or from the DIERS group in Europe may be used to

evaluate these cases.
4.2.5.10 Liquid overfill protection

For information on liquid overfill protection, see API Std 2510, API RP 2350 and EN 13616. Prevent liquid

overfill by providing instrument safeguards and/or effective operator intervention actions.

4.2.5.11 Atmospheric pressure changes

A rise or drop in barometric pressure is a possible cause of vacuum or overpressure in a tank. This should be

considered for refrigerated storage tanks (see 5.2.1.2).
4.2.5.12 Control valve failure

The effect of a control valve failing open or failing closed shall be considered to determine the potential for

pressure or vacuum due to mass and/or energy imbalances. For example, failure of a control valve on the

liquid line to a tank shall be considered because such a failure can overload heat-exchange equipment

resulting in the admission of high-temperature material into the tank. A control-valve failure can also cause the

liquid level in a pressurized vessel feeding liquid to a tank to drop below the vessel outlet nozzle, allowing

high-pressure vapour to enter the tank (see 4.2.5.2).
4.2.5.13 Steam out

If an uninsulated tank is filled with steam, the condensing rate due to ambient cooling can exceed the venting

rates specified in this International Standard. Procedures, such as the use of large vents (open manways),

controlling the tank cooling rate or adding a non-condensable gas such as air or nitrogen, are often

...
