Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 50130-4:2011
01-september-2011
1DGRPHãþD
SIST EN 50130-4:1997
SIST EN 50130-4:1997/A1:1999
SIST EN 50130-4:1997/A2:2003
Alarmni sistemi - 4. del: Elektromagnetna združljivost - Standard za varnost
proizvodov - Zahteve za odpornost sestavnih komponent požarnih, vlomnih in
socialnih alarmnih sistemov
Alarm systems -- Part 4: Electromagnetic compatibility - Product family standard -
Immunity requirements for components of fire, intruder and social alarm systems
Alarmanlagen -- Teil 4: Elektromagnetische Verträglichkeit - Produktfamiliennorm -
Anforderungen an die Störfestigkeit von Anlageteilen für Brand- und
Einbruchmeldeanlage sowie Personen-Hilferufanlagen
Systèmes d'alarme -- Partie 4: Compatibilité électromagnétique - Norme famille de
produit - Prescriptions relatives à l'immunité des composants de systèmes de détection
d'incendie, d'intrusion et d'alarme sociale
Ta slovenski standard je istoveten z: EN 50130-4:2011
ICS:
13.320 Alarmni in opozorilni sistemi Alarm and warning systems
33.100.20 Imunost Immunity
SIST EN 50130-4:2011 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN 50130-4:2011

---------------------- Page: 2 ----------------------

SIST EN 50130-4:2011

EUROPEAN STANDARD
EN 50130-4

NORME EUROPÉENNE
June 2011
EUROPÄISCHE NORM

ICS 13.320; 29.020 Supersedes EN 50130-4:1995 + A1:1998 + A2:2003 + corr. Mar.2003


English version


Alarm systems -
Part 4: Electromagnetic compatibility -
Product family standard: Immunity requirements for components of fire,
intruder, hold up, CCTV, access control and social alarm systems



Systèmes d’alarme -  Alarmanlagen -
Partie 4: Compatibilité électromagnétique - Teil 4: Elektromagnetische Verträglichkeit -
Norme de famille de produits: Exigences Produktfamiliennorm: Anforderungen an die
relatives à l’immunité des composants des Störfestigkeit von Anlageteilen für
systèmes d’alarme de détection d’incendie, Brandmeldeanlagen, Einbruch- und
contre l’intrusion, contre les hold-up, CCTV, Überfallmeldeanlagen, Video-
de contrôle d’accès et d’alarme sociale Überwachungsanlagen,
Zutrittskontrollanlagen sowie Personen-
Hilferufanlagen



This European Standard was approved by CENELEC on 2011-06-13. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels


© 2011 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 50130-4:2011 E

---------------------- Page: 3 ----------------------

SIST EN 50130-4:2011
EN 50130-4:2011 – 2 –

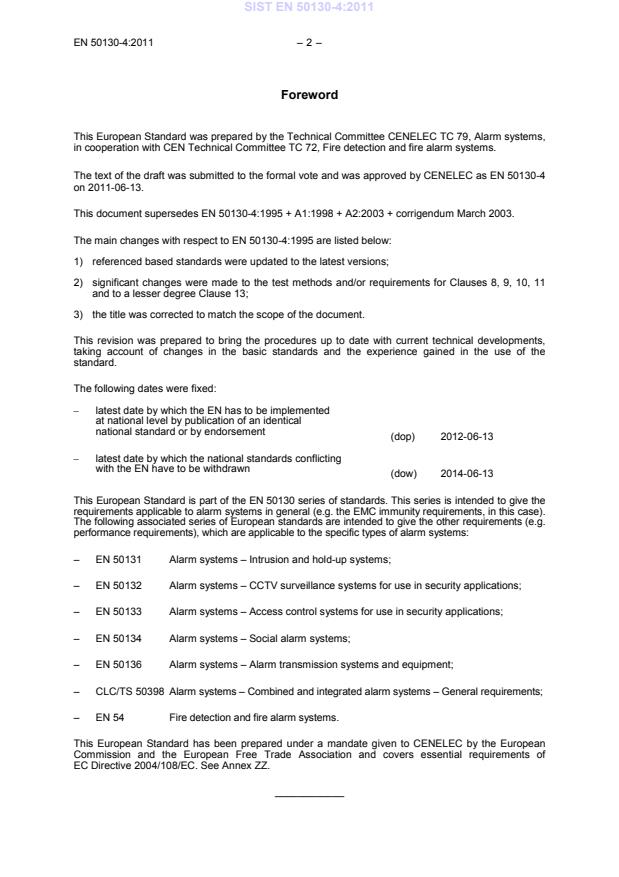

Foreword
This European Standard was prepared by the Technical Committee CENELEC TC 79, Alarm systems,
in cooperation with CEN Technical Committee TC 72, Fire detection and fire alarm systems.
The text of the draft was submitted to the formal vote and was approved by CENELEC as EN 50130-4
on 2011-06-13.
This document supersedes EN 50130-4:1995 + A1:1998 + A2:2003 + corrigendum March 2003.
The main changes with respect to EN 50130-4:1995 are listed below:
1) referenced based standards were updated to the latest versions;
2) significant changes were made to the test methods and/or requirements for Clauses 8, 9, 10, 11
and to a lesser degree Clause 13;
3) the title was corrected to match the scope of the document.
This revision was prepared to bring the procedures up to date with current technical developments,
taking account of changes in the basic standards and the experience gained in the use of the
standard.
The following dates were fixed:
– latest date by which the EN has to be implemented

at national level by publication of an identical

national standard or by endorsement
(dop) 2012-06-13

– latest date by which the national standards conflicting

with the EN have to be withdrawn
(dow) 2014-06-13
This European Standard is part of the EN 50130 series of standards. This series is intended to give the
requirements applicable to alarm systems in general (e.g. the EMC immunity requirements, in this case).
The following associated series of European standards are intended to give the other requirements (e.g.
performance requirements), which are applicable to the specific types of alarm systems:
– EN 50131 Alarm systems – Intrusion and hold-up systems;
– EN 50132 Alarm systems – CCTV surveillance systems for use in security applications;
– EN 50133 Alarm systems – Access control systems for use in security applications;
– EN 50134 Alarm systems – Social alarm systems;
– EN 50136 Alarm systems – Alarm transmission systems and equipment;
– CLC/TS 50398 Alarm systems – Combined and integrated alarm systems – General requirements;
– EN 54 Fire detection and fire alarm systems.
This European Standard has been prepared under a mandate given to CENELEC by the European
Commission and the European Free Trade Association and covers essential requirements of
EC Directive 2004/108/EC. See Annex ZZ.
____________

---------------------- Page: 4 ----------------------

SIST EN 50130-4:2011
– 3 – EN 50130-4:2011
Contents
1 Scope . 5
2 Normative references . 6
3 Terms, definitions and abbreviations . 6
3.1 Terms and definitions . 6
3.2 Abbreviations . 7
4 Application of the tests . 8
5 Conditions during testing . 8
5.1 Configuration . 8
5.2 Environmental conditions . 8
5.3 Operating conditions . 8
6 Functional test . 9
7 Mains supply voltage variations . 9
7.1 Object of the test . 9
7.2 Principle . 9
7.3 Test procedure . 9
7.4 Criteria for compliance .10
8 Mains supply voltage dips and short interruptions .10
8.1 Object of the test .10
8.2 Principle .10
8.3 Test procedure .10
8.4 Criteria for compliance .11
9 Electrostatic discharge .11
9.1 Object of the test .11
9.2 Principle .11
9.3 Test procedure .12
9.4 Criteria for compliance .13
10 Radiated electromagnetic fields .13
10.1 Object of the test .13
10.2 Principle .13
10.3 Test procedure .13
10.4 Criteria for compliance .15
11 Conducted disturbances induced by electromagnetic fields .16
11.1 Object of the test .16
11.2 Principle .16
11.3 Test procedure .16
11.4 Criteria for compliance .17

---------------------- Page: 5 ----------------------

SIST EN 50130-4:2011
EN 50130-4:2011 – 4 –
12 Fast transient bursts .18
12.1 Object of the test .18
12.2 Principle .18
12.3 Test procedures .18
12.4 Criteria for compliance .19
13 Slow high energy voltage surge .19
13.1 Object of the test .19
13.2 Principle .19
13.3 Test procedures .20
13.4 Criteria for compliance .22
14 Conducted, common mode disturbances from 0 Hz to 150 kHz .22
Annex ZZ (informative) Coverage of Essential Requirements of EC Directives .23
Bibliography .24

Figures
Figure 1 – Forms of the modulation types relative to the continuous wave . 15
Figure 2 – Coupling method 1, if CDN is not applicable . 21
Figure 3 – Typical arrangement for coupling onto screened signal lines . 21

Tables
Table 1 – Mains supply voltage variations – Conditioning . 10
Table 2 – Mains supply voltage reductions – Conditioning . 11
Table 3 – Electrostatic discharge – Conditioning . 12
Table 4 – Radiated electromagnetic fields – Conditioning . 14
Table 5 – Conducted disturbances induced by electromagnetic fields – Conditioning . 17
Table 6 – Fast transient bursts – Conditioning . 19
Table 7 – Slow high energy voltage surge – Conditioning . 22

---------------------- Page: 6 ----------------------

SIST EN 50130-4:2011
– 5 – EN 50130-4:2011
1 Scope
This EMC product-family standard, for immunity requirements, applies to the components of the
following alarm systems, intended for use in and around buildings in residential, commercial, light
industrial and industrial environments:
– access control systems, for security applications;
1)
– alarm transmission systems ;
– CCTV systems, for security applications;
– fire detection and fire alarm systems;
– hold-up alarm systems;
– intruder alarm systems;
– social alarm systems;
The tests and severities to be used are the same for indoor and outdoor applications of fixed, movable
and portable equipment.
The levels do not cover extreme cases, which may occur in any location, but with an extremely low
probability of occurrence, or in special locations close to powerful emitters (e.g. radar transmitters).
Equipment within the scope of this standard should be designed in order to operate satisfactorily in the
environmental electromagnetic conditions of residential, commercial, light industrial and industrial
environments. This implies particularly that it should be able to operate correctly within the conditions
fixed by the electromagnetic compatibility levels for the various disturbances on the low voltage public
supply system as defined by EN 61000-2-2. The immunity tests in this standard only concern the most
critical disturbance phenomena.
For equipment using radio signalling, mains signalling or with connections to the public telephone
system, additional requirements, from other standards specific to these signalling media, might apply.
This standard does not specify basic safety requirements, such as protection against electrical shocks,
unsafe operation, insulation coordination and related dielectric tests.
This standard does not cover EMC emission requirements. These are covered by other appropriate
standards.
———————
1)
 Apart from equipment which is part of a public communication network.

---------------------- Page: 7 ----------------------

SIST EN 50130-4:2011
EN 50130-4:2011 – 6 –
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
EN 60068-1:1994 Environmental testing – Part 1: General and guidance
(IEC 60068-1:1988 + Corr. Oct. 1988 + A1:1992)
EN 61000-4-2:2009 Electromagnetic compatibility (EMC) – Part 4-2: Testing and
measurement techniques – Electrostatic discharge immunity test
(IEC 61000-4-2:2008)
EN 61000-4-3:2006 Electromagnetic compatibility (EMC) – Part 4-3: Testing and
+ A1:2008 measurement techniques – Radiated, radio-frequency, electromagnetic
+ A2:2010 field immunity test (IEC 61000-4-3:2006 + A1:2007 + A2:2010)
EN 61000-4-4:2004 Electromagnetic compatibility (EMC) – Part 4-4: Testing and
+ A1:2010 measurement techniques – Electrical fast transient/burst immunity test
(IEC 61000-4-4:2004 + A1:2010)
EN 61000-4-5:2006 Electromagnetic compatibility (EMC) – Part 4-5: Testing and
measurement techniques – Surge immunity test (IEC 61000-4-5:2005)
EN 61000-4-6:2009 Electromagnetic compatibility (EMC) – Part 4-6: Testing and
measurement techniques – Immunity to conducted disturbances, induced
by radio-frequency fields (IEC 61000-4-6:2008)
EN 61000-4-11:2004 Electromagnetic compatibility (EMC) – Part 4-11: Testing and
measurement techniques – Voltage dips, short interruptions and voltage
variations immunity tests (IEC 61000-4-11:2004)
EN 61000-4-20:2010 Electromagnetic compatibility (EMC) – Part 4-20: Testing and
measurement techniques – Emission and immunity testing in transverse
electromagnetic (TEM) waveguides (IEC 61000-4-20:2010)
ETSI EN 301 489 Electromagnetic compatibility and radio spectrum matters (ERM);
(series) Electromagnetic compatibility (EMC) standard for radio equipment and
services
3 Terms, definitions and abbreviations
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1.1
European product performance standard
European Standard (EN) that specifies the product performance requirements, which may include
EMC requirements but is not limited to EMC requirements
EXAMPLES EN 54 series for fire alarm systems, EN 50131 series for intruder alarm systems.
3.1.2
basic EMC standards
standards giving the description of, and test and measurement methods for an EMC phenomenon,
along with details of the test apparatus and test set-up, which may give guidance on the choice of
severity but do not give the prescribed limits or criteria for compliance

---------------------- Page: 8 ----------------------

SIST EN 50130-4:2011
– 7 – EN 50130-4:2011
3.1.3
intruder alarm system
alarm system to detect and indicate the presence, entry or attempted entry of an intruder into
supervised premises
3.1.4
fire detection and fire alarm system
alarm system to detect the presence of fire in supervised premises and to raise the appropriate alarm
3.1.5
hold-up alarm system
alarm system providing the means fro a user to deliberately generate a hold-up alarm condition
3.1.6
social alarm system
alarm system, providing facilities to summon assistance, for use by persons, who can be considered to
be living at risk
3.1.7
response time
amount of time required for the system to react to a stimulus such as an alarm or fault
3.1.8
indication
annunciation of a condition in the alarm system by visual or audible means such as but not restricted
to a LED or a buzzer
3.1.9
CCTV system
system consisting of camera equipment, storage, monitoring and associated equipment for
transmission and controlling purposes which might be necessary for the surveillance of a defined
secure area
3.1.10
access control system
system comprising all the constructional and organizational measures as well as those pertaining to
the apparatus which are required for controlling access
3.1.11
alarm transmission system
Alarm Transmission Equipment and networks used to transfer information concerned with the state of
one or more alarm systems at a supervised premises to one or more annunciation equipment of one
or more alarm receiving centres
3.2 Abbreviations
For the purposes of this document, the following abbreviations apply.
EUT Equipment Under Test
EMC Electromagnetic Compatibility
CW Continuous Wave, Carrier Wave
PCB Printed Circuit Board

---------------------- Page: 9 ----------------------

SIST EN 50130-4:2011
EN 50130-4:2011 – 8 –
4 Application of the tests
The tests shall be carried out as single tests, as described in the later clauses, and the equipment shall
meet the criteria for compliance for each test. If a number of tests are made on a single specimen of the
equipment, the sequence of testing is optional, and it is permissible to substitute the intermediate
functional tests with a reduced version of the functional test and to conduct a full functional test at the
end of the sequence. However, it should be noted that, in this case, in the event of a failure, it may not
be possible to identify which test exposure caused the failure.
Where appropriate basic EMC standards exist, these are referred to in the relevant clauses. The content
of these basic EMC standards (i.e. the description of the test procedure, test apparatus and test set-up)
are not repeated here in full, however modifications or additional information needed for the particular
application of the tests are given in this standard.
It may be determined, from consideration of the electrical characteristics and usage of particular
equipment, that some of the tests are inappropriate and therefore unnecessary. In such a case it is
required that the decision not to conduct the test be recorded in the report, along with the justification for
this decision.
5 Conditions during testing
5.1 Configuration
If the EUT is part of a system, or can be connected to other equipment, then the EUT shall be tested
while connected in at least the minimum configuration necessary for verifying its performance.
If the EUT has a large number of inputs/outputs, then a sufficient number shall be selected to simulate
actual operating conditions and to ensure that all the different types of inputs/outputs are covered. The
connections to inputs and outputs, which may be separated into different cables in a real installation,
shall be separated into different cables for the tests (e.g. detector loops).
Any external cables that are part of or attached to the EUT and or ancillary equipment shall be
documented in the test report. The minimum information provided shall be the cable type, length,
termination and to which port they are attached.
During conditioning, the EUT shall be monitored to detect any change in its status, including any change
in outputs, which could be interpreted by associated equipment as a change in status.
5.2 Environmental conditions
Unless otherwise indicated in the basic standard or test procedure, the tests shall be carried out within
the rated supply voltage for the EUT and the following standard atmospheric conditions for
measurements and tests, as specified in EN 60068-1:1994, 5.3.1:
– temperature : 15 °C to 35 °C;
– relative humidity : 25 % to 75 %;
– air pressure : 86 kPa to 106 kPa.
5.3 Operating conditions
Where a relevant European product performance standard (EN) exists, which defines suitable operating
condition(s) during environmental or EMC tests (e.g. EN 54 series for fire alarm systems, EN 50131
series for intruder alarm systems), the operating condition(s) of the EUT, during the test conditions, shall
be as defined in that standard.

---------------------- Page: 10 ----------------------

SIST EN 50130-4:2011
– 9 – EN 50130-4:2011
Where no relevant European product performance standard (EN) exists, the operating condition(s) of the
EUT, during the test conditioning, shall include at least that corresponding to the main functional mode
(appropriate to the test being undertaken) of the system, which it forms part of. (e.g. corresponding to the
"set" mode, for an intruder alarm system during a radiated immunity test).
The configuration and mode(s) of operation during the tests shall be precisely noted in the test report.
6 Functional test
The variety and the diversity of the equipment within the scope of this standard makes it difficult to define
a precise functional test for evaluation of the EUT performance:
– where a relevant European product performance standard (EN) exists, which defines suitable
operating condition(s) during environmental or EMC tests (e.g. EN 54 series for fire alarm
systems, EN 50131 series for intruder alarm systems), the operating condition(s) of the EUT,
during the test conditions, shall be as defined in that standard;
– where no relevant European product performance standard (EN) exists, the functional test shall
be at least a test or measurement of the main function(s) of the equipment. The acceptance
criteria for this functional test shall be that there is no change in the functioning of the equipment
and no significant change in any measurement (e.g. sensitivity of a detector), which shall also
remain within specification.
7 Mains supply voltage variations
7.1 Object of the test
To demonstrate the ability of the equipment to function correctly over the anticipated range of mains
supply voltage conditions.
7.2 Principle
The test consists of exposing the specimen to each of the maximum and minimum power supply
conditions, for a sufficient time to obtain temperature stability, and to perform the functional test.
7.3 Test procedure
7.3.1 General
No reference can be made to an internationally accepted standard at present.
7.3.2 Initial examination
Before the conditioning, subject the specimen to the functional test (see Clause 6).
7.3.3 State of specimen during conditioning
Connect the specimen to suitable power supply, monitoring and loading equipment (see 5.1). The
specimen shall be in its operating condition (see 5.3).
7.3.4 Conditioning
Subject the specimen to each of the power supply conditions, indicated in Table 1, until temperature
stability is reached.

---------------------- Page: 11 ----------------------

SIST EN 50130-4:2011
EN 50130-4:2011 – 10 –
Table 1 – Mains supply voltage variations – Conditioning
a
Supply voltage max (U ) U + 10 %
max nom
a
Supply voltage min (U ) U - 15 %
min nom
a
 U = Nominal mains voltage. Where provision is made to adapt the equipment to suit a number of nominal supply voltages
nom
(e.g. by transformer tap changing), the above conditioning severity shall be applied for each nominal voltage, with the
equipment suitably adapted. For equipment which is claimed to be suitable for a range of nominal mains voltages (e.g.
220/240 V) without adaptation, U = (Maximum U ) + 10 %, and U = (Minimum U ) – 15 %. In any case the range of
max nom min nom
U shall include the European nominal mains voltage of 230 V.
nom

7.3.5 Measurements during conditioning
Monitor the specimen during the conditioning to detect any change in status. When temperature stability
has been obtained, at each of the supply conditions, subject the specimen to the functional test (see
Clause 6).
7.3.6 Final measurements
After the conditioning at both of the specified power supply conditions inspect the specimen visually for
mechanical damage.
7.4 Criteria for compliance
There shall be no damage, malfunction or change of status due to the different supply voltage
conditions.
The EUT shall meet the acceptance criteria for the functional test (see Clause 6), during the conditioning.
NOTE It is the view of CLC/TC 79 that the above requirement is not an EMC test but more of a performance test. On the next
maintenance cycle, this requirement will be removed from this standard. It was not removed on this revision in order to allow
performance standards working groups who require their devices to meet this test, to have some time to add it into their
standards and therefore maintain continuity.
8 Mains supply voltage dips and short interruptions
8.1 Object of the test
To demonstrate the immunity of the equipment to short duration dips (reductions) and interruptions in the
A.C. mains voltage, such as those caused by load switching and operation of protection devices on the
mains distribution network.
8.2 Principle
The test consists of applying short duration dips and interruptions to the A.C. mains supply to the
equipment.
8.3 Test procedure
8.3.1 General
The test apparatus and procedure shall be as described in EN 61000-4-11.
8.3.2 Initial examination
Before the conditioning, subject the specimen to the functional test (see Clause 6).

---------------------- Page: 12 ----------------------

SIST EN 50130-4:2011
– 11 – EN 50130-4:2011
8.3.3 State of specimen during conditioni
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
