kSIST FprEN 17139:2018

Thermal insulation products for building - Factory made vegetal fibres based products (VFBP)

This document specifies the characteristics for factory made vegetal fibres based products (VFBP), with or without facings or coatings and with or without integral reinforcement, which are used for thermal insulation of buildings. Products are manufactured in form of rolls, felts or boards. Products covered by this standard can also be used for acoustic applications. The standard also covers multi-layered boards. Products covered by this standard are also used in prefabricated insulating systems. The structural performance of systems incorporating these products is not covered by this standard.
This document applies to any thermal insulation products made of at least 70 % of vegetal fibres per mass with or without the addition of bonding agents or bonding fibres and/or additives and which don’t fall within the scope of the EN 13171. It does not replace the existing procedures for the determination of the declared properties of products already covered by an existing harmonized standard. Products with a declared thermal conductivity at 10 °C, greater than 0,07 W/(m.K) or a declared thermal resistance lower than 0,20 m2/k/W are not covered by this standard. This standard does not cover in situ applied insulation and products intended to be used in the insulation of building equipment and industrial installations.

Wärmedämmstoffe für Gebäude - Werkmäßig hergestellte Produkte aus Pflanzenfasern (VFBP)

Produits isolants thermiques pour le bâtiment - Produits manufacturés à base de fibres végétales (VFBP)

Toplotnoizolacijski proizvodi za stavbe - Proizvodi na osnovi rastlinskih vlaken (VFBP)

General Information

• Status: Not Published
• Public Enquiry End Date: 14-Sep-2017
• ICS: 91.100.60 - Thermal and sound insulating materials
• Technical Committee: TOP - Thermal insulation
• Current Stage: 5020 - Formal vote (FV) (Adopted Project)
• Start Date: 28-Jun-2018
• Due Date: 16-Aug-2018
• Completion Date: 17-Jul-2018
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Mandate: M/103 - Mandate to CEN/CENELEC concerning the execution of standardization work for harmonized standards on thermal insulating products
• Ref Project: FprEN 17139 - Thermal insulation products for building - Factory made vegetal fibres based products (VFBP)

Overview

FprEN 17139 (prEN 17139:2017) is a draft CEN standard that defines requirements for factory-made vegetal fibres based products (VFBP) used for building thermal insulation. It covers products manufactured as rolls, felts, slabs or boards - with or without facings, coatings or integral reinforcement - and includes multi-layered boards and composite panels. The standard applies to products composed of at least 70% vegetal fibres by mass, and addresses thermal and basic hygro-physical characteristics relevant for building insulation and acoustic applications. Structural performance of systems that incorporate these materials is outside the scope.

Key Topics

• Product definition: Factory-made vegetal-fibre insulation (agro fibres, wood fibres, paper) containing ≥70% vegetal fibres by mass and not covered by EN 13171 (wood fibre standard).
• Scope exclusions: In-situ applied insulation, insulation for building equipment/industrial installations, and products with declared thermal conductivity at 10 °C greater than 0.08 W/(m·K) or declared thermal resistance below 0.20 m2·K/W are not covered.
• Forms and variations: Rolls, felts, slabs, boards, multi-layered boards, composites, with/without facings or reinforcements.
• Declared thermal values: Procedures for determining declared thermal conductivity and thermal resistance (Annex A), including moisture-related corrections (Annex D).
• Testing and conformity: Sampling, conditioning, and testing requirements are referenced to established EN test methods (e.g., EN 12667 / EN 12939 for thermal resistance, EN 1602 for density). Reaction-to-fire and acoustic test standards are included (EN 13501-1, EN 13823, EN ISO 354, etc.).
• Assessment & AVCP: Product Type Determination (PTD), Factory Production Control (FPC) and assessment procedures (AVCP) are specified; Annex ZA links to EU construction product legislation and CE marking requirements.
• Classification and labelling: Classification codes, marking and labelling requirements are provided to support consistent product information.

Applications

• Thermal insulation in building envelopes: walls, roofs, floors.
• Acoustic insulation uses in buildings (sound absorption and airflow resistance).
• Prefabricated insulating systems and composite panels where vegetal-fibre products are used as insulating layers. Users: manufacturers of sustainable insulation, product specifiers, architects, building engineers, testing laboratories, and conformity assessment bodies needing to evaluate or declare thermal and related properties for CE marking and market access in CEN member states.

Related Standards

• EN 13162 to EN 13171 series (factory-made thermal insulation products - mineral wool, EPS, XPS, PU, PF, CG, WW, WF, etc.)
• EN 12667 / EN 12939 (thermal performance test methods)
• EN 13501-1, EN 13823, EN ISO 11925-2 (reaction to fire)
• EN ISO 354, EN 29053 (acoustic testing)

Keywords: FprEN 17139, VFBP, vegetal fibres based products, thermal insulation, CEN, factory made, thermal conductivity, thermal resistance, acoustic applications, CE marking.

Standards Content (Sample)

SLOVENSKI STANDARD
oSIST prEN 17139:2017
01-september-2017
Toplotnoizolacijski proizvodi za stavbe - Proizvodi na osnovi rastlinskih vlaken
(VFBP)
Thermal insulation products for building - Factory made vegetal fibres based products
(VFBP)
Wärmedämmstoffe für Gebäude - Werkmäßig hergestellte Produkte aus Pflanzenfasern
(VFBP)
Produits isolants thermiques pour le bâtiment - Produits manufacturés à base de fibres
végétales (VFBP)
Ta slovenski standard je istoveten z: prEN 17139
ICS:
91.100.60 0DWHULDOL]DWRSORWQRLQ Thermal and sound insulating
]YRþQRL]RODFLMR materials
oSIST prEN 17139:2017 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

oSIST prEN 17139:2017
oSIST prEN 17139:2017
DRAFT
EUROPEAN STANDARD
prEN 17139
NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2017
ICS 91.100.60
English Version
Thermal insulation products for building - Factory made
vegetal fibres based products (VFBP)
Produits isolants thermiques pour le bâtiment - Wärmedämmstoffe für Gebäude - Wärmedämmstoffe
Produits à base de fibres végétales (VFBP) auf Basis von pflanzlichen Fasern (VFBP)
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 88.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 17139:2017 E
worldwide for CEN national Members.

oSIST prEN 17139:2017
prEN 17139:2017 (E)

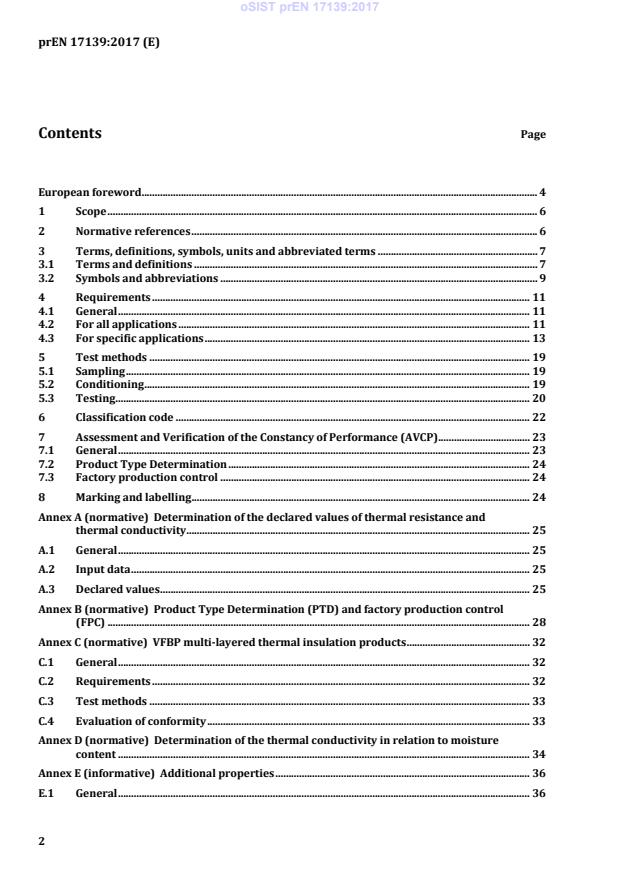

Contents Page
European foreword . 4
1 Scope . 6
2 Normative references . 6
3 Terms, definitions, symbols, units and abbreviated terms . 7
3.1 Terms and definitions . 7
3.2 Symbols and abbreviations . 9
4 Requirements . 11
4.1 General . 11
4.2 For all applications . 11
4.3 For specific applications . 13
5 Test methods . 19
5.1 Sampling . 19
5.2 Conditioning . 19
5.3 Testing . 20
6 Classification code . 22
7 Assessment and Verification of the Constancy of Performance (AVCP) . 23
7.1 General . 23
7.2 Product Type Determination . 24
7.3 Factory production control . 24
8 Marking and labelling . 24
Annex A (normative) Determination of the declared values of thermal resistance and
thermal conductivity . 25
A.1 General . 25
A.2 Input data . 25
A.3 Declared values . 25
Annex B (normative) Product Type Determination (PTD) and factory production control
(FPC) . 28
Annex C (normative) VFBP multi-layered thermal insulation products . 32
C.1 General . 32
C.2 Requirements . 32
C.3 Test methods . 33
C.4 Evaluation of conformity . 33
Annex D (normative) Determination of the thermal conductivity in relation to moisture
content . 34
Annex E (informative) Additional properties . 36
E.1 General . 36
oSIST prEN 17139:2017
prEN 17139:2017 (E)
E.2 Bending strength . 36
E.3 Shear strength . 36
Annex F (informative) Examples for the determination of the declared values of thermal
resistance and thermal conductivity for a product or a product group . 37
F.1 Case where both thermal resistance and thermal conductivity are declared . 37
F.2 Case where only thermal resistance is declared . 38
Annex ZA (informative) Clauses of this European Standard addressing the provisions of the
EU Construction Products Directive . 40
ZA.1 Scope and relevant characteristics . 40
ZA.2 Procedures for attestation of conformity of factory made vegetal fibres based
products . 41
ZA.3 CE Marking and labelling . 46
Bibliography . 48

oSIST prEN 17139:2017
prEN 17139:2017 (E)
European foreword
This document (prEN 17139:2017) has been prepared by Technical Committee CEN/TC 88 “Thermal
insulating materials and products”, the secretariat of which is held by DIN.
This document is currently submitted to the CEN Enquiry.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive.
For relationship with EU Directive, see informative Annex ZA which is an integral part of this document.
This European Standard is one of a series of standards for insulation products used in buildings, but this
standard may be used in other areas where appropriate.
In pursuance of Resolution BT 20/1993 revised, CEN/TC 88 have proposed defining the standards
listed below as a package of European Standards, setting 21 months after availability as the date of
withdrawal (dow) of national standards which conflict with the European Standards of this package.
The package of standards comprises the following group of interrelated standards for the specifications
of factory made thermal insulation products, all of which come within the scope of CEN/TC 88:
EN 13162, Thermal insulation products for buildings — Factory made mineral wool (MW) products —
Specification
EN 13163, Thermal insulation products for buildings — Factory made expanded polystyrene (EPS)
products — Specification
EN 13164, Thermal insulation products for buildings — Factory made extruded polystyrene foam (XPS)
products — Specification
EN 13165, Thermal insulation products for buildings — Factory made rigid polyurethane foam (PU)
products — Specification
EN 13166, Thermal insulation products for buildings — Factory made phenolic foam (PF) products —
Specification
EN 13167, Thermal insulation products for buildings — Factory made cellular glass (CG) products —
Specification
EN 13168, Thermal insulation products for buildings — Factory made wood wool (WW) products —
Specification
EN 13169, Thermal insulation products for buildings — Factory made expanded perlite board (EPB)
products — Specification
EN 13170, Thermal insulation products for buildings — Factory made products of expanded cork (ICB)
- Specification
EN 13171, Thermal insulation products for buildings — Factory made wood fibre (WF) products —
Specification
oSIST prEN 17139:2017
prEN 17139:2017 (E)
The reduction in energy used and emissions produced during the installed life of insulation products
exceeds by far the energy used and emissions made during the production and disposal processes.
oSIST prEN 17139:2017
prEN 17139:2017 (E)
1 Scope
This European Standard specifies the requirements for factory made vegetal fibres based products
(VFBP), with or without facings or coatings and with or without integral reinforcement, which are used
for thermal insulation of buildings. Products are manufactured in form of rolls, felts, slabs or boards.
Products covered by this standard may also be used for acoustic applications. The standard also covers
multilayered boards and slabs and composites insulation boards and slabs. Products covered by this
standard are also used in prefabricated insulating systems and composites panels. The structural
performance of systems incorporating these products is not covered by this standard.
This European Standard applies to any thermal insulation products made of at least 70 % of vegetal
fibres per mass with or without the addition of bonding agents or bonding fibres and/or additives and
which don’t fall within the scope of the EN 13171. It does not replace the existing procedures for the
determination of the declared properties of products already covered by an existing harmonized
standard. This standard does not specify the required level of all properties to be achieved by a product
to demonstrate fitness for purpose in a particular application. The required levels are to be found in
regulations or non-conflicting standards. Products with a declared thermal conductivity at 10 °C,
greater than 0,08 W/(m.K) or a declared thermal resistance lower than 0,20 m /k/W are not covered
by this standard. This European Standard does not cover in situ applied insulation and products
intended to be used in the insulation of building equipment and industrial installations.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
EN 822, Thermal insulating products for building applications - Determination of length and width
EN 823, Thermal insulating products for building applications - Determination of thickness
EN 824, Thermal insulating products for building applications - Determination of squareness
EN 825, Thermal insulating products for building applications - Determination of flatness
EN 826, Thermal insulating products for building applications - Determination of compression behaviour
EN 1602, Thermal insulating products for building applications - Determination of the apparent density
EN 1604, Thermal insulating products for building applications - Determination of dimensional stability
under specified temperature and humidity conditions
EN 1606, Thermal insulating products for building applications - Determination of compressive creep
EN 1607, Thermal insulating products for building applications - Determination of tensile strength
perpendicular to faces
EN 1608, Thermal insulating products for building applications - Determination of tensile strength
parallel to faces
EN 1609, Thermal insulating products for building applications - Determination of short term water
absorption by partial immersion
EN 12086, Thermal insulating products for building applications — Determination of water vapour
transmission properties
oSIST prEN 17139:2017
prEN 17139:2017 (E)
EN 12430, Thermal insulating products for building applications - Determination of behaviour under
point load
EN 12431, Thermal insulating products for building applications - Determination of thickness for floating
floor insulating products
EN 12667, Thermal performance of building materials and products - Determination of thermal resistance
by means of guarded hot plate and heat flow meter methods - Products of high and medium thermal
resistance
EN 12939, Thermal performance of building materials and products - Determination of thermal resistance
by means of guarded hot plate and heat flow meter methods - Thick products of high and medium thermal
resistance
EN 13172, Thermal insulation products - Evaluation of conformity
EN 13501-1, Fire classification of construction products and building elements — Part 1: Classification
using data from reaction to fire tests
EN 13823, Reaction to fire tests for building products — Building products excluding floorings exposed to
the thermal attack by a single burning item
EN 15715, Thermal insulation products - Instructions for mounting and fixing for reaction to fire testing -
Factory made products
EN 29052-1, Acoustics - Determination of dynamic stiffness - Part 1: Materials used under floating floors in
dwellings
EN 29053, Acoustics - Materials for acoustical applications - Determination of airflow resistance (ISO
9053)
EN ISO 354, Acoustics - Measurement of sound absorption in a reverberation room (ISO 354)
EN ISO 10456, Building materials and products - Hygrothermal properties -Tabulated design values and
procedures for determining declared and design thermal values (ISO 10456)
EN ISO 11654, Acoustics - Sound absorbers for use in buildings - Rating of sound absorption (ISO 11654)
EN ISO 11925-2, Reaction to fire tests - Ignitability of products subjected to direct impingement of flame -
Part 2: Single-flame source test (ISO 11925-2)
ISO 16269-6, Statistical interpretation of data — Part 6: Determination of statistical tolerance intervals
3 Terms, definitions, symbols, units and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1.1
agro fibres
fibres from stalk, leaf, seed or fruit of agricultural products (for example hemp, flax, sisal, cotton,
coconut…)
oSIST prEN 17139:2017
prEN 17139:2017 (E)
3.1.2
wood fibres
fibres from wood
3.1.3
vegetal fibres
included agro fibres, wood fibres and paper
3.1.4
factory made vegetal fibres based products (VFBP)
factory insulation products made of at least 70% of vegetal fibres per mass with or without the addition
of bonding agents or bonding fibres and/or additives and which do not fall within the scope of the
EN 13171
3.1.5
level
value which is the upper or lower limit of a requirement and given by the declared value of the
characteristic concerned
3.1.6
class
combination of two levels of the same property between which the performance shall fall
3.1.7
board, slabs
rigid or semi-rigid (insulation) product of rectangular shape and cross section in which the thickness is
uniform and substantially smaller than the other dimensions
Note 1 to entry: Boards are usually thinner than slabs. They may also be supplied in tapered form.
3.1.8
facings
functional or decorative surface layer with a thickness of less than 3 mm, e.g. paper, plastics film, fabric
or metal foil, which is not considered as separate thermal insulation layer to be added to the thermal
resistance of the product
3.1.9
coating
functional or decorative surface layer with a thickness of less than 3 mm usually applied by painting,
spraying, pouring or trowelling
3.1.10
composite insulation product
product which can be faced or coated made from two or more layers bonded together by chemical or
physical adhesion consisting of at least one factory made thermal insulation material layer
3.1.11
multi-layered insulation product
product which can be faced or coated made from two or more layers of a thermal insulation material
from the same European Standard, which are bonded together horizontally by chemical or physical
adhesion
oSIST prEN 17139:2017
prEN 17139:2017 (E)
3.2 Symbols and abbreviations
For the purposes of this document, the following symbols and units apply.
α is the practical sound absorption coefficient –
p
a is the weighted sound absorption coefficient –
w
b is the width mm
c is the compressibility mm
d is the thickness mm
F is the compressive force at critical point kN
p
d is the nominal thickness mm
N
d is the thickness under a load of 2 kPa, after a short time load of 48 kPa mm
B
d is the thickness under a load of 250 kPa mm
L
Δε is the relative change in length %
l
Δε is the relative change in width %
b
K is a factor related to the number of test results available –
i
l is the length mm
λ is the thermal conductivity W/(m K)
λ is the 90 % fractile with a confidence level of 90 % for the thermal W/(m⋅K)
90/90
conductivity
λ is the declared thermal conductivity W/(m⋅K)
D
λ is one test result of thermal conductivity W/(m⋅K)
i
λ is the mean thermal conductivity W/(m⋅K)
mean
λ is the design thermal conductivity W/(m⋅K)
U
μ is the water vapour diffusion resistance factor –
n is the number of test results –
3 3
ψ is the moisture content at 23 °C and 50 % relative humidity m /m
23,50
R is the 90 % fractile with a confidence level of 90 % for the thermal m ⋅K/W
90/90
resistance
R is the declared thermal resistance m ⋅K/W
D
R is one test result of thermal resistance m ⋅K/W
i
R is the mean thermal resistance m ⋅K/W
mean
R is the design thermal resistance m ⋅K/W
U
ρ is the apparent density kg/m
a
ρ is the dry density of the thermal product kg/m
ρ is the density of water kg/m
w
S is the deviation from squareness on length and width mm/m
b
oSIST prEN 17139:2017
prEN 17139:2017 (E)
S is the deviation from flatness mm
max
s is the estimate of the standard deviation of the thermal resistance m ⋅K/W
R
s is the estimate of the standard deviation of the thermal conductivity W/(m⋅K)
λ
s’ is the dynamic stiffness MN/m
σc is the declared compressive stress kpa
σ is the compressive stress at 10 % deformation kPa
σ is the compressive strength kPa
m
σ is the tensile strength perpendicular to faces kPa
mt
σ is the tensile strength parallel to faces kPa
t
τ Is the shear strength kPa
u is the moisture content kg/kg
23,50
W is the short-term water absorption kg/m
p
X is the initial deformation after 60 s from the beginning of loading mm
X is the compressive creep mm
ct
X is the deformation at time t (total thickness reduction) mm
t
Z is the water vapour resistance m ⋅h⋅Pa/mg

AF is the symbol of the declared level of airflow resistivity
r
AP is the symbol of the declared level of practical sound absorption coefficient
AW is the symbol of the declared level of weighted sound absorption coefficient
CC(i /i /y)σ is the symbol of the declared level for long term compressive creep
1 2 c
CP is the symbol of the declared level for compressibility
CS(10\Y) is the symbol of the declared level for compressive stress or strength
DS(N) is the symbol of the declared value for dimensional stability at normal laboratory
temperature and relative humidity conditions
DS(70,-) is the symbol of the declared value for dimensional stability at 70 °C
DS(23/90) is the symbol of the declared value for dimensional stability at 23 °C and 90 % relative
humidity
DS(70/90) is the symbol of the declared value for dimensional stability at 70 °C and 90 % relative
humidity
MU is the symbol of the declared value for water vapour diffusion resistance factor
PL(5) is the symbol for the declared level of point load for 5 mm deformation
SD is the symbol of the declared level of dynamic stiffness
T is the symbol of the declared class for thickness tolerances
Tri is the symbol of the declared level for tensile strength perpendicular to faces
WS is the symbol of the declared level for short-term water absorption
oSIST prEN 17139:2017
prEN 17139:2017 (E)
Z is the symbol of the declared value for water vapour resistance
DS(70/90) is the symbol of the declared value for dimensional stability at 70 °C and 90 % relative
humidity
Abbreviated terms used in this standard:
VF is Vegetal Fibres
PTD is Product Type Determination
FPC is Factory Production Control
RtF is Reaction to Fire
4 Requirements
4.1 General
Product properties shall be assessed in accordance with Clause 5. To comply with this standard,
products shall meet the requirements of 4.2, and the requirements of 4.3 as appropriate.
NOTE Information on additional properties is given in Annex D.
One test result for a product property is the average of the measured values on the number of test
specimens given in Table 8.
4.2 For all applications
4.2.1 Thermal resistance and thermal conductivity
Thermal resistance and thermal conductivity shall be based upon measurements carried out in
accordance with EN 12667 or EN 12939 for thick products and in accordance with 5.2, 5.3.2 and
Annex C.
The thermal resistance and thermal conductivity shall be determined in accordance with Annex A and
declared by the manufacturer according to the following:
— the reference mean temperature shall be 10 °C;
— the declared values are to be given for a moisture content equal to the one the material has when
equilibrium with the air at 23 °C and relative humidity 50 %;
— the measured values shall be expressed with three significant figures;
— for products of uniform thickness, the declared thermal resistance, RD, shall always be declared.
The thermal conductivity, λD, shall be declared where possible. Where appropriate, for products of
non uniform thickness (i.e. for sloped and tapered products) only the thermal conductivity, λD,
shall be declared;
— the declared thermal resistance, RD, and the declared thermal conductivity, λD, shall be given as
limit values representing at least 90 % of the production, determined with a confidence level of
90 %;
— the statistical value of thermal conductivity, λ90/90, shall be rounded upwards to the nearest
0,001 W/(m⋅K) and declared as λD in levels with steps of 0,001 W/(m⋅K);
oSIST prEN 17139:2017
prEN 17139:2017 (E)
— the declared thermal resistance, RD, shall be calculated from the nominal thickness, dN, or dL in
case of products with declared compressibility (see 4.3.11.3) and the corresponding thermal
conductivity, λ90/90, unless measured directly;
— the statistical value of thermal resistance, R90/90, when calculated from the nominal thickness, dN,
and the corresponding declared thermal conductivity, λ90/90, shall be rounded upwards to the
nearest 0,05 m2⋅K/W, and declared in levels with steps of 0,05 m2⋅K/W;
— the statistical value of thermal resistance R90/90, for those products for which only the thermal
resistance is measured directly, shall be rounded downwards to the nearest 0,05 m2⋅K/W and
declared as RD in levels with steps of 0,05 m2⋅K/W.
Examples of the determination of the declared values of thermal resistance, R , and the thermal
D
conductivity, λ , are given in Annex E.
D
λU and RU (design values) should be determined with reference to EN ISO 10456.
4.2.2 Length and width
Length, l, and width, b, shall be determined in accordance with EN 822. No test result shall deviate from
the nominal values by more than the following:
±2 % for length (for rolls, matts and felts no upper limit),
±1,5 % for width.
4.2.3 Thickness
Thickness, d, for products not intended for floating floors shall be determined in accordance with
EN 823 under a load of (250 ± 5) Pa except for products with a level of compressive stress or strength
of ≤ 10 kPa, where the load shall be (50 ± 5) Pa. No test result shall deviate from the nominal thickness,
d , by more than the tolerances given in Table 1 for the declared level or class.
N
Table 1 — Level and classes for thickness tolerances
Tolerances
Level or class
Lower Upper
T1 −5 mm Infinite
a
T2 −5 mm
+15 % or +15 mm
a
T3 −4 mm
+10 % or +10 mm
a
T4 −3 mm
+5 % or +5 mm
T5 −1 mm +3 mm
a
Whichever gives the smallest numerical tolerance
This test shall not be performed when the tests described in 4.3.10 are used.
4.2.4 Squareness
Squareness shall be determined in accordance with EN 824. The deviation from squareness on length
and width, S , of boards and slabs shall not exceed 5 mm/m.
b
oSIST prEN 17139:2017
prEN 17139:2017 (E)
4.2.5 Flatness
Flatness shall be determined in accordance with EN 825. The deviation from flatness, of boards and
slabs, S , shall not exceed 6 mm.
max
4.2.6 Reaction to fire of the product as placed on the market
Reaction to fire classification of the product shall be determined in accordance with EN 13501-1 and the
mounting and fixing rules given in EN 15715, even if the behaviour is determined under 4.3.
NOTE This classification is compulsory and always included in the CE Marking label.
Detailed information about the test conditions and the field of application of the classification as stated
in the reaction to fire classification report shall be given in the manufacturer's literature.
4.2.7 Durability characteristics
4.2.7.1 General
The appropriate durability characteristics have been considered and are covered in 4.2.7.2, 4.2.7.3 and
where appropriate in 4.3.7 on compressive creep.
4.2.7.2 Durability of reaction to fire of the product as placed on the market against heat,
weathering, ageing/degradation
The reaction to fire performance of vegetal based products as declared by 4.2.6 Reaction to fire of the
product as placed on the market does not change with time.
4.2.7.3 Durability of thermal resistance and thermal conductivity and dimensional stability
against heat, weathering, ageing/degradation
The thermal conductivity of vegetal based products is covered by 4.2.1 thermal conductivity, 4.2.2
Length and width and at least one of the 4.3.2 dimensional stability tests, as relevant.
4.3 For specific applications
4.3.1 General
If there is no requirement for a property, described in 4.3, for a product in use, then the property does
not need to be determined and declared by the manufacturer.
4.3.2 Dimensional stability
Dimensional stability under specified temperature or under specified temperature and humidity
conditions shall be determined in accordance with EN 1604. The test shall be carried out for the
conditions given in Table 2. The relative changes in length, Δε , and width, Δε and the relative reduction
l b
in thickness, Δε , shall not exceed the values given in Table 2 for the declared level.
d
oSIST prEN 17139:2017
prEN 17139:2017 (E)
Table 2 — Dimensional stability under specified temperature and humidity conditions
Requirement
Length Δε and
l
Designation Condition Test Method Thickness Δε
d
width Δε
b
% %
DS(70,)1 48 h, 70 °C EN 1604 ≤ 1 ≤ 1
DS(70,-)2 48 h, 70 °C EN 1604 ≤ 2 ≤ 2
DS(70,-)3 48 h, 70 °C EN 1604 ≤ 3 ≤ 3
DS(23,90)1 48 h, 23 °C, 90 % R.H. EN 1604 ≤ 1 ≤ 1
DS(23,90)2 48 h, 23 °C, 90 % R.H. EN 1604 ≤ 2 ≤ 2
DS(23,90)3 48 h, 23 °C, 90 % R.H. EN 1604 ≤ 3 ≤ 3
DS(23,90)4 48 h, 23 °C, 90 % R.H. EN 1604 > 3 > 3
DS(70,90)1 48 h, 70 °C, 90 % R.H. EN 1604 ≤ 1 ≤ 1
DS(70,90)2 48 h, 70 °C, 90 % R.H. EN 1604 ≤ 2 ≤ 2
DS(70,90)3 48 h, 70 °C, 90 % R.H. EN 1604 ≤ 3 ≤ 3
DS(70,90)4 48 h, 70 °C, 90 % R.H. EN 1604 > 3 > 3
The test DS(70,-) and DS(23,90) need not be performed when the test DS (70/90) is used.
4.3.3 Compressive stress or compressive strength
Compressive stress at 10 % deformation, σ , or the compressive strength, σ , shall be determined in
10 m
accordance with EN 826. No test result for either the compressive stress at 10 % deformation, σ , or
the compressive strength, σ , whichever is the smaller, shall be less than the value, given in Table 3, for
m
the declared level.
Table 3 — Levels for compressive stress or compressive strength
Requirement
Level
kPa
CS(10\Y)5 ≥ 5,0
CS(10\Y)10 ≥ 10
CS(10\Y)20 ≥ 20
CS(10\Y)30 ≥ 30
CS(10\Y)40 ≥ 40
CS(10\Y)50 ≥ 50
CS(10\Y)60 ≥ 60
CS(10\Y)70 ≥ 70
CS(10\Y)80 ≥ 80
CS(10\Y)90 ≥ 90
CS(10\Y)100 ≥ 100
CS(10\Y)150 ≥ 150
CS(10\Y)200 ≥ 200
oSIST prEN 17139:2017
prEN 17139:2017 (E)
CS(10\Y)250 ≥ 250
CS(10\Y)300 ≥ 300
CS(10\Y)350 ≥ 350
CS(10\Y)400 ≥ 400
CS(10\Y)500 ≥ 500
4.3.4 Tensile strength perpendicular to faces
Tensile strength perpendicular to the faces, σ , shall be determined in accordance with EN 1607. No
mt
test result shall be less than the value given in Table 4 for the declared level.
Table 4 — Levels for tensile strength perpendicular to faces
Requirement
Level
kPa
TR1 ≥ 1,0
TR2,5 ≥ 2,5
TR5 ≥ 5,0
TR7,5 ≥ 7,5
TR10 ≥ 10
TR15 ≥ 15
TR20 ≥ 20
TR25 ≥ 25
TR30 ≥ 30
TR40 ≥ 40
TR50 ≥ 50
TR60 ≥ 60
TR70 ≥ 70
TR80 ≥ 80
TR90 ≥ 90
TR100 ≥ 100
4.3.5 Tensile strength parallel to faces
Tensile strength parallel to faces, σ , shall be determined in accordance with EN 1608. For handling
t
purposes, products shall have a tensile strength parallel higher than the declared value.
The test is not necessary for faced products or if one of the tests is carried out in accordance with 4.3.3
or 4.3.4.
4.3.6 Point load
Point load, PL(5), at 5 mm deformation shall be determined in accordance with EN 12430 and declared
in levels with steps of 50 N. No test result shall be less than the declared level.
oSIST prEN 17139:2017
prEN 17139:2017 (E)
4.3.7 Compressive creep
Compressive creep, X , shall be determined after at least one hundred and twenty two days of testing at
ct
a declared compressive stress, σ , given in steps of at least 1 kPa, and the results shall be extrapolated
c
thirty times, corresponding to ten years, to obtain the declared level in accordance with EN 1606.
Compressive creep shall be declared in levels, i , with steps of 0,1 mm at the declared stress. No test
result shall exceed the declared level at the declared stress.
NOTE 1 Referring to the designation code CC(i1/i2/y)σ , according to Clause 6, a declared level
c
CC(2,5/2/10)50, for example, indicates a value not exceeding 2 mm for compressive creep after extrapolation at
10 years (i.e. 30 times one hundred twenty two days of testing) under a declared stress of 50 kPa.
NOTE 2 Testing Times according to EN 1606 the procedure at 10, 25 and 50 years respectively require the
following testing times.
Extrapolation time Minimum testing time
years days
10 122
25 304
50 608
4.3.8 Water permeability
Short-term water absorption by partial immersion, W shall be determined in accordance with EN 1609
p
including any facings or coatings. No test result shall exceed the value given in Table 5 for the declared
level.
Table 5 — Levels for short-term water absorption by partial immersion
Requirement
Level
kg/m
WS0,5 ≤ 0,5
WS1,0 ≤ 1,0
WS2,0 ≤ 2,0
WS3,0 > 2
4.3.9 Water vapour permeability
Water vapour permeability properties shall be determined in accordance with EN ISO 12572, and
declared as the water vapour diffusion resistance factor, μ, for homogeneous products and as the water
vapour resistance, Z, for faced or non-homogeneous products. No test result of the water vapour
diffusion resistance factor shall be greater and no test result of the water vapour resistance shall be less
than the declared value.
Alternatively, for the declaration of the water vapour diffusion resistance, μ, of AF products, the value
quoted in EN ISO 10456 may be used.
4.3.10 Dynamic stiffness
Dynamic stiffness, s′, shall be determined in accordance with EN 29052-1, without preloading. The
value of dynamic stiffness shall be declared in levels with steps of 1 MN/m . No test result shall exceed
the declared level.
oSIST prEN 17139:2017
prEN 17139:2017 (E)
4.3.11 Compressibility
4.3.11.1 General
The main application of products using compressibility is floating floors.
4.3.11.2 Thickness, d
L
Thickness, d , shall be determined in accordance with EN 12431 under a load of 250 Pa. No test result
L
shall deviate from the thickness, d , by more than the tolerances given in Table 6 for the declared class.
L
Table 6 — Classes for thickness tolerances
Class Tolerances
a a
T6
−5 % or −1 mm +15 % or +3 mm
a
T7 −1 mm
+10 % or +2 mm
a
Whichever gives the greatest numerical tolerance.
4.3.11.3 Thickness, d
B
Thickness, d , shall be determined according to EN 12431 with a pause of 300 s after removal of the
B
additional load of 48 kPa.
4.3.11.4 Compressibility, c
Compressibility, c, shall be determined as the difference between d and d for products in classes T6
L B
and T7 (see 4.3.11.1). No test result shall exceed the values given in Table 7 for the declared level.
Table 7 — Levels for compressibility
Imposed load on the product Compressibility, c
Level  Nominal compressibility Tolerance test results
kPa mm mm
CP5 ≤ 2,0 ≤ 5
CP4 ≤ 3,0 ≤ 4 +2
CP3 ≤ 4,0 ≤ 3
CP2 ≤ 5,0 ≤ 2
+1
CP1 ≤ 5,0 ≤ 1
NOTE 1 The levels of the imposed load on the product have been taken from EN 1991–1-1.
NOTE 2 A test result is the mean of the readings for the number of the test specimens tested
The levels CP3, CP4 and CP5 relate to the thickness tolerance class T6 and the levels CP1 and CP2 to the
thickness tolerance class T7.
4.3.11.5 Long term thickness reduction
If the imposed load on the screed exceeds 5,0 kPa only products having a declared level of
compressibility of CP1 and CP2 may be used and their long-term thickness reduction shall be
determined.
The total thickness reduction, X = X + X shall be determined after one hundred twenty two days of
t 0 ct
,
testing at the imposed load plus the self-weight of the screed, in accordance with EN 1606 and
oSIST prEN 17139:2017
prEN 17139:2017 (E)
extrapolated thirty times, corresponding to ten years. The ten years value shall not exceed the declared
level of compressibility, (see 4.3.11.4).
Total thickness reduction shall be declared in levels, i , with steps of 0,1 mm at the declared stress. No
test result shall exceed the declared level at the declared stress.
NOTE 1 Referring to the designation code CC(i /i /y)σ , according to Clause 6, a declared level CC(2,5/2/10)50,
1 2 c
for example, indicates a value not exceeding 2,5 mm for total thickness reduction after extrapolation at 10 years
(i.e. 30 times one hundred twenty two days of testing) under a declared stress of 50 kPa.
NOTE 2 Testing Times according to EN 1606 the procedure at 10, 25 and 50 years respectively require the
following testing times.
Table 8 — Levels for compressibility
Extrapolation time Minimum testing time
years days
10 122
25 304
50 608
4.3.12 Sound absorption
Sound absorption coefficient shall be determined in accordance with EN ISO 354. The sound absorption
characteristics shall be calculated in accordance with EN ISO 11654 using the values for the practical
sound absorption coefficient, α at the frequencies: 125 Hz, 250 Hz, 500 Hz, 1000 Hz, 2000 Hz and
p
,
4000 Hz and the single number value for the weighted sound absorption coefficient, α .
w
and α shall be rounded to the nearest 0,05 (α larger than 1 shall be expressed as α = 1) and
αp w p p
declared in levels with steps of 0,05. No result of α and α shall be lower than the declared level.
p w
4.3.13 Air flow resistance
Airflow resistance, AF, shall be determined in accordance with EN 29053. The value of airflow
r
resistance shall be declared in levels with steps of 1 kPa⋅s/m . No test result shall be lower than the
declared value.
NOTE In the absence of measurement datas the air flow resistance of products with densities, ρ > 140 kg/m
a,
may be assumed as AF ≥ 100 kPa⋅s/m
r
4.3.14 Apparent density
Apparent density, ρ shall be determined in accordance with EN 1602, when needed for indirect testing
a
,
or for determine tabulated values.
4.3.15 Release of dangerous substances
Thermal insulation products shall not release any regulated dangerous substances in excess of the
maximum permitted levels specified in relevant European or national regulations.
NOTE 1 European test methods are under development.
NOTE 2 See Annex ZA.
oSIST prEN 17139:2017
prEN 17139:2017 (E)
4.3.16 Reaction to fire of the product in standardized assemblies simulating end-use
applications
Reaction to fire classification of products, in standardized assemblies simulating end-use applications
excluding pipe insulation, shall be determined in accordance with EN 13501-1 and the mounting and
fixing rules given in EN 15715.
This classification offers the opportunity to give a complementary and optional declaration on reaction
to fire for standard test configurations of assemblies which include the insulation product.
The number of the selected test configuration of assembly (Table 5 of EN 15715) which is used in the
test shall be quoted with the Euroclass.
Detailed information about the test conditions and the field of application of the classification as stated
in the reaction to fire classification report shall be given in the manufacturer’s literature.
5 Test methods
5.1 Sampling
Test specimens shall be taken from the same sample with a total area not less than 1 m and sufficient
to cover the needed tests. The shorter side of the sample shall not be less than 300 mm or full size of the
product whichever is the smaller.
5.2 Conditioning
No special conditioning of the test specimens is needed unless otherwise specified in the test standard.
In case of dispute, the test specimens shall be stored at (23 ± 2) °C and (50 ± 5) % relative humidity for
at least 24 h prior to testing. For FPC no special conditioning of the test specimens is needed.
When cut from boards, except for 5.3.2, test specimens shall be stored in an atmosphere of (23 ± 2) °C
and (50 ± 5) % relative humidity until stabilization at constant weight is achieved. Stabilization is
obtained when the relative change in weight does not exceed 0,5 % between two consecutive daily
measurements. In case of dispute, the following stepwise procedure shall be carried out:
— step 1 (dry reference): Constant mass is reached if the change of mass between three consecutive
weighings, each made at least 24 h apart, differs by less than 0,1 % of the total mass at (65 ± 2) °C,
in an oven ventilated with an air taken at (23 ± 2) °C and (50 ± 5) % relative humidity, and then
weighed. The mass of the test specimen at step 1 is m .
dry
— step 2 (normal reference): After conditioning according to step 1, the specimens are stored in an
atmosphere of (23 ± 2) °C and (50 ± 5) % relative humidity until stabilization, and then weighed.
Stabilization, by definition, is deemed to be reached if during the conditioning process, in two
subsequent weighing using a 24h interval, the change of mass between the two determinations is
less than 0,05 % of the total mass. The mass of the test specimen at step 2 is m .
23,50
Moisture content, u , expressed in kilogram per kilogram, shall be determined by weighing the
23,50
specimens at each step with an accuracy of 0,1 g, and calculated using Formula (1):
m − m
23,50 dry
u = (1)
23,50
m
dry
3 3
Moisture content, ψ , expressed in
...
