SIST EN 60317-37:2014

Specifications for particular types of winding wires - Part 37: Polyesterimide enamelled round copper wire, class 180, with a bonding layer

IEC 60317-37:2013 specifies the requirements of enamelled round copper winding wire of class 180 with a dual coating. The underlying coating is based on polyesterimide resin, which may be modified providing it retains the chemical identity of the original resin and meets all specified wire requirements. The superimposed coating is a bonding layer based on a thermoplastic resin. NOTE - A modified resin is a resin that has undergone a chemical change, or contains one or more additives to enhance certain performance or application characteristics. The range of nominal conductor diameters covered by this part is:  - Grade 1B: 0,020 mm up to and including 1,600 mm;  - Grade 2B: 0,020 mm up to and including 1,600 mm. The nominal conductor diameters are specified in Clause 4 of IEC 60317-0-1:2013. This second edition cancels and replaces the first edition published in 1992, Amendment 1:1997 and Amendment 2:1999. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:  - new 3.2.2 containing general notes on winding wire, formerly a part of the scope;  - revision to references to IEC 60317-0-1:2013 to clarify that their application is normative;  - new Clause 23, Pin hole test. Key words: requirements of enamelled round copper winding wire, class 180, dual coating

/

Spécifications pour types particuliers de fils de bobinage - Partie 37: Fil de section circulaire en cuivre émaillé avec polyesterimide, classe 180, avec une couche adhérente

La CEI 60317-37:2013 spécifie les exigences relatives aux fils de bobinage de section circulaire en cuivre émaillé de classe 180 avec un double revêtement. La sous-couche est à base de résine polyesterimide, qui peut être modifiée sous réserve de conserver l'identité chimique de la résine initiale et de répondre à toutes les exigences spécifiées pour le fil. La surcouche est une couche adhérente à base de résine thermoplastique. NOTE - Une résine modifiée est une résine qui a subi une modification chimique, ou qui contient un ou plusieurs additifs pour améliorer certaines performances ou les caractéristiques d'utilisation. La gamme des diamètres nominaux des conducteurs couverte par la présente partie est:  - Grade 1B: 0,020 mm jusqu'à 1,600 mm compris;  - Grade 2B: 0,020 mm jusqu'à 1,600 mm compris. Les diamètres nominaux des conducteurs sont spécifiés dans l'Article 4 de la CEI 60317-0-1:2013. Cette deuxième édition annule et remplace la première édition parue en 1992, l'Amendement 1:1997 et l'Amendement 2:1999. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:  - un nouveau 3.2.2 contenant des notes générales sur le fil de bobinage auparavant intégrées au domaine d'application;  - une révision des références à la CEI 60317-0-1:2013, pour bien établir que leur application est normative;  - un nouvel Article 23, Détection des microfissures en immersion. Mots clés: exigences relatives aux fils de bobinage de section circulaire en cuivre émaillé, classe 180, double revêtement

Specifikacije za posebne vrste navijalnih žic - 37. del: S poliesterimidom emajlirana okrogla bakrena žica, razred 180, s spajalno plastjo (IEC 60317-37:2013)

Ta del standarda IEC 60317 določa zahteve za emajlirane okrogle bakrene navijalne žice razreda 180 z dvojno prevleko. Spodnja prevleka je osnovana na poliesterimidni smoli, ki se lahko spremeni, če ohrani kemijsko identiteto izvirne smole in izpolnjuje vse določene zahteve za žice. Vrhnja prevleka je vezana plast, ki je osnovana na termoplastični smoli. OPOMBA: Spremenjena smola je smola, ki je bila kemijsko spremenjena ali vsebuje enega ali več aditivov za izboljšanje določene lastnosti učinkovitosti ali uporabe. Razpon nazivnega premera prevodnika, ki ga zajema ta del standarda, je:
– razred 1B: od 0,020 mm do vključno 1600 mm;
– razred 2B: od 0,020 mm do vključno 1600 mm.
Nazivni premeri prevodnika so navedeni v točki 4 standarda IEC 60317-0-1:2013.

General Information

• Status: Published
• Publication Date: 05-Mar-2014
• ICS: 29.060.10 - Wires
• ICS: 77.150.30 - Copper products
• Technical Committee: I09 - Imaginarni 09
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 27-Feb-2014
• Due Date: 04-May-2014
• Completion Date: 06-Mar-2014
• Ref Project: EN 60317-37:2014 - Specifications for particular types of winding wires - Part 37: Polyesterimide enamelled round copper wire, class 180, with a bonding layer

Relations

• Replaces: SIST EN 60317-37:2001 - Specifications for particular types of winding wires -- Part 37: Polyesterimide enamelled round copper wire, class 180, with a bonding layer
• Effective Date: 07-Jun-2022
• Replaces: SIST EN 60317-37:2001/A2:2001 - Specifications for particular types of winding wires -- Part 37: Polyesterimide enamelled round copper wire, class 180, with a bonding layer
• Effective Date: 21-Feb-2012
• Replaces: SIST EN 60317-37:2001/A1:2002 - Specifications for particular types of winding wires -- Part 37: Polyesterimide enamelled round copper wire, class 180, with a bonding layer
• Effective Date: 21-Feb-2012
• Amended By: SIST EN 60317-37:2014/A1:2024 - Specifications for particular types of winding wires - Part 37: Polyesterimide enamelled round copper wire, class 180, with a bonding layer (IEC 60317-37:2013/AMD1:2024)
• Effective Date: 01-Sep-2024

Overview

EN 60317-37:2014 (IEC 60317-37:2013) specifies requirements for polyesterimide enamelled round copper winding wire, class 180, with a bonding layer. The standard covers a dual-coating construction: an underlying polyesterimide-based enamel (which may be chemically modified while retaining its identity) and a superimposed thermoplastic bonding layer. It applies to nominal conductor diameters for Grade 1B and Grade 2B from 0.020 mm up to and including 1.600 mm and updates earlier editions with technical revisions (notably a new pin hole test and clarifications on normative references).

Key topics and technical requirements

The standard defines acceptance criteria, test methods and performance characteristics relevant to enamelled round copper winding wire (keywords: enamelled round copper winding wire, class 180, polyesterimide, bonding layer, dual coating):

• Coating system: polyesterimide enamel base + thermoplastic bonding layer; modified resins allowed if requirements are met.
• Thermal classification: Class 180 - minimum temperature index of 180 (see clause 3.2.2 for thermal notes).
• Dimensional & electrical properties: conductor diameters, electrical resistance.
• Mechanical properties: elongation, springiness, flexibility, adherence, cut‑through resistance.
• Thermal/mechanical tests: heat shock, solderability, heat or solvent bonding strength (helical and twisted coils).
• Durability & ageing: resistance to abrasion, solvents, refrigerants, transformer oil; loss of mass.
• Electrical integrity: breakdown voltage, continuity of insulation, dielectric dissipation factor.
• New additions: Clause 23 introduces a pin hole test; references to IEC 60317‑0‑1:2013 are explicitly normative.
• Packaging: wire packaging requirements are addressed in the standard.

Where applicable, test methods are aligned with IEC test standards (e.g., IEC 60851 series for winding-wire test methods).

Practical applications

This standard is aimed at manufacturers, designers and quality engineers specifying or using high‑performance insulated winding wires for electrical and electromechanical equipment. Typical applications include:

• Motors and generators (stator/rotor windings)
• Power and distribution transformers
• Inductors, chokes and solenoids
• High-temperature or high-reliability coil windings where class 180 thermal performance and bonded coatings are required

Using enamelled round copper wire conforming to EN 60317-37:2014 helps ensure reproducible insulation performance, reliable bonding for automated winding and impregnation, and consistent electrical/mechanical properties under service conditions.

Who should use this standard

• Wire and enamel manufacturers (product specification and quality control)
• OEMs of motors, transformers and coils (material procurement and qualification)
• Test laboratories and certification bodies (type testing and compliance verification)
• Design engineers specifying winding materials for high-temperature applications

Related standards

• IEC/EN 60317 series - Specifications for particular types of winding wires
• IEC 60317-0-1:2013 - General requirements for enamelled round copper wire (normative reference)
• IEC 60851 series - Test methods for winding wires
• IEC 60264 series - Packaging of winding wires

Keywords: EN 60317-37:2014, IEC 60317-37, polyesterimide enamelled round copper winding wire, class 180, bonding layer, dual coating, winding wires.

Standards Content (Sample)

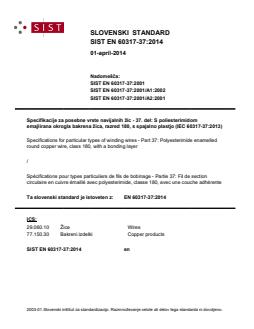

SLOVENSKI STANDARD
01-april-2014
1DGRPHãþD
SIST EN 60317-37:2001
SIST EN 60317-37:2001/A1:2002
SIST EN 60317-37:2001/A2:2001
Specifikacije za posebne vrste navijalnih žic - 37. del: S poliesterimidom
emajlirana okrogla bakrena žica, razred 180, s spajalno plastjo (IEC 60317-37:2013)
Specifications for particular types of winding wires - Part 37: Polyesterimide enamelled
round copper wire, class 180, with a bonding layer
/
Spécifications pour types particuliers de fils de bobinage - Partie 37: Fil de section
circulaire en cuivre émaillé avec polyesterimide, classe 180, avec une couche adhérente
Ta slovenski standard je istoveten z: EN 60317-37:2014
ICS:
29.060.10 Žice Wires
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

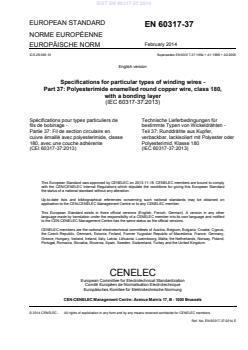

EUROPEAN STANDARD
EN 60317-37
NORME EUROPÉENNE
February 2014
EUROPÄISCHE NORM
ICS 29.060.10 Supersedes EN 60317-37:1994 + A1:1998 + A2:2000

English version
Specifications for particular types of winding wires -
Part 37: Polyesterimide enamelled round copper wire, class 180,
with a bonding layer
(IEC 60317-37:2013)
Spécifications pour types particuliers de Technische Lieferbedingungen für
fils de bobinage - bestimmte Typen von Wickeldrähten -
Partie 37: Fil de section circulaire en Teil 37: Runddrähte aus Kupfer,
cuivre émaillé avec polyesterimide, classe verbackbar, lackisoliert mit Polyester oder
180, avec une couche adhérente Polyesterimid, Klasse 180
(CEI 60317-37:2013) (IEC 60317-37:2013)

This European Standard was approved by CENELEC on 2013-11-18. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

CEN-CENELEC Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2014 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60317-37:2014 E

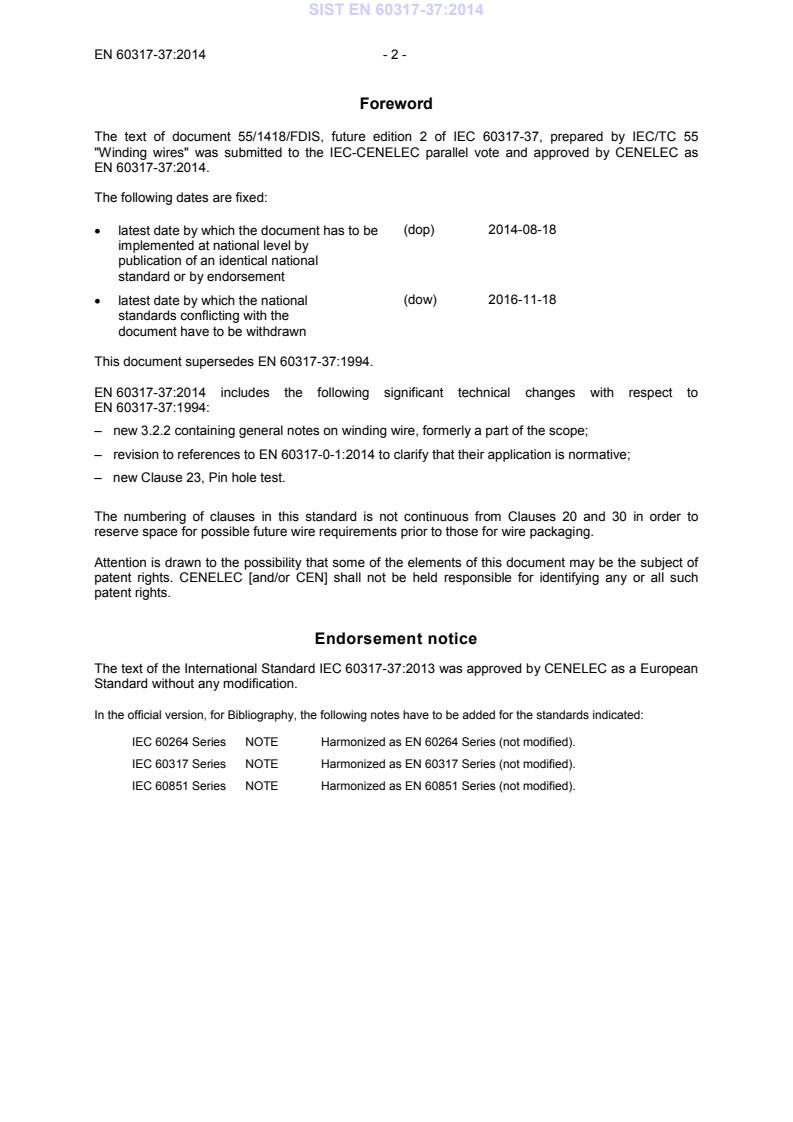

Foreword
The text of document 55/1418/FDIS, future edition 2 of IEC 60317-37, prepared by IEC/TC 55
"Winding wires" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
The following dates are fixed:
(dop) 2014-08-18
• latest date by which the document has to be
implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2016-11-18
standards conflicting with the
document have to be withdrawn
This document supersedes EN 60317-37:1994.

EN 60317-37:1994:
– new 3.2.2 containing general notes on winding wire, formerly a part of the scope;
– revision to references to EN 60317-0-1:2014 to clarify that their application is normative;
– new Clause 23, Pin hole test.

The numbering of clauses in this standard is not continuous from Clauses 20 and 30 in order to
reserve space for possible future wire requirements prior to those for wire packaging.

Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
Endorsement notice
The text of the International Standard IEC 60317-37:2013 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:

IEC 60264 Series NOTE Harmonized as EN 60264 Series (not modified).
IEC 60317 Series NOTE Harmonized as EN 60317 Series (not modified).
IEC 60851 Series NOTE Harmonized as EN 60851 Series (not modified).

- 3 - EN 60317-37:2014
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 60317-0-1 2013 Specifications for particular types EN 60317-0-1 2014
of winding wires -
Part 0-1: General requirements - Enamelled
round copper wire
IEC 60317-37 ®
Edition 2.0 2013-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Specifications for particular types of winding wires –

Part 37: Polyesterimide enamelled round copper wire, class 180, with a bonding

layer
Spécifications pour types particuliers de fils de bobinage –

Partie 37: Fil de section circulaire en cuivre émaillé avec polyesterimide, classe

180, avec une couche adhérente

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX M
ICS 29.060.10 ISBN 978-2-8322-1148-9

– 2 – 60317-37 © IEC:2013
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms, definitions, general notes and appearance . 6
3.1 Terms and definitions . 6
3.2 General notes . 6
3.2.1 Methods of test . 6
3.2.2 Winding wire . 6
3.3 Appearance . 7
4 Dimensions . 7
5 Electrical resistance . 7
6 Elongation . 7
7 Springiness . 7
8 Flexibility and adherence . 7
9 Heat shock . 7
10 Cut-through . 7
11 Resistance to abrasion (nominal conductor diameters from 0,250 mm up to and
including 1,600 mm) . 7
12 Resistance to solvents . 8
13 Breakdown voltage . 8
14 Continuity of insulation . 8
15 Temperature index . 8
16 Resistance to refrigerants . 8
17 Solderability . 9
18 Heat or solvent bonding . 9
18.1 Heat bonding . 9
18.1.1 Heat bonding strength of a helical coil . 9
18.1.2 Bond strength on a twisted coil . 10
18.2 Solvent bonding . 11
19 Dielectric dissipation factor . 11
20 Resistance to transformer oil . 11
21 Loss of mass . 11
23 Pin hole test . 11
30 Packaging . 11
Bibliography . 12

Table 1 – Resistance to abrasion . 8
Table 2 – Loads . 10

60317-37 © IEC:2013 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SPECIFICATIONS FOR PARTICULAR TYPES OF WINDING WIRES –

Part 37: Polyesterimide enamelled round copper wire,
class 180, with a bonding layer

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmenta
...

SLOVENSKI STANDARD
01-april-2014
Nadomešča:
SIST EN 60317-37:2001
SIST EN 60317-37:2001/A1:2002
SIST EN 60317-37:2001/A2:2001
Specifikacije za posebne vrste navijalnih žic - 37. del: S poliesterimidom
emajlirana okrogla bakrena žica, razred 180, s spajalno plastjo (IEC 60317-37:2013)
Specifications for particular types of winding wires - Part 37: Polyesterimide enamelled
round copper wire, class 180, with a bonding layer
/
Spécifications pour types particuliers de fils de bobinage - Partie 37: Fil de section
circulaire en cuivre émaillé avec polyesterimide, classe 180, avec une couche adhérente
Ta slovenski standard je istoveten z: EN 60317-37:2014
ICS:
29.060.10 Žice Wires
77.150.30 Bakreni izdelki Copper products
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 60317-37
NORME EUROPÉENNE
February 2014
EUROPÄISCHE NORM
ICS 29.060.10 Supersedes EN 60317-37:1994 + A1:1998 + A2:2000

English version
Specifications for particular types of winding wires -
Part 37: Polyesterimide enamelled round copper wire, class 180,
with a bonding layer
(IEC 60317-37:2013)
Spécifications pour types particuliers de Technische Lieferbedingungen für
fils de bobinage - bestimmte Typen von Wickeldrähten -
Partie 37: Fil de section circulaire en Teil 37: Runddrähte aus Kupfer,
cuivre émaillé avec polyesterimide, classe verbackbar, lackisoliert mit Polyester oder
180, avec une couche adhérente Polyesterimid, Klasse 180
(CEI 60317-37:2013) (IEC 60317-37:2013)

This European Standard was approved by CENELEC on 2013-11-18. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

CEN-CENELEC Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2014 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60317-37:2014 E
Foreword
The text of document 55/1418/FDIS, future edition 2 of IEC 60317-37, prepared by IEC/TC 55
"Winding wires" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
The following dates are fixed:
(dop) 2014-08-18
• latest date by which the document has to be
implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2016-11-18
standards conflicting with the
document have to be withdrawn
This document supersedes EN 60317-37:1994.

EN 60317-37:1994:
– new 3.2.2 containing general notes on winding wire, formerly a part of the scope;
– revision to references to EN 60317-0-1:2014 to clarify that their application is normative;
– new Clause 23, Pin hole test.

The numbering of clauses in this standard is not continuous from Clauses 20 and 30 in order to
reserve space for possible future wire requirements prior to those for wire packaging.

Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
Endorsement notice
The text of the International Standard IEC 60317-37:2013 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:

IEC 60264 Series NOTE Harmonized as EN 60264 Series (not modified).
IEC 60317 Series NOTE Harmonized as EN 60317 Series (not modified).
IEC 60851 Series NOTE Harmonized as EN 60851 Series (not modified).

- 3 - EN 60317-37:2014
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 60317-0-1 2013 Specifications for particular types EN 60317-0-1 2014
of winding wires -
Part 0-1: General requirements - Enamelled
round copper wire
IEC 60317-37 ®
Edition 2.0 2013-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Specifications for particular types of winding wires –

Part 37: Polyesterimide enamelled round copper wire, class 180, with a bonding

layer
Spécifications pour types particuliers de fils de bobinage –

Partie 37: Fil de section circulaire en cuivre émaillé avec polyesterimide, classe

180, avec une couche adhérente

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX M
ICS 29.060.10 ISBN 978-2-8322-1148-9

– 2 – 60317-37 © IEC:2013
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms, definitions, general notes and appearance . 6
3.1 Terms and definitions . 6
3.2 General notes . 6
3.2.1 Methods of test . 6
3.2.2 Winding wire . 6
3.3 Appearance . 7
4 Dimensions . 7
5 Electrical resistance . 7
6 Elongation . 7
7 Springiness . 7
8 Flexibility and adherence . 7
9 Heat shock . 7
10 Cut-through . 7
11 Resistance to abrasion (nominal conductor diameters from 0,250 mm up to and
including 1,600 mm) . 7
12 Resistance to solvents . 8
13 Breakdown voltage . 8
14 Continuity of insulation . 8
15 Temperature index . 8
16 Resistance to refrigerants . 8
17 Solderability . 9
18 Heat or solvent bonding . 9
18.1 Heat bonding . 9
18.1.1 Heat bonding strength of a helical coil . 9
18.1.2 Bond strength on a twisted coil . 10
18.2 Solvent bonding . 11
19 Dielectric dissipation factor . 11
20 Resistance to transformer oil . 11
21 Loss of mass . 11
23 Pin hole test . 11
30 Packaging . 11
Bibliography . 12

Table 1 – Resistance to abrasion . 8
Table 2 – Loads . 10

60317-37 © IEC:2013 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SPECIFICATIONS FOR PARTICULAR TYPES OF WINDING WIRES –

Part 37: Polyesterimide enamelled round copper wire,
class 180, with a bonding layer

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmen
...
