SIST EN IEC 61400-21-2:2023
(Main)Wind energy generation systems - Part 21-2: Measurement and assessment of electrical characteristics - Wind power plants (IEC 61400-21-2:2023)
Wind energy generation systems - Part 21-2: Measurement and assessment of electrical characteristics - Wind power plants (IEC 61400-21-2:2023)
IEC 61400-21-2 - Wind energy generation systems - Measurement and assessment of electrical characteristics - Wind power plants - has the following scope: IEC 61400-21-2 defines and specifies the quantities that shall be determined to characterize the electrical characteristics of grid-connected power plants (PP).
IEC 61400-21-2 defines the measurement and test procedures for quantifying the electrical characteristics as basis for the verification of compliance of PP, including:
- Power quality aspects
- Steady state operation
- Dynamic response (undervoltage and overvoltage fault ride-through)
- Disconnection from grid (Grid protection)
- Control performance
IEC 61400-21-2 defines a uniform functionality test and measurement procedure for the power plant controller (PPC), as a basis for the unit test of the power plant controller.
IEC 61400-21-2 defines the procedures for assessing compliance with electrical connection requirements, including the aggregation methods for power quality aspects such as voltage variations, flicker, harmonics and interharmonics.
IEC 61400-21-2 defines the procedures for measurement and fault recording for the verification of power plant electrical simulation models in relation to undervoltage and overvoltage ride through events.
These measurement procedures are valid for power plants, including the power plant controller and other connected equipment, necessary for the operation of the Power Plant. The measurement procedures are valid for any size of power plant connected to the point of connection (POC) at one connection point.
The procedures for assessing and verifying the compliance with grid connection requirements are valid for power plants in power systems with fixed frequency and a sufficient short-circuit power.
Out of the scope of this standard are:
- Multi park control, i.e. cluster management of several power plants (PP) or several connection points
- Compliance test and performance requirements, including pass or fail criteria
- Specific component test and validation of the PP equipment (switchgear, cables, transformers, etc.), which are covered by other IEC standards
- Wind power plant model validation, as defined in the IEC 61400-27-2
- Load flow calculation methods and load flow study guidelines
- Test and measurement of the communication interface and system of the PP as defined in the IEC 61400-25 series
NOTE
For the purposes of this document, the following terms for system voltage apply, based on IEC 60038
Low voltage (LV) refers to 100 V < Un ≤ 1 kV;
Medium voltage (MV) refers 106 to 1 kV < Un ≤ 35 kV;
High voltage (HV) refers to 35 kV < Un ≤ 230 kV;
Extra high voltage (EHV) refers to Un > 230 kV
Windenergieerzeugungsanlagen - Teil 21-2: Messung und Bewertung der elektrischen Kennwerte - Windkraftwerke (IEC 61400-21-2:2023)
Systèmes de génération d'énergie éolienne - Partie 21-2: Mesurage et évaluation des caractéristiques électriques - Centrales éoliennes (IEC 61400-21-2:2023)
l'IEC 61400-21-2:2023 définit et spécifie les grandeurs qui sont déterminées pour définir les caractéristiques électriques des centrales électriques (PP) connectées au réseau.l'IEC 61400 définit et spécifie les grandeurs qui sont déterminées pour définir les caractéristiques électriques des centrales électriques (PP) connectées au réseau.
Le présent document définit une procédure de mesure et d'essai de fonctionnalité uniforme pour le contrôleur de centrale électrique (PPC), qui sert de base pour l'essai d'unité du contrôleur de centrale électrique.
Le présent document définit les procédures d'évaluation de la conformité aux exigences de raccordement électrique, y compris les méthodes d'agrégation pour les aspects liés à la qualité de puissance, tels que les variations de tension, le papillotement, les harmoniques et les interharmoniques.
Le présent document définit les procédures de mesure et d'enregistrement des défaillances, par exemple pour la vérification des modèles de simulation électrique de centrale en ce qui concerne les événements d'alimentation continue en cas de sous-tension et de surtension.
Sistemi za proizvodnjo energije na veter - 21-2. del: Merjenje in ocenjevanje električnih karakteristik - Vetrne elektrarne (IEC 61400-21-2:2023)
Področje uporabe standarda IEC 61400-21-2 - Sistemi za proizvodnjo energije na veter - Merjenje in ocenjevanje električnih karakteristik - Vetrne elektrarne zajema naslednje: standard IEC 61400-21-2 opredeljuje in določa količine, ki jih je treba določiti za opredelitev električnih karakteristik elektrarn, priklopljenih na omrežje (PP).
Standard IEC 61400-21-2 opredeljuje postopke merjenja in preskusne postopke za količinsko določanje električnih karakteristik kot osnovo za preverjanje skladnosti elektrarn, priklopljenih na omrežje, vključno s/z:
– vidiki kakovosti električne energije;
– delovanjem v ravnotežnem stanju;
– dinamično odzivnostjo (obratovanje pri podnapetosti in prenapetosti zaradi okvare);
– izklopom iz omrežja (zaščita omrežja);
– nadzorom delovanja.
Standard IEC 61400-21-2 opredeljuje enotni preskus funkcionalnosti in postopek merjenja za krmilnik elektrarne (PPC) kot osnovo za preskus enote krmilnika elektrarne.
Standard IEC 61400-21-2 opredeljuje postopke za ocenjevanje skladnosti z zahtevami v zvezi z električno povezavo, vključno z metodami združevanja za vidike kakovosti električne energije, kot so napetostno kolebanje, nihanje, harmoniki in medharmoniki.
Standard IEC 61400-21-2 opredeljuje postopke za merjenje in zapisovanje napak za preverjanje simulacijskih električnih modelov elektrarne v zvezi z obratovanjem pri podnapetosti in prenapetosti zaradi okvare.
Ti postopki merjenja veljajo za elektrarne, vključno s krmilnikom elektrarne in drugo povezano opremo, ki je potrebna za delovanje elektrarne. Postopki merjenja veljajo za elektrarne vseh velikosti, ki so povezane s točko povezave (POC) na eni priključni točki.
Postopki za ocenjevanje in preverjanje skladnosti z zahtevami omrežne priključitve veljajo za elektrarne v električnih omrežjih s fiksno frekvenco in zadostno kratkostično močjo.
Področje uporabe tega standarda ne zajema:
– upravljanja grozdov več elektrarn, priklopljenih na omrežje, ali več priključnih točk (»multi park control«);
– preskusa skladnosti in zahtev glede učinkovitosti, vključno z merili za uspešnost in neuspešnost;
– preskusa posebnih komponent in potrjevanja opreme elektrarn, priklopljenih na omrežje (stikalne naprave, kabli, transformatorji itd.), kar je zajeto v drugih standardih IEC;
– potrjevanja modela vetrne elektrarne, kot je opredeljeno v standardu IEC 61400-27-2;
– metod za izračun pretokov moči in smernic za njihovo preučevanje;
– preskusa in merjenja komunikacijskega vmesnika in sistema elektrarn, priklopljenih na omrežje, kot je opredeljeno v skupini standardov IEC 61400-25.
OPOMBA:
V tem dokumentu se za napetost v omrežju uporabljajo naslednji izrazi (na podlagi standarda IEC 60038):
nizka napetost (LV) v razponu 100 V < Un ≤ 1 kV;
srednja napetost (MV) v razponu 1 kV < Un ≤ 35 kV;
visoka napetost (HV) v razponu 35 kV < Un ≤ 230 kV;
zelo visoka napetost (EHV) v razponu Un > 230 kV.
General Information
Standards Content (Sample)
SLOVENSKI STANDARD
SIST EN IEC 61400-21-2:2023
01-julij-2023
Sistemi za proizvodnjo energije na veter - 21-2. del: Merjenje in ocenjevanje
električnih karakteristik - Vetrne elektrarne (IEC 61400-21-2:2023)
Wind energy generation systems - Part 21-2: Measurement and assessment of electrical
characteristics - Wind power plants (IEC 61400-21-2:2023)
Windenergieerzeugungsanlagen - Teil 21-2: Messung und Bewertung der elektrischen
Kennwerte - Windkraftwerke (IEC 61400-21-2:2023)
Systèmes de génération d'énergie éolienne - Partie 21-2: Mesurage et évaluation des
caractéristiques électriques - Centrales éoliennes (IEC 61400-21-2:2023)
Ta slovenski standard je istoveten z: EN IEC 61400-21-2:2023
ICS:
27.180 Vetrne elektrarne Wind turbine energy systems
SIST EN IEC 61400-21-2:2023 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN IEC 61400-21-2:2023
---------------------- Page: 2 ----------------------
SIST EN IEC 61400-21-2:2023
EUROPEAN STANDARD EN IEC 61400-21-2
NORME EUROPÉENNE
EUROPÄISCHE NORM May 2023
ICS 27.180
English Version
Wind energy generation systems - Part 21-2: Measurement and
assessment of electrical characteristics - Wind power plants
(IEC 61400-21-2:2023)
Systèmes de génération d'énergie éolienne - Partie 21-2: Windenergieanlagen - Teil 21-2: Messung und Bewertung
Mesurage et évaluation des caractéristiques électriques - der elektrischen Kennwerte - Windkraftwerke
Centrales éoliennes (IEC 61400-21-2:2023)
(IEC 61400-21-2:2023)
This European Standard was approved by CENELEC on 2023-05-03. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61400-21-2:2023 E
---------------------- Page: 3 ----------------------
SIST EN IEC 61400-21-2:2023
EN IEC 61400-21-2:2023 (E)

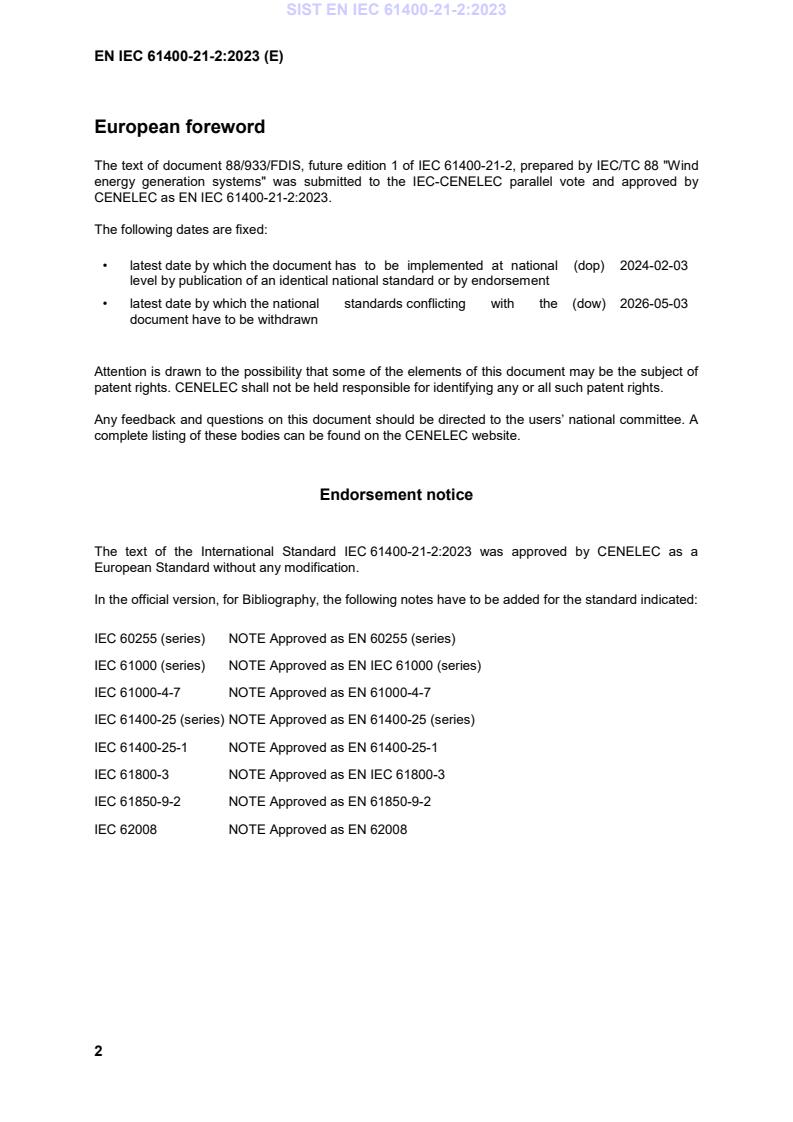

European foreword
