EN 61000-6-2:2005

Electromagnetic compatibility (EMC) - Part 6-2: Generic standards - Immunity for industrial environments

applies to electrical and electronic apparatus intended for use in industrial environments, as described below. Immunity requirements in the frequency range 0 Hz to 400 GHz are covered. No tests need to be performed at frequencies where no requirements are specified. This generic EMC immunity standard is applicable if no relevant dedicated product or product-family EMC immunity standard exists. This standard applies to apparatus intended to be connected to a power network supplied from a high or medium voltage transformer dedicated to the supply of an installation feeding manufacturing or similar plant, and intended to operate in or in proximity to industrial locations, as described below. This standard applies also to apparatus which is battery operated and intended to be used in industrial locations. The environments encompassed by this standard are industrial, both indoor and outdoor. The immunity requirements have been selected to ensure an adequate level of immunity for apparatus at industrial locations. The levels do not, however, cover extreme cases, which may occur at any location, but with an extremely low probability of occurrence. Not all disturbance phenomena have been included for testing purposes in this standard, but only those considered as relevant for the equipment covered by this standard. These test requirements represent essential electromagnetic compatibility immunity requirements.

Elektromagnetische Verträglichkeit (EMV) - Teil 6-2: Fachgrundnormen - Störfestigkeit für Industriebereiche

Compatibilité électromagnétique (CEM) - Partie 6-2: Normes génériques - Immunité pour les environnements industriels

S'applique aux appareils électriques et électroniques destinés à être utilisés dans des environnements industriels, tels qu'ils sont décrits ci-dessous. Cette partie couvre les exigences d'immunité dans la gamme de fréquences de 0 kHz à 400 GHz. Il n'est pas nécessaire de réaliser des essais aux fréquences pour lesquelles aucune exigence n'est spécifiée. Cette norme générique d'immunité CEM s'applique en l'absence de norme d'immunité CEM applicable spécifique à un produit ou à une famille de produits. Les appareils couverts par cette norme sont destinés à être raccordés à un réseau d'énergie alimenté par un transformateur haute tension ou moyenne tension réservé à l'alimentation d'une l'installation alimentant un site industriel ou analogue, et destinés à fonctionner à l'intérieur ou à proximité des sites industriels, comme défini ci-dessous. Cette norme s'applique également aux appareils qui sont alimentés par piles ou accumulateurs et qui sont destinés à être utilisés dans des sites industriels. Les environnements couverts par cette norme sont les environnements industriels, intérieurs et extérieurs. Les exigences d'immunité ont été choisies pour assurer un niveau adéquat d'immunité pour les appareils utilisés sur des sites industriels. Ces niveaux ne couvrent pas cependant les cas extrêmes qui peuvent apparaître, mais avec une très faible probabilité, sur un site quelconque. Cette norme ne comporte pas, pour les besoins des essais, tous les phénomènes perturbateurs mais uniquement ceux considérés comme applicables pour les appareils couverts par la norme. Ces exigences d'essais représentent les exigences essentielles de compatibilité électromagnétique concernant l'immunité.

Elektromagnetna združljivost (EMC) – 6-2. del: Osnovni standardi – Odpornost za industrijska okolja (IEC 61000-6-2:2005) (vsebuje popravek AC:2005)

General Information

• Status: Withdrawn
• Publication Date: 25-Aug-2005
• Withdrawal Date: 31-May-2008
• ICS: 33.100.20 - Immunity
• Technical Committee: CLC/TC 210 - Electromagnetic Compatibility (EMC)
• Drafting Committee: IEC/TC 77 - IEC_TC_77
• Parallel Committee: IEC/TC 77 - IEC_TC_77
• Current Stage: 9960 - Withdrawal effective - Withdrawal
• Start Date: 22-Feb-2022
• Completion Date: 22-Feb-2022
• Directive: 1999/5/EC - Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity
• Directive: 2004/108/EC - Directive 2004/108/EC of the European Parliament and of the Council of 15 December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility and repealing Directive 89/336/EEC
• Directive: 2004/108/EU - DIRECTIVE 2004/108/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 15 December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility and repealing Directive 89/336/EEC
• Directive: 2014/30/EU - Directive 2014/30/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility (recast)
• Directive: 2014/53/EU - Directive 2014/53/EU of The European Parliament and of the Council of 16 April 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of radio equipment and repealing Directive 1999/5/EC
• Directive: 89/336/EEC - Electromagnetic compatibility (EMC)
• Mandate: M/404 - Standardisation Mandate to CEN, CENELEC and ETSI for harmonized standard according to the Electro Magnetic Compatibility (EMC) Directive 2004/108/EC
• Mandate: M/490 - Standardisation mandate to the European Standardisation Organisations (ESOs) to support European Smart Grid deployment
• Mandate: M/536 - [C(2015)536] Standardisation request as regards radio equipment in support of Directive 2014/53/EU
• Mandate: M/552 - [C(2016) 7641 final] Standardisation request as regards harmonised standards in support of Directive 2014/30/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility
• Ref Project: SIST EN 61000-6-2:2005 - Electromagnetic compatibility (EMC) -- Part 6-2: Generic standards - Immunity for industrial environments

Relations

• Replaces: EN 61000-6-2:2001/IS1:2005 - Electromagnetic compatibility (EMC) - Part 6-2: Generic standards - Immunity for industrial environments
• Effective Date: 28-Jan-2023
• Replaces: EN 61000-6-2:2001 - Electromagnetic compatibility (EMC) - Part 6-2: Generic standards - Immunity for industrial environments
• Effective Date: 28-Jan-2023
• Replaced By: EN IEC 61000-6-2:2019 - Electromagnetic compatibility (EMC) - Part 6-2: Generic standards - Immunity standard for industrial environments
• Effective Date: 07-Jul-2015

Standards Content (Sample)

SLOVENSKI STANDARD
01-november-2005
1DGRPHãþD
SIST EN 61000-6-2:2002
SIST EN 61000-6-2:2002/IS1:2006
Elektromagnetna združljivost (EMC) – 6-2. del: Osnovni standardi – Odpornost za
industrijska okolja (IEC 61000-6-2:2005) (vsebuje popravek AC:2005)
Electromagnetic compatibility (EMC) -- Part 6-2: Generic standards - Immunity for
industrial environments
Elektromagnetische Verträglichkeit (EMV) -- Teil 6-2: Fachgrundnormen - Störfestigkeit
für Industriebereiche
Compatibilité électromagnétique (CEM) -- Partie 6-2: Normes génériques - Immunité
pour les environnements industriels
Ta slovenski standard je istoveten z: EN 61000-6-2:2005
ICS:
33.100.20 Imunost Immunity
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 61000-6-2
NORME EUROPÉENNE
EUROPÄISCHE NORM August 2005
ICS 33.100.20 Supersedes EN 61000-6-2:2001
Incorporates Corrigendum September 2005

English version
Electromagnetic compatibility (EMC)
Part 6-2: Generic standards –
Immunity for industrial environments
(IEC 61000-6-2:2005)
Compatibilité électromagnétique (CEM) Elektromagnetische Verträglichkeit (EMV)
Partie 6-2: Normes génériques – Teil 6-2: Fachgrundnormen –
Immunité pour les environnements Störfestigkeit für Industriebereiche
industriels (IEC 61000-6-2:2005)
(CEI 61000-6-2:2005)
This European Standard was approved by CENELEC on 2005-06-01. CENELEC members are bound to
comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and
notified to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden,
Switzerland and United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2005 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 61000-6-2:2005 E

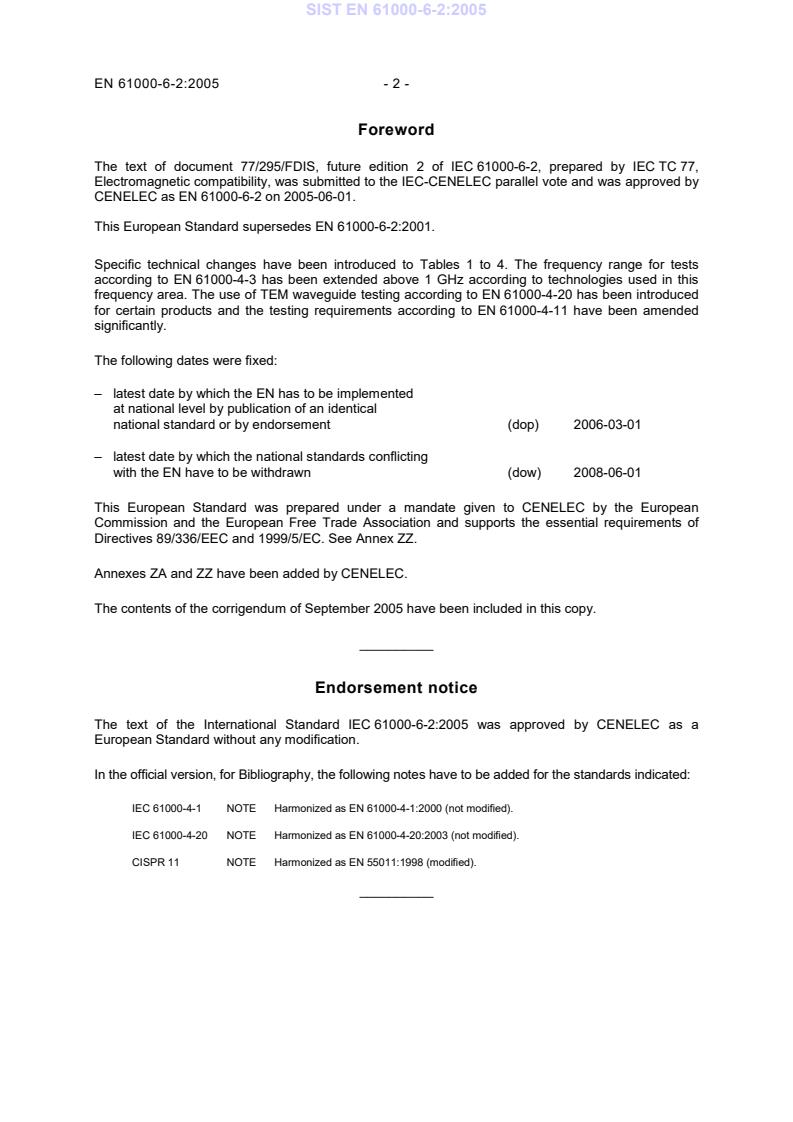

Foreword
The text of document 77/295/FDIS, future edition 2 of IEC 61000-6-2, prepared by IEC TC 77,
Electromagnetic compatibility, was submitted to the IEC-CENELEC parallel vote and was approved by
CENELEC as EN 61000-6-2 on 2005-06-01.
This European Standard supersedes EN 61000-6-2:2001.

Specific technical changes have been introduced to Tables 1 to 4. The frequency range for tests
according to EN 61000-4-3 has been extended above 1 GHz according to technologies used in this
frequency area. The use of TEM waveguide testing according to EN 61000-4-20 has been introduced
for certain products and the testing requirements according to EN 61000-4-11 have been amended
significantly.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2006-03-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2008-06-01
This European Standard was prepared under a mandate given to CENELEC by the European
Commission and the European Free Trade Association and supports the essential requirements of
Directives 89/336/EEC and 1999/5/EC. See Annex ZZ.
Annexes ZA and ZZ have been added by CENELEC.
The contents of the corrigendum of September 2005 have been included in this copy.
__________
Endorsement notice
The text of the International Standard IEC 61000-6-2:2005 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 61000-4-1 NOTE Harmonized as EN 61000-4-1:2000 (not modified).
IEC 61000-4-20 NOTE Harmonized as EN 61000-4-20:2003 (not modified).
CISPR 11 NOTE Harmonized as EN 55011:1998 (modified).
__________
- 3 - EN 61000-6-2:2005
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
NOTE Where an international publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
Publication Year Title EN/HD Year
1)
IEC 60050-161 - International Electrotechnical Vocabulary - -
(IEV)
Chapter 161: Electromagnetic
compatibility
1)
2)
IEC 61000-4-2 - Electromagnetic compatibility (EMC) EN 61000-4-2 1995
Part 4-2: Testing and measurement
techniques - Electrostatic discharge
immunity test
1) 2)
IEC 61000-4-3 - Part 4-3: Testing and measurement EN 61000-4-3 2002
techniques - Radiated, radio-frequency,
electromagnetic field immunity test

1) 2)
IEC 61000-4-4 - Part 4-4: Testing and measurement EN 61000-4-4 2004
techniques - Electrical fast transient/burst
immunity test
1) 2)
IEC 61000-4-5 - Part 4-5: Testing and measurement EN 61000-4-5 1995
techniques - Surge immunity test

1)
IEC 61000-4-6 - Part 4-6: Testing and measurement - -
techniques - Immunity to conducted
disturbances, induced by radio-frequency
fields
1) 2)
IEC 61000-4-8 - Part 4-8: Testing and measurement EN 61000-4-8 1993
techniques - Power frequency magnetic
field immunity test
1) 2)
IEC 61000-4-11 - Part 4-11: Testing and measurement EN 61000-4-11 2004
techniques - Voltage dips, short
interruptions and voltage variations
immunity tests
1)
Undated reference.
2)
Valid edition at date of issue.

Publication Year Title EN/HD Year
1)
3)
CISPR 22 (mod) - Information technology equipment - Radio EN 55022 -
distrubance characteristics - Limits and
methods of measurement
3)
In preparation.
- 5 - EN 61000-6-2:2005
Annex ZZ
(informative)
Coverage of Essential Requirements of EC Directives
This European Standard has been prepared under a mandate given to CENELEC by the European
Commission and the European Free Trade Association and within its scope the standard covers the
essential requirements as given in Article 4 b) of the EC directive 89/336/EEC and the essential
requirements of Article 3.1(b) (immunity only) of the EC directive 1999/5/EC.
Compliance with this standard provides one means of conformity with the specified essential requirements of the
Directive(s) concerned.
WARNING: Other requirements and other EC Directives may be applicable to the products falling
within the scope of this standard.
___________
INTERNATIONAL IEC
STANDARD 61000-6-2
Second edition
2005-01
Electromagnetic compatibility (EMC) –
Part 6-2:
Generic standards –
Immunity for industrial environments

 IEC 2005 Copyright - all rights reserved
No part of this publication may be reproduced or utilized in any form or by any means, electronic or mechanical,
including photocopying and microfilm, without permission in writing from the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: [phone] Telefax: [phone] E-mail: [e-mail] Web: www.iec.ch
PRICE CODE
Commission Electrotechnique Internationale N
International Electrotechnical Commission
Международная Электротехническая Комиссия
For price, see current catalogue

61000-6-2  IEC:2005 – 3 –
CONTENTS
FOREWORD .5
INTRODUCTION .9

1 Scope and object.11
2 Normative references .13
3 Terms and definitions .13
4 Performance criteria .15
5 Conditions during testing .17
6 Product documentation.17
7 Applicability.19
8 Immunity test requirements.19

Bibliography .29

Figure 1 – Examples of ports .15

Table 1 – Immunity – Enclosure ports .21
Table 2 – Immunity – Signal ports .23
Table 3 – Immunity – Input and output DC power ports.25
Table 4 – Immunity – Input and output AC power ports.27

61000-6-2  IEC:2005 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ELECTROMAGNETIC COMPATIBILITY (EMC) –

Part 6-2: Generic standards –
Immunity for industrial environments

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an
international consensus of opinion on the relevant subjects since each technical committee has representation
from all interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61000-6-2 has been prepared by IEC technical committee 77:
Electromagnetic compatibility.
This second edition cancels and replaces the first edition published in 1999. It constitutes a
technical revision. Specific technical changes have been introduced to Tables 1 to 4. The
frequency range for tests according t
...
