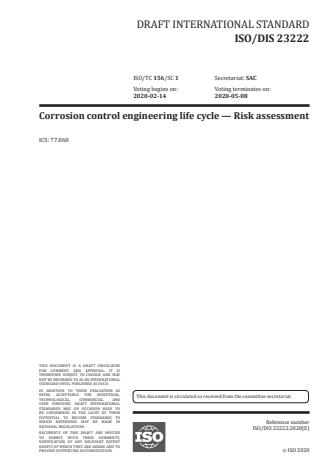

ISO/DIS 23222

DRAFT INTERNATIONAL STANDARD
ISO/DIS 23222
ISO/TC 156/SC 1 Secretariat: SAC
Voting begins on: Voting terminates on:
2020-02-14 2020-05-08
Corrosion control engineering life cycle — Risk assessment
ICS: 77.060
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENT AND APPROVAL. IT IS
THEREFORE SUBJECT TO CHANGE AND MAY
NOT BE REFERRED TO AS AN INTERNATIONAL
STANDARD UNTIL PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL,
This document is circulated as received from the committee secretariat.
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
STANDARDS MAY ON OCCASION HAVE TO
BE CONSIDERED IN THE LIGHT OF THEIR
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
Reference number
NATIONAL REGULATIONS.
ISO/DIS 23222:2020(E)
RECIPIENTS OF THIS DRAFT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
PROVIDE SUPPORTING DOCUMENTATION. ISO 2020
---------------------- Page: 1 ----------------------
ISO/DIS 23222:2020(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2020

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

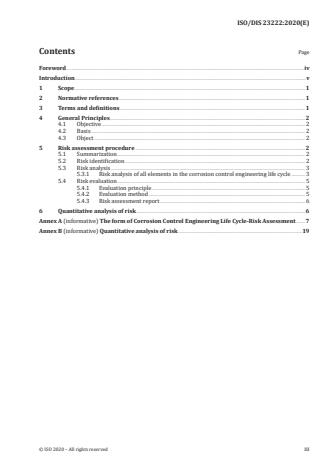

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 General Principles............................................................................................................................................................................................... 2

4.1 Objective ....................................................................................................................................................................................................... 2

4.2 Basis ................................................................................................................................................................................................................. 2

4.3 Object .............................................................................................................................................................................................................. 2

5 Risk assessment procedure ...................................................................................................................................................................... 2

5.1 Summarization ........................................................................................................................................................................................ 2

5.2 Risk identification ................................................................................................................................................................................ 2

5.3 Risk analysis .............................................................................................................................................................................................. 3

5.3.1 Risk analysis of all elements in the corrosion control engineering life cycle .............. 3

5.4 Risk evaluation ........................................................................................................................................................................................ 5

5.4.1 Evaluation principle ...................................................................................................................................................... 5

5.4.2 Evaluation method ......................................................................................................................................................... 5

5.4.3 Risk assessment report .............................................................................................................................................. 6

6 Quantitative analysis of risk ..................................................................................................................................................................... 6

Annex A (informative) The form of Corrosion Control Engineering Life Cycle-Risk Assessment .........7

Annex B (informative) Quantitative analysis of risk .........................................................................................................................19

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

Any trade name used in this document is information given for the convenience of users and does not

For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following

This document was prepared by Technical Committee [or Project Committee] ISO/TC 156, [corrosion of

metals and alloys], Subcommittee SC 1, [corrosion control engineering life cycle].

This standard is a general top-level standard supporting the document of ISO/CD 23123 in the standard

system. This standard whose assessed object is the risk of Corrosion control engineering life cycle is

based on ISO/CD 23123 to ensure the optimal benefits of safety, economy, long-term operation and

environmental protection and evaluate the risk of all risk elements in the whole process of corrosion

control engineering life cycle is carried out with the procedures specified in ISO/CD 23123. It is the

basic standard for risk assessment of the whole life cycle of corrosion control engineering existing in all

walks of life, and evaluate the risk of all elements in the whole process of corrosion control engineering

life cycle is implemented in accordance with the procedures specified in ISO/CD 23123, while achieving

all elements and elements, local and entire could link up with each other, optimize with each other,

coordinate with each other and support with each other in the interwoven or not at the same time, and

form a holistic, systematic, comprehensive by third party risk assessment. Therefore, it should be as

This document specifies the general requirements for risk assessment in the life cycle of corrosion

It is applicable to risk assessment of all types of corrosion control engineering programs.

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

An essential part of all kinds of corrosion control engineering including corrosion sources,

materials, technology, design, research and development, manufacturing, construction, storage and

transportation, installation and commissioning, acceptance, operation, maintenance, repair, scrapping

and disposal, documents and records, resource management, comprehensive assessments, etc.

Aiming at achieving the optimum benefits of safety, economy, long-term operation and environmental

protection, all elements in the whole process chain of corrosion control engineering are taken as objects,

and the principles and methods of evaluation are applied to identify and analyze whether all elements in

the corrosion control engineering life cycle are implemented and identified according to ISO/CD 23123.

The activities of risk assessment should predict the possibility and severity of the accident or damage to

people's life and property, and put forward control measures and draw conclusions of risk assessment.

Risk assessment includes three steps: risk identification, risk analysis and risk evaluation.

Process of finding, recognizing and describing corrosion risk of all elements in the corrosion control

Note 1 to entry: risk identification takes all elements in the corrosion control engineering life cycle as the object.

Process of comparing the results of risk analysis and summarize the traceability and supporting

documents to determine whether the corrosion risk of all elements in the corrosion control engineering

The objective should be aim at achieving the optimum benefits of economy, long-term operation and

environmental protection on the basis of the operation of economic society which should ensure

human health, people's life and property safety, national security and ecological environment safety

Corrosion control engineering life cycle is the object of this document. And risk assessment is performed

on all elements of ISO/CD 23123 that affect to achieve the optimum benefits of safety, economy, long-

term operation and environmental protection, the elements of risk assessment include corrosion

sources, materials, technology, research and development, design, manufacturing, construction,

storage and transportation, installation and commissioning, acceptance, operation, maintenance,

repair, lifetime extension, scrapping and disposal, documents and records, resource management,

b) Identify the corresponding actual risk of all elements in the corrosion control engineering life cycle.

c) Research and analyze whether all elements are implemented according to ISO/CD 23123.

d) Analyze whether to achieve comprehensive and technical control management that makes all link

and link, node and node, element and element, local and entire optimization with each other,

The risk of all elements in the corrosion control engineering life cycle should be identified collectively and

5.3.1 Risk analysis of all elements in the corrosion control engineering life cycle

a) It should be analyzed whether the corrosion control engineering is controlled according to the

principle of integrity, systematization, mutual coordination and optimization, and whether it

can achieve the optimum benefits of safety, economy, long-term operation and environmental

b) It should be analyzed whether the objectives are implemented into the risk analysis of all elements

in the life cycle, and be communicated, implemented, and maintained in all aspects of the life cycle.

It should be analyzed whether the objectives make the life cycle of the corrosion control engineering

be adapted to the life cycle of the protected main project. Corrosion control engineering life cycle

depends on, serves, assists in the main project, in some cases it is also restricted to the main

a) It should be analyzed whether the internal corrosion sources and external corrosion sources are

b) It should be analyzed whether the new corrosion sources which are generated in implementation

c) It should be analyzed whether the conditions of the main project and the influence of the corrosion

control engineering body are taken into account, and the corrosion sources are found out

e) It must be analysed how the corrosion and its sources are monitored and mitigated during the

a) It should be analyzed whether the design takes into account all the elements, links, and nodes

b) It should be analyzed whether the design takes into account the integrity, systematization, mutual

coordination and optimization in the entire life cycle of corrosion control engineering and makes

all link and link, node and node, element and element, local and entire optimization with each other,

coordination with each other and support with each other in the interwoven and achievements

from the optimum benefits of safety, economy, long-term operation and environmental protection.

d) It should be analyzed whether the design system is improved constantly to meet the requirements

e) It should be analyzed whether the design documents are reviewed in accordance with certain

a) It should be analyzed whether all the elements, links and nodes in the entire life cycle of corrosion

control engineering are continuously studied, improved and developed in the implementation

process to achieve the optimum benefits of safety, economy, long-term operation and environmental

b) It should be analyzed whether the entire research and development process is carried out in

accordance with certain procedures and maintains the principles of science, technology and

c) It should be analyzed whether new materials and new technologies have been developed when

existing materials and technologies fail to meet the corrosion control requirements, so that they

d) It should be analyzed whether the data documentation for research and development is built to

5.3.1.5 Risk analysis of materials, technology, manufacturing, construction, storage and

a) It should be analyzed whether the selected element is corrosion-resistant and achieves the optimum

b) It should be analyzed whether the selected element is based on the relevant inspection

c) It should be analyzed whether the selected element has corresponding specific performance and

d) It should be analyzed whether the selected element is coordinated, optimized and supported with

e) It should be analyzed whether the selected element has been identified by certain procedures.

It should be analyzed whether acceptance is implemented according to ISO/CD 23123 before operation.

It should be analyzed whether to increase monitoring during the operation of corrosion control

engineering life cycle on the basis of acceptance to ensure the real-time forewarning.

It should be analyzed whether to carry out maintenance according to the corresponding maintenance

manual and whether to maintain the monitoring equipments, devices and instruments in the corrosion

a) It should be analyzed whether scrapping and disposal is carried out according to the green plan

c) It should be analyzed whether the social responsibility for the equipments to be scrapped and

d) It should be analyzed whether to be subject to the acceptance of the corresponding procedures and

a) It should be analyzed whether the documents and records are traceable and supportive for all

b) It should be analyzed whether the documents and records are periodically reviewed to obtain the

a) It should be analyzed whether each element, link and node has relevant requirements for

corresponding and appropriate personnel, process tooling, testing equipment, work site and

b) It should be analyzed whether the human resources, equipment, materials, technology, methods,

environment and other resources have been managed in an overall way to meet the principles

of integrity, systematicness, mutual coordination and optimization, and to achieve the optimum
