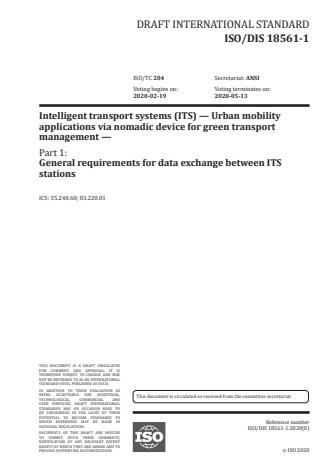

ISO/DIS 18561-1

DRAFT INTERNATIONAL STANDARD
ISO/DIS 18561-1
ISO/TC 204 Secretariat: ANSI
Voting begins on: Voting terminates on:
2020-02-19 2020-05-13
Intelligent transport systems (ITS) — Urban mobility
applications via nomadic device for green transport
management —
Part 1:
General requirements for data exchange between ITS
stations
ICS: 35.240.60; 03.220.01
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENT AND APPROVAL. IT IS
THEREFORE SUBJECT TO CHANGE AND MAY
NOT BE REFERRED TO AS AN INTERNATIONAL
STANDARD UNTIL PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL,
This document is circulated as received from the committee secretariat.
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
STANDARDS MAY ON OCCASION HAVE TO
BE CONSIDERED IN THE LIGHT OF THEIR
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
Reference number
NATIONAL REGULATIONS.
ISO/DIS 18561-1:2020(E)
RECIPIENTS OF THIS DRAFT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
PROVIDE SUPPORTING DOCUMENTATION. ISO 2020
---------------------- Page: 1 ----------------------
ISO/DIS 18561-1:2020(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2020

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

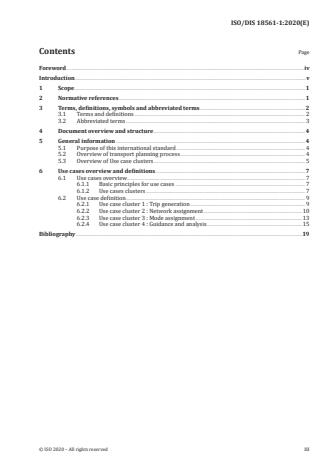

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms, definitions, symbols and abbreviated terms ....................................................................................................... 2

3.1 Terms and definitions ....................................................................................................................................................................... 2

3.2 Abbreviated terms ............................................................................................................................................................................... 3

4 Document overview and structure .................................................................................................................................................... 4

5 General information ......................................................................................................................................................................................... 4

5.1 Purpose of this international standard .............................................................................................................................. 4

5.2 Overview of transport planning process .......................................................................................................................... 4

5.3 Overview of Use case clusters .................................................................................................................................................... 5

6 Use cases overview and definitions .................................................................................................................................................. 7

6.1 Use cases overview .............................................................................................................................................................................. 7

6.1.1 Basic principles for use cases ............................................................................................................................... 7

6.1.2 Use cases clusters ............................................................................................................................................................ 7

6.2 Use case definition ............................................................................................................................................................................... 9

6.2.1 Use case cluster 1 : Trip generation ................................................................................................................ 9

6.2.2 Use case cluster 2 : Network assignment ................................................................................................10

6.2.3 Use case cluster 3 : Mode assignment ........................................................................................................13

6.2.4 Use case cluster 4 : Guidance and analysis .............................................................................................15

Bibliography .............................................................................................................................................................................................................................19

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.

The main task of technical committees is to prepare International Standards. Draft International

Standards adopted by the technical committees are circulated to the member bodies for voting.

Publication as an International Standard requires approval by at least 75 % of the member bodies

In exceptional circumstances, when a technical committee has collected data of a different kind from

that which is normally published as an International Standard (“state of the art”, for example), it may

decide by a simple majority vote of its participating members to publish a Technical Report. A Technical

Report is entirely informative in nature and does not have to be reviewed until the data it provides are

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights.

ISO 18561-1 was prepared by Technical Committee ISO/TC 204, Intelligent transport systems (ITS).

ISO 18561 consists of the following parts, under the general title Intelligent transport systems (ITS) -

ISO/TC204/WG17, Nomadic & Portable Devices for ITS services is designed to facilitate the development,

promotion and standardisation of the use of nomadic and portable devices to support ITS service

provision and multimedia use such as passenger information, automotive information, driver advisory

and warning systems, and entertainment system interfaces to ITS service providers and motor vehicle

communication networks. This standard fosters the introduction of multimedia and telematics Nomadic

This project provides the application and specification to identify a standard for transportation

management as a way of intelligent transport systems (ITS) in urban transportation networks to

This project provides the application and specification to identify a standard for transportation

management as a way of intelligent transport systems (ITS) in urban transportation networks to

improve eco-mobility and/or sustainability, which would undertake joint work with ISO Technical

Committee 204 (ISO/TC204) – Intelligent Transport Systems (ITS) to identify. These ITS technologies

can increase operational efficiencies and unlock enhanced transportation safety and eco-mobility

The urban mobility applications via nomadic device will build on the existing transportation planning

process including trip generation, trip distribution, and modal choices with respect to an extended

measures of effectiveness (MoE) in transportation models, such as being time effective, cost effective,

The nomadic device is presented as a personal ITS station in this standard in order to communicate the

other stations including vehicle, roadway infrastructure, and centres for defining the requirements for

interfaces between the stations in urban mobility applications to accommodate to the specific needs of

This standard aims to provide mobility information according to user preference on demand utilizing

a variety of existing apps on nomadic devices related with different transport means. An integrated

mobility information platform is defined in this standard as a service methodology to be integrated

— Guidance documents to facilitate the practical implementation of identified standards in the

— Urban mobility information integrated with a variety of mobile apps on nomadic devices by multiple

— Modal choice data based on time-effective, cost-effective, and eco-effective manners in the trip

This work includes the identification of exisiting International Standards for ITS in ISO/TC204 and

The following referenced documents are indispensable for the application of this document. For dated

references, only the edition cited applies. For undated references, the latest edition of the referenced

ISO 21217, Intelligent transport systems — Communications access for land mobiles (CALM) — Architecture

ISO/CD 20529-2, Intelligent transport systems (ITS) — Framework for green ITS(G-ITS) standards - Part 1:

ISO 13184-2, Intelligent transport systems (ITS) — Guidance protocol via personal ITS station for advisory

safety systems — Part 2: Road guidance protocol (RGP) requirements and specification

ISO 13185-2, Intelligent transport systems — Vehicle interface for provisioning and support of ITS

services — Part 2: Unified gateway protocol (UGP) requirements and specification for vehicle ITS station

ISO/TS 21184, Cooperative Intelligent transport systems (C-ITS) — Global transport data management

CEN/TS 21185, Cooperative Intelligent transport systems (C-ITS) — Communication profiles

ISO/TC 21177, Intelligent transport systems (ITS) — ITS-station security services for secure session

ISO 14819, Intelligent transport systems — Traffic and travel information messages via traffic message coding

ISO/IEC 8825-2:2008, Information technology-ASN.1 encoding rules: Specification of Packed Encoding

implementation of a personal ITS station which provides communication connectivity via equipment

such as cellular telephones, mobile wireless broadband (WIMAX, HC-SDMA, etc.), WiFi etc. and includes

short range links, such as Bluetooth, Zigbee, etc. to connect portable devices to the motor vehicle

A system that receives and processes vehicular and pedestrian information within a certain zone and

determines the situation, in order to provide the safety warning and parking guide service to vehicles

a new-concept transportation system, which are expected to arise following the paradigm shift toward

eco-friendly, low-carbon green growth in the transportation sector, as global policies

eco transport systems and services based on eco vehicles and their related facilities

This international standard provides all documents and references required to support the application

of conventional transportation planning process in the transportation managements with respect

to eco-effective measures to improve the urban mobility by utilizing the data collected by nomadic

This part specifies the general requirements of data exchanges between ITS stations collected

by nomadic devices in urban mobility applications based on the structure along with the use

cases definition and common set of resources (definitions, references) in green transportation

This part specifies all technical requirements related to the trip and modal choice applications

for transportation planning process in the green transportation management utilizing nomadic

devices to be used on the personal ITS station and to be interfaced with central ITS station,

vehicle ITS station, and roadside ITS station. The requirements will reflect the user services in the

transport management from the use cases as specified in ISO 13185, ISO 13111, and ISO 20529. The

protocol shall be defined according to the requirements as specified in ISO 14817.

— Identify the method to describe the general information for all subjects and use cases related to

green transport management services according to the transportation planning process in urban

— Identify the general requirements of data exchanges utilizing nomadic devices as the personal ITS

station interfaced with central ITS station, vehicle ITS station, and roadside ITS station.

smart mobility services on demand by the user preference to be an integrated app on mobile devices

utilizing personalized data with respect to trip distance, trip schedule, personal eco mileages,

vehicles information to be utilized to users as a mobility service, which includes electric passenger

vehicles, public transport with bus and/or metro, shared mobility with car sharing, ride sharing,

transportation management services to be provided to users as a variety of service apps on mobile

devices by national authorities, local municipalities and/or private companies for eco-mobility

Conceptual aspects of the general process for four step transportation planning and modelling are

Trip generation as the first stage of the classical transportation demand planning and modelling is the

analysis and model building phase in the conventional transportation planning process. It is a general

term used in the transportation planning process to cover the number of trip ends in given areas. Trip

generation is classified in production and attraction. Production from a origin means number of trips

end originated in a zone, i.e. zone-i. Attraction to a destination means number of trips end attracted to

The decision to travel for a given purpose is called trip generation. The decision to choose a destination

from a origin is directional distribution of trips forms the second stage of travel demand modelling

in the transportation planning process. Trip distribution is determined by the number of trips end

originated in zone-i to number of trips end attracted to zone-j, which can be understood by the matrix

The third stage in travel demand modelling is modal split, which is determined by number of trips

of people process by the different mode of travel. Modal split of travel demand modelling is used to

distribute the total travel demand in two or more mode categories including public transport riders and

personal and/or private vehicle riders. The demand can be split into different modes with respect to

the socio-economic demand variables used to explain mode choice behaviour including income, vehicle

ownership, household size, residence location etc. The supply variables are in vehicle time, waiting

Trip assignment is the fourth and the final phase of the four-step transportation planning process.

Travelers will choose the route which will take minimum travel time, minimum travel distance

The urban mobility applications provide individual users with mobility information services according

to user preference on demand recognized by nomadic via personal O-D trip data, which come up with

network O-D matrix databases. The use cases for urban mobility applications are categorized as trip

generation, network assignment, mode assignment, and information & analysis based on a similar

pattern of conventional four step transportation planning and modelling process, including trip

This standard defines urban mobility use cases and data interface with specifications so that central

and/or local mobility service providers are able to plan and operate mobility integration managements

based on their conventional transportation planning process. Examples include the delivery and

management of ITS services using big data collected by personal nomadic devices in the transportation

networks, as well as the use of smartphone apps for public transit modes and routes planning by traffic

— Guidance documents to facilitate the practical implementation of identified standards in the

— Urban mobility information integrated with a variety of mobile apps on nomadic devices by multiple

— Mode choice data based on time-effective, cost-effective, and eco-effective manners in the trip

The main purposes for adopting this standard are modelling the urban mobility service platform with

the defined use cases utilizing limited resources of transport means or modes more effectively within

a city transport network. The transport modes defined directly in this standard include bus, shuttle of

1 to 4 seater or of 6 to 12 seater, and service vehicles under ride hailing, car sharing, ride sharing, etc.

The urban mobility application services will include the following group of use cases:

— Trip generation: to collect trip demand or parcel delivery request generated by nomadic devices,

— Network assignment: to monitor the origin and destination (O-D) of user or parcel, and assign the

— Mode assignment: to monitor modes (e.g. bus, shuttle) availability and assign route to the available

— Information and analysis: to guide trip information of the users or parcels and analyse and evaluate

Table 1 provides an overview about the different use case categories. The use cases are grouped into

1. Trip generation This cluster specifies the detail use cases of trip generation for urban mobility ser-

vices. It includes 2 different use cases, including Trip demand information input of

2. Network assignment This cluster specifies the detail use cases of network assignment for urban mobility

services. It includes 3 different use cases, including O-D monitoring; Clustering core

3. Mode assignment This cluster specifies the detail use cases of mode assignment for urban mobility

services. It includes 2 different use cases, including Monitoring modal availability;

4. Guidance & analysis This cluster specifies the detail use cases of Guidance and analysis for urban mo-

bility services. It includes 3 different use cases, including User trip guidance; Parcel

Table 2 shows the use case 1.1 Trip demand information input of user, in order to collect for user’s real-

Brief description In order to identify trip demand, trip demand information of users are input through nomadic

Table 4 shows the use case 1.2 Parcel delivery demand information input of parcel, in order to collect

Table 4 — Definition of UC 1.2 : Parcel delivery demand information input of parcel

Brief description In order to identify delivery demand, delivery demand information of parcels are input through

3) Parcel demand (start date, end date, destination location, destination address)
