FprEN 17140
(Main)This document defines characteristics for factory made Vacuum Insulation Panels (VIP), with or without protective layer, which are used for the thermal insulation of buildings. This standard describes the product properties and contains test methods and rules for assessment and verification of constancy of performance (AVCP), identification and labelling. The determination of VIP properties influencing the service life time and VIP performance is content of this standard as well. The standard provides a test method to determine the ageing of the product including the influence of the linear thermal bridges at the edges.
This standard is applicable for all types of VIP independent of the core material or type of envelope. It is also applicable for VIP using desiccants but not getters, due to a lack of experience with ageing of these panels.
This standard does not specify the required level of a given property to be achieved by a product to demonstrate fitness for purpose in a particular application. The levels required for a given application can be found in regulations or non-conflicting standards.
Products with a declared thermal resistance RD lower than 0,5 m2 K/W or a declared thermal conductivity λD according to Annex C of this Standard greater than 0,015 W/(m⋅K) are not covered by this standard.
This standard does not cover products intended to be used for the insulation of building equipment and industrial installations.
Wärmedämmstoffe für Gebäude - Werksmäßig hergestellte Vakuumisolationspaneele (VIP) - Spezifikation
Dieses Dokument legt die Merkmale für werksmäßig hergestellte Vakuumisolationspaneele (VIP) fest, die für die Wärmedämmung von Gebäuden verwendet werden.
Dieses Dokument gilt für alle Arten von werksmäßig hergestellten Vakuumisolationspaneelen (VIP), unabhängig vom Kernmaterial (siehe 3.1.10) oder der Art der Hülle (siehe 3.1.11).
Dieses Dokument gilt für werksmäßig hergestellte Vakuumisolationspaneele (VIP) mit oder ohne Trocknungsmittel (siehe 3.1.12) und mit oder ohne Evakuierungsventil (3.1.14).
Die von diesem Dokument abgedeckten Produkte können in Dächern, Wänden, Decken und Böden verwendet werden.
Dieses Dokument legt Verfahren zur Bewertung und Überprüfung der Leistungsbeständigkeit (AVCP) von Merkmalen von werksmäßig hergestellten Vakuumisolationspaneelen (VIP) fest.
Dieses Dokument gilt nicht für Produkte,
- die für die Wärmedämmung von Haustechnik und Betriebsanlagen vorgesehen sind;
- die für die Verwendung in Hoch- und Tiefbauten vorgesehen sind;
- die als Einfassung oder Fundament verwendet werden sollen;
- die einen niedrigeren Wärmedurchlasswiderstand als 0,5 m2 K/W aufweisen;
- die Getter (3.1.13) enthalten;
- die mit Schutzschichten (3.1.9) versehen sind.
Produits isolants thermiques pour le bâtiment - Panneaux isolants sous vide (VIP) produits de façon industrielle - Spécification
Le présent document définit les caractéristiques pour les panneaux isolants sous vide (VIP) produits de façon industrielle, qui sont utilisés pour l’isolation thermique des bâtiments.
Le présent document est applicable à tous les types de panneaux isolants sous vide (VIP) produits de façon industrielle, indépendamment du matériau du cœur (voir 3.1.10) ou du type d’enveloppe (voir 3.1.11).
Le présent document s’applique aux panneaux isolants sous vide (VIP) produits de façon industrielle, avec ou sans dessicant (voir 3.1.12) et avec ou sans soupape d’évacuation (3.1.14).
Les produits couverts par le présent document peuvent être utilisés dans le cadre de travaux sur des toitures, murs, plafonds et sols.
Le présent document définit le mode opératoire à suivre pour l’évaluation et la vérification de la constance (EVCP) des caractéristiques des panneaux isolants sous vide (VIP) produits de façon industrielle.
Le présent document ne couvre pas les produits :
- conçus pour être utilisés pour l’isolation de l’équipement du bâtiment et des installations industrielles ;
- conçus pour être utilisés dans le cadre de travaux de génie civil ;
- conçus pour être utilisés en tant que périmètre ou fondation ;
- dont la résistance thermique RD est inférieure à 0,5 m2 K/W ;
- qui contiennent des sorbeurs (3.1.13) ;
- qui disposent de couches de protection (3.1.9).
Toplotnoizolacijski proizvodi za stavbe - Industrijsko izdelani vakuumski izolacijski paneli (VIP) - Specifikacije
General Information
Standards Content (sample)
SLOVENSKI STANDARD
oSIST prEN 17140:2017
01-september-2017
Toplotnoizolacijski proizvodi za stavbe - Industrijsko izdelani vakuumski
izolacijski paneli (VIP) - Specifikacije
Thermal insulation products for buildings - Factory made Vacuum Insulation Panels (VIP)
- SpecificationWärmedämmstoffe für Gebäude - Werksmäßig hergestellte Vakuumisolationspanele
(VIP) - Spezifikation
Produits isolants thermiques pour le bâtiment - Panneaux Isolants sous Vide produits de
façon industrielle (VIP) - SpécificationTa slovenski standard je istoveten z: prEN 17140
ICS:
91.100.60 0DWHULDOL]DWRSORWQRLQ Thermal and sound insulating
]YRþQRL]RODFLMR materials
oSIST prEN 17140:2017 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------oSIST prEN 17140:2017
---------------------- Page: 2 ----------------------
oSIST prEN 17140:2017

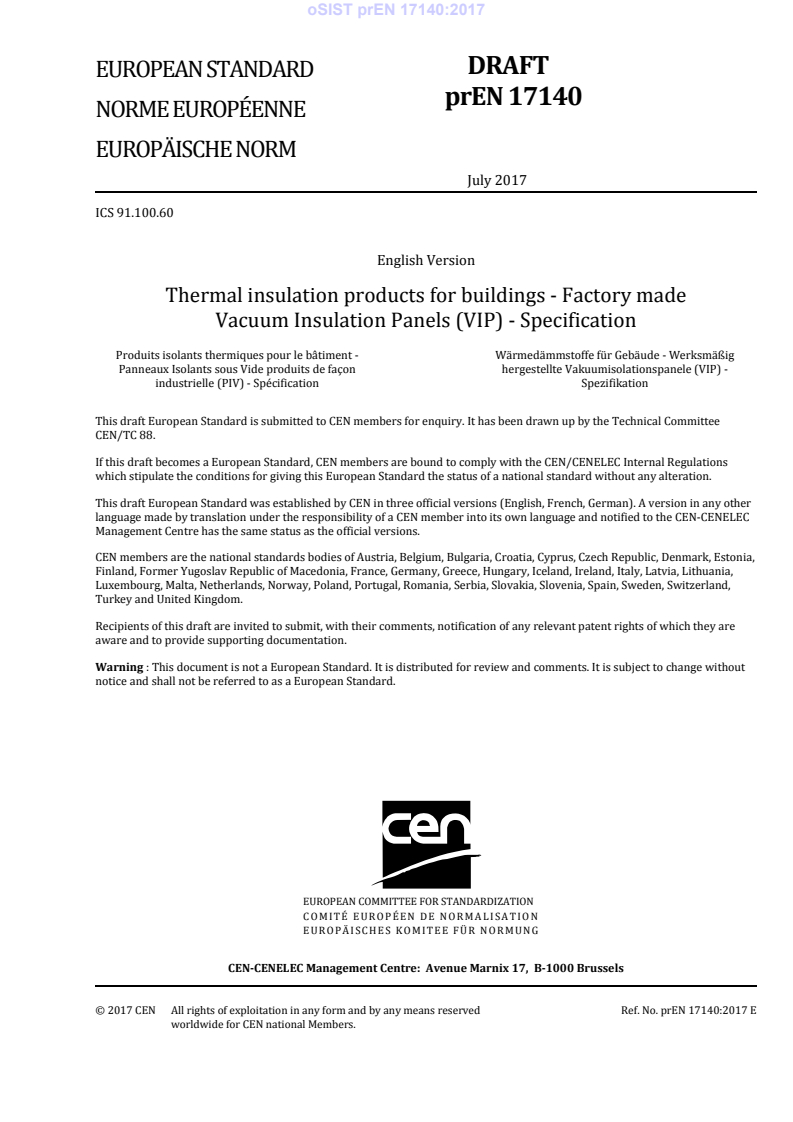

DRAFT
EUROPEAN STANDARD
prEN 17140
NORME EUROPÉENNE
EUROPÄISCHE NORM
July 2017
ICS 91.100.60
English Version
Thermal insulation products for buildings - Factory made
Vacuum Insulation Panels (VIP) - Specification
Produits isolants thermiques pour le bâtiment - Wärmedämmstoffe für Gebäude - Werksmäßig
Panneaux Isolants sous Vide produits de façon hergestellte Vakuumisolationspanele (VIP) -
industrielle (PIV) - Spécification SpezifikationThis draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 88.If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 17140:2017 E
worldwide for CEN national Members.---------------------- Page: 3 ----------------------
oSIST prEN 17140:2017
prEN 17140:2017 (E)
Contents Page
European foreword ....................................................................................................................................................... 5
1 Scope .................................................................................................................................................................... 6
2 Normative references .................................................................................................................................... 6
3 Terms and definitions, symbols, units and abbreviated terms ...................................................... 7
3.1 Terms and definitions ................................................................................................................................... 7
3.2 Symbols and abbreviated terms ................................................................................................................ 8
4 Requirements ................................................................................................................................................ 10
4.1 General ............................................................................................................................................................. 10
4.2 For all applications ...................................................................................................................................... 11
4.2.1 Thermal resistance and thermal conductivity .................................................................................. 11
4.2.2 Inner pressure ............................................................................................................................................... 11
4.2.3 Length, width, squareness, flatness ....................................................................................................... 12
4.2.4 Thickness ........................................................................................................................................................ 13
4.2.5 Reaction to fire .............................................................................................................................................. 13
4.2.6 Durability characteristics ......................................................................................................................... 13
4.3 For specific applications ............................................................................................................................ 14
4.3.1 General ............................................................................................................................................................. 14
4.3.2 Dimensional stability under specified temperature and humidity conditions ..................... 14
4.3.3 Deformation under specified compressive load and temperature conditions ..................... 14
4.3.4 Compressive stress at 10 % compressibility ..................................................................................... 14
4.3.5 Tensile strength perpendicular to faces .............................................................................................. 15
4.3.6 Compressive creep....................................................................................................................................... 15
4.3.7 Water vapour transmission...................................................................................................................... 16
4.3.8 Release of dangerous substances ........................................................................................................... 16
4.3.9 Shear strength ............................................................................................................................................... 16
4.3.10 Thermal conductivity of the punctured VIP under ambient pressure due to damage ....... 16
5 Test methods ................................................................................................................................................. 16
5.1 Sampling .......................................................................................................................................................... 16
5.2 Conditioning ................................................................................................................................................... 16
5.3 Testing .............................................................................................................................................................. 17
5.3.1 General ............................................................................................................................................................. 17
5.3.2 Thermal resistance and thermal conductivity .................................................................................. 17
6 Designation code .......................................................................................................................................... 18
7 Assessment and Verification of the Constancy of Performance (AVCP) ................................... 19
7.1 General ............................................................................................................................................................. 19
7.2 Product Type Determination (PTD) ...................................................................................................... 19
7.3 Factory Production Control (FPC) .......................................................................................................... 19
8 Marking and labelling ................................................................................................................................. 19
Annex A (normative) Determination of the declared values of thermal resistance and
thermal conductivity ................................................................................................................................... 21
A.1 General ............................................................................................................................................................. 21
A.2 Input data ........................................................................................................................................................ 21
A.3 Declared values ............................................................................................................................................. 21
---------------------- Page: 4 ----------------------oSIST prEN 17140:2017
prEN 17140:2017 (E)
A.3.1 General ............................................................................................................................................................. 21
A.3.2 Case where thermal resistance and thermal conductivity are declared .................................. 21
A.3.3 Case where only thermal resistance is declared ............................................................................... 22
Annex B (normative) Product Type Determination (PTD) and Factory Production Control
(FPC) .................................................................................................................................................................. 23
Annex C (normative) Determination of the aged values of thermal resistance and thermal
conductivity including edge effect .......................................................................................................... 28
C.1 General ............................................................................................................................................................. 28
C.2 Time dependence of thermal conductivity.......................................................................................... 30
C.2.1 Increase of thermal conductivity due to permeation of dry air ................................................... 30
C.2.2 Increase of thermal conductivity due to permeation of water vapor ........................................ 30
C.2.3 Accelerated ageing ....................................................................................................................................... 31
C.3 Determination of linear thermal transmittance of Vacuum insulation panels ...................... 34
C.4 Determination of declared thermal conductivity for VIP including statisticalcoverage, ageing and thermal bridge effect ........................................................................................ 36
C.4.1 General ............................................................................................................................................................. 36
C.4.2 Calculation λ , R λ and R values .................................................................................. 36
90/90 90/90, d dC.5 Product grouping .......................................................................................................................................... 37
Annex D (normative) Measurement of p1/2 of core materials ................................................................. 38
D.1 General ............................................................................................................................................................. 38
D.2 Leak tight connector method ................................................................................................................... 38
D.3 Method using VIP with different inner pressures ............................................................................. 39
Annex E (normative) Barrier performance of the envelope ...................................................................... 40
E.1 General ............................................................................................................................................................. 40
E.2 Acceleration factors ..................................................................................................................................... 40
E.3 Procedure for measuring the air permeability of an envelope ................................................... 40
E.4 Procedure for measuring the water intake rate of an envelope ................................................. 41
Annex F (normative) Determination of desiccant lifetime ......................................................................... 42
F.1 General ............................................................................................................................................................. 42
F.2 Method 1 .......................................................................................................................................................... 42
F.3 Method 2 .......................................................................................................................................................... 42
F.3.1 General ............................................................................................................................................................. 42
F.3.2 Estimation of the amount of water inside the VIP core material ................................................ 42
F.3.3 Determination of desiccant amount required for 25 years lifetime .......................................... 43
F.3.4 Determination of desiccant capacity ..................................................................................................... 43
Annex G (normative) Measurement of inner pressure ................................................................................ 44
G.1 Scope/Purpose of the test .......................................................................................................................... 44
---------------------- Page: 5 ----------------------oSIST prEN 17140:2017
prEN 17140:2017 (E)
G.2 References ...................................................................................................................................................... 44
G.3 Terms and definitions ................................................................................................................................ 44
G.4 General (Principle) ...................................................................................................................................... 44
G.5 Apparatus ........................................................................................................................................................ 46
G.6 Test specimens .............................................................................................................................................. 46
G.7 Procedure........................................................................................................................................................ 47
G.7.1 General ............................................................................................................................................................. 47
G.7.2 Test condition ................................................................................................................................................ 47
G.7.3 Pressure compensation method (The lift-off technique) .............................................................. 47
G.7.4 Pressure sensor method ............................................................................................................................ 48
G.7.5 Method for VIP with evacuation valve .................................................................................................. 48
G.7.6 Calculation and expression of results ................................................................................................... 49
G.8 Accuracy of measurement ......................................................................................................................... 50
G.8.1 For the pressure compensation .............................................................................................................. 50
G.8.2 For VIP with evacuation valve ................................................................................................................. 50
G.9 Test report ...................................................................................................................................................... 50
Annex H (normative) Mounting and fixing procedure for reaction to fire tests ................................ 52
H.1 General ............................................................................................................................................................. 52
H.2 Instructions for mounting and fixing test specimens ..................................................................... 52
H.2.1 General ............................................................................................................................................................. 52
H.2.2 Product and installation parameters .................................................................................................... 52
H.2.3 Mounting and fixing .................................................................................................................................... 53
Annex ZA (informative) Relationship of this European Standard with Regulation (EU)
No.305/2011 .................................................................................................................................................. 57
Bibliography ................................................................................................................................................................. 61
---------------------- Page: 6 ----------------------oSIST prEN 17140:2017
prEN 17140:2017 (E)
European foreword
This document (prEN 17140:2017) has been prepared by Technical Committee CEN/TC 88 “Thermal
insulating materials and products”, the secretariat of which is held by DIN.This document is currently submitted to the CEN Enquiry.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive.
For relationship with EU Directive, see informative Annex ZA, which is an integral part of this
document.---------------------- Page: 7 ----------------------
oSIST prEN 17140:2017
prEN 17140:2017 (E)
1 Scope
This standard defines requirements for factory made Vacuum Insulation Panels (VIP), which are used
for the thermal insulation of buildings. This standard describes the product properties and contains test
methods and rules for conformity evaluations, identification and labelling. The determination of VIP
properties influencing the service life time and VIP performance is content of this standard as well. The
standard provides a test method to determine the ageing of the product including the influence of the
linear thermal bridges at the edges.This standard is applicable for all types of VIP independent of the core material or type of envelope. It is
also applicable for VIP using desiccants but not getters, due to a lack of experience with ageing of these
panels.This standard does not specify the required level of a given property to be achieved by a product to
demonstrate fitness for purpose in a particular application. The levels required for a given application
can be found in regulations or non-conflicting standards.Products with a declared thermal resistance R lower than 0,5 m K/W or a declared thermal
conductivity λ according to Annex C of this Standard greater than 0,015 W/(m⋅K) are not covered by
this standard.This standard does not cover products intended to be used for the insulation of building equipment and
industrial installations.2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
EN 822, Thermal insulating products for building applications - Determination of length and width
EN 823:2013, Thermal insulating products for building applications - Determination of thickness
EN 824, Thermal insulating products for building applications - Determination of squareness
EN 825, Thermal insulating products for building applications - Determination of flatness
EN 826, Thermal insulating products for building applications - Determination of compression behaviour
EN 1604, Thermal insulating products for building applications - Determination of dimensional stability
under specified temperature and humidity conditionsEN 1605, Thermal insulating products for building applications - Determination of deformation under
specified compressive load and temperature conditionsEN 1607, Thermal insulating products for building applications - Determination of tensile strength
perpendicular to facesEN 12667, Thermal performance of building materials and products - Determination of thermal resistance
by means of guarded hot plate and heat flow meter methods - Products of high and medium thermal
resistanceEN 13172, Thermal insulation products - Evaluation of conformity
---------------------- Page: 8 ----------------------
oSIST prEN 17140:2017
prEN 17140:2017 (E)
EN 13501-1, Fire classification of construction products and building elements — Part 1: Classification
using test data from reaction to fire testEN ISO 10456, Building materials and products - Hygrothermal properties -Tabulated design values and
procedures for determining declared and design thermal values (ISO 10456)ISO 8302, Thermal insulation — Determination of steady-state thermal resistance and related
properties — Guarded hot plate apparatus3 Terms and definitions, symbols, units and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1.1
Vacuum Insulation Panel
VIP
insulation element containing a core material with open porosity within an envelope; where the inner
pressure inside the envelope is lower than the ambient air pressure3.1.2
centre of panel
COP
area of the VIP not affected by the edge effect
3.1.3
edge effect
form of thermal bridging along the edge due to the higher thermal conductivity of the outer envelope
compared to the core3.1.4
inner pressure
total gas pressure within the VIP, measured in mbar
3.1.5
pressure compensation method
method of testing inner pressure of VIP using a laminate -lift-off technique with a vacuum chamber or
suction bellNote 1 to entry: In some literature also called foil-lift-off technique.
3.1.6
vacuum chamber
device to evacuate a VIP or a volume around a VIP to determine the inner pressure of a VIP by the
pressure compensation method3.1.7
suction bell
alternative device to evacuate a volume connected to a part of a VIP to determine the inner pressure of
a VIP by the pressure compensation method3.1.8
pressure sensor
device to measure the inner pressure of a VIP
---------------------- Page: 9 ----------------------
oSIST prEN 17140:2017
prEN 17140:2017 (E)
3.1.9
core material
open porous insulation material constituting the main component inside the VIP envelope
3.1.10envelope
outer layer of the VIP securing the vacuum inside the VIP
3.1.11
desiccant
material different from the core material that is added inside the envelop to absorb respectively adsorb
water vapour3.2 Symbols and abbreviated terms
For the purpose of this document, the following symbols and units apply.
A the surface area of the VIP
the metering area of the GHP or HFM apparatus used for the
measurement
A the nominal surface area of the VIP
b the width m
d the thickness m
d the thickness of the ventilated VIP m
ambient
d the nominal thickness of the product m
d the thickness of the VIP m
VIP
f the acceleration factor for dry air of the VIP envelope –
air
f the acceleration factor for water vapour of the VIP envelope –
k a factor related to the number of test results available –
l the length M
core length m
l working length m
the length of the joints within the metering area M
N the number of test results –
3 2
P the air permeability of the VIP envelope
m Pa/ (m ⋅s)
air
P the water intake rate of the VIP envelope
kg/(m ⋅s)
p air pressure inside the VIP Pa
air
p the maximum value of the inner pressure measured at least 24 h after Pa
lim
production
p water vapour pressure inside the VIP Pa
p the initial value of the inner pressure Pa
---------------------- Page: 10 ----------------------
oSIST prEN 17140:2017
prEN 17140:2017 (E)
p the inner pressure of VIP, where λ increases by 1/2 of the thermal Pa
1/2
conductivity of still air.
R thermal resistance of the auxiliary material
m ⋅K/W
aux
R R at centre of panel plus ageing
m ⋅K/W
COP,90/9 90/90
0aged
R the declared thermal resistance including ageing and edge-effect
m ⋅K/W
R the mean thermal resistance
m ⋅K/W
mean
R one test result of thermal resistance
m ⋅K/W
R thermal resistance of VIP plus auxiliary material
m ⋅K/W
tot
R the 90 % fractile with a confidence level of 90 % for the thermal
m ⋅K/W
90/90
resistance
S the top surface area (working length x working width) of the VIP
S the deviation from squareness on width or length mm/m
the deviation from flatness mm
max
S the nominal perimeter of the product m
s the estimate of the standard deviation of the thermal resistance
m ⋅K/W
s the estimate of the standard deviation of the thermal conductivity W/(m⋅K)
s the estimate of the standard deviation of the initial thermal W/(m⋅K)
conductivity within 90 days of production
T the temperature K
t the time s
t lifetime of the desiccant a
Des
w core width m
w working width m
Χ water content inside the VIP mass-%
λ the thermal conductivity of a ventilated VIP at centre of the panel W/(m⋅K)
ambient
the thermal conductivity for centre of panel W/(m·K)
COP
λ the average value of thermal conductivity over the first 25 years in use W/(m⋅K)
COP,meanat centre of panel
(25years)
λ , λ at centre of panel plus ageing W/(m⋅K)
COP 90/9 90/90
0,aged
λ the declared thermal conductivity including ageing and edge-effect W/(m⋅K)
λ the equivalent thermal conductivity including edge effects for the W/(m·K)
eq ja
specific joint assembly
λ the mean value of thermal conductivity W/(m⋅K)
mean
λ one test result of thermal conductivity W/(m⋅K)
---------------------- Page: 11 ----------------------
oSIST prEN 17140:2017
prEN 17140:2017 (E)
λ’ the change of thermal conductivity with pressure W/(m⋅K⋅Pa)
λ’ the change of thermal conductivity with time W/(m⋅K⋅s)
λ the thermal conductivity of the VIP W/(m⋅K)
VIP
the change of thermal conductivity with humidity W/(m⋅K)/mas
s-%
λ the 90 % fractile with a confidence level of 90 % for the thermal W/(m⋅K)
90/90
conductivity
λ’ the change of thermal conductivity with time at 23°C 50 % RH W/(m⋅K⋅ a)
t, 23, 50
the change of thermal conductivity with time at 50°C 70 % RH W/(m⋅K⋅ a)
t, 50, 70
λ(t) time-dependent thermal conductivity value W/(m⋅K)
λ(t) the time dependent value of thermal conductivity at 23°C 50 % RH W/(m⋅K)
, 23, 50
λ* (t = 0) the interpolated initial value of thermal conductivity W/(m∙K)
σ the tensile strength perpendicular to faces kPa
σ the compressive stress at 10 % deformation kPa
Φ relative humidity inside the VIP %
Φ’ the change of relative humidity inside the VIP as function of water (rel. humidity
content -%)/(mass-Ψ the linear thermal transmittance W/(m∙K)
ψ the linear thermal transmittance for the joints in the metering area W/(m·K)
Abbreviated terms used in this standard:
VIP is Vacuum Insulation Panel
COP is Center Of Panel
AVCP is Assessment and Verification of Constancy of Performance (previously named attestation of
conformity)DoP is Declaration of Performance
FPC is Factory Production Control
PTD is Product Type Determination (previously named ITT for Initial Type Test)
STP is Standard condition for Temperature an
...
