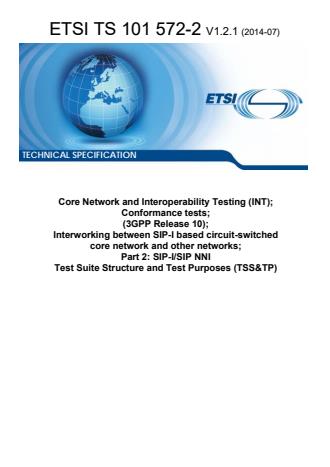

ETSI TS 101 572-2 V1.2.1 (2014-07)

ETSI TS 101 572-2 V1.2.1 (2014-07)
TECHNICAL SPECIFICATION
Core Network and Interoperability Testing (INT);
Conformance tests;
(3GPP Release 10);
Interworking between SIP-I based circuit-switched
core network and other networks;
Part 2: SIP-I/SIP NNI
Test Suite Structure and Test Purposes (TSS&TP)
---------------------- Page: 1 ----------------------
2 ETSI TS 101 572-2 V1.2.1 (2014-07)
Reference
RTS/INT-00110-2
Keywords
SIP, SIP-I, testing, TSS&TP
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
The present document can be downloaded from:
http://www.etsi.org

The present document may be made available in electronic versions and/or in print. The content of any electronic and/or

print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any

existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the

print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat.

Users of the present document should be aware that the document may be subject to revision or change of status.

Information on the current status of this and other ETSI documents is available at

If you find errors in the present document, please send your comment to one of the following services:

No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying

The content of the PDF version shall not be modified without the written authorization of ETSI.

DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.

3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and

GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.

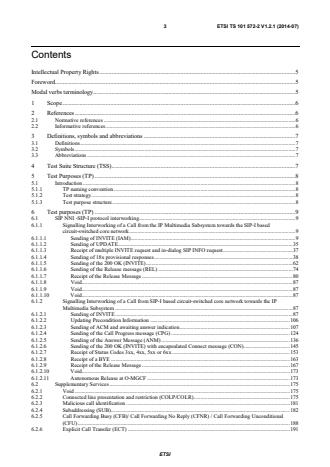

Intellectual Property Rights ................................................................................................................................ 5

Foreword ............................................................................................................................................................. 5

Modal verbs terminology .................................................................................................................................... 5

1 Scope ........................................................................................................................................................ 6

2 References ................................................................................................................................................ 6

2.1 Normative references ......................................................................................................................................... 6

2.2 Informative references ........................................................................................................................................ 6

3 Definitions, symbols and abbreviations ................................................................................................... 7

3.1 Definitions .......................................................................................................................................................... 7

3.2 Symbols .............................................................................................................................................................. 7

3.3 Abbreviations ..................................................................................................................................................... 7

4 Test Suite Structure (TSS) ........................................................................................................................ 7

5 Test Purposes (TP) ................................................................................................................................... 8

5.1 Introduction ........................................................................................................................................................ 8

5.1.1 TP naming convention .................................................................................................................................. 8

5.1.2 Test strategy .................................................................................................................................................. 8

5.1.3 Test purpose structure ................................................................................................................................... 8

6 Test purposes (TP) ................................................................................................................................... 9

6.1 SIP NNI -SIP-I protocol interworking................................................................................................................ 9

6.1.1 Signalling Interworking of a Call from the IP Multimedia Subsystem towards the SIP-I based

circuit-switched core network ....................................................................................................................... 9

6.1.1.1 Sending of INVITE (IAM) ...................................................................................................................... 9

6.1.1.2 Sending of UPDATE............................................................................................................................. 35

6.1.1.3 Receipt of multiple INVITE request and in-dialog SIP INFO request .................................................. 37

6.1.1.4 Sending of 18x provisional responses ................................................................................................... 38

6.1.1.5 Sending of the 200 OK (INVITE) ......................................................................................................... 62

6.1.1.6 Sending of the Release message (REL) ................................................................................................ 74

6.1.1.7 Receipt of the Release Message ............................................................................................................ 80

6.1.1.8 Void....................................................................................................................................................... 87

6.1.1.9 Void....................................................................................................................................................... 87

6.1.1.10 Void....................................................................................................................................................... 87

6.1.2 Signalling Interworking of a Call from SIP-I based circuit-switched core network towards the IP

Multimedia Subsystem ............................................................................................................................... 87

6.1.2.1 Sending of INVITE ............................................................................................................................... 87

6.1.2.2 Updating Precondition Information .................................................................................................... 106

6.1.2.3 Sending of ACM and awaiting answer indication ............................................................................... 107

6.1.2.4 Sending of the Call Progress message (CPG) ..................................................................................... 124

6.1.2.5 Sending of the Answer Message (ANM) ............................................................................................ 136

6.1.2.6 Sending of the 200 OK (INVITE) with encapsulated Connect message (CON) ................................. 145

6.1.2.7 Receipt of Status Codes 3xx, 4xx, 5xx or 6xx .................................................................................... 153

6.1.2.8 Receipt of a BYE ................................................................................................................................ 163

6.1.2.9 Receipt of the Release Message .......................................................................................................... 167

6.1.2.10 Void..................................................................................................................................................... 173

6.1.2.11 Autonomous Release at O-MGCF ...................................................................................................... 173

6.2 Supplementary Services ................................................................................................................................. 175

6.2.1 Void .......................................................................................................................................................... 175

6.2.2 Connected line presentation and restriction (COLP/COLR) ..................................................................... 175

6.2.3 Malicious call identification ..................................................................................................................... 181

6.2.4 Subaddressing (SUB) ................................................................................................................................ 182

6.2.5 Call Forwarding Busy (CFB)/ Call Forwarding No Reply (CFNR) / Call Forwarding Unconditional

(CFU) ........................................................................................................................................................ 188

6.2.6 Explicit Call Transfer (ECT) .................................................................................................................... 191

6.2.7 Void .......................................................................................................................................................... 195

6.2.8 Call Hold ................................................................................................................................................... 195

6.2.9 Call Completion on busy subscriber ......................................................................................................... 208

6.2.10 Completion of Calls on No Reply (CCNR) .............................................................................................. 208

6.2.11 Terminal Portability (TP) .......................................................................................................................... 209

6.2.12 Conference calling (CONF) / Three-Party Service (3PTY) ...................................................................... 210

6.2.13 Void .......................................................................................................................................................... 217

6.2.14 Multi-Level Precedence and Pre-emption (MLPP) ................................................................................... 217

6.2.15 Global Virtual Network Service (GVNS) ................................................................................................. 219

6.2.16 Reverse charging (REV) ........................................................................................................................... 219

6.2.17 Void .......................................................................................................................................................... 222

6.2.18 Void .......................................................................................................................................................... 222

6.3 IMS Supplementary Services ......................................................................................................................... 222

6.3.1 Originating Identification Presentation (OIP) and Originating Identification Restriction (OIR) .............. 222

6.3.2 Terminating Identification Presentation (TIP) and Terminating Identification Restriction (TIR) ............ 247

6.3.3 Communication Diversion (CDIV) ........................................................................................................... 253

6.3.4 Conference call (CONF) ........................................................................................................................... 296

6.3.5 Message Waiting Indication (MWI) ......................................................................................................... 308

6.3.6 Malicious Communication Identification (MCID) ................................................................................... 308

6.3.7 Closed User Group (CUG) ....................................................................................................................... 312

6.3.8 Call Completion Services ......................................................................................................................... 318

6.3.9 Communication Waiting (CW) ................................................................................................................. 338

Annex A (informative): Bibliography ................................................................................................. 340

History ............................................................................................................................................................ 341

IPRs essential or potentially essential to the present document may have been declared to ETSI. The information

pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found

in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in

respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web

Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee

can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web

This Technical Specification (TS) has been produced by ETSI Technical Committee Core Network and Interoperability

The present document is part 2 of a multi-part deliverable covering SIP NNI - SIP-I Interworking described in the

In the present document "shall", "shall not", "should", "should not", "may", "may not", "need", "need not", "will",

"will not", "can" and "cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms

"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.

The present document specifies the Test Suite Structure and Test Purposes for SIP - SIP-I Interworking described in the

References are either specific (identified by date of publication and/or edition number or version number) or

non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the

Referenced documents which are not found to be publicly available in the expected location might be found at

NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee

The following referenced documents are necessary for the application of the present document.

[1] ETSI TS 129 235 (V10.1.0): "Digital cellular telecommunications system (Phase 2+); Universal

Mobile Telecommunications System (UMTS); LTE; Interworking between SIP-I based circuit-

switched core network and other networks (3GPP TS 29.235 version 10.1.0 Release 10) ".

[2] ETSI TS 129 163: "Digital cellular telecommunications system (Phase 2+); Universal Mobile

Telecommunications System (UMTS); LTE; Interworking between the IP Multimedia (IM) Core

Network (CN) subsystem and Circuit Switched (CS) networks (3GPP TS 29.163 Release 8)".

[3] ISO/IEC 9646-1: "Information technology - Open Systems Interconnection - Conformance testing

[4] Recommendation ITU-T T.38: "Procedures for real-time Group 3 facsimile communication over

[6] ETSI TS 101 572-1: "Core Network and Interoperability Testing (INT); Conformance tests

according to 3GPP 29.235 Release 10; Interworking between SIP-I based circuit-switched core

network and other networks; Part 1: Protocol Implementation Conformance Statement (PICS)".

The following referenced documents are not necessary for the application of the present document but they assist the

[i.1] Recommendation ITU-T E.164: "The international public telecommunication numbering plan".

For the purposes of the present document, the terms and definitions given in TS 129 235 [1] and the following apply:

For the purposes of the present document, the symbols given in TS 129 235 [1] apply.

For the purposes of the present document, the abbreviations given in TS 129 235 [1] and the following apply:

The Test Suite Structure is in close alignment with TS 129 235 [1] and TS 129 163 [2].

TPs are numbered, starting at 001, within each group. Groups are organized according to the TSS. Additional references

are added to identify the actual test suite and whether it applies to the network or the user (see table 5.1.1-1).

As the base standard TS 129 235 [1] and TS 129 163 [2] contains no explicit requirements for testing, the TPs were

generated as a result of an analysis of the base standard and the PICS specification TS 101 572-1 [6]. The criteria

The test purpose structure is according to the test suite structure (TSS). The Reference column in each Test Purpose

Ensure that on reception of a SIP-INVITE requesting a session, the I-MGCF sends a

Test Purpose Ensure that the Preconditions procedure is successful if the support of Precondition is

indicated in the Supported header. The INVITE with encapsulated IAM is immediately sent.

The Nature of connection indicator is set to 'continuity check performed on a previous

circuit' or 'continuity check required'. After the UPDATE was received, a UPDATE is sent

ISUP Parameter values IAM: Nature of connection indicator = 'continuity check performed on a previous circuit' or

Test Purpose Ensure that the Preconditions procedure is successful if the support of Precondition is

indicated in the Supported header. The INVITE with encapsulated IAM is sent after the

UPDATE was received. The Nature of connection indicator is set to 'continuity check is not

ISUP Parameter values IAM: Nature of connection indicator = 'continuity check is not required'

Test Purpose name Preconditions support indicated in the Supported header COT procedure supported

Test Purpose Ensure that the Preconditions procedure is successful if the support of Precondition is

indicated in the Supported header. The internal ISUP Continuity check procedure is not

connection indicator is set to 'COT to be expected'. After the UPDATE was received, an

Test Purpose Ensure that the Preconditions procedure is successful if the support of Precondition is

indicated in the Supported header. The INVITE with encapsulated IAM) is sent after the

ISUP Parameter values IAM: Nature of connection indicator = 'no COT to be expected'
