ASTM E1179-13(2019)

(Specification)

Standard Specification for Sound Sources Used for Testing Open Office Components and Systems

Standard Specification for Sound Sources Used for Testing Open Office Components and Systems

ABSTRACT
This specification states the requirements for sound sources used for measuring the speech privacy between open offices or for measuring the laboratory performance of acoustical components. The sound source shall be a loudspeaker enclosed in a box that has a maximum dimension of 0.30 m (1 ft) on a side, to reduce spurious sound reflections. The measurements shall be carried out in a free sound field. The measurement microphone, amplifier, and level meter used to measure sound pressure levels shall satisfy the requirements prescribed. When the sound source is driven with the qualification signal, the sound output shall be adequate to maintain one-third octave-band sound pressure levels at least 10 dB above the corresponding background noise in each band at each measurement location. The directivity of the sound source shall be verified by driving the source with the qualification signal and measuring the sound pressure levels at measurement points.
SCOPE
1.1 This specification states the requirements for sound sources used for measuring the speech privacy between open offices and for measuring the laboratory performance of acoustical components (see Test Methods E1111 and E1130).
1.2 The sound source shall be a loudspeaker located in an enclosure driven with an appropriate test signal.
1.3 This specification describes the sound source and method of qualifying it using a special qualification signal. Test signals required by open office test methods may differ.
1.4 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

Status
Published
Publication Date
31-Mar-2019
ICS
17.140.01 - Acoustic measurements and noise abatement in general
Technical Committee
E33 - Building and Environmental Acoustics
Drafting Committee
E33.02 - Speech Privacy
Current Stage
Ref Project

Relations

Replaces
ASTM E1179-13 - Standard Specification for Sound Sources Used for Testing Open Office Components and Systems
Effective Date
01-Apr-2019
Refers
ASTM E1050-19 - Standard Test Method for Impedance and Absorption of Acoustical Materials Using a Tube, Two Microphones and a Digital Frequency Analysis System
Effective Date
01-Oct-2019
Refers
ASTM C634-13 - Standard Terminology Relating to Building and Environmental Acoustics
Effective Date
01-Sep-2013
Refers
ASTM E1050-12 - Standard Test Method for Impedance and Absorption of Acoustical Materials Using a Tube, Two Microphones and a Digital Frequency Analysis System
Effective Date
01-Apr-2012
Refers
ASTM C634-11 - Standard Terminology Relating to Building and Environmental Acoustics
Effective Date
01-Dec-2011
Refers
ASTM C384-04(2011) - Standard Test Method for Impedance and Absorption of Acoustical Materials by Impedance Tube Method
Effective Date
01-Nov-2011
Refers
ASTM E1050-10 - Standard Test Method for Impedance and Absorption of Acoustical Materials Using A Tube, Two Microphones and A Digital Frequency Analysis System
Effective Date
01-Sep-2010
Refers
ASTM C634-10a - Standard Terminology Relating to Building and Environmental Acoustics
Effective Date
01-Sep-2010
Refers
ASTM C634-10 - Standard Terminology Relating to Building and Environmental Acoustics
Effective Date
01-Jun-2010
Refers
ASTM C634-09 - Standard Terminology Relating to Building and Environmental Acoustics
Effective Date
01-Apr-2009
Refers
ASTM E1130-08 - Standard Test Method for Objective Measurement of Speech Privacy in Open Plan Spaces Using Articulation Index
Effective Date
01-Sep-2008
Refers
ASTM C634-08a - Standard Terminology Relating to Building and Environmental Acoustics
Effective Date
01-Sep-2008
Refers
ASTM C634-08 - Standard Terminology Relating to Building and Environmental Acoustics
Effective Date
15-Mar-2008
Refers
ASTM E1050-08 - Standard Test Method for Impedance and Absorption of Acoustical Materials Using A Tube, Two Microphones and A Digital Frequency Analysis System
Effective Date
15-Jan-2008
Refers
ASTM E1050-07 - Standard Test Method for Impedance and Absorption of Acoustical Materials Using A Tube, Two Microphones and A Digital Frequency Analysis System
Effective Date
01-Dec-2007

Buy Standard

ASTM E1179-13(2019) - Standard Specification for Sound Sources Used for Testing Open Office Components and SystemsASTM E1179-13(2019) - Standard Specification for Sound Sources Used for Testing Open Office Components and Systems
PreviousNext
Technical specification
ASTM E1179-13(2019) - Standard Specification for Sound Sources Used for Testing Open Office Components and Systems
English language
3 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)


This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

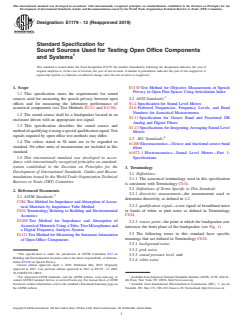

Designation:E1179 −13 (Reapproved 2019)
Standard Specification for
Sound Sources Used for Testing Open Office Components
and Systems
This standard is issued under the fixed designation E1179; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope E1130 Test Method for Objective Measurement of Speech
Privacy in Open Plan Spaces Using Articulation Index
1.1 This specification states the requirements for sound
sources used for measuring the speech privacy between open 2.2 ANSI Standards:
offices and for measuring the laboratory performance of S1.4 Specification for Sound Level Meters
acoustical components (see Test Methods E1111 and E1130). S1.6 Preferred Frequencies, Frequency Levels, and Band
Numbers for Acoustical Measurements
1.2 The sound source shall be a loudspeaker located in an
S1.11 Specification for Octave Band and Fractional OB
enclosure driven with an appropriate test signal.
Analog and Digital Filters
1.3 This specification describes the sound source and
S1.43 Specifications for Integrating-Averaging Sound Level
methodofqualifyingitusingaspecialqualificationsignal.Test
Meters
signals required by open office test methods may differ.
2.3 IEC Standards:
1.4 The values stated in SI units are to be regarded as
61260 Electroacoustics—Octave and fractional-octave band
standard. No other units of measurement are included in this
filters
standard.
61672–1 Electroacoustics—Sound Level Meters—Part 1:
1.5 This international standard was developed in accor-
Specifications
dance with internationally recognized principles on standard-
ization established in the Decision on Principles for the
3. Terminology
Development of International Standards, Guides and Recom-
3.1 Definitions:
mendations issued by the World Trade Organization Technical
3.1.1 The acoustical terminology used in this specification
Barriers to Trade (TBT) Committee.
is consistent with Terminology C634.
3.2 Definitions of Terms Specific to This Standard:
2. Referenced Documents
3.2.1 directivity measurement—the measurement used to
2.1 ASTM Standards:
determine directivity as defined in 4.2.
C384 Test Method for Impedance andAbsorption ofAcous-
3.2.2 qualification signal—a test signal of broadband noise
tical Materials by Impedance Tube Method
or bands of white or pink noise as defined in Terminology
C634 Terminology Relating to Building and Environmental
C634.
Acoustics
E1050 Test Method for Impedance and Absorption of
3.2.3 source point—the point at which the loudspeaker axis
Acoustical Materials Using aTube,Two Microphones and
intersects the front plane of the loudspeaker (see Fig. 1).
a Digital Frequency Analysis System
3.3 The following terms in this standard have specific
E1111 Test Method for Measuring the InterzoneAttenuation
meanings that are defined in Terminology C634:
of Open Office Components
3.3.1 background noise,
3.3.2 pink noise,
This specification is under the jurisdiction of ASTM Committee E33 on
3.3.3 sound pressure level, and
Building and Environmental Acoustics and is the direct responsibility of Subcom-
3.3.4 white noise
mittee E33.02 on Speech Privacy.
Current edition approved April 1, 2019. Published May 2019. Originally
approved in 1987. Last previous edition approved in 2013 as E1179 – 13. DOI:
10.1520/E1179-13R19.
2 3
For referenced ASTM standards, visit the ASTM website, www.astm.org, or Available from American National Standards Institute (ANSI), 25 W. 43rd St.,
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM 4th Floor, New York, NY 10036, http://www.ansi.org.
Standards volume information, refer to the standard’s Document Summary page on Available from International Electrotechnical Commission (IEC), 3, rue de
the ASTM website. Varembé, P.O. Box 131, CH-1211 Geneva 20, Switzerland, http://www.iec.ch.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
E1179−13 (2019)

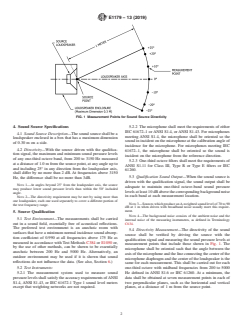

FIG. 1 Measurement Points for Sound Source Directivity
4. Sound Source Specifications 5.2.2 The microphone shall meet the requirements of either
IEC 61672–1 or ANSI S1.4, or ANSI S1.43. For microphones
4.1 Sound Source Description—The sound source shall be a
meeting ANSI S1.4, the microphone shall be oriented so the
loudspeaker enclosed in a box that has a maximum dimension
sound in incident on the microphone at the calibration angle of
of 0.30 m on a side.
incidence for the microphone. For microphones meeting IEC
4.2 Directivity—With the source driven with the qualifica-
61672–1, the microphone shall be oriented so the sound is
tion signal, the maximum and minimum sound pressure levels
incident on the microphone from the reference direction.
of any one-third octave band, from 200 to 3150 Hz measured
5.2.3 One-third octave filters shall meet the requirements of
at a distance of 1.0 m from the source point, at any angle up to
ANSI S1.11 for Class III, Type R or Type E filters or IEC
and including 25° in any direction from the loudspeaker axis,
61260.
shall differ by no more than 2 dB. At frequencies above 3150
5.3 Qualification
...
