Standards Content (Sample)

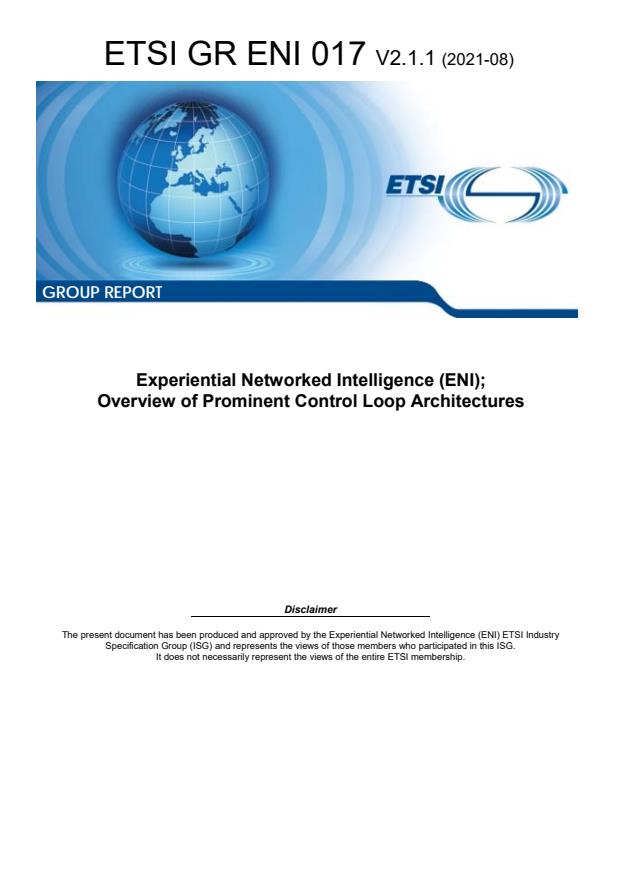

GROUP REPORT
Experiential Networked Intelligence (ENI);
Overview of Prominent Control Loop Architectures
Disclaimer
The present document has been produced and approved by the Experiential Networked Intelligence (ENI) ETSI Industry
Specification Group (ISG) and represents the views of those members who participated in this ISG.
It does not necessarily represent the views of the entire ETSI membership.

2 ETSI GR ENI 017 V2.1.1 (2021-08)

Reference
DGR/ENI-0027_ctrl_Loop_Arch
Keywords
cognition, control, design, software

ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
No representation or warranty is made that this deliverable is technically accurate or sufficient or conforms to any law
and/or governmental rule and/or regulation and further, no representation or warranty is made of merchantability or fitness
for any particular purpose or against infringement of intellectual property rights.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2021.
All rights reserved.
ETSI
3 ETSI GR ENI 017 V2.1.1 (2021-08)

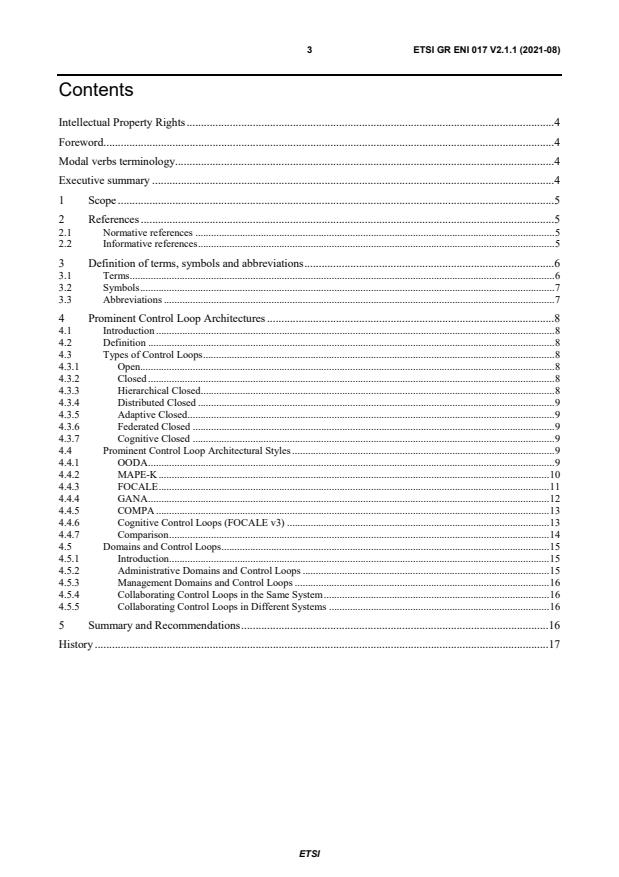

Contents
Intellectual Property Rights . 4
Foreword . 4
Modal verbs terminology . 4
Executive summary . 4
1 Scope . 5
2 References . 5
2.1 Normative references . 5
2.2 Informative references . 5
3 Definition of terms, symbols and abbreviations . 6
3.1 Terms . 6
3.2 Symbols . 7
3.3 Abbreviations . 7
4 Prominent Control Loop Architectures . 8
4.1 Introduction . 8
4.2 Definition . 8
4.3 Types of Control Loops . 8
4.3.1 Open. 8
4.3.2 Closed . 8
4.3.3 Hierarchical Closed. 8
4.3.4 Distributed Closed . 9
4.3.5 Adaptive Closed . 9
4.3.6 Federated Closed . 9
4.3.7 Cognitive Closed . 9
4.4 Prominent Control Loop Architectural Styles . 9
4.4.1 OODA . 9
4.4.2 MAPE-K . 10
4.4.3 FOCALE . 11
4.4.4 GANA . 12
4.4.5 COMPA . 13
4.4.6 Cognitive Control Loops (FOCALE v3) . 13
4.4.7 Comparison . 14
4.5 Domains and Control Loops . 15
4.5.1 Introduction. 15
4.5.2 Administrative Domains and Control Loops . 15
4.5.3 Management Domains and Control Loops . 16
4.5.4 Collaborating Control Loops in the Same System . 16
4.5.5 Collaborating Control Loops in Different Systems . 16
5 Summary and Recommendations . 16
History . 17

ETSI
4 ETSI GR ENI 017 V2.1.1 (2021-08)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its

Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the ®
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Foreword
This Group Report (GR) has been produced by ETSI Industry Specification Group (ISG) Experiential Networked
Intelligence (ENI).
Modal verbs terminology
In the present document "should", "should not", "may", "need not", "will", "will not", "can" and "cannot" are to be
interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
Executive summary
The present document specifies a high-level functional abstraction of the ENI System Architecture in terms of
Functional Blocks and External Reference Points. This includes describing how different classes of systems interact
with ENI. Processes, models, and detailed information are beyond the scope of the present document.

ETSI
5 ETSI GR ENI 017 V2.1.1 (2021-08)
1 Scope
The purpose of the present document is to provide information on prominent control loop architectures that can be used
in modular system design. This will be applied to the ENI reference system architecture (and any other applicable ETSI
reports and standards). The present document will emphasize control loops that are adaptive and cognitive.
2 References
2.1 Normative references
Normative references are not applicable in the present document.
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI GS ENI 005 (V2.1.1): "Experiential Networked Intelligence (ENI); System Architecture".
[i.2] Strassner, J., Agoulmine, N., Lehtihet, E.: "FOCALE - A Novel Autonomic Networking
Architecture", ITSSA Journal 3(1), 64-79, 2007.
[i.3] Boyd, J. R.: "The Essence of Winning and Losing", June, 1995.
[i.4] Strassner. J.C.: "Knowledge Representation, Processing, and Governance in the FOCALE
Autonomic Architecture", book chapter, 2011, Elsevier.
[i.5] Strassner, J.: "Policy-Based Network Management", Morgan Kaufman, ISBN 978-1558608597,
September 2003.
[i.6] MEF 78.1: "MEF Technical Specification: MEF Core Model", Strassner, J., editor, July 2020. .
NOTE: Available at https://www.mef.net/resources/mef-78-1-mef-core-model-mcm/.
[i.7] IBM® Autonomic Computing White Paper: "An architectural blueprint for autonomic
computing".
NOTE Available at https://www-03.ibm.com/autonomic/pdfs/AC%20Blueprint%20White%20Paper%20V7.pdf.
[i.8] Strassner, J., van der Meer, S., Won-Ki Hong, J.: "The design of an Autonomic Element for
managing emerging networks and services", International Conference on Ultra Modern
Telecommunications, 2009.
[i.9] Minsky, M.: "The Society of Mind", Simon and Schuster, New York, 1988.
[i.10] R. Mitchell, J. McKim: "Design by Contract, by Example", Addison-Wesley, 2001, ISBN
0201634600.
[i.11] S. van der Meer: "Architectural Artefacts for Autonomic Distributed Systems - Contract
Language", in 6th IEEE Workshop on Engineering of Autonomic and Autonomous Systems
(EASe), April 14-16, 2009.
ETSI
6 ETSI GR ENI 017 V2.1.1 (2021-08)
3 Definition of terms, symbols and abbreviations
3.1 Terms
For the purposes of the present document, the terms given in ETSI GS ENI 005 [i.1] and following apply:
abstraction: hiding of unnecessary details to focus on data and information that is relevant for defining a particular
concept or process
agent: computational process that implements the autonomous, communicating functionality of an application
architecture: set of rules and methods that describe the functionality, organization, and implementation of a system
cognition: process of understanding data and information and producing new data, information, and knowledge
• cognition model: computer model of how cognitive processes, such as comprehension, action, and prediction,
are performed and influence decisions
context: collection of measured and inferred knowledge that describe the environment in which an entity exists or has
existed
decision making: set of processes that result in the selection of a set of actions to take from among several alternative
possible actions
domain: collection of Entities that share a common purpose
NOTE 1: Each constituent Entity in a Domain is both uniquely addressable and uniquely identifiable within that
Domain. This is based on the definition of an MCMDomain in [i.6].
• administrative domain: Domain that employs a set of common administrative processes to manage the
behaviour of its constituent Entities. This is based on the definition in [i.6].
• management domain: Domain that uses a set of common Policies to govern its constituent Entities
NOTE 2: A Management Domain refines the notion of a Domain by adding three important behavioural features:
1) it defines a set of administrators that govern the set of Entities that it contains;
2) it defines a set of applications that are responsible for different governance operations, such as
monitoring, configuration, and so forth;
3) it defines a common set of management mechanisms, such as policy rules, that are used to govern
the behaviour of MCMManagedEntities contained in the MCMManagementDomain.
This is based on the definition of an MCMDomain in [i.6].
entity: object in the environment being managed that has a set of unique characteristics and behaviour
NOTE: Objects are represented by classes in an information model.
formal: study of (typically linguistic) meaning of an object by constructing formal mathematical models of that object
and its attributes and relationships
knowledge: analysis of data and information, resulting in an understanding of what the data and information mean:
NOTE: Knowledge represents a set of patterns that are used to explain, as well as predict, what has happened, is
happening, or is possible to happen in the future; it is based on acquisition of data, information, and skills
through experience and education.
• inferred knowledge: knowledge that was created based on reasoning, using evidence provided
ETSI
7 ETSI GR ENI 017 V2.1.1 (2021-08)
learning: process that acquires new knowledge and/or updates existing knowledge to optimize a function using sample
observations
logic: formal or informal language that evaluates a conclusion based on a set of premises
model: representation of the entities of a system, including their relationships and dependencies, using an established
set of rules and concepts:
• data model: representation of concepts of interest to an environment in a form that is dependent on data
repository, data definition language, query language, implementation language, and/or protocol
NOTE 1: This definition is taken from [i.6].
• information model: representation of concepts of interest to an environment in a form that is independent of
data repository, data definition language, query language, implementation language, and protocol
NOTE 2: This definition is taken from [i.6].
Model-Driven Engineering (MDE): approach in which models are central to all phases of the development and
implementation processes
ontology (for ENI): language, consisting of a vocabulary and a set of primitives, that enable the semantic
characteristics of a domain to be modelled
policy: set of rules that is used to manage and control the changing and/or maintaining of the state of one or more
managed objects
semantics: study of the meaning of something (e.g. a sentence or a relationship in a model)
situation: set of circumstances and conditions at a given time that may influence decision-making:
• situation awareness: perception of data and behaviour that pertain to the relevant circumstances and/or
conditions of a system or process, the comprehension of the meaning and significance of these data and
behaviours, and how processes, actions, and new situations inferred from these data and processes are likely to
evolve in the near future
3.2 Symbols
Void.
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
COM Control, Orchestration and Management
COMPA Control, Orchestration, Management, Policy and Analytics
DE Decision Element
ESB Enterprise Service Bus
FB Functional Block
FOCALE Foundation - Observe - Compare - Act - Learn - rEason
FSM Finite State Machine
GANA Generic Autonomic Networking Architecture ®
IBM International Business Machines
KP Knowledge Plane
MAPE Model-Analyse-Plan-Execute
MAPE-K Model-Analyse-Plan-Execute-Knowledge
MDE Model-Driven Engineering
ME Managed Element
ONIX Overlay Network for Information eXchange
OODA Observe-Orient-Decide-Act
XML eXtensible Markup Language
ETSI
8 ETSI GR ENI 017 V2.1.1 (2021-08)
4 Prominent Control Loop Architectures
4.1 Introduction
Most control loop architectures for adaptive and cognitive systems use both feedback (and feedforward) mechanisms.
These control loop signals play a critical role in not just stabilizing the system, but more importantly, providing
mechanisms for the system to learn experientially. For example, a simple feedback loop consists of taking past
interactions with the environment and combining them with current information to guide current and future interactions.
4.2 Definition
A control loop is a mechanism that senses the performance of an object or process being controlled to achieve desired
behaviour. ENI is concerned with different types of closed control loops, where the controlling action is dependent on
feedback from the object or process being controlled. In other words, closed loops use feedback to monitor and adjust
the behaviour of a system to achieve one or more goals.
4.3 Types of Control Loops
4.3.1 Open
An open control loop is a control loop whose controlling action is independent of the output of the object or process
being controlled. This type of control loop does not link the control action to the object or process being controlled (it
simply continues to apply the control action). This type of control loop will likely not be used in the ENI system.
4.3.2 Closed
A closed control loop is a control loop whose controlling action is dependent on feedback from the object or process
being controlled. This type of control loop measures the difference between the actual and desired values of a set of
variables to adjust a set of parameters to change the behaviour of the system to bring the actual value closer to that of
the desired value.
Figure 4.3.2-1: An Exemplary Closed Control Loop
4.3.3 Hierarchical Closed
A hierarchical closed control loop is a control loop that is organized in the form of a tree. This organization enables
different decisions to be made by different nodes in the tree. In general, there is a set of supervisory closed control loops
that allocate tasks to subordinate closed control loops. Each subordinate closed control loop performs its tasks and
returns its result to its superordinate closed control loop. Advanced examples enable one of a group of designated closed
control loops to take control of the hierarchy dependent on goals and the environment. This is an example of a
self-organizing hierarchical closed control loop.
ETSI
9 ETSI GR ENI 017 V2.1.1 (2021-08)
In general, the topmost closed control loop reasons about an abstract world model; its subordinate closed control loops
reason about increasingly more specific models, or portions of models.

Figure 4.3.3-1: An Exemplary Hierarchical set of Closed Control Loops
4.3.4 Distributed Closed
A distributed closed control loop is a closed control loop whose components are physically distributed among different
locations. Each component in a distributed closed control loop uses a message passing mechanism to communicate with
one or more other components of the distributed closed control loop.
4.3.5 Adaptive Closed
An adaptive closed control loop is a control loop whose controlling function adapts to the object or process being
controlled using parameter that are either unknown and/or vary over time. The parameters may be defined using a
model that defines the desired closed loop performance, or statistical analysis to build a mathematical model from
measured data.
4.3.6 Federated Closed
A federated closed control loop is a set of semi-autonomous closed control loops that use formal agreements to govern
their interaction and behaviour. This includes rules to admit new members of the federation, as well as rules governing
the visibility and types of information that can be shared with other members of the federation. Each closed control loop
operates on the same goal using its own local data. Decisions from each closed control loop are then aggregated and
published.
4.3.7 Cognitive Closed
Cognition is the process of understanding data and information and producing new data, information, and
...
