ETSI GR ENI 012 V1.1.1 (2022-03)

Experiential Networked Intelligence (ENI); Reactive In-situ Flow Information Telemetry

DGR/ENI-0022_Flow_Info_Tele

General Information

• Status: Not Published
• Technical Committee: ENI - Experiential Networked Intelligence
• Current Stage: 12 - Completion
• Due Date: 01-Apr-2022
• Completion Date: 07-Mar-2022

Standards Content (Sample)

GROUP REPORT
Experiential Networked Intelligence (ENI);
Reactive In-situ Flow Information Telemetry
Disclaimer
The present document has been produced and approved by the Experiential Networked Intelligence (ENI) ETSI Industry
Specification Group (ISG) and represents the views of those members who participated in this ISG.
It does not necessarily represent the views of the entire ETSI membership.

2 ETSI GR ENI 012 V1.1.1 (2022-03)

Reference
DGR/ENI-0022_Flow_Info_Tele
Keywords
artificial intelligence, network, telemetry

ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
No representation or warranty is made that this deliverable is technically accurate or sufficient or conforms to any law
and/or governmental rule and/or regulation and further, no representation or warranty is made of merchantability or fitness
for any particular purpose or against infringement of intellectual property rights.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2022.
All rights reserved.
ETSI
3 ETSI GR ENI 012 V1.1.1 (2022-03)

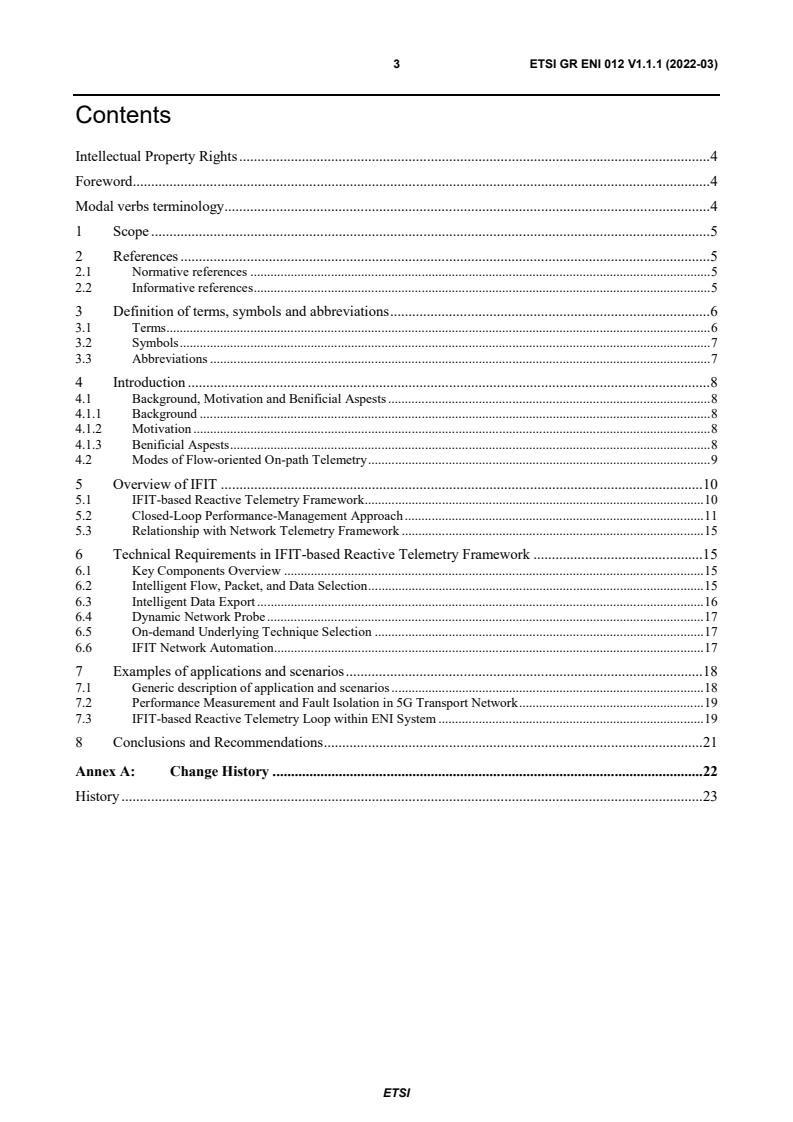

Contents
Intellectual Property Rights . 4
Foreword . 4
Modal verbs terminology . 4
1 Scope . 5
2 References . 5
2.1 Normative references . 5
2.2 Informative references . 5
3 Definition of terms, symbols and abbreviations . 6
3.1 Terms . 6
3.2 Symbols . 7
3.3 Abbreviations . 7
4 Introduction . 8
4.1 Background, Motivation and Benificial Aspests . 8
4.1.1 Background . 8
4.1.2 Motivation . 8
4.1.3 Benificial Aspests . 8
4.2 Modes of Flow-oriented On-path Telemetry . 9
5 Overview of IFIT . 10
5.1 IFIT-based Reactive Telemetry Framework . 10
5.2 Closed-Loop Performance-Management Approach . 11
5.3 Relationship with Network Telemetry Framework . 15
6 Technical Requirements in IFIT-based Reactive Telemetry Framework . 15
6.1 Key Components Overview . 15
6.2 Intelligent Flow, Packet, and Data Selection . 15
6.3 Intelligent Data Export . 16
6.4 Dynamic Network Probe . 17
6.5 On-demand Underlying Technique Selection . 17
6.6 IFIT Network Automation . 17
7 Examples of applications and scenarios . 18
7.1 Generic description of application and scenarios . 18
7.2 Performance Measurement and Fault Isolation in 5G Transport Network . 19
7.3 IFIT-based Reactive Telemetry Loop within ENI System . 19
8 Conclusions and Recommendations . 21
Annex A: Change History . 22
History . 23

ETSI
4 ETSI GR ENI 012 V1.1.1 (2022-03)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its

Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the ®
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Foreword
This Group Report (GR) has been produced by ETSI Industry Specification Group (ISG) Experiential Networked
Intelligence (ENI).
Modal verbs terminology
In the present document "should", "should not", "may", "need not", "will", "will not", "can" and "cannot" are to be
interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.

ETSI
5 ETSI GR ENI 012 V1.1.1 (2022-03)
1 Scope
The present document describes the motivation, issues, and challenges of using flow-oriented on-path telemetry
techniques which provide relevant measurement or event reports to the AI-enabled network entities.
The present document outlines a reference framework, named as "In-situ Flow Information Telemetry (IFIT)" and
identifies technical issues, including modes of flow-oriented on-path telemetry; IFIT-based reactive telemetry
framework and technical issues, including intelligent flow and packet selection, intelligent data export, dynamic
network probe, on-demand underlying technique selection.
2 References
2.1 Normative references
Normative references are not applicable in the present document.
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] IETF RFC 7276 (June 2014): "An Overview of Operations, Administration, and Maintenance
(OAM) Tools".
[i.2] IETF RFC 4443 (March 2006): "Internet Control Message Protocol (ICMPv6) for the Internet
Protocol Version 6 (IPv6) Specification".
[i.3] IETF RFC 5880 (June 2010): "Bidirectional Forwarding Detection (BFD)".
[i.4] IETF RFC 7799 (May 2016): "Active and Passive Metrics and Methods (with Hybrid Types
In-Between)".
[i.5] IETF RFC 4656 (September 2006): "A One-way Active Measurement Protocol (OWAMP)".
[i.6] IETF RFC 5357 (October 2008): "A Two-Way Active Measurement Protocol (TWAMP)".
[i.7] IETF RFC 7011 (September 2013): "Specification of the IP Flow Information Export (IPFIX)
Protocol for the Exchange of Flow Information".
[i.8] IETF RFC 8321 (January 2018): "Alternate-Marking Method for Passive and Hybrid Performance
Monitoring".
[i.9] draft-ietf-ippm-ioam-data (June 2021): "Data Fields for In-situ OAM".
[i.10] IETF draft-ietf-ippm-ioam-direct-export (August 2021): "In-situ OAM Direct Exporting".
[i.11] IETF RFC 8889 (August 2020): "Multipoint Alternate-Marking Method for Passive and Hybrid
Performance Monitoring".
[i.12] IETF draft-song-opsawg-ifit-framework (work in progress): "In-situ Flow Information Telemetry".
ETSI
6 ETSI GR ENI 012 V1.1.1 (2022-03)
[i.13] Bo Lu, Ling Xu, Yuezhong Song, Longfei Dai, Min Liu, Tianran Zhou, Zhenbin Li and Haoyu
Song: "IFIT: Intelligent Flow Information Telemetry". In Proceedings of the ACM SIGCOMM
2019 Conference Posters and Demos (SIGCOMM Posters and Demos '19). Association for
Computing Machinery, New York, NY, USA, p15-17.
NOTE: Available at https://doi.org/10.1145/3342280.3342292.
[i.14] ETSI GR ENI 009 (V1.1.1): "Experiential Networked Intelligence (ENI); Definition of Data
Processing Mechanisms".
[i.15] IETF RFC 8639 (September 2019): "Subscription to YANG Notifications".
[i.16] IETF RFC 8640 (September 2019): "Dynamic Subscription to YANG Events and Datastores over
NETCONF".
[i.17] IETF RFC 8641 (September 2019): "Subscription to YANG Notifications for Datastore Updates".
[i.18] IETF RFC 8650 (November 2019): "Dynamic Subscription to YANG Events and Datastores over
RESTCONF".
[i.19] draft-ietf-ippm-ioam-yang (work in progress): "A YANG Data Model for In-Situ OAM".
[i.20] IETF RFC 7950 (August 2016): "The YANG 1.1 Data Modeling Language".
[i.21] IETF RFC 6241 (June 2011): "Network Configuration Protocol (NETCONF)".
[i.22] IETF RFC 8040 (January 2017): "RESTCONF Protocol".
[i.23] draft-ietf-idr-sr-policy-ifit: "BGP SR Policy Extensions to Enable IFIT".
[i.24] draft-chen-pce-pcep-ifit (work in progress): "Path Computation Element Communication Protocol
(PCEP) Extensions to Enable IFIT".
[i.25] ETSI GS ENI 005 (V2.1.1): "Experiential Networked Intelligence (ENI); System Architecture".
[i.26] IETF RFC 5475 (March 2009): "Sampling and Filtering Techniques for IP Packet Selection".
[i.27] Shuping Peng, Jianwei Mao, Ruizhao Hu and Zhenbin Li: "Demo Abstract: APN6: Application-
aware IPv6 Networking", IEEE INFOCOM 2020.
3 Definition of terms, symbols and abbreviations
3.1 Terms
For the purposes of the present document, the following terms apply:
flow-oriented on-path telemetry: specific class of network forwarding-plane telemetry techniques, including In-situ
OAM (IOAM), Enhanced Alternate Marking (EAM), Postcard-Based Telemetry (PBT), and Hybrid Two Steps (HTS)
In-situ Flow Information Telemetry (IFIT): network OAM data plane on-path telemetry techniques, including
In-situ OAM (IOAM), Direct Exporting (DEX IOAM (IOAM-DEX), Postcard-Based Telemetry (PBT), and Alternate
Marking
NOTE 1: It can provide flow information on the entire forwarding path on a per-packet basis in real time. "In-situ"
is Latin which can be translated as "in the original place".
NOTE 2: See IETF RFC 8321 [i.8].
reactive telemetry: telemetry operation in a dynamic and interactive fashion
ETSI
7 ETSI GR ENI 012 V1.1.1 (2022-03)
3.2 Symbols
Void.
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
ACL Access Control List
AMF Access and Mobility Management Function
AMM Enhanced Alternate Marking Method
API Application Programming Interface
APN APplication-aware Network
ASG Aggregation Site Gateway
BFD Bidirectional Forwarding Detection
BGP Border Gateway Protocol
BUM Broadcast, Unknown-Unicast and Multicast
DEX Direct Exporting
DNP Dynamic Network Probes
E2E End-to-End
EAM Enhanced Alternate Marking
ECMP Equal-Cost Multipath
ENI Experiential Networked Intelligence
GPB Google Protocol Buffer
GPRS General Packet Radio Service
GTP GPRS Tunnelling Protocol
HD High-Definition
HTS Hybrid Two Steps
IFIT In-situ Flow Information Telemetry
IOAM In-situ OAM
IP Internet Protocol
IPFIX IP Flow Information eXport
IPFPM IP Flow Performance Measurement
IPPM IP Performance Measurement
MDT Model Driven Telemetry
NBI North Bound Interface
NMS Network Management System
NP Network Processor
OAM Operation, Administration and Maintenance
OTT Over The Top
OWAMP One-Way Active Measurement Protocol
PBT Postcard-Based Telemetry
PCEP Path Computation Element communication Protocol
PM Performance Management
RSG Radio Service Gateway
SBI South Bound Interface
SCTP Stream Control Transmission Protocol
SDN Software-Defined Network
SD-WAN Software-defined WAN
SLA Service Level Agreement
SR Segment Routing
TM Traffic Manager
TWAMP Two-Way Active Measurement Protocol
UPF User Plane Function
VPN Virtual Private Network
WAN Wide Area Network
WG Working Group
YANG Yet Another Next Generation
ETSI
8 ETSI GR ENI 012 V1.1.1 (2022-03)
4 Introduction
4.1 Background, Motivation and Benificial Aspests
4.1.1 Background
This clause presents background and deployment challenges of flow-oriented on-path telemetry, as well as the
components of a reference framework.
As introduced in ETSI GS ENI 005 [i.25], current network management and performance measurement functions are
not optimized due to the different technologies and implementations from different vendors. The human-machine
interaction challenges increase the time to market of innovative and advanced services (including the new performance
management tools).
In-situ Flow Information Telemetry (IFIT) is a family of hybrid data-plane telemetry technologies, through which the
flow quality measurement information is directly recorded and encapsulated in data packets to implement flow quality
visualization at a granularity of each data packet. This flow quality measurement information that may be carried on a
complete forwarding path in real time at a per-packet granularity may include device and interface information as well
as a nanosecond-precision cache time of a packet in each network device as well as identification contention queue flow
information. In-situ flow information telemetry technologies include e.g. In-situ OAM (IOAM) [i.9], IOAM Direct
Exporting (IOAM-DEX) [i.10], and Alternate Marking Method (AMM) [i.8]. This family of In-situ flow information
telemetry technologies are currently defined by IETF.
4.1.2 Motivation
Currently there is no efficient and extensible standard-based mechanism to provide smart, context-aware and flexible
performance management. In addition, Performance Measurement tools should adapt to variations in network
conditions, changes in user needs and business goals. All this will be possible by using In-situ flow information
telemetry techniques. Moreover, this approach further enables the use of real-time closed control loops and also helps to
optimize network resources through the use of automation and smart application of network monitoring. Network
intelligence allows to start without examining in depth and, if there are problems in some network portions these are
detected. Then, it can be possible to determine which parts of the network are affected and start an in-depth analysis
only where and when is necessary. The resulting telemetry information can be used to understand what is going on and
to eventually try to solve it in order to maintain Service Level Agreements (SLAs).
ETSI GS ENI 005 [i.25] defines a Functional Block architecture that helps to address the application of In-situ flow
information telemetry. The experiential architecture and self-learning principle are key to implement a smart, context-
aware and flexible performance management.
4.1.3 Benificial Aspests
Efficient network OAM increasingly depends on high-quality visualization of network data plane quality. Traditional
OAM technologies are widely used, including network fault detection, network fault isolation, network fault reporting,
and network performance measurement, IETF RFC 7276 [i.1]. For example, traditional IP Ping, IETF RFC 4443 [i.2]
and Bidirectional Forwarding Detection (BFD), IETF RFC 5880 [i.3] are used for connectivity detection. According to
IETF RFC 7799 [i.4], performance measurement can be classified into three types, aka active performance
measurement, passive performance measurement, and hybrid performance measurement. For example, Two-Way
Active Measurement Protocol (TWAMP), IETF RFC 5357 [i.6], is a typical active performance measurement method
that operates by injecting proactive probe packets to measure the loss and delay.
ETSI
9 ETSI GR ENI 012 V1.1.1 (2022-03)
Different from active performance measurement, passive performance measurement directly monitors data flows
without sending additional probe packets or modifying data packets. For example, the IP Flow Information eXport
(IPFIX) protocol [i.7] may transmit IP data flow statistics from a device to a collector by using a pre-defined data output
format. In addition, hybrid performance measurement combines active performance measurement and passive
performance measurement to modify certain fields of data packets without introducing additional probe packets to the
network. For example, IP Flow Performance Measurement (IPFPM) [i.8] directly monitors real data flows by colouring
data packets, which is a typical hybrid performance measurement technology. Because the hybrid performance
measurement method does not introduce additional probe packets, the accuracy of the performance measurement can be
equal to that of the passive measurement.
Traditional network performance measurement technologies (such as TWAMP [i.6] and IPFIX [i.7]) cannot meet the
requirements of high-precision and real-time network performance monitoring. A new measurement technology is
required to meet the requirements of future network and service development. In addition, intelligence has become the
developing trend of network. The new APplication-aware Network (APN) [i.27] architecture describes the ability of the
network to acquire and manage current information about users and applications. This information can be used to
optimize the use of network resources and improve the quality of service. In addition, the emerging In-situ Flow
Information Telemetry (IFIT) technologies provide high-precision visualization of flow quality (such as jitter, delay,
packet loss).
Although In-situ flow information telemetry is beneficial, it is to be addressed in the following practical deployment
challenges. First, In-situ flow information telemetry incurs extra packet processing which may cause stress on the
network data plane. The potential impact on the forwarding performance creates an unfavourable "observer effect". For
example, the growing IOAM data per hop can negatively affect service levels by increasing the serialization delay and
header parsing delay. Second, In-situ flow information telemetry can generate a considerable amount of data which may
consume too much transport bandwidth and the servers used for data collection, storage, and analysis, may collapse. For
example, if IOAM is applied to all the traffic, one node may collect a few tens of bytes as telemetry data per packet.
Third, as the network operation evolves to be fully automated, and the trends of network virtualization and packet-
optical integration continue, more data is needed in an on-demand and interactive fashion. Flexibility and extensibility
on data defining, aggregation, acquisition, and filtering, is to be considered. Lastly, as applying only a single underlying
in-situ flow information telemetry technique may lead to a defective result, for example, packet drop can cause the loss
of the flow telemetry data. Therefore, the reason why the packet drop has occurred remains unknown if only the IOAM
trace option [i.9] is used. As such, a comprehensive solution needs the flexibility to switch between different underlying
techniques and adjust the configurations and parameters at runtime. Hence, system-level management is needed.
The present document provides an IFIT-based reactive Telemetry framework, which addresses the aforementioned
handicaps for deployment. By following this framework, an effectively and implementable automatic data flow quality
measurement scheme for data flow becomes possible. IFIT-based reactive Telemetry framework requires intelligent
flow selection, efficient data handling, dynamic network probe, and tunnel encapsulation to enable on-demand network
performance measurement.
4.2 Modes of Flow-oriented On-path Telemetry
This clause lists various telemetry techniques in the category of flow-oriented on-path telemetry, such as In-situ OAM
(IOAM) [i.9], IOAM Direct Exporting (IOAM-DEX) [i.10], Alternate Marking Method (AMM) [i.8], and classifies
various modes of flow-oriented on-path telemetry in accordance to IETF RFC 7799 [i.4].
Traditional OAM technologies are widely used in network OAM and management, including network fault detection,
network fault isolation, network fault reporting, and network performance detection. According to IETF
RFC 7799 [i.4], performance measurement can be classified into three types: active performance measurement, passive
performance measurement, and hybrid performance measurement.
In proactive performance measurement, probe packets are sent on the network, and the network performance is deduced
by measuring the probe packets. Active performance measurement methods, such as IP Ping [i.2], Bidirectional
Forwarding Detection (BFD) [i.3], One-Way Active Measurement Protocol (OWAMP) [i.5], and Two-Way Active
Measurement Protocol (TWAMP) [i.6].
Different from active performance measurement, passive performance measurement obtains performance parameters by
directly monitoring service data flows. No additional detection packets are sent or service packets need to be modified.
Therefore, the performance can be accurately and accurately reflected. Passive performance measurement methods,
such asIP Flow Information Export (IPFIX) [i.7], which is a statistical and output standard for IP data flows. IP data
flow statistics can be transmitted from one output to the collector through a defined data output format.
ETSI
10 ETSI GR ENI 012 V1.1.1 (2022-03)
Hybrid performance measurement is a combination of active performance measurement and passive performance
measurement. It does not need to send additional probe packets on the network. Instead, it only needs to modify some
fields of service packets to measure network performance. Because the hybrid performance measurement method does
not introduce additional active measurement packets, the accuracy of the performance measurement can be equal to that
of the passive measurement, hybrid performance measurement methods, such as IOAM [i.9], IOAM-DEX [i.10],
Alternate Marking [i.8], which directly monitors real data flows by inserting instruction header or colouring data
packets.
5 Overview of IFIT
5.1 IFIT-based Reactive Telemetry Framework
As a hybrid performance measurement technology, the IFIT technology provides high-precision visualization of flow
quality and real-time network fault alarms (such as jitter, delay, packet loss) to meet the requirements for
high-performance network quality measurement in the future. IFIT encapsulates flow quality measurement information
into user data packets to implement real-time and per-packet flow quality measurement.
Figure 1 shows an IFIT-based reactive telemetry framework, which includes Application and Management System,
Controller, and IFIT-enabled forwarding devices.

Figure 1: IFIT-based Reactive Telemetry Framework
As shown in the IFIT-based reactive telemetry framework, to meet the measurement requirements of different
applications, multiple data-plane measurement technologies and data exporting technologies can be flexibility
integrated to provide comprehensive performance information for network OAM. For example, for different types of
information data, IOAM or Alternate Marking may be selected to collect information. In addition, switching from the
IOAM mode [i.9] to the IOAM-DEX mode [i.10] for fault location. After the telemetry data is processed and analysed,
the analysing results may be used to instruct the controller to modify a configuration of a node in the IFIT domain for
adjusting data collected by the IFIT. Therefore, the process may be dynamic and interactive.
The IFIT domain can cross multiple network domains. The nodes that enter and leave the IFIT domain are called the
Head Node and End Node. The ingress node is responsible for encapsulating the IFIT instruction header into data
packets. All nodes in the IFIT domain can perform the specified IFIT function. The end node is to be able to capture all
packets with IFIT headers and metadata, remove the IFIT headers and IFIT metadata to ensure that any data packet with
IFIT-specific headers and metadata does not leak out of the IFIT domain, and then forward them out of the IFIT field.
ETSI
11 ETSI GR ENI 012 V1.1.1 (2022-03)
In the IFIT-based Reactive Telemetry Framework shown in Figure 1, each functional components are as follows:
a) The Application and Management System is responsible for inputting OAM measurement intent and
displaying measurement analysis results. On the one hand, the intent of network quality measurement from
service applications and OAM systems is received, converted into network configuration policies, and
delivered to the controller. The IFIT network configuration policy generated by the application and
management system, which includes information such as a specified flow object to be measured, a
performance indicator to be collected, and a test data exporting mode (passport mode or postcard mode). On
the other hand, the application and management system receives IFIT quality measurement data and analysis
results from the collector and analyser, then displays the results in a visualized manner.
b) The Controller consists of two functional components: Configuration and Control, Collector and Analyzer.
The network configuration function module receives network configuration policies delivered by the
application and management system, converts the policies into network device configuration for performance
measurement, and delivers the instructions to network forwarding devices to enable the IFIT function. The
collector and analyser receives and stores measurement data exported from network devices, then analyses and
processes the data, such as fault location and performance deterioration alarm. At the same time, relevant
measurement data and analysis results are reported to the application and management system.
c) An IFIT-enabled forwarding devices perform in-band flow quality measurement at the granularity of data
packets in the IFIT domain. Based on the roles of the IFIT function, IFIT-enabled nodes (devices) are
classified into the following roles:
- The IFIT Head Node is responsible for adding an IFIT instruction header to a data packet of a specified
flow object. The instruction header specifies the information to be measured in inband mode.
- IFIT Transit Node, which identifies IFIT-enabled data flow packets, parses IFIT instruction header, and
collects measurement data based on the IFIT instruction. Then the data collected in the transit node is
stored in data packets or directly exported to the controller as required.
- IFIT End Node identifies IFIT-enabled data flow packets, decapsulates IFIT headers, removes IFIT
instruction headers, and extracts the quality measurement data carried in the data packet to the controller.
Then end nodes forward the data packet.
d) The South Bound Interface (SBI), which is the interface used by the Controller to configure and collect
telemetry data (e.g. OAM results, statistics, states, etc.) from the network nodes.
5.2 Closed-Loop Performance-Management Approach
This clause discusses relevant mechanisms to apply the Closed-Loop approach of the Reactive In-situ Flow Information
Telemetry. In particular it is reported how this approach has been introduced in some relevant documents in IETF IPPM
WG (e.g. IETF RFC 8321 [i.8] and IETF RFC 8889 [i.11]) to enable flexible and adaptive performance measurement.
IETF RFC 8321 [i.8] applies to point-to-point unicast flows and BUM traffic, while in general it is defined the
Clustered Alternate-Marking method that is valid for multipoint-to-multipoint unicast flows, anycast and ECMP flows.
Therefore, the Alternate-Marking method can be extended to any kind of multipoint-to-multipoint paths, and the
network-clustering approach is the formalization of how to implement this property and allow a flexible and optimized
performance measurement support for network management in every situation.
Without network clustering, it is possible to apply Alternate Marking only for all the network or per single flow.
Instead, with network clustering, it is possible to use the partition of the network into clusters at different levels in order
to perform the needed degree of detail. In some circumstances, it is possible to monitor a multipoint network by
analysing the network clustering, without examining in depth. In case of performance degradation, the filtering criteria
could be specified more in order to perform a detailed analysis by using a different combination of clusters up to a
per-flow measurement as described in IETF RFC 8321 [i.8].
This approach fits very well with the Closed-Loop Network and Software-Defined Network (SDN) paradigm, where the
SDN orchestrator and the SDN controllers are the brains of the network and can manage flow control to the switches
and routers and, in the same way, can calibrate the performance measurements depending on the desired accuracy. An
SDN controller application can orchestrate how accurately the network performance monitoring is set up by applying
the Multipoint Alternate Marking as described in the present document.
ETSI
12 ETSI GR ENI 012 V1.1.1 (2022-03)
The monitoring network can be considered as a whole or split into clusters that are the smallest subnetworks (group-to-
group segments), maintaining the packet-loss property for each subnetwork. The Network Clusters partition divides the
Network Graph into the smallest subnetworks called Clusters. These Clusters can be combined and used at different
levels to perform the needed degree of detail.
A possible algorithm for Cluster partition is a two-step algorithm (Iterative clustering algorithm):
1) Group the links where there is the same starting node.
2) Join the grouped links with at least one ending node in common.

Figure 2: Example of the Iterative cluster algorithm for Cluster partition
The complete Alternate Marking framework is presented in IETF RFC 8889 [i.11].
Packet Loss can be measured on Cluster basis or by considering a combination of Clusters; and the borderline cases of
single flows and whole network.
Delay measurements can be done in different ways:
• multipoint path basis measurement: the delay value is representative of an entire multipoint path (and clusters).
The mean delay for a multipoint path can be defined;
• single packet basis measurement: the multipoint path is used just to easily couple packets between inputs and
output nodes of a multipoint path. Hashing (IETF RFC 5475 [i.26]) and Multipoint Alternate Marking are
coupled in this case. Clusters simplify the correlation of the hash samples from a topological point of view in
terms of space, while Marking method anchor the samples to a specific period and simplify the correlation in
terms of time.
By using these techniques, an SDN controller or a Network Management System (NMS) can calibrate performance
measurements, since they are aware of the network topology. They can start without examining in depth. In case of
necessity (packet loss is measured or the delay is too high), the filtering criteria could be immediately reconfigured in
order to perform a partition of the network by using clusters and/or different combinations of clusters. In this way, the
problem can be localized in a specific cluster or a single combination of clusters, and a more detailed analysis can be
performed step by step by successive approximation up to a point-to-point flow detailed analysis. This is the so-called
"closed loop".
This approach can be called "network zooming" and can be performed in two different ways:
1) change the traffic filter and select more detailed flows;
2) activate new measurement points by defining more specified clusters.
ETSI
13 ETSI GR ENI 012 V1.1.1 (2022-03)
The next figures show a possible network to monitor and a possible application of the "network zooming" approach.

Figure 3: Example of network to monitor
In the beginning everything is good: Packet Loss = 0 and Delay/Jitter less than SLA values. The counters are activated
only at the edge nodes.
Figure 4: The full network is ok and is not experiencing losses
A Packet Loss event may be measured for the Full Network.

Figure 5: The full network is experiencing the loss of one packet
The next step is to configure Clusters Partition and locate which Cluster has the problem. The 4 Clusters are identified
by applying the algorithm described before.
ETSI
14 ETSI GR ENI 012 V1.1.1 (2022-03)

Figure 6: Cluster partition of the network

Figure 7: Identification of the Cluster where there is the loss
Finally, through more specific traffic filter, the fault is identified.

Figure 8: Identification of the link where the fault is present
Note that the network-zooming approach implies that some filters or rules are changed and that therefore there is a
transient time to wait once the new network configuration takes effect. This time can be determined by the Network
Orchestrator/Controller, based on the network conditions.
The Multipoint Alternate-Marking framework that is introduced in IETF RFC 8889 [i.11] adds flexibility to
Performance Management (PM), because it can reduce the order of magnitude of the packet counters. This allows an
SDN orchestrator to supervise, control, and manage PM in large networks.
The documents [i.12] and [i.13] define an architecture where the centralized Data Collector and Network Management
can apply the intelligent and flexible Alternate-Marking algorithm as previously described.
As for IETF RFC 8321 [i.8], it is possible to classify the traffic and mark a portion of the total traffic. For each period,
the packet rate and bandwidth are calculated from the number of packets. In this way, the network orchestrator becomes
aware if the traffic rate surpasses limits. In addition, more precision can be obtained by reducing the marking period;
indeed, some implementations use a marking period of 1 sec or less.
ETSI
15 ETSI GR ENI 012 V1.1.1 (2022-03)
It is important to mention that the Multipoint Alternate Marking framework also helps Traffic Visualization. Indeed,
this methodology is very useful for identifying which path or cluster is crossed by the flow.
5.3 Relationship with Network Telemetry Framework
Clause 5.4.3.3.1 in ETSI GR ENI 009 [i.14] introduces a Network Telemetry framework. This framework integrates
multiple telemetry and data collection approaches, which allows flexible combinations for different telemetry data
acquisition from different applications. As defined in ETSI GR ENI 009 [i.14], the components of the network
telemetry framework include Data Source, Configuration, Telemetry Collector and Database, and Telemetry Data User.
IFIT-based Reactive Telemetry fits in the category of forwarding-plane telemetry and deals with the specific on-path
technical branch of the forwarding-plane telemetry. The key functional components of IFIT-based reactive telemetry
also match the components in Network Telemetry. "Intelligent Flow, Packet, and Data Selection" is responsible for
realizing the quality measurement of specific flows/packets/data according to specific service requirements, matching
the "Configuration" component. "Intelligent Data Export" is responsible to improve the transmission efficiency of
collected information, matching the "Telemetry Collector and Database" component. "Dynamic Network Probe" is
designed to flexibly obtain customized measurement information and improve the efficiency of network quality
measurement, matching the "Data Source" component. "On-demand Underlying Technique Selection" is responsible to
select various telemetry methods to realize different metrics measurement, matching the "Telemetry Data User"
component.
6 Technical Requirements in IFIT-based Reactive
Telemetry Framework
6.1 Key Components Overview
As shown in the IFIT-based reactive telemetry framework, the key components of IFIT are as follows:
1) Intelligent flow, packet, and data selection component realizes the quality measurement of specific
flows/packets/data according to specific service requirements.
2) Intelligent data export component is based on de-redundancy and high-efficiency compression technology to
improve the transmission efficiency of collected information.
3) Dynamic network probe can flexibly obtain customized measurement information and improve the efficiency
of network quality measurement by deploying programmable hardware or software probes.
4) On-demand underlying technique selection component realizes different information measurement in different
scenarios.
5) IFIT Network Automation mechanisms for the South Bound Interface (SBI), which is the interface used by the
Controller to configure and collect telemetry data (e.g. OAM results, statistics, states, etc.) from the network
nodes.
6.2 Intelligent Flow, Packet, and Data Selection
Network quality measurement such as IFIT will inevitably increase the consumption of network bandwidth, and cause
an impact on forwarding performance. It is impractical to enable IFIT for all flows or packets in the network. Therefore,
it is necessary to select some specific service flows, packets or data according to service or operation and maintenance
requirements.
ETSI
16 ETSI GR ENI 012 V1.1.1 (2022-03)
In the data plane, the Access Control List (ACL) provides a method to identify and select flows. For specific service,
the sampling
...
