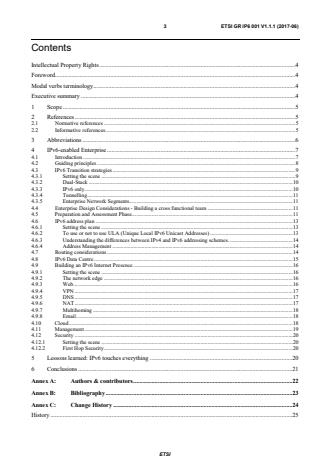

Contents
Intellectual Property Rights . 4
Foreword . 4
Modal verbs terminology . 4
Executive summary . 4
1 Scope . 5
2 References . 5
2.1 Normative references . 5
2.2 Informative references . 5
3 Abbreviations . 6
4 IPv6-enabled Enterprise . 7
4.1 Introduction . 7
4.2 Guiding principles . 8
4.3 IPv6 Transition strategies . 9
4.3.1 Setting the scene . 9
4.3.2 Dual-Stack . 10
4.3.3 IPv6 only . 10
4.3.4 Tunnelling . 11
4.3.5 Enterprise Network Segments. 11
4.4 Enterprise Design Considerations - Building a cross functional team . 11
4.5 Preparation and Assessment Phase . 11
4.6 IPv6 address plan . 13
4.6.1 Setting the scene . 13
4.6.2 To use or not to use ULA (Unique Local IPv6 Unicast Addresses) . 13
4.6.3 Understanding the differences between IPv4 and IPv6 addressing schemes. . 14
4.6.4 Address Management . 14
4.7 Routing considerations . 14
4.8 IPv6 Data Centre . 15
4.9 Building an IPv6 Internet Presence . 16
4.9.1 Setting the scene . 16
4.9.2 The network edge . 16
4.9.3 Web . 16
4.9.4 VPN . 17
4.9.5 DNS . 17
4.9.6 NAT . 17
4.9.7 Multihoming . 18
4.9.8 Email . 18
4.10 Cloud . 18
4.11 Management . 19
4.12 Security . 20
4.12.1 Setting the scene . 20
4.12.2 First Hop Security . 20
5 Lessons learned: IPv6 touches everything . 20
6 Conclusions . 21
Annex A: Authors & contributors . 22
Annex B: Bibliography . 23
Annex C: Change History . 24
History . 25

ETSI
4 ETSI GR IP6 001 V1.1.1 (2017-06)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (https://ipr.etsi.org/).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
Foreword
This Group Report (GR) has been produced by ETSI Industry Specification Group (ISG) IPv6 Integration (IP6).
Modal verbs terminology
In the present document "should", "should not", "may", "need not", "will", "will not", "can" and "cannot" are to be
interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
Executive summary
The present document outlines the motivation for the deployment of IPv6 within enterprises, the objectives, the
benefits, the risks, the challenges, the technology guidelines, the different choices that arise when designing IPv6-only
or dual-stack enterprise network, step-by-step process, the addressing plan, and the milestones.
With the growing number of users and the proliferation of smart devices and things, IPv4 address space exhaustion is a
major Information and Communications Technology (ICT) issue. The current IPv4-based Internet can no longer
sustain the explosive growth of ICT. Any organization that relies on the Internet to any extent need to be prepared,
need to support IPv6. The move to IPv6 is inevitable, there is no alternative plan at this time. IPv6 is the cornerstone of
our connected society. IPv6 offers important business and technical advantages. While all/most existing IPv4-based
infrastructures will continue to work after the last IPv4 address is issued, enterprises may be tempted to put off
transitioning to IPv6 till some later date. However postponing the inevitable can put an enterprise at a competitive
disadvantage. The present document provides guidelines and recommendations on IPv6 deployment in the enterprise.

ETSI
5 ETSI GR IP6 001 V1.1.1 (2017-06)
1 Scope
The present document outlines the motivation for the deployment of IPv6 in enterprises, the objectives, the benefits, the
risks, the challenges, the technology guidelines, the different choices that arise when designing IPv6-only or dual-stack
enterprise network, step-by-step process, the addressing plan, and the milestones.
2 References
2.1 Normative references
Normative references are not applicable in the present document.
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] IETF RFC 1918: "Address Allocation for Private Internets".
[i.2] IETF RFC 3493: "Basic Socket Interface Extensions for IPv6".
[i.3] IETF RFC 4193: "Unique Local IPv6 Unicast Addresses".
[i.4] IETF RFC 3531: "A Flexible Method for Managing the Assignment of Bits of an IPv6 Address
Block".
[i.5] IETF RFC 3542: "Advanced Sockets Application Program Interface (API) for IPv6".
[i.6] IETF RFC 4193: "Unique Local IPv6 Unicast Addresses".
[i.7] IETF RFC 4380: "Teredo: Tunneling IPv6 over UDP through Network Address Translations".
[i.8] IETF RFC 5375: "The Locator/ID Separation Protocol (LISP)".
[i.9] IETF RFC 6146: "Stateful NAT64: - Network Address and Protocol Translation from IPv6 Clients
to IPv4 Servers".
[i.10] IETF RFC 6296: "IPv6 to IPv6 Network Prefix Translation".
[i.11] IETF RFC 6555: "Happy Eyeballs: Success with Dual-Stack Hosts".
[i.12] IETF RFC 7239: "Forwarded HTTP Extension".
[i.13] RIPE NCC: "Requirements for IPv6 in ICT Equipment".
NOTE: Available at https://www.ripe.net/publications/docs/ripe-554.
[i.14] IETF ID draft-troan-homenet-sadr-01: IPv6 Multihoming with Source Address Dependent Routing
(SADR)".
[i.15] DomainKeys Identified Mail.
NOTE: Available at https://en.wikipedia.org/wiki/DomainKeys_Identified_Mail.
ETSI
6 ETSI GR IP6 001 V1.1.1 (2017-06)
[i.16] IETF RFC 6145: "IP/ICMP Translation Algorithm".
3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AAAA DNS resource records (RRs) IPv6 address record
ACL Access Control List
AFT Address Family Translation
ARP Address Resolution Protocol
ALG Application-aware Logic
AV Audio/Video
BCP Best Current Practices
BGP Border Gateway Protocol
BIND Berkeley Internet Name Domain
BYOD Bring your own device
CDN Content Delivery Network
CG-NAT Carrier-grade NAT (Network Address Translation)
CPU Central Processing Unit
DHCP Dynamic Host Configuration Protocol
DNS Domain Name System
ERP Enterprise Resource Planning
FQDN Fully qualified domain name
GR Group Report
HTTP HyperText Transfer Protocol
ICMP Internet Control Message Protocol
ICT Information and Communications Technology
IETF Internet Engineering Task Force
IGP Interior Gateway Protocol
IoT Internet of Things
IP Internet Protocol
IPAM IP Address Management
IPS Intrusion Prevention Systems
IPsec Internet Protocol Security
IPv4 Internet Protocol version 4
IPv6 Internet Protocol version 6
ISATAP Intra-Site Automatic Tunnel Addressing Protocol
ISC Internet Systems Consortium
ISG Industry Specification Group
IS-IS Intermediate System to intermediate System
ISP Internet Service Provider
LISP Locator/Identifier Separation Protocol
LLMNR Link-Local Multicast Name Resolution Protocol
LOB Line of Business
MAC Media Access Conrol address
MIB Management information base
MiM Man-in-the-Middle
MTA Mail Transfer Agents
NAT Network Address Translation
ND Neighbour Discovery
NPTv6 Network Prefix Translation
OS Operating System
OSX Mac OS X™
NOTE 1: Unix-based graphical operating system developed and marketed by Apple Inc.
NOTE 2: Mac OS X™ is a trademark of Apple Inc., registered in the U.S. and other countries.
PA Provider aggregatable
PI Provider independent
RDNSS Recursive DNS Server
ETSI
7 ETSI GR IP6 001 V1.1.1 (2017-06)
RIPE Réseaux IP Européens
RIR Regional Internet Registry
RR Resource Record
SADR Source Address Dependent Routing
SIEM Security Incident and Event Management
SLAAC Stateless Address Auto Configuration
SLB Server Load Balancer
SMTP Simple Mail Transfer Protocol
SNMP Simple Network Management Protocol
SSDP Simple Service Discovery Protocol
SSL Secure Sockets Layer
TCP Transmission Control Protocol
UDP User Datagram Protocol
ULA Unique Local IPv6 Unicast Addresses
VLAN Virtual Local Area Network
VPN Virtual Private Network
WAN Wide Area Network
4 IPv6-enabled Enterprise
4.1 Introduction
When IPv4 emerged as the standard Internet protocol in the 1980s for the "Internet", the address space - some four
billion IP addresses - seemed more than adequate. Today it is clearly no longer the case. The world has moved from IP
enabled to IP dependent. As of 2015 more than 83 percent of the world's population no longer has access to a "public
Internet address." In North America, Latin America, Asia, and Europe, the IPv4 address pool is already entirely
depleted. With the growing number of users and the proliferation of smart devices and things, IPv4 address space
exhaustion is a major Information and Communications Technology (ICT) issue. The current IPv4-based Internet can
no longer sustain the explosive growth of ICT. Any organization that relies on the Internet to any extent needs to be
prepared to support IPv6.
IPv6 needs to be adopted globally across all parts of the Internet ecosystem. Global service providers and mobile
operators are already deploying IPv6 in order to keep the Internet growing. IPv6 is allowing them to continue to grow
their businesses and deliver the services that all of today's e-commerce is based on.
The move to IPv6 is inevitable, there is no alternative plan at this time. IPv6 is the cornerstone of our connected society.
IPv6 offers important business and technical advantages. Among them: higher performance, enhanced mobility,
automated management, built-in multicasting for multimedia applications, enhanced security, simplified administration
and many more. Indeed, many enterprises have already determined that IPv6 is a much better networking tool than its
predecessor, and it offers much greater capabilities for future technologies developed for networking platforms.
Because all/most existing IPv4-based infrastructures will continue to work after the last IPv4 address is issued,
enterprises may be tempted to put off transitioning to IPv6 till some later date. Postponing the inevitable, however, can
put an enterprise at a competitive disadvantage. As more and more customers operate in an IPv6 world, companies
supporting only IPv4 risk being shut out of high-growth markets because they are unable to reach, or be reached by,
these customers. The fallacy in this position is that maintaining IPv4-only communications can put enterprises at a
competitive disadvantage. Seamless, pervasive connectivity is an integral part of doing business today.
IPv6 enables the enterprise and the global Internet to keep growing in a secure and open manner, and to scale toward
the demand of new applications and, literally, billions of connected devices, while streamlining operations and
provisioning. Enterprises deploying IPv6-enabled services are in a better position to capture the market changes, be
more competitive, increase their growth potential, and provide for improved business continuity.
ETSI
8 ETSI GR IP6 001 V1.1.1 (2017-06)
Of particular note is the fact that regardless of an organization's IPv6 preference, its customer base is currently
deploying it. As consumers and customers adopt IPv6, enterprises will need to ensure that their own technology assets
align with how their customers prefer to do business. As the shift to online shopping has already shown, customers will
continue to buy from companies that do business on their terms. Meeting the needs of the customer base (many of
which already have an IPv6-connected device) should be an imperative for all organizations.
Today, enterprises should already have assessed their position toward IPv6 adoption, understood its challenges and
opportunities, and drafted their own requirements and plans accordingly.
4.2 Guiding principles
There are many scenarios/variations to enable IPv6 within the enterprise, there is no "one size fits all" answer. The
present document does not attempt to provide guidance for all possible networking situations. Enterprise network
architects should each take the responsibility of choosing the best solution for their own case.
Enterprises should understand the impact of the IPv6 Internet on their services. Next, they should assess their own
situations and requirements as early as possible, if they have not yet done so. This assessment includes network,
security, and business applications. Enterprise priorities could be:
• IPv6 is strategic in order to achieve business continuity.
• IPv6 has its own value outside of IPv4 address exhaustion.
In each case, requirements demand a production-grade deployment within a two- to three-year horizon.
It is expected that for most enterprises adding IPv6 connectivity, the Internet presence will be the highest priority
because enterprises should offer services and content to their IPv6 customers over the Internet. This is also the easiest
part.
Deploying IPv6 across the core is also a relatively easy task and will provide the network staff with a solid working
knowledge of the IPv6 protocol.
Providing IPv6 access to all internal users and applications is probably the next highest priority, especially if the
enterprises move to the cloud computing paradigm or to web services.
The last step will probably be adding IPv6 in the intranet and in the data centre applications. This will take longer, as
there is a clear impact on business applications.
Finally there are three core principles to shape IPv6 network development:
• The first principle is to maintain a standards-based approach and avoid proprietary technologies. Embracing
open standards allows to use best-of-breed products for whatever needs arise.
A network build on open standards will have interoperability with the broadest base of users and partners.
• The second principle is planning. Without proper planning, the transition will be plagued with rework and
missteps.
• The third principle is repeatability of the network design across the network (a standard set of requirements,
and a standard solution design to meet the enterprise network requirements).
Such standardization increases efficiency in building out the network, and also makes it easier to troubleshoot
the network in each location.
ETSI
9 ETSI GR IP6 001 V1.1.1 (2017-06)
4.3 IPv6 Transition strategies
4.3.1 Setting the scene
The vast majority of devices, laptops, desktops, operating systems, switches, routers, content providers, carriers, and
Internet service providers (ISPs) support native IPv6 today at no extra cost, which makes it possible to deploy network
based on IPv6. However, enterprises typically purchased and configured their network to support IPv4 traffic only. And
while most equipment can be software enabled, some may need to be replaced to add support for IPv6. Furthermore
even if the capabilities to operate in a dual network configuration exist, additional planning steps and architecture
design will most likely be required. Similarly management systems and security systems that can support both
environments are necessary. Enterprises should also verify that applications they use can operate correctly and are
IPv6-enabled.
Because IPv4 and IPv6 will coexist for some time, a phased deployment is recommended to minimize the impact of the
transition and keep costs manageable. Recognizing that IPv4 and IPv6 will run parallel to each other for the foreseeable
future, IETF established three standard transition mechanisms: Each of these techniques has advantages and trade-offs.
The optimal solution will depend on a variety of factors, including the enterprise's current environment and long-term
goals. It may also encompass all three transition mechanisms. It is important to understand that one method does not fit
all.
Figure 1: Technology Transition Options
In planning the IPv6 initiative, the following three key families of mechanisms enable the transition:
• Dual-stack - Provides support for both protocols on the same device to allow for communications with both
IPv4-only and IPv6-only nodes.
This mechanism is the most versatile. A dual stack transition strategy enables a very smooth transition and will
likely remain a part of the worldwide Internet infrastructure for years to come, until IPv4 is fully retired.
• Tunnelling - Encapsulates IPv6 packets in IPv4 headers (or vice versa).
Tunnelling enables the network team to create islands of IPv6 or IPv4 capabilities, and in the short term, to
connect them over the existing IPv4 network. Tunnelling enables networks in transition to take advantage of
IPv6 services while remaining connected to the IPv4 world.
• Translation - Between IPv4 and IPv6.
Enterprises should also implement a procurement policy to IPv6-ready the backbone so that IPv6 can be turned on
without having to do a fork and replace the physical hardware.
ETSI
10 ETSI GR IP6 001 V1.1.1 (2017-06)
The main IPv6 transition deployment models that are being discussed are listed below:
• IPv4 only: delays the introduction of IPv6 to a later date and remains an all-IPv4 network. Long term, it is
expected that this migration strategy will lead to problems and increased costs. Due to the increase in traffic
there will be an increased demand for IP addresses and the usage of NAT in the carrier's network, denoted as
Carrier Grade Network Address Translation (CG-NAT). In particular, all traffic to and from the Internet will
have to pass CG-NAT. Furthermore, growth in bandwidth demand can only be handled with increased
CG-NAT capacity, which has a higher cost and single point of failure.
• Coexistence of IPv4 and IPv6: requires the use of a dual-stack, introducing IPv6 in the network next to IPv4.
Please note however dual-stack networks are more complex to deploy, operate, and manage. Furthermore, this
option also requires an address management solution for both IPv4 and IPv6 addresses.
• IPv6 only: introduces IPv6 in the network and removes IPv4 completely. This approach can provide benefits
because IPv6-only networks are simpler to deploy, operate, and manage. Moreover, an address management
solution is required only for IPv6 addresses. However, the problem with this approach is that many devices,
websites, and applications still only work on IPv4. When moving to an IPv6-only network may lead to
differences in network quality. That is why NAT64 with DNS64 should be offered in addition to offering IPv6
only.
4.3.2 Dual-Stack
Most enterprises will initially prefer the dual-stack model. All users, applications, and network equipment will be given
address space from both IPv4 and IPv6. It is then up to the user's device to select which protocol version to use. Most
common operating systems prefer IPv6 when a functional path is available.
The operating systems have specific checks in place to ensure quick and reliable connections when operating in
dual-stack mode, based on IETF RFC 6555 "Happy Eyeballs" [i.11]. IETF RFC 6555 [i.11] tries to ensure that (where it
is reliably available) IPv6 is usually preferred over IPv4. That is to say without IETF RFC 6555 [i.11] the first response
back is preferred by default. Simply stated, parallel DNS queries are launched for IPv4 and IPv6 addresses for any
website, and the first response back is preferred. IETF RFC 6555 [i.11] works with a slight bias toward IPv6 by giving
the AAAA query a slight head start over the query for the legacy protocol address.
It is important to note that the dual-stack model will not be sustainable in the future when the available IPv4 space has
been completely exhausted.
Dual-stack model also doubles the amount traffic at layer 2 for service discovery protocols like LLMNR and SSDP, as
well as ARP and ND. This can have negative impact on CPU of some older network hardware. Additionally it is
important to validate there is sufficient memory to store both IPv4 and multiple IPv6 addresses.
IPv6 traffic on Wi-Fi network requires additional consideration. IPv6 ND traffic and other IPv6 control plane traffic
using multicast as the delivery mechanism may require optimizations over Wi-Fi network. Multicast over Wi-Fi
network uses lowest management rates and mechanisms such as clients power save could impact timely delivery of
multicast traffic over Wi-Fi. Typically Wi-Fi vendors convert multicast traffic to unicast to ensure robust and reliable
delivery of multicast traffic. This also ensures that traffic is delivered to clients at the highest data rates possible and
since the traffic is unicast, the standard power save mechanism for delivering multicast traffic does not apply.
IPv6 over Wi-Fi may require optimization techniques such as these to ensure reliable delivery of IPv6 control traffic.
4.3.3 IPv6 only
IPv6-only is the end goal of transitioning to IPv6. There have been numerous recent examples of large entities
migrating to IPv6 after dual-stack transitions. Typical motivations are to avoid costs of translation equipment, reduce
the cost of running a dual-stack infrastructure, reduce the attack surface to only one protocol, and simplify
troubleshooting. It has deployed an IPv6-only infrastructure within its data centre.
The public-facing side of its Internet presence/WAN edge still presents a dual-stack interface to the global Internet, but
it has completely removed IPv4 from the internal data centre infrastructure.
IPv6 only with NAT64/DNS64 is easy to implement and works well in a Client/Server model, there are challenges with
peer-to-peer applications and IPv4 only clients. Application validation for enterprise peer-to-peer applications should be
included in the scorecard.
ETSI
11 ETSI GR IP6 001 V1.1.1 (2017-06)
4.3.4 Tunnelling
In 2015, native or dual-stack IPv6 deployment is possible and should be used for security and performance reasons.
Tunnels should in general be avoided at all costs.
4.3.5 Enterprise Network Segments
The typical enterprise network has been built on a three-layer model, defining access, distribution and core as those
layers, integrating the Internet edge, and providing maximum scalability. Smaller enterprises may have collapsed the
core and distribution layers and combined that with the access layer. The adoption of IPv6 does not change those
models and should be planned for in a similar fashion. The key segments of the overall network architecture are
discussed laterlater.
4.4 Enterprise Design Considerations - Building a cross
functional team
Planning and developing an IPv6 strategy will involve multiple phases and should include the creation of governance
cross-functional team of IT professionals, technical business owners, and an assigned project manager.
The team should meet regularly to discuss the progress and address any outstanding issues. Training and education are
critical factors toward success. Among the first steps are:
• Determining an architectural approach
• Developing an execution strategy
• Assessing existing IT components for IPv6 readiness
• IT readiness communication to end users
Governance activities related to IPv6: It is important that key people from various areas in an organization understand
the importance of IPv6 and the associated governance elements. There should be strategic oversight of development,
resource allocation and purchasing that covers at least these key areas of the IT organizations:
• Executive and Risk management
• Application development
• Desktop and server build
• Information security
• Architecture (for both infrastructure and applications)
• Networking
4.5 Preparation and Assessment Phase
An enterprise needs to assess its network, applications, hosts, and critical infrastructure to determine its IPv6 readiness
and identify challenges that might occur during the transition. This step will provide insight and visibility, enabling the
team to proactively manage and budget resources with timelines for later testing, trailing, and deployment phases. Most
current hardware and software are already IPv6 ready.
ETSI
12 ETSI GR IP6 001 V1.1.1 (2017-06)
Table 1: Example Application and Service testing matrix to help access IPv6 readiness
Applications <--> LOB applications Cloud content AV applications
Devices Web portals
Windows OS
MAC OS X™
Smart phones
Tablets
IoT
What is most important is for the enterprise to ensure that all new procurements undertaken automatically require IPv6
support. In this regard, an extremely helpful baseline has been created (Requirements for IPv6 in ICT Equipment -
RIPE 554 [i.13])
Table 2: Example Scorecard
Team
Dependencies Product Vendor Category Milestone Finish Date ownership Notes
datacenter
Windows Server Microsoft datacenter upgrade to windows server engineering
systems
Windows Client Microsoft Campus edge Upgrade to Windows 10 engineering
Tools
Upgrade to support IPv6 or engineering
Network Config mgmt vendor network tools roadma p team
Tools
Network performance Upgrade to support IPv6 or engineering
mgmt vendor network tools roadma p team
IP services
IP database vendor network tools integrate IPv6 team
a utoma te IPv6 subnet systems
Active Directory IP s ync Microsoft Identi fy mgmt a ssocation to AD engineering
Firewall Policy Integrate or update policy
manager vendor network hardwaremanager to support IPv6security
All devices to Netflow v9, Tools
collector upgrade to engineering
Netfl ow vendor network tool s support IPv6 team
IP services
DHCP Microsoft IP i nfas tructure DHCPv6 enabl ed team
naming services support IP services
Naming services Microsoft IP infastruture IPv6 team
IPv6 support AD IP services
Active Directory Microsoft Identi fy mgmt infastructure team
Enable IPv6 on wireless backbone
Wi reles s controll ers vendor network hardware control l ers engineering
enabl e IPv6 on load datacenter
Load ba lancer vendor data center balancers engineering
enabl e IPv6 cababi li ty and
Fi rewal l vendor Network security performance Security
backbone
Wan Optimizer vendor network hardware no plan of record engineering
val idate IPv6 current
approved code or upgrade backbone
Backbone router vendor network hardware lifecycle engineering
val idate IPv6 current
approved code or upgrade backbone
Building router vendor network hardware lifecycle engineering
val idate IPv6 current
approved code or upgrade backbone
WAN router vendor network hardware lifecycle engineering
val idate IPv6 support or systems
O365 Microsoft Appl icati on support roadmap engineering
val idate IPv6 support or systems
Skype Microsoft Application support roadmap engineering

ETSI
13 ETSI GR IP6 001 V1.1.1 (2017-06)
4.6 IPv6 address plan
4.6.1 Setting the scene
An enterprise needs to determine what type of IPv6 address space to use, where it will get it from, and how much it will
need. One of the first choices a network designer needs to make is the type of addresses to be used in the network core.
Should the network use provider-independent global addresses, "private" addresses (either IETF RFC 1918 [i.1]
addresses or unique-local addresses) or something else? A related choice is whether or not to use only link-local
addresses on certain links.
A smaller enterprise with a single ISP may opt to use IPv6 address space allocated from its provider (this is known as
Provider Aggregable, or PA, and is typically given at no extra cost), as for IPv4.
For much larger enterprises (typically multihomed to multiple providers) PA space will not be practical. They need to
apply directly to their RIR for what is known as a provider-independent (PI) allocation. This type of allocation comes
with an annual operational cost and should be routable across multiple providers, as is the case with most existing
legacy address allocations:
• PI provider independent - Globally-unique IPv4 or IPv6 addresses obtained directly from an address registry.
An organization which has such addresses is considered to have "its own" address space.
• PA (provider aggregable) - Globally-unique IPv4 or IPv6 addresses obtained from an upstream provider. Such
addresses will need to be returned if the relationship with the upstream provider ceases.
• Private - Either IETF RFC 1918 [i.1] IPv4 addresses or unique-local IPv6 addresses IETF RFC 4193 [i.3].
The IPv6 prefix should satisfy the following addressing requirements (IETF RFC 3531 [i.4] provides some schema
guidelines):
• The corporate network. This includes services such as wireless. An effort should also be made to
accommodate the existing IPv6 implementation with the minimum of change.
• Guest services, wired and wireless.
• Future mobile devices.
• Miscellaneous devices such as security cameras, etc.
• Multicast.
NOTE: There are no translation mechanisms for IPv4/IPv6 multicast.
• Internet.
There are also address space management requirements:
• The address space should be easily aggregable. That is, fragmentation should be kept to a minimum.
• If the current IPv4 schema attaches semantic to an address, it is possible to extend this facility to IPv6. It is
debatable that is the right thing to do
As with the early days of IPv4, IPv6 will see change as adoption matures and new devices and ways of addressing those
devices evolve. The IPv6 address plan should be flexible to change with automation in place to facilitate re-ip.
Fortunately, IPv6 was designed to support multiple IP addresses on an interface, allowing a new address to be assigned,
while maintaining existing connections with original address.
4.6.2 To use or not to use ULA (Unique Local IPv6 Unicast Addresses)
IPv6 has a concept comparable in certain respects to IPv4 private addressing (IETF RFC 1918 [i.1]), known as unique
local addressing (ULA). A specific prefix (FC00:/7) has been set aside for private internal use within an administrative
domain. Use of this space has numerous documented side effects and is generally recommended only for use in
networks that will never need a direct, end-to-end connection with a device outside the company's network.
ETSI
14 ETSI GR IP6 001 V1.1.1 (2017-06)
One of the key challenges of IPv4 private addresses has been mostly mitigated with IPv6 ULA: the particular issue of
uniqueness. With IPv4 all companies shared a limited amount of private space, and it was not uncommon for two
merging companies to have overlapping address space.
However, using ULA would require careful consideration of application proxies, translation devices, merger strategies,
application layer gateways and new application development. As with IETF RFC 1918 [i.1], there are no magic
properties of ULA that guarantee complete isolation of the Internet. In other words, Access Control Lists (ACLs) and
routing need to be explicitly used to provide isolation.
4.6.3 Understanding the differences between IPv4 and IPv6 addressing
schemes.
IPv4 uses a variable subnet mask that is based on the maximum number of expected hosts on a subnet. For example, if a
network is to support 250 hosts, a subnet mask of at least /24 would be used for IPv4. The address allocation (from a
service provider) is therefore based on the aggregate number of hosts expected across a network.
IPv6 uses a fixed subnet mask of /64 on broadcast media such as Ethernet and Wi-Fi. The most significant 64 bits are
used for routing, and the least significant 64 bits are used for the node identification. With the subnet mask fixed, the
number of deployed hosts in a network becomes irrelevant. Hence the allocation from a service provider would be
based roughly on the total number of expected networks within an enterprise.
The common rule for a service provider is to allocate a /48 to enterprises, leaving 16 bits to the enterprise for
enumerating all of the /64 networks (several enterprises simply use the VLAN ID to fill those 16 bits). This gives the
typical enterprise 65 536 subnets (which for the vast majority should be more than enough). Only very large multisite,
multibuilding enterprises may need to request a larger address block from their service provider or RIR.
4.6.4 Address Management
IPv6 provides a mechanism for automatic host address configuration, called stateless address auto configuration
(SLAAC). By default, SLAAC addresses are configured to change daily to enhance the privacy of the user. This
behaviour may affect an enterprise security audit.
Alternate techniques for address configuration are static configuration or the use of Dynamic Host Configuration
Protocol (DHCP) for IPv6. The deployment of DHCPv6 is very similar to the typical enterprise deployment of DHCP
for IPv4. As part of the design phase, an enterprise will have to decide which address strategy to use (SLAAC vs.
DHCPv6). It is likely that an enterprise will deploy both, though not typically on the same access layer segment.
NOTE: SLAAC does not provide DNS server address so stateless DHCPv6 (DHCPv6 provides DHCP option 23
DNS recursive name sever list) is required. Additionally, the network infrastructure will require features
such as RDNSS to support Android BYOD devices.
For example large corporation envisions DHCPv6 as the typical secure deployment for most enterprises, while SLAAC
may be useful in IoT and BYOD or Guest network.
4.7 Routing considerations
Choice of IGP will depend on current IGP in use, experience and network tooling automation. The IGP should provide
the flexibility to support both a converged (single topology), or separate (multi-topology) forwarding paths in addition
to a transition mechanism to ease migration from one to the other. A consideration with separate IPv4 and IPv6 network
is that in most cases the clients are dual-stack enabled and by default prefer IPv6 over IPv
...
