ETSI GR IP6 006 V1.1.1 (2017-11)

Generic migration steps from IPv4 to IPv6

DGR/IP6-0006

General Information

• Status: Published
• Publication Date: 05-Nov-2017
• Technical Committee: IP6 - IPv6 integration
• Current Stage: 12 - Completion
• Due Date: 01-Nov-2017
• Completion Date: 06-Nov-2017

Standards Content (Sample)

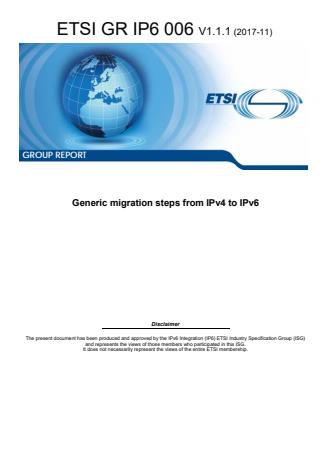

ETSI GR IP6 006 V1.1.1 (2017-11)






GROUP REPORT
Generic migration steps from IPv4 to IPv6
Disclaimer
The present document has been produced and approved by the IPv6 Integration (IP6) ETSI Industry Specification Group (ISG)
and represents the views of those members who participated in this ISG.
It does not necessarily represent the views of the entire ETSI membership.

---------------------- Page: 1 ----------------------
2 ETSI GR IP6 006 V1.1.1 (2017-11)



Reference
DGR/IP6-0006
Keywords
IPv4, IPv6, transition

ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the
print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying
and microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2017.
All rights reserved.

TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are trademarks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are trademarks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
oneM2M logo is protected for the benefit of its Members.
GSM® and the GSM logo are trademarks registered and owned by the GSM Association.
ETSI

---------------------- Page: 2 ----------------------
3 ETSI GR IP6 006 V1.1.1 (2017-11)
Contents
Intellectual Property Rights . 5
Foreword . 5
Modal verbs terminology . 5
1 Scope . 6
2 References . 6
2.1 Normative references . 6
2.2 Informative references . 6
3 Abbreviations . 7
4 Transition from IPv4 to IPv6. 8
4.1 IPv6 transition necessity . 8
4.2 Transition types . 8
5 Transition Principles and Technologies . 9
5.1 Dual-stack. 9
5.1.1 Dual-stack Principle . 9
5.1.2 Dual-stack Security Implications . 10
5.1.3 Dual-stack conclusion . 10
5.2 Tunnelling . 10
5.2.1 Tunnelling Principle . 10
5.2.2 Tunnelling Security Implications . 11
5.2.3 Configured tunnels (6in4) . 11
5.2.4 Generic Routing Encapsulation (GRE) . 11
5.2.5 Connection of IPv6 Domains via IPv4 Clouds (6to4) . 11
5.2.6 IPv6 Rapid Deployment (6rd) . 12
5.2.7 Native IPv6 behind NAT44 CPEs (6a44) . 13
5.2.8 Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) . 13
5.2.9 Tunnelling IPv6 over UDP through NATs (Teredo) . 13
5.2.10 IPv6 over IPv4 without Explicit Tunnels (6over4) . 14
5.2.11 Anything In Anything (AYIYA) . 14
5.2.12 IPv6 Tunnel Broker with the Tunnel Setup Protocol (TSP) . 14
5.3 Translation . 15
5.3.1 Translation Principle . 15
5.3.2 Translation Security Implications . 16
5.3.3 Stateless IP/ICMP Translation Algorithm (SIIT) . 16
5.3.4 Stateful NAT64 . 16
5.3.5 Combination of Stateful and Stateless Translation (464XLAT) . 16
5.3.6 Dual-Stack Lite (DS-Lite) . 16
5.4 Mapping of Address and Port . 16
5.4.1 Mapping of Address and Port Principle . 16
5.4.2 MAP-E . 16
5.4.3 MAP-T . 17
6 Sample Transition Scenarios from Operators . 17
6.1 ISP from France . 17
6.2 ISP from China . 17
6.3 Another ISP from China . 18
6.4 ISP from United States . 18
6.5 Summary . 18
7 Current Levels of Global IPv6 Deployment and Traffic . 18
8 Application Transition . 18
9 Security considerations. 19
10 Transition pitfalls . 20
ETSI

---------------------- Page: 3 ----------------------
4 ETSI GR IP6 006 V1.1.1 (2017-11)
11 Conclusions . 20
Annex A: Authors & contributors . 21
History . 22

ETSI

---------------------- Page: 4 ----------------------
5 ETSI GR IP6 006 V1.1.1 (2017-11)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (https://ipr.etsi.org/).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
Foreword
This Group Report (GR) has been produced by ETSI Industry Specification Group (ISG) IPv6 Integration (IP6).
Modal verbs terminology
In the present document "should", "should not", "may", "need not", "will", "will not", "can" and "cannot" are to be
interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
ETSI

---------------------- Page: 5 ----------------------
6 ETSI GR IP6 006 V1.1.1 (2017-11)
1 Scope
The present document outlines the generic transition steps from IPv4 to IPv6 [i.1], [i.2], including the transition
necessity, principles and technology guidelines, generic transition steps, security implications and the generic step-by-
step process.
2 References
2.1 Normative references
Normative references are not applicable in the present document.
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] IETF RFC 791: "Internet Protocol", September 1981.
[i.2] IETF RFC 2460: "Internet Protocol, Version 6 (IPv6) Specification", December 1998.
[i.3] IETF RFC 1631: "The IP Network Address Translator (NAT)", May 1994.
[i.4] IETF RFC 1701: "Generic Routing Encapsulation", October 1994.
[i.5] Durand, A., Droms, R., Woodyatt, J., and Y. Lee: "Dual-Stack Lite Broadband Deployments
Following IPv4 Exhaustion".
[i.6] IETF RFC 5569: "IPv6 Rapid Deployment on IPv4 Infrastructures (6rd)", January 2010.
[i.7] IETF RFC 7597: "Mapping of Address and Port with Encapsulation (MAP-E)", July 2015.
[i.8] IETF RFC 7599: "Mapping of Address and Port using Translation (MAP-T)", July 2015.
[i.9] IETF draft-ietf-v6ops-ipv6-ehs-in-real-world-02: "Observations on the Dropping of Packets with
IPv6 Extension Headers in the Real World", December 2015.
[i.10] IETF RFC 6555: "A. Happy Eyeballs: Success with Dual-Stack Hosts", April 2013.
[i.11] IETF RFC 7359: "Layer 3 Virtual Private Network (VPN) Tunnel Traffic Leakages in Dual-Stack
Hosts/Networks", August 2014.
®
[i.12] LinkedIn Case Study: "IPv6 at a Social Media Company". Schuller, S. 11th Slovenian IPv6
Summit, June 21, 2016, Ljubljana, Slovenia.
NOTE: Available at https://go6.si/wp-content/uploads/2016/06/LinkedIn-Case-Study.pdf.
[i.13] IETF RFC 1702: "Generic Routing Encapsulation over IPv4 networks".
[i.14] IETF RFC 5969: "IPv6 Rapid Deployment on IPv4 Infrastructures (6rd) - Protocol Specification".
[i.15] IETF RFC 6751: "Native IPv6 behind IPv4-to-IPv4 NAT Customer Premises Equipment (6a44)".
[i.16] IETF RFC 5214: "Intra-Site Automatic Tunnel Addressing Protocol (ISATAP)".
ETSI

---------------------- Page: 6 ----------------------
7 ETSI GR IP6 006 V1.1.1 (2017-11)
[i.17] IETF RFC 6343: "Advisory Guidelines for 6to4 Deployment".
[i.18] IETF RFC 4213: "Basic Transition Mechanisms for IPv6 Hosts and Routers".
[i.19] IETF RFC 6333: "Dual-tack Lite Broadband Deployments Following IPv4 Exhaustion".
[i.20] IETF RFC 6346: "The Address plus Port (A+P) Approach to the IPv4 Address Shortage".
[i.21] IETF RFC 7739: "Security Implications of Predictable Fragment Identification Values".
[i.22] Dan York: "Migrating Applications to IPv6", 2011.
3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
4464XLAT Combination of Stateful and Stateless Translation
6a44 Native IPv6 behind NAT44 CPEs
6over4 IPv6 over IPv4 without Explicit Tunnels
6RD IPv6 Rapid Deployment
6to4 Connection of IPv6 Domains via IPv4 Clouds
AAAA An AAAA record points a domain or subdomain to an IPv6 address
API Application Program Interface
AYIYA Anything-In-Anything
CGN Carrier Grade NAT
CPE Customer-Premises Equipment
DNS Domain Name Server
DoS Denial of Service
DS-Lite Dual-Stack Lite
GRE Generic Routing Encapsulation
ICMP Internet Control Messages Protocol
ICP Internet Content Provider
IoT Internet of Things
IP Internet Protocol
IPv4 Internet Protocol version 4
IPv6 Internet Protocol version 6
ISATAP Intra-Site Automatic Tunnel Addressing Protocol
ISP Internet Service Provider
MAN Metropolitan Area Network
MAP Mapping of Address and Port
MAP-E Mapping of Address and Port - Encapsulation
MAP-T Mapping of Address and Port - Translation
MSS Maximum Segment Size
MTU Maximum Transmission Unit
NAT Network Address Translation
NAT-PT Network Address Translation - Protocol Translation
NBMA Non-Broadcast Multiple Access
SIIT Stateless IP/ICMP Translation Algorithm
TCP Transmission Control Protocol
Teredo Tunnelling IPv6 over UDP through NATs
TSP IPv6 Tunnel Broker with the Tunnel Setup Protocol
UDP User Datagram Protocol
ETSI

---------------------- Page: 7 ----------------------
8 ETSI GR IP6 006 V1.1.1 (2017-11)
4 Transition from IPv4 to IPv6
4.1 IPv6 transition necessity
For more than 35 years, IPv4 has been the core underlying technology enabling services such as the web, e-mail, and so
forth. However, as a result of the unexpected growth of the Internet, the IPv4 32-bit address space has become a
limiting factor to future Internet growth - that is, IPv4 will be unable to provide a globally routable unique IP address to
each system to connect to the Internet. To overcome the exhaustion of IPv4 addresses, the Internet Protocol version 6
(IPv6) was developed, with 128-bit addresses that provide enough addresses to allow for the foreseeable future growth
of the Internet.
IPv4 address exhaustion has accelerated IPv6 deployment. There are two complementary ways to ensure service
continuity:
• Start introducing IPv6 and give new customers' IPv6 addresses.
• Implement IPv4 address sharing mechanisms to continue using IPv4 service.
Please note that IPv4 address sharing (using Network Address Translation (NAT) [i.3]) could only temporarily relieve
the IPv4 address exhaustion problem, and that other challenges arise with massive deployment of IPv4 address sharing
in the form of Carrier Grade NAT (CGN). CGNs not only result in more complicated networks and increased network
management and operational costs, but also eventually introduce interoperability problems. Besides, due to address
sharing, it results in loss of geo-location information, and difficult lawful intercept/abuse response. Therefore, transition
to IPv6 is the only real solution to address the IPv4 address exhaustion problem.
Please note that the pressure resulting from IPv4 address exhaustion varies from one organization (e.g. ISP) to another
due to many factors, such as the situation of address storage and Internet penetration. This results in a different pace for
supporting IPv6.
Currently, there are a few applications or services only available in IPv6. And it is expected that it will take a long time
for all IPv4-only services to be transitioned to IPv6. In fact, it is expected that many of such IPv4-only services will be
"transitioned" to IPv6 when their corresponding systems are phased-out and replaced with IPv6-ready counter-parts.
Therefore, it is expected that IPv4 and IPv6 will co-exist for a long time, and thus, even in the presence of
IPv6-deployment, IPv4 provisioning needs to be taken care of.
4.2 Transition types
The original transition plan from IPv4 to IPv6 was based on the Dual Stack principle. Essentially, every node in the
Internet would implement and enable IPv6 well before IPv4 address exhaustion. Unfortunately, such plan failed, and a
number of transition technologies were subsequently implemented to allow for the incremental deployment of IPv6, and
the co-existence of IPv4 and IPv6.
Transition technologies are employed for one of the following goals:
• Providing IPv6 connectivity
• Providing IPv4 connectivity (usually by multiplexing multiple devices in the same IPv4 address)
The following transition technologies are employed for providing IPv6 connectivity:
• Dual-stack
• Configured tunnels (6in4)
• Generic Routing Encapsulation (GRE)
• IPv6 Rapid Deployment (6rd) [i.6]
• Native IPv6 behind NAT44 CPEs (6a44)
• Intra-Site Automatic Tunnel Addressing Protocol (ISATAP)
ETSI

---------------------- Page: 8 ----------------------
9 ETSI GR IP6 006 V1.1.1 (2017-11)
• Connection of IPv6 Domains via IPv4 Clouds (6to4)
• Tunnelling IPv6 over UDP through NATs (Teredo)
• IPv6 over IPv4 without Explicit Tunnels (6over4)
• Anything In Anything (AYIYA)
• IPv6 Tunnel Broker with the Tunnel Setup Protocol (TSP)
The following transition technologies are employed for providing IPv4 connectivity:
• Stateless IP/ICMP Translation Algorithm (SIIT)
• Stateful NAT64
• Combination of Stateful and Stateless Translation (4464XLAT)
• Dual-Stack Lite (DS-Lite) [i.5]
• MAP-E [i.7]
• MAP-T [i.8]
These transition technologies are discussed in clause 5.
5 Transition Principles and Technologies
5.1 Dual-stack
5.1.1 Dual-stack Principle
The dual stack principle was the original transition plan to IPv6. Essentially, every node on the Internet would
implement and enable IPv6 before the IPv4 address space was exhausted. Thus, IPv4 support could start to be disabled
at any time, since all communications could be performed over IPv6. Unfortunately, this plan failed, and the Internet hit
IPv4 address exhaustion before widespread deployment of IPv6.
Nevertheless, Dual Stack is still the preferred transition technology for servers, since it allows IPv6-enabled clients to
communicate with servers employing native IPv6 connectivity. Besides, the number of global IPv4 addresses required
to provision servers is usually way smaller than the number of iPv4 addresses required to provision clients (compare the
number of servers vs. clients in a usual Internet Service Provider).
Figure 1 illustrates the Dual Stack architecture.
ETSI

---------------------- Page: 9 ----------------------
10 ETSI GR IP6 006 V1.1.1 (2017-11)

Figure 1: Dual Stack architecture
It is interesting to note that dual-stack essentially results in two separate networks. In principle, IPv4-only systems can
communicate only with IPv4-only systems, while IPv6-only systems can only communicate with their counterparts. On
the other hand, Dual Stack nodes can communicate with IPv4-only, IPv6-only, a Dual Stack (IPv6/IPv4) systems.
The DNS plays a key role in the IPv6 and the IPv4 world: for example, when a Dual Stack host means to browse the
website www.example.com, it will typically query for both IPv4 and IPv6 addresses (A and AAAA records,
respectively). Then it is up to the host (or host application) to use the available addresses.
5.1.2 Dual-stack Security Implications
The security implications of IPv6 transition technologies depend, for most part, on the specific paradigm being
employed.
Dual-stack essentially implies that every node being transitioned will implement and operate with two different protocol
stacks: an IPv6 stack and an IPv4 stack. Implementing, deploying, and operating an additional stack clearly increases
the potential attack surface. In particular, since the maturity level of IPv6 implementations generally does not match that
of existing IPv4 implementations, it is very likely that new bugs (possibly with security implications) will be discovered
in the IPv6 code, and hence particular care should be taken to keep the operating system and applications up-to-date.
5.1.3 Dual-stack conclusion
Dual stack is generally the ideal mechanism for transitioning to IPv6, since it employs both native IPv6 and native IPv4
connectivity. The only drawback of this transition technology is that it requires the operation and management of two
separate networks: an IPv6 network and an IPv4 network. In some scenarios, such as data centres, this issue may be
considered enough of a motivation for employing SIIT, such that the server farm only implements IPv6, and IPv4
connectivity is provided via stateless translation.
5.2 Tunnelling
5.2.1 Tunnelling Principle
The tunnelling principle involves encapsulating packets of one internet protocol into packets of a (usually different)
internet protocol. This is of use when "islands" of one internet protocol should be interconnected across a network that
does not support the aforementioned internet protocol. For example, it can be employed to interconnect to IPv6
"islands" across the IPv4 Internet.
ETSI

---------------------- Page: 10 ----------------------
11 ETSI GR IP6 006 V1.1.1 (2017-11)
5.2.2 Tunnelling Security Implications
The tunnelling paradigm implies that IPv6 packets should be encapsulated in IPv4 to traverse IPv4-only networks. The
use of any form of tunnelling mechanism clearly results in additional complexity in the resulting traffic. For example, a
firewall or NIDS/IPS device might be unable to inspect the encapsulated IPv6 packet when tunnelling is employed. This
might mean that some security controls could be circumvented as a result of the tunnelled traffic.
Additionally, some automatic-tunnelling mechanisms might interact in unforeseen ways: for example, unless proper
mitigations are in place, they might be subject to routing loop attacks that might result in Denial of Service (DoS)
scenarios.
Finally, inadvertent use of automatic-tunnelling mechanism might increase the attack surface of networks that are
assumed to be "IPv4-only".
5.2.3 Configured tunnels (6in4)
Configured tunnels require a network administrator to manually configure the tunnels endpoints. While this implies
some burden on the administrator side, this also means that IPv6 connectivity problems are rather simple to
troubleshoot, since the two endpoints of the tunnel are clearly defined.
Figure 2 illustrates a typical 6in4 tunnel scenario.

Figure 2: Typical 6in4 tunnel scenario
5.2.4 Generic Routing Encapsulation (GRE)
GRE is essentially a configured tunnel that employs Generic Routing Encapsulation (GRE) IETF RFC 1701 [i.4] for the
encapsulation of packets (with IPv4 encapsulation being specified in IETF RFC 1702 [i.13]). The properties of GRE
tunnels are similar to those in which an internet protocol (e.g. IPv6) is encapsulated in another internet protocol
(e.g. IPv4).
5.2.5 Connection of IPv6 Domains via IPv4 Clouds (6to4)
6to4 is an automatic-tunnelling mechanism that can provide IPv6 connectivity to an IPv4 network that employs global
IPv4 addresses, or where last-hop router can employ a global address to operate as a 6to4 router.
Figure 3 illustrates the 6to4 architecture.
ETSI

---------------------- Page: 11 ----------------------
12 ETSI GR IP6 006 V1.1.1 (2017-11)

Figure 3: 6to4 architecture
IETF RFC 6343 [i.17] contains advisory guidelines for 6to4 deployment. Unfortunately, a number of shortcomings in
this technology has essentially resulted in this technology being considered (in practice) obsolete.
5.2.6 IPv6 Rapid Deployment (6rd)
6rd essentially constitutes the deployment of 6to4 within an organization's network, enabling the incremental
deployment of IPv6 in an IPv4-only network, while avoiding the shortcomings of 6to4. It is specified in IETF
RFC 5969 [i.14], and is used by service providers to connect customer networks behind a CPE (Customer Premises
Equipment) to the IPv6 Internet.
The structure of the 6rd protocol is based on 6to4, and it has the same minimal overhead as all protocols that use
protocol 41 encapsulation. The main differences between 6rd and 6to4 are that 6rd is meant to be used inside a service
provider's network and does not use a special IPv6 prefix but one or more prefixes routed to the service provider. As
such, 6rd users are not immediately recognizable by their IPv6 address the way 6to4 users are. Where 6to4 uses relays
based on global anycast routing, 6rd uses relays provided and maintained by the service provider. Because of this
architecture, the tunnel does not traverse unknown networks; this makes any debugging much easier.
Figure 4 illustrates a sample 6rd deployment. Detail of address format is able to be found in IETF RFC 5569 [i.6].

Figure 4: Sample 6rd deployment
ETSI

---------------------- Page: 12 ----------------------
13 ETSI GR IP6 006 V1.1.1 (2017-11)
5.2.7 Native IPv6 behind NAT44 CPEs (6a44)
The purpose of 6a44 is to enable Internet Service Providers to establish IPv6 connectivity for their customers, in spite of
the use of a CPE or home gateway that is not prepared for IPv6. The infrastructure required for this is a 6a44 relay in
the ISP's network and a 6a44 client in the customer's internal network. 6a44 is to Teredo what 6rd is to 6to4. That is, it
is designed to avoid Teredo limitations: with 6a44, ISPs have full control of the involved relays, such that the
well-known Teredo shortcomings are avoided. Where Teredo was designed as a global solution without
...
