ETSI GR ZSM 009-3 V1.1.1 (2023-08)

Zero-touch network and Service Management (ZSM); Closed-Loop Automation; Part 3: Advanced topics

DGR/ZSM-009-3_Cla_AdvTop

General Information

• Status: Not Published
• Technical Committee: ZSM - Zero-touch network and Service Management
• Current Stage: 12 - Citation in the OJ (auto-insert)
• Due Date: 30-Aug-2023
• Completion Date: 17-Aug-2023

Standards Content (Sample)

GROUP REPORT
Zero-touch network and Service Management (ZSM);
Closed-Loop Automation;
Part 3: Advanced topics
Disclaimer
The present document has been produced and approved by the Zero-touch network and Service Management (ZSM) ETSI
Industry Specification Group (ISG) and represents the views of those members who participated in this ISG.
It does not necessarily represent the views of the entire ETSI membership.

2 ETSI GR ZSM 009-3 V1.1.1 (2023-08)

Reference
DGR/ZSM-009-3_Cla_AdvTop
Keywords
automation, closed control loop, management,
service
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871

Important notice
The present document can be downloaded from:
https://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
If you find a security vulnerability in the present document, please report it through our
Coordinated Vulnerability Disclosure Program:
https://www.etsi.org/standards/coordinated-vulnerability-disclosure
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
No representation or warranty is made that this deliverable is technically accurate or sufficient or conforms to any law
rule and/or regulation and further, no representation or warranty is made of merchantability or fitness
and/or governmental
for any particular purpose or against infringement of intellectual property rights.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2023.
All rights reserved.
ETSI
3 ETSI GR ZSM 009-3 V1.1.1 (2023-08)

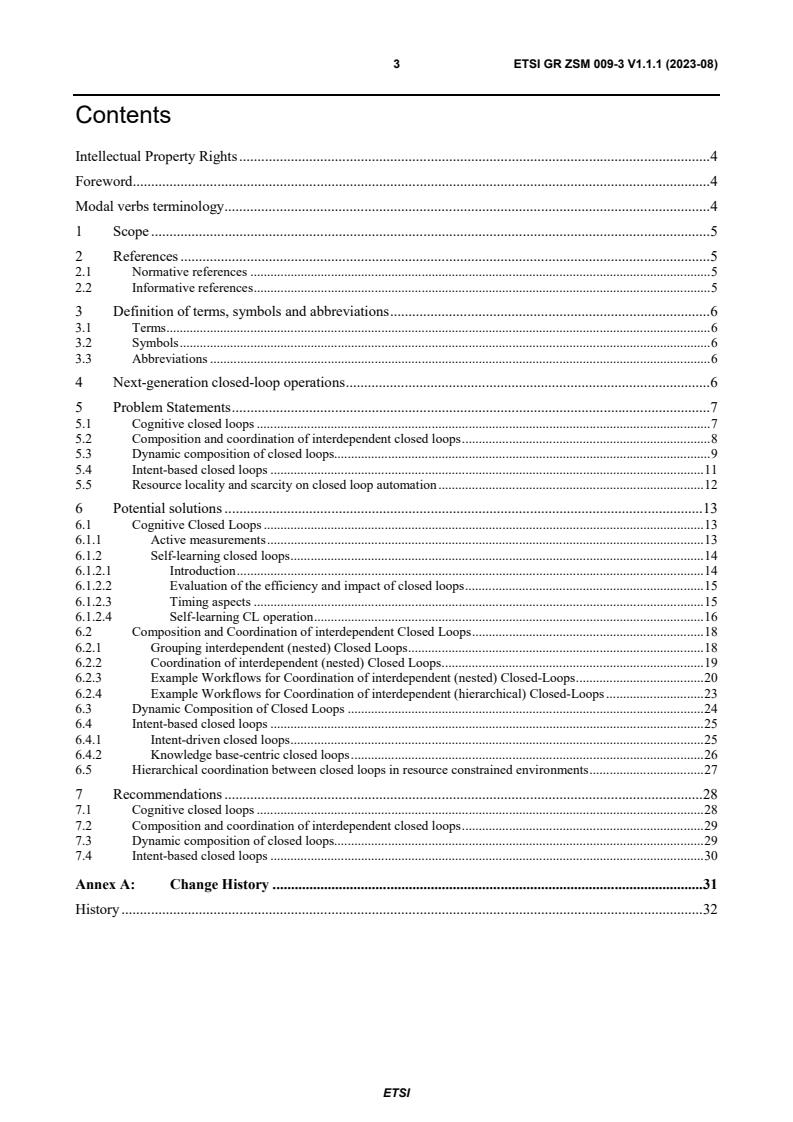

Contents
Intellectual Property Rights . 4
Foreword . 4
Modal verbs terminology . 4
1 Scope . 5
2 References . 5
2.1 Normative references . 5
2.2 Informative references . 5
3 Definition of terms, symbols and abbreviations . 6
3.1 Terms . 6
3.2 Symbols . 6
3.3 Abbreviations . 6
4 Next-generation closed-loop operations . 6
5 Problem Statements . 7
5.1 Cognitive closed loops . 7
5.2 Composition and coordination of interdependent closed loops . 8
5.3 Dynamic composition of closed loops. 9
5.4 Intent-based closed loops . 11
5.5 Resource locality and scarcity on closed loop automation . 12
6 Potential solutions . 13
6.1 Cognitive Closed Loops . 13
6.1.1 Active measurements . 13
6.1.2 Self-learning closed loops . 14
6.1.2.1 Introduction . 14
6.1.2.2 Evaluation of the efficiency and impact of closed loops . 15
6.1.2.3 Timing aspects . 15
6.1.2.4 Self-learning CL operation . 16
6.2 Composition and Coordination of interdependent Closed Loops . 18
6.2.1 Grouping interdependent (nested) Closed Loops . 18
6.2.2 Coordination of interdependent (nested) Closed Loops . 19
6.2.3 Example Workflows for Coordination of interdependent (nested) Closed-Loops . 20
6.2.4 Example Workflows for Coordination of interdependent (hierarchical) Closed-Loops . 23
6.3 Dynamic Composition of Closed Loops . 24
6.4 Intent-based closed loops . 25
6.4.1 Intent-driven closed loops . 25
6.4.2 Knowledge base-centric closed loops . 26
6.5 Hierarchical coordination between closed loops in resource constrained environments . 27
7 Recommendations . 28
7.1 Cognitive closed loops . 28
7.2 Composition and coordination of interdependent closed loops . 29
7.3 Dynamic composition of closed loops. 29
7.4 Intent-based closed loops . 30
Annex A: Change History . 31
History . 32

ETSI
4 ETSI GR ZSM 009-3 V1.1.1 (2023-08)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its

Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the ®
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Foreword
This Group Report (GR) has been produced by ETSI Industry Specification Group (ISG) Zero-touch network and
Service Management (ZSM).
The present document is part 3 of a multi-part deliverable. Full details of the entire series can be found in part 1 [i.2].
Modal verbs terminology
In the present document "should", "should not", "may", "need not", "will", "will not", "can" and "cannot" are to be
interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.

ETSI
5 ETSI GR ZSM 009-3 V1.1.1 (2023-08)
1 Scope
The present document investigates advanced topics related to closed-loop operations such as learning and cognitive
capabilities (e.g. based on different degrees of use and integration of artificial intelligence technologies), ways to set
and evaluate levels of oversight, autonomy, and operational confidence on the behaviour of the closed loops. The
present document will document problem statements and technical challenges, derive potential requirements, capture,
and evaluate potential solution options, and provide recommendations for further standardization activities.
2 References
2.1 Normative references
Normative references are not applicable in the present document.
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long-term validity.
The following referenced documents are not necessary for the application of the present document, but they assist the
user with regard to a particular subject area.
[i.1] S. Ayoubi, N. Limam, M.A. Salahuddin, N. Shahriar, R. Boutaba: "Machine Learning for
Cognitive Network Management". IEEE Communications Magazine. Vol. 56(1), pp. 158-165,
January 2018.
[i.2] ETSI GS ZSM 009-1: "Zero-touch network and Service Management (ZSM); Closed-Loop
Automation; Part 1: Enablers".
[i.3] ETSI GS ZSM 009-2: "Zero-touch network and Service Management (ZSM); Closed-Loop
Automation; Part 2: Solutions for automation of E2E service and network management use cases".
[i.4] ETSI GR ZSM 011 (V1.1.1): "Zero-touch network and Service Management (ZSM); Intent-driven
autonomous networks; Generic aspects".
[i.5] TM Forum IG1253 (V1.2.0): "Intent in Autonomous Networks".
nd
[i.6] Russell, Stuart J.; Norvig, Peter (2003) (2 ed.): "Artificial Intelligence: A Modern Approach".
Upper Saddle River, New Jersey: Prentice Hall. Chapter 2. ISBN 0-13-790395-2.
[i.7] ETSI GS ZSM 001: "Zero-touch network and Service Management (ZSM); Requirements based
on documented scenarios".
[i.8] Stephen S. Mwanje, Christian Mannweiler: "Towards Cognitive Autonomous Networks"
Publisher: WILEY.
[i.9] ETSI GS ZSM 002 (V1.1.1): "Zero-touch network and Service Management (ZSM); Reference
Architecture".
[i.10] ETSI TS 128 312 (V17.1.1) (2022-10): "LTE; 5G; Management and orchestration; Intent driven
management services for mobile networks (3GPP TS 28.312 version 17.1.1 Release 17)".
ETSI
6 ETSI GR ZSM 009-3 V1.1.1 (2023-08)
3 Definition of terms, symbols and abbreviations
3.1 Terms
Void.
3.2 Symbols
Void.
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
5G Fifth Generation of mobile networks
AI Artificial Intelligence
C-MAPE Cognitive Control Loop
CL Closed Loop
CLC Closed Loop Controller
CPU Central Processing Unit
IME Intent Management Entity
IoT Internet of Things
KPI Key Performance Indicator
LTE Long Term Evolution
M2O-CL Made-to-Order Closed Loop
MD Management Domain
ML Machine Learning
OWL Web Ontology Language
PM Performance Management
QoE Quality of Experience
RDF Resource Description Framework
SLA Service Level Agreement
SON Self Organizing Networks
TOSCA Topology and Orchestration Specification for Cloud Applications
TS Traffic Steering
UE User Equipment
VNF Virtual Network Function
4 Next-generation closed-loop operations
It is expected that the future network management systems should be able to handle the increased complexity in the
evolving network scenarios arising from diverse network deployments options and massive scalability requirements. As
part of the evolution, the management of the network should be automated as much as possible. Accordingly, the
management system, specifically the next generation of closed-loop operations, should be able to handle the additional
requirements through machine-learning-driven or cognitive automation. Cognition built from learning based on
different network and environment events will be used to derive insights and decisions on network and service
management scenarios involving single or multiple network events. As described in [i.1] closed loops may benefit from
applying machine learning in any of the stages, to make the closed loops more adaptive and self-learning.
ETSI
7 ETSI GR ZSM 009-3 V1.1.1 (2023-08)
As described in [i.8], the evolution towards autonomous networks empowered with cognitive capabilities will happen in
stages starting with today's automated network employing SON as closed loops involving a set of automation
capabilities configured and managed by the operator. The intermediate stage is the automated network, which adds
cognitive capabilities to the management layer thereby eliminating the need for the operator to handle the configuration
and management of the network management automation capabilities that constitute the closed loops. The configuration
and management for the automation capabilities may be selected based on prevailing contexts in the network
environment. Eventually, the operations will evolve further into a fully autonomous network in which cognitive
capabilities are introduced into the closed loops of managed and management layers. These learning driven closed loop
are then capable of learning the right configuration parameters for different network contexts and update the learning in
the context model in a continuous manner. Autonomous networks enable the service user and the network operator as
management service consumers to provide their expectations as "intents". The intent-based system converts the intent to
objectives which are further processed by different closed loops to satisfy the expectations expressed by the intent. The
system accepts input data from different sources to gather different perspective on the network and also the impacts
from configuration and environmental changes. This will enable the system to contextualize the information with
multi-dimensional perspective of the network behaviour (network performance and user experience) based on different
scenarios (configuration, environment, user specific handling, etc.).
This study investigates various challenges in network automation and potential advanced closed loop solutions such as
cognitive closed loops, intent based closed loops, dynamic closed loop composition and coordination, inter-dependent
closed loop, etc. to support cognitive autonomous network.
5 Problem Statements
5.1 Cognitive closed loops
Closed loops have multiple stages which could benefit from applying Machine Learning (ML) technology. According
to the C-MAPE principle [i.1] a cognitive control loop may incorporate ML into any of its stages: ML-based
monitoring, analysis, decision making and optimized actions. Such approach makes a CL more adaptive and self-
driven/self-learning, as opposed to traditional CLs that are usually self-regulating (implement a pre-defined control
logic like in LTE/5G SON) but not self-learning (i.e. they do not change the control logic regardless of the outcome of
their actions).
Applying ML within a CL requires the integration of one or more trained ML models in the CL implementation. With
state-of-the-art ML methods, an ML model architecture (e.g. neural network layers, activation functions) defines the
syntax and semantics of both the input data and the model output. That is, each ML model takes a set of well-defined
input data and produces inference results of a specific kind. Due to such focus of a single model, a CL may benefit from
having multiple models, each operating on different sets or types of input data and producing different outputs. The
reasons for multiple models may include:
• Using multiple models in combination to implement a more complex analytics and decision pipeline (e.g. by
considering insights generated by different analytics algorithms in parallel and/or in series). In this case, the
involved models are simultaneously active and should be supplied with their respective input data.
• Some models are alternatives to others with different level of functionality or capability. For instance, different
models may be created to analyse time series data coming in at different measurement intervals (5 minutes,
15 minutes, 1 hour). Depending on the resolution of the input data available in the deployment of the CL, the
corresponding model is selected. Additionally, if the availability of the input data changes (e.g. a data source
stops sending data for a period of time), the CL may autonomously switch between models.
• Some models implement special analysis cases that are only needed under specific circumstances. For
example, in a hierarchical analysis, high level analysis and decision may be driven by a first model, whereas
special non-anticipated cases, such as suspicion of an anomaly, triggers further analysis using other models. As
the various models require different input data, the CL may need to activate specific data sources so that they
start to produce data required by a newly activated model.
ETSI
8 ETSI GR ZSM 009-3 V1.1.1 (2023-08)
The above considerations forecast a more dynamic interplay between stages of a CL compared to a mostly linear
collection-analysis-decision-actuation cycle. Such dynamism also contributes to improved level of autonomy for the
CL, such as:
• Proactively re-program data sources to autonomously collect the right type, quality, and quantity of data. The
data quality and quantity of data may be a pre-requisite for versatile and high-quality analytics (or to be able to
perform analytics at all).
• With enhanced analytics, CLs may implement self-learning capability by analysing the outcome of the actions
and learning from a feedback based on how well the actions have reached the goal for which the actions have
been initiated.
5.2 Composition and coordination of interdependent closed
loops
Multiple closed loops may belong to the same use case with a common goal or related goals. These interdependent CLs
may act directly or indirectly on the same managed entity. Hence, the predicted actions of these interdependent CLs
may conflict with each other resulting in an undesired operation on the managed entity.

Figure 5.2-1: Example for Interdepended Closed loops
• As shown in figure 5.2-1a), two or more instantiated CLs may act directly on the same managed entity, e.g.
two CLs acting on the same Virtual Network Function (VNF) instance for horizontal VNF autoscaling.
• As shown in figure 5.2-1b), two or more instantiated CLs may act indirectly on the same managed entity, e.g.
when one CL acts on the CPU resource of the VNF instance for vertical VNF autoscaling and another CL acts
on that same VNF instance for horizontal VNF autoscaling.
Challenges:
Currently, external coordination mechanism (i.e. via CL Coordinator as shown in figure 5.2-1) is employed to detect
and mitigate CL conflicts either before (i.e. Pre-action coordination) or immediately after they occur (i.e. Post-action
coordination).
In Pre-action coordination, the CL coordinator detects and resolves conflicts between CLs before triggering
the Execution stage of the CLs.
In Post-action coordination, the CL coordinator identifies CL actions after the Execution stage that lead to undesired
outcomes and determines how to avoid such conflicts in the future.
However, external coordination mechanism assumes that all CLs are independent and can thus be coordinated as
independent entities. Consequently, the CLs are currently always composed independently of each other, even though
the CLs are interdependent belonging to the same use case with common goal or related goals.
With hundreds or thousands of CLs instantiated in the network, some of these CLs may be nested or hierarchical.
Scaling the functionality of the CL Coordinator becomes a challenge.
The potential solutions to address these challenges are specified in clause 6.3. Related Requirement are:
• ETSI GS ZSM 001 [i.7] clause 5.2 Req #70 "ZSM framework shall support the capability of nested closed
loops".
ETSI
9 ETSI GR ZSM 009-3 V1.1.1 (2023-08)
• ETSI GS ZSM 009-2 [i.3] clause 5.2 [CL-general-2] "The ZSM framework shall allow establishing different
types of relationships between Closed Loops. NOTE 2: Examples of relationships are peer Closed Loops,
hierarchical or nested Closed Loops."
The potential solutions to address these challenges are specified in clause 6.2.

Figure 5.2-2: External Closed Loop Coordinator-1

Figure 5.2-3: External Closed Loop Coordinator-2
5.3 Dynamic composition of closed loops
Closed loops may be, in general, within a single management function that combines all the closed loop stages or
functionalities. In such cases, multi-vendor interactions need interfaces to the network resources while control and
exposure interfaces focus on the capabilities of the combined function.
Alternatively, for multi-vendor network automation environments, closed loops support specific modules for
accomplishing specific tasks, e.g. to provide a specific analysis on some data. CLs may be composed from multi-
vendors components using standardized services. As illustrated by figure 5.3-1, the different stages can support control
and exposure services (marked with "C" and "E" in figure 5.3-1), through which an authorized entity (e.g. the ZSM
framework consumer) may control the stages. Each stage also supports the run-time services (marked with D in
figure 5.3-1) through which the stages exchange data to accomplish the network management tasks.
ETSI
10 ETSI GR ZSM 009-3 V1.1.1 (2023-08)

Figure 5.3-1: Automatic composition and management of multi-vendor closed loop
Given the likely high number of CLs and combinations thereof, it would be a heavy task for the human operators to
manage. Hence It is necessary to provide automation means with which CL stages may be dynamically composed.
Challenges:
Made-to-Order Closed Loops (M2O-CL), as defined in clause 7.4 of ETSI GS ZSM 009-1 [i.2] and service capabilities
further described in clause 5.4.6 of ETSI GS ZSM 009-2 [i.3], are assembled on demand by ZSM framework owner, or
by other entities on behalf of the ZSM framework owner, using capabilities offered by the ZSM framework.
Components of M2O-CLs may come from different ZSM framework vendors and can be associated with a CL instance
based on demand. As described in ETSI GS ZSM 009-2 [i.3], it defines the capabilities needed to chain the different
components together to prepare a M2O-CL for deployment.
The composition process - according to current solution - does not support means to request for the dynamic
composition of the closed loop. Accordingly, such means do not reflect sufficient flexibility to automatically decide the
number and type of needed stages and how to handle situations where one or more needed components are not
available. Moreover, a flexible and abstract way to submit a M2O-CL composition request needs to be supported.
To provide a flexible/abstract way to submit a M2O-CLs composition it is important.
• To determine the minimum needed information to form M2O-CLs. The needed information may be:
- Catalogue(s) of CL components
- CL goal and description
- Required capabilities of management functions that combine to form M2O-CLs
• To determine the required number of stages and capability to form M2O-CLs.
• To configure the M2O-CL stages, e.g. with their sources of data or where to deliver their reports.
• To map output of one stage to the input of subsequent stages e.g. data transformation might be required
between the stages to facilitate mapping.
ETSI
11 ETSI GR ZSM 009-3 V1.1.1 (2023-08)
5.4 Intent-based closed loops
Intelligent networks need to have the ability to adapt to new situations and new services without the intervention of
human operators or experts. One needed feature that is necessary for any intelligent network is to decouple the
requirements that are given to the management systems from the solutions that are used to deploy and manage the
services. As defined in ETSI GR ZSM 011 [i.4], intents are the formal definition of the requirements, goals, and
constraints that a technical system receive and should be used as the main input information for autonomous
management of the network.
An intent is a declarative information object that allows the system to understand utility and the value of its actions
from a producer's perspective. This allows the system to become autonomous and evaluate situations and potential
action strategies, rather than being just limited to follow instructions that operators and experts have specified in
policies. This means that intelligent decisions that were previously made exclusively by policy developers can become
automated.
On one hand, intents are necessary for providing information about requirements and utility, which is one of the
foundations for autonomous systems; on the other hand, closed loops are the key enablers for automating the
configuration of networks and steering their state towards the wanted state. The combination of these two concepts, i.e.
intents and closed loops - which is needed to realize intelligent and autonomous networks - is still a challenging task.
As described in ETSI GR ZSM 011 [i.4], the management domains may contain Intent Management Entities (IME),
which are responsible for managing the life cycle of intents. This implies that an IME is able to detect whether the
intent has been fulfilled and, if not, find and execute corrective actions; therefore, IMEs have to leverage closed loops
functionalities while dealing with the intent lifecycle management.
Figure 5.4-1 shows the main interactions between IMEs within different management domains (which may include the
end-to-end management domain). The IME receives all intents directed toward its autonomous domain and it has to
report back to the intent origin regarding its success in fulfilling the intent. The intent fulfilment has to be executed
based on measurements that allow the IME to compare the state of the network to the expected state derived from the
intent. If the system is not meeting the requirements, corrective actions are needed. The actions can be through
conventional management interfaces or, if the targeted is intent-aware, by defining its requirements through another
intent.
Figure 5.4-1: Automatic composition and management of multi-vendor closed loop
Challenges:
Intent-based operations are well explained in ETSI GR ZSM 011 [i.4] and in other standards ([i.5] and [i.10]).
ETSI
12 ETSI GR ZSM 009-3 V1.1.1 (2023-08)
As investigated in ETSI GR ZSM 011 [i.4], the IMEs operate different closed loops that are responsible to produce and
maintain the outcomes expected from the intent received, e.g. a service with specified QoE.
The implementation of IMEs and the use of closed loops can be realized in different forms, but a general challenge is
how the IMEs interact with the specific business logic within a management domain, so that they can together translate
an intent that expresses business needs into detailed technical configurations.
Such translation can be done in generic way, such closed loop enablers can be used to create a generic closed loop
structure that is able to deal with any type of intent, given they follow a common syntax and modelling. This would
relieve the burden of implementers that would not need to design and code specific (and different) closed loops for each
type of intent that is employed.
The challenge that should be tackled is to create intent-driven closed loops that have a generic structure and that:
i) are able to deal with any type of intent, and
ii) can be specialized to translate business logic into technical configurations in any management domain.
5.5 Resource locality and scarcity on closed loop automation
The implementation of a closed loop may require a certain number of resources. The number of resources may
potentially grow with the complexity of the activities expected from the closed loops. Complex operations that are
likely to be performed by a closed loop might include artificial intelligence (AI) model training, data analysis and other
non-trivial decision-making processes. At the same time, some resources that are supposed to be managed by closed
loops may be hosted in local nodes, quite far (and in some cases, isolated) from central nodes. This is the situation that
industry foresees with the on-going trend of IoT-edge-cloud continuum, where managed resources do not only include
only the ones hosted in centralized and regional data centers, but also on extreme-edge nodes (also known to as the far-
edge).
As for the management of extreme-edge node resources, there exists different variants.
On the one hand, implementing the closed loop locally, on the extreme-edge node; this means the closed loop and the
resources under its managed scope will both run on the same execution environment. The main issue of going for this
approach is that it may be very costly (per compute unit), or ineffective, as it would deplete a large part of the scarce
resources available in the extreme-edge node.
On the other hand, implementing the closed loop remotely, on a central node. However, this approach might pose
serious issues related to the exchange of data and control flows between the extreme-edge and central nodes. Examples
of these issues can include:
• disconnection risks between both nodes, which may result in non-acceptable service downtime;
• data sharing: moving local data from extreme-edge node to central node for their processing may raise privacy
concerns, especially when these data hold sensitive (business-critical or regulation-subjected) data;
• performance degradation, in terms of latency (e.g. increased time to send the monitoring data and receive
action plans) and backhaul capacity (more exchange of data and control flows between nodes mean higher
bandwidth consumption, which might result in poor resource efficiency and congestion).
Challenges:
Currently, resource locality is not taken into account when considering closed loop instantiation and operation. While
cognitive and self-learning closed loops are expected to bring better results than traditional non-self-learning ones, they
also require larger amount of data and processing power to operate, which is not necessarily compatible with specific
use cases where local resources are scarce, such as mobile network edge resource management.
Centralizing the closed loop in an area with more resource may result in increased risk of disconnection from the
managed resources. In many cases, such as security, such disconnection may not be acceptable.
Similarly, centralization may induce additional delays in the loop, which may also be a problem if the action plan needs
to be carried out in a timely manner.
ETSI
13 ETSI GR ZSM 009-3 V1.1.1 (2023-08)
6 Potential solutions
6.1 Cognitive Closed Loops
6.1.1 Active measurements
As discussed in clause 5.1, a CL may host multiple ML models to enable a wide range of analytics capabilities.
Different models usually require different type and amount of input data to produce their inference result. For example,
a model with few input data may be able to deliver coarse analytics results, while another model with more diverse
input data may deliver finer analytics results. The two models may be different in complexity and inference speed, i.e.
the simpler model may be quicker for basic decisions. Additionally, the simpler model is more relaxed on the data
collection requirements, i.e. puts lower load on the data producers (e.g. other CLs or managed entities). Therefore, the
mode of operation of the CL could be to normally use the simpler model driven by a limited set of data, whereas it
proceeds to use the more complex (and more data intensive) model only in exceptional cases when the simpler model's
inference is not satisfactory or conclusive.
Cont inuous data
Default dat a collection (streaming)
sources
Request dat a (trigger
Closed Loop
measurement )
On-demand
Provide data
dat a sources
Figure 6.1.1-1: Dynamic interaction with data sources
Optimizing data collection according to the above mode of operation requires that the CL be able to dynamically select
data sources according to its internal analytics flow. Accordingly, the CL may use a set of "default data sources" whose
data are collected and analysed when the CL operates under in normal conditions, while additional "on-demand data
sources" are utilized only on need basis such as when the CL faces unusual or abnormal conditions, and thus such
additional data are collected only on specific request from the CL. Such operation is outlined in figure 6.1.1-1.
The on-demand data collected on need basis may be used in combination with already available historical data
(figure 6.1.1-2(a), when a model has been trained on a combination of regular and on-demand data) or used separately
(figure 6.1.1-2(b), when a model is trained solely on the on-demand data).
Closed Loop Closed Loop
Analytics Analytics
Default dat a Default dat a
Model 1 Model 1
sources sources
Analytics Analytics
On-demand On-demand
Model 2 Model 2
dat a sources dat a sources
(a) (b)
Figure 6.1.1-2: Closed Loop with multiple analytics models,
each requiring different (potentially overlapping) set of input data
On-demand data may have at least two availability stages:
1) Pre-available/existing data. This is data that has already been produced by a data source and has been stored in
a database, from where it only needs to be retrieved.
2) Non pre-available/non-pre-existing data. Such data needs to be generated on request. This data has not been
produced prior to the request and requires additional actions/procedures (outside of the CL) to be generated.
ETSI
14 ETSI GR ZSM 009-3 V1.1.1 (2023-08)
Requesting existing data is usually more lightweight and available with shorter latency compared to the data that needs
to be generated, especially if the latter implies interactions between network functions or measuring/generating user
plane traffic. Still, on-demand generated data is useful to enable a CL to perform more detailed analysis; and in some
situations, the availability of pre-existing data may not be always guaranteed (e.g. due to deployment or storage
constraints).
With certain ML technology, the CL may detect that a model is not able to deliver conclusive or confident results by
evaluating the module's intrinsic confidence metric, such as that of a SoftMax classifier used as the output layer of a
deep neural network. Alternatively, the CL may monitor the distribution of model input data encountered on the field
and compare it to the current default model's training data distribution to check if the model is dealing with the kind of
data, it has not been trained for, triggering a switch-over to another model that was trained for the currently received
data. Other analytics specific means may also exist that the CL may use to realize that a given model is not sufficient for
its analytics/decision step and another model, therefore additional data is required.
The flow of command where a CL triggers active measurement as part of its analytics/decision steps is shown in
figure 6.1.1-3. The CL is depicted by its multiple internal stages (Collection, Analytics, Decision, Actuation). The
Analytics stage realizes (by means discussed above) that the default collected data does not lead to conclusive results,
therefore it decides to trigger a new measurement. The new measurement is shown to be initiated by the CL's Actuation
step, emphasizing that obtaining the on-demand data may require new data to be generated by entities outside of the CL,
not only fetching additional (but already existing) data from a database.
Closed Loop
On-demand Default dat a
Collect ion Analytics Decision Act uation
dat a sources sources
Collect and pre-
process data
St art analyt ics session
Result is ambiguous,
suspend analytics
Decision: t rigger new
measurement
Act ion: trigger new
measurement
Collect and pre-
process data
Continue analytics
Result is complet e
Decision based on
analyt ics result
Execute act ions
based on decision
Figure 6.1.1-3: Procedure for triggering active measurements from a Closed Loop
6.1.2 Self-learning closed loops
6.1.2.1 Introduction
Closed loops autonomously trigger actions based on a series of steps including data collection, analytics, and decision.
During a CL's decision step, the closed loop may select from a set of actions, where the best action depends on the CL's
dynamically changing environment and operational context. In systems with dynamicity (such as mobile networks with
mobility, traffic diversity, etc.), the mapping between potential contexts (such as domain specific insights and system
states generated by domain intelligence) and actions cannot be defined statically (e.g. as a list of rules) prior to the
implementation and deployment of the CL. Therefore, CLs are expected to autonomously adapt their operation to
varying environments, collect operational knowledge and autonomously learn from their experience.
ETSI
15 ETSI GR ZSM 009-3 V1.1.1 (2023-08)
Such self-learning capability complements external CL supervision when an entity outside of the CL evaluates the
performance of a CL and may adapt the CL's operation.
6.1.2.2 Evaluation of the efficiency and impact of closed loops
Self-learning requires that CLs evaluate their decisions and actions in the context in which they were initiated. CLs may
generate self-learning feedback from their own actions by correlating the context in which the actions were initiated, the
action itself, and measuring their efficiency and impact the action had on the entities managed by the CL. The context,
efficiency and impact terms are defined as follows.
Context: the context may be derived from the CL's collected data (historical and current), any past knowledge and
internal insights created by its analytics step. The context may not only be a snapshot of the state of the managed
entities at the time of initiating the action but could (and often should) include longer term historical and temporal
behaviour of the system, as well as the other actions that have been in effect.
Efficiency: describes whether the action has been successfully completed with the specific scope and target (UEs, cells,
etc.). An action may be partly inefficient if its outcome depends on conditions that are context
...
