ETSI TS 126 074 V17.0.1 (2022-05)

Digital cellular telecommunications system (Phase 2+) (GSM); Universal Mobile Telecommunications System (UMTS); LTE; 5G; Mandatory speech codec speech processing functions; Adaptive Multi-Rate (AMR) speech codec test sequences (3GPP TS 26.074 version 17.0.1 Release 17)

RTS/TSGS-0426074vh01

General Information

• Status: Not Published
• Technical Committee: 3GPP SA 4 - Codec
• Current Stage: 12 - Completion
• Completion Date: 09-May-2022

Standards Content (Sample)

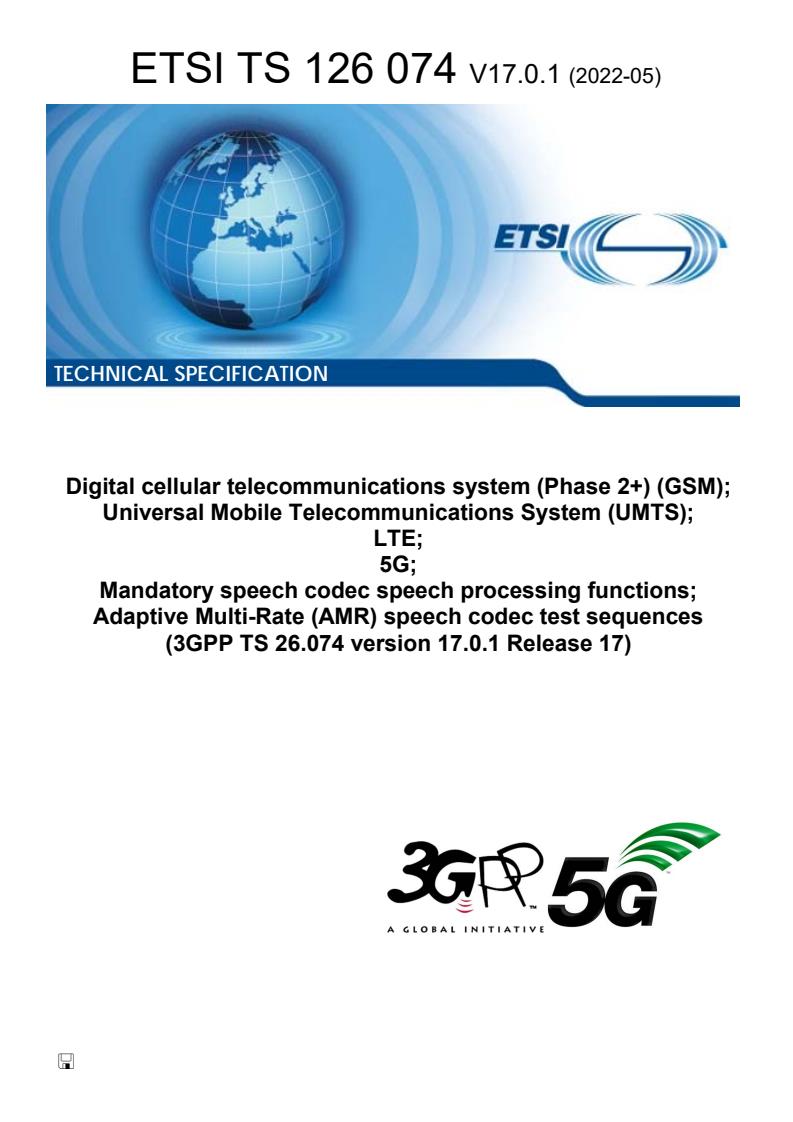

TECHNICAL SPECIFICATION
Digital cellular telecommunications system (Phase 2+) (GSM);
Universal Mobile Telecommunications System (UMTS);
LTE;
5G;
Mandatory speech codec speech processing functions;
Adaptive Multi-Rate (AMR) speech codec test sequences
(3GPP TS 26.074 version 17.0.1 Release 17)


3GPP TS 26.074 version 17.0.1 Release 17 1 ETSI TS 126 074 V17.0.1 (2022-05)

Reference
RTS/TSGS-0426074vH01
Keywords
5G,GSM,LTE,UMTS
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
If you find a security vulnerability in the present document, please report it through our
Coordinated Vulnerability Disclosure Program:
https://www.etsi.org/standards/coordinated-vulnerability-disclosure
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
No representation or warranty is made that this deliverable is technically accurate or sufficient or conforms to any law
and/or governmental rule and/or regulation and further, no representation or warranty is made of merchantability or fitness
for any particular purpose or against infringement of intellectual property rights.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2022.
All rights reserved.
ETSI
3GPP TS 26.074 version 17.0.1 Release 17 2 ETSI TS 126 074 V17.0.1 (2022-05)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its

Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the ®
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Legal Notice
This Technical Specification (TS) has been produced by ETSI 3rd Generation Partnership Project (3GPP).
The present document may refer to technical specifications or reports using their 3GPP identities. These shall be
interpreted as being references to the corresponding ETSI deliverables.
The cross reference between 3GPP and ETSI identities can be found under http://webapp.etsi.org/key/queryform.asp.
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
ETSI
3GPP TS 26.074 version 17.0.1 Release 17 3 ETSI TS 126 074 V17.0.1 (2022-05)
Contents
Intellectual Property Rights . 2
Legal Notice . 2
Modal verbs terminology . 2
Foreword . 4
1 Scope . 5
2 References . 5
3 Definitions and abbreviations . 5
3.1 Definitions . 5
3.2 Abbreviations . 5
4 General . 6
5 Test sequence format . 6
5.1 File format . 6
5.2 Codec homing . 6
6 Speech codec test sequences . 7
6.1 Codec configuration . 7
6.2 Speech codec test sequences . 7
6.2.1 Speech encoder test sequences . 7
6.2.2 Speech decoder test sequences . 8
6.2.3 Codec homing sequence . 8
7 Test sequences for source controlled rate operation . 9
7.1 Codec configuration . 9
7.2 Test Sequences . 9
7.2.1 Test sequences for background noise estimation . 9
7.2.2 Test sequences for pitch, tone and complex signal detection . 10
7.2.3 Real speech and tones . 10
7.2.4 Test sequence for signal-to-noise ratio estimation . 10
8 Sequences for finding the 20 ms framing of the adaptive multi-rate speech encoder . 10
8.1 Bit synchronisation . 10
8.2 Frame synchronisation . 11
8.3 Formats and sizes of the synchronisation sequences . 11
9 Trau Testing with 8 Bit A- and µ-law PCM Test Sequences . 12
Annex A (informative): Change history . 13
History . 14

ETSI
3GPP TS 26.074 version 17.0.1 Release 17 4 ETSI TS 126 074 V17.0.1 (2022-05)
Foreword
rd
This Technical Specification (TS) has been produced by the 3 Generation Partnership Project (3GPP).
The contents of the present document are subject to continuing work within the TSG and may change following formal
TSG approval. Should the TSG modify the contents of the present document, it will be re-released by the TSG with an
identifying change of release date and an increase in version number as follows:
Version x.y.z
where:
x the first digit:
1 presented to TSG for information;
2 presented to TSG for approval;
3 or greater indicates TSG approved document under change control.
y the second digit is incremented for all changes of substance, i.e. technical enhancements, corrections,
updates, etc.
z the third digit is incremented when editorial only changes have been incorporated in the document.
ETSI
3GPP TS 26.074 version 17.0.1 Release 17 5 ETSI TS 126 074 V17.0.1 (2022-05)
1 Scope
The present document specifies the digital test sequences for the adaptive multi-rate (AMR) speech codec. These
sequences test for a bit exact implementation of the adaptive multi-rate speech transcoder (TS 26.090 [2]), voice activity
detection (TS 26.094 [5]), comfort noise (TS 26.092 [3]), and source controlled rate operation (TS 26.093 [4]).
2 References
The following documents contain provisions which, through reference in this text, constitute provisions of the present
document.
- References are either specific (identified by date of publication, edition number, version number, etc.) or
non-specific.
- For a specific reference, subsequent revisions do not apply.
- For a non-specific reference, the latest version applies. In the case of a reference to a 3GPP document (including
a GSM document), a non-specific reference implicitly refers to the latest version of that document in the same
Release as the present document.
[1] 3GPP TS 26.071: "AMR Speech Codec; General Description".
[2] 3GPP TS 26.090: "AMR Speech Codec; Speech Transcoding Functions".
[3] 3GPP TS 26.092: "AMR Speech Codec; Comfort Noise Aspects".
[4] 3GPP TS 26.093: "AMR Speech Codec; Source Controlled Rate Operation".
[5] 3GPP TS 26.094: "AMR Speech Codec; Voice Activity Detector".
[6] 3GPP TS 26.091: "AMR Speech Codec; Error Concealment of Lost Frames".
[7] 3GPP TS 26.073: "AMR Speech Codec; ANSI C-code".
[8] 3GPP TS 46.054: "Test sequences for the GSM Enhanced Full Rate (EFR) speech codec".
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the terms and definitions given in TS 26.090 [2], TS 26.091 [6],
TS 26.092 [3], TS 26.093 [4] and TS 26.094 [5] apply.
3.2 Abbreviations
For the purposes of the present document, the following abbreviations apply:
[T.B.A]
ETSI
3GPP TS 26.074 version 17.0.1 Release 17 6 ETSI TS 126 074 V17.0.1 (2022-05)
4 General
Digital test sequences are necessary to test for a bit exact implementation of the adaptive multi-rate speech transcoder
(TS 26.090 [2]), voice activity detection (TS 26.094 [5]), comfort noise generation (TS 26.092 [3]), and source
controlled rate operation (TS 26.093 [4]).
The test sequences may also be used to verify installations of the ANSI C code in TS 26.073 [7].
Clause 5 describes the format of the files which contain the digital test sequences. Clause 6 describes the test sequences
for the speech transcoder. Clause 7 describes the test sequences for the VAD, comfort noise and source controlled rate
operation.
Clause 8 describes the method by which synchronisation is obtained between the test sequences and the speech codec
under test.
[Clause 9 describes the alternative acceptance testing of the speech encoder and decoder in the TRAU by means of 8 bit
A- or µ-law compressed test sequences on the A-Interface.]
5 Test sequence format
This clause provides information on the format of the digital test sequences for the GSM adaptive multi-rate speech
transcoder (TS 26.090 [2]), voice activity detection (TS 26.094 [5]), comfort noise generation (TS 26.092 [3]), and
source controlled rate operation (TS 26.093 [4]).
5.1 File format
The test sequence files in PC (little-endian) byte order are provided in archive files (ZIP format) which accompany the
present document.
Following decompression, three types of file are provided:
- Files for input to the speech encoder: *.INP
- Files for comparison with the encoder output and for input to the speech decoder: *.COD
- Files for comparison with the decoder output: *.OUT
- One mode control file for the mode switching test T21.MOD
All file formats are described in TS 26.073 [7].
5.2 Codec homing
Each *.INP file includes two homing frames (see TS 26.073 [7]) at the start of the test sequence. The function of these
frames is to reset the speech encoder state variables to their initial value. In the case of a correct installation of the
ANSI-C simulation (TS 26.073 [7]), all speech encoder output frames shall be identical to the corresponding frame in
the *.COD file. In the case of a correct hardware implementation undergoing testing, the first speech encoder output
frame is undefined and need not be identical to the first frame in the *.COD file, but all remaining speech encoder
output frames shall be identical to the corresponding frames in the *.COD file.
The function of the two homing frames in the *.COD files is to reset the speech decoder state variables to their initial
value. In the case of a correct installation of the ANSI-C simulation (TS 26.073 [7]), all speech decoder output frames
shall be identical to the corresponding frame in the *.OUT file. In the case of a correct hardware implementation
undergoing testing, the first speech decoder output frame is undefined and need not be identical to first frame in
the *.OUT file, but all remaining speech decoder output frames shall be identical to the corresponding frames in
the *.OUT file.
ETSI
3GPP TS 26.074 version 17.0.1 Release 17 7 ETSI TS 126 074 V17.0.1 (2022-05)
6 Speech codec test sequences
This clause describes the test sequences designed to exercise the adaptive multi-rate speech transcoder (TS 26.090 [2]).
6.1 Codec configuration
The speech encoder shall be configured not to operate in the source controlled rate mode.
6.2 Speech codec test sequences
6.2.1 Speech encoder test sequences
Twenty-two encoder input sequences are provided. Note that for the input sequences T00.INP to T03.INP, the
amplitude figures are given in 13-bit precision. The active speech levels are given in dBov.
- T00.INP - Synthetic harmonic signal. The pitch delay varies slowly from 18 to 143.5 samples. The minimum and
maximum amplitudes are -997 and +971.
- T01.INP - Synthetic harmonic signal. The pitch delay varies slowly from 144 down to 18.5 samples. Amplitudes
at saturation point -4096 and +4095.
- T02.INP - Sinusoidal sweep varying from 150 Hz to 3400 Hz. Amplitudes ± 1250.
- T03.INP - Sinusoidal sweep varying from 150 Hz to 3400 Hz. Amplitudes ± 4000.
- T04.INP - Female speech, active speech level: -19.4 dBov, flat frequency response.
- T05.INP - Male speech, active speech level: -18.7 dBov, flat frequency response.
- T06.INP - Female speech, am
...
