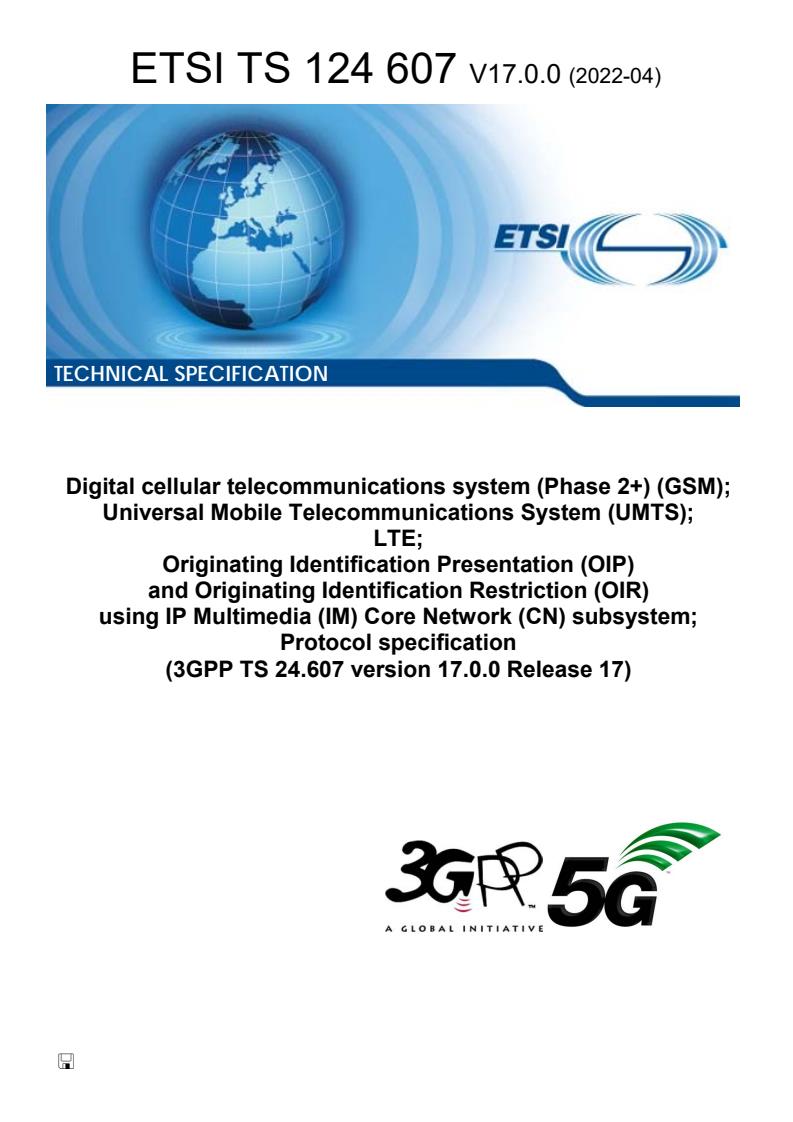

ETSI TS 124 607 V17.0.0 (2022-04)






TECHNICAL SPECIFICATION
Digital cellular telecommunications system (Phase 2+) (GSM);
Universal Mobile Telecommunications System (UMTS);
LTE;
Originating Identification Presentation (OIP)
and Originating Identification Restriction (OIR)
using IP Multimedia (IM) Core Network (CN) subsystem;
Protocol specification
(3GPP TS 24.607 version 17.0.0 Release 17)



---------------------- Page: 1 ----------------------
3GPP TS 24.607 version 17.0.0 Release 17 1 ETSI TS 124 607 V17.0.0 (2022-04)

Reference
RTS/TSGC-0124607vh00
Keywords
GSM, LTE, UMTS
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
If you find a security vulnerability in the present document, please report it through our
Coordinated Vulnerability Disclosure Program:
https://www.etsi.org/standards/coordinated-vulnerability-disclosure
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
No representation or warranty is made that this deliverable is technically accurate or sufficient or conforms to any law
arranty is made of merchantability or fitness
and/or governmental rule and/or regulation and further, no representation or w
for any particular purpose or against infringement of intellectual property rights.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2022.
All rights reserved.

ETSI

---------------------- Page: 2 ----------------------
3GPP TS 24.607 version 17.0.0 Release 17 2 ETSI TS 124 607 V17.0.0 (2022-04)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its

Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the
®
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Legal Notice
This Technical Specification (TS) has been produced by ETSI 3rd Generation Partnership Project (3GPP).
The present document may refer to technical specifications or reports using their 3GPP identities. These shall be
interpreted as being references to the corresponding ETSI deliverables.
The cross reference between 3GPP and ETSI identities can be found under http://webapp.etsi.org/key/queryform.asp.
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
ETSI

---------------------- Page: 3 ----------------------
3GPP TS 24.607 version 17.0.0 Release 17 3 ETSI TS 124 607 V17.0.0 (2022-04)
Contents
Intellectual Property Rights . 2
Legal Notice . 2
Modal verbs terminology . 2
Foreword . 5
1 Scope . 6
2 References . 6
3 Definitions and abbreviations . 7
3.1 Definitions . 7
3.2 Abbreviations . 8
4 Originating Identification Presentation (OIP) and Originating Identification Restriction (OIR) . 9
4.1 Introduction . 9
4.2 Description . 9
4.2.1 General description . 9
4.3 Operational requirements . 9
4.3.1 Provision/withdrawal . 9
4.3.1.1 OIP Provision/withdrawal . 9
4.3.1.2 OIR Provision/withdrawal . 9
4.3.2 Requirements on the originating network side. 10
4.3.3 Requirements on the terminating network side . 11
4.4 Syntax requirements . 12
4.5 Signalling procedures . 12
4.5.0 General . 12
4.5.1 Activation/deactivation . 12
4.5.1A Registration/erasure . 12
4.5.1B Interrogation . 12
4.5.2 Invocation and operation . 12
4.5.2.1 Actions at the originating UE . 12
4.5.2.2 Void. 13
4.5.2.3 Void. 13
4.5.2.4 Actions at the AS serving the originating UE . 13
4.5.2.5 Void. 14
4.5.2.6 Void. 14
4.5.2.7 Void. 14
4.5.2.8 Void. 14
4.5.2.9 Actions at the AS serving the terminating UE . 14
4.5.2.10 Void. 15
4.5.2.11 Void. 15
4.5.2.12 Actions at the terminating UE . 15
4.6 Interaction with other services . 15
4.6.1 Communication Hold (HOLD) . 15
4.6.2 Terminating Identity Presentation (TIP) . 16
4.6.3 Terminating Identity Restriction (TIR) . 16
4.6.4 Originating Identity Presentation (OIP) . 16
4.6.5 Originating Identity Restriction (OIR) . 16
4.6.6 Conference calling (CONF) . 16
4.6.7 Communication diversion services (CDIV) . 16
4.6.8 Malicious Communication IDentification (MCID) . 16
4.6.9 Incoming Communication Barring (ICB) . 16
4.6.10 Explicit Communication Transfer (ECT) . 16
4.6.11 Enhanced Calling Name (eCNAM) . 16
4.6.12 Multi-Device (MuD) . 17
4.6.13 Multi-Identity (MiD). 17
4.7 Interactions with other networks . 17
4.7.1 Void . 17
ETSI

---------------------- Page: 4 ----------------------
3GPP TS 24.607 version 17.0.0 Release 17 4 ETSI TS 124 607 V17.0.0 (2022-04)
4.7.2 Void . 17
4.7.3 Void . 17
4.8 Signalling flows . 17
4.9 Parameter values (timers) . 17
4.10 Service configuration . 17
4.10.0 General . 17
4.10.1 Data semantics . 18
4.10.2 XML schema . 18
Annex A (informative): Signalling flows . 19
Annex B (informative): Example of filter criteria . 20
B.1 Originating filter criteria for OIR service . 20
B.2 Terminating filter criteria for OIP service . 20
Annex C (informative): Change history . 21
History . 23

ETSI

---------------------- Page: 5 ----------------------
3GPP TS 24.607 version 17.0.0 Release 17 5 ETSI TS 124 607 V17.0.0 (2022-04)
Foreword
This Technical Specification (TS) was been produced by ETSI Technical Committee Telecommunications and Internet
converged Services and Protocols for Advanced Networking (TISPAN) and originally published as ETSI TS 183 007
[14]. It was transferred to the 3rd Generation Partnership Project (3GPP) in January 2008.
The contents of the present document are subject to continuing work within the TSG and may change following formal
TSG approval. Should the TSG modify the contents of the present document, it will be re-released by the TSG with an
identifying change of release date and an increase in version number as follows:
Version x.y.z
where:
x the first digit:
1 presented to TSG for information;
2 presented to TSG for approval;
3 or greater indicates TSG approved document under change control.
y the second digit is incremented for all changes of substance, i.e. technical enhancements, corrections,
updates, etc.
z the third digit is incremented when editorial only changes have been incorporated in the document.
ETSI

---------------------- Page: 6 ----------------------
3GPP TS 24.607 version 17.0.0 Release 17 6 ETSI TS 124 607 V17.0.0 (2022-04)
1 Scope
The present document specifies the stage three (protocol description) of the Originating Identification Presentation
(OIP) supplementary service and the Originating Identification Restriction (OIR) supplementary services, based on
stage one and two of the ISDN CLIP [4] and CLIR [5] supplementary service. It provides the protocol details in the IP
Multimedia (IM) Core Network (CN) subsystem based on the Session Initiation Protocol (SIP) and the Session
Description Protocol (SDP).
NOTE: It can be noted that the behaviour described in this the present document does not take into account other
behaviours that is specified in other applications and care needs to be taken when designing the filters etc.
when two or more applications are involved in a session.
2 References
The following documents contain provisions which, through reference in this text, constitute provisions of the present
document.
- References are either specific (identified by date of publication, edition number, version number, etc.) or
non-specific.
- For a specific reference, subsequent revisions do not apply.
- For a non-specific reference, the latest version applies. In the case of a reference to a 3GPP document (including
a GSM document), a non-specific reference implicitly refers to the latest version of that document in the same
Release as the present document.
[1] 3GPP TS 23.002: "Network architecture".
[2] 3GPP TS 23.228: "IP multimedia subsystem; Stage 2".
[3] 3GPP TS 24.229: "IP Multimedia Call Control Protocol based on SIP and SDP".
[4] ETSI EN 300 089 V3.1.1: "Integrated Services Digital Network (ISDN); Calling Line
Identification Presentation (CLIP) supplementary service; Service description".
[5] ETSI EN 300 090 V1.2.1: "Integrated Services Digital Network (ISDN); Calling Line
Identification Restriction (CLIR) supplementary service; Service description".
[6] IETF RFC 3323: "A Privacy Mechanism for the Session Initiation Protocol (SIP)".
[7] IETF RFC 3325: "Private Extensions to the Session Initiation Protocol (SIP) for Network Asserted
Identity within Trusted Networks".
[8] IETF RFC 2396: "Uniform Resource Identifiers (URI): Generic Syntax".
[9] IETF RFC 3966: "The tel URI for Telephone Numbers".
[10] IETF RFC 3261: "SIP: Session Initiation Protocol".
[11] Void
[12] ITU-T Recommendation I.210: "Principles of telecommunication services supported by an ISDN
and the means to describe them ".
[13] 3GPP TS 24.623: "Extensible Markup Language (XML) Configuration Access Protocol (XCAP)
over the Ut interface for Manipulating Supplementary Services".
[14] ETSI TS 183 007 V1.3.0: "Telecommunications and Internet converged Services and Protocols for
Advanced Networking (TISPAN); PSTN/ISDN simulation services; Originating Identification
Presentation (OIP) and Originating Identification Restriction (OIR); Protocol specification"
[15] 3GPP TS 24.238: "Session Initiation Protocol (SIP) based user configuration; stage 3"
ETSI

---------------------- Page: 7 ----------------------
3GPP TS 24.607 version 17.0.0 Release 17 7 ETSI TS 124 607 V17.0.0 (2022-04)
[16] IETF RFC 4825: "The Extensible Markup Language (XML) Configuration Access Protocol
(XCAP)".
[17] 3GPP TS 24.417: "Management Object (MO) for Originating Identification Presentation (OIP) and
Originating Identification Restriction (OIR) using IP Multimedia (IM) Core Network (CN)
subsystem; Stage 3".
[18] 3GPP TS 24.196: "Technical Specification Group Core Network and Terminals; Enhanced Calling
Name".
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
Call Session Control Function (CSCF): See 3GPP TS 23.002 [1].
dialog: See IETF RFC 3261 [10].
header: See IETF RFC 3261 [10].
header field: See IETF RFC 3261 [10].
identity information: all the information identifying a user, including trusted (network generated) and/or untrusted
(user generated) addresses
NOTE: Identity information takes the form of either a SIP URI (see IETF RFC 2396 [8]) or a "tel" URI
(see IETF RFC 3966 [9]) .
incoming initial request: all requests intended to initiate either a dialog or a standalone transaction terminated by the
served user
Interconnection Border Control Function (IBCF): See 3GPP TS 23.228 [2].
Media Gateway Control Function (MGCF): See 3GPP TS 23.002 [1].
originating UE: sender of a SIP request intended to initiate either a dialog (e.g. INVITE, SUBSCRIBE), or a
standalone transaction
EXAMPLE: OPTIONS, MESSAGE.
outgoing (communication): communication outgoing from the user side of the interface
outgoing initial request: all requests intended to initiate either a dialog or a standalone transaction received from the
served user
private information: information that according to IETF RFC 3323 [6] and IETF RFC 3325 [7] is not permitted to be
delivered to the remote end.
proxy: See IETF RFC 3261 [10].
Proxy-CSCF (P-CSCF): See 3GPP TS 23.228 [2].
public user identity: See 3GPP TS 23.228 [2].
request: See IETF RFC 3261 [10].
response: See IETF RFC 3261 [10].
Serving-CSCF (S-CSCF): See 3GPP TS 23.228 [2].
session: See IETF RFC 3261 [10].
ETSI

---------------------- Page: 8 ----------------------
3GPP TS 24.607 version 17.0.0 Release 17 8 ETSI TS 124 607 V17.0.0 (2022-04)
standalone transaction: SIP transaction that is not part of a dialog and does not initiate a dialog
NOTE: An OPTIONS or a MESSAGE request sent outside of a SIP dialog would be considered to be part of a
standalone transaction.
supplementary service: See ITU-T Recommendation I.210 [12], clause 2.4.
tag: See IETF RFC 3261 [10].
terminating UE: recipient of a SIP request intended either to initiate a dialog or to initiate either a dialog or a
standalone transaction
trusted identity information: network generated user public identity information
(SIP) transaction: See IETF RFC 3261 [10].
3.2 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AS Application Server
CCBS Completion of Communication to Busy Subscriber
CDIV Communication DIVersion
CLIP Calling Line Identification Presentation
CLIR Calling Line Identification Restriction
CSCF Call Session Control Function
CW Communication Waiting
HOLD communication Hold
IBCF Interconnection Border Control Function
ICB Incoming Communication Barring
IFC Initial Filter Criteria
IM IP Multimedia
IMS IP Multimedia Subsystem
IP Internet Protocol
ISDN Integrated Service Data Network
MCID Malicious Communication IDentification
MGCF Media Gateway Control Function
MiD Multi-iDentity
MuD Multi-Device
NGN Next Generation Network
OIP Originating Identification Presentation
OIR Originating Identification Restriction
P-CSCF Proxy-CSCF
PSTN Public Switched Telephone Network
S-CSCF Serving-CSCF
SDP Session Description Protocol
SIP Session Initiation Protocol
UE User Equipment
URI Universal Resource Identifier
ETSI

---------------------- Page: 9 ----------------------
3GPP TS 24.607 version 17.0.0 Release 17 9 ETSI TS 124 607 V17.0.0 (2022-04)
4 Originating Identification Presentation (OIP) and
Originating Identification Restriction (OIR)
4.1 Introduction
The Originating Identification Presentation (OIP) service provides the terminating user with the possibility of receiving
identity information in order to identify the originating user.
The Originating Identification Restriction (OIR) service enables the originating user to prevent presentation of its
identity information to the terminating user.
4.2 Description
4.2.1 General description
The OIP service provides the terminating user with the possibility of receiving trusted (i.e. network-provided) identity
information in order to identify the originating user.
In addition to the trusted identity information, the identity information from the originating user can include identity
information generated by the originating user and in general transparently transported by the network. In the particular
case where the "no screening" special arrangement does not apply, the originating network shall verify the content of
this user generated identity information. The terminating network cannot be responsible for the content of this user
generated identity information.
The OIR service is a service offered to the originating user. It restricts presentation of the originating user's identity
information to the terminating user.
When the OIR service is applicable and activated, the originating network provides the destination network with the
indication that the originating user's identity information is not allowed to be presented to the terminating user. In this
case, no originating user's identity information shall be included in the requests sent to the terminating user. The
presentation restriction function shall not influence the forwarding of the originating user's identity information within
the network as part of the supplementary service procedures.
4.3 Operational requirements
4.3.1 Provision/withdrawal
4.3.1.1 OIP Provision/withdrawal
The OIP service may be provided after prior arrangement with the service provider or be generally available.
The OIP service shall be withdrawn at the subscriber's request or for administrative reasons.
As a general operator policy a special arrangement may exist on a per subscriber basis or on a general behaviour basis
whereby the originating user's identity information intended to be transparently transported by the network is not
screened by the network.
4.3.1.2 OIR Provision/withdrawal
The OIR service, temporary mode, may be provided on a subscription basis or may be generally available.
The OIR service, permanent mode, shall be provided on a subscription basis.
As a network option, the OIR service can be offered with several subscription options. A network providing the OIR
service shall support temporary mode at a minimum. Subscription options are summarized in table 1.
ETSI

---------------------- Page: 10 ----------------------
3GPP TS 24.607 version 17.0.0 Release 17 10 ETSI TS 124 607 V17.0.0 (2022-04)
Table 1: OIR Subscription options
Subscription option values Values
Mode - permanent mode (active for all requests)
- temporary mode (allows the UE to override the
default behaviour on per call basis)
Temporary mode default - presentation restricted
- presentation not restricted
Restriction - restrict the asserted identity
- restrict all private information appearing in headers

4.3.2 Requirements on the originating network side
As part of the basic communication procedures specified in 3GPP TS 24.229 [3], the following requirements apply at
the originating network side in support of the OIP service and the OIR service. Unless noted otherwise, these
requirements are meant to apply t
...
