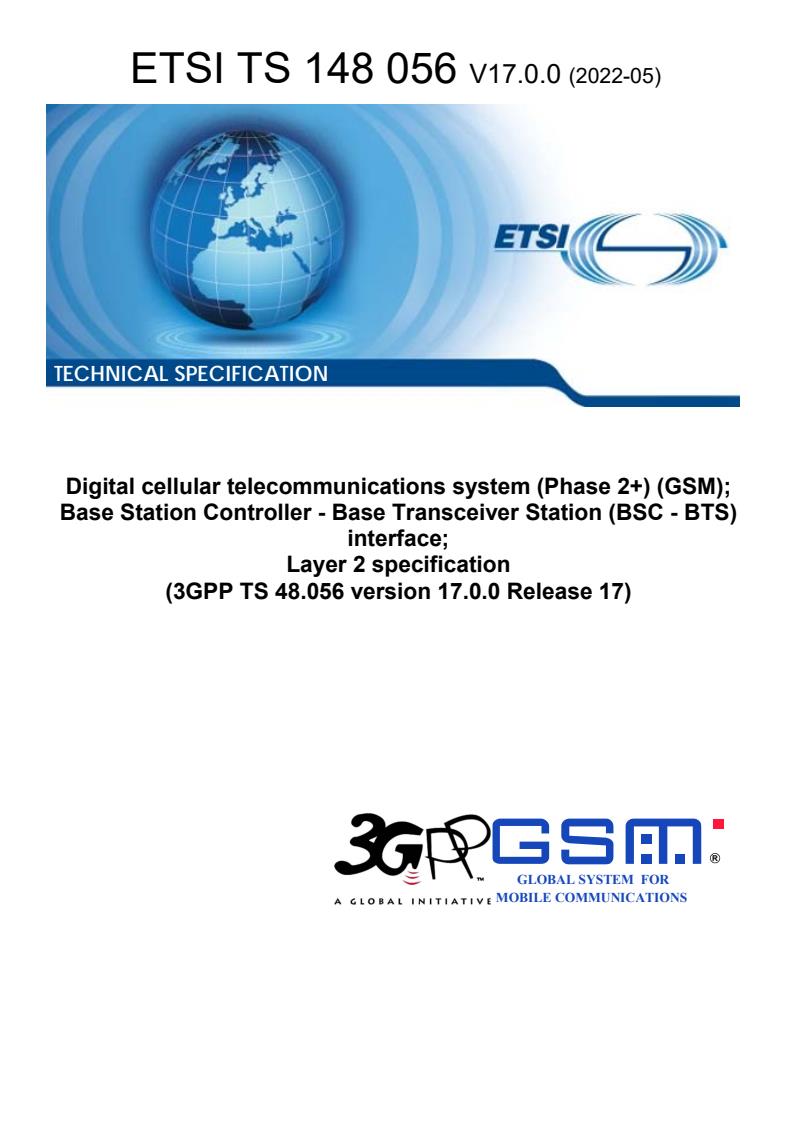

TECHNICAL SPECIFICATION
Digital cellular telecommunications system (Phase 2+) (GSM);
Base Station Controller - Base Transceiver Station (BSC - BTS)
interface;
Layer 2 specification
(3GPP TS 48.056 version 17.0.0 Release 17)

R
GLOBAL SYSTEM FOR
MOBILE COMMUNICATIONS

---------------------- Page: 1 ----------------------
3GPP TS 48.056 version 17.0.0 Release 17 1 ETSI TS 148 056 V17.0.0 (2022-05)

Reference
RTS/TSGR-0048056vh00
Keywords
GSM
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
If you find a security vulnerability in the present document, please report it through our
Coordinated Vulnerability Disclosure Program:
https://www.etsi.org/standards/coordinated-vulnerability-disclosure
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
No representation or warranty is made that this deliverable is technically accurate or sufficient or conforms to any law
rule and/or regulation and further, no representation or warranty is made of merchantability or fitness
and/or governmental
for any particular purpose or against infringement of intellectual property rights.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2022.
All rights reserved.

ETSI

---------------------- Page: 2 ----------------------
3GPP TS 48.056 version 17.0.0 Release 17 2 ETSI TS 148 056 V17.0.0 (2022-05)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its

Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the
®
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Legal Notice
This Technical Specification (TS) has been produced by ETSI 3rd Generation Partnership Project (3GPP).
The present document may refer to technical specifications or reports using their 3GPP identities. These shall be
interpreted as being references to the corresponding ETSI deliverables.
The cross reference between 3GPP and ETSI identities can be found under http://webapp.etsi.org/key/queryform.asp.
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
ETSI

---------------------- Page: 3 ----------------------
3GPP TS 48.056 version 17.0.0 Release 17 3 ETSI TS 148 056 V17.0.0 (2022-05)
Contents
Intellectual Property Rights . 2
Legal Notice . 2
Modal verbs terminology . 2
Foreword . 4
1 Scope . 5
2 References . 5
3 Definitions and abbreviations . 6
4 General description. 6
5 Functional contents . 7
6 LAPD functions . 7
6.1 Exceptions and modifications. 7
6.1.1 Void . 7
6.1.2 Command/Response field bit (C/R) . 7
6.1.3 Service Access Point Identifier (SAPI) . 7
6.1.4 TEI for point-to-point data link connection . 8
6.1.5 Commands and responses . 8
6.1.6 Exchange identification (XID) command/response . 8
6.1.7 MDL-XID . 8
6.1.8 PH-DATA, PH DEACTIVATE and PH-ACTIVATE . 8
6.1.9 MPH-ACTIVATE, MPH-DEACTIVATE an MPH-INFORMATION . 8
6.1.10 Priority indicator . 9
6.1.11 Terminal Endpoint Identifier (TEI) management procedures . 9
6.1.11.1 General . 9
6.1.11.2 TEI assignment procedure . 9
6.1.11.3 TEI identity verify procedure . 11
6.1.11.4 Formats and codes. . 11
6.1.12 Automatic negotiation of data link layer parameters . 11
6.1.13 Establishment procedures . 11
6.1.14 N(S) sequence error . 11
6.1.15 List of system parameters . 11
6.1.15.1 Timer T200 . 12
6.1.15.2 Maximum number of retransmissions (N200) . 12
6.1.15.3 Maximum number of octets in an information field (N201) . 12
6.1.15.4 Maximum number of transmission of the TEI identity request message (N202) . 12
6.1.15.5 Maximum number of outstanding frames (K) . 12
6.1.15.6 Timer T201 . 12
6.1.15.7 Timer T202 . 12
6.1.15.8 Timer T203 . 12
6.1.16 Data link layer monitor function . 13
6.1.17 Miscellaneous . 13
Annex A (informative): Change History . 14
History . 15

ETSI

---------------------- Page: 4 ----------------------
3GPP TS 48.056 version 17.0.0 Release 17 4 ETSI TS 148 056 V17.0.0 (2022-05)
Foreword
This Technical Specification has been produced by the 3rd Generation Partnership Project (3GPP).
The contents of the present document are subject to continuing work within the TSG and may change following formal
TSG approval. Should the TSG modify the contents of the present document, it will be re-released by the TSG with an
identifying change of release date and an increase in version number as follows:
Version x.y.z
where:
x the first digit:
1 presented to TSG for information;
2 presented to TSG for approval;
3 or greater indicates TSG approved document under change control.
y the second digit is incremented for all changes of substance, i.e. technical enhancements, corrections,
updates, etc.
z the third digit is incremented when editorial only changes have been incorporated in the document.
ETSI

---------------------- Page: 5 ----------------------
3GPP TS 48.056 version 17.0.0 Release 17 5 ETSI TS 148 056 V17.0.0 (2022-05)
1 Scope
The present document specifies the link layer used for signalling on the A-bis interface between BSC and BTS. The use
and general aspects of the A-bis interface are described in 3GPP TS 48.051 and the interface aspects in 3GPP TS
48.052.
The Link Access Procedure on the D-channel (LAPD) specification used on the A-bis interface in the GSM PLMN is a
subset of the EN 300 125 which in turn has less options than the CCITT Recommendation Q.921.
This description contains first the protocol definitions and second the services provided by the layer 2 to the layer 3.
2 References
The following documents contain provisions which, through reference in this text, constitute provisions of the present
document.
- References are either specific (identified by date of publication, edition number, version number, etc.) or
non-specific.
- For a specific reference, subsequent revisions do not apply.
- For a non-specific reference, the latest version applies. In the case of a reference to a 3GPP document (including
a GSM document), a non-specific reference implicitly refers to the latest version of that document in the same
Release as the present document.
[1] 3GPP TS 21.905: "Vocabulary for 3GPP Specifications".
[2] 3GPP TS 48.051: "Base Station Controller - Base Transceiver Station (BSC - BTS) interface;
General aspects".
[3] 3GPP TS 48.052: "Base Station Controller - Base Transceiver Station (BSC - BTS) interface;
Interface principles".
[4] Void.
[5] Void.
[6] Void.
[7] Void.
[8] Void.
[9] Void.
[10] Void.
[11] Void.
[12] Void.
[13] Void.
[14] Void.
[15] Void.
[16] Void.
[17] Void.
[18] Void.
ETSI

---------------------- Page: 6 ----------------------
3GPP TS 48.056 version 17.0.0 Release 17 6 ETSI TS 148 056 V17.0.0 (2022-05)
[19] CCITT Recommendation Q.921: "Integrated services digital network (ISDN) user-network
interface - Data link layer specification".
[20] EN 300 125: "Integrated Services Digital Network (ISDN); User-network interface data link layer
specification Application of CCITT Recommendations Q.920/I.440 and Q.921/I.441".
3 Definitions and abbreviations
Abbreviations used in the present document are listed in 3GPP TS 21.905.
4 General description
The following information categories are supported by the procedures of this layer 2 Recommendation:
- signalling (including Short Message Service (SMS) information);
- operation and maintenance;
- layer 2 management.
For each of these categories the BSC may have one or more layer 2 links to every TRX and BCF.
The signalling links over the A-bis interface are addressed to the different units by Terminal Endpoint Identifiers (TEI).
The same unit will normally have more than one functional entity. The logical links between different functional
entities are identified by functional addresses, the Service Access Points Identifier (SAPI).
Figure 1 shows the architectural model with different layer 2 links.
A number of logical links may be multiplexed on each physical link. The same layer 2 logical link may not be
distributed over more than one physical link.
