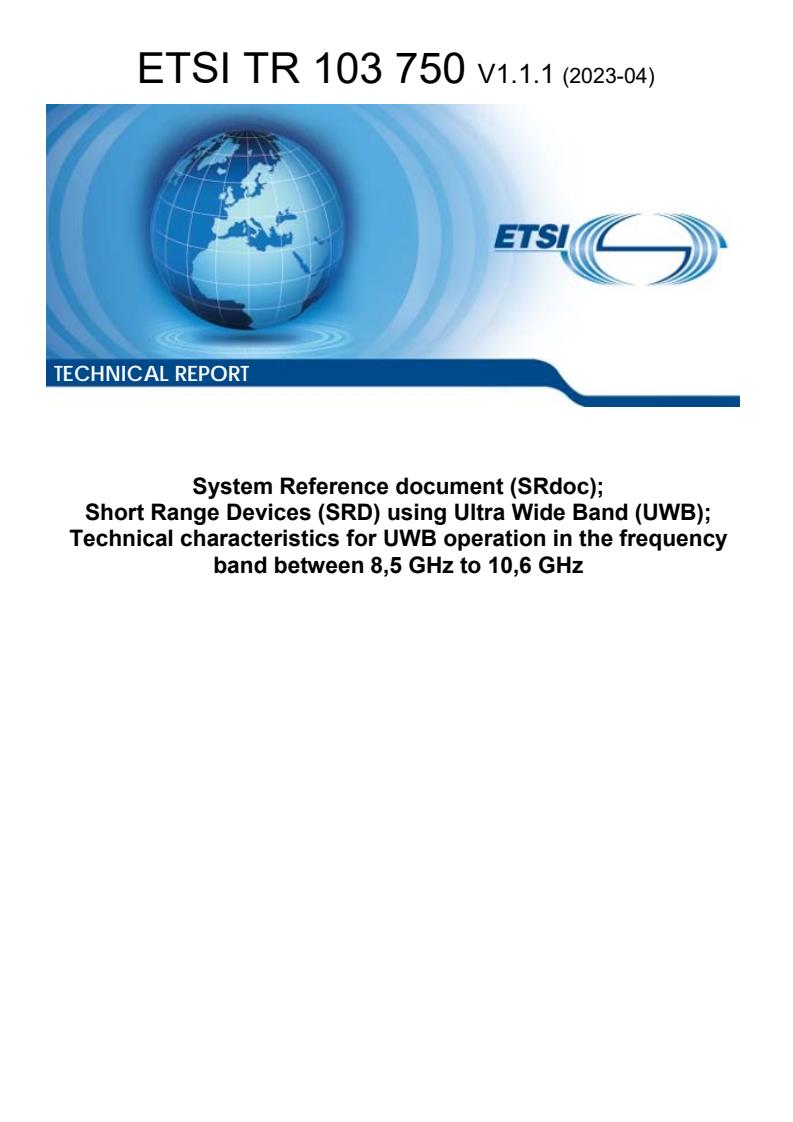

TECHNICAL REPORT
System Reference document (SRdoc);
Short Range Devices (SRD) using Ultra Wide Band (UWB);
Technical characteristics for UWB operation in the frequency
band between 8,5 GHz to 10,6 GHz

2 ETSI TR 103 750 V1.1.1 (2023-04)

Reference
DTR/ERM-600
Keywords
SRDoc, UWB
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871

Important notice
The present document can be downloaded from:
https://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
If you find a security vulnerability in the present document, please report it through our
Coordinated Vulnerability Disclosure Program:
https://www.etsi.org/standards/coordinated-vulnerability-disclosure
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
No representation or warranty is made that this deliverable is technically accurate or sufficient or conforms to any law
ntation or warranty is made of merchantability or fitness
and/or governmental rule and/or regulation and further, no represe
for any particular purpose or against infringement of intellectual property rights.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2023.
All rights reserved.
ETSI
3 ETSI TR 103 750 V1.1.1 (2023-04)

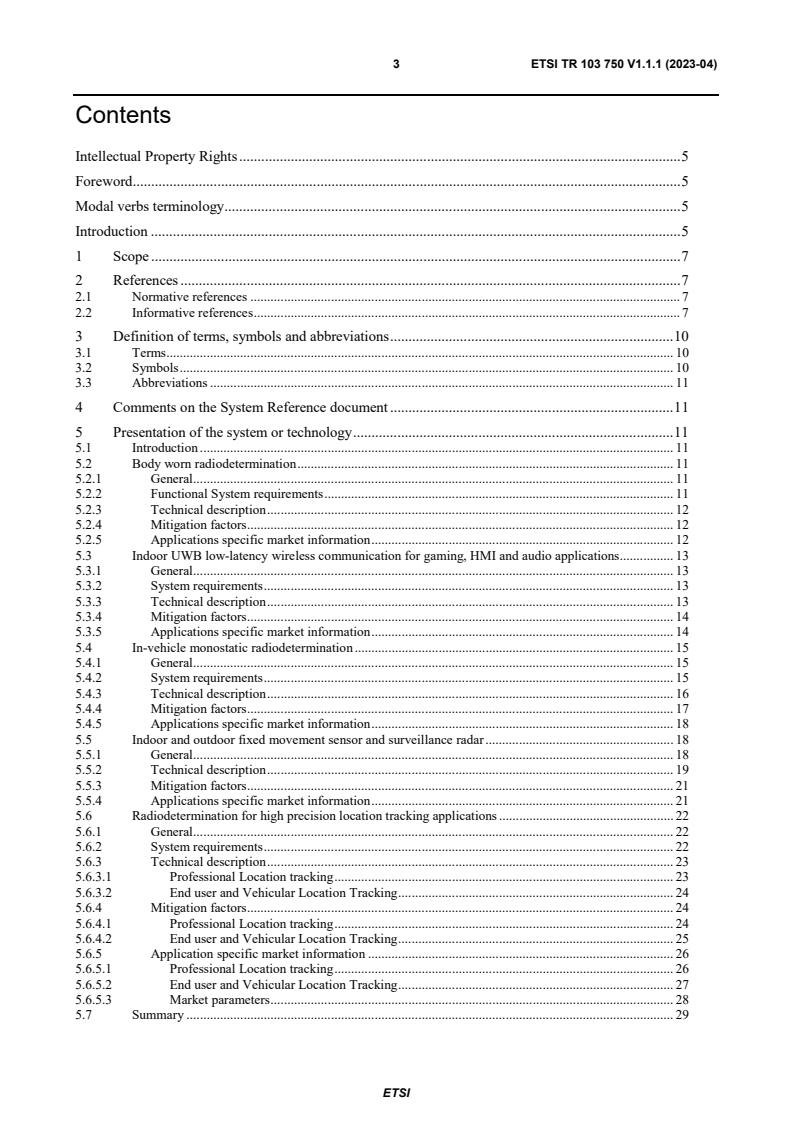

Contents
Intellectual Property Rights . 5
Foreword . 5
Modal verbs terminology . 5
Introduction . 5
1 Scope . 7
2 References . 7
2.1 Normative references . 7
2.2 Informative references . 7
3 Definition of terms, symbols and abbreviations . 10
3.1 Terms . 10
3.2 Symbols . 10
3.3 Abbreviations . 11
4 Comments on the System Reference document . 11
5 Presentation of the system or technology . 11
5.1 Introduction . 11
5.2 Body worn radiodetermination . 11
5.2.1 General . 11
5.2.2 Functional System requirements . 11
5.2.3 Technical description . 12
5.2.4 Mitigation factors . 12
5.2.5 Applications specific market information . 12
5.3 Indoor UWB low-latency wireless communication for gaming, HMI and audio applications . 13
5.3.1 General . 13
5.3.2 System requirements . 13
5.3.3 Technical description . 13
5.3.4 Mitigation factors . 14
5.3.5 Applications specific market information . 14
5.4 In-vehicle monostatic radiodetermination . 15
5.4.1 General . 15
5.4.2 System requirements . 15
5.4.3 Technical description . 16
5.4.4 Mitigation factors . 17
5.4.5 Applications specific market information . 18
5.5 Indoor and outdoor fixed movement sensor and surveillance radar . 18
5.5.1 General . 18
5.5.2 Technical description . 19
5.5.3 Mitigation factors . 21
5.5.4 Applications specific market information . 21
5.6 Radiodetermination for high precision location tracking applications . 22
5.6.1 General . 22
5.6.2 System requirements . 22
5.6.3 Technical description . 23
5.6.3.1 Professional Location tracking . 23
5.6.3.2 End user and Vehicular Location Tracking . 24
5.6.4 Mitigation factors . 24
5.6.4.1 Professional Location tracking . 24
5.6.4.2 End user and Vehicular Location Tracking . 25
5.6.5 Application specific market information . 26
5.6.5.1 Professional Location tracking . 26
5.6.5.2 End user and Vehicular Location Tracking . 27
5.6.5.3 Market parameters . 28
5.7 Summary . 29
ETSI
4 ETSI TR 103 750 V1.1.1 (2023-04)
6 Allocations in the band 8,5 GHz to 10,6 GHz and related compatibility topics . 30
6.1 Introduction . 30
6.2 Current European Common Allocations . 31
6.3 Available sharing and compatibility studies . 33
6.4 Sharing and compatibility issues still to be considered . 33
6.5 Ongoing research activities for IMT . 33
7 Radio spectrum request and justification . 34
7.1 Introduction . 34
7.2 Indoor radiodetermination and communication . 34
7.2.1 Generic Indoor radiodetermination applications . 34
7.2.2 Body Worn Indoor radiodetermination applications . 35
7.2.3 Indoor communication applications . 36
7.2.4 Comparison with existing regulation . 36
7.3 Fixed outdoor . 37
7.3.1 Generic fixed outdoor radio determination applications . 37
7.3.2 Infrastructure fixed outdoor radiodetermination applications . 37
7.3.3 Comparison with existing regulation . 38
7.4 In-vehicle applications . 38
7.4.1 New in-vehicle applications . 38
7.4.2 Comparison with existing regulation . 39
Annex A: TRP and TRP considerations . 40
sd
A.1 Introduction . 40
A.2 Definition Total Radiated Power (TRP) . 40
A.3 TRP assessment based on radiated (e.i.r.p.) measurement . 42
A.4 TRP spectral density . 44
A.5 Summary and conclusions . 45
Annex B: Overview UWB regulations and standards . 46
Annex C: Bibliography . 50
History . 52

ETSI
5 ETSI TR 103 750 V1.1.1 (2023-04)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its

Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the ®
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association. ®
BLUETOOTH is a trademark registered and owned by Bluetooth SIG, Inc.
Foreword
This Technical Report (TR) has been produced by ETSI Technical Committee Electromagnetic compatibility and Radio
spectrum Matters (ERM).
Modal verbs terminology
In the present document "should", "should not", "may", "need not", "will", "will not", "can" and "cannot" are to be
interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
Introduction
The present document includes the necessary information to support the co-operation under the MoU between ETSI and
the Electronic Communications Committee (ECC) of the European Conference of Post and Telecommunications
Administrations (CEPT).
Ultra-Wide Band (UWB) technologies enable a very broad set of applications:
• Active and passive radiodetermination applications including sensor, imaging and location/tracking
applications.
• Communication applications.
• Hybrid application as a combination of sensor and communications
ETSI
6 ETSI TR 103 750 V1.1.1 (2023-04)
The present document will provide information on the existing and future intended UWB applications in the operational
band up to 10,6 GHz with the focus on the 8,5 GHz to 10,6 GHz band extension. Most of these new applications will
require significantly broader operational frequency ranges not covered by the available UWB regulations. The present
document will also provide an overview of the relevant possible mitigation techniques and factors to protect existing
and future services in the band 8,5 GHz to 10,6 GHz. The information in the present document will complement and
extend the information included in ETSI TR 103 314 [i.34].
WRC-23 AI 1.2 asks to study and potentially identify the frequency band 6 425 - 7 125 MHz for IMT. This has already
been reflected in the most recent revision of ECC DEC (06)04 [i.9] by adding a consideration pointing out the pending
additional use of that frequency band. It, therefore, creates considerable uncertainty for future use of that frequency
range for UWB.
The new applications in the band could significantly reduce the performance of existing and future UWB applications.
The new interference scenario may lead to a complete loss of up to three available UWB channels for some current
UWB applications in this frequency range. The present document also serves as a basis to study the range
8,5 - 10,6 GHz for the use of additional UWB radiodetermination applications to facilitate the adequate deployment of
these applications with the same level of performance.
It also needs to be mentioned that the band below 7 125 MHz is being considered for WAS/RLAN.
A specific emphasis will be put on the X-band radionavigation and radiolocation systems in the band above 8,5 GHz.
The present document has been created by ETSI TC ERM TGUWB.
In addition, work for WRC-27 has started and first proposals for agenda items are received. Amongst one of them, a
proposal by GSA that asks to study frequency bands from within the range of 7 - 24 GHz for IMT. This overlaps
significantly with the existing UWB use below 8,5 GHz and the bands covered by the present document above 8,5 GHz.
This may change the future environment for UWB operations significantly.

ETSI
7 ETSI TR 103 750 V1.1.1 (2023-04)
1 Scope
The present document will provide information on the existing and future intended UWB applications in the operational
band up to 10,6 GHz with the focus onto the 8,5 GHz to 10,6 GHz band extension. It will also provide an overview over
the relevant possible mitigation techniques and factors to protect existing and future services in the band 8,5 GHz to
10,6 GHz. The information in the present document will complement and extend the information included in ETSI
TR 103 314 [i.34].
A specific emphasis will be put onto the investigations of X-band radionavigation and radiolocation systems in the band
above 8,5 GHz.
The present document includes necessary information to support the co-operation between ETSI and the Electronic
Communications Committee (ECC) of the European Conference of Post and Telecommunications Administrations
(CEPT), including:
• Detailed market information
• Technical information
• Expected compatibility issues
2 References
2.1 Normative references
Normative references are not applicable in the present document.
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI EN 303 883-1 (V1.2.1) (02-2021): "Short Range Devices (SRD) and Ultra Wide Band
(UWB); Part 1: Measurement techniques for transmitter requirements".
[i.2] ETSI EN 302 065-1 (V2.1.1) (11-2016): "Short Range Devices (SRD) using Ultra Wide Band
technology (UWB); Harmonised Standard covering the essential requirements of article 3.2 of the
Directive 2014/53/EU; Part 1: Requirements for Generic UWB applications".
[i.3] ETSI EN 302 065-2 (V2.1.1) (11-2016): "Short Range Devices (SRD) using Ultra Wide Band
technology (UWB); Harmonised Standard covering the essential requirements of article 3.2 of the
Directive 2014/53/EU; Part 2: Requirements for UWB location tracking".
[i.4] ETSI EN 302 065-3 (V2.1.1) (11-2016): "Short Range Devices (SRD) using Ultra Wide Band
technology (UWB); Harmonised Standard covering the essential requirements of article 3.2 of the
Directive 2014/53/EU; Part 3: Requirements for UWB devices for ground based vehicular
applications".
[i.5] ETSI EN 302 065-4 (V1.1.1) (11-2016): "Short Range Devices (SRD) using Ultra Wide Band
technology (UWB); Harmonised Standard covering the essential requirements of article 3.2 of the
Directive 2014/53/EU; Part 4: Material Sensing devices using UWB technology below 10,6 GHz".
ETSI
8 ETSI TR 103 750 V1.1.1 (2023-04)
[i.6] ETSI EN 302 066 (V2.2.1) (06-2020):" Short Range Devices (SRD); Ground- and Wall- Probing
Radio determination (GPR/WPR) devices; Harmonised Standard for access to radio spectrum".
[i.7] ETSI EN 302 372 (V2.1.1)(12-2016):" Short Range Devices (SRD); Tank Level Probing Radar
(TLPR) equipment operating in the frequency ranges 4,5 GHz to 7 GHz, 8,5 GHz to 10,6 GHz,
24,05 GHz to 27 GHz, 57 GHz to 64 GHz, 75 GHz to 85 GHz; Harmonised Standard covering the
essential requirements of article 3.2 of the Directive 2014/53/EU".
[i.8] ETSI EN 302 729 (V2.1.1)(12-2016):" Short Range Devices (SRD); Level Probing Radar (LPR)
equipment operating in the frequency ranges 6 GHz to 8,5 GHz, 24,05 GHz to 26,5 GHz, 57 GHz
to 64 GHz, 75 GHz to 85 GHz; Harmonised Standard covering the essential requirements of
article 3.2 of the Directive 2014/53/EU".
[i.9] CEPT ECC/DEC/(06)04 of 24 March 2006 amended 18 November 2022: " The harmonised use,
exemption from individual licensing and free circulation of devices using Ultra-Wideband (UWB)
technology in bands below 10.6 GHz".
[i.10] ECC Report 120 (March 2008): "ECC Report on Technical requirements for UWB DAA (Detect
and avoid) devices to ensure the protection of radiolocation in the bands 3.1-3.4 GHz and
8,5-9 GHz and BWA terminals in the band 3.4-4.2 GHz".
[i.11] ECC/DEC/(07)01: "ECC Decision of 30 March 2007 on specific Material Sensing devices using
Ultra-Wideband (UWB) technology (amended 26 June 2009)".
[i.12] ECC Report 170 (October, 2011): "Specific UWB applications in the bands 3.4 - 4.8 GHz and 6 -
8.5 GHz Location Tracking Applications for Emergency Services (LAES), location tracking
applications type 2 (LT2) and location tracking and sensor applications for automotive and
transportation environments (LTA)", Tallinn, October, 2011.
[i.13] Commission Decision 2014/702/EU of 7 October 2014 amending Decision 2007/131/EC on
allowing the use of the radio spectrum for equipment using ultra-wideband technology in a
harmonised manner in the Community (notified under document C(2014) 7083).
[i.14] ETSI TR 103 181-2 (V1.1.1) (06-2014): "Electromagnetic compatibility and Radio spectrum
Matters (ERM); Short Range Devices (SRD) using Ultra Wide Band (UWB);Transmission
characteristics Part 2: UWB mitigation techniques".
[i.15] ETSI TR 103 181-1 (V1.1.1) (07-2015): "Short Range Devices (SRD) using Ultra Wide Band
(UWB); Technical Report Part 1: UWB signal characteristics and overview CEPT/ECC and EC
regulation".
[i.16] ETSI TR 102 495-3: "Electromagnetic compatibility and Radio spectrum Matters (ERM); System
Reference Document; Short Range Devices (SRD); Technical Characteristics for SRD equipment
using Ultra-Wideband Sensor Technology (UWB); Part 3: Location tracking applications type 1
operating in the frequency band from 6 GHz to 8,5 GHz for indoor, portable and mobile outdoor
applications".
[i.17] Frank Leong, Wolfgang Küchler, Riku Pirhonen (NXP Semiconductors): "UWB sensing in
TM
802-15", IEEE 802.15.4ab contribution, IEEE 802 Plenary, July 2021.
[i.18] XR and its potential for Europe, Ecorys, April 2021.
[i.19] Draft ECC Report on WI71: "UWB radiodetermination applications in the frequency range
116-260 GHz".
[i.20] Request for Waiver of Section 15.255(c)(3) of the Commission's rules for Short Range Interactive
Motion Sensing Devices, Tesla Inc., July 2020.
th
[i.21] F. Berens et al.: "UWB car attenuation measurements," 2007 16 IST Mobile and Wireless
Communications Summit, 2007, pp. 1-5, doi: 10.1109/ISTMWC.2007.4299240.
[i.22] J. Fortuny-Guasch: "UWB Screening Attenuation Measurements of Cars".
[i.23] Antenna Pattern Measurement: Concepts and Techniques, Michael D. Foegelle, Compliance
Engineering, Annual Reference Guide 2002.
ETSI
9 ETSI TR 103 750 V1.1.1 (2023-04)
[i.24] Total Radiated Power Measurement above 1 GHz with Partially-Spherical Scanning of a Probe,
EMC'09 / Kyoto.
[i.25] "UWB Secure Ranging in FiRa", FiRa Consortium, August 2022: (Link date 12.12.2022).
[i.26] "How could UWB transform transport ticketing experiences?", Infineon, Stefan Rüping, May 6,
2021, (Link date 12.12.2022).
[i.27] "Better Together: How 5G, Wi-Fi 6, UWB and NFC Are Creating Tomorrow's Wireless
Railways", NXP blog Lars Reger, December 11, 2020, (Link date 12.12.2022).
[i.28] "NXP Collaborates with ING and Samsung to Pilot Industry's First UWB-Based Peer-to-Peer
Payment Application", NXP Semiconductors, July 7, 2022, , (Link date 12.12.2022).
[i.29] Video: "What's new in Nearby Interaction, Apple WWDC22" (Link date 12.12.2022).
[i.30] "UwbClient API", Google Play services, last updated July 8, 2022, (Link date 12.12.2022).
[i.31] IEEE 802.15 WSN™ Task Group 4ab (TG4ab) 802.15.4 UWB Next Generation, IEEE, last
updated Nov 25, 2022.
[i.32] GSA: "IMT towards 2030 and beyond (6G)", (Link date 12.12.2022).
[i.33] "Use cases and societal values - including aspects of sustainability, security and spectrum", (Link
date 12.12.2022).
[i.34] ETSI TR 103 314: "System Reference document (SRdoc); Short Range Devices (SRD) using
Ultra Wide Band (UWB); Technical characteristics for SRD equipment using Ultra Wide Band
Sensor technology (UWB) based on amended mitigation techniques for UWB".
[i.35] ECC Report 327: "Technical studies for the update of the Ultra Wide Band (UWB) regulatory
framework in the band 6.0 GHz to 8.5 GHz.
[i.36] Directive 2014/53/EU of the European Parliament and of the Council of 16 April 2014 on the
harmonisation of the laws of the Member States relating to the making available on the market of
radio equipment and repealing Directive 1999/5/EC Text with EEA relevance.
[i.37] ECC Report 64: "The protection requirements of radiocommunications systems below 10.6 GHz
from generic UWB applications".
[i.38] CEPT Report 9: "Report from CEPT to the European Commission in response to the Mandate
to Harmonise radio spectrum use for Ultra-Wideband systems in the European Union", 2005.
[i.39] ECC Report 302: " Sharing and compatibility studies related to Wireless Access Systems
including Radio Local Area Networks (WAS/RLAN) in the frequency band 5925-6425 MHz".
[i.40] ERC Recommendation 70-03: "Relating to the use of Short Range Devices (SRD)".
[i.41] IEEE 802.15.4z™: " IEEE Standard for Low-Rate Wireless Networks--Amendment 1: Enhanced
Ultra Wideband (UWB) Physical Layers (PHYs) and Associated Ranging Techniques".
[i.42] ETSI EN 302 065 (all parts): "Short Range Devices (SRD) using Ultra Wide Band technology
(UWB); Harmonised Standard covering the essential requirements of article 3.2 of Directive
2014/53/EU".
[i.43] List of European Union cities proper by population density - Wikipedia.
[i.44] Ecorys, XR and its potential for Europe, April 2021.
[i.45] Joaquim Fortuny-Guasch: "UWB screening attenuation measurements of cars", study by IPSC of
JRC and ETSI TG31C on the measurements of the screening attenuation of cars in the frequency
range between 0,85GHz and 11GHz, IPSC, October 2006.20.
ETSI
10 ETSI TR 103 750 V1.1.1 (2023-04)
3 Definition of terms, symbols and abbreviations
3.1 Terms
For the purposes of the present document, the terms given in ETSI EN 303 883 -1 [i.1] and the following apply:
activity factor: reflects the effective transmission time ratio over a longer time period depending on the user behaviour
active mitigation technique: mitigation technique based on some measurement or feedback from the channel or the
operating environment where the transmitting device is operating
detect and avoid: active mitigation technique consisting in listening potential victim service in the transmission
channel and, if any potential victim is detected, reducing the transmitted power accordingly
listen before talk: active mitigation technique consisting in listening potential victim service in the transmission
channel before initiating a transmission and, if any potential victim is detected, avoid the transmission until the channel
is free
(low) duty cycle: ratio of T and T : (L)DC = T / T = T /(T + T )
on period on period on on off
NOTE: The duty cycle is conventionally referred as "low" duty cycle in case of small values (typically lower than
10 %).
mitigation technique: technique of controlling radiated power of a transmitting device, having the goal to reduce
harmful interferences against potential victim services or applications operating in the same bandwidth of the
transmitting device
movement sensor: device to determine the position and the dynamic behaviour of an object of interest
object discrimination: operation to determine specific characteristics of an object of interest like material density,
humidity or structure
passive mitigation technique: mitigation technique based on some a priori knowledge of the channel, the interferer
transmitter, and the potential victim service or application to be protected
radar: monostatic radiodetermination application
radiodetermination: determination of the position, velocity and/or other characteristics of an object, or the obtaining
of information relating to these parameters, by means of the propagation properties of radio waves
NOTE: In monostatic radiodetermination applications the transmitter and the receiver is located at the same
position. The determination of the object characteristics is done by passive sensing. Typical example for a
monostatic radiodetermination application is a monostatic radar.
radionavigation: Radiodetermination used for the purposes of navigation, including obstruction warning.
radiolocation: Radiodetermination used for purposes other than those of radionavigation
range resolution: ability to resolve two targets at different ranges
sensor application: radiodetermination application used for object and material identification, characterization and
classification.
transmitter off time (Toff): time interval between two consecutive bursts when the UWB emission is kept idle
transmitter on time (T ): duration of a burst irrespective of the number of pulses contained
on
3.2 Symbols
For the purposes of the present document, the symbols defined in ETSI EN 303 883-1 [i.1] and the following apply.
TRP Total radiated power
ETSI
11 ETSI TR 103 750 V1.1.1 (2023-04)
TRP Total radiated power spectral density
sd
Ton transmitter on time
transmitter off time
Toff
3.3 Abbreviations
For the purposes of the present document, the abbreviations defined in ETSI EN 303 883-1 [i.1] and the following
apply:
LIAT Location and Industrial Asset Tracking
4 Comments on the System Reference document
Void.
5 Presentation of the system or technology
5.1 Introduction
In this clause a set of proposed applications are presented that rely on the availability of a broader spectrum band for the
operation with UWB devices. These applications include sensing and tracking applications that will only be feasible
when very broadband UWB signals are deployed in order to reach the required sensing and/or tracking precision, and
communications applications that require the availability of more channels to facilitate intra-device and inter-devices
RF coexistence.
5.2 Body worn radiodetermination
5.2.1 General
Virtual Reality (VR) is a representative body worn application. Virtual Reality (VR) headsets fully immerse people in
3D virtual environments. VR brings the sense of presence to our remote communications. VR has enormous potential to
transform how people play, work, learn, communicate, and experience the world around them. It is already positively
impacting the way companies do business and changing the face of education and professional training in healthcare
and beyond.
VR applications require high speed data transfer between headsets and controllers.
UWB is an ideal technology to achieve this function, in particular taking into account the requirement to use very low
power.
5.2.2 Functional System requirements
• Burst rates of up to 125 Mbps to accommodate the required raw and processed data transfer between headsets
and controllers
• 500 MHz bandwidths
• Very short range, 2 m
• Spectrum from 7,125 GHz to 10,6 GHz to provide sufficient channels for intra-device and inter-devices RF
coexistence
In particular, UWB is already allowed and operating up to 10,6 GHz in the USA. Opening close to 2 GHz of spectrum
with similar characteristics would be required to respond to the projected increased market size expected to leverage the
technology.
ETSI
12 ETSI TR 103 750 V1.1.1 (2023-04)
5.2.3 Technical description
The VR headset communicates to one or more controllers transferring user input and raw and processed data necessary
for the positioning, tracking and location applications. The radio link between the VR headset and the controller(s)
could have line-of-sight or be heavily attenuated by the user's body.
• Bandwidth: 500 MHz
• Data rate: 125 Mbps
• Spectrum band: 7,125 GHz to 10,6 GHz
• Maximum Duty Cycle: 25 % per 500 MHz band
• Typical Duty Cycle: 2 % per 500 MHz
• Typical antenna gain: 3 dBi to 5 dBi
• Maximum mean e.i.r.p. spectral density: -31,3 dBm/MHz (indoor only)
• TRP : -34 dBm/MHz (indoor with absorption by body and other materials)
sd
• Installed in 25 % of the apartments
• Activity factor AF: 0,666 % typical.
5.2.4 Mitigation factors
• Specific shielding factors: limited to indoor usage only
• Duty cycle restrictions per second: 25 % max per 500 MHz band with a typical value of 2 %
• Specific absorption factors: indoor installations and tissue
• Low TRP : limit of -34 dBm/MHz
sd
• Specific application: VR limits the number of devices (maximum = population density)
• Sensitive band protection: no emissions in 10,6 - 10,7 GHz
5.2.5 Applications specific market information
As discussed in [i.44], "virtual, augmented and mixed reality technology will fundamentally change how we connect,
communicate, collaborate and learn" and "research and development in Europe [in virtual, augmented and mixed
reality technology] has been incredibly broad, ranging from hardware components (i.e. sensors) to advanced
manufacturing techniques including AI and ML. In terms of thematic areas, developments can be seen in all sectors,
from healthcare to manufacturing and education." It is also stated in [i.44] that "the total market value of the European
VR and AR industry is expected to increase to between € 35 billion and € 65 billion by 2025, representing a gross
added value of between € 20 billion and € 40 billion, and directly creating employment for some 440 000 to
860 000 people".
Each user can only use one VR device at a time. Assuming a very aggressive 50 % market penetration (one habitant out
of 2 owns a VR device), the device density would not exceed 50 % of the population density. The average population
density in the European Union is 112 habitants/km .
Given the definition of rural, urban and urban centre areas in Europe, and the population density of the largest EU cities
[i.43], the population density for rural, suburban and urban can be assumed to correspond to 90, 900 and 9 000 hab/km ,
2 2
corresponding to 45, 450 and 4 500 devices/km , with an average of 66 devices/km , see Table 1.
ETSI
13 ETSI TR 103 750 V1.1.1 (2023-04)
Table 1: Assumed device densities for VR use case, indoor only
Average Rural Suburban Dense Urban
(devices/km2) (devices/km²) (devices/km²) (devices/km²)
66 45 450 4 500
The activity factor (assuming 8 hours of use per day with a 2 % average duty cycle during use) is 0,66 % which would
further reduce the number of active devices compared to the overall number of devices, see Table 2.
Table 2: Assumed active device densities for VR use case
Average Rural (active Suburban Dense Urban
(active devices/km2) devices/km²) (active devices/km²) (devices/km²)
0,44 0,3 3 30
5.3 Indoor UWB low-latency wireless communication for
gaming, HMI and audio applications
5.3.1 General
High responsiveness is key in Human-Machine Interfaces (HMI) and gaming applications, requiring low-latency, high
fidelity data transfer. UWB enables low-power, ultra-low latency communication compared to other incumbent short- ®
range wireless technologies. Although Bluetooth technology provides nearly universal compatibility with a wide range ®
of devices, the latency can be very high, in the order of a few hundred ms. Wi-Fi has a lower latency, ~10 to 20 ms,
which increases significantly with the number of devices, especially in poor link conditions, due to contention. UWB on
the other hand, offers very low latency down to a couple of milliseconds which makes it the ideal choice of technology
for low-latency applications. The short pulses offer the additional advantage of low air-time and a high bandwidth
consequently resulting in robustness to jamming and coexistence with other radios.
5.3.2 System requirements
• Bandwidth: ≥ 1 GHz
• Latency: 2 - 10 ms
• Data Rate: Few hundred kbps to few Mbps
• Max. duty cycle: 10 %
• Typ. duty cycle: < 1 %
• Maximum mean e.i.r.p. spectral density: -41,3 dBm/MHz
• Mainly indoor operation
• Antenna gain
5.3.3 Technical description
HMI device is generally portable device (may be used indoor and outdoor) and wirelessly communicating with an
associated controller. Antennas are generally omnidirectional to cover a 360 degree FoV. Operational when the
consumer is using actively (up to 10 hours a day?). Communication distance: typically short range up to a few meters.
A typical scenario is depicted in Figure 1.
ETSI
14 ETSI TR 103 750 V1.1.1 (2023-04)

Figure 1: Bidirectional data-transfer
5.3.4 Mitigation factors
• Maximum Duty Cycle: 10 %
• Typical duty cycle: < 1 %
• Maximum mean e.i.r.p. spectral density: -41,3 dBm/MHz
• Mainly indoor operation
• Antennas: gain 3 dBi
• Body loss: 3 dB
• TRP: -47,3 dBm/MHz
sd
• Activity factors: 2 h per day
• AF: 0,0833 %
5.3.5 Applications specific market information
Similar to Table 1 and Table 2 the assumed device density for low-latency wireless communication is provided in
Table 3 and the resulting active device density is provided in Table 4.
Table 3: Assumed device densities for low-latency wireless communication
Rural Suburban Dense Urban
(devices/km²) (devices/km²) (devices/km²)
Total Device density (100 %) 50 500 5 000
Indoor (90 %) 45 450 4 500
Outdoor (10 %) 5 50 500
Table 4: Assumed active device densities for low-latency wireless communication
Low-latency wireless communication (clause 5.3), AF = 0,083 %
Total active device density per km (100 %) 0,0416 0,416 4,16
Indoor (90 %) 0,03735 0,3735 3,735
Outdoor (10 %) 0,00416 0,0416 0,416

ETSI
15 ETSI TR 103 750 V1.1.1 (2023-04)
5.4 In-vehicle monostatic radiodetermination
5.4.1 General
High resolution in-vehicle sensors can provide a broad range of information to the vehicular control systems. This
information can be used for different purposes:
• UWB broad band sensors will provide vehicle security benefits. It can be used to enhance theft prevention
systems by detecting a broken window or vehicle intrusion [i.20].
• One safety issue, which in-vehicle radar sensing is well-suited to address, is the risk of heatstroke in children
inadvertently left in hot cars [i.20].
• Advanced airbag and breaking control for seat which are not used [i.20].
• Heart stroke detection of driver and other passengers like children.
• Vehicular dynamic control by using passenger recognition, identification and classification.
• Haptic control of multimedia systems and other vehicular applications.
In order to be able to generate an accurate set of sensing samples a high spatial resolution down to some mm will be
required. This high resolution will support the static and dynamic detection process. Static detection processes can lead
to a detailed identification and classification of passengers (size, weight and position). The dynamic detection can be
used for control functionality (haptic control), vital signs (e.g. heartbeat, movement) and dynamic safety features
(adaptive airbag and break control).
In order to reach this high spatial resolution of the sensing signals a very high band
...
