ETSI ETS 300 019-1-4/A1 ed.1 (1997-06)

Equipment Engineering (EE); Environmental conditions and environmental tests for telecommunications equipment; Part 1-4: Classification of environmental conditions; Stationary use at non-weatherprotected locations

RE/EE-01021-1-4

Inženiring opreme (EE) - Pogoji okolja in preskusi vpliva okolja na telekomunikacijsko opremo - Del 1-4: Klasifikacija pogojev okolja - Mirujoča (stacionarna) uporaba na lokaciji, nezaščiteni pred vremenskimi vplivi

General Information

• Status: Published
• Publication Date: 01-Jul-1997
• Technical Committee: EE 1 - EE Environmental Conditions
• Current Stage: 12 - Completion
• Due Date: 11-Jul-1997
• Completion Date: 02-Jul-1997
• Ref Project: SIST ETS 300 019-1-4/A1 E1:2006 - Equipment Engineering (EE); Environmental conditions and environmental tests for telecommunications equipment; Part 1-4: Classification of environmental conditions; Stationary use at non-weatherprotected locations

Standards Content (Sample)

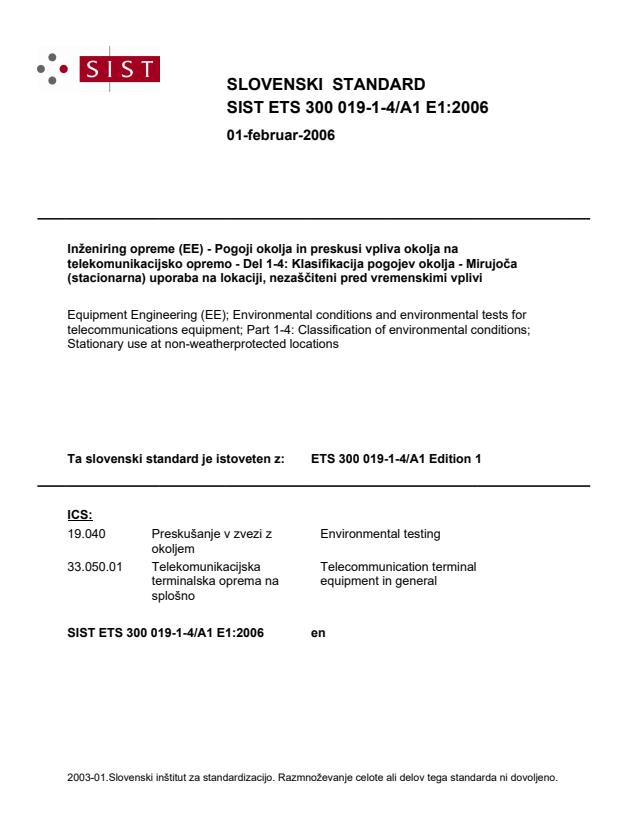

SLOVENSKI STANDARD
SIST ETS 300 019-1-4/A1 E1:2006
01-februar-2006
,QåHQLULQJRSUHPH((3RJRMLRNROMDLQSUHVNXVLYSOLYDRNROMDQD
WHOHNRPXQLNDFLMVNRRSUHPR'HO.ODVLILNDFLMDSRJRMHYRNROMD0LUXMRþD
VWDFLRQDUQDXSRUDEDQDORNDFLMLQH]DãþLWHQLSUHGYUHPHQVNLPLYSOLYL
Equipment Engineering (EE); Environmental conditions and environmental tests for
telecommunications equipment; Part 1-4: Classification of environmental conditions;
Stationary use at non-weatherprotected locations
Ta slovenski standard je istoveten z: ETS 300 019-1-4/A1 Edition 1
ICS:
19.040 Preskušanje v zvezi z Environmental testing
okoljem
33.050.01 Telekomunikacijska Telecommunication terminal
terminalska oprema na equipment in general
splošno
SIST ETS 300 019-1-4/A1 E1:2006 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST ETS 300 019-1-4/A1 E1:2006

---------------------- Page: 2 ----------------------

SIST ETS 300 019-1-4/A1 E1:2006

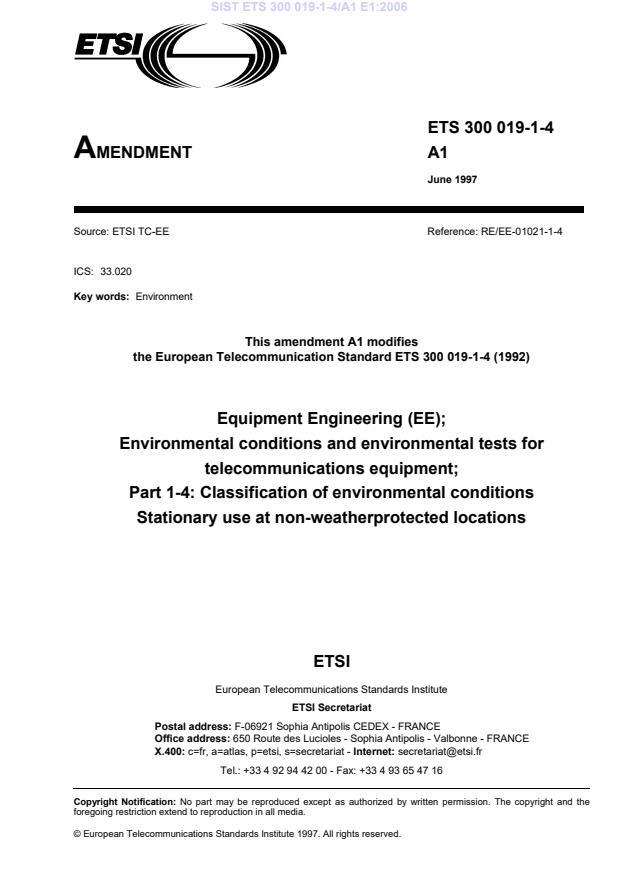

ETS 300 019-1-4
AMENDMENT A1
June 1997
Source: ETSI TC-EE Reference: RE/EE-01021-1-4
ICS: 33.020
Key words: Environment
This amendment A1 modifies
the European Telecommunication Standard ETS 300 019-1-4 (1992)
Equipment Engineering (EE);
Environmental conditions and environmental tests for
telecommunications equipment;
Part 1-4: Classification of environmental conditions
Stationary use at non-weatherprotected locations
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
Postal address: F-06921 Sophia Antipolis CEDEX - FRANCE
Office address: 650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
X.400: c=fr, a=atlas, p=etsi, s=secretariat - Internet: [e-mail]
Tel.: [phone] - Fax: [phone]
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and the
foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1997. All rights reserved.

---------------------- Page: 3 ----------------------

SIST ETS 300 019-1-4/A1 E1:2006
Page 2
ETS 300 019-1-4: February 1992/A1: June 1997
Whilst every care has been taken in the preparation and publication of this document, errors in content,
typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to
"ETSI Editing and Committee Support Dept." at the address shown on the title page.

---------------------- Page: 4 ----------------------

SIST ETS 300 019-1-4/A1 E1:2006
Page 3
ETS 300 019-1-4: February 1992/A1: June 1997
Foreword
This amendment to ETS 300 019-1-4 (1992) has been produced by the Equipment Engineering (EE)
Technical Committee of the European Telecommunications Standards Institute (ETSI).
Transposition dates
Date of adoption of this amendment: 20 June 1997
Date of latest announcement of this amendment (doa): 30 September 1997
Date of latest publication or endorsement of this amendment (dop/e): 31 March 1997
Date of withdrawal of any conflicting National Standard (dow): 31 March 1997

---------------------- Page: 5 ----------------------

SIST ETS 300 019-1-4/A1 E1:2006
Page 4
ETS 300 019-1-4: February 1992/A1: June 1997
Amendments
Contents
Add:
5.6 Earthquake conditions
Clause 2
Add the following references:
[5] IEC 721-2-6: "Environmental conditions appearing in nature - Earthquake
vibration and shock".
[6] IEC 68-3-3: "Environmental testing - Part 3: Background information - Subpart 3:
Guidance. Seismic test methods for equipment".
Clause 4
In subclause 4.1 after the second sentence, add:
Seismic environment: zone 4 as defined in IEC 721-2-6 [5]. Option zone 4 (modified Mercalli scale ≥ 9): if
earthquake conditions are specified by the customer, the conditions stated in subclause 5.6 apply.
Clause 5
After the end of subclause 5.5, add a new subclause:
5.6 Earthquake conditions
The dynamic environment which an equipment experiences during an earthquake depends on several
parameters including the intensity of the ground motion and the characteristics of the structures used to
support and/or house the equipment itself.
The conditions her
...
