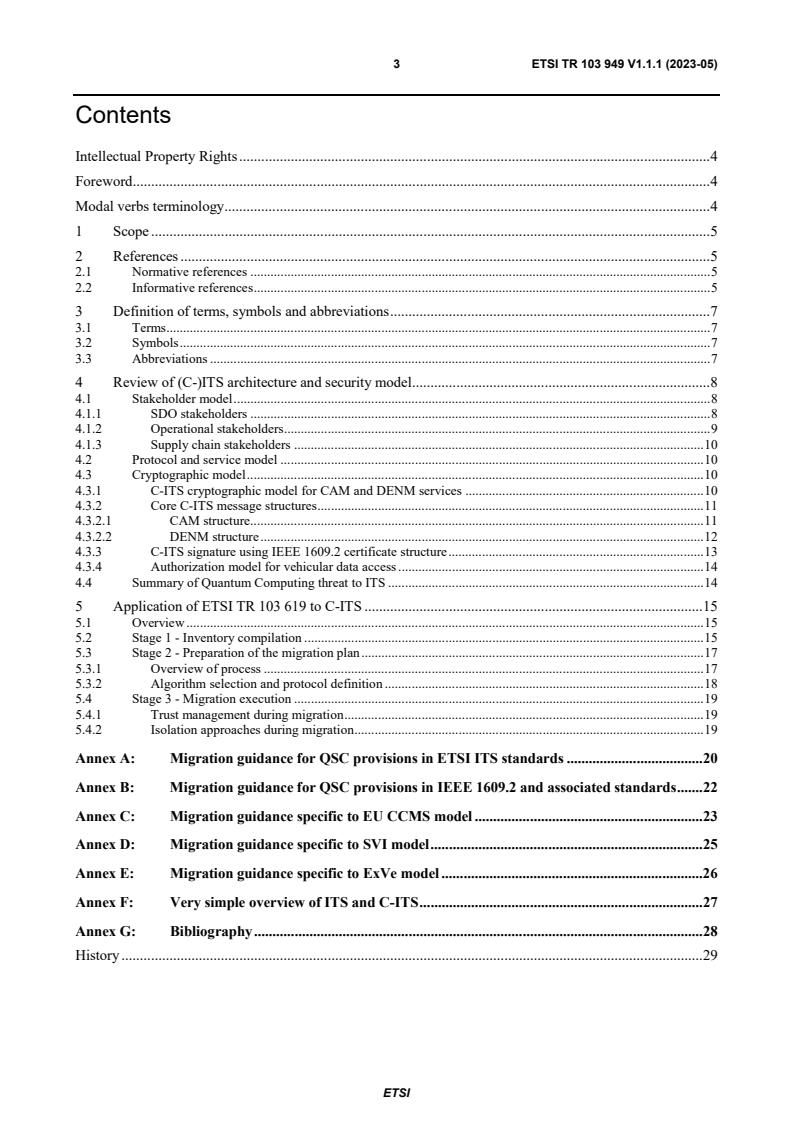

Contents
Intellectual Property Rights . 4
Foreword . 4
Modal verbs terminology . 4
1 Scope . 5
2 References . 5
2.1 Normative references . 5
2.2 Informative references . 5
3 Definition of terms, symbols and abbreviations . 7
3.1 Terms . 7
3.2 Symbols . 7
3.3 Abbreviations . 7
4 Review of (C-)ITS architecture and security model . 8
4.1 Stakeholder model . 8
4.1.1 SDO stakeholders . 8
4.1.2 Operational stakeholders . 9
4.1.3 Supply chain stakeholders . 10
4.2 Protocol and service model . 10
4.3 Cryptographic model . 10
4.3.1 C-ITS cryptographic model for CAM and DENM services . 10
4.3.2 Core C-ITS message structures . 11
4.3.2.1 CAM structure . 11
4.3.2.2 DENM structure . 12
4.3.3 C-ITS signature using IEEE 1609.2 certificate structure . 13
4.3.4 Authorization model for vehicular data access . 14
4.4 Summary of Quantum Computing threat to ITS . 14
5 Application of ETSI TR 103 619 to C-ITS . 15
5.1 Overview . 15
5.2 Stage 1 - Inventory compilation . 15
5.3 Stage 2 - Preparation of the migration plan . 17
5.3.1 Overview of process . 17
5.3.2 Algorithm selection and protocol definition . 18
5.4 Stage 3 - Migration execution . 19
5.4.1 Trust management during migration . 19
5.4.2 Isolation approaches during migration . 19
Annex A: Migration guidance for QSC provisions in ETSI ITS standards . 20
Annex B: Migration guidance for QSC provisions in IEEE 1609.2 and associated standards . 22
Annex C: Migration guidance specific to EU CCMS model . 23
Annex D: Migration guidance specific to SVI model . 25
Annex E: Migration guidance specific to ExVe model . 26
Annex F: Very simple overview of ITS and C-ITS . 27
Annex G: Bibliography . 28
History . 29


ETSI

---------------------- Page: 3 ----------------------
4 ETSI TR 103 949 V1.1.1 (2023-05)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its

Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the
®
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Foreword
This Technical Report (TR) has been produced by ETSI Technical Committee Cyber Security (CYBER).
Modal verbs terminology
In the present document "should", "should not", "may", "need not", "will", "will not", "can" and "cannot" are to be
interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.

ETSI

---------------------- Page: 4 ----------------------
5 ETSI TR 103 949 V1.1.1 (2023-05)
1 Scope
The present document reviews the state of deployment of cryptographic security mechanisms in Intelligent Transport
Systems (ITS) and Cooperative Intelligent Transport Systems (C-ITS) and their susceptibility to attack by a quantum
computer. The present document makes a number of recommendations regarding the adoption of Quantum Safe
Cryptography in order to minimize the exposure of ITS and C-ITS to attack.
2 References
2.1 Normative references
Normative references are not applicable in the present document.
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
™
[i.1] IEEE 1609.2 : "Standard for Wireless Access in Vehicular Environments--Security Services for
Applications and Management Messages".
[i.2] Recommendation ITU-T X.509: "Information technology - Open Systems Interconnection - The
Directory: Public-key and attribute certificate frameworks".
[i.3] FIPS 186-4: "Digital Signature Standard (DSS)".
[i.4] ANSI X9.62: "Public Key Cryptography for the Financial Services Industry: the Elliptic Curve
Digital Signature Algorithm (ECDSA)".
[i.5] FIPS 197: "Advanced Encryption Standard (AES)".
[i.6] ETSI TS 102 941: "Intelligent Transport Systems (ITS); Security; Trust and Privacy Management;
Release 2".
[i.7] ETSI TR 102 893: "Intelligent Transport Systems (ITS); Security; Misbehaviour Reporting".
[i.8] ETSI TS 102 731: "Intelligent Transport Systems (ITS); Security; Security Services and
Architecture".
[i.9] ETSI TS 103 097: "Intelligent Transport Systems (ITS); Security; Security header and certificate
formats; Release 2".
[i.10] Agreement on Technical Co-operation between ISO and CEN (Vienna Agreement).
[i.11] ISO/TS 21176: "Cooperative intelligent transport systems (C-ITS) -- Position, velocity and time
functionality in the ITS station".
[i.12] ISO/TS 21177: "Intelligent transport systems - ITS station security services for secure session
establishment and authentication between trusted devices".
[i.13] ISO/TS 21184: "Cooperative intelligent transport systems (C-ITS) -- Global transport data
management (GTDM) framework".
ETSI

---------------------- Page: 5 ----------------------
6 ETSI TR 103 949 V1.1.1 (2023-05)
[i.14] TS 17496: "Cooperative intelligent transport systems - Communication profiles" (produced by
CEN).
[i.15] ISO/TR 21186 (all parts): "Cooperative intelligent transport systems (C-ITS) -- Guidelines on the
usage of standards".
[i.16] ISO 20077-1: "Road vehicles -- Extended vehicle (ExVe) web services -- Part 1: Content".
[i.17] ISO 20077-2: "Road vehicles -- Extended vehicle (ExVe) methodology -- Part 2: Methodology for
designing the extended vehicle".
[i.18] ETSI TS 102 042 (V2.4.1): "Electronic Signatures and Infrastructures (ESI); Policy requirements
for certification authorities issuing public key certificates".
[i.19] ETSI EN 302 637-2: "Intelligent Transport Systems (ITS); Vehicular Communications; Basic Set
of Applications; Part 2: Specification of Cooperative Awareness Basic Service".
[i.20] ETSI TS 102 637-3: "Intelligent Transport Systems (ITS); Vehicular Communications; Basic Set
of Applications; Part 3: Specifications of Decentralized Environmental Notification Basic
Service".
[i.21] Regulation (EU) No 910/2014 of the European Parliament and of the Council of 23 July 2014 on
electronic identification and trust services for electronic transactions in the internal market and
repealing Directive 1999/93/EC.
[i.22] ETSI EG 203 310: "CYBER; Quantum Computing Impact on security of ICT Systems;
Recommendations on Business Continuity and Algorithm Selection".
[i.23] ETSI GR QSC 004: "Quantum-Safe Cryptography; Quantum-Safe threat assessment".
[i.24] ETSI TR 103 619: "CYBER; Migration strategies and recommendations to Quantum Safe
schemes".
[i.25] ETSI TS 102 165-1: "CYBER; Methods and protocols; Part 1: Method and pro forma for Threat,
Vulnerability, Risk Analysis (TVRA)".
[i.26] IETF RFC 8446: "Transport Layer Security (TLS) v1.3".
[i.27] IETF draft-tls-certieee1609-00: "Transport Layer Security (TLS) Authentication using ITS ETSI
and IEEE certificates".
[i.28] ISO 20078-1: "Road vehicles -- Extended vehicle (ExVe) web services -- Part 1: Content and
definitions".
[i.29] ISO 20080: "Road vehicles - Information for remote diagnostic support -- General requirements,
definitions and use cases".
[i.30] ISO 23132: "Road vehicles -- Extended Vehicle (ExVe) time critical applications -- General
requirements, definitions and classification methodology of time-constrained situations related to
Road and ExVe Safety (RExVeS)".
[i.31] ISO 20078-2: "Road vehicles -- Extended vehicle (ExVe) web services -- Part 2: Access".
[i.32] ISO 20078-3: "Road vehicles -- Extended vehicle (ExVe) web services -- Part 3: Security".
[i.33] ETSI TS 102 965: "Intelligent Transport Systems (ITS); Application Object Identifier (ITS-AID);
Registration; Release 2".
[i.34] Regulation (EU) 2019/881 of the European Parliament and of the Council of 17 April 2019 on
ENISA (the European Union Agency for Cybersecurity) and on information and communications
technology cybersecurity certification and repealing Regulation (EU) No 526/2013 (Cybersecurity
Act).
ETSI

---------------------- Page: 6 ----------------------
7 ETSI TR 103 949 V1.1.1 (2023-05)
[i.35] COM(2022) 454 final: "Proposal for a Regulation of the European Parliament and of the Council
on horizontal cybersecurity requirements for products with digital elements and amending
Regulation (EU) 2019/1020" (Cyber Resilience Act).
NOTE: Also available at https://digital-strategy.ec.europa.eu/en/library/cyber-resilience-act.
[i.36] IEEE 802.11™: "IEEE Standard for Information technology--Telecommunications and
information exchange between systems Local and metropolitan area networks--Specific
requirements - Part 11: Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY)

Specifications".
™.
NOTE: Formerly IEEE 802.11p
[i.37] ETSI TS 103 759: "Intelligent Transport Systems (ITS); Security; Misbehaviour Reporting
service; Release 2".
[i.38] ISO/TS 21185: "Intelligent transport systems -- Communication profiles for secure connections
between trusted devices".
3 Definition of terms, symbols and abbreviations
3.1 Terms
Void.
3.2 Symbols
Void.
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AA Authorization Authority
AES Advanced Encryption Standard
AID Application IDentifier
ASN.1 Abstract Syntax Notation 1
AVP Automated Valet Parking
CA Certification Authority
CAM Cooperative Awareness Message
CCMS C-ITS Security Credential Management System
C-ITS Cooperative ITS
CPS Certificate Practice Statement
CRQC Cryptographically Relevant Quantum Computer
CRYSTALS Cryptographic Suite for Algebraic Lattices
DE Data Elements
DENM Decentralized Environmental Notification Messages
DF Data Frames
EA Enrolment Authority
ECDSA Elliptic Curve Digital Signature Algorithm
ECTL European Certificate Trust Lists
eIDAS electronic IDentification, Authentication and trust Services
NOTE: As defined in Regulation (EU) 910/2014 on electronic identities and trust services (for authentication and
signatures) [i.21].
ExVe Extended Vehicle
FALCON Fast fourier Lattice-based Compact signatures Over NTRU
ETSI

---------------------- Page: 7 ----------------------
8 ETSI TR 103 949 V1.1.1 (2023-05)
FQSCS Fully Quantum Safe Cryptographic State
™ ™
G5 Variant of IEEE 802.11 [i.36] (formerly IEEE 802.11p ) for use at 5,8 GHz and 5,9 GHz
HTTP/S HyperText Transfer Protocol/Secure
ITS Intelligent Transport Systems
ITS-S ITS Station
JSON Java Script Object Notation
MBA MisBehaviour Authority
MBR MisBehaviour Reporting service
NIST National Institute of Standards and Technology
th
NTRU N degree Truncated polynomial Ring Units
OBU On-Board Unit
OBW On Board Weighing
OBWA OnBoard Weighing Application
PDU Protocol Data Unit
PII Personally Identifiable Information
PKC Public Key Certificate
PKI Public Key Infrastructure
QC Quantum Computer
QS Quantum Safe
QSS Quantum Safe Signature
RSU Road Side Unit
SDO Standards Development Organization
SLA Service Level Agreement
SPHINCS Stateless, Practical, Hash-based, Incredibly Nice Cryptographic Signatures
SSP Service Specific Permissions
SVI Secure Vehicle Interface
TLM Trust List Manager
TLS Transport Layer Security
TVRA Threat Vulnerability Risk Analysis
V2V Vehicle to Vehicle
VPN Virtual Private Network
WAVE Wireless Access in Vehicular Environments
4 Review of (C-)ITS architecture and security model
4.1 Stakeholder model
4.1.1 SDO stakeholders
The key Standards Development Organization (SDO) stakeholders in each of ITS and C-ITS are: ISO TC204; ETSI
™
TC ITS; IEEE WAVE group. In addition there are several other SDO stakeholders including ETSI TC ESI (as experts
in the definition and use of digital signature user the eIDAS umbrella); CEN (mirroring ISO through the Vienna
agreement [i.10]), other ISO groups including ISO JTC1/SC27 WG5 addressing matters relating to privacy, IETF,
®
NIST, ITU-T SG17 and W3C .
™
In terms of the cryptographic toolkit applied in each of ITS and C-ITS the dominant parties are IEEE and ITU-T as
™
developers of respectively IEEE 1609.2 [i.1] and Recommendation ITU-T X.509 [i.2] which are the 2 public key
certificate formats used in ITS and C-ITS. The primary cryptographic algorithm is the Elliptical Curve Digital Signature
Algorithm (ECDSA) defined in FIPS 186-4 [i.3] and ANSI X9.62 [i.4], and where confidentiality services are applied
the Advanced Encryption Standard (AES) defined in FIPS 197 [i.5] is the one that is most commonly cited.
The suite of ETSI documents that address the C-ITS security domain are shown in Figure 1.
ETSI

---------------------- Page: 8 ----------------------
9 ETSI TR 103 949 V1.1.1 (2023-05)

Figure 1: ETSI's ITS security standards map and inter-relationships
The core requirements for authorities deploying C-ITS are also addressed in ETSI TS 102 042 [i.18].
4.1.2 Operational stakeholders
NOTE 1: This model is drawn mostly from the EU model for C-ITS and the Day-0, Day-1 safety oriented services.
Operationally in C-ITS the core components are the ITS-S (ITS Station) operated by respective stakeholders as below:
• On-Board Unit (OBU), associated to a single vehicle and likely to be associated to the vehicle owner or
operator;
• Road Side Unit (RSU), associated to the road operator;
• central station, normally associated to the road operator; and
• personal unit, associated to the holder of the personal unit (it is expected that the personal ITS-S is integrated
to another equipment such as a mobile phone or personal voyage unit (e.g. a bike computer)).
In addition the EU CCMS and the core ETSI Standards for C-ITS security identify two (2) forms of authority:
• Enrolment Authority (EA), the primary root authority for giving assurance of the identity of an ITS-S; and,
• Authorization Authority (AA), the independent root authority for giving assurance of the right of the ITS-S to
make a claim.
The MisBehaviour Reporting service (MBR) defined in ETSI TS 103 759 [i.37] adds a MisBehaviour Authority
(MBA).
ETSI

---------------------- Page: 9 ----------------------
10 ETSI TR 103 949 V1.1.1 (2023-05)
Finally, for the present document, the On Board Weighing (OBW) system will add inspection authorities (standards are
in development for radio based remote OBW).
In each case the operational stakeholders will need to initiate the migration process.
NOTE 2: It is anticipated that additional security requirements will be added to allow, for example, remote control
of vehicles (e.g. Automated Valet Parking (AVP)), or for more nuanced vehicle types or transport users
(e.g. micro-mobility solutions).
4.1.3 Supply chain stakeholders
In the ITS model there are a large number of supply chains involved. For C-ITS, and in particular for Vehicle to Vehicle
safety use of C-ITS, the primary supply chain is that of the vehicle industry. Extending out from Vehicle-to-Vehicle to
include Vehicle-to-Infrastructure the supply chains include that of the road operators and traffic management authorities
(i.e. all roadside furniture and their back office operations). Moving beyond C-ITS and into many of the other ITS
variants the supply chain includes public transport operators, city management (e.g. for smart city applications), parking
operators, and the logistics domain (e.g. for just-in-time manufacturing).
A consequence of the nature of the supply chains is in the regulations that apply in placing devices on the market, many
of which have very detailed requirements on security functions, on certification and similar. Thus the type approval for
passenger vehicles is managed at each of national level, regional level and global level, and tends to view the vehicle as
a complete entity with one centralized type approval regime. However if an ITS-S is intended to be built into a vehicle
there can be a different regime for placing it on the market as part of a vehicle, from placing on the market technically
similar equipment as an RSU (where different regulatory regimes apply).
4.2 Protocol and service model
For many C-ITS services, e.g. Cooperative Awareness Messages (CAM), as defined in ETSI EN 302 637-2 [i.19] there
is no infrastructure.
QUOTE: "Point-to-multipoint communication, specified in ETSI TS 102 636-3, shall be used for
transmitting CAMs. The CAM shall be transmitted only from the originating ITS-S in a single hop
to the receiving ITS-Ss located in the direct communication range of the originating ITS-S. A
received CAM shall not be forwarded to other ITS-Ss".
The security model cannot be assured of having a connection to the root of trust in real time for CAM and therefore the
trust model is virtualised in the certificates transmitted with each CAM (see below).
NOTE 1: The data contained in a CAM is consumed by the receiver and can be used to inform future transmissions
or future behaviour of the system in which the receiver is contained.
NOTE 2: The post reception use of data from a CAM is not defined.
From a data capacity viewpoint the size of a CAM message is up to 500 bytes and a working assumption of a payload in
general for ITS of about 1 kB is reasonable (the maximum limits are greater than this). As the G5 and CAM messages
have only a very basic link control with no windowing or retransmission capability there is an inevitable degradation in
Message Error Rate as the message size increases.
NOTE 3: The security model is predicated on a reliable transmission layer with no error propagation from lower
layers.
4.3 Cryptographic model
4.3.1 C-ITS cryptographic model for CAM and DENM services
™
The C-ITS cryptographic model is drawn from primitives defined in IEEE 1609.2 [i.1] and from the protocols defined
in ETSI TS 102 941 [i.6]. The model for each of CAM and Decentralized Environmental Notification Messages
(DENM) assumes an all-informed broadcast and data is transmitted en-clair accompanied by a signed attestation of
authority. Each CAM and DENM transmission is composed of static vehicle data, dynamic vehicle data, and other
status data.
ETSI

---------------------- Page: 10 ----------------------
11 ETSI TR 103 949 V1.1.1 (2023-05)
CAM messages consist of a number of containers and the signature is calculated across the entire message. In terms of
performance requirements there is a window of 50 ms defined for all processing to be completed across a hop, and the
repetition rate of CAM is up to 10 Hz, thus about 100 ms between transmissions. In the scope of CAM and C-ITS as a
safety multiplier it has to operate in near real time thus making the transmission latency introduced by
source/destination processing ideally closer to zero than the 50 ms allowed. In common with all ECDSA signature
schemes there is a new random element required in every signature to minimize exposure of the secret key.
In general C-ITS messages are signed using a pseudonymous attribute or authorization key. There is no conventional
session based communications architecture in C-ITS, although this does not hold true for all ITS services. As there is no
online verification available, public key certificates are distributed alongside messages. Not all messages are mandated
to carry the Public Key Certificate (PKC) but without doing so, and without either online access to a PKC repository or
a reverse channel to request the PKC, there is a risk of being unable to verify the message.
4.3.2 Core C-ITS message structures
4.3.2.1 CAM structure
For vehicle ITS-Ss the CAM comprises one basic container and one high frequency co
...
