ETSI TS 103 825 V1.1.1 (2022-09)

Emergency Communications (EMTEL); Testing - Conformance test specifications for Advanced Mobile Location;Test Purposes (TP) for the handsets

DTS/EMTEL-0062

General Information

• Status: Not Published
• Technical Committee: EMTEL - Emergency Communications
• Current Stage: 12 - Completion
• Due Date: 06-Sep-2022
• Completion Date: 07-Sep-2022

Standards Content (Sample)

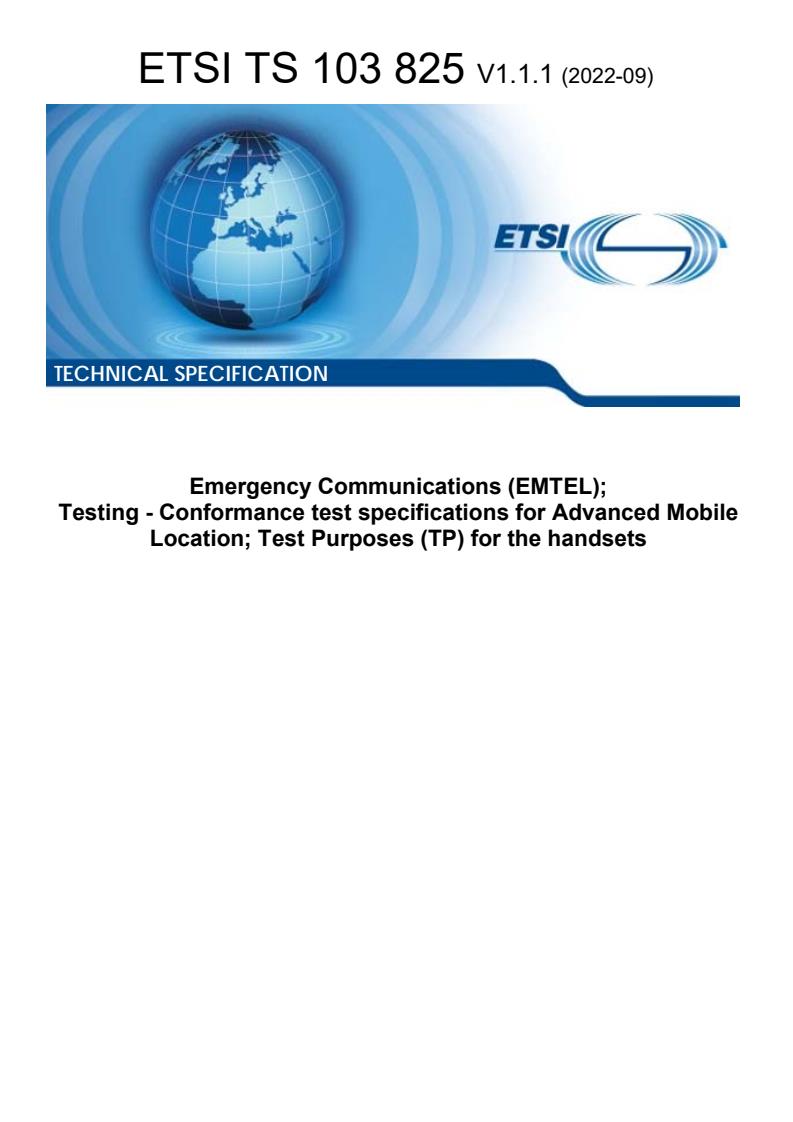

TECHNICAL SPECIFICATION
Emergency Communications (EMTEL);
Testing - Conformance test specifications for Advanced Mobile
Location; Test Purposes (TP) for the handsets

2 ETSI TS 103 825 V1.1.1 (2022-09)

Reference
DTS/EMTEL-0062
Keywords
PIXIT, SMS, TTCN
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
If you find a security vulnerability in the present document, please report it through our
Coordinated Vulnerability Disclosure Program:
https://www.etsi.org/standards/coordinated-vulnerability-disclosure
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
No representation or warranty is made that this deliverable is technically accurate or sufficient or conforms to any law
rule and/or regulation and further, no representation or warranty is made of merchantability or fitness
and/or governmental
for any particular purpose or against infringement of intellectual property rights.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2022.
All rights reserved.
ETSI
3 ETSI TS 103 825 V1.1.1 (2022-09)
Contents
Intellectual Property Rights . 4
Foreword . 4
Modal verbs terminology . 4
1 Scope . 5
2 References . 5
2.1 Normative references . 5
2.2 Informative references . 5
3 Definition of terms, symbols and abbreviations . 5
3.1 Terms . 5
3.2 Symbols . 5
3.3 Abbreviations . 6
4 Prerequisites and Test Configurations . 6
4.1 Test Configurations . 6
4.2 Protocol Implementation Conformance Statement (PICS) . 7
4.3 Protocol Implementation eXtra Information for Testing (PIXIT) . 7
5 Test Suite Structure (TSS) . 7
5.1 Overview . 7
5.2 Test groups specifications . 8
5.3 Conventions . 8
6 AML Test Purposes . 8
6.1 SMS Transmission . 8
6.2 HTTPS Transmission . 11
Annex A (informative): Information on the tools to generate the present document . 14
History . 15

ETSI
4 ETSI TS 103 825 V1.1.1 (2022-09)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its

Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the ®
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Foreword
This Technical Specification (TS) has been produced by ETSI Special Committee Emergency Communications
(EMTEL).
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.

ETSI
5 ETSI TS 103 825 V1.1.1 (2022-09)
1 Scope
The present document provides the Test Purposes (TP) for Development of AML Test Descriptions for handsets as
defined in the ETSI AML specification ETSI TS 103 625 [1] listed in clause 2.1 of the present document.
2 References
2.1 Normative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
https://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
[1] ETSI TS 103 625 (V1.2.1): "Emergency Communications (EMTEL); Transporting Handset
Location to PSAPs for Emergency Communications - Advanced Mobile Location".
[2] ETSI ES 203 119-4 (V1.4.1): "Methods for Testing and Specification (MTS); The Test
Description Language (TDL); Part 4: Structured Test Objective Specification (Extension)".
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ISO/IEC 9646-1 (1994): "Information technology -- Open Systems Interconnection --
Conformance testing methodology and framework -- Part 1: General concepts".
[i.2] ISO/IEC 9646-7 (1995): "Information technology -- Open Systems Interconnection --
Conformance testing methodology and framework -- Part 7: Implementation Conformance
Statements".
3 Definition of terms, symbols and abbreviations
3.1 Terms
For the purposes of the present document, the terms given in ISO/IEC 9646-1 [i.1] and ISO/IEC 9646-7 [i.2] apply.
3.2 Symbols
Void.
ETSI
6 ETSI TS 103 825 V1.1.1 (2022-09)
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AML Advanced Mobile Location
ATS Abstract Test Suite
BV Valid Behaviour
HTTP HyperText Transfer Protocol
HTTPS HTTP Secure
ID Identity
IDE Integrated Development Environment
IFS Interoperable Functions Statement
IMEI International Mobile Equipment Identity
IUT Implementation Under Test
PICS Protocol Implementation Conformance Statement
PIXIT Protocol Implementation eXtra Information for Testing
SIM Subscriber Identity Module
SMS Short Message Service
TDL Test Description Language
TDL-TO TDL-Test Objective
TOP TDL Open Source Project
TP Test Purposes
TS Test Suite
TSS Test Suite Structure
4 Prerequisites and Test Configurations
4.1 Test Configurations
Test configurations capture and describe the components identified in the tests and the connections between them. For
the present test suite, two (2) configurations are identified and listed in the present clause. For each test configuration
two (2) main components are identified: the IUT implementing the AML specification and the Tester implementing the
AML endpoint.
Figure 4.1-1 includes a Handset as the IUT and a SMS Endpoint as the Tester. This configuration is applicable for all
test purposes in SMS Group.
Figure 4.1-1: Config_SMS
Figure 4.1-2 includes a Handset as the IUT and a SMS Endpoint as the Tester. This configuration is applicable for all
test purposes in HTTP Group.
Figure 4.1-2: Config_HTTPS
ETSI
7 ETSI TS 103 825 V1.1.1 (2022-09)
NOTE: The AML HTTPS endpoint is configurable and differs from country to country where AML is used. The
IUT should be able to verify the server certificate to test over HTTPS. There are the following options for
this: use a server certificate signed by a trusted root certificate or use a self-signed certificate and import
this certificate into the IUT.
4.2 Protocol Implementation Conformance Statement (PICS)
The "Protocol Implementation Conformance Statement" (PICS) identifies the standardized functions of an IUT. These
functions can be mandatory, optional or conditional (depending on other functions), and depend on the role played by
the IUT. The PICS can also be used as a proforma by a vendor to identify the functions that its IUT will support when
interoperating with corresponding functions from other vendors.
Table 4.2-1: PICS
Item IFS ID Description Status
1 PICS_SMS_SUPPORT IUT supports AML via SMS Optional.
See note.
2 PICS_HTTPS_SUPPORT IUT supports AML via HTTPS Optional.
See note.
NOTE: At least one of the options shall be selected.

4.3 Protocol Implementation eXtra Information for Testing
(PIXIT)
The "Protocol Implementation eXtra Information for Testing" (PIXIT) defines the actual value and format of optional
information elements according to the specifications implemented in the IUT.
Table 4.3-1: PIXIT
Item PIXIT ID Description
1 PX_LATITUDE The WGS84 latitude of the centre of the location area given in decimal
degrees using 5 decimal places giving resolution to 1,1 meters
2 PX_LONGITUDE The WGS84 longitude of the centre of the location area given in decimal
degrees using 5 decimal places giving resolution to 1,1 meters
3 PX_IMSI The SIM card identifier of the IUT
4 PX_IMEI The identifier of the IUT
5 PX_MCC Mobile Country Code of the IUT
6 PX_MNC Mobile Network Code of the IUT

5 Test Suite Structure (TSS)
5.1 Overview
The test suite structure identifies grouping of test purposes and serves a base for grouping of Test Case in the ATS
(Abstract Test Suite).
The Test Suite structure is used for the creation of identifiers of Test Purposes.
Table 5.1-1 identif
...
