ETSI GS NFV-IFA 002 V2.1.1 (2016-03)

Network Functions Virtualisation (NFV); Acceleration Technologies; VNF Interfaces Specification

DGS/NFV-IFA002

General Information

• Status: Published
• Publication Date: 29-Mar-2016
• Technical Committee: NFV IFA - Interfaces and Architecture
• Current Stage: 12 - Completion
• Due Date: 19-Apr-2016
• Completion Date: 30-Mar-2016

Standards Content (Sample)

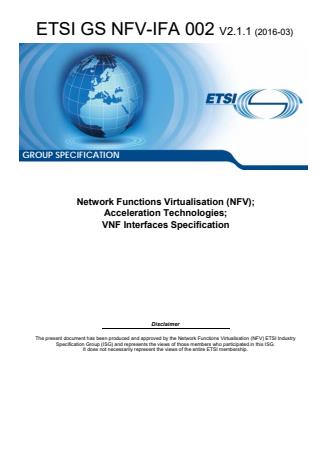

ETSI GS NFV-IFA 002 V2.1.1 (2016-03)






GROUP SPECIFICATION
Network Functions Virtualisation (NFV);
Acceleration Technologies;
VNF Interfaces Specification
Disclaimer
The present document has been produced and approved by the Network Functions Virtualisation (NFV) ETSI Industry
Specification Group (ISG) and represents the views of those members who participated in this ISG.
It does not necessarily represent the views of the entire ETSI membership.

---------------------- Page: 1 ----------------------
2 ETSI GS NFV-IFA 002 V2.1.1 (2016-03)



Reference
DGS/NFV-IFA002
Keywords
acceleration, interoperability, NFV, NFVI,
performance, portability

ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the
print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying
and microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2016.
All rights reserved.

TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI

---------------------- Page: 2 ----------------------
3 ETSI GS NFV-IFA 002 V2.1.1 (2016-03)
Contents
Intellectual Property Rights . 5
Foreword . 5
Modal verbs terminology . 5
1 Scope . 6
2 References . 6
2.1 Normative references . 6
2.2 Informative references . 6
3 Definitions and abbreviations . 7
3.1 Definitions . 7
3.2 Abbreviations . 8
4 Overview . 9
4.1 Problem Statement . 9
4.1.1 VNF Acceleration goals . 9
4.1.2 Network related acceleration . 11
4.1.3 Storage related acceleration . 11
4.1.4 Algorithmic acceleration . 11
4.2 Software architecture . 12
4.2.1 Overview . 12
4.2.2 Acceleration model . 12
4.2.2.1 General . 12
4.2.2.2 VNF aspects . 13
4.2.2.3 Virtualisation Layer aspects . 14
4.2.2.4 Intra-VNF acceleration . 15
5 Abstract Interface functional requirements . 17
5.1 Overview . 17
5.2 Common Acceleration Virtualisation interface requirements . 18
5.3 EPD Driver requirements . 18
5.4 Cryptography functional group . 19
5.4.1 Overall requirements. 19
5.4.2 Operations requirements . 19
5.4.3 Crypto interface requirements. 20
5.4.4 Crypto driver requirements . 20
5.4.5 Management and monitoring requirements . 20
5.5 IPSec offloading functional group . 20
5.5.1 Overview . 20
5.5.2 IPSec offloading interface requirements . 21
5.5.3 Operations requirements . 21
5.5.4 Management and monitoring requirements . 21
5.6 TCP offloading functional group . 21
5.6.1 TCP offloading interface requirements . 21
5.6.2 TCP offloading type requirements . 22
5.7 Storage functional group . 22
5.7.1 NVMe Over Fabric . 22
5.7.1.1 Overview . 22
5.7.1.2 Interface requirements . 22
5.8 Re-programmable computing functional group . 22
5.8.1 Re-programmabe interface requirements . 22
5.8.2 Operations requirements . 22
5.8.3 Management and monitoring requirements . 23
5.9 Dynamic Optimization of Packet Flow Routing Functional Group . 23
5.9.1 DOPFR interface requirements . 23
5.9.2 Management and monitoring requirements . 23
5.10 NAT offloading functional group . 23
5.10.1 Overview . 23
ETSI

---------------------- Page: 3 ----------------------
4 ETSI GS NFV-IFA 002 V2.1.1 (2016-03)
5.10.2 Overall requirements. 23
5.10.3 NAT offloading interface requirements . 24
5.10.4 NAT offloading Operations requirements . 24
5.10.5 Management and monitoring requirements . 24
5.11 VXLAN offloading functional group . 24
5.11.1 Overview . 24
5.11.2 Overall requirements. 24
5.11.3 VXLAN offloading interface requirements . 24
5.11.4 VXLAN offloading operations requirements. 25
5.11.5 Management and monitoring requirements . 25
5.12 Media functional group . 25
5.12.1 Overview . 25
5.12.2 Media overall requirements . 25
5.12.3 Media operations requirements . 25
5.12.4 Media interface requirements . 26
5.12.5 Management and monitoring requirements . 26
Annex A (informative): Authors & contributors . 27
Annex B (informative): Bibliography . 28
Annex C (informative): Change History . 29
History . 30


ETSI

---------------------- Page: 4 ----------------------
5 ETSI GS NFV-IFA 002 V2.1.1 (2016-03)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (https://ipr.etsi.org/).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Group Specification (GS) has been produced by ETSI Industry Specification Group (ISG) Network Functions
Virtualisation (NFV).
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
ETSI

---------------------- Page: 5 ----------------------
6 ETSI GS NFV-IFA 002 V2.1.1 (2016-03)
1 Scope
The present document specifies requirements for a set of abstract interfaces enabling a VNF to leverage acceleration
services from the infrastructure, regardless of their implementation. The present document also provides an acceleration
architectural model to support its deployment model.
2 References
2.1 Normative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
https://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
[1] ETSI GS NFV 003: "Network Functions Virtualisation (NFV); Terminology for main concepts in
NFV".
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI GS NFV-INF 003: "Network Functions Virtualisation (NFV); Infrastructure; Compute
Domain".
[i.2] ETSI GS NFV-SWA 001: "Network Functions Virtualisation (NFV); Virtual Network Functions
Architecture".
[i.3] ETSI GS NFV-IFA 003: "Network Functions Virtualisation (NFV); Acceleration Technologies;
vSwitch Benchmarking and Acceleration Specification".
[i.4] ETSI GS NFV-IFA 004: "Network Functions Virtualisation (NFV); Acceleration Technologies;
Management aspects Specification".
[i.5] NVM Express™ Inc: NVM Express 1.0e, NVM Express 1.1, NVM Express 1.2.
NOTE: Available at http://www.nvmexpress.org/specifications/.
[i.6] ETSI GS NFV-INF 005: "Network Functions Virtualisation (NFV);Infrastructure; Network
Domain".
[i.7] ETSI GS NFV-IFA 001: "Network Functions Virtualisation (NFV); Acceleration Technologies;
Report on Acceleration Technologies & Use Cases".
ETSI

---------------------- Page: 6 ----------------------
7 ETSI GS NFV-IFA 002 V2.1.1 (2016-03)
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the terms and definitions given in ETSI GS NFV 003 [1] and the following
apply:
abstract interface: computer specification and modelling construct. It defines an information model and a way to
communicate between two or more entities
NOTE: Computing objects and APIs can be developed for a programming language to implement it.
Application Programming Interface (API): computer programming language construct, composed of a set of
functions, methods, objects, structures and constant definitions used to implement an abstract interface
NOTE: This construct is called an abstract interface language binding. There might be multiple bindings to a
single abstract interface, one for each computer language (C, C++, Java™, Ruby, PHP, etc.).
dispatching: deterministic method of distributing packets amongst packet queues to be handled by the network stack,
exposed as a NIC capability
NOTE: This dispatching can be done by an operating system or a software library such as DPDK or ODP. The
criteria for dispatching can be as simple as round robin or as complex as packet hashing on combination
of IP address, TCP ports, taking into account tunnelling. The number of processor threads handling the
queues can be lower or higher than the number of those queues.
extensible para-virtualised device: para-virtualised device that can execute code and use resources provided by the
hypervisor domain at runtime
NOTE: The benefit of the extensibility is to avoid crossing virtualisation boundary whenever it is possible. The
resources enable bypassing the hypervisor in a hardware independent manner.
Execution Environment (EE): set of resources and control mechanisms on which application are running
NOTE 1: Examples of Execution Environments include:
Traditional Operating System.
RUMP kernels.
Java™ Virtual Machine (with or without underlying Operating System).
Xen Minios.
DPDK.
Docker.
NOTE 2: An Execution Environment may be virtualised on top of a hypervisor or not.
NOTE 3: Execution Environments may share or not resources such as processor between applications running on
top of them.
language binding: API definition for an abstract interface on a particular programming language
library: collection of implementations of behaviour, written in terms of a language that has a well-defined interface by
which the behaviour is invoked
NOTE: This means that as long as a higher level program uses a library to make system calls, it does not need to
be re-written to implement those system calls over and over again. In addition, the behaviour is provided
for reuse by multiple independent programs. A program invokes the library-provided behaviour via a
mechanism of the language. For example, in a simple imperative language such as C, the behaviour in a
library is invoked by using C's normal function-call. What distinguishes the call as being to a library,
versus being to another function in the same program, is the way that the code is organized in the system.
ETSI

---------------------- Page: 7 ----------------------
8 ETSI GS NFV-IFA 002 V2.1.1 (2016-03)
load balancing: dynamic application level traffic distribution function, that distributes traffic amongst VNFC instances
within a VNF or amongst VNF instances
NOTE: As defined in ETSI GS NFV-SWA 001 [i.2], clause 5.1.4.
offload: delegate processing (e.g. classification, forwarding, dispatching, load balancing, cryptography, and
transcoding) to a different processor or other specialized hardware entity
Real Time Application (RTA): application whose execution can be guaranteed to be accomplished under a specific
"execution contract"
NOTE: For instance within a bounded delay, for a certain bandwidth. It assumes execution on a Real Time
Execution Environment or Operating System (see Real Time Execution Environment).
Real Time Execution Environment (RTEE): Execution Environment that offer applications with provisions to meet
their execution contract (see Real Time Application)
Real Time Operating System (RTOS): Real Time Execution Environment in the form of an Operating System
NOTE: An RTOS has an advanced algorithm for scheduling. Scheduler flexibility enables a wider,
computer-system orchestration of process priorities, but a real-time OS is more frequently dedicated to a
narrow set of applications. Key factors in a real-time OS are minimal interrupt latency and minimal thread
switching latency; a real-time OS is valued more for how quickly or how predictably it can respond than
for the amount of work it can perform in a given period of time.
software framework: abstraction in which software providing generic functionality can be selectively changed by
additional user-written code, thus providing application-specific software
NOTE 1: A software framework is a universal, reusable software environment that provides particular functionality
as part of a larger software platform to facilitate development of software applications, products and
solutions. Software frameworks may include support programs, compilers, code libraries, tool sets, and
application programming interfaces (APIs) that bring together all the different components to enable
development of a project or solution.
NOTE 2: Frameworks contain key distinguishing features that separate them from normal libraries:
Inversion of control: In a framework, unlike in libraries or normal user applications, the overall
program's flow of control is not dictated by the caller, but by the framework.
Default behaviour: A framework has a default behaviour. This default behaviour is some useful
behaviour and not a series of no-ops.
Extensibility: A framework can be extended by the user usually by selective overriding or
specialized by user code to provide specific functionality.
Non-modifiable framework code: The framework code, in general, is not supposed to be modified,
while accepting user-implemented extensions. In other words, users can extend the framework, but
should not modify its code.
3.2 Abbreviations
For the purposes of the present document, the abbreviations given in ETSI GS NFV 003 [1] and the following apply.
API Application Programming Interface
Encrypt/Decrypt Encryption and Decryption

Encap/Decap Encapsulation and Decapsulation
EPD Extensible Para-virtualised Device
IRQ Interrupt ReQuest
NAT Network Address Translation
NUMA Non Uniform Memory Access
NIC Network Interface Card
RAM Random Access Memory
SA Security Association
SPD Security Policy Database
UML Unified Modelling Language
ETSI

---------------------- Page: 8 ----------------------
9 ETSI GS NFV-IFA 002 V2.1.1 (2016-03)
VA Virtual Accelerator
VNI VXLAN Network Identifier
VTEP VXLAN Tunnel End Point
VXLAN Virtual eXtensible Local Area Network
4 Overview
4.1 Problem Statement
4.1.1 VNF Acceleration goals
The goals of the present document are:
• to identify common design patterns that enable an executable VNFC to leverage, at runtime, accelerators to
meet their performance objectives;
• to describe how a VNF Provider might leverage those accelerators in an implementation independent way; and
• to define methods in which all aspects of the VNF (VNFC, VNFD, etc.) could be made independent from
accelerator implementations.
VNF providers have to mitigate two goals:
• VNFs might have constraints to perform their function within certain power consumption boundaries, CPU
core count, PCI express slot usage and with good price/performance ratio; and
• VNFs should accommodate most if not all deployment possibilities.
Use of accelerators can help meet the constraints but can have an influence on deployment flexibility. VNF acceleration
implementations will range from inflexible software that is tightly-coupled to specific software and hardware in the
VNF and NFVI (see pass-through model as shown in figure 4.1.1-1), to highly flexible loosely-coupled software that
uses common abstractions and interfaces (see abstracted model as shown in figure 4.1.1-2). Further it is understood that
virtualisation and acceleration technologies will evolve. Pass-through deployments are expected to exist, and the present
document does not intend to preclude any specific acceleration architectures from NFV deployments. However, the
focus of the present document is to define and promote abstracted models.
It is desirable that the use of accelerators be implementation independent. There is a slight difference between
"implementation independent executable VNFC" and "implementation independent VNF":
• An implementation independent executable VNFC is a software that can leverage a known set of accelerator
implementations both in hardware and in software. The part of the VNFD that applies to this VNFC contains
information elements that allow the NFV management and orchestration to find a compute node with the
requested characteristics or hardware. Should a new hardware become available on the market, a VNF
Provider willing to make use of it to accelerate a VNFC has to update it's the VNFC image and the VNFD, the
operator has to on-board the new VNF package and redeploy it to make use of the new hardware. This was
defined as the pass-through model in ETSI GS NFV-INF 003 [i.1], clause 7.2.2.
ETSI

---------------------- Page: 9 ----------------------
10 ETSI GS NFV-IFA 002 V2.1.1 (2016-03)

Figure 4.1.1-1: Pass-through model
• An implementation independent VNF is a VNF that makes no assumption whatsoever on the underlying
NFVI. Its VNFD does not contain any accelerator specific information elements. Should a new hardware
become available on the market, the operator will update its NFVI to allow the VNF to make use of the new
hardware. An implementation independent VNF is thus based on implementation independent VNF software
that makes use of a functional abstraction of an accelerator supported by an adaptation layer in the NFVI. This
model is close to the abstracted model defined in ETSI GS NFV-INF 003 [i.1], clause 7.2.2.

Figure 4.1.1-2: Abstracted model
NOTE 1: An implementation independent executable VNFC allows for VNF deployment in both hypervisor based
and non-hypervisor based environments. The latter configuration is outside the scope of the present
document.
Live migration of such hardware independent accelerated VNF may be possible if any associated acceleration state
information required can also be migrated.
NOTE 2: Live migration from a compute node with accelerator to a compute node without accelerator or with a
different accelerator is allowed (in particular to cope with emergency response situations).
ETSI

---------------------- Page: 10 ----------------------
11 ETSI GS NFV-IFA 002 V2.1.1 (2016-03)
A further refinement of the aforementioned goals is to make sure that VNFs can leverage those accelerators regardless
of:
• the diversity of VNF software execution environments:
- Operating Systems (Windows
...
