ETSI TS 122 125 V17.7.0 (2024-05)

5G; Unmanned Aerial System (UAS) support in 3GPP (3GPP TS 22.125 version 17.7.0 Release 17)

RTS/TSGS-0122125vh70

General Information

• Status: Not Published
• Technical Committee: 3GPP SA 1 - Services
• Current Stage: 12 - Citation in the OJ (auto-insert)
• Completion Date: 07-May-2024

Standards Content (Sample)

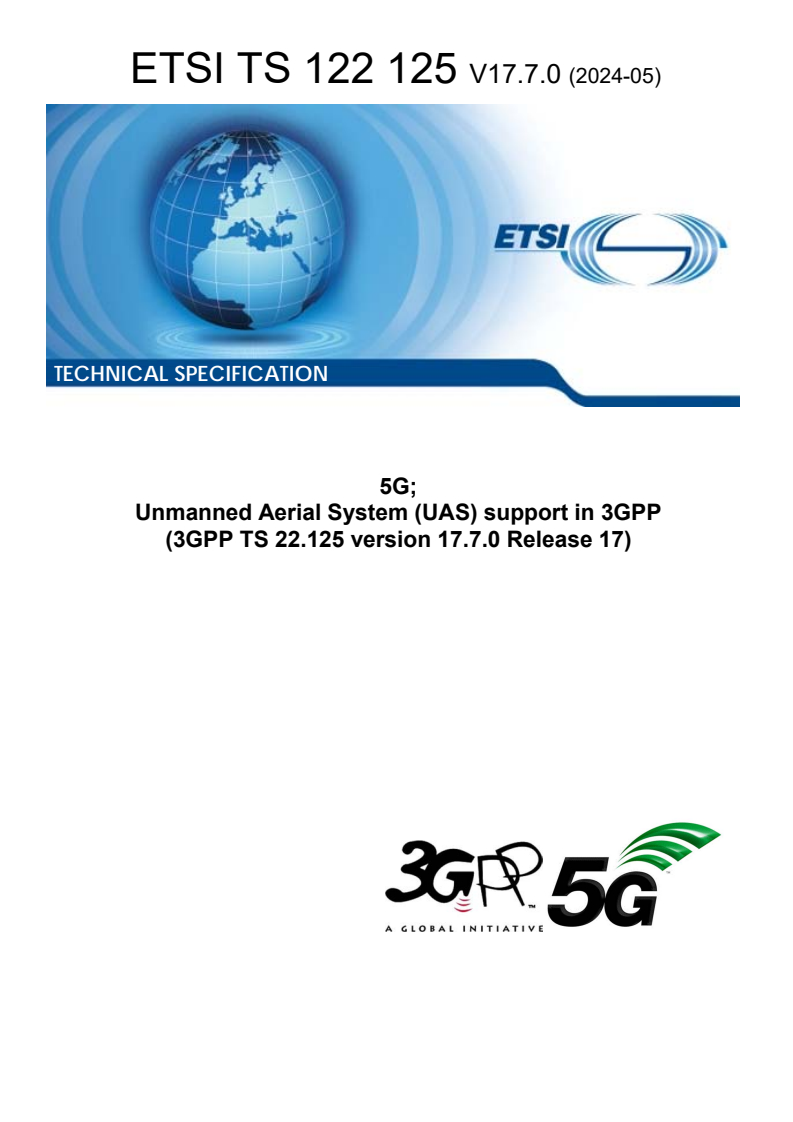

TECHNICAL SPECIFICATION
5G;
Unmanned Aerial System (UAS) support in 3GPP
(3GPP TS 22.125 version 17.7.0 Release 17)

3GPP TS 22.125 version 17.7.0 Release 17 1 ETSI TS 122 125 V17.7.0 (2024-05)

Reference
RTS/TSGS-0122125vh70
Keywords
5G
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871

Important notice
The present document can be downloaded from:
https://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
If you find a security vulnerability in the present document, please report it through our
Coordinated Vulnerability Disclosure Program:
https://www.etsi.org/standards/coordinated-vulnerability-disclosure
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
No representation or warranty is made that this deliverable is technically accurate or sufficient or conforms to any law
rule and/or regulation and further, no representation or warranty is made of merchantability or fitness
and/or governmental
for any particular purpose or against infringement of intellectual property rights.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2024.
All rights reserved.
ETSI
3GPP TS 22.125 version 17.7.0 Release 17 2 ETSI TS 122 125 V17.7.0 (2024-05)

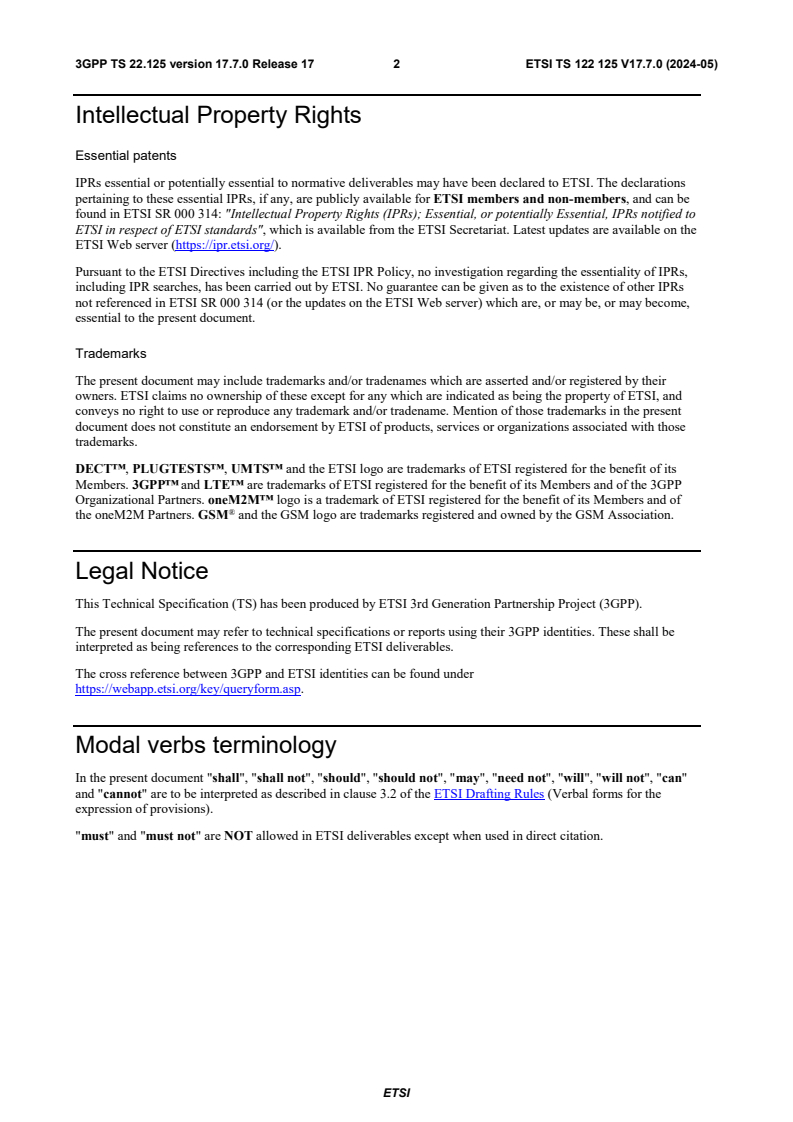

Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs
not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their
owners. ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and
conveys no right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present
document does not constitute an endorsement by ETSI of products, services or organizations associated with those
trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its

Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of ®
the oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Legal Notice
This Technical Specification (TS) has been produced by ETSI 3rd Generation Partnership Project (3GPP).
The present document may refer to technical specifications or reports using their 3GPP identities. These shall be
interpreted as being references to the corresponding ETSI deliverables.
The cross reference between 3GPP and ETSI identities can be found under
https://webapp.etsi.org/key/queryform.asp.
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can"
and "cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the
expression of provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
ETSI
3GPP TS 22.125 version 17.7.0 Release 17 3 ETSI TS 122 125 V17.7.0 (2024-05)
Contents
Intellectual Property Rights . 2
Legal Notice . 2
Modal verbs terminology . 2
Foreword . 4
Introduction . 4
1 Scope . 5
2 References . 5
3 Definitions, symbols and abbreviations . 5
3.1 Definitions . 5
3.2 Symbols . 6
3.3 Abbreviations . 6
4 Overview on UAS . 6
4.1 General . 6
4.2 C2 Communication. 6
5 Requirements for Remote Identification of UAS . 7
5.1 General . 7
5.2 UAS traffic management . 9
5.2.1 General . 9
5.2.2 Decentralized UAS traffic management . 9
5.3 Void . 10
5.4 Security . 10
6 Requirements for UAV usages . 10
6.1 General . 10
6.2 Network exposure for UAV services. 10
6.3 Service restriction for UEs onboard of UAV . 10
6.5 C2 communication . 10
7 Performance requirements . 11
7.1 KPIs for services provided to the UAV applications . 11
7.2 KPIs for UAV command and control . 12
7.3 Positioning performance requirements . 14
7.4 Other requirements . 14
Annex A (informative): UAS Reference Model . 15
A.1 UAS Reference Model in 3GPP ecosystem. 15
Annex B (informative): Change history . 16
History . 17

ETSI
3GPP TS 22.125 version 17.7.0 Release 17 4 ETSI TS 122 125 V17.7.0 (2024-05)
Foreword
This Technical Specification has been produced by the 3rd Generation Partnership Project (3GPP).
The contents of the present document are subject to continuing work within the TSG and may change following
formal TSG approval. Should the TSG modify the contents of the present document, it will be re-released by the
TSG with an identifying change of release date and an increase in version number as follows:
Version x.y.z
where:
x the first digit:
1 presented to TSG for information;
2 presented to TSG for approval;
3 or greater indicates TSG approved document under change control.
y the second digit is incremented for all changes of substance, i.e. technical enhancements, corrections,
updates, etc.
z the third digit is incremented when editorial only changes have been incorporated in the document.

Introduction
Interest in using cellular connectivity to support Uncrewed Aerial Systems (UAS) is strong, and the 3GPP
ecosystem offers excellent benefits for UAS operation. Ubiquitous coverage, high reliability and QoS, robust
security, and seamless mobility are critical factors to supporting UAS command and control functions. In parallel,
regulators are investigating safety and performance standards and Registration and licensing programs to develop a
well-functioning private and civil UAS ecosystem which can safely coexist with commercial air traffic, public and
private infrastructure, and the general population.
The 3GPP system can provide control plane and user plane communication services for UAS. Examples of services
which can be offered to the UAS ecosystem includes data services for command and control (C2), telematics, UAS-
generated data, remote identification, and authorisation, enforcement, and regulation of UAS operation.
ETSI
3GPP TS 22.125 version 17.7.0 Release 17 5 ETSI TS 122 125 V17.7.0 (2024-05)
1 Scope
The present document identifies the requirements for operation of Uncrewed Aerial Vehicles (UAVs) via the 3GPP
system.
This includes requirements for meeting the business, security, and public safety needs for the remote identification
and tracking of UAS linked to a 3GPP subscription.
2 References
The following documents contain provisions which, through reference in this text, constitute provisions of the
present document.
- References are either specific (identified by date of publication, edition number, version number, etc.) or
non-specific.
- For a specific reference, subsequent revisions do not apply.
- For a non-specific reference, the latest version applies. In the case of a reference to a 3GPP document
(including a GSM document), a non-specific reference implicitly refers to the latest version of that document
in the same Release as the present document.
[1] 3GPP TR 21.905: "Vocabulary for 3GPP Specifications".
[2] FAA UTM Concept of Operations v1.0, Foundational Principles, Roles and Responsibilities,
Use Cases and Operational Threads https://utm.arc.nasa.gov/docs/2018-UTM-ConOps-
v1.0.pdf
[3] FAA Remote Identification, https://www.faa.gov/uas/research_development/remote_id/
[4] 3GPP TS 22.261: "Service requirements for the 5G system; Stage 1".
[5]     IMT 2020(5G): "Application for UAV in 5G White Paper", September 2018
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the terms and definitions given in 3GPP TR 21.905 [1] and the following
apply. A term defined in the present document takes precedence over the definition of the same term, if any, in
3GPP TR 21.905 [1].
Above ground level (AGL): In the context of a UAV it is the UAV altitude referenced to ground level in the
vicinity.
Command and Control (C2) Communication: the user plane link to convey messages with information of
command and control for UAV operation between a UAV controller and a UAV.
Uncrewed Aerial System (UAS): Composed of Uncrewed Aerial Vehicle (UAV) and related functionality,
including command and control (C2) links between the UAV and the controller, the UAV and the network, and for
remote identification. A UAS is comprised of a UAV and a UAV controller.
NOTE: A UAV can be controlled by different UAV controllers, but at any given time, a UAV is under the
control of only one UAV controller. The mechanisms to ensure which UAV controller is active and
controlling the UAV is out of scope of 3GPP.
Uncrewed Aerial System Traffic Management (UTM): a set of functions and services for managing a range of
autonomous vehicle operations.
ETSI
3GPP TS 22.125 version 17.7.0 Release 17 6 ETSI TS 122 125 V17.7.0 (2024-05)
UAV controller: The UAV controller of a UAS enables a drone pilot to control an UAV.
UxNB: radio access node on-board UAV. It is a radio access node providing connectivity to UEs, which is carried in
the air by an Uncrewed Aerial Vehicle (UAV).
3.2 Symbols
For the purposes of the present document, the following symbols apply:
3.3 Abbreviations
For the purposes of the present document, the abbreviations given in 3GPP TR 21.905 [1] and the following apply.
An abbreviation defined in the present document takes precedence over the definition of the same abbreviation, if
any, in 3GPP TR 21.905 [1].
BVLOS Beyond Visual Line of Sight
C2 Command and Control
Remote ID Remote Identification [3]
UAS Uncrewed Aerial System
UAV Uncrewed Aerial Vehicle
UTM Uncrewed Aerial System Traffic Management [2]
4 Overview on UAS
4.1 General
An Uncrewed Aerial System (UAS) is the combination of an Uncrewed Aerial Vehicle (UAV), sometimes called a
drone, and a UAV controller. A UAV is an aircraft without a human pilot onboard – instead, in some cases. the
UAV can be controlled from an operator via a UAV controller and will have a range of autonomous flight
capabilities. The communication system between the UAV and UAV controller is, within the scope of this
specification and in some scenarios, provided by the 3GPP system. The UAS model considers also the scenario
where the UAV controller communicates with the UAV via mechanisms outside the scope of 3GPP.
UAVs range in size and weight from small, light aircraft often used for recreational purposes to large, heavy aircraft
which are often more suited to commercial applications. Regulatory requirements vary across this range and vary on
a regional basis.
The communication requirements for UAS cover both the Command and Control (C2), and uplink and downlink
data to/from the UAS components towards both the serving 3GPP network and network servers. The applicable C2
communication modes is depicted in clause 4.2.
Uncrewed Aerial System Traffic Management (UTM) is used to provide a number of services to support UAS and
their operations including but not limited to UAS identification and tracking, authorisation, enforcement, regulation
of UAS operations, and also to store the data required for UAS(s) to operate. It also allows authorised users (e.g., air
traffic control, public safety agencies) to query the identity and metadata of a UAV and its UAV controller.
4.2 C2 Communication
When using 3GPP network as the transport network for supporting UAS services, the following C2 communication
are considered to provision UAS services by guaranteeing QoS for the C2 communication:
Direct C2 communication: the UAV controller and UAV establish a direct C2 link to communicate with each other
and both are registered to the 5G network using the radio resource configured and scheduled provided by the 5G
network for direct C2 communication.
Network-Assisted C2 communication: the UAV controller and UAV register and establish respective unicast C2
communication links to the 5G network and communicate with each other via 5G network. Also, both the UAV
ETSI
3GPP TS 22.125 version 17.7.0 Release 17 7 ETSI TS 122 125 V17.7.0 (2024-05)
controller and UAV may be registered to the 5G network via different NG-RAN nodes. The 5G network needs to
support mechanism to handle the reliable routing of C2 communication.
UTM-Navigated C2 communication: the UAV has been provided a pre-scheduled flight plan, e.g. array of 4D
polygons, for autonomous flying, however UTM still maintains a C2 communication link with the UAV in order to
regularly monitor the flight status of the UAV, verify the flight status with up-to-date dynamic restrictions, provide
route updates, and navigate the UAV whenever necessary.
In general, Direct C2 communication and Network-Assisted C2 communication are used by a human-operator using
a UAV controller. UTM-Navigated C2 communication is used by the UTM to provide cleared flying routes and
routes updates. In order to ensure the service availability and reliability of the C2 communication for UAS
operation, especially when the UAV is flying beyond line of sight (BLOS) of the operator, redundant C2
communication links can be established for any C2 communication links from UAV controller or UTM to a UAV.
For reliability and service availability consideration, it is possible to activate more than one C2 communication with
one as a backup link for C2 communication or switch among the applicable links for C2 communication.
- For example, Direct C2 communication can be used at first and then switch to the Network-Assisted C2
communication when the UAV is flying BLOS.
- For example, UTM-navigated C2 communication can be utilized whenever needed, e.g. for air traffic control,
the UAV is approaching a No Drone Zone, and detected potential security threats, etc.
There are four control modes considered in the C2 communication for the UAV operation that are with different
requirements, e.g. on message intervals, sizes, and end to end latencies, etc., including steer to waypoints, direct
stick steering, automatic flight by UTM and approaching autonomous navigation infrastructure.
- Steer to waypoints: the control message contains flight declaration, e.g. waypoints, sent from the UAV
controller or UTM to the UAV. The control mode is used in both of direct C2 communication and network-
assisted C2 communication.
- Direct stick steering: the control message contains direction instructions sending from the UAV controller to
the UAV while optionally video traffic is provided as feedback from the UAV to the UAV controller. The
control mode is used in both of direct C2 communication and network-assisted C2 communication.
- Automatic flight by UTM: the control message contains a pre-scheduled flight plan, e.g. array of 4D
polygons, sent from the UTM to the UAV, which thereafter flies autonomously with periodic position
reporting. The control mode is used in UTM-Navigated C2 communication.
- Approaching autonomous navigation infrastructure: the control message contains direction instructions, e.g.
waypoints, altitudes and speeds from the UTM to the UAV. When the UAV is landing/departing, the UTM
coordinates more closely with autonomous navigation infrastructure, e.g. vertiport or package distribution
center. The control mode is used in UTM-Navigated C2 communication.
5 Requirements for Remote Identification of UAS
5.1 General
[R-5.1-001] The 3GPP system should enable UTM to associate the UAV and UAV controller, and the UTM to
identify them as a UAS.
[R-5.1-002] The 3GPP system shall be able to provide UTM with the identity/identities of a UAS.
[R-5.1-003] The 3GPP system shall
...
