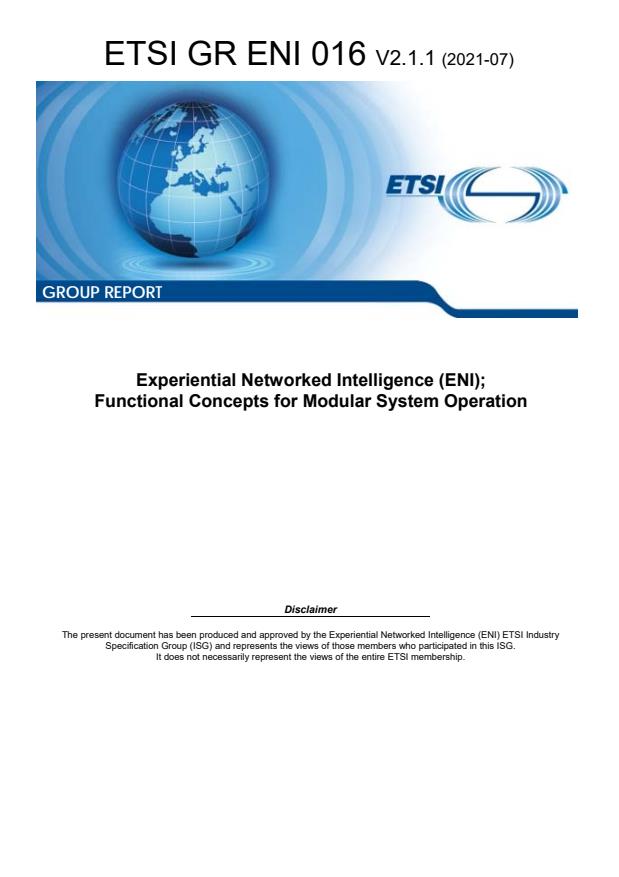

GROUP REPORT
Experiential Networked Intelligence (ENI);
Functional Concepts for Modular System Operation
Disclaimer
The present document has been produced and approved by the Experiential Networked Intelligence (ENI) ETSI Industry
Specification Group (ISG) and represents the views of those members who participated in this ISG.
It does not necessarily represent the views of the entire ETSI membership.
2 ETSI GR ENI 016 V2.1.1 (2021-07)
Reference
DGR/ENI-0026_Funct_Concept_MSO
Keywords
architecture, functional, software
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871
Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
No representation or warranty is made that this deliverable is technically accurate or sufficient or conforms to any law
and/or governmental rule and/or regulation and further, no representation or warranty is made of merchantability or fitness
for any particular purpose or against infringement of intellectual property rights.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.
Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.
© ETSI 2021.
All rights reserved.
ETSI
3 ETSI GR ENI 016 V2.1.1 (2021-07)

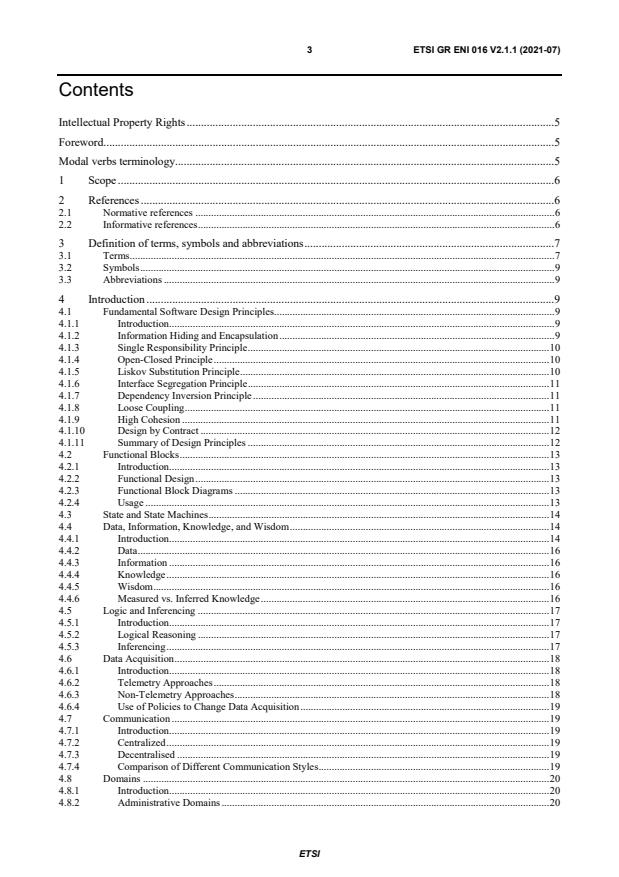

Contents
Intellectual Property Rights . 5
Foreword . 5
Modal verbs terminology . 5
1 Scope . 6
2 References . 6
2.1 Normative references . 6
2.2 Informative references . 6
3 Definition of terms, symbols and abbreviations . 7
3.1 Terms . 7
3.2 Symbols . 9
3.3 Abbreviations . 9
4 Introduction . 9
4.1 Fundamental Software Design Principles . 9
4.1.1 Introduction. 9
4.1.2 Information Hiding and Encapsulation . 9
4.1.3 Single Responsibility Principle . 10
4.1.4 Open-Closed Principle . 10
4.1.5 Liskov Substitution Principle . 10
4.1.6 Interface Segregation Principle . 11
4.1.7 Dependency Inversion Principle . 11
4.1.8 Loose Coupling . 11
4.1.9 High Cohesion . 11
4.1.10 Design by Contract . 12
4.1.11 Summary of Design Principles . 12
4.2 Functional Blocks . 13
4.2.1 Introduction. 13
4.2.2 Functional Design . 13
4.2.3 Functional Block Diagrams . 13
4.2.4 Usage . 13
4.3 State and State Machines . 14
4.4 Data, Information, Knowledge, and Wisdom . 14
4.4.1 Introduction. 14
4.4.2 Data . 16
4.4.3 Information . 16
4.4.4 Knowledge . 16
4.4.5 Wisdom . 16
4.4.6 Measured vs. Inferred Knowledge . 16
4.5 Logic and Inferencing . 17
4.5.1 Introduction. 17
4.5.2 Logical Reasoning . 17
4.5.3 Inferencing . 17
4.6 Data Acquisition . 18
4.6.1 Introduction. 18
4.6.2 Telemetry Approaches . 18
4.6.3 Non-Telemetry Approaches . 18
4.6.4 Use of Policies to Change Data Acquisition . 19
4.7 Communication . 19
4.7.1 Introduction. 19
4.7.2 Centralized . 19
4.7.3 Decentralised . 19
4.7.4 Comparison of Different Communication Styles . 19
4.8 Domains . 20
4.8.1 Introduction. 20
4.8.2 Administrative Domains . 20
ETSI
4 ETSI GR ENI 016 V2.1.1 (2021-07)
4.8.3 Management Domains . 20
4.8.4 Domain Organization . 20
4.8.4.1 Centralized . 20
4.8.4.2 Hierarchical . 20
4.8.4.3 Distributed . 21
4.8.4.4 Federated . 22
4.8.5 Management Domains and Policy Management. 22
4.9 Publish-Subscribe Messaging Systems . 22
4.9.1 Introduction. 22
4.9.2 Subscription Models . 23
4.9.3 The ENI Semantic Bus . 23
5 Summary and Recommendations . 24
History . 25
ETSI
5 ETSI GR ENI 016 V2.1.1 (2021-07)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its
Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the ®
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Foreword
This Group Report (GR) has been produced by ETSI Industry Specification Group (ISG) Experiential Networked
Intelligence (ENI).
Modal verbs terminology
In the present document "should", "should not", "may", "need not", "will", "will not", "can" and "cannot" are to be
interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
ETSI
6 ETSI GR ENI 016 V2.1.1 (2021-07)
1 Scope
The purpose of the present document is to provide information on software design principles for constructing modular
systems to be applied to the ENI reference system architecture (and any other applicable ETSI reports or standards).
This will cover common concepts such as Functional Block design, state machines, cognition, inferencing, along with
communication between different domains.
2 References
2.1 Normative references
Normative references are not applicable in the present document.
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI GS ENI 005 (V2.1.1): "Experiential Networked Intelligence (ENI); System Architecture".
[i.2] Gamma, E., Helm, R. Johnson, R., Vlissides, J.: "Design Patterns: Elements of Reusable
Object-Oriented Software", Addison-Wesley, Nov, 1994. ISBN 978-0201633610.
[i.3] Martin, R. C.: "Agile Software Development, Principles, Patterns, and Practices", Prentice Hall,
2003 ISBN 978-0135974445.
[i.4] Rowley, J.: "The wisdom hierarchy: representations of the DIKW hierarchy", Journal of
Information and Communication Science, 33(2): pp. 163-180.
nd
[i.5] Meyer, B.: "Object-Oriented Software Construction", Prentice Hall PTR, 2 edition
ISBN 0-13-629155-4.
[i.6] Liskov, B.H. and Wing, J.M.: "Behavioral Notion of Subtyping", ACM Transactions on
Programming Languages and Systems, November, 1994.
[i.7] Eugster, P. Th., Felber, P.A., Guerraoui, R., and Kermarrec, A.M.: "The Many Faces of
Publish/Subscribe", ACM Computing Surveys, Vol. 35, No. 2, June 2003, pp. 114-131.
[i.8] Leymann, F.: "Loose Coupling and Architectural Implications", ESOCC 2016 keynote.
[i.9] Ingeno, J.: "Software Architect's Handbook", Packt Publishing, pg. 175, 2018.
ISBN 178862406-8.
[i.10] ETSI GR ENI 018 (V1.1.1): "Artificial Intelligence Mechanisms Introduction to Artificial
Intelligence Mechanisms for Modular Systems".
[i.11] The SysML profile is defined at: https://www.omgsysml.org/.
[i.12] Boyd, J. R.: "The Essence of Winning and Losing", June, 1995.
[i.13] Strassner, J., Agoulmine, N., Lehtihet, E.: "FOCALE - A Novel Autonomic Networking
Architecture", ITSSA Journal 3(1), pp. 64-79, 2007.
[i.14] MEF 95: "MEF Policy Driven Orchestration:, J. Strassner, editor, April 2021.
ETSI
7 ETSI GR ENI 016 V2.1.1 (2021-07)
[i.15] MEF 78.1: "MEF Technical Specification: MEF Core Model", Strassner, J., editor, July 2020.
NOTE: Available at https://www.mef.net/resources/mef-78-1-mef-core-model-mcm/.
3 Definition of terms, symbols and abbreviations
3.1 Terms
For the purposes of the present document, the terms defined in ETSI GS ENI 005 [i.1] and the following apply:
abstraction: hiding of unnecessary details to focus on data and information that is relevant for defining a particular
concept or process
architecture: set of rules and methods that describe the functionality, organization, and implementation of a system
• software architecture: high-level structure and organization of a software-based system. this includes the
objects, their properties and methods, and relationships between objects
axiom: statement that is assumed to be true, in order to serve as a starting point for further reasoning
capability: type of metadata that represents a set of features that are available to be used from a managed entity
cognition: process of understanding data and information and producing new data, information, and knowledge
context: collection of measured and inferred knowledge that describe the environment in which an entity exists or has
existed
design pattern: general, reusable solution in a given context to a commonly occurring software problem
NOTE: This type of design pattern is not an architecture and not even a finished design; rather, it describes how
to build the elements of a solution that commonly occurs. It may be thought of as a reusable template.
domain: collection of Entities that share a common purpose
NOTE 1: Each constituent Entity in a Domain is both uniquely addressable and uniquely identifiable within that
Domain. This is based on the definition of an MCMDomain in [i.15].
• administrative domain: Domain that employs a set of common administrative processes to manage the
behaviour of its constituent Entities. This is based on the definition in [i.15].
• management domain: Domain that uses a set of common Policies to govern its constituent Entities
NOTE 2: A Management Domain refines the notion of a Domain by adding three important behavioral features:
1) it defines a set of administrators that govern the set of Entities that it contains;
2) it defines a set of applications that are responsible for different governance operations, such as
monitoring, configuration, and so forth;
3) it defines a common set of management mechanisms, such as policy rules, that are used to govern
the behavior of MCMManagedEntities contained in the MCMManagementDomain. This is based
on the definition of an MCMDomain in [i.15].
entity: object in the environment being managed that has a set of unique characteristics and behaviour
NOTE: Objects are represented by classes in an information model.
formal: study of (typically linguistic) meaning of an object by constructing formal mathematical models of that object
and its attributes and relationships
functional architecture: model of the architecture that defines the major functions of each module, and how each
module interacts with each other
ETSI
8 ETSI GR ENI 016 V2.1.1 (2021-07)
functional block: abstraction that defines a black box structural representation of the capabilities and functionality of a
component or module, and its relationships with other functional blocks
graph: collection of nodes, where some subset of the nodes is connected
NOTE: Visually, a node is a "point" and a connection is a "line", called an "edge". For the purposes of ENI, any
graph may be directed, weighted, or both.
knowledge: analysis of data and information, resulting in an understanding of what the data and information mean
NOTE: Knowledge represents a set of patterns that are used to explain, as well as predict, what has happened, is
happening, or is possible to happen in the future; it is based on acquisition of data, information, and skills
through experience and education.
• inferred knowledge: knowledge that was created based on reasoning, using evidence provided
• measured knowledge: knowledge that has resulted from the analysis of data and information that was
measured or reported
• propositional knowledge: knowledge of a proposition, along with a set of conditions that are individually
necessary and jointly sufficient to prove (or disprove) the proposition
learning: process that acquires new knowledge and/or updates existing knowledge to optimize a function using sample
observations
logic: formal or informal language that evaluates a conclusion based on a set of premises
• first-order logic: extension of propositional logic to include predicates and quantification
• modal logic: representing, using mathematical formalisms, expressions involving necessity and possibility
• propositional logic: manipulation of a set of propositions, possibly with logical connectives, to prove or
disprove a conclusion
NOTE: Propositional logic does not deal with logical relationships and properties that involve the parts of a
statement smaller than the statement itself. It also called sentential logic, zeroth-order logic, and
propositional (or sentential) calculus.
model: representation of the entities of a system, including their relationships and dependencies, using an established
set of rules and concepts
• information model: representation of concepts of interest to an environment in a form that is independent of
data repository, data definition language, query language, implementation language, and protocol
NOTE: This definition is taken from [i.15].
ontology (for ENI): language, consisting of a vocabulary and a set of primitives, that enable the semantic
characteristics of a domain to be modelled
policy: set of rules that is used to manage and control the changing and/or maintaining of the state of one or more
managed objects
NOTE: This is defined in [i.13] and [i.14].
repository: centralized location of a set of storage devices that enable different functional blocks to store and retrieve
information
• active repository: repository that pre- and/or post-processes information that is stored or retrieved
NOTE: It may contain dedicated (typically internal) Reference Points that provide the loading, activation,
deactivation, and unloading of specialized functions that change the pre- and/or post-processing
functionality according to the needs of the application.
• passive repository: repository that stores or retrieves information without pre- or post-processing
semantics: study of the meaning of something (e.g. a sentence or a relationship in a model)
ETSI
9 ETSI GR ENI 016 V2.1.1 (2021-07)
situation: set of circumstances and conditions at a given time that may influence decision-making
telemetry: automated process of recording and transmitting data to receiving equipment for monitoring purposes
NOTE: The process is typically automated, and the data transfer may include wireless, cellular, optical, and other
mechanisms.
theorem: set of statements that has been mathematically proven to be true, based on a set of axioms and/or (previously
proven) theorems
3.2 Symbols
Void.
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AD Access Device
AG Aggregation Device
API Application Programming Interface
CR Core Router
DIKW Data-Information-Knowledge-Wisdom
IP Internet Protocol
OODA Observe-Orient-Decide-Act
OWL Web Ontology Language
4 Introduction
4.1 Fundamental Software Design Principles
4.1.1 Introduction
The purpose of the clauses below is to describe some key software architecture principles that were used in the design
of the ENI System Architecture document. Each of these principles is based on designing modular software components
and systems, and can be used for general purposes. In each of the following, the term "unit" means class, component, or
module.
4.1.2 Information Hiding and Encapsulation
Information hiding is a design principle that states that if one unit does not need to know how another unit works, then it
does not need do so. This ensures that each unit can be developed independently. This principle applies to classes,
components, and modules (hereafter referred to as "units").
Put another way, information hiding mandates loose coupling (see clause 4.1.8). If there is a possibility that the
functionality of the unit will change, then that unit needs to be separated from other units.
Encapsulation is not the same as information hiding. Encapsulation is an implementation mechanism that defines the
boundaries of a unit. For example, a class is a collection of attributes and methods that are part of a single object. Put
another way, encapsulation prevents the direct access to a unit's implementation details by a client.
Continuing the example of a class, it hides information by hiding implementation detail, and it encapsulates the object
by combing code and data. Information hiding prevents clients of the class from knowing too much about the details of
the class, and reduces coupling (see clause 4.1.8). Encapsulation prevents clients from accessing the implementation of
the class, and increases cohesion (see clause 4.1.9).
ETSI
10 ETSI GR ENI 016 V2.1.1 (2021-07)
4.1.3 Single Responsibility Principle
The original definition of this principle comes from [i.3], and is stated as follows:
A class needs to have only one reason to change.
In this definition, "reason to change" is what the unit is designed to do. This does not mean that a unit consists of one
attribute or method; rather, it means that the set of all attributes and methods in a unit are related to a single
responsibility. In practical terms, this means that different functions that have different purposes (e.g. analysis and
printing data), and therefore, need to be split into separate units. This also increases the readability, testability, and
maintenance of the unit.
4.1.4 Open-Closed Principle
This was first defined in [i.5] as follows:
"Software entities (classes, modules, functions, etc.) need to be open for extension, but closed for modification."
This principle is best illustrated by an example. Consider the action of writing to an entity, such as a disk file. This
principle states that the write action can apply to any device (e.g. a printer or a screen, which makes it open for
extension) without having to change the implementation to be device-specific (which makes it closed for modification).
Note that this can be implemented in two different ways: via inheritance and via interfaces. The problem with using
inheritance is that subclasses are tightly coupled to their superclasses if they depend on the implementation details of
their superclasses. In contrast, interfaces introduce an additional level of abstraction, which enables loose coupling.
Interfaces can be changed without effecting the implementation that uses them. Furthermore, the interfaces of a unit are
independent of each other. The most common way to do this effectively is to use composition.
4.1.5 Liskov Substitution Principle
This was first defined in [i.6] as follows:
"If an object X is a subclass of an object Y, then objects of type Y may be replaced with objects of type S without
altering the behaviour of the program".
This principle is also called (strong) behavioural subtyping, because it guarantees semantic interoperability between
object types in a system. This is often enforced using Design by Contract (see clause 4.1.11). In particular, Liskov
Substitution requires the following restrictions to be true when a subclass is substituted for its superclass:
• Pre-conditions cannot be strengthened in the subclass (see clause 4.1.11).
• Post-conditions cannot be weakened in the subclass (see clause 4.1.11).
• Invariants are preserved in the subclass (see clause 4.1.11).
• New exceptions cannot be generated by methods in the subclass unless they are subtypes of exceptions that are
generated by methods of the superclass.
• Method return types in the subclass are preserved (e.g. the return type of the subclass is a subtype of the return
type of the superclass).
Method parameter types in the subclass is reversed (e.g. the parameter types of the superclass are subtypes of the
parameter types of the subclass).
Liskov substitution provides more robust and modular unit designs.
ETSI
11 ETSI GR ENI 016 V2.1.1 (2021-07)
4.1.6 Interface Segregation Principle
This was first defined in [i.3] as follows:
"Clients have a duty to not be forced to depend upon interfaces that they do not use".
In other words, instead of having a small number of interfaces that have multiple responsibilities, a modular unit
designed using this principle will have a large number of client-specific interfaces, where each client-specific interface
has a single responsibility. Separate clients need separate interfaces. This increases the cohesion between the interfaces
of a given unit.
The goal of this design principle is to reduce side effects caused by changing a unit's implementation. It is similar to the
Single Responsibility Principle (see clause 4.1.3), in that by splitting software into multiple independent parts, it enables
each part to evolve independently. For example, if unit A depends on unit B at compile time, but not at run time, then
changes to unit B will force unit A to change. This is especially important for statically typed languages, like Java, C++,
and C#. The Adaptor software pattern [i.2] is an example of a design pattern that can be used to support interface
segregation.
4.1.7 Dependency Inversion Principle
This principle is based on the Open-Closed Principle and the Liskov Substitution Principle (see clauses 4.1.3 and 4.1.4,
respectively), and was defined in [i.3]. It enables higher-level units to be loosely coupled to any lower-level units that
depend on them. Specifically, the principle states:
High-level modules have a duty to not depend on low-level modules. Both have a duty to depend on abstractions
(e.g. interfaces).
Abstractions have a duty to not depend on details. Details (concrete implementations) have a duty to depend on
abstractions.
The essence of this principle is that both high-level and low-level modules depend on the abstraction. Put another way,
this principle splits the dependency between the high-level and low-level modules by introducing an abstraction
between them.
High-level modules, which provide complex logic, have a duty to be easily reusable and unaffected by changes in low-
level modules, which provide utility features. To achieve that, an abstraction that decouples the high-level and low-level
modules from each other is required. For example, if this principle is not followed, then high-level business logic will
depend on low-level implementation details.
4.1.8 Loose Coupling
Coupling [i.8] refers to how inextricably linked different aspects of an application are. High coupling needs to be
avoided between units, because this forces the evolution of each unit to depend on each other. In contrast, low coupling
ought to be used whenever possible, as this enables each unit to evolve independently. This also enables each unit to be
more easily reused, since it has fewer dependencies to encumber its usage. Hence, units in a loosely coupled system
may be replaced with different implementations that provide the same services.
The concept of loose coupling may be applied to classes, interfaces, services, and data. The Enterprise Service Bus, and
more specifically, ENI's Semantic Bus, are designed to promote loose coupling.
Loose coupling is typically achieved in APIs by using standard datatypes in parameters, and ensuring that a standard
format is used in communication between units.
Loose coupling is associated with high cohesion, and vice versa.
4.1.9 High Cohesion
Cohesion [i.9] refers to how closely related the contents of a particular unit are. It answers the question "do these
elements inside a unit belong together". It can be thought of as a measure of how well the elements of a unit serve the
purpose of a unit.
ETSI
12 ETSI GR ENI 016 V2.1.1 (2021-07)
Cohesion is increased if:
• the elements of a unit are abstracted and serve the same purpose
• each method performs as few activities that are strongly related as possible
• each method avoids using unrelated data
High cohesion provides:
• increased reusability, because the responsibility of the unit more closely matches its attributes and operations
• increased robustness, due to reduced complexity of each unit
• increased system maintainability and understandability, because:
- changes in a system affect fewer units
- changes in one unit require fewer changes in other units
High cohesion is associated with loose coupling, and vice versa.
4.1.10 Design by Contract
Design by Contract [i.5] states that every software component should have a formal interface specification that can be
verified and tested. Its simplest form consists of the following five principles:
1) Pre-condition is an assertion that is always true prior to the execution of an operation
2) Post-condition is an assertion that is always true after the execution of an operation
3) Invariant is an assertion that is always true during the execution of an operation
4) Acceptable values and types for inputs and outputs (i.e. return types)
5) Definition of side effects, errors and exceptions that can occur as a result of an operation
Regarding subclasses:
• Pre-conditions cannot be strengthened in a subclass
• Post-conditions cannot be weakened in a subclass
• Invariants are preserved in the subclass
Design by Contract has been incorporated into multiple software programming languages, and enables interfaces to
have formal semantics defined. This ensures that interfaces between different units can interact and exchange
information that preserves their semantics.
4.1.11 Summary of Design Principles
Table 1 summarizes each of the nine design principles explained in the previous clauses.
Table 1: Software Design Principle Summary
Design Principle Clause Explanation
Different classes, components, and modules can be developed
Information Hiding 4.1.2
independently and do not have to know how other software entities work.
Prevents the direct access of the implementation details of a software
Encapsulation
4.1.2
entity.
Single Responsibility
4.1.3 A class only has one responsibility, and hence, one reason to change.
Principle
Software entities can be extended for other similar uses without having to
Open-Closed Principle 4.1.4
change its implementation.
ETSI
13 ETSI GR ENI 016 V2.1.1 (2021-07)
Design Principle Clause Explanation
Liskov Substitution Subclasses can be substituted for superclasses without affecting the
4.1.5
Principle behaviour of the system.
Clients do not depend on interfaces that they do not use (i.e. it is better to
Interface Segregation
4.1.6 have more client-specific interfaces that a lesser number of generic
Principle
interfaces).
High-level modules do not depend on low-level modules.
Dependency Inversion Modules depend on abstractions.
4.1.7
Principle
Abstractions do not depend on implementation details.
Implementation details depend on abstractions.
Each element of a loosely coupled system depends on as little knowledge
Loose Coupling 4.1.8
as possible of other elements (preferably none).
Each element of a highly cohesive system work together to achieve the
High Cohesion 4.1.9 same purpose, and do not depend on data or information that is not
required for their task.
Software entities should be designed using formal specifications that use
Design By Contract 4.1.10 pre- and post-conditions, as well as invariants, to specify the behaviour of
the entity.
4.2 Functional Blocks
4.2.1 Introduction
A Functional Block is a system and software engineering abstraction that defines a black box structural representation
of the capabilities and functionality of a component or module. A Functional Architecture is a model of the architecture
that defines the major functions of each module, and how each module interacts with each other. A Functional
Architecture therefore describes how the functions performed by the Functional Blocks operate together to achieve the
goals of the system.
4.2.2 Functional Design
Functional design uses Functional Blocks to decompose the functionality of a system into a set of sub-functions. Each
Functional Block corresponds to a distinct task performed by the system. This is a recursive process that continues until
a level of abstraction is achieved where it does not make sense to continue the decomposition process.
This approach enables the inputs and outputs to each Functional Block to be specified via a transfer function without
specifying the implementation details of a Functional Block. Functional design enables hierarchies of Functional Blocks
to be specified to represent the decomposition of functions into sub-functions.
4.2.3 Functional Block Diagrams
Functional Block diagrams are optionally used to pictorially represent the flow of information and control between
Functional Blocks and their relationships. SysML [i.11] is proposed for specifying Functional Blocks, as it is able to
unambiguously represent different types of control flow; SysML is able to precisely specify the semantics and
behaviour of a Functional Block.
4.2.4 Usage
A Functional Block is an abstraction of the characteristics and behaviour of a portion of a system. A Functional Block is
completely self-contained; this means that it is free of side-effects. This further implies that a Functional Block does not
rely on global variables, I/O, or system-wide communication paths.
A Functional Block is a modular unit that describes a portion of a system. It defines a collection of features to describe
an element of interest. The specific kinds of Functional Blocks, the kinds of connections between them, and the way
these elements combine to define the total system is defined according to the goals of a particular system model.
Functional Blocks interact by one or more means, such as software operations, discrete state transitions, flows of inputs
and outputs, or continuous interactions.
If the inputs and outputs of a Functional Block are externally visible, they are defined as External Reference Points.
ETSI
14 ETSI GR ENI 016 V2.1.1 (2021-07)
A Functional Block optionally contains other Functional Blocks; in addition, it communicates with and asks services of
different Functional Blocks.
A Functional Block is formally a a type of managed entity. Capabilities can be defined for Functional Blocks as well. A
Capability provides information about the functionality of a managed entity that enables management entities to decide
whether that managed entity is useful for a given task.
4.3 State and State Machines
The efficacy of the ENI System depends on the amount of state information available to it. In order for the ENI System
to make a decision based on end-to-end goals, it is proposed that the ENI System possesses knowledge of the current
state and the current goals of the systems that it is providing recommendations and/or management decisions to. Hence,
state information is focused on the state of the Assisted System and its environment, but optionally also includes the
state of affected Functional Blocks in the ENI System. For a large, complex system, it is unlikely that the ENI System
knows the state of all elements of the Assisted System. This is because of the number of dynamically changing system
elements, as well as the relatively high cost of communication. The level of compliance to ENI, as determined also by
the support level for the ENI Reference Points and their proposed grouping, defined herewith, determines the
functionality and optimizations provided by the ENI System. This is why the ENI System is based on a cognition
framework; this framework allows the ENI System to dynamically adjust its knowledge, and infer new knowledge, as
required. Such knowledge typically affects, or is reflected in, state. For example, new knowledge can direct the chang
...
