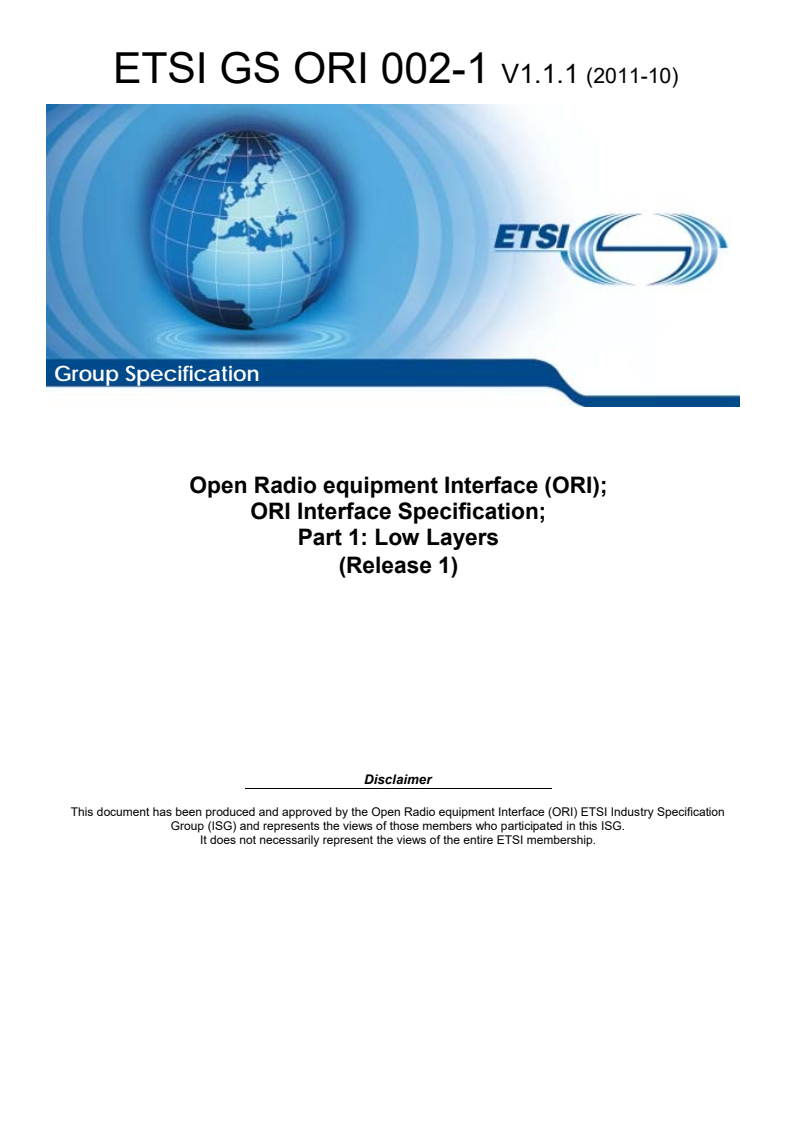

ETSI GS ORI 002-1 V1.1.1 (2011-10)

Open Radio equipment Interface (ORI); ORI Interface Specification; Part 1: Low Layers (Release 1)

DGS/ORI-0002-1

General Information

• Status: Published
• Publication Date: 03-Oct-2011
• Technical Committee: ORI - Open Radio equipment Interface
• Current Stage: 12 - Completion
• Due Date: 31-Oct-2011
• Completion Date: 04-Oct-2011

Standards Content (Sample)

Group Specification
Open Radio equipment Interface (ORI);
ORI Interface Specification;
Part 1: Low Layers
(Release 1)
Disclaimer
This document has been produced and approved by the Open Radio equipment Interface (ORI) ETSI Industry Specification
Group (ISG) and represents the views of those members who participated in this ISG.
It does not necessarily represent the views of the entire ETSI membership.

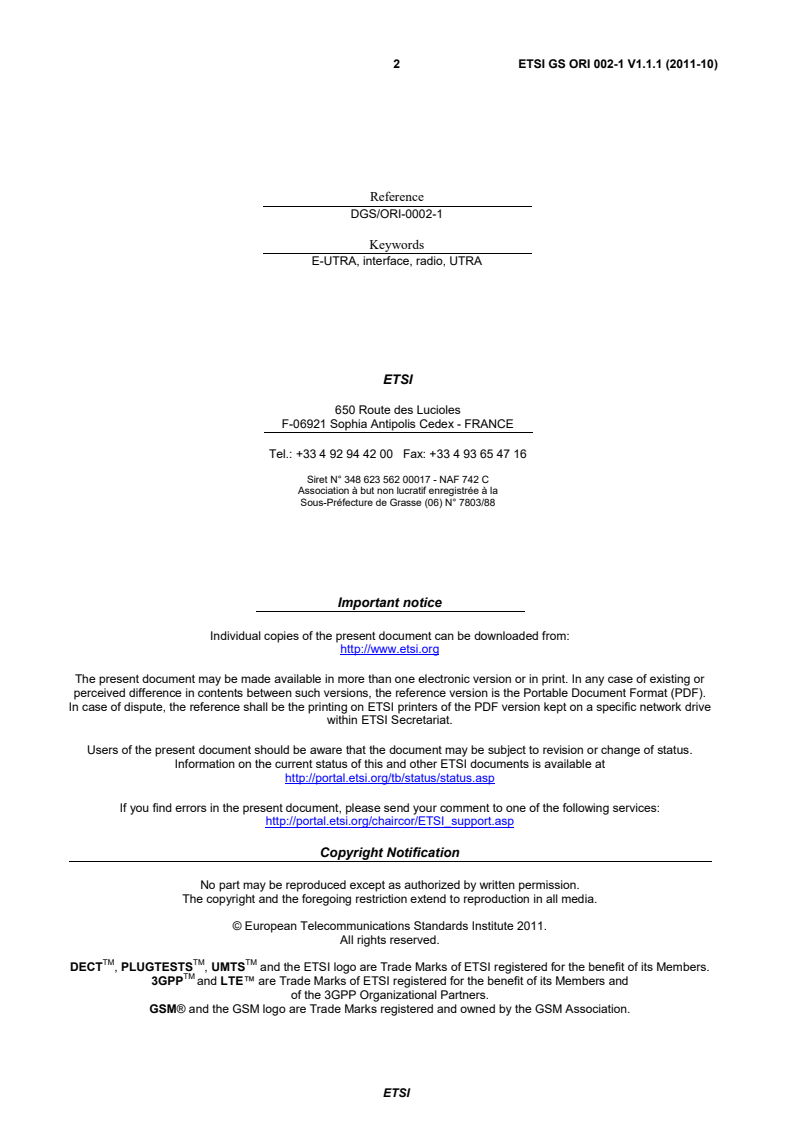

2 ETSI GS ORI 002-1 V1.1.1 (2011-10)

Reference
DGS/ORI-0002-1
Keywords
E-UTRA, interface, radio, UTRA
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2011.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 ETSI GS ORI 002-1 V1.1.1 (2011-10)
Contents
Intellectual Property Rights . 4
Foreword . 4
1 Scope . 5
2 References . 5
2.1 Normative references . 5
2.2 Informative references . 6
3 Definitions, symbols and abbreviations . 6
3.1 Definitions . 6
3.2 Symbols . 6
3.3 Abbreviations . 7
4 ORI Low Layers specification compliance . 7
5 Layer 1 configuration . 7
5.1 General . 7
5.2 Optical interface . 8
5.3 Electrical interface . 8
6 Control plane . 9
6.1 Mapping to CPRI protocol structure . 9
6.2 C&M resource allocation . 9
6.3 ORI reserved area . 10
6.3.1 PORT_ID . 10
6.3.2 UTRA RTWP measurement report . 11
6.4 ORI low layer reset. 12
6.5 Data link layer for Fast C&M channel . 12
7 User plane . 13
7.1 Mapping and format of IQ data . 13
7.1.1 E-UTRA . 13
7.1.2 UTRA-FDD . 13
7.1.3 E-UTRA and UTRA-FDD combined . 14
8 ORI start-up sequence . 14
8.1 General . 14
8.2 Optical interface . 14
8.3 CPRI Transition 6 in ORI . 15
8.4 Layer 1 start-up timer value . 15
8.5 CPRI State B duration in ORI . 15
Annex A (informative): Example for topology detection based on PORT_ID . 16
History . 17

ETSI
4 ETSI GS ORI 002-1 V1.1.1 (2011-10)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://ipr.etsi.org).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Group Specification (GS) has been produced by ETSI Industry Specification (ISG) Open Radio equipment
Interface (ORI).
The present document is part 1 of a multi-part deliverable covering the ORI Interface Specification, as identified below:
Part 1: "Low Layers (Release 1)";
Part 2: "Control and Management (Release 1)".
ETSI
5 ETSI GS ORI 002-1 V1.1.1 (2011-10)
1 Scope
The present document defines low layer protocols aspects of the Open Radio equipment Interface (ORI). Low layer
protocols are those terminating the ORI Link (a bi-directional interface in-between two directly-connected ORI ports,
on two ORI nodes).
The Layer 1/2 protocols of CPRI Specification [1] have been used as a baseline for which further requirements for
protocols up to and including the Layer 2 have been defined.
See the associated specification "Requirements for Open Radio equipment Interface" [2] for more information on how
the Low Layer protocols relate to other aspects of the ORI interface.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] "Common Public Radio Interface (CPRI); Interface Specification V4.1 (2009-02-18)".
NOTE: Available at http://www.cpri.info/spec.html.
[2] ETSI GS ORI 001: "Open Radio equipment Interface (ORI); Requirements for Open Radio
equipment Interface (ORI); (Release 1)".
[3] SFF INF-8074i: "SFP (Small Formfactor Pluggable) 1 Gbs Transceiver", Revision 1.0, May 12,
2001".
NOTE: Available at http://www.sffcommittee.com.
[4] SFF SFF-8431: "SFP+", Revision 4.1, 6th of July 2009".
NOTE: Available at http://www.sffcommittee.com.
[5] ETSI TS 125 104: "Universal Mobile Telecommunications System (UMTS); Base Station (BS)
radio transmission and reception (FDD) (3GPP TS 25.104)".
[6] ETSI TS 125 215: "Universal Mobile Telecommunications System (UMTS); Physical layer;
Measurements (FDD) (3GPP TS 25.215)".
[7] ETSI TS 125 133: "Universal Mobile Telecommunications System (UMTS); Requirements for
support of radio resource management (FDD) (3GPP TS 25.133)".
[8] ETSI TS 136 104: "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA); Base Station
(BS) radio transmission and reception (3GPP TS 36.104)".
ETSI
6 ETSI GS ORI 002-1 V1.1.1 (2011-10)
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI GS ORI 002-2: "Open Radio Equipment Interface (ORI); ORI Interface Specification;
Part 2: Control and Management (Release 1)".
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the terms and definitions given in GS ORI 001 [2] and the following apply:
NOTE: For any terms used in the present document that are not defined either here or directly in the clause in
which they are used, refer to CPRI specification [1].
Active link: See clause 3.1 in [2].
Antenna Carrier (AxC): See section 2.1 in [1].
AxC container: See section 2.1 in [1].
AxC container block: See section 2.1 in [1].
AxC group: See section 2.1 in [1].
Master Port: See section 2.1 in [1].
ORI Port: See clause 3.1 in [2].
ORI-specific negotiation: subset of negotiations between master port and slave port that are defined in section 4.5.3.5
of [1] to be "vendor-specific", but for which behaviour is explicitly defined within the ORI specification
ORI vendor-specific negotiation: subset of negotiations between master port and slave port that are defined in
section 4.5.3.5 of [1] to be "vendor-specific", and not defined within the ORI specification to be "ORI-specific
negotiations"
Passive Link: See clause 3.1 of [2].
RE antenna port: for Rx and Tx antenna ports, this corresponds to the Tx and Rx BS antenna connector as defined as
Test Port A in [5] for UTRA-FDD, and [8] for E-UTRA
Slave Port: See section 2.1 in [1].
Stuffing bits: See section 2.1 in [1].
Stuffing samples: See section 2.1 in [1].
Subchannel: See section 4.2.7.4 in [1].
Uplink Automatic Gain Control (UL AGC): function that controls the gain of the RE UL signal path of an UTRA UL
AxC with the target to keep the RMS level of the UL IQ signal at the ORI port at a target value (see clause 7.1.2)
3.2 Symbols
For the purposes of the present document, the following symbols apply:
AxC Antenna-carrier
V Target RMS level
RMS
ETSI
7 ETSI GS ORI 002-1 V1.1.1 (2011-10)
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
rd
3GPP 3 Generation partner Project
AGC Automatic Gain Control
BS Base Station
C&M Control and Management
CPRI Common Public Radio Interface
dec Decimal
DL DownLink
E-UTRA Evolved UMTS Terrestrial Radio Access
FDD Frequency Division Duplex
HFN Hyper-Frame Number
IQ In-phase data and Quadrature data
L1 Layer 1
L2 Layer 2
LSB Least Significant Bit
MAC Media Access Control
MSB Most Significant Bit
ORI Open Radio equipment Interface
RE Radio Equipment
REC Radio Equipment Control
RMS Root Mean Square
RTWP Received Total Wideband Power
Rx Receiver
SFP Small Form-factor Pluggable
Tx Transmitter
UL UpLink
UTRA UMTS Terrestrial Radio Access
4 ORI Low Layers specification compliance
The RE/REC compliant to the ORI Low Layers specification shall:
- be fully compliant to CPRI Specification, as defined in section 5.2 of [1];
- support mandatory requirements defined within ORI that are defined as options within CPRI Specification;
- support mandatory requirements defined within ORI that do not refer to functionality in CPRI Specifications.
5 Layer 1 configuration
5.1 General
Requirements for the L1 characteristics are defined below. For each of the defined characteristics, the level of support
shall be declared for each port of the RE/REC.
Line bit rate
At least one of the CPRI line bit rate options specified in [1], section 4.2.1 shall be supported by the RE and REC, with
the exception of 614,4 Mbit/s line bit rate.
ETSI
8 ETSI GS ORI 002-1 V1.1.1 (2011-10)
Physical Interface
At least one of the following interfaces shall be supported:
- Optical interface parameters defined in clause 5.2.
- Electrical interface parameters defined in clause 5.3.
5.2 Optical interface
Connector type
At least one of the following connector types shall be supported by the RE and REC: LC-type, SC-type.
Simplex/Duplex operation mode
At least one of the following operation modes shall be supported by the RE and REC: Simplex (one fibre per direction),
Duplex (one fibre for both transmission and reception).
Optical Fiber Type
The ORI recommendation for optical cabling follows section 4.2.4.1. of [1].
Wave length
The wave lengths to be supported by RE and REC are not specified.
Optical output power
Optical output power to be supported by RE and REC is not specified.
Sensitivity
The optical sensitivity to be supported by RE and REC is not specified.
Signal condition capabilities
The maximum fibre length and attenuation to be supported by RE and REC are not specified.
5.3 Electrical interface
Electrical Connector type
At least one of the following connector types shall be supported by the RE and REC:
- SFP [3], SFP+ [4], those defined in section 4.2.3.2 of the CPRI Specification [1].
Electrical Cable Type
The Electrical Cable Type for the ORI link follows section 4.2.3.1 in the CPRI Specification [1].
Electrical Interface Characteristics
No specific Electrical Interface Characteristics are specified by ORI. It is recommended to follow section 6.2 of the
CPRI Specification [1].
ETSI
