ETSI TS 103 457 V1.2.1 (2023-03)






TECHNICAL SPECIFICATION
CYBER;
Trusted Cross-Domain Interface:
Interface to offload sensitive functions to a trusted domain

---------------------- Page: 1 ----------------------
2 ETSI TS 103 457 V1.2.1 (2023-03)

Reference
RTS/CYBER-0088
Keywords
cybersecurity, interface
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
If you find a security vulnerability in the present document, please report it through our
Coordinated Vulnerability Disclosure Program:
https://www.etsi.org/standards/coordinated-vulnerability-disclosure
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
No representation or warranty is made that this deliverable is technically accurate or sufficient or conforms to any law
and/or governmental rule and/or regulation and further, no representation or warranty is made of merchantability or fitness
for any particular purpose or against infringement of intellectual property rights.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2023.
All rights reserved.

ETSI

---------------------- Page: 2 ----------------------
3 ETSI TS 103 457 V1.2.1 (2023-03)

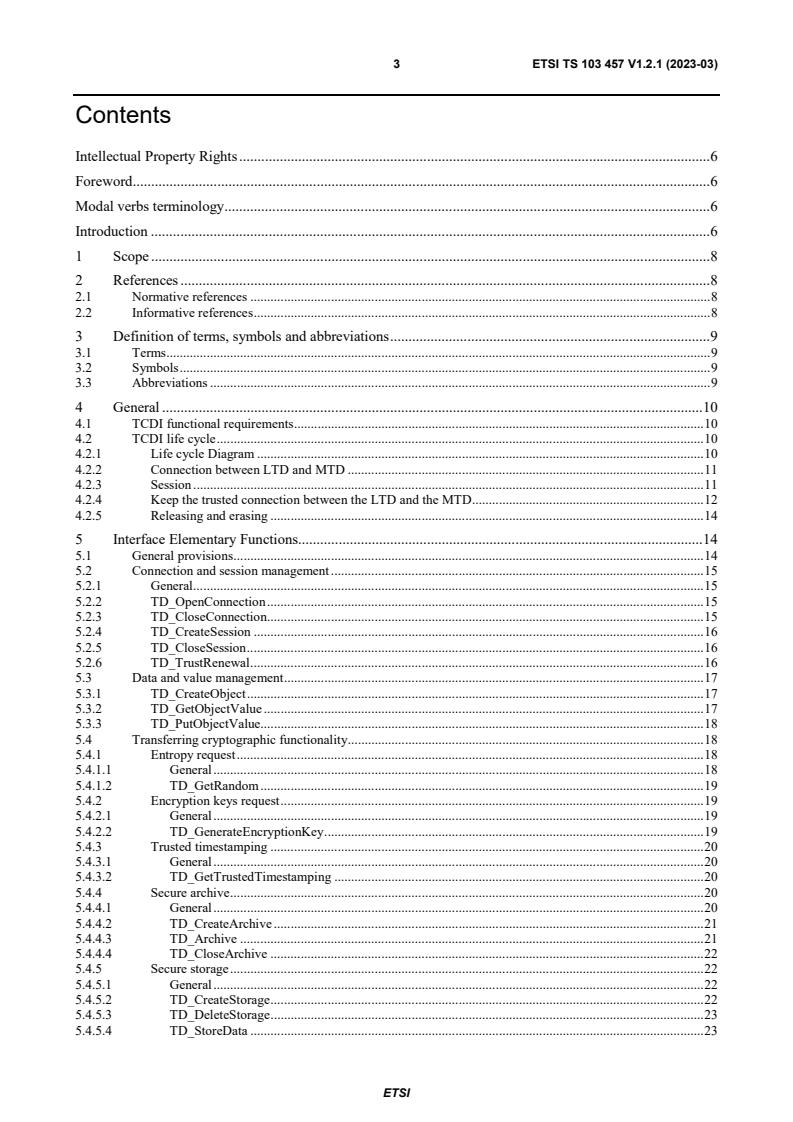

Contents
Intellectual Property Rights . 6
Foreword . 6
Modal verbs terminology . 6
Introduction . 6
1 Scope . 8
2 References . 8
2.1 Normative references . 8
2.2 Informative references . 8
3 Definition of terms, symbols and abbreviations . 9
3.1 Terms . 9
3.2 Symbols . 9
3.3 Abbreviations . 9
4 General . 10
4.1 TCDI functional requirements . 10
4.2 TCDI life cycle . 10
4.2.1 Life cycle Diagram . 10
4.2.2 Connection between LTD and MTD . 11
4.2.3 Session . 11
4.2.4 Keep the trusted connection between the LTD and the MTD . 12
4.2.5 Releasing and erasing . 14
5 Interface Elementary Functions . 14
5.1 General provisions . 14
5.2 Connection and session management . 15
5.2.1 General . 15
5.2.2 TD_OpenConnection . 15
5.2.3 TD_CloseConnection. 15
5.2.4 TD_CreateSession . 16
5.2.5 TD_CloseSession . 16
5.2.6 TD_TrustRenewal . 16
5.3 Data and value management . 17
5.3.1 TD_CreateObject . 17
5.3.2 TD_GetObjectValue . 17
5.3.3 TD_PutObjectValue. 18
5.4 Transferring cryptographic functionality . 18
5.4.1 Entropy request . 18
5.4.1.1 General . 18
5.4.1.2 TD_GetRandom . 19
5.4.2 Encryption keys request . 19
5.4.2.1 General . 19
5.4.2.2 TD_GenerateEncryptionKey . 19
5.4.3 Trusted timestamping . 20
5.4.3.1 General . 20
5.4.3.2 TD_GetTrustedTimestamping . 20
5.4.4 Secure archive . 20
5.4.4.1 General . 20
5.4.4.2 TD_CreateArchive . 21
5.4.4.3 TD_Archive . 21
5.4.4.4 TD_CloseArchive . 22
5.4.5 Secure storage . 22
5.4.5.1 General . 22
5.4.5.2 TD_CreateStorage . 22
5.4.5.3 TD_DeleteStorage . 23
5.4.5.4 TD_StoreData . 23
ETSI

---------------------- Page: 3 ----------------------
4 ETSI TS 103 457 V1.2.1 (2023-03)
5.4.5.5 TD_GetStorageValue . 24
5.6 Search capabilities . 24
5.6.1 Container search . 24
5.6.1.1 General . 24
5.6.1.2 TD_GetStorage . 25
5.6.1.3 TD_Search . 25
6 Encoding . 26
6.1 Message identifiers . 26
6.2 Type (TTLV) codes . 27
6.3 Tag (TTLV) codes . 27
6.4 Status Codes . 28
Annex A (informative): Use Cases . 30
A.1 Entropy request scenario . 30
A.1.1 Description . 30
A.1.2 Example . 30
A.2 Encrypted Virtual Machine use case (including LTD execution environment check) . 31
A.2.1 Description . 31
A.2.2 Example . 32
A.2.2.1 Introduction. 32
A.2.2.2 Successful case . 32
A.2.2.3 Failure case . 33
A.3 Secure archive use case . 33
A.3.1 Description . 33
A.3.2 Example . 34
A.4 Secure query use case . 36
A.4.1 Description . 36
A.4.2 Example . 36
A.5 Secure Storage use case . 37
A.5.1 Description . 37
A.5.2 Example . 38
A.6 Authentication use case . 40
A.6.1 Description . 40
A.6.2 Example . 40
A.7 Lawful intercept use case . 41
A.7.1 Description . 41
A.7.2 Example . 41
A.8 NFV sec use case . 42
A.8.1 Description . 42
A.8.2 Example . 43
Annex B (informative): Guidelines . 45
B.1 Implementation guidelines . 45
B.1.1 Global architecture . 45
B.1.2 Connection management . 45
B.1.3 Void . 45
B.2 Good practice . 45
B.3 TTLV encoding examples . 46
B.3.1 GetRandom. 46
B.3.2 StoreData . 46
Annex C (informative): Bibliography . 47
Annex D (informative): Example implementation and demonstrator . 48
ETSI

---------------------- Page: 4 ----------------------
5 ETSI TS 103 457 V1.2.1 (2023-03)
History . 49


ETSI

---------------------- Page: 5 ----------------------
6 ETSI TS 103 457 V1.2.1 (2023-03)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its

Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the
®
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Foreword
This Technical Specification (TS) has been produced by ETSI Technical Committee Cyber Security (CYBER).
An example implementation and demonstrator is available in Annex D.
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
Introduction
Deploying hosted sensitive functions in modern virtualized IT infrastructure is still a concern and a major issue.
The main threats are malicious administrators operating the IT infrastructure including: network, storage and host
platform facilities and virtualization management. These threats and related issues are thoroughly discussed in ETSI
TR 103 308 [i.1].
ETSI Industry Specification Group NFV SEC is in charge of defining a secured standard architecture. Proprietary
solutions providing trusted security for virtualized environments have started emerging.
These new envisioned architectures add security components at the hosting platform level and into centralized services
in charge of security management. The key concept is Hardware Root of Trust to get strong guarantees on the integrity
of the deployed elements. These architectures offer secured managed infrastructures that enable deployment, live
migration of encrypted VMs.
ETSI

---------------------- Page: 6 ----------------------
7 ETSI TS 103 457 V1.2.1 (2023-03)
In addition to these works, the present document proposes a new interoperable interface that should help building
sensitive services with trust.
This interface applies in the setting where two trust domains (see ETSI GS NFV-SEC 013 [i.4] for details) are defined:
• The More Trusted Domain (MTD) contains resources (network, storage, processing) where sensitive functions
can be offloaded.
• The Less Trusted Domain (LTD) contains resources that can be managed without the risk of compromising
sensitive information, since these functionalities are offloaded to the MTD.
This Trusted Cross-Domain interface includes a set of basic functions called by the LTD entity but performed securely
within the MTD. This set of basic functions enables the LTD entity to build more complex services.

ETSI

---------------------- Page: 7 ----------------------
8 ETSI TS 103 457 V1.2.1 (2023-03)
1 Scope
The present document specifies a high-level service-oriented interface, as an application layer with a set of mandatory
functions, to access secured services provided by, and executed in a More Trusted Domain. The transport layer is out of
scope and left to the architecture implementation.
This interface is not considered as a replacement of the already existing technologies (such as PKCS#11, KMIP, etc.)
but rather operating on top of these.
2 References
2.1 Normative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
https://docbox.etsi.org/Reference/.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
Not applicable.
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI TR 103 308: "CYBER; Security baseline regarding LI and RD for NFV and related
platforms".
[i.2] ETSI GR NFV-SEC 011: "Network Functions Virtualisation (NFV); Security; Report on NFV LI
Architecture".
[i.3] Wikipedia definition of Type-Length-Value.
[i.4] ETSI GS NFV-SEC 013: "Network Functions Virtualisation (NFV) Release 3; Security ; Security
Management and Monitoring specification".
ETSI

---------------------- Page: 8 ----------------------
9 ETSI TS 103 457 V1.2.1 (2023-03)
3 Definition of terms, symbols and abbreviations
3.1 Terms
For the purposes of the present document, the following terms apply:
domain: set of domain services
trusted cross domain interface: domain service with a set of dedicated domain interface functions for communication
between domain services of different domains (inter-domain communication)
trusted cross domain interface function: function of a domain interface which is implemented by a domain service of
another domain in order to realize inter-domain communication
trusted cross domain object: data generated by a domain service
trusted cross domain service: service with a set of dedicated domain service functions for communication with other
domain services of the same domain (intra-domain communication)
trusted cross domain service function: function of a domain service which is implemented by the same or another
domain service in order to realize intra-domain communication
trusted cross secured domain interface: domain interface offering access to secured domain services
3.2 Symbols
Void.
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AC Access Control
AES Advanced Encryption Standard
CN Common Name
FIPS Federal Information Processing Standard
FW FireWall
HSM Hardware Security Module
IMSI International Mobile Subscriber Identity
IT Information Technology
KMIP Key Management Interoperability Protocol
LI Lawful Interception
LTD Less Trusted Domain
MF Mediation Function
MTD More Trusted Domain
NFV Network Function Virtualization
PKCS Public Key Cryptography Standards
PRNG Pseudo Random Number Generator
RNG Random Number Generator
RSA Rivest-Shamir-Adleman
SEC Security
TCDI Trusted Cross-Domain Interface
TCF Triggering Control Function
TCG Trusted Computing Group
TCO Trusted COntext
TLS Transport Layer Security
TPM Trusted Platform Module
TTLV Tag-Type-Length-Value encoding
UUID Universaly Unique IDentifier
ETSI

---------------------- Page: 9 ----------------------
10 ETSI TS 103 457 V1.2.1 (2023-03)
VM Virtual Machine
VMM Virtual Machine Manager
VNF Virtual Network Function
vPOI virtual Point Of Interception
4 General
4.1 TCDI functional requirements
TCDI provides services to the application layer. MTD implements, exposes and delivers the required services.
TCDI provides the following
...
