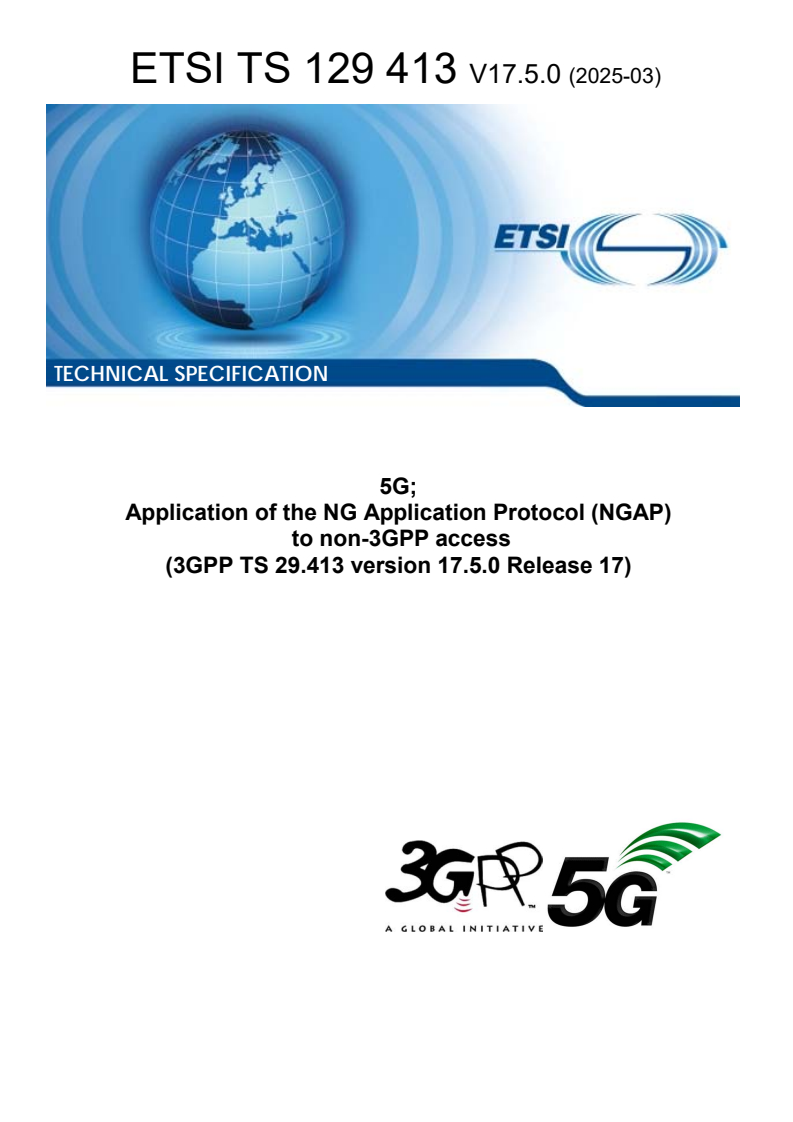

ETSI TS 129 413 V17.5.0 (2025-03)

5G; Application of the NG Application Protocol (NGAP) to non-3GPP access (3GPP TS 29.413 version 17.5.0 Release 17)

RTS/TSGR-0329413vh50

General Information

• Status: Not Published
• Technical Committee: 3GPP RAN 3 - lub specification, lur specification, lu specification and UTRAN & O&M
• Current Stage: 12 - Citation in the OJ (auto-insert)
• Completion Date: 27-Mar-2025

Standards Content (Sample)

TECHNICAL SPECIFICATION
5G;
Application of the NG Application Protocol (NGAP)
to non-3GPP access
(3GPP TS 29.413 version 17.5.0 Release 17)

3GPP TS 29.413 version 17.5.0 Release 17 1 ETSI TS 129 413 V17.5.0 (2025-03)

Reference
RTS/TSGR-0329413vh50
Keywords
5G
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871

Important notice
The present document can be downloaded from the
ETSI Search & Browse Standards application.
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format on ETSI deliver repository.
Users should be aware that the present document may be revised or have its status changed,
this information is available in the Milestones listing.
If you find errors in the present document, please send your comments to
the relevant service listed under Committee Support Staff.
If you find a security vulnerability in the present document, please report it through our
Coordinated Vulnerability Disclosure (CVD) program.
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
No representation or warranty is made that this deliverable is technically accurate or sufficient or conforms to any law
and/or governmental rule and/or regulation and further, no representation or warranty is made of merchantability or fitness
for any particular purpose or against infringement of intellectual property rights.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2025.
All rights reserved.
ETSI
3GPP TS 29.413 version 17.5.0 Release 17 2 ETSI TS 129 413 V17.5.0 (2025-03)

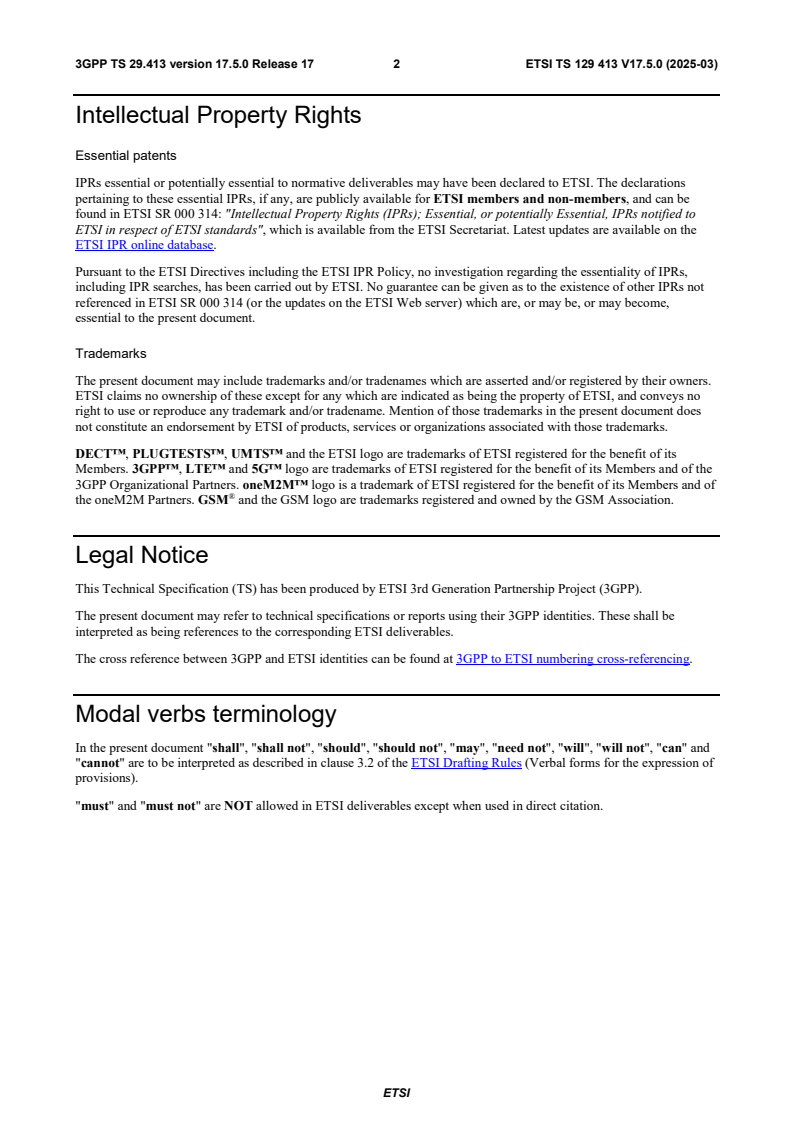

Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI IPR online database.
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its
Members. 3GPP™, LTE™ and 5G™ logo are trademarks of ETSI registered for the benefit of its Members and of the
3GPP Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of ®
the oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Legal Notice
This Technical Specification (TS) has been produced by ETSI 3rd Generation Partnership Project (3GPP).
The present document may refer to technical specifications or reports using their 3GPP identities. These shall be
interpreted as being references to the corresponding ETSI deliverables.
The cross reference between 3GPP and ETSI identities can be found at 3GPP to ETSI numbering cross-referencing.
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
ETSI
3GPP TS 29.413 version 17.5.0 Release 17 3 ETSI TS 129 413 V17.5.0 (2025-03)
Contents
Intellectual Property Rights . 2
Legal Notice . 2
Modal verbs terminology . 2
Foreword . 4
1 Scope . 5
2 References . 5
3 Abbreviations . 5
4 Principles for the use of NGAP for non-3GPP access . 5
4.1 General . 5
5 Non-3GPP access . 6
5.1 Use of the NGAP for non-3GPP access . 6
5.2 NGAP messages used for non-3GPP access . 7
5.3 Exceptions for NGAP message contents and information element coding when used for non-3GPP

access . 8
5.4 Handling of NGAP messages not specified to be applicable between the Non-3GPP access network
node and AMF . 13
Annex A (informative): Change history . 14
History . 15

ETSI
3GPP TS 29.413 version 17.5.0 Release 17 4 ETSI TS 129 413 V17.5.0 (2025-03)
Foreword
This Technical Specification has been produced by the 3rd Generation Partnership Project (3GPP).
The contents of the present document are subject to continuing work within the TSG and may change following formal
TSG approval. Should the TSG modify the contents of the present document, it will be re-released by the TSG with an
identifying change of release date and an increase in version number as follows:
Version x.y.z
where:
x the first digit:
1 presented to TSG for information;
2 presented to TSG for approval;
3 or greater indicates TSG approved document under change control.
y the second digit is incremented for all changes of substance, i.e. technical enhancements, corrections,
updates, etc.
z the third digit is incremented when editorial only changes have been incorporated in the document.
ETSI
3GPP TS 29.413 version 17.5.0 Release 17 5 ETSI TS 129 413 V17.5.0 (2025-03)
1 Scope
The present document describes the applicability of NG Application Protocol (NGAP) messages and procedures,
defined in 3GPP TS 38.413 [2], to non-3GPP access. A general description for non-3GPP access can be found in 3GPP
TS 23.501 [3], 3GPP TS 23.502 [4], and 3GPP TS 23.316 [6].
2 References
The following documents contain provisions which, through reference in this text, constitute provisions of the present
document.
- References are either specific (identified by date of publication, edition number, version number, etc.) or
non-specific.
- For a specific reference, subsequent revisions do not apply.
- For a non-specific reference, the latest version applies. In the case of a reference to a 3GPP document (including
a GSM document), a non-specific reference implicitly refers to the latest version of that document in the same
Release as the present document.
[1] 3GPP TR 21.905: "Vocabulary for 3GPP Specifications".
[2] 3GPP TS 38.413: "NG-RAN; NG Application Protocol (NGAP)".
[3] 3GPP TS 23.501: "System Architecture for the 5G System".
[4] 3GPP TS 23.502: "Procedures for the 5G System".
[5] 3GPP TS 33.501: "Security architecture and procedures for 5G system".
[6] 3GPP TS 23.316: "Wireless and wireline convergence access support for the 5G System (5GS)".
[7] 3GPP TS 24.502: "Access to the 3GPP 5G Core Network (5GCN) via Non-3GPP Access
Networks (N3AN)".
3 Abbreviations
For the purposes of the present document, the abbreviations given in 3GPP TR 21.905 [1] and the following apply. An
abbreviation defined in the present document takes precedence over the definition of the same abbreviation, if any, in
3GPP TR 21.905 [1].
5G-RG 5G Residential Gateway
FN-RG Fixed Network Residential Gateway
N3IWF Non-3GPP InterWorking Function
TNAP Trusted Non-3GPP Access Point
TNGF Trusted Non-3GPP Gateway Function
TWIF Trusted WLAN Interworking Function
W-AGF Wireline Access Gateway Function
4 Principles for the use of NGAP for non-3GPP access
4.1 General
TS 23.501 [3] specifies the NGAP used between the Non-3GPP access network node and the AMF. The Non-3GPP
access network node is either a Non-3GPP InterWorking Function (N3IWF), or a Trusted Non-3GPP Gateway Function
(TNGF), or a Trusted WLAN Interworking Function (TWIF), or a Wireline Access Gateway Function (W-AGF).
NGAP is used as specified in TS 38.413 [2] with clarifications or additions as specified in Clause 5.
ETSI
3GPP TS 29.413 version 17.5.0 Release 17 6 ETSI TS 129 413 V17.5.0 (2025-03)
5 Non-3GPP access
5.1 Use of the NGAP for non-3GPP access
The following NGAP procedures are used between the Non-3GPP access network node and the AMF:
- PDU Session Management Procedures
- PDU Session Resource Setup
- PDU Session Resource Release
- PDU Session Resource Modify
- PDU Session Resource Notify
- UE Context Management Procedures
- Initial Context Setup
- UE Context Release Request
- UE Context Release
- UE Context Modification
- Transport of NAS Messages Procedures
- Initial UE Message
- Downlink NAS Transport
- Uplink NAS Transport
- NAS Non Delivery Indication
- Reroute NAS Request
- Interface Management Procedures
- NG Setup
- RAN Configuration Update
- AMF Configuration Update
- NG Reset
- Error Indication
- AMF Status Indication
- Overload Start
- Overload Stop
- UE TNLA Binding Procedures
- UE TNLA Binding Release
The following NGAP procedures are used between the N3IWF node and the AMF:
- Trace Procedures
- Trace Start
ETSI
3GPP TS 29.413 version 17.5.0 Release 17 7 ETSI TS 129 413 V17.5.0 (2025-03)
- Trace Failure Indication
- Deactivate Trace
For the NGAP procedures used between the Non-3GPP access network node and the AMF, the Non-3GPP access
network node fulfils the behaviour of the NG-RAN node as specified in clause 8 of TS 38.413 [2], with clarifications as
specified in Clause 5.3. The text in clause 8 of TS 38.413 [2] referring to Uu should be understood as referring to the
Y2 reference point as specified in TS 23.501 [3].
5.2 NGAP messages used for non-3GPP access
The list given below shows the NGAP messages, as specified in TS 38.413 [2] subclause 9.2 (tabular format) and 9.4
(ASN.1 notation) that
...
